Smart-IR ZB2812IR User manual
ULTRA HIGH RESOLUTION TRUE DAY/NIGHT CAMERA
with SMART IR and 3D DNR
ZB2812IR
USER MANUAL
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
This installation should be made by a qualified service person and
should conform to all local codes.
CAUTION : To prevent electric shock and risk of fire hazards:
ōDo NOT use power sources other than those specified.

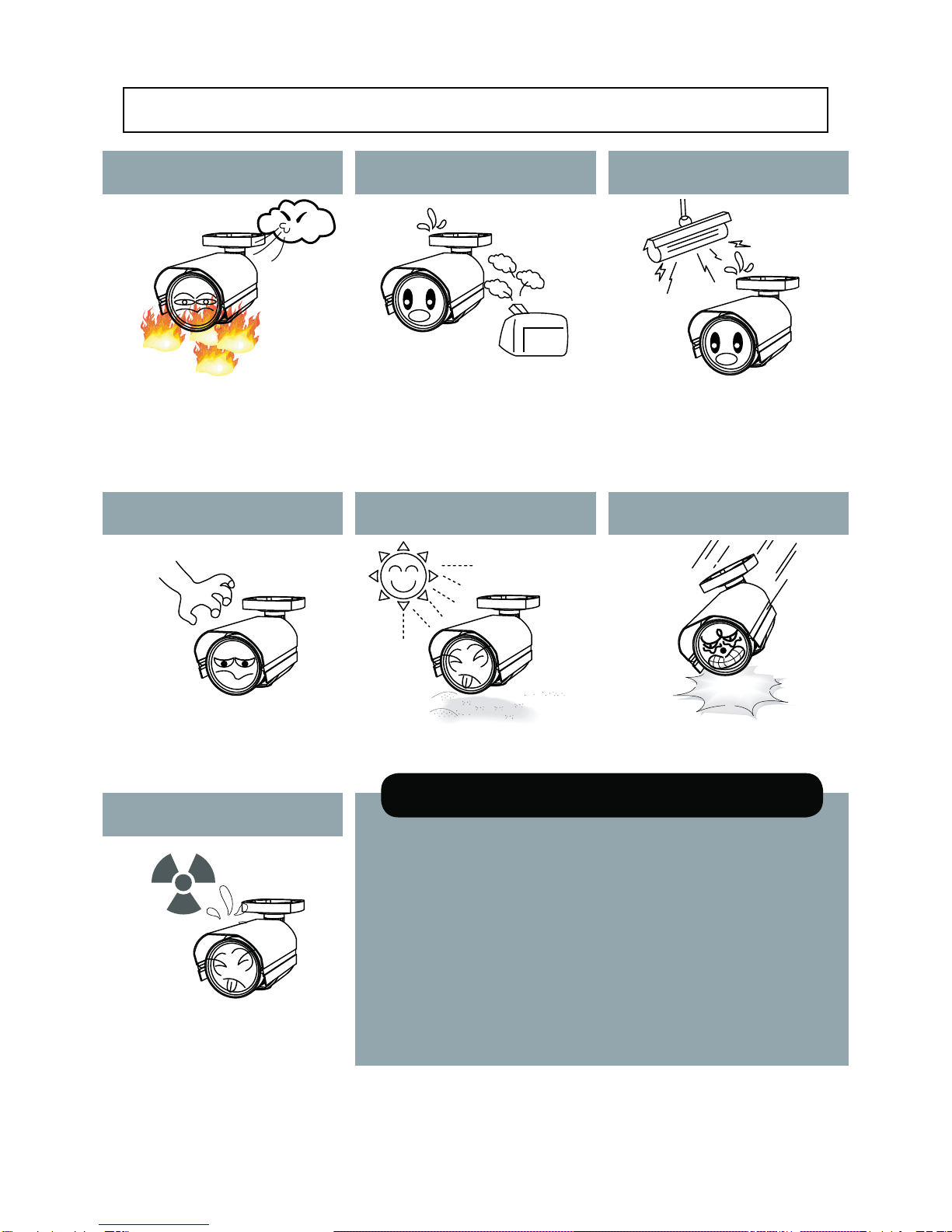

1SFDBVUJPOT
%POPUJOTUBMMUIFDBNFSBJO
FYUSFNFUFNQFSBUVSFDPOEJUJPOT
%POPUUPVDIUIFGSPOUMFOTPGUIF
DBNFSB
%POPUJOTUBMMPSVTFUIFDBNFSBJOBO
FOWJSPONFOUXIFSFUIFIVNJEJUZJTIJHI
%POPUESPQUIFDBNFSBPSTVCKFDU
JUUPQIZTJDBMTIPDLT
%POPUFYQPTFUIFDBNFSBUP
SBEJPBDUJWJUZ
%POPUJOTUBMMUIFDBNFSBVOEFS
VOTUBCMFMJHIUJOHDPOEJUJPOT
/FWFSLFFQUIFDBNFSBQPJOUFE
EJSFDUMZBUTUSPOHMJHIU
Only use the camera in conditions
where temperatures are between
-20°C and +50°C. Be especially careful
to provide ventilation when operating
under high temperatures.
This is one of the most important parts
of the camera. Be careful not to leave
fingerprints on the lens cover.
Do not install or use the camera in an
environment where the humidity is
high.
It can cause malfunctions to occur.
If exposed to radioactivity the CCD
will fail.
Severe lighting change or flicker can
cause the camera to work improperly.
Severe lighting change or flicker can
cause the camera to work improperly.
NOTE
* If the camera is exposed to
spotlight or an object reflecting strong light, smear or blooming may
occur.
* please check that the power satisfies the normal specification before
connecting the camera.
600TV Lines
DC Auto Iris Varifocal
Lens (2.8mm-12mm)
True Day/Night Capability
ICR-IR Cut Filter Removable
850nm IR LEDs * 14pcs
Ultra High Resolution True Day/Night Camera with Smart IR and 3D DNR
Built-in 14-power infrared LEDs with CDS Sensor
Camera OSD Control
z
Anti Vandal
Hood Camera
IP66
Registant
Weather
Function
DC 12V / AC 24V
LENS
DC VARIFOCAL
Shutter
High Speed
Resolution
Horizontal
Backlight
Compensation
600
BLC
Auto White
Balance
DAY & NIGHT
CCD
1/3"
0.000006Lux
Minimum
Illumination
Auto
Gain
Control
FILTER CHANGE
NIGHT DAY
OSD
Motion
Detection
x256
zwljpmpjh{pvuz
MODEL
1/3” Sony Super HAD CCD ll
NTSC=811(H) * 508(V) / PAL=795(H) * 595(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
2:1 Interlace
Internal
Available
52dB
BLC / HSBLC / OffSelectable
600TV Lines(Colour), 650TV Lines(B/W)
52dB (AGC Off, Weight On)
0.000006Lux(IR LED ON)
ATW / AWB / Manual / SET →AWC / Indoor / Outdoor
Auto (1/60sec ~ 1/120,000sec)
Auto / Off(Selectable limit x2 ~ x256)
High, Middle, Low, OffSelectable
Off/On (1~100 Level Adjustable)
Indoor / Outdoor / Off
On/Off(4 Zone, Alarm Output)
On/Off(8 Zone)
Off/ Mirror / V-Flip / Rotate
On/Off
0~31’(Level Adjustable)
Colour / Auto / Ext / BW
On(*32) / Off
Auto:128 Point / Manual:4 Point
DC 12V (Dual Power AC 24V / DC 12V-Opon)
CDS ON:250mA Max
DC Auto Iris Varifocal Lens(2.8mm-12mm)
-20 ~ +50 Deg C. RH 95% Max.
-20 ~ +60 Deg C. RH 95% Max.
70mm(W) * 90mm(H) * 188mm(D)
500g
ZB2812IR
Sensor
Total Pixels
Effecve Pixels
Scanning System
Synchronisaon
O.S.D
Dynamic Range
Backlight
Resoluon
S/N (Y signal)
Min. Illuminaon
White Balance
Electronic Shuer Speed
Sens-Up
Gain Control
3 DNR
D-WDR
Moon Detecon
Privacy
Mirror
Freeze
Sharpness
D&N Selecon
Digital Zoom
Blemish Compensaon
Power
Power Consumpon
Lens
Operang Temperature/Humidity
Storage Temperature/Humidity
Dimension
Weight
$POUFOUT
Contents 1
2
3
4
30
Safety Instructions
About 3D - DNR / Smart - IR
General Features
Trouble Shooting
Menu Set Up
倝OSD Control Button
倝Set Up Menu

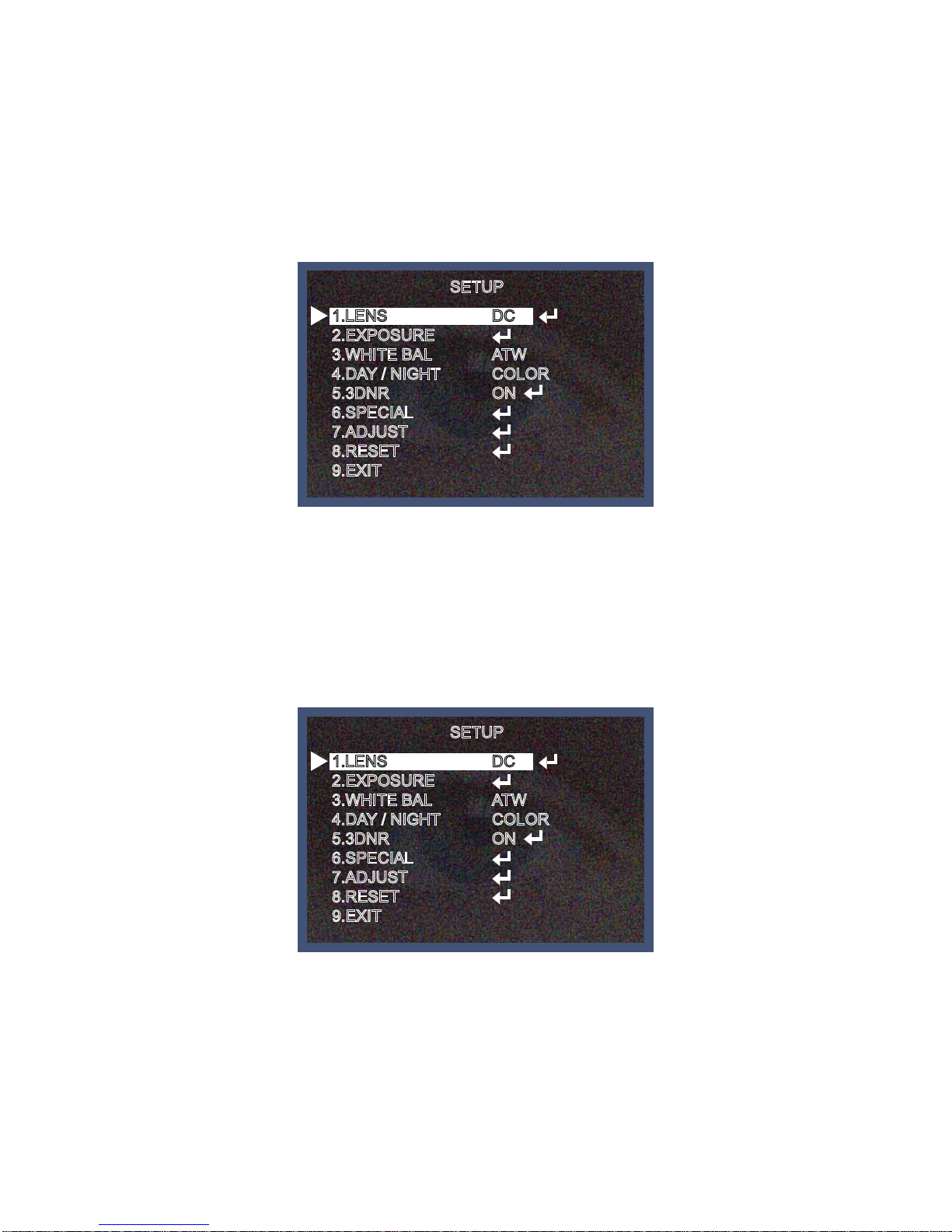

倝Menu Set Up
倝Lens
倝Exposure
倝Back Light

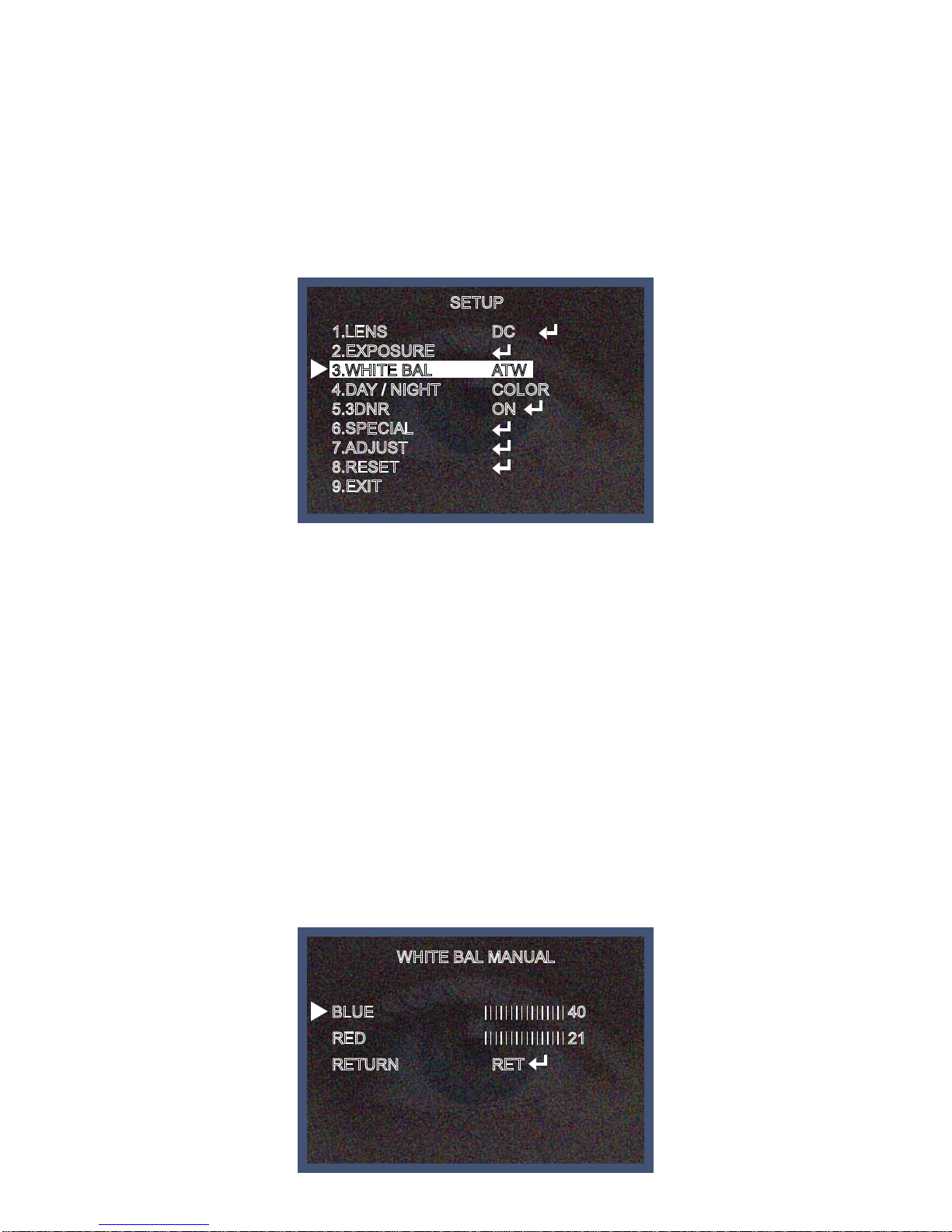

倝White Bal.
倝Day & Night
倝3DNR
倝Special
倝Adjust
倝Reset
倝Exit
倥Camera Title
倥D - Effect
倥Motion
倥Privacy
倥Defect
5
5
28
6
29
9
29
10
11
13
16
17
19
20
20
23
25
26
27
$ERXW6PDUW,5':'5%/&''1579/
Wide Dynamic Range
Digital
WDR
Resolution
Horizontal
600
3D-DNR
Digital
Reduction
Noise
Smart-IR
Backlight
Compensation
BLC
D-WDR(Digital Wide Dynamic Range)
600TV Lines
High Spotlight BLC Function
3D Filtering Method of Newly
Advanced DNR Function
Smart-IR
D-WDR is a powerful and ultra advanced technology
that captures cleaner and superior high Resolution pic-
tures even where images appear dark because there is
a strong back light present.
The combination of a Sony Super HAD CCD image sen-
sor and DNR DSP provides an excellent resolution of
600 TV lines.
Newly developed 3D filtering enhances Digital Noise
reduction at low light levels. 3D Filtering of the Video
Signal Optimises the Signal to Noise ratio, giving vastly
improved low light visivility and a powerful Sens-Up
function (up to 256 times magnification).
No Saturation Image, Vivid Image in darkness!
“Smart IR” camera makes very sharp video image in
darkness!
This technology eliminates saturation of video image
of the closer object in darkness by control of the IR
sensitivity. Saturation never happens in our “Smart IR”
cameras, you can enjoy vivid image in any dark condition!
High Spotlight BLC Function is Especially Effective to
Read the Number Plate of the Vehicles in the Street or
Parking Lot at Night Time. Especially Users Can Adjust
and Select the Special Required Area to Observe the
Target Object Under the Strong Spots of Light Exist.
Digital WDR OFF
3D-DNR OFF
Smart-IR OFF
Normal BLC
Standard Camera
Digital WDR ON
3D-DNR ON
Smart-IR ON
HS BLC
600TV Lines Camera
0.00001 Lux
Illumination
Minimum
Illumination
With an Incredibly Minimum Illumination of Amazing
0.00001Lux can Capture Good Images Even in
Extremely Low Light Conditions and Related Noises
are Significantly Reduced by the Ultra Advanced
DNR(Digital Noise Reduction) Technology.
Standard Image
Minimum Illumination Image
D&N
Smart-i
MD
Smart
OSD
Multi
Language
256X
600TVL
Low
Light
HLC
RS-485
DNRⅡ,Ⅲ
Sens-up
Core Technology
New Smart-HD DSP Chipset Ensures 600TVL Ultra High Resolution.
Innovative Technology of Powerful Sens Up under Ultra Low Light Level : Min. Illumination 0.00001 Lux
Smart-i HD DSP is the 3rd generation core chipset actualizing 600TVL ultra high resolution!
One Step Upgrade: The best video quality even at night is ensured
through 2D/3D filtering with the function of noise removal.
3D-DNR, Min. Illumination 0.00001 Lux (sens-up*256x)
All In One: 3DDNR, Smart IR, HSBLC, Privacy Zone, RS-485 (Option)
Precautions for use
Please read this manual thoroughly before using the camera to become familiar with the
correct operational procedures.
Cautions When Using
Do not open the camera body and touch any electrical parts to avoid possible electric shocks.
Do not insert objects into the camera body to prevent fire hazards and electric shock.
Do not touch the camera with wet hands - to avoid an electric shock.
Do not disconnect the power cord from a power plug when still connected to the outlet.
Always disconnect the power by removing the plug from the power socket.
lf the camera emits a burning smell, immediately disconnect it from the power source and
report the problem to your distributor.
Cautions When Install
Only apply power after installation of the product.
Do not install the camera in a position facing directly at a strong light source.
Do not install or use the camera in areas of high humidity.
Do not install near any cooling or heating equipment.
Do not install the camera in dusty environments.
Do not install the camera in places where the camera is subjected to physical shocks.
This products must be used with a regulated adaptor for power, such as the Genie PSU1SM.
ō
ō
ō
ō
ō
ō
ō
ō
ō
ō
ō
ō
ō
ō
4BGFUZ*OTUSVDUJPOT
(FOFSBM'FBUVSFT
D Filtering Method of Newly Advanced DNR Function
Newly developed 3D filtering enhances Digital Noise reduction at low light levels. 3D Filtering of
the Video Signal Optimises the Signal to Noise ratio, giving vastly improved low light visivility
and a powerful Sens-Up function (up to 256 times magnification).
TV Lines
The combination of a Sony Super HAD CCD image sen-sor and DNR DSP provides an excellent
resolution of 600 TV lines.
D-WDR(Digital Wide Dynamic Range)
D-WDR is a powerful and ultra advanced technology that captures cleaner and superior high
Resolution pictures even where images appear dark because there is a strong back light present.
High Spotlight BLC Function
High Spotlight BLC Function is Especially Effective to Read the Number Plate of the Vehicles in
the Street or Parking Lot at Night Time. Especially Users Can Adjust and Select the Special
Required Area to Observe the Target Object Under the Strong Spots of Light Exist.
Illumination
With an Incredibly Minimum Illumination of Amazing 0.00001Lux can Capture Good Images Even in Extremely
Low Light Conditions and Related Noises are Significantly Reduced by the Ultra Advanced DNR(Digital Noise
Reduction) Technology.
Smart-IR
No Saturation Image, Vivid Image in darkness! “Smart IR” camera makes very sharp video
image in darkness! This technology eliminates saturation of video image of the closer object in
darkness by control of the IR sensitivity. Saturation never happens in our “Smart IR” cameras,
you can enjoy vivid image in any dark condition!
Additional Functions
OSD - On Screen Display menu with multi-Language support.
Privacy Masking - 8 zones, Sens-Up - x256 times, Digital Zoom - x32
ō
ō
ō
ō
ō
ō
ō
Resolution
Horizontal
600
Wide Dynamic Range
Digital
WDR
Backlight
Compensation
BLC
0.00001 Lux
Illumination
Minimum
3D-DNR
Digital
Reduction
Noise
Smart-IR
OSD
04%$POUSPM#VUUPO
1. Type A, Type B, Type C of OSD button could be used when it needs to
OSD control.
2. Type D is extra Option (wired Remote controller)
م

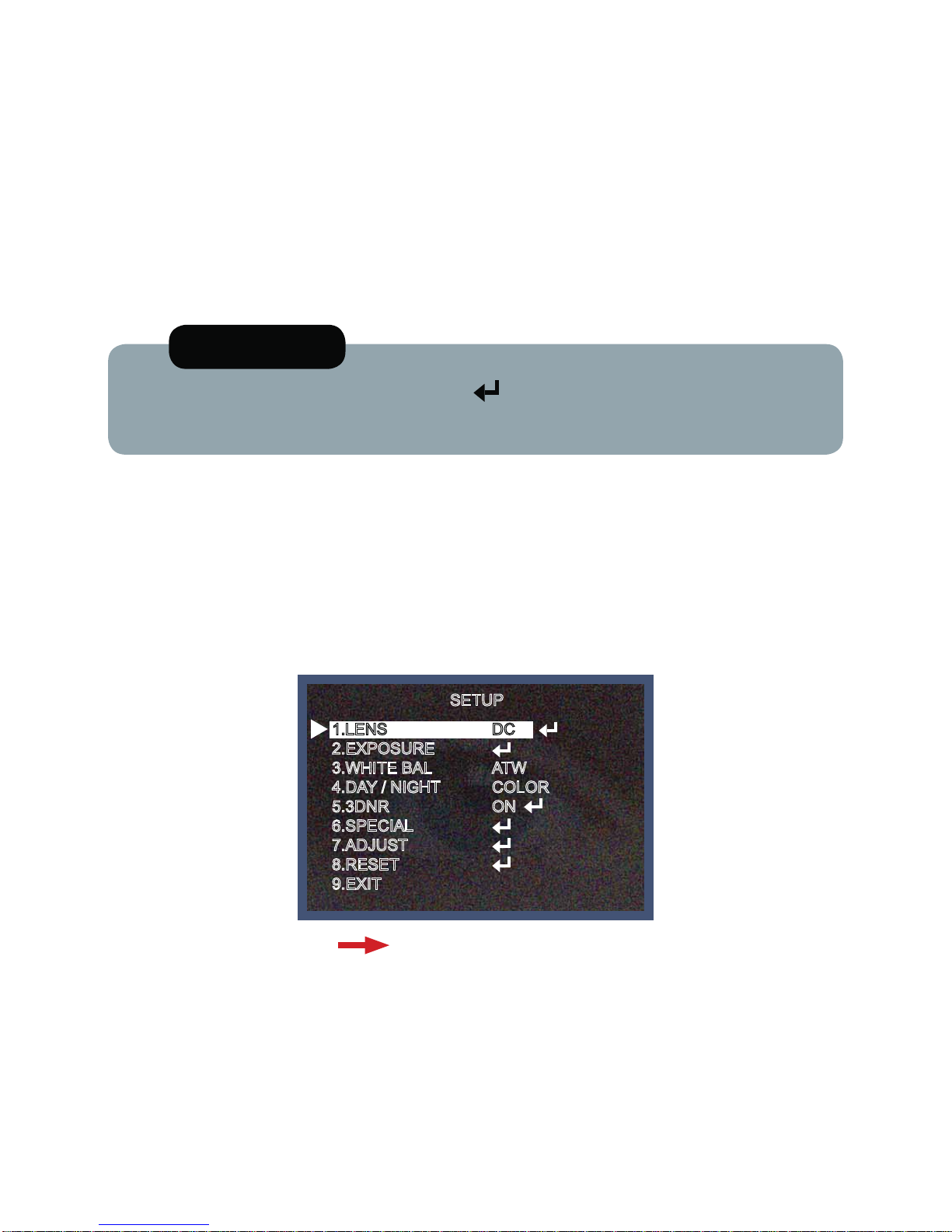

4FUVQ.FOV
)PXUP4FU6QUIFDBNFSBNFOV
΄Ͷ΅Ά;ͶͿΆ ͵ͶͷͲΆͽ΅΄Ͷ΅
Ͷ΅
ͶͿ͵
;ͲͿΆͲͽ
΄Ά΅΅Ͷ
ͷͷ
ͽΈ
;ͺ͵͵ͽͶ
ͺ
ͷͷ
Ͷ΅
ͶͿ͵
ͷͷ
ͽΈ
;ͺ͵͵ͽͶ
ͺ
΄ͺ΅ͺͿ
΄ͺͶ
ͲͲͺͿ
͵ͶͷͲΆͽ΅
Ͷ΅
ͶͿ͵
ͽͶ·Ͷͽ ί΄ΖΝΖΔΥΒΓΝΖ
Ͳͽͽ͵ͲΊ
Ϳͺ΅ͿͽΊ
΄ͺ΅ͺͿ
΄ͺͶ
ͲͲͺͿ
͵ͶͷͲΆͽ΅
Ͷ΅
ͶͿ͵
ͺͽͶ·ͶͽίͲΕΛΦΤΥΒΓΝΖ
Ͷ΅
ͶͿ͵
Ͷ΅
ͶͿ͵
ͷͷ
Ͷ΅
ͶͿ͵
Ͳ΅Έ
ͲΈͳ
ͲΈʹ΄Ͷ΅
Ͷ΅
ͶͿ͵
ͺͿ͵
Ά΅͵
Ͷ΅ΆͿ
Ͷ΅ΆͿ
ͲΆ΅ͷͽͼ
ΩΩΩΩΩΩΩΩ
΄ͶͿ΄ΆΩίΩͽΖΧΖΝ΄ΖΝΖΔΥΒΓΝΖ
ͽΈͽͶ·ͶͽίͲΕΛΦΤΥΒΓΝΖ
ͽΈͽͶ·ͶͽίͲΕΛΦΤΥΒΓΝΖ
ͲΆ΅
Ͷ΅ΆͿ
Ͷ΅ΆͿ
Ͷ΅ΆͿ
ͲͶͲ
ͲͶͲ
ͲͺͿ
Ͷ΅ΆͿ
Ͷ΅ΆͿ
;ͲͿΆͲͽ
ͳͺ΅ͿͶ΄΄ίͲΕΛΦΤΥΒΓΝΖ
Έͺ΅ͶͳͲͽ
ͳͽʹ
΄ͳͽʹ
ͺͿ͵
Ά΅͵
Ͷ΅ΆͿ
;͵Ͷ
ͽͶͿ΄
ͶΉ΄ΆͶ
Ͳʹ
΄ͶͿ΄Ά
͵Έ͵
ͳͽʹ
͵ʹ
;ͶͿΆ
ͺͽͶ·ͶͽίͲΕΛΦΤΥΒΓΝΖ
ͳͽΆͶίͽΖΧΖΝ΄ΖΝΖΔΥΒΓΝΖ
Ͷ͵ίͽΖΧΖΝ΄ΖΝΖΔΥΒΓΝΖ
Ͷ΅
ͶͿ͵
ͶΉ΅
ͳΆ΄΅ Ϳͷͷ
ͲͺͿ
ͷͷ
Ͷ΅
ͶͿ͵
ͷͷ
ʹͲ;΅ͺ΅ͽͶ Ϳͷͷ
ͷͶͶͶ Ϳͷͷ
;ͺ
·ͷͽͺ
΅Ͳ΅Ͷ
ͷͷ
͵;ΩίΩ
ͲͿί
΅ͺͽ΅ί
Ͷ΅ΆͿͶ΅ͶͿ͵
ͿͶͺ;ͲͶ Ϳͷͷ
Ͷ΅
ͶͿ͵
ʹͲ;ͺ͵
ͺ͵͵ͺ΄ͽͲΊ Ϳͷͷ
ͳͲΆ͵Ͳ΅Ͷ
Ͷ΅ΆͿ Ͷ΅
ͶͿ͵
΄ͺ΅ͺͿ
΄ͺͶ
ͲͲͺͿ
;΅ͺͿ·ͺͶΈ Ϳͷͷ
Ͷ΅ΆͿ Ͷ΅
ͶͿ͵
ͷͷ
ͲͶͲ΄ͶͽͶʹ΅
ͲͶͲ͵ͺ΄ͽͲΊ ΄ͺ΅ͺͿ
΄ͺͶ
ͲͲͺͿ
ʹͽΆ
Ͷ΅ΆͿ Ͷ΅
ͶͿ͵
ͷͷ
ͺͿ΅
ͽͽ
Ϳ
;ͺ
͵; Ϳ
Ϳ
Ϳ ͲͶͲ
Ͷ΅ΆͿͶ΅ͶͿ͵
Ͷ΅ΆͿ
ͽͶ·ͶͽͲͿͶίͽΖΧΖΝ΄ΖΝΖΔΥΒΓΝΖ
ͲΆ΅
Ͷ΅ΆͿ
ͳΈ ͺ΄;Ͳ΅
΄ͶʹͺͲͽ
Ϳ
͵ͲΊͿͺ΅
͵Ϳ
;΅ͺͿ
ͺ·ͲʹΊ
΄ΊͿʹ
΅ͺͿ
Ͷ΅ΆͿ
ͲͶͲ΄ͶͽͶʹ΅ͲͶͲίͲͶͲ
ͲͶͲ͵ͺ΄ͽͲΊ
΄ͶͿ΄ͺ΅ͺ·ͺ΅Ίί
΄
΅ͺͿ
͵ͶͷͷͶʹ΅
͵ͿͲʹίͲΕΛΦΤΥΒΓΝΖ
Ϳ͵ͲʹίͲΕΛΦΤΥΒΓΝΖ
ʹͽΆ
͵ͶͽͲΊίͲΕΛΦΤΥΒΓΝΖ
Ͷ΅
ͶͿ͵
Ͷ΅
ͶͿ͵
΄ͲͿͶ΄΄
Ͷ΅
ͶͿ͵
Ͷ΅
ͶͿ͵
Ͷ΅
ͶͿ͵
Ͷ΅
ͶͿ͵
ͷͲʹ΅Ί Ͷ΄Ͷ΅
Ͷ΅
ͶͿ͵
ͶΉͺ΅
Ͷ΅ΆͿ
Ͷ΅ΆͿ
Ͷ΅ΆͿ
;Ϳͺ΅
Ͷ΄Ͷ΅
ʹ΅
ͽʹ͵
Ͷ΅ΆͿ
Ͳ͵ͻΆ΄΅
Ͷ΄Ͷ΅
Ͷ΅ΆͿ
Ͷ΅ΆͿ
ͽͶ·Ͷͽί
ͳͽΆͶͲͺͿί
Ͷ͵ͲͺͿί
ίͽΖΧΖΝͲΕΛΦΤΥΒΓΝΖ
ͽͶ·Ͷͽί
ͳͽΆͶͲͺͿί
Ͷ͵ͲͺͿί
Ͳ;;ͲΆ΄Ͷί
ͽͶ·Ͷͽί
Ά΄Ͷ
ͳͽΆͶͲͺͿί
Ͷ͵ͲͺͿί
Ͳ;;ͲΆ΄Ͷί
΄΅Ͳ΅
͵ͶͷͶʹ΅
΄ͶͿ΄ΆΩίΩ
͵ͺͷͷͶͶͿʹͶί
Menu items can be selected by using the OSD buttons of the camera
1. Press the Set Up button.
* The Set Up menu will be displayed on the monitor.
2. Move and select the required function using the Up and Down button.
* Move the arrow indicator Up or Down to select the desired feature by pressing
the Up or Down button.
Menu Set Up
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.3DNR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.3DNR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
3. Change menu settings using the Left or Right button.
* Available values or Status are displayed by pressing the Left or Right buttons.
Press the button until desired value / status is displayed.
4. After Changing the setting move the arrow indicator to EXIT and press the
SET button to EXIT.
1. Move the arrow indicator to LENS using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left or Right button.
NOTE
* Move to the available submenu by moving arrow to desired feature.
* Submenu is not available when this symbol is display "- - - -"
Lens
DC:DC Auto Iris Lens
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.3DNR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
3. Press the RETURN to return to the SETUP menu.
NOTE
* When DC is selected, the brightness can be adjusted. The brightness control
range is 1 ~ 100.
Lens
BRIGHTNESS
RETURN
100
This function is used to select Automatic or Manual shutter speed control.
1. On the Set Up menu screen select EXPOSURE by using the Up or Down button.
2. Select the desired shutter mode by pressing the Left or Right button.
* FLK : Select FLK mode when flickering occurs; caused by the unmatched frequency of electric lights.
Exposure
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.3DNR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
EXPOSURE
SENS-UP
SHUTTER
AGC
SENS-UP
BLC
D-WDR
RETURN
SENS-UP
RETURN
AUTO
MIDDLE
AUTO
OFF
OFF
RET
x 4
NOTE
*Shutter: Select Shutter using the Up or Down button, you can adjust the shutter speed
from 1/60, FLK, 1/250~1/100,000.
ĺFLK: Select FLK mode if flickering occurs; caused by the unmatched frequency of electric
light. If select FLK mode, sense-up does not operate.
* AGC(AUTO GAIN CONTROL):
A higher gain increases brightness but also increases any noise.
OFF : Deactivates the AGC function
LOW : Sets automatic gain control to LOW.
MIDDLE : Sets automatic gain control to MIDDLE.
HIGH : Sets automatic gain control to HIGH
* SENS - UP:
At night and/or in dark conditions, the Sens-Up mode can be selected to desired value from x2 ~ x256.
* OFF: BLC function does not operate.
* BLC: Select LOW/MID/HIGH
User can select and define a specific area in scene and view the area clearly.
Press the "ENTER" button at the AREA menu, you can change the area as shown in picture 1.
Press the "ENTER" button again after area setting, you can change the area as shown in picture 2.
Default: Press the Default to return to factory defaults.
* RETURN:
Select Return to save the changes in the EXPOSURE menu and retun to the SETUP menu.
NOTE
* Pressing the SET button in AUTO mode allows adjustment of image brightness
by increasing or decreasing the shutter speed (x2 ~x256).
* The higher the level, the brighter the image becomes, but it is possible that an
after image (ghosting) could appear.
* When SENS-UP is activated the increased magnification can induce noise and
pixilation; this is quite normal.
Back Light(BLC)
This camera which is using 3D-DNR DSP provides intelligent light level control to overcome
even strong backlight conditions.
BLC
GAIN
AREA
DEFAULT
RETURN
MIDDLE
RET
* HSBLC: HSBLC function is especially effective for reading car number plates at the night time.
You can select and define the required observation area for the target object and ignore a strong light area.
Press the "ENTER" button at the AREA menu, you can change the position as shown in Picture 1.
Press the "ENTER" button again after area setting, you can change the position as shown in Picture 2.
Default: Press the Default to return to factory defaults.
PICTURE 1
PICTURE 1
PICTURE 2
PICTURE 2
POSITION
POSITION
SIZE
SIZE
HSBLC
LEVEL
MODE
AREA
DEFAULT
RETURN
5
ALL DAY
RET
* D-WDR: This camera which is using 3D-DNR DSP provides intelligent light level control to overcome even
strong backlight conditions.
ĺOFF: D-WDR function does not operate.
When there are simultaneous bright & dark image area WDR makes them both distinct and can be selected
as OUTDOOR and INDOOR.
* RETURN: Select Return to save the changes in the EXPOSURE menu and return to the SETUP menu.
HSBLC OFF
D-WDR OFF
HSBLC ON
D-WDR ON
D-WDR
LOW-LEVEL
HIGH-LEVEL
RETURN
5
5
RET
White Balance
The White Balance function is used to control the “on-screen” colours.
1. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button.
2. Select the desired mode by using the Left or Right button.
* There are five user selectable White Balance settings available.
* ATW : (Auto Tracking White Balance)
Normal setting; when the colour temperature range is from 1,800K to 10,500K. (Ex: a fluorescent lamp or outdoors)
* AWB : The White Balance is automatically adjusted in a specific environment.
* AWC ĄSET : To obtain the best results press the SET button while the camera is focused onto white
paper. If the environment, and/or light source changes, the White Balance will require re-adjustment.
* MANUAL : Used for fine adjustment of White Balance. Set White Balance first using ATW or AWC then
change to MANUAL and press SETUP button. Increase or decrease the value of R-Gain(Red) and
B-Gain(Blue) while monitoring the color of the image.
* OUTDOOR : Select this when the colour temperature is 5,400k.
* INDOOR : Select this when the colour temperature is 3,100k.
WHITE BAL MANUAL
BLUE
RED
RETURN
40
21
RET
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.3DNR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
Table of contents
