D-Link DCS-7110 Quick Installation Guide
2
This installation guide provides basic instructions for installing the DCS-7110
Network Camera on your network. For additional information about how to
use the camera, please see the User Manual which is available on the CD
include in this package or from the D-Link website.
Package Contents
• DCS-7110 HD IR Outdoor Network Camera
• Mounting Bracket
• User Manual and Software on CD-ROM
• CAT5 Ethernet Cable
• Power Adapter
• Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Installation

D-Link DCS-7110 Quick Installation Guide 3

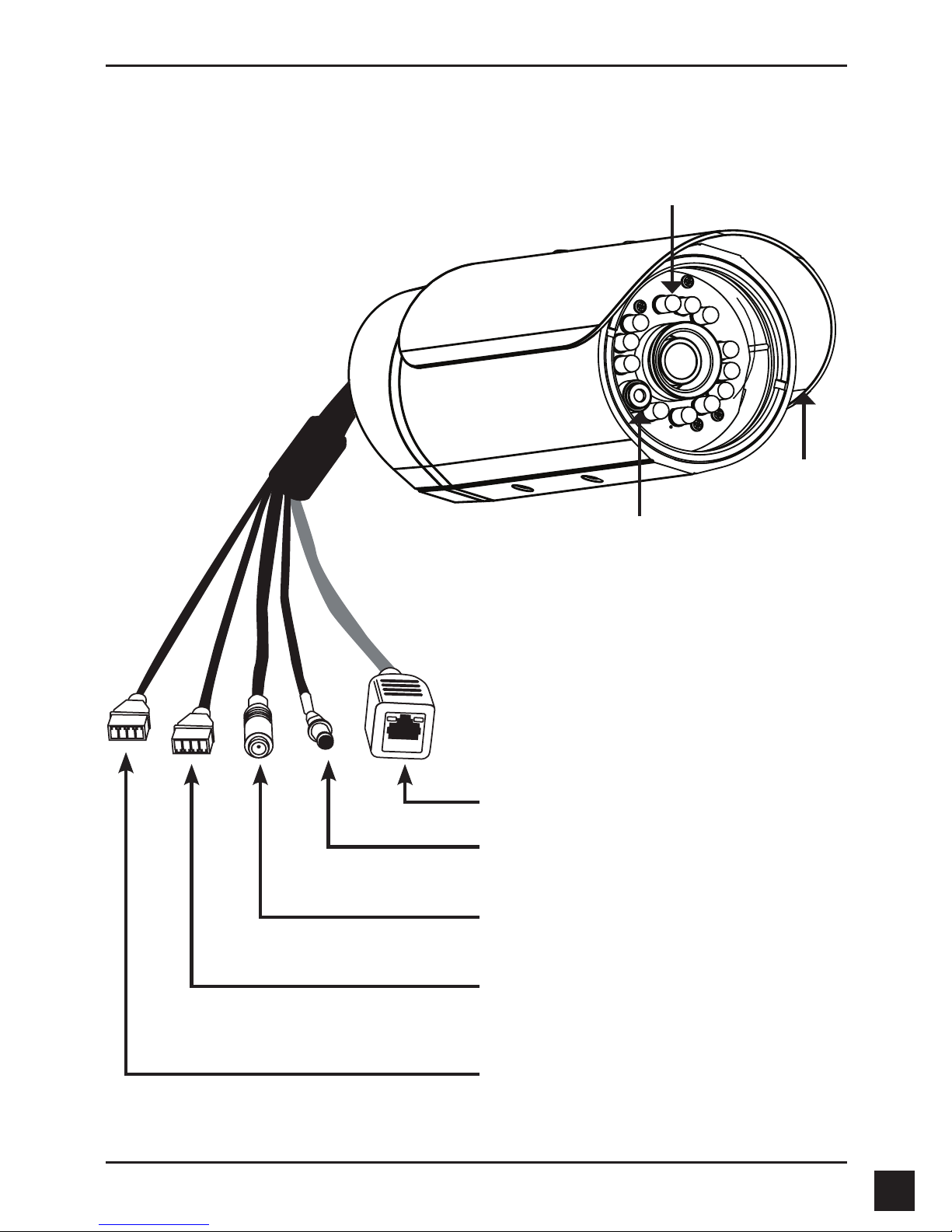

Infrared LEDs
IR LEDs Illuminate the
camera's eld of view
DI/DO Connectors
DI/DO connectors provide a physical interface to send
and receive digital signals to and from a variety of
external devices.
Reset Button
Press and hold this button for 10 seconds to reset
the camera to the factory default settings.
DC Power
Connect the supplied power adapter to a power outlet
or surge protector.
Ethernet (PoE)
Connect an Ethernet cable to connect to your network
and can also be used to power the camera using PoE.
IR-Cut Removable
(ICR) Sensor
IR-Cut Removable
sensor judges lighting
conditions and switches
from day mode to night
mode accordingly
Sunshield
Adjustable sunshield
protects the camera
sensor from direct
sunlight
24V Power Connector
Connects to 24V AC power.
RS485 Connector
RS485 Connectors for external devices.
Hardware Overview

D-Link DCS-7110 Quick Installation Guide
4

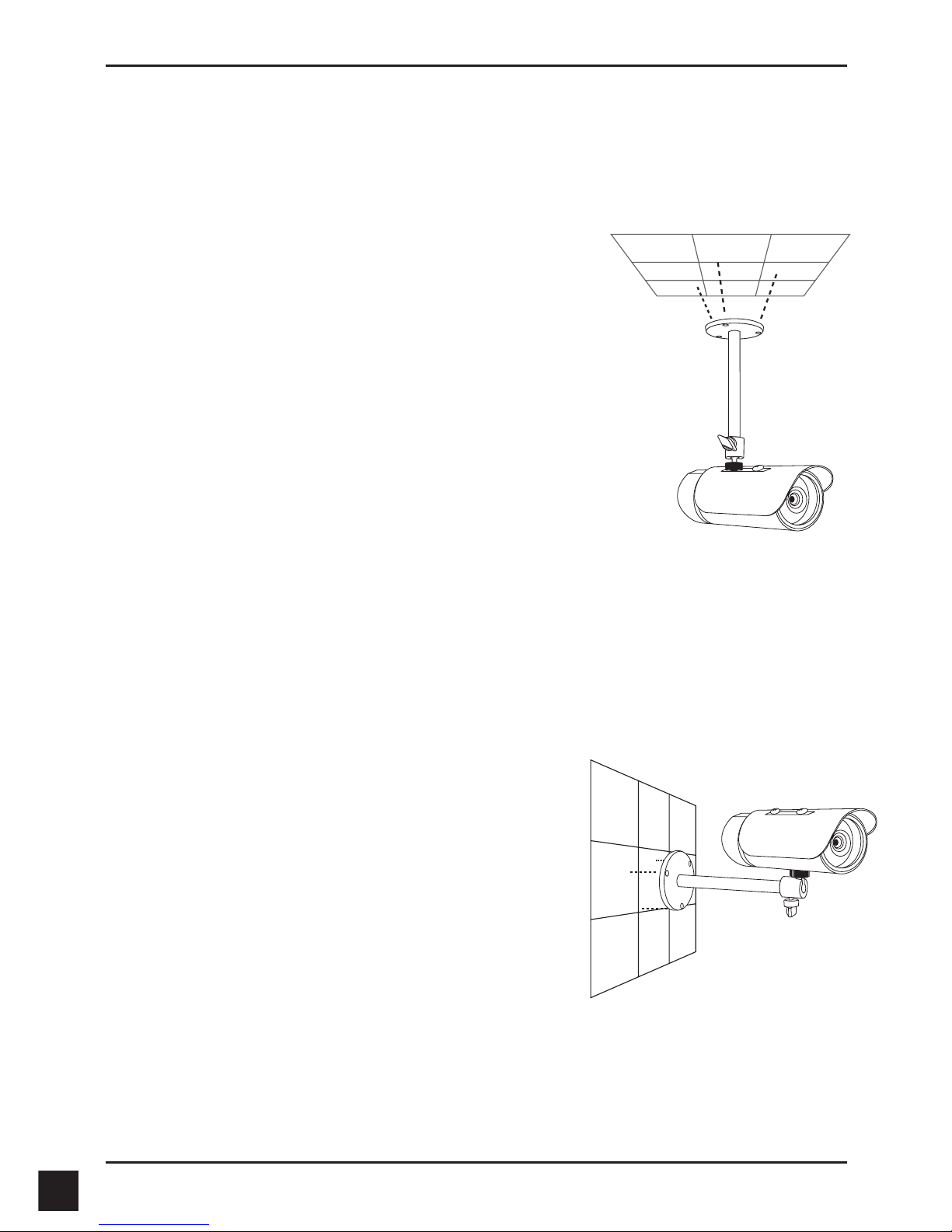

Ceiling Mount
1. Locate an area on the ceiling which is capable of
supporting the weight of the camera.
2. Mark and drill three pilot holes aligned to the screw
holes at the base of the mounting bracket.
3. Insert the plastic anchors into the pilot holes, and align
the holes at the base of the camera bracket with the
plastic anchors.
4. Once aligned, insert the provided screws through the
holes at the base of the camera bracket.
5. Use a screwdriver to tighten and secure the bracket into
place.
6. Attach the camera enclosure to the mounting bracket.
Align the camera to the correct eld of view and tighten
the thumbscrew to lock it into place.
7. The camera cables can be installed through a separate
large hole drilled in the ceiling, or using an external
cable conduit.
Wall Mount
1. Locate an area on the wall which is capable of supporting
the weight of the camera.
2. Mark and drill three pilot holes aligned to the screw
holes at the base of the mounting bracket.
3. Insert the plastic anchors into the pilot holes, and align
the holes at the base of the camera bracket with the
plastic anchors.
4. Once aligned, insert the provided screws through the
holes at the base of the camera bracket.
5. Use a screwdriver to tighten and secure the bracket into
place.
6. Attach the camera enclosure to the mounting bracket.
Align the camera to the correct eld of view and tighten
the thumbscrew to lock it into place.
7. The camera cables can be installed through a separate
large hole drilled in the wall, or using an external cable
conduit.
Hardware Mounting

D-Link DCS-7110 Quick Installation Guide
5

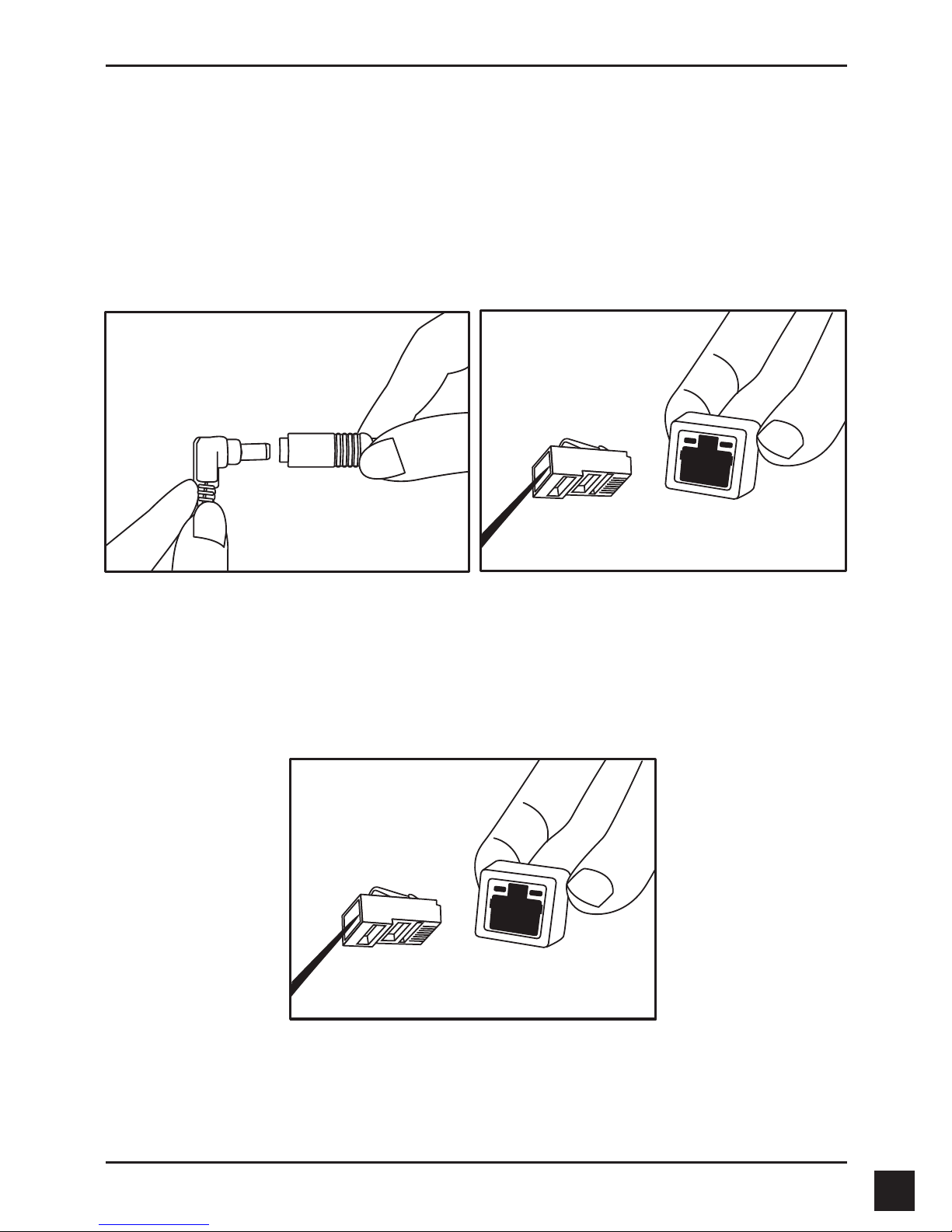

Basic Connection (without PoE)
1. Connect the camera to your switch or router via Ethernet cable.
2. Connect the power cable from the camera to the supplied power adapter.
3. Connect the supplied power adapter to a power outlet.
Power over Ethernet (PoE) Connection
If using a PoE switch or router, connect the network camera via Ethernet cable. PoE will transmit
both power and data over a single cable.
Note: Once power has been established, the LED will turn red. When the device has obtained
an IP address and is accessible, the LED will turn green.
Cable Connections

D-Link DCS-7110 Quick Installation Guide
6

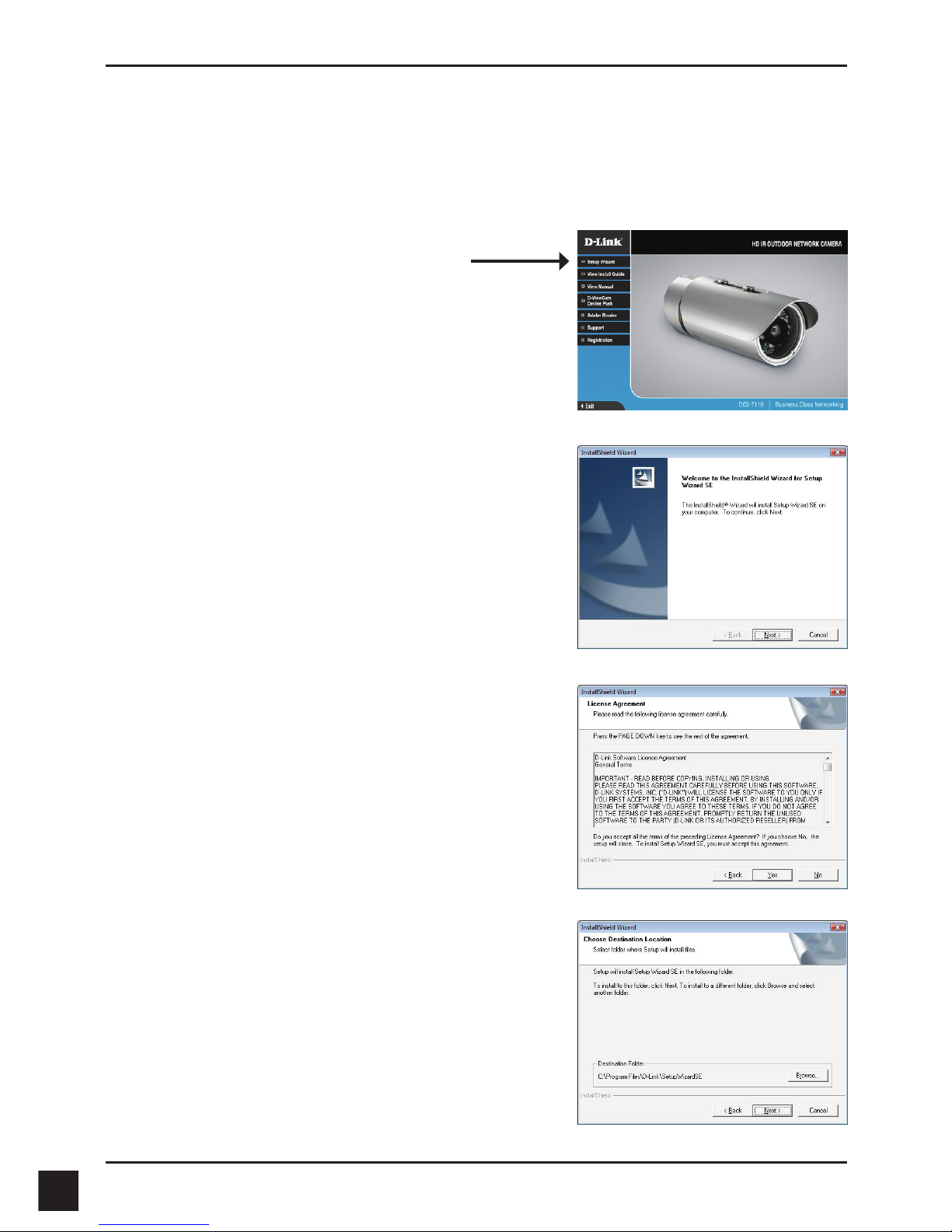

Insert the DCS-7110 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of
your CD-ROM drive.
Click Setup Wizard to begin the installation.
After clicking Setup Wizard, the following window will
open. Click Next to continue.
Click Yes to accept the License Agreement.
Select the location to install the Wizard and click Next to
continue.
Note: The installation may take several minutes to nish.
Conguration

D-Link DCS-7110 Quick Installation Guide
7

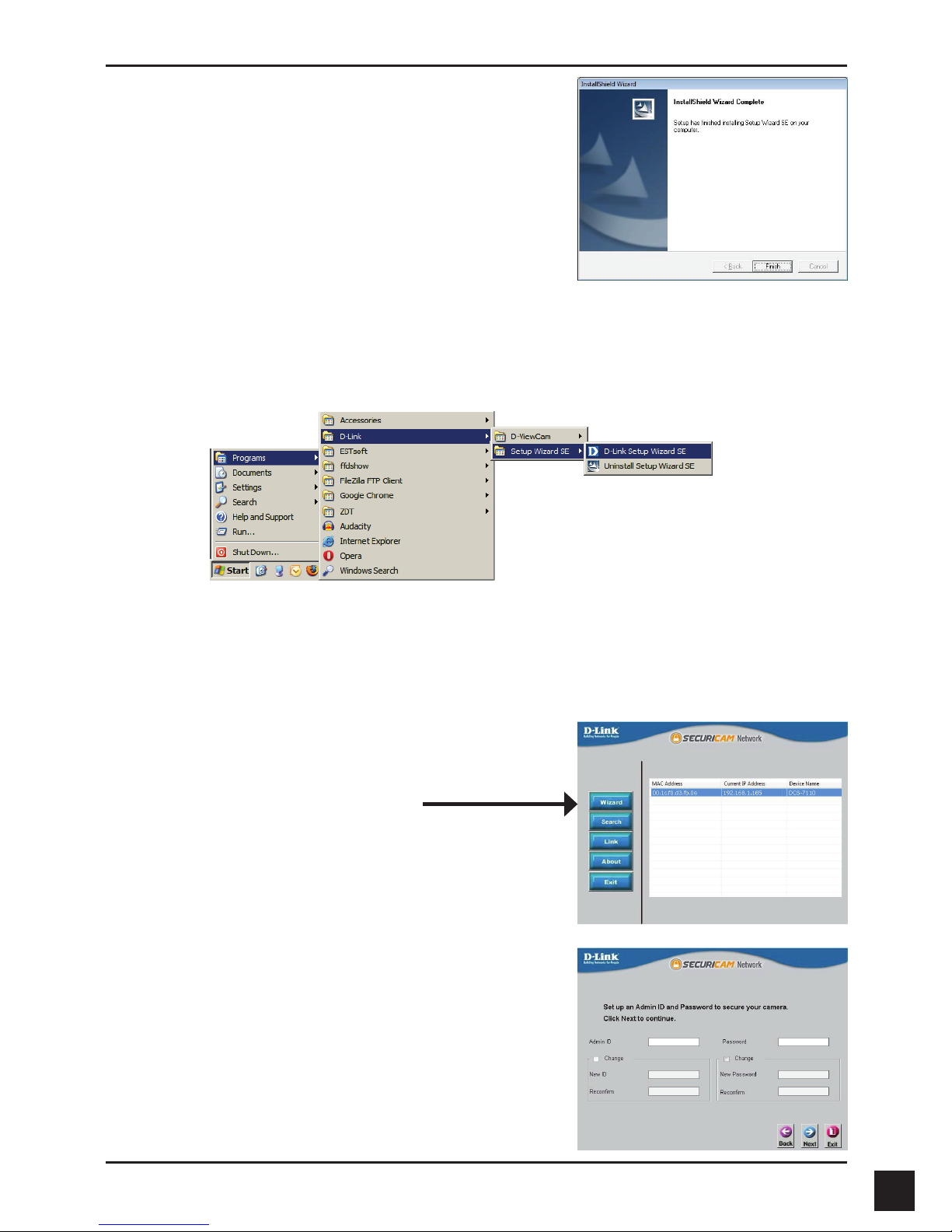

Click Finish to complete the installation.

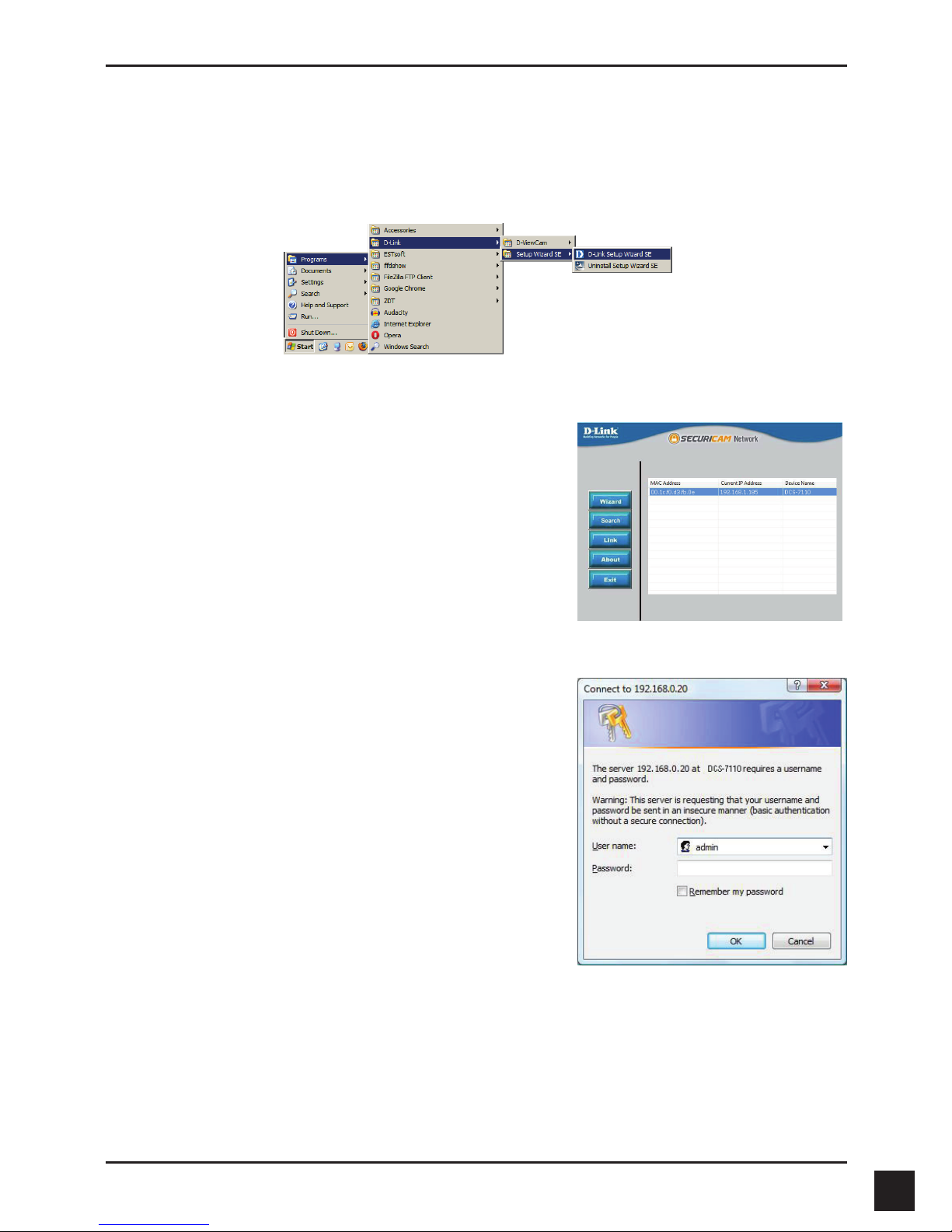

Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next to continue.
The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If
you have a DHCP server on your network, a valid IP Address will be displayed. If your network
does not use a DHCP server, the network camera's default static IP 192.168.0.20 will be
displayed.
Click the Wizard button to continue.

D-Link DCS-7110 Quick Installation Guide
8

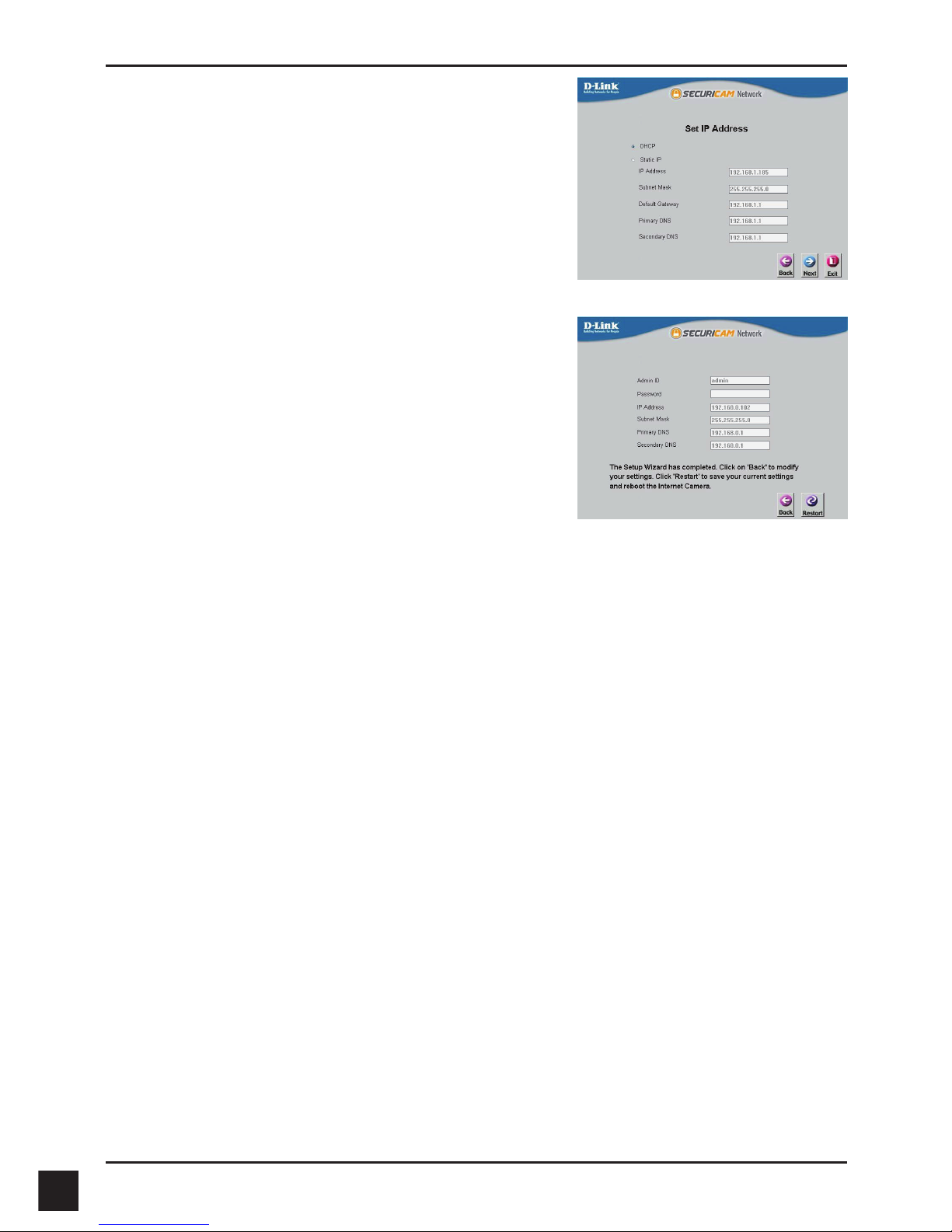

Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is started.
Click Next to continue.

D-Link DCS-7110 Quick Installation Guide
9
Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Enter admin as the default username and leave the
password blank. Click OK to continue.
Select the camera and click the Link button to access the
web conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.
Viewing Camera via Web Browser

D-Link DCS-7110 Quick Installation Guide
10

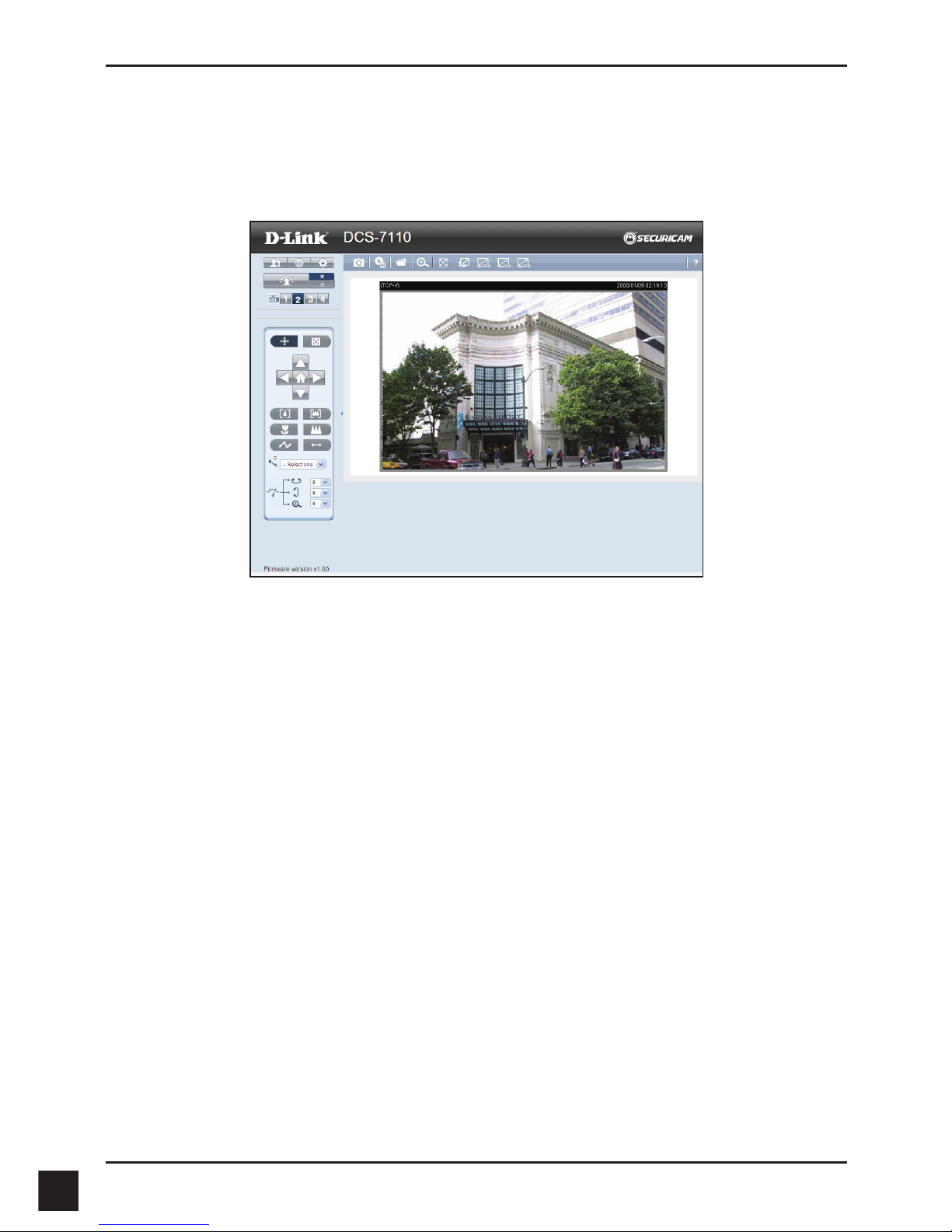

This section shows your camera’s live video. You can select your video prole
and view or operate the camera. For additional information about web
conguration, please refer to the user manual included on the CD-ROM or
the D-Link website.
Please refer to the user manual for more information, conguration options,
and advanced features.

D-Link DCS-7110 Quick Installation Guide
Notes
11

D-Link DCS-7110 Quick Installation Guide
Version 1.0
March 7, 2011
625013500G
