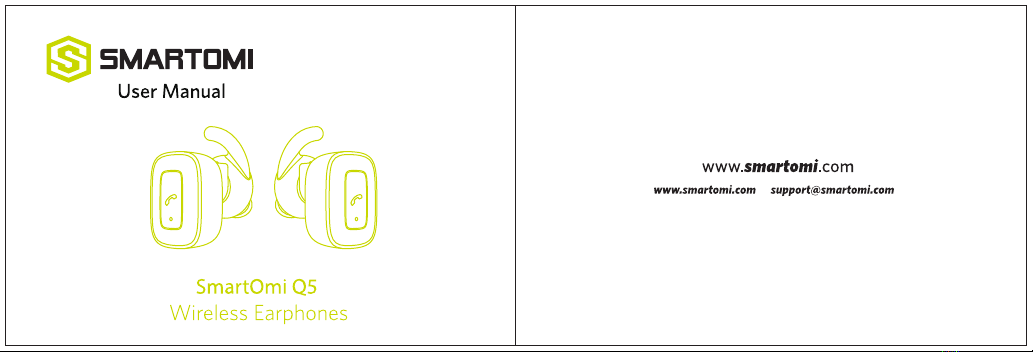

SmartOmi Q5 User manual

Thank you for choosing our Bluetooth earbuds Our Bluetooth earbuds have a
fashionable design, powerful functions, and high compatibility, providing you
with true hands-free convenience when making calls and listening to music! It
is your best choice whether you are in the office or during traveling and driving
situations!
With the Bluetooth wireless technology, you can connect the earbuds to many
different compatible communication devices without cables. The Bluetooth
wireless connection allows you to use a smartphone without using a cable to
connect the earbuds, but the maximum distance between them should be less
than 10 meters (about 30 feet). The Bluetooth wireless connection may be
interfered by obstacles (such as walls) or other electronic devices.
There may be limitations to using Bluetooth technology in some areas so
please consult local authority or service provider for details.
1. Left earbud
2. Right earbud
3. MFB (Multi-Function Button)
4. LED indicator
5. Microphone
6. Micro USB charging port
7. Left ear hook
8. Right ear hook

Full charge the earbud before using. For charging details, please refer to
“Charger and Battery” section in this manual. User should choose the
compatible smart phone or other Bluetooth enabled mobile device for
correctly pairing of the earbuds. For details about pairing, please refer to
“Basic Operations” section in this manual
Tips: Keep the earbud away from your credit card or other magnetic storage
media; otherwise, the stored information may be lost due to demagnetization..
How to connect with the Bluetooth earbud (Note: iPhone pairing
example)
1. Long press both earbud Multi-Function buttons until the purple light is
on (don’t stop when the red light and blue light flash alternately), then
the pairing process will begin automatically. After that, the left earbud
will enter the status of red light and blue right flashing alternately.
●True wireless technology, left-right ear wireless connection.
●Sport ear hook with soft skin material that keeps earbud firmly in place yet
is comfortable to wear.
●Full range stereo sound with crisp high notes and deep low notes for perfect
sound enjoyment
●Single or dual, free selection between two modes.

(Paring between both earbuds)
(Paring between earbuds and Bluetooth device)
Under power-off status, long press the two earbuds simultaneously for 4s.
When the earbuds are powered on the tone ‘DU, power on’, is heard in the
earbud and they automatically enter the pairing mode. (No need to enter
Stereo mode once the paring between both earbuds are done successfully.)
Long press the two earbuds for 7 seconds till the purple light is on (Don’t stop
when the red light and blue light flash alternately), then paring will be
completed automatically with a voice prompt ‘Pairing successful, connected’
is heard in the earbud. You will also hear “Left channel” is heard in the left
earbud and ‘Right channel’ is heard in the right earbud.
2.Open the Bluetooth section of the
settings on your smartphone or mobile
device and search for the earbud.
3.Find the Bluetooth earbud and
select it, this will connect the
earbuds to the smartphone or
mobile device.
After the stereo pairing is completed,
the left-channel earbud automatically enters the status that the indicators
blink red and blue alternatively. At this time, search for the earbud
information by using a smartphone and then click connect.

During a call, a short press of the earbud MFB one time hangs up
the call. Then, a tone indicating ‘Call Ended’ is heard in the earbud.
In connected standby status, double-click MFB of
the left-channel earbud once, and a prompt tone indicating ‘Re-Dialing’ is
heard in the earbud. At this time, click MFB, and the call can be cancelled,
and a prompt tone indicating ‘Call Cancelled’ is heard in the earbud.
After successful pairing between ‘L’ and ‘R’
earbuds for the first time. Just open either one of the headphones till the
blue light and the red light flash alternatively. At this time, double press
MFB and the red light flash 3 times.
After the earbuds are powered on, they are automatically reconnected to
the last paired two devices.
When listening to the music, click MFB of the right or left earbud.
When a call comes in, a long press to the earbud MFB rejects
the call. A tone indicating ‘Call rejected’ rings upon button release is heard
in the earbud.
During a call, a long press of the left earbud MFB will
transfer the audio from the earbud to the smartphone. A tone ‘Du’ sounds
upon button release. Repeat the operation to switch the audios between the
phone and the earbud.
During a call, double-click the MFB of the left-channel
earbud. A prompt tone indicating ‘Mute On’ is heard in the earbud. Repeat
the operation, and a prompt tone indicating ‘Mute Off’ is heard in the
earbud.
When a call comes in, a prompt tone indicating ‘Incoming
call, 1, 2, 3, 4...’ is heard in the earbud, Click MFB of the left-channel earbud
or right-channel earbud once to answer the call.

During a call, if a new call comes in, a short press of the
MFB will place call A on hold and answer the new call. Double-click MFB
to switch between call A and call B. 1) Connect the earbud with device A, then close Bluetooth of device A.
2) Connect the earbud with device B.
3) Open Bluetooth of device A again, then the earbud will auto-connect
device A again (Bluetooth device requires auto-connecting function);
or click device A for manual connection.
4) Now the earbud has already connected device A and B. Enjoy the function
of one earbud connects two devices.
Open the Bluetooth earbuds till the purple light blinks entering Stereo mode,
double click MFB of the “L” or “R” once then the red light blinks 3 times with
a prompt tone.
When there is incoming call, the right earbud will mute and only the left
earbud can answer the call.
After the earbuds are connected to the iOS,
the battery level of the earbuds is displayed at the top right of the IOS
device display.
Press MFB for 5s (After the Stereo pairing mode is completed,
if any earbud is powered off, the other earbud is powered off at the same
time).
In connected standby status, press
MFB of the left-channel earbud for about 1s. A prompt tone “Du” is heard
in the earbud upon button release. Press MFB again to disable sound control.
(Only for those device supporting voice control function, such as Siri)

Before using any USB charger to charge this earbud,
check whether the specifications of the charger meet requirements. The
suggested output current is 100mA to 500mA. An over-high charging
voltage may damage the earbud.
1. If the red indicator on the earbud blinks, and a prompt tone “Low battery,
please charge” is heard, it’s indicated the earbud battery is low. If the earbud
continues to work, it will automatically power off when the battery runs out.
Then, you need to charge the earbud by connecting the cable of the charger
to the charging port on the earbud.
2. Connect the charger to an AC power socket.
3. The red indicator is on when the earbud is being charged. If the charging is
not started yet, disconnect the earbud from the power socket, and reconnect
the earbud again. It takes about 2 hours to fully charge the earbud. The red
indicator will return off automatically after fully charged. Then, you can
disconnect the charger from the power socket and earbud.
4. A full charged battery can provide about 3.5 hours of talking time, or about
80 hours of standby time. The actual talk time and standby time may vary
from different smartphones, mobile devices, settings, using scenario, and
environments etc.
Only use the suggested charger if possible. Other chargers may
violate the warranty terms of the equipment and results in danger. IF the
charging cable is delivered with the earbud, connect the cable to a certified
charger or computer to charge the earbud.
The earbud includes an internal non-removable charging battery. Do not
remove the battery from the earbud; otherwise, the earbud may be
damaged. If the earbud is not used in a long time, keep it in a dry and
well-ventilated place, and charge the earbud once a month.

We provide the ‘repair, replacement and return warranties’
(“3Rs-Warranty”) service to all products that strictly comply with national
laws and regulations, and the warranty period is one year.
We do not directly provide the return and replacement services. If you find
any quality problem when using our products, please contact your local
distributors as soon as possible for timely replacement.
The after-sales service is not provided for the following cases:
1. The fragile label is altered or torn up.
2. The product is damaged due to contact with liquid or water.
3. The cover or other components of the product are seriously distorted due
to external forces.
4. The product is damaged due to improper operations or storage.
5. The product is damaged due to an accident or negligence.
6. The product is damaged due to commercial use of the product in abnormal
conditions.
7. Any other situation similar to the preceding ones.
Earbud won’t
power on
Battery not charging
properly.
Function is failed.
The earbud cannot be
found or pairing fails.
Power off function not
working correctly.
The battery has been drained.
Reconnect the charging port.
Press the MFB for a longer period.
Use the charger to fully
charge the battery.
MFB not pressed long to
power on earbud.
The charging port is not
properly connected.
The earbud firmware is in error
state due to an incorrect operation.
The earbud does not
enter the pairing state.
The Bluetooth application of the
smartphone or device is not operating.
Connect the charger to charge
and reset the earbuds.
Enable the earbud to enter
in to the pairing state.
Restart the smartphone or device and
restart the pairing process with earbuds.

1. To extend the service life of the battery. You are advised to charge the
earbud at least once a month.
2. Please use the default charger that included in package to charge the
earbud. Use other low-quality chargers may cause dangers.
3. Adjust the volume to an appropriate level when using the earbud.
4. DO NOT wear the earbud when sleeping; otherwise, the earbud may
be damaged or cause injuries to you.
5. When driving, you are advised to use the Bluetooth earbud to ensure
safe hands-free operation of the smartphone. It can be dangerous to
directly use cell phones when driving.
6. Please keep the earbud away from kids. Small components of the earbud
may cause suffocation or other injuries to kids.
7. Use Siri can change music or for volume control.
