Smeg STX1-5 User manual

INSTRUCTION MANUAL
G
GU UI ID DE EF FO OR RU US SI IN NG GT TH HE ED DI IS SH HW WA AS SH HE ER RA AN ND DT TH HE EW WA AS SH HI IN NG GP PR RO OG GR RA AM MS S

Contents

1. Description of the controls________________________________16
2. Troubleshooting _______________________________________25
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
For any other information about use and maintenance of the dishwasher,
read the enclosed manual carefully.
USER INSTRUCTIONS: useful information is provided for the use of the
washing programs and all the dishwasher's functions.

User instructions

1. Description of the controls

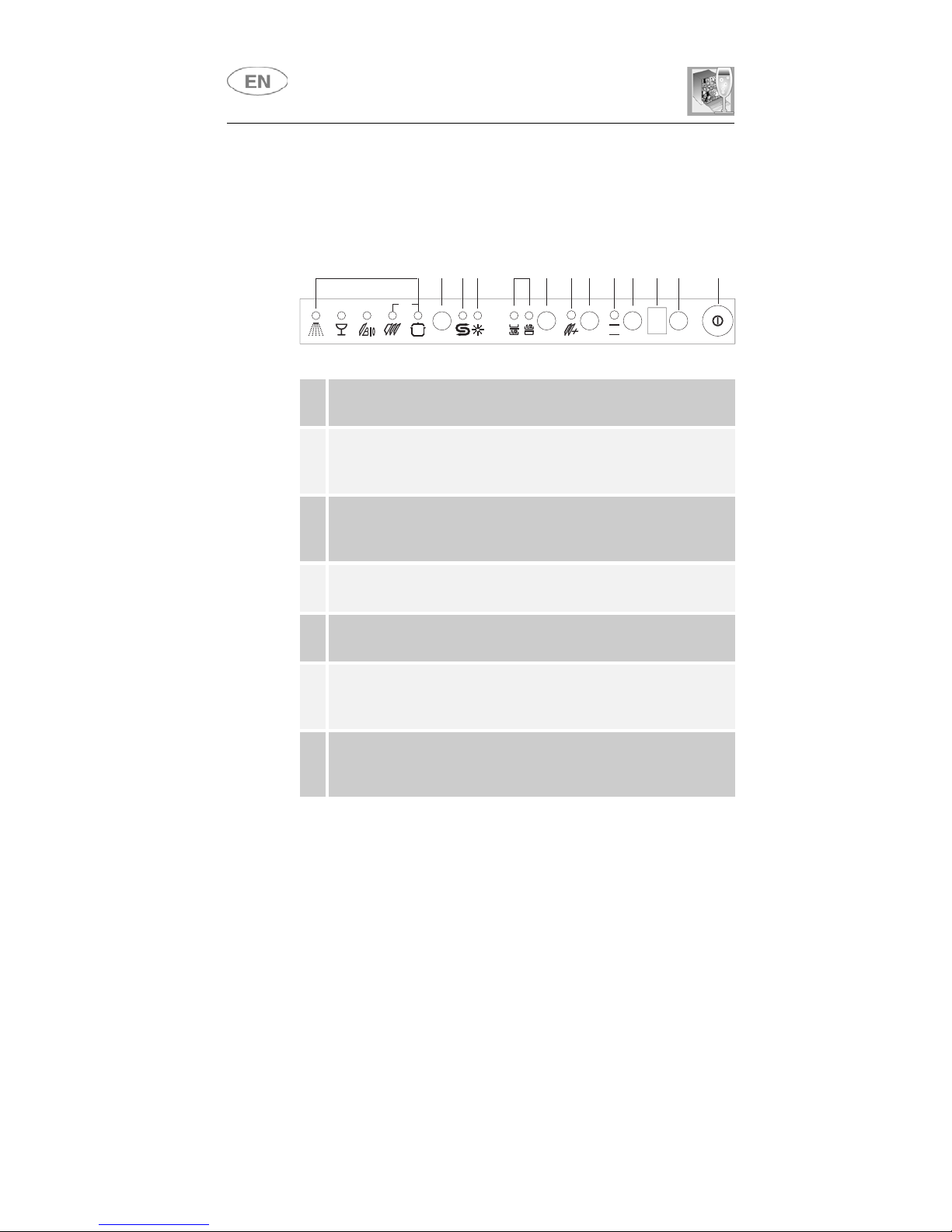

1.1 Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the door
is open.
1
ON/OFF BUTTON
Pressing this button energises the appliance.
2
SELECTED PROGRAM INDICATOR LIGHTS
Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
3
PROGRAM SELECTION BUTTON
By pressing this button in sequence it is possible to select the desired
program.
4
SALT WARNING LIGHT (certain models only)
Illumination of this light signals that salt container is empty.
5
RINSE AID WARNING LIGHT (certain models only)
Illumination of this light signals that rinse aid dispenser is empty.
6
EXTRA PROGRAM BUTTON
This button gives access to the one of the five extra programs (see
table).
7
EXTRA PROGRAM LIGHT
Illuminates to indicate that one of the five extra programs (see table) is
going to be executed.
3/1
end
2345 76
13 12 1891011

User instructions

8
"3/1" OPTION BUTTON (on some models only)
Press this button to activate the option for use of 3/1 products.
9
"3/1" OPTION LIGHT (on some models only)
Illuminates to indicate that the function is activated.
10
HALF LOAD BUTTON (on some models only)
Press this button to activate the half load wash option.
11
HALF LOAD LIGHT (on some models only)
One of the two buttons illuminates to indicate that the half load wash
option in the top or bottom basket has been selected.
12
PROGRAM DELAY BUTTON (on some models only)
Press this button to delay the start of the program by up to 9 hours.
13 INFORMATION DISPLAY (on some models only)

User instructions

SETTING THE WASHING PROGRAM AND SWITCHING ON
To select the most suitable program for the dishes to be washed refer to
the table below, which indicates the most appropriate program according
to dish type and degree of soiling.
After using the table to identify the most appropriate washing program:
•press the
ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;
•keep pressing the
PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;
•close the door; after about 2" the program will start. While it is in
progress, the relative LIGHT will flash (indicating that the program is
being executed).
3/1
end
2345 76
13 12 1891011

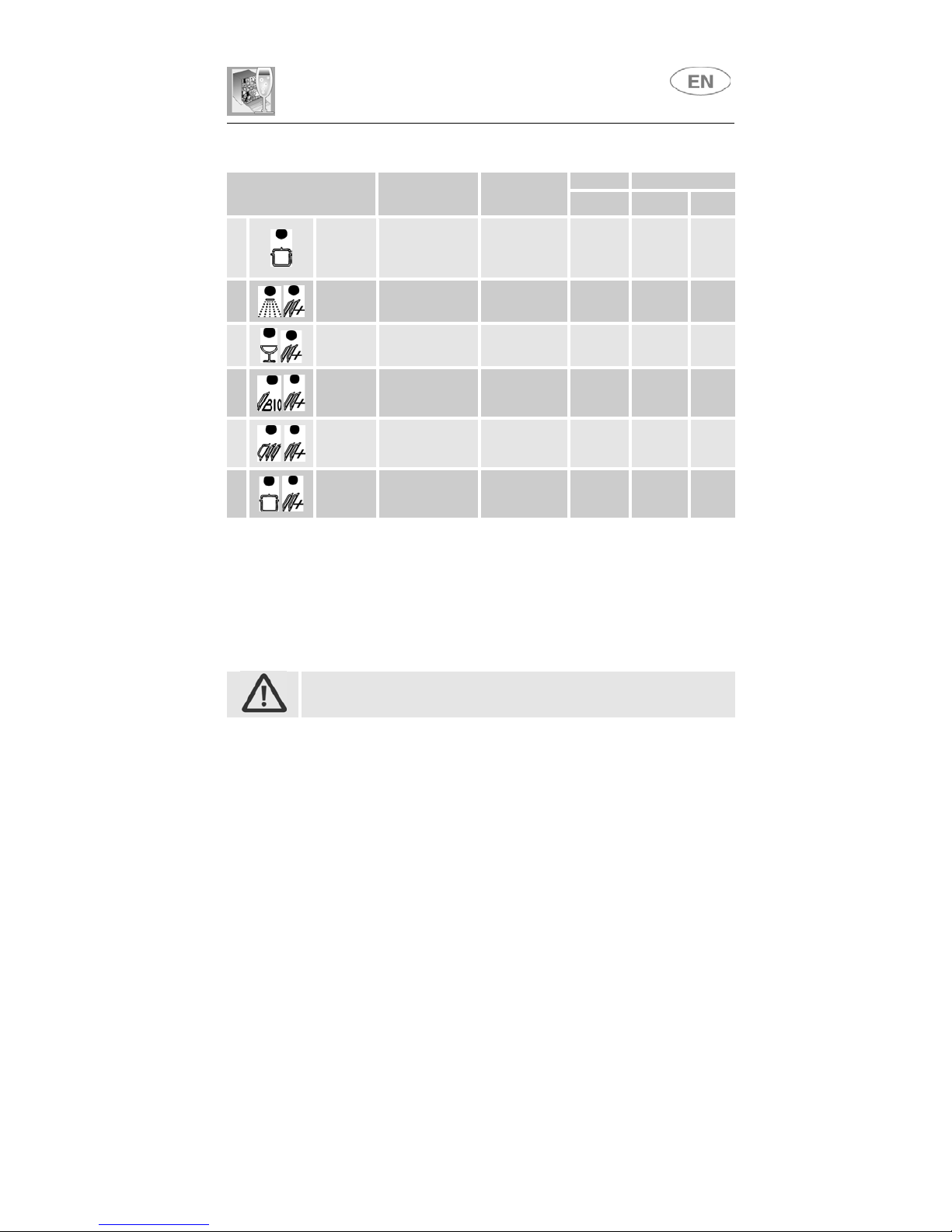

DURATION CONSUMPTION
PROGRAMME,
NUMBER & SYMBOL
LOAD CROCKERY
AND CUTLERY
PROGRAM
PROGRESS MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
1RINSE Pans and dishes for
rinsing and drying
Cold rinse
Rinse at 68°C
Dry
45' 90,9
2DELICATE Dishes
with normal dirt
Cold prewash
Wash at 45°C
Cold rinse
Rinse at 68°C
Dry
80' 20 1,20
3BIO
(*) EN 50242
Dishes
with normal dirt
Cold prewash
Wash at 50°C
Cold rinse
Rinse at 62°C
Dry
180' 151,08
4NORMAL
Normally soiled
dishes, including
dried-on residue
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
100' 17 1,28

User instructions

DURATION CONSUMPTION
PROGRAMME,
NUMBER & SYMBOL
LOAD CROCKERY
AND CUTLERY
PROGRAM
PROGRESS MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
5SUPER
Very dirty
pans and dishes,
even with
dried-on dirt
Prewash at 45°C
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
115’ 24 1,77
6SOAK
Pans and dishes
awaiting
a further wash
Cold prewash 16' 6_
7QUICK Dishes
with light dirt
Wash at 38°C
Cold rinse
Rinse at 58°C
45' 13 0,85
8ECO
Wash immediately
after use for dishes
with normal dirt
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
140' 17 1,05
9DAILY
Wash immediately
after use for dishes
with normal dirt
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
95' 14 1,25
10 INTENSIVE
Normally soiled
pans and dishes,
including
dried-on residue
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
100' 20 1,60
Only run the soak program with half loads.
To execute programs 6,7,8,9,10 users must first press the extra programs button (6).
(*) Reference program as per EN 50242 standard.
(–) Not present.
(1) Average power consumption with the softener set on level 2.
(2) The cycle duration and power consumption may vary according to the water and
room temperatures, and the type and amount of dishes.
The washing cycle will not take place if the dishwasher door is left open
or not properly closed.

User instructions

TABLE FOR CERTIFICATION BODIES
Reference standard EN 50242
Reference program BIO
Load Depending on the models 12 or 14 place-settings
Type of detergent B
Amount of detergent 12 place-settings: 30 g - 14 place-settings: 35 g
Rinse aid setting 5/6
1.2 Washing programs
Before starting a washing program make sure that:
•The water supply tap is open.
•The correct amount of detergent has been added to the
dispenser.
•The baskets have been correctly loaded.
•The spray arms are able to rotate freely and without
obstruction.
•The dishwasher door is securely closed.
CANCELLING THE CURRENT PROGRAM
•To cancel the currently selected program, open the door and hold
down the PROGRAM SELECTION (3) button for a few seconds
until the indicator lights for programs 4and 5illuminate
simultaneously.
•Close the door.
•After approximately 1 minute the dishwasher will advance to the end
of cycle.
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.

User instructions

SELECTING HALF LOAD WASH (on some models only)
This function is ideal for small loads and saves water and electricity. It is
controlled by the HALF LOAD (10) button, with two alternatives:
1) press the button once to select washing in the top basket (the
relative light comes on);
2) press the button a second time to select washing in the bottom
basket (the relative light comes on);
3) press the button a third time to return to the normal full load
washing mode (washing in both baskets, both lights off).
When washing in the bottom basket only, the cutlery basket can be
divided so that only half is used.
EXTRA PROGRAMS
Button (6) gives access to five extra programs in addition to the ones
which can be selected directly using the program selector button.
This button must be pressed (the light comes on) after selection of the
"main" program (1, 2, 3, 4 or 5).
This function is retained in the memory, so the button has to be
pressed again (the light goes out) if the user wishes to execute one of
the 5 main programs at the next cycle.
3/1
end
2345 76
13 12 1891011

User instructions

"3/1" OPTION BUTTON (on some models only)
(available in all programs except the soak program)
By pressing the button (8) you activate the "3/1" option, confirmed when
the relative light comes on. This option has been studied for the use of
dishwashing powder or tablets with integrated substances in place of
regenerating salt or rinse-aid known on the market as “3 in 1” or “triple
action” products; in this case the dishwasher will use the product in an
optimal way avoiding salt and rinse-aid consumption, which could
already be found in the dishwasher.
Note: When selecting the "3/1" button, it is normal that the salt and
rinse-aid lights remain on, if their containers are empty.
DELAYING THE PROGRAM (on some models only)
(available in all programs except the soak program)
The PROGRAM DELAY button (12) can be pressed to delay the start of
the program by up to 9 hours. This means that the dishwasher can be
operated at the time of day of your choice. Press the button several
times in succession and the display will show the delay with which the
appliance will start, beginning from 9 hours.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
•Always try to run the dishwasher fully loaded.
•Do not wash the dishes in running water.
•Use the washing program that is most appropriate for each type of
load.
•Do not carry out any preliminary rinsing.
•If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
•separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
•do not pour the detergent directly on the dishes.

User instructions


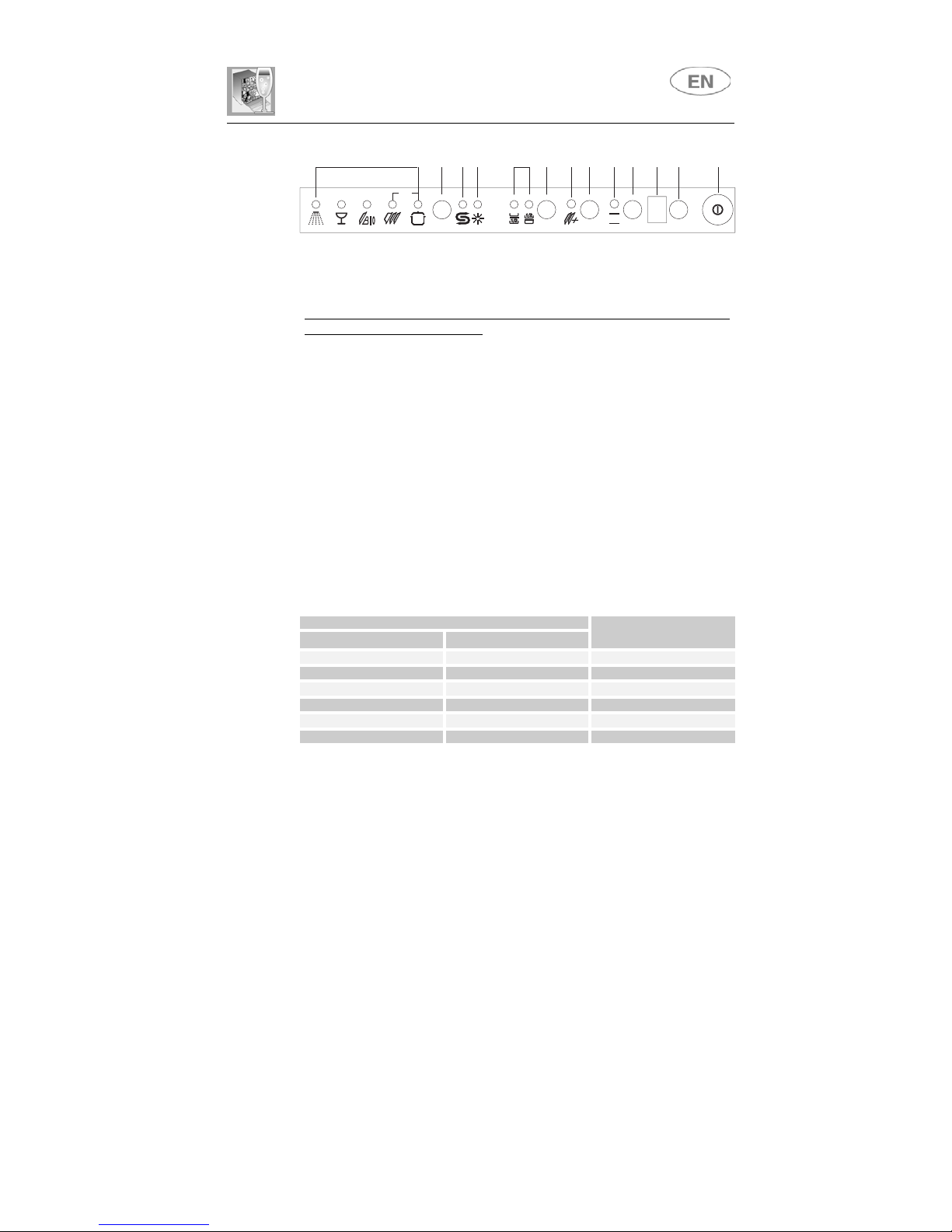

ADJUSTING THE WATER SOFTENING SYSTEM
N.B.: for the setting below to be possible, a washing program other than
the soak program must be set.
Press the PROGRAM DELAY button (12) and keep it pressed until the
preset value appears followed by a full stop (normally 3.).
Release the button then press it again in succession to display the value
required, referring to the table.
The 6setting levels available will appear in this order:
3.,4.,5.,0.,1.,2..
When the value required appears on the display, release the button;
after 5 seconds the system automatically returns to setting of the
program delay, and the setting will be made with the chosen value.
N.B.: the display shows the water hardness setting and the program
delay. The dot (.) after the number indicates that the water hardness
setting is being displayed. If the dot (.) does not appear, the program
delay is being displayed.
WATER HARDNESS TABLE
WATER HARDNESS
German Degrees (°dH) French Degrees (°dF) SETTING
0 - 5 0 - 9 0.
6 - 11 10 - 19 1.
12 - 21 20 - 36 2.
22 - 33 37 - 59 3.
34 - 45 60 - 79 4.
46 - 53 80 - 107 5.
Contact your local water board for information on the hardness of your
water supply.
3/1
end
2345 76
13 12 1891011

User instructions

If the door has to be opened while washing is in progress, the program
will be interrupted. The relative light will keep flashing and a beeper will
signal that the cycle has not been completed. You must wait about 1
minute before closing the door to restart the program. When the door is
closed the program will continue from where it was interrupted. This
operation should only be carried out if strictly necessary, because it
might cause problems in execution of the program.

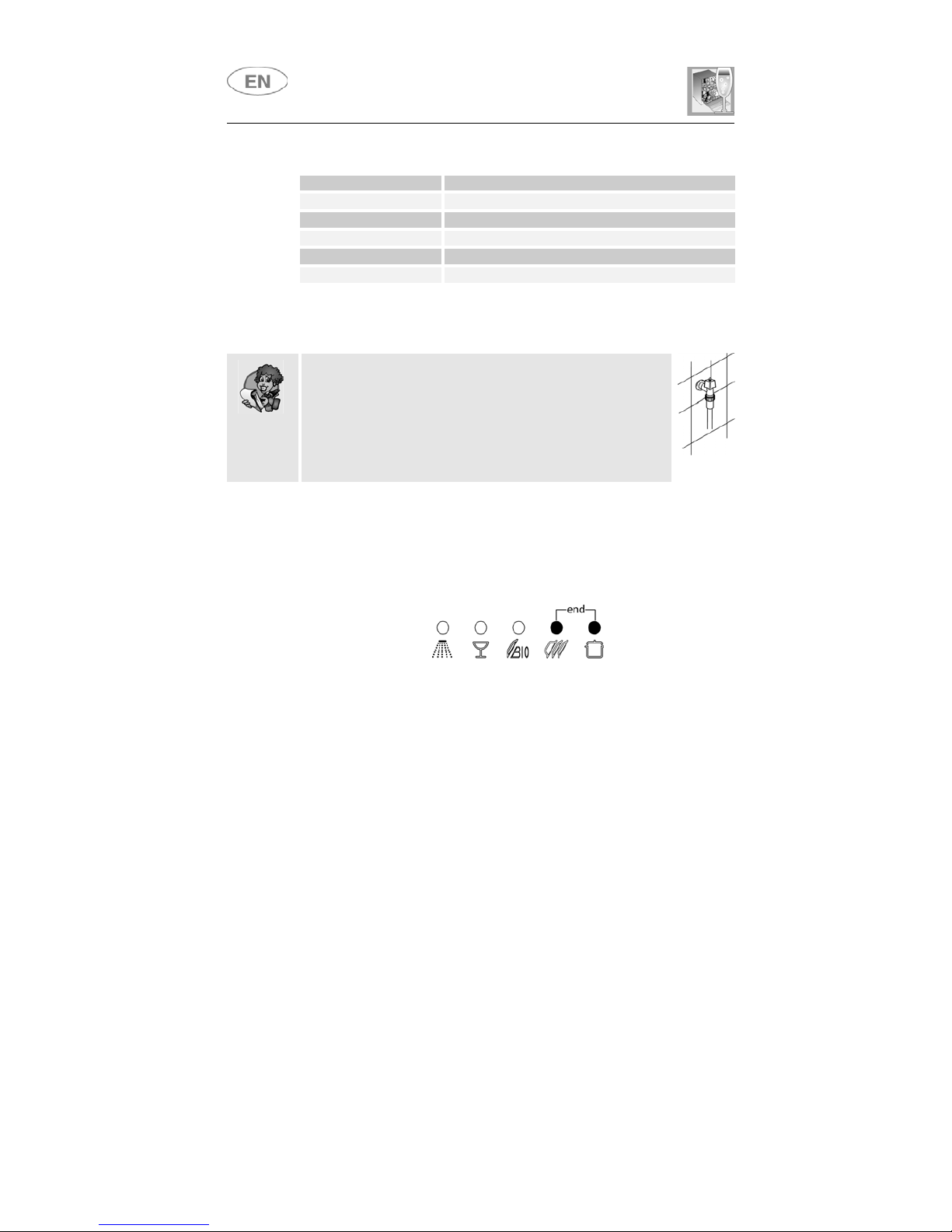

END OF CYCLE
At the end of the program the beeper sounds briefly and the lights of
programs 4and 5flash.
To switch off the dishwasher, open the door and press the ON/OFF
button (1).
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is advisable to unload the lower basket first, and then the
upper basket.
3/1
end
2345 76
13 12 1891011

User instructions

2. Troubleshooting
The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
meanings:
FAULT DESCRIPTION
E1
Acquastop failure
The anti-flooding system has been activated (for the
relevant models only). The system is tripped in case
of water leaks. Contact the after-sales service.
E2
Safety level
The system which limits the water level inside the
dishwasher has been tripped. Interrupt the program
and switch off the dishwasher. Switch the dishwasher
back on, program it again and start the washing
cycle. If the problem persists, contact the after-sales
service.
E3
Water heating malfunction
The water is not heated or the heating parameters
are not correct. Repeat the washing program; if the
problem persists, contact the after-sales service.
E4
Water temperature monitoring malfunction
Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists,
contact the after-sales service.
E5
Water intake malfunction
The appliance does not take in water or does not do
so correctly. Check that the water connections are
correct, the water intake tap is turned on and the filter
is not fouled. If the problem persists, contact the
after-sales service.
E6
Water pump-out malfunction
The appliance does not pump out the water or does
not do so correctly. Check that the drain hose is not
kinked or crushed and that the siphon and filter are
not fouled. If the problem persists, contact the after-
sales service.

User instructions

Light off Light on Light flashing
If an alarm occurs the appliance interrupts the program in progress and
signals a fault.
•Alarms E1, E2, E3, E4, E8 and E9 interrupt the current program
immediately.
•The E5,E6 alarms interrupts the running program once the cause is
resolved, it will bring bach the execution of the program.
•The alarm E7 is visualized at the end of the cycle that comes, however,
brought to the end since the operation of the dishwasher is not harmed.
To “reset” an alarm is necessary:
•Open and close the door, or turn off and on the machine. At this point is
possible to program the dishwasher again.
If the malfunction persists, contact your authorised Service Centre.
FAULT DESCRIPTION
E7
Turbine flow-regulator malfunction
(for the relevant models only)
The appliance is not able to "measure" the amount
of water loaded accurately. Interrupt the program
and switch off the dishwasher. Switch the
dishwasher back on, program it again and start
the washing cycle. If the problem persists, contact
the after-sales service.
E8
Alternate washing system malfunction
Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists,
contact the after-sales service.
E9 Water intake system malfunction
Contact the after-sales service.

INSTRUCTION MANUAL
W
WA AR RN NI IN NG GS SA AN ND DR RE EC CO OM MM ME EN ND DA AT TI IO ON NS S, ,G GU UI ID DE EF FO OR RT TH HE EU US SE EO OF FB BA AS SK KE ET TS S
A
AN ND DF FO OR RC CL LE EA AN NI IN NG GD DI IS SH HW WA AS SH HE ER RS S

Contents

1. Safety and operating instructions __________________________28
2. Installation and hook-up _________________________________31
3. Operating instructions ___________________________________35
4. Cleaning and maintenance _______________________________47
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of
the appliance.
USER INSTRUCTIONS: useful advice is provided for the use of baskets,
spray arms, containers and filters.

Safety instructions

1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE EEC
DIRECTIVES 72/23, 89/336 (INCLUDING 92/31) CURRENTLY IN FORCE,
INCLUDING THE PREVENTION AND ELIMINATION OF RADIO FREQUENCY
INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING
AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
USES OTHER THAN THOSE DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
NEVER BE REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID
WASTING ELECTRICITY.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.).

Safety instructions


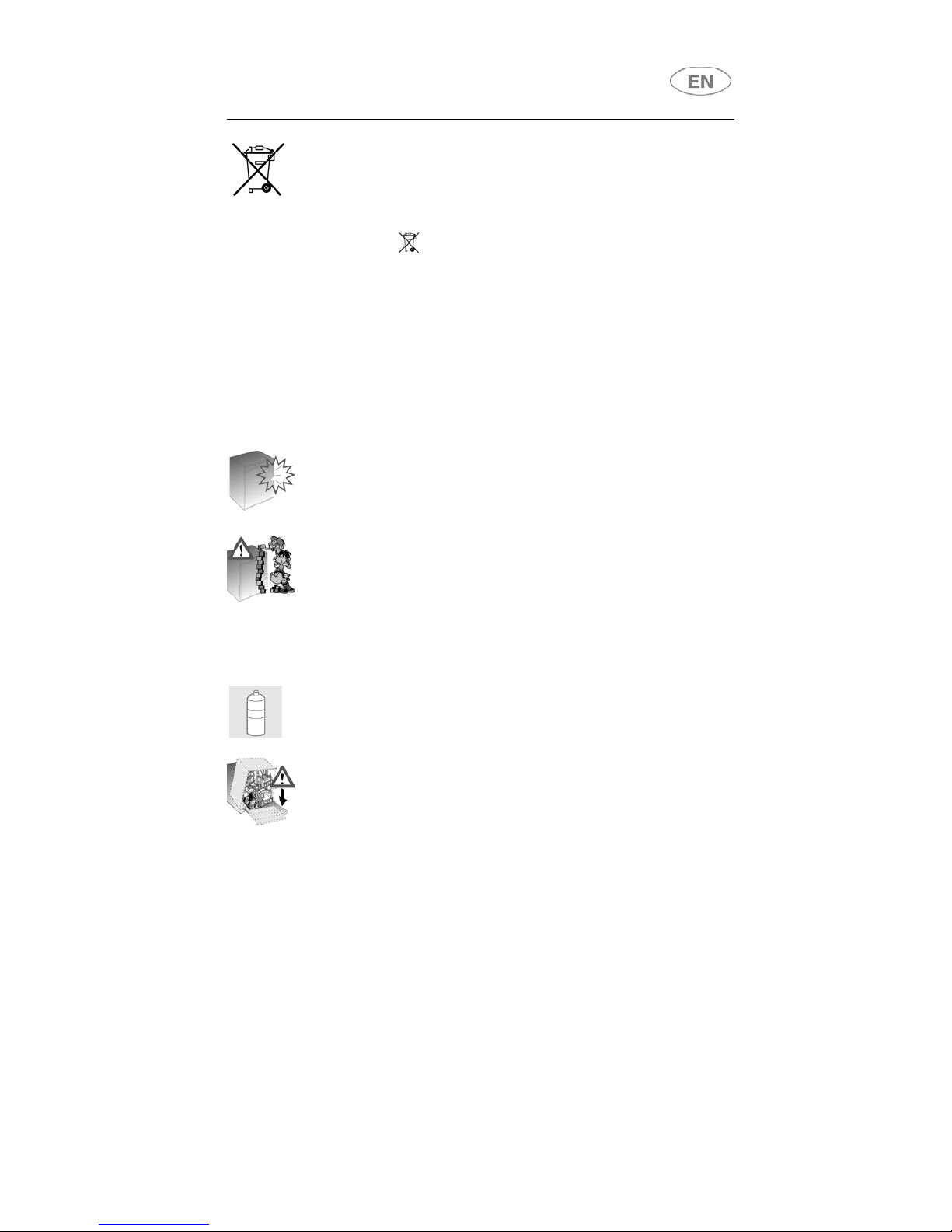

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE). BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY,
YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR
THE ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
THE SYMBOL ON THE PRODUCT, OR ON THE DOCUMENTS
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE
HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
THE APPLIANCE IS INTENDED FOR USE BY ADULTS. DO NOT ALLOW
CHILDREN TO COME NEAR OR PLAY WITH THE DISHWASHER. KEEP
CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN
DISHWASHER DOOR. THE PACKAGING MATERIALS (PLASTIC BAGS,
POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN THE
REACH OF CHILDREN.
KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE
MAY CONTAIN RESIDUES OF DETERGENT WHICH CAN CAUSE
IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL
AS POSSIBLE DEATH BY SUFFOCATION.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP
OVER IT.

Safety instructions

DO NOT UNDER ANY CIRCUMSTANCES TOUCH THE HEATING ELEMENT
IMMEDIATELY AFTER THE END OF A WASHING PROGRAM.
OVER TIME, THE DISHWASHER HEATING ELEMENTS MAY CHANGE
COLOUR, IN PART OR OVERALL. THIS IS PERFECTLY NORMAL AND DOES
NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE
TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE
HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,
DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE
APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN: REPAIRS
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original
spare parts.

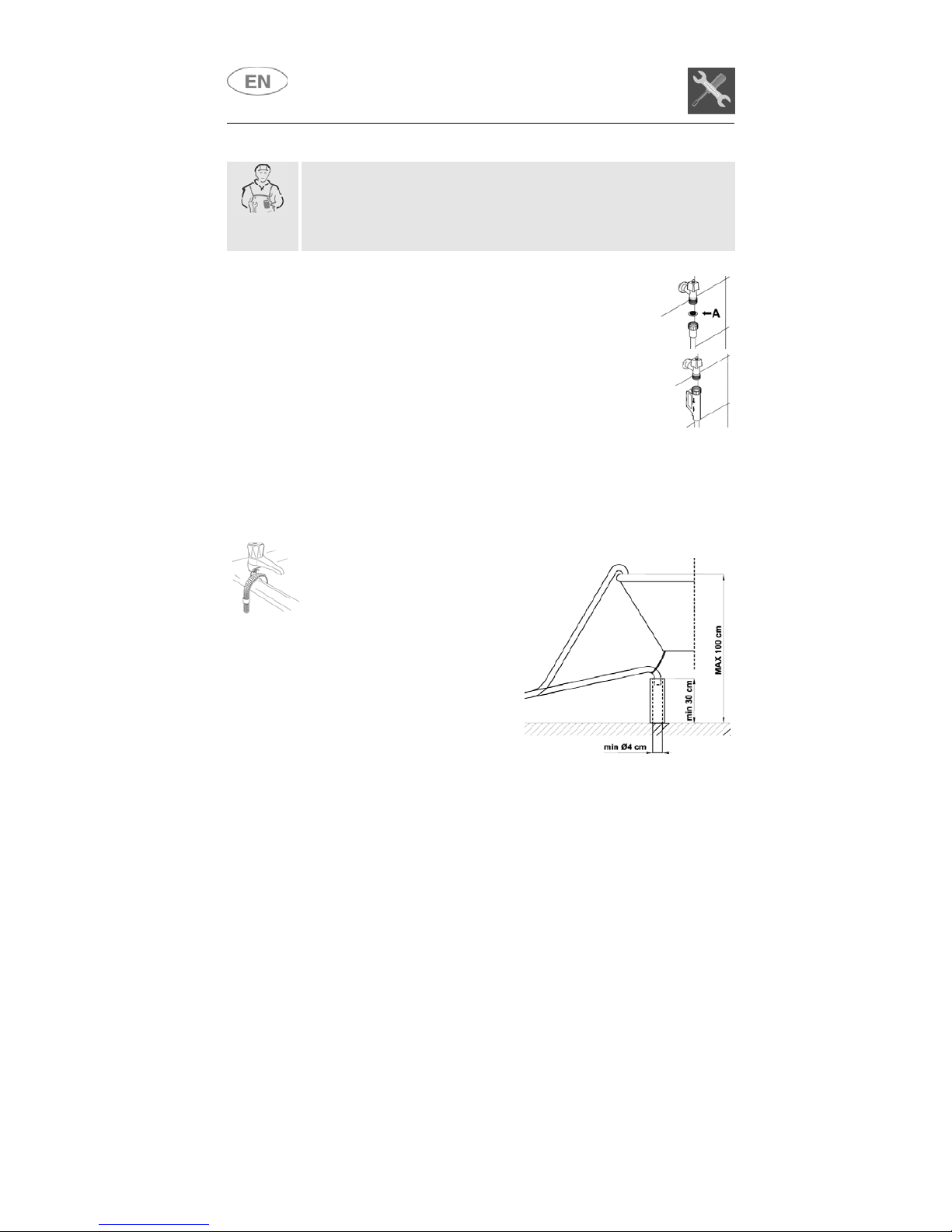

Installation instructions

2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other
furniture units. If the dishwasher is installed near a heat source, fit the
special insulating panel to prevent overheating and malfunction of the
appliance. To ensure stability, install integrated or built-under
dishwashers only under continuous worktops, and screw them to the
adjacent units. To facilitate the installation procedure, the intake and
drain hoses can be positioned in any direction; make sure that the hoses
are not kinked, crushed or pulled too tightly. Make sure to tighten the
locking ring-nut once the pipes have been placed in the direction
required. A hole at least 8 cm in diameter is required to allow the power
supply cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation
is essential for ensuring correct operation of the dishwasher.
Building-in a dishwasher underneath a ceramic hob is absolutely
forbidden.
A dishwasher can be built-in underneath a conventional hob provided
there is no break in the kitchen worktop, and the dishwasher and hob
are installed and secured correctly, so that no hazards are
generated.
For free-standing models only
-Installing a hob on top of a free-standing dishwasher is absolutely
forbidden.
-If the appliance is not built-in and is therefore accessible on one
side, the door hinge area must be covered for safety reasons (injury
hazard). The covering fixtures are available as an accessory from
specialist dealers or the After-Sales Service.
-To build in the dishwasher, the special kit must be purchased from
authorised dealers or the After-Sales Service.
Some models are equipped with only one adjustable foot at the rear,
which can be adjusted by turning the screw on the lower front part of the
appliance.

Installation instructions

2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance. The dishwasher must always be connected to the water
system with new hoses; old or used hoses must never be reused.
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾”
gas thread, inserting the filter Asupplied with the
dishwasher. Take care to screw the hose firmly into
place with your hands and then complete by
tightening about ¼ of a turn with pliers.
In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded
ring.
The dishwasher can also be connected to a hot water supply not
exceeding 60°C. Supplying the appliance with hot water cuts down the
washing time by approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between 30 and 100
cm, and should never be submerged in water. If a horizontal drain
extension hose is used (for a maximum of 3 m) the drain hose can be
placed at a maximum height of 85 cm from the ground.
