Smoothskin Bare FIT User manual

1
IPL USER GUIDE
10 minutes and voilà!

2 3
ENGLISH Page 4
ESPAÑOL Página 32
PORTUGUÊS Página 60
FRANÇAIS Page 88
繁體中文 網頁 116

4 5
CONTENTS
WELCOME TO
SMOOTHSKIN BARE FIT!
Congratulations! You’ve opened up a world of unparalleled beauty, smoothness and convenience.
Come and join in the conversation at www.smoothskin.com where you can find expert advice and
support throughout your treatment.
Package Contents
Inside the packaging of the SmoothSkin Bare Fit you will find the following:
•Handset and Power Supply
•Mains Power Cable
•Precision Head
•User Manual
Skin Tone Sensor
Activation Button
Umbilical Cable
Power Supply
Power Cable
Treatment Window
1. THE SMOOTHSKIN BARE FIT SYSTEM 5
2. HOW DOES SMOOTHSKIN BARE FIT WORK 6
3. IMPORTANT SAFETY INFORMATION 7
4. POTENTIAL RISKS, SIDE EFFECTS AND SKIN
REACTIONS 15
5. BENEFITS OF USING THE SMOOTHSKIN
BARE FIT 17
6. WHAT IS THE INTENDED USE OF
SMOOTHSKIN BARE FIT 19
7. YOUR SUITABILITY 19
8. HOW TO USE SMOOTHSKIN BARE FIT 20

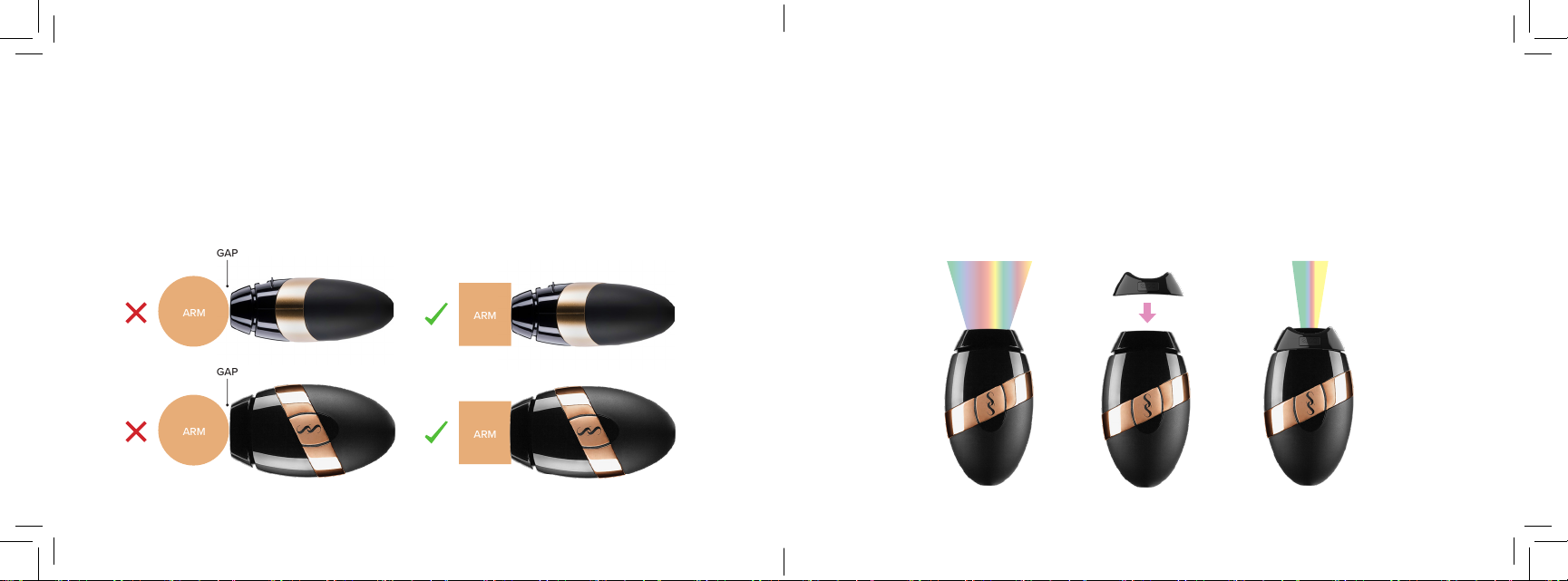

9. THE SKIN CONTACT SENSOR 24
10. THE PRECISION HEAD 25
11. CLEANING, MAINTENANCE AND STORAGE 27
12. TRAVELLING WITH SMOOTHSKIN BARE FIT 27
13. TROUBLESHOOTING 28
14. WARRANTY 28
15. LABELS AND SYMBOLS 29
16. TECHINCAL SPECIFICATIONS 30
1. THE SMOOTHSKIN BARE FIT SYSTEM
Precision Head

6 7
2. HOW DOES SMOOTHSKIN BARE FIT WORK

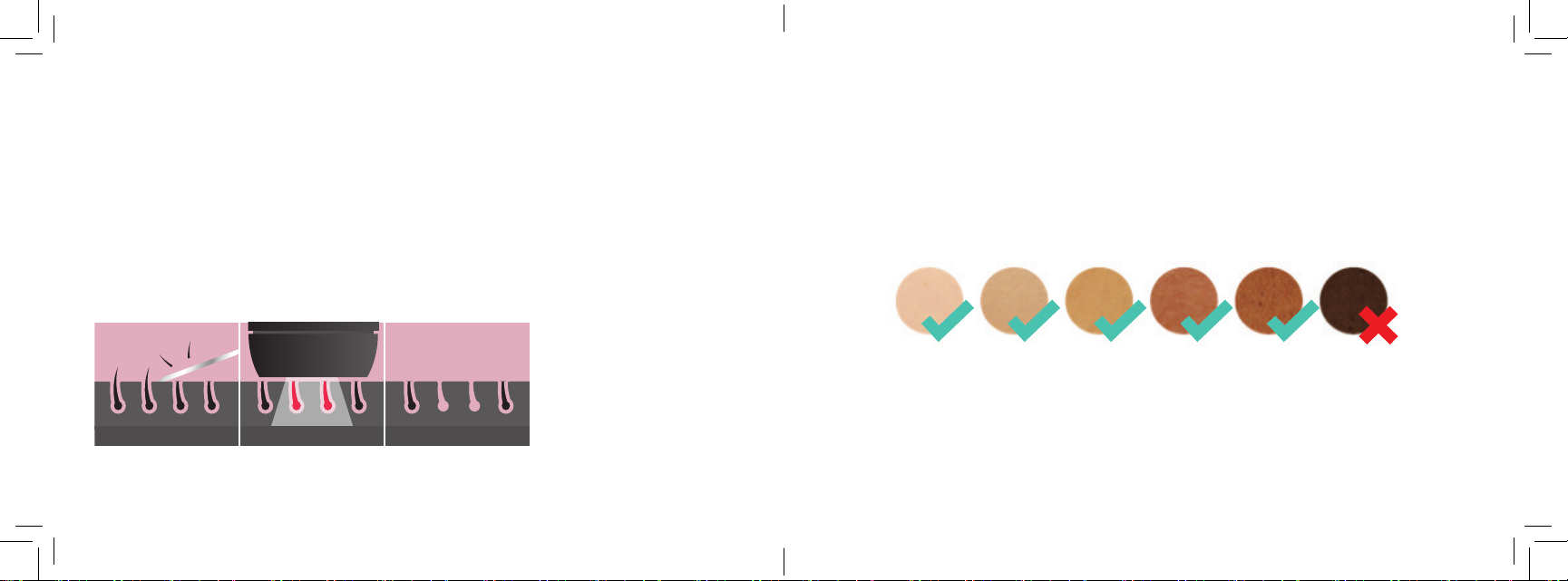

HOW DOES IPL WORK
SmoothSkin Bare Fit is designed to help break the hair cycle. Light energy is transferred through the
skin’s surface and is absorbed by melanin present in the hair shaft. That light energy is converted to
heat energy (below the surface of the skin), which stops the hairs from growing back. Now you can
look forward to seeing the treated hairs naturally fall out over the course of a few days to 1-2 weeks.
3. IMPORTANT SAFETY INFORMATION
CONTRAINDICATIONS
DO NOT use SmoothSkin Bare Fit if you have very dark skin. The skin tone sensor located near
the output window of the device will determine the tone of your skin. If the skin tone sensor
determines that your skin is too dark for safe use, operation of SmoothSkin Bare Fit will be
prevented.
DO NOT use SmoothSkin Bare Fit if your skin has been artificially or naturally tanned or is burned
from sun overexposure. Your skin may be extra sensitive following sun exposure and particularly
susceptible to burning, blistering, discolouring or scarring if you use SmoothSkin Bare Fit. Wait 1
week until sunburn or tan disappears before using SmoothSkin Bare Fit.
Z
Z
Z
Z
Z
Z
Z
Z
Z
SHAVE FLASH PREVENTS REGROWTH

8 9
DO NOT expose treated areas to the sun. Wait at least 7 days after treatment before exposing
treated skin to direct sunlight. Your skin may be extra sensitive following SmoothSkin Bare Fit
treatment and particularly susceptible to sunburn. Apply sunscreen (SPF 15 or greater) to the
treated area or cover the treated area with suitable clothing.
DO NOT use SmoothSkin Bare Fit directly on the nipples, genitals or around the anus. These
areas may have a darker skin colour and/or greater hair density. Using the device in these areas
may cause discomfort/pain or injure (burn, discolour or scar) your skin.
DO NOT use SmoothSkin Bare Fit if you have a history of skin cancer or pre-cancerous lesions
(e.g. nevi or a large number of moles).
DO NOT use on blisters and scars
DO NOT use SmoothSkin Bare Fit if you are pregnant, lactating, as this device has not been
tested with these individuals.
DO NOT use SmoothSkin Bare Fit on dark brown or black spots such as birthmarks, moles or
warts in the area you wish to treat. Using SmoothSkin Bare Fit may injure your skin or make
existing conditions worse. You may experience side eects such as burns, blisters and skin colour
changes or scarring.
DO NOT use SmoothSkin Bare Fit if you have any skin condition in the treatment area, including
psoriasis, vitiligo, eczema, acne, herpes simplex or active infections or wounds.
DO NOT use SmoothSkin Bare Fit if you are under the age of 18 as this device has not been
tested on these individuals.
WARNINGS
EYE SAFETY
SmoothSkin Bare Fit emits flashes of Intense Pulsed Light. Direct exposure is potentially harmful
to your eyes. Take care to follow the safety precautions below.
WARNING: Possible eye injury (Potentially leading to loss of vision) or skin injury if instructions are
not followed. Read and follow the instructions.
The handset can only be activated (flashed) if the skin tone snesor (next to the treatment window)
detects a valid skin tone reading and is in full contact with the treatment area. However:
DO NOT look directly into the treatment window of the handset when the system has electrical
power and is switched on.
DO NOT attempt to activate (flash) the system towards the eye.

10 11
DO NOT treat areas around the eye (eyebrows or eyelashes). Misuse can lead to eye damage,
protect eye from exposure. DO NOT use the appliance over the eye lids or close to the eye.
ONLY attempt to activate (flash) the system when the front of the handset is in good contact with
the area you wish to treat.
WE RECOMMEND you look away from the handset when firing onto your skin.
ELECTRICAL AND SAFETY
As with any electrical device, certain precautions must be taken in order to ensure your safety.
DO NOT try to open SmoothSkin Bare Fit, as this may expose you to dangerous electrical
components.
DO NOT use if SmoothSkin Bare Fit is damaged; for example, cracked Handset, cable damage
(internal wires visible), cracked or broken glass on the handset, etc. This may result in injury.
DO NOT use near bathtubs, showers, basins or other vessels containing water.
If SmoothSkin Bare Fit becomes wet, it should not be used.
DO NOT use if SmoothSkin Bare Fit becomes uncomfortably hot to touch. This may
indicate that the unit is damaged.
DO NOT use a power supply or other component, other than those provided for use with
SmoothSkin Bare Fit. This may damage the unit and cause it to stop working.
DO NOT attempt to activate (flash) SmoothSkin Bare Fit onto any surface other than skin.
WARNING: no modification of this equipment is allowed.
DO NOT position SmoothSkin Bare Fit so that it is dicult to disconnect from the mains supply.
GENERAL SAFETY
DO NOT use if you have had a skin peel treatment on the area you wish to treat. Please wait 30
days after a skin peel before treating with SmoothSkin Bare Fit.
Treating tanned skin with Intense Pulsed Light (IPL) may result in permanent Hyperpigmentation
(Darkening) or Hypopigmentation (lightening) of the treated skin.
DO NOT use on areas where you have tattoos or permanent make up.
DO NOT use If you have a known sensitivity to sunlight (photosensitivity) or are taking medication
that makes the skin more sensitive and causes photosensitivity, e.g. Retin A, Accutane and/
or other topical retinoids. Always check the instruction leaflet that comes with your medicinal
product, to see if photosensitivity is listed as a side eect. Use of SmoothSkin Bare Fit on

12 13
photosensitive skin could result in skin damage such as swelling or blisters. Seek medical advice
prior to application of the appliance as use may harm the skin.
This appliance is not intended for the treatment of medical conditions. Medical advice should be
sought to address, for example, moles, skin rash, itchy skin, skin fungus or infection, skin bumps,
or skin tags.
SmoothSkin Bare Fit should not be used over any fillers or botox.
SmoothSkin Bare Fit should be kept out of the reach of children under 18 years of age. Children
should not use, play with, maintain or clean the device. There are a number of potential risks –
exposure to the light output causing burns or eye damage, electrocution, strangulation from the
cables, choking from the removable front.
SmoothSkin Bare Fit should be kept out of reach of pets and pests which could damage the
device. Potential risks include reduced function and electrocution.
SmoothSkin Bare Fit is not intended for use by persons with reduced physical, sensory or mental
capabilities. Unless they have been given supervision or instruction concerning safe and proper
use of the device by a person responsible for their safety.
The SmoothSkin Bare Fit glass filter is a critical component that will get hot during use. DO NOT
touch the filter during or directly after use. Regularly inspect the filter for damage.
DO NOT use SmoothSkin Bare Fit if the filter is cracked or missing.
Ensure that SmoothSkin Bare Fit treatment window is clean and free from debris. Any debris on
or around the treatment window during operation may result in temporary skin changes such as
redness or swelling.
WARNING: Damage of the skin may occur after prolonged or repeated surface application on
one site. Avoid over-usage which included excessive passes, stacking of pulses and/or increased
frequency of use.
WARNING: Do not override the safety mechanisms inherent to the device.
DO NOT exceed the usage specified in the treatment regime.

14 15
PRECAUTIONS
Hair removal by lasers or intense pulse light sources can cause increased hair growth in some
individuals. Based upon currently available data, the highest risk groups for this response are
females of Mediterranean, Middle Eastern, and South Asian heritage treated on the face and
neck.
DO NOT use SmoothSkin Bare Fit on any area where you may want hair to grow back.
DO NOT use your SmoothSkin Bare Fit device on man's face, jaw, or neck. The hair in a man's
beard area is too dense, and using SmoothSkin Bare Fit device in these areas may result in skin
injury.
SmoothSkin Bare Fit is not recommended for use on red, grey, white or blonde hair. SmoothSkin
Bare Fit is not eective on these hair colours.
4. POTENTIAL RISKS, SIDE EFFECTS AND SKIN
REACTIONS
POSSIBLE SIDE EFFECTS HOW TO ASSESS AND REACT
Mild pain / discomfort in the area being treated. This is expected and is normal for all IPL treatments.You can keep
on using the device as instructed, and the pain should diminish with
continued use.
Warm feeling or tingling sensations during treatment, which typically
disappear after a few seconds to a minute and decrease with
continued use.
This is expected and is normal for all IPL treatments. You can keep on
using the device as instructed.
Itchiness in the treatment area. This is quite common for IPL treatments, and should subside after a
short period. You can keep on using the device as instructed. Do not
scratch the area.
Skin redness during or after treatment which disappears within
minutes.
This is expected and is normal for all IPL treatments. You can keep on
using the device as instructed once skin redness has disappeared.
Skin redness which does not disappear within minutes and lasts 24-48
hours.
Stop using the device immediately and consult your physician before
using it again.
Pain or discomfort that is intense during treatment or persists after a
treatment.
Stop using the device immediately and consult your physician before
using it again.
Use of the SmoothSkin Bare Fit could result in side eects. The table below lists the known skin reactions that may
occur following treatment with the SmoothSkin Bare Fit.

16 17
IN VERY RARE CASES HOW TO ASSESS AND REACT
Swelling and redness that does not disappear within two to three days. Stop using the device immediately and consult your physician
before using it again.
Temporary changes in skin colour (lightening or darkening). If your skin colour changes, stop using the device immediately and
consult your physician.
Blistering, scarring or burning of the skin. Stop using the device immediately and consult your physician before
using it again. Apply a cold pack to the area. Treat with antiseptic or
burn cream.
In a clinical trial of 50 subjects, each subject received 12 weekly treatments. The recorded eects
were:
•Itchiness – Four subjects experienced mild itchiness after treatment.
•Slight Redness – This was reported by 1 subject.
•Mild Stinging Sensation – Five subjects reported mild discomfort following treatment.
•In-growing Hair – One subject reported experiencing an in-growing hair following treatment.
•Follicle Redness – One subject reported a red spot at the treatment site following treatment.
In all cases, the treated skin returned to normal within 7 days.
5. BENEFITS OF USING SMOOTHSKIN BARE FIT
The SmoothSkin Bare Fit is indicated for the permanent reduction of unwanted hair.
A clinical trial was performed to assess both the safety and ecacy of the SmoothSkin Bare Fit. The key
features of the clinical trial were:
•All treatments were performed by non-medically trained operators at a single location using
devices identical to the SmoothSkin Bare Fit provided in this package;
•All subjects were required to complete questionnaires related to their general health and those who
could not be treated, e.g. those who had one or more of the contraindications as listed in Section 3 of
this User Manual were excluded. In addition, all subjects were required to provide Informed Consent
as per international clinical trial requirements;
•A total of 53 female subjects, aged between 19 and 45 years old, commenced the trial;
•Three subjects left the trial during the treatment period for personal reasons. No subjects left the trial
due to problems associated with the use of the SmoothSkin Bare Fit;
•Each subject received 12 weekly treatments to their chosen body location. A typical treatment
consisted of shaving the site then applying the SmoothSkin Bare Fit following the same process as
outlined in Section 8,, Step 3 of this user manual;
•Hair counts were used to measure the change in the amount of hair 6 months after the last
treatment and 12 months after the last treatment. The hairs in the treatment sites were counted via
high resolution photography and the dierence in hair counts was calculated as a percentage change;

18 19
•When used as directed, the clinical trial participants showed on average 44% less hair 6 months
after their last treatment and 36% less hair 12 months after their last treatment when compared to hair
counts taken before treatment (See Table below). Actual results did vary from person to person;
SmoothSkin Bare Fit
Number of Subjects at 6 Months Post Treatment 50
Hair Reduction at 6 Months Post Treatment 43.9%
Number of Subjects at 12 Months Post Treatment 33
Hair Reduction at 12 Months Post Treatment 36.0%
% of Subjects met success (>30% hair reduction) on all body
areas at 12 months post-treatment. Subject Success is defined
as greater than 30% hair reduction at all treatment sites at
12 months.
66.7%
•The incidence of side eects during the clinical trial was minimal (as outlined in Section 4 above) and
the majority of subjects (48 out of 50) would recommend the SmoothSkin Bare Fit to their friends.
6. WHAT IS THE INTENDED USE OF SMOOTHSKIN
BARE FIT
INTENDED USE
SmoothSkin Bare Fit is intended for the permanent reduction in unwanted hair.
7. YOUR SUITABILITY
BODY AREAS
SmoothSkin Bare Fit is suitable for use on body hair and female facial
hair below the cheekline.
SKIN COLOUR
SmoothSkin Bare Fit is suitable for use on light, medium and dark skin
tones up to and including skin tone 5. SmoothSkin Bare Fit incorporates
a Skin Tone Sensor that measures the colour of your skin and will
prevent use if your skin tone is too dark.
HAIR COLOUR
SmoothSkin Bare Fit is suitable for use on naturally black or brown hair.
It may not be as eective on white, grey, blonde or red hair.

20 21
Always perform a patch test on each new treatment area
Observe for adverse
events
12
24 HOURS
1
2
3
4
5
6
7
8
9
10
11
Step 3: Treating with SmoothSkin Bare Fit
a) Plug the Power Supply into an Electrical Outlet using the provided Power Cable. The Skin Tone Sensor on the front of the
Handset will illuminate blue and the fan will start up.
STANDBY MODE Timeout
When the unit is left “inactive” i.e. no buttons are pushed for 10 minutes then the unit will revert to STANDBY mode,
and the STS lights will switch o. To return to READY mode for treatment, press the Activation Button.
b) Press the Handset firmly against the area to be treated ensuring the Skin Tone Sensor is in contact with the skin. If the Skin
Tone Sensor does not detect a valid skin tone, then the Handset cannot be activated. When the Skin Tone Sensor measures a
valid skin tone, the lights around the Activation Button will illuminate WHITE to indicate the device is ready to flash.
IncorrectCorrect
Skin Detection
Indicator On Indicator O
No Skin Detection
Treatment Window
8. HOW TO USE SMOOTHSKIN BARE FIT
WARNING: Follow each step in the treatment process ensuring you complete all aspects of each step before progressing to
the next.
Step 1: PREPARE the area to be treated
Remove all visible hair by shaving. Make sure there is no hair remaining above the surface of the skin as this may cause injury.
This also prevents debris from covering the front of your device.
Cleanse the treatment area and pat dry. Remember, don’t use any gels or creams with this device!
Step 2: Doing a TEST PATCH
Before your first treatment on each new body area, we RECOMMEND you test your skin in that area for a reaction to
SmoothSkin Bare Fit. The patch test area should be approximately 3cm x 2cm in size (equivalent to 2 flashes applied to the
skin side by side). Follow Step 3 to treat the area.
Wait 24 hours following the patch test, to ensure your skin is suitable for treatment and there is no adverse reaction to the
light energy. If there is no reaction after 24 hours, you may treat the area around the patch test. The ‘patch tested area’ should
NOT be re-treated for at least 1 week.

22 23
c) Press the ACTIVATION BUTTON. The device will flash, and a warm sensation should be felt.
d) Move the Handset to the next area to be treated and repeat. The device needs to recharge between flashes. This will only
take about 0.6 seconds.
e) Ensure that the ENTIRE AREA receives treatment, and treat any stubborn areas (such as underarms) with multiple passes
(running your device over the same area a maximum of 3 times).
Treatment
Window
Full Coverage Overlapping Missed Areas
WARNING: Make sure not to cover the vents on the device whilst treating, as this can lead to the device overheating.
SmoothSkin Bare Fit is an extremely fast and powerful device, allowing you to complete a whole body treatment in under 10
minutes.
TREATMENT METHOD – STAMP OR GLIDE?
Stamp Method
This method is recommended for small areas such as the underarm and bikini line. Place the Handset on the skin,
press & release the Activation Button. Remove from the skin before carefully re-applying to the next treatment area.
Glide method
This method is recommended for larger areas such as legs. Place the Handset on the skin, hold down the Activation
Button (press down continuously), then glide the Handset along the skin between flashes. Try to move the Handset
at a steady speed that gives full coverage without overlap or missed areas.
Step 4: Your SmoothSkin Bare Fit Treatment Schedule
SmoothSkin Bare Fit should be used WEEKLY until the desired results are achieved.
TREAT TREAT
7 DAYS
Always wait 7 days before
treating the same area again
Step 5: Switching O the SmoothSkin Bare Fit
When the treatment is finished, SmoothSkin Bare Fit should be unplugged from the Electrical Outlet.
Refer to section 11 for details of how best to look after your SmoothSkin Bare Fit.

24 25
10. THE PRECISION HEAD
SmoothSkin Bare Fit comes with a detachable precision head that is perfect for smaller, tricky areas (like upper lip,
fingers, and toes). This has the benefit of giving you even more flexibility during each treatment.
Using the precision head will slow your device down a little, so we only recommend using when needed, to ensure
you get the fastest treatment possible.
The precision head simply attaches on to the front of your device via an internal magnet inside the front of the main
device. This magnet holds the head in place whilst you treat the area. Simply unclip or re-attach depending on what
area you’re treating.
9. THE SKIN CONTACT SENSOR
SmoothSkin Bare Fit is fitted with a skin contact sensor that checks your skin contact before each flash, making sure the device
is safe to operate! This makes the device compliant with the most stringent safety regulations.
The skin contact sensor also ensures you get the best results from your device. The sensor must be in full contact with the
treatment area in order for the device to flash.
This full contact with your skin means that all the light energy emitted from the device reaches the treatment area to deliver the
best results. If the device is not in full contact with the treatment area, the device will not fire. Try adjusting the positioning of the
device to ensure full contact is achieved, particularly on more awkward areas like arms and shins.
ARM
ARM ARM
GAP
ARM
ARM
ARM
ARM
ARM
GAP
ARM

26 27
11. CLEANING, MAINTENANCE, STORAGE
After treatment, always switch o SmoothSkin Bare Fit by unplugging from the electrical oulet.
After use, the handset, skin tone sensors and treatment window should
be inspected for damage and wiped down with a dry, lint free cloth.
WARNING: The glass filter can get hot during use. DO NOT touch or
clean the filter for at least 5 minutes after use to allow it to cool down.
NEVER use water or other cleaning fluids, as these can damage the
device leading to a potential safety hazard.
If necessary, the Reflector and Skin Tone Sensor can be carefully cleaned
by using a slightly damp cotton bud.
Store SmoothSkin Bare Fit in a cool, dry place. Make sure that the
treatment window and skin tone sensor on the handset are protected
from damage.
Regularly check the device (including cords) for visible signs of damage. In case of damage or cracks, stop using the device -
and visit the website for support details.
Skin Tone
Sensor
Reflector
12. TRAVELLING WITH SMOOTHSKIN BARE FIT
The Power Supply unit of the SmoothSkin Bare Fit is universal and will work with all commonly encountered mains supplies.
Providing you have a suitable adaptor for the mains power cable plug, the SmoothSkin Bare Fit will operate as normal.
If the precision head is damaged or missing any parts (e.g. magnet or reflector), then do not use.
If the precision head becomes uncomfortably hot during use, then stop treatment until it has cooled
down.
Follow all EYE SAFETY warnings (Section 3) when the precision head is fitted.
Follow the cleaning instructions (Section 11) for the precision head.
Top
Magnet
Reflector

28 29
13. TROUBLESHOOTING
PROBLEM SOLUTION
The Activation Button Lights on the Handset do not light up when placed
against your skin.
Make sure the power supply is plugged in. Ensure the skin tone
sensor is fully pressed against the skin. Your skin could be too dark
for treatment. Check against the skin tone chart in the front of this
user guide.
The Activation Button on the Handset lights up white when placed on the
skin, but the Handset fails to flash when the Activation Button is pressed.
There could be a fault with the device. Unplug the device and
restart. If the problem persists, visit the website for support details.
The Activation Button Lights on the Handset are illuminated red
continuously, and the device will not function.
This indicates that there is a fault with the device. Stop using the
device and visit the website for support details.
The SmoothSkin Bare Fit handset, treatment window, power supply or
cable are damaged, broken, cracked or appear defective.
DO NOT USE. If you are in any doubt about the safety of SmoothSkin
Bare Fit or suspect it is damaged in any way, it must not be used,
and you should visit the SmoothSkin website for more information.
14. WARRANTY
We grant a 2 year warranty on the product starting on the date of purchase. Within the warranty period, we will check faults in materials or
workmanship free of charge and replace the complete device, at our discretion.
This warranty extends to every country where this device is supplied by CyDen or its appointed distributor.
This warranty does not cover damage due to improper use, normal wear or use as well as defects that have a negligible eect on
the value or operation of the appliance. The warranty becomes void if repairs are undertaken by unauthorised persons and if original
SmoothSkin Bare Fit parts are not used. To obtain service within the warranty period, please visit our website: www.smoothskin.com
To obtain service within the warranty period, please visit our website: www.smoothskin.com
15. LABELS AND SYMBOLS
NRTL Certification marking
Type BF Applied Part
Class II Equipment
Follow Instructions for use
WEEE waste disposal mark of
the European Union
European Conformity
Marking
Keep Dry
Australia Regulatory
Compliance Mark
Trefoil compliance mark for
Ukraine
China RoHS environmental
protection use period
FCC EMC compliance
for North America
Warning Optical Radiation
from device may cause
eye injury
SmoothSkin Bare Fit is marked with the following symbols:
FCC Statement:
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment o and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment
and receiver.
•Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV
technician for help.

30 31
16. TECHNICAL SPECIFICATIONS
The SmoothSkin Bare Fit is a filtered broadband Intense Pulsed Light system with the following technical specifications:
•Repetition Rate: Manually pulsed every 0.6 seconds. Continuous operation
•Max Optical Output: 4J/cm2
•Pulse Length: 0.8 – 1.0msec FWHM
•Wavelength: 510-1100nm
•Power Line Input: 100–240V~, 50/60Hz,1.7-0.91A
•Operating temperature: Between 5°C and 40°C
•Operating humidity: Up to 93%R.H. non condensing
•Operating Pressures: 700hPa to 1060hPa
•Treatment area (spot size): 3 cm2 (30mm x 10mm)
The area directly around the treatment window is classified as the Applied Part, and can reach a maximum temperature of 52°C.
Ensure SmoothSkin Bare Fit is used as directed in Section 8.
TRANSPORT CONDITIONS:
•Temperature: -25°C to +70°C
•Humidity: Up to 93%R.H. non condensing
•Pressures: 500hPa to 1060hPa
If the device has been stored at temperatures outside of the stated operating range, then please allow at least 30 minutes
before use to allow the device to acclimatise.
SmoothSkin Bare Fit has unlimited flashes and is intended for a single user.
Minimum expected service life is 10 years when following the recommended regimen.
EMC
SmoothSkin Bare Fit complies with the latest EMC Standards and Amendments applicable to Household and Medical Devices.
These are: EN 60601-1-2:2014 Ed 4.0, EN 55014-1:2017 and EN 55014-2-2015, EN 61000-3-2:2014 & EN 61000-3-3:2013, FCC
CRF 47 Part 15B 15.107 & 15.109
Safety
SmoothSkin Bare Fit complies with the latest Safety Standards and Amendments applicable to Household and Medical Devices.
These are: IEC 60335-1:2010, IEC 60335-2-23 :2003, IEC 60601-11:2015 , IEC 60601-1-1:2005, IEC 60601-2-57:2011, IEC 60601-
1-6:2010, IEC 62366-1:2015, IEC 62366-1:2015, IEC 62304:2006, CAN/CSA -C22.2 No 60601-1:2008 and 2014, ANSI/AAMI ES
60601-1:2005 + AMS
CE marking certifies that this appliance conforms to the following EU Directives:
•Low Voltage Directive 2014/35/EU
•Electromagnetic Compatibility Directive 2014/30/EU
•Energy-Related Product Directive 2009/125/EC
For further details contact CyDen Ltd
DISPOSAL END OF LIFE
This product is a medical device.
In order to minimize hazards to health and the environment and ensure that materials can be recycled, this product should be
disposed of at a separate collection facility for waste electrical and electronic equipment.
The WEEE symbol marked on the product is there to remind you.

32 33
ÍNDICE
¡Enhorabuena! Acaba de abrir todo un mundo de belleza incomparable, tersura y comodidad. Únase y
participe en la conversación en www.smoothskin.com, donde podrá obtener asesoramiento experto y
asistencia a lo largo de su tratamiento.
1. EL SISTEMA DE SMOOTHSKIN BARE FIT 33
2. CÓMO FUNCIONA SMOOTHSKIN BARE FIT 34
3. INFORMACIÓN IMPORTANTE DE SEGURIDAD 35
4. RIESGOS POTENCIALES, EFECTOS SECUNDARIOS Y
REACCIONES CUTÁNEAS 43
5. VENTAJAS DE UTILIZAR SMOOTHSKIN BARE FIT 45
6. USO PREVISTO DE SMOOTHSKIN BARE FIT 47
7. SU IDONEIDAD 47
8. CÓMO USAR EL SMOOTHSKIN BARE FIT? 48
9. EL SENSOR DE CONTACTO CON LA PIEL 52
10. EL CABEZAL DE PRECISIÓN 53
11. LIMPIEZA, MANTENIMIENTO Y ALMACENAMIENTO 55
12. DE VIAJE CON SMOOTHSKIN BARE FIT 55
13. RESOLUCIÓN DE PROBLEMAS 56
14. GARANTÍA 56
15. ETIQUETAS Y SÍMBOLOS 57
16. ESPECIFICACIONES TÉCNICAS 58
Contenidos del paquete
Dentro del paquete de SmoothSkin Fit encontrará lo siguiente:
•Handset and Power Supply
•Cable de alimentación a la red eléctrica
•Cabezal de precisión
•Manual del usuario
Sensor de tono
de piel
Activation Button
Cable umbilical
Fuente de
alimentación
Cable de
alimentación
Ventana de
tratamiento
1. EL SISTEMA DE SMOOTHSKIN BARE FIT
Cabezal de
precisión
BIENVENIDOS A
SMOOTHSKIN BARE FIT!

34 35
3. INFORMACIÓN IMPORTANTE DE SEGURIDAD
CONTRAINDICACIONES
NO utilice SmoothSkin Bare Fit si su piel es muy oscura. El sensor de tono de piel ubicado cerca
de la ventana de salida del dispositivo determinará el tono de su piel. Si el sensor de tono de
piel determina que su piel es muy oscura para el uso seguro del dispositivo, se impedirá el
funcionamiento del SmoothSkin Bare Fit.
NO utilice SmoothSkin Bare Fit si su piel está recientemente bronceada de manera natural
o artificial o si sufre de quemaduras tras la exposición al sol. Su piel puede presentar una
sensibilidad adicional tras la exposición al sol y ser especialmente susceptible a quemaduras,
ampollas, decoloración o cicatrices si utiliza SmoothSkin Bare Fit. Aguarde una semana hasta que
desaparezca la quemadura solar o el bronceado antes de utilizar SmoothSkin Bare Fit.
2. CÓMO FUNCIONA SMOOTHSKIN BARE FIT
CÓMO FUNCIONA LA LPI?
Smoothskin Bare Fit ha sido diseñado para ayudar a romper el ciclo del crecimiento capilar. La energía
luminosa se transmite a lo largo de la superficie de la piel y se absorbe a través de la melanina
presente en el tallo piloso. Esta energía luminosa se convierte en energía térmica (bajo la superficie
de la piel) que impide que el fastidioso pelo vuelva a crecer. Ahora podrá comprobar cómo van
cayendo los pelos que han sido tratados durante los siguientes días y hasta en 1-2 semanas.
Z
Z
Z
Z
Z
Z
Z
Z
Z
AFEITA EMITE DESTELLOS EVITA EL NUEVO
CRECIMIENTO

36 37
NO exponga al sol las zonas tratadas. Aguarde por lo menos 7 días después del tratamiento
antes de exponer la piel tratada a la luz solar directa. Su piel puede estar especialmente sensible
tras el tratamiento con SmoothSkin Bare Fit y ser especialmente susceptible a las quemaduras
solares. Aplique un filtro de protección solar (de FPS 15 o superior) a la zona tratada o cubra la
zona tratada con la vestimenta adecuada.
NO utilice SmoothSkin Bare Fit directamente en los pezones, genitales o alrededor del ano.
Estas zonas pueden presentar una coloración cutánea más oscura y/o mayor densidad capilar.
La utilización del dispositivo en estas zonas puede provocar molestias/ dolor o lesiones
(quemaduras, descoloramientos o cicatrices) en su piel.
NO utilice SmoothSkin Bare Fit si tiene antecedentes de cáncer de piel o lesiones pre-
cancerígenas (como, por ejemplo: nevos o gran cantidad de lunares).
NO utilice sobre ampollas o cicatrices.
NO utilice SmoothSkin Bare Fit en caso de embarazo o lactancia ya que este dispositivo no ha
sido testado con este tipo de colectivos.
NO utilice SmoothSkin Bare Fit en manchas de coloración marrón oscura o negras, como marcas
de nacimiento, lunares o verrugas en las zonas que desee tratar. El uso de SmoothSkin Bare Fit
podrá provocar lesiones en su piel o empeorar las afecciones ya existentes. Podrá experimentar
efectos adversos tales como quemaduras, ampollas y cambios de coloración en la piel así como
cicatrices.
NO utilice SmoothSkin Bare Fit si sufre de afecciones cutáneas tales como, psoriasis, vitíligo,
eccema, acné, herpes simples o infecciones o heridas activas.
NO utilice SmoothSkin Bare Fit si es menor de 18 años de edad ya que este dispositivo no ha
sido testado con este tipo de colectivos.
ADVERTENCIAS
SEGURIDAD OCULAR
SmoothSkin Bare Fit emite destellos de Luz Pulsada Intensa (LPI). La exposición directa a los
mismos es potencialmente dañina para sus ojos. Asegúrese de seguir las precauciones de
seguridad que se incluyen a continuación.
ADVERTENCIA: Es posible que sufra una lesión ocular (que puede provocar la pérdida de la
visión) o cutánea si no sigue las instrucciones. Lea y siga las instrucciones a continuación.
El aparato de mano solo se puede activar (emitir destellos) cuando el sensor de tono de piel
(junto a la ventada de tratamientos) detecte una lectura de tono de piel válido, y esté en pleno
contacto con la zona de tratamiento. No obstante:

38 39
NO mire directamente a la ventana de tratamiento del aparato de mano cuando el sistema esté
conectado a la red eléctrica y encendido.
NO intente activar (emitir destellos) el sistema dirigido hacia los ojos.
NO trate las zonas alrededor de los ojos (cejas y pestañas). El uso indebido del dispositivo
puede provocar daños en los ojos, proteja sus ojos de la exposición al dispositivo. NO utilice el
dispositivo sobre los párpados ni cerca de los ojos.
SOLO intente activar (emitir destellos) el sistema cuando la parte frontal del aparato de mano se
encuentre en contacto con la zona que desea tratar.
LE RECOMENDAMOS que mire en otra dirección cuando el aparato de mano dispare los
destellos sobre su piel.
ELECTRICIDAD Y SEGURIDAD
Como con cualquier dispositivo eléctrico, es necesario tomar una serie de precauciones para
garantizar la seguridad.
NO intente abrir SmoothSkin Bare Fit, ya que podría exponerse a partes eléctricas peligrosas.
NO utilice si el dispositivo SmoothSkin Bare Fit se encuentra dañado, por ejemplo, si el aparato
de mano presenta grietas, los cables están dañados (cables internos a la vista), o si el vidrio del
aparato de mano está agrietado o roto, etc. Todo lo anterior puede provocar lesiones.
NO utilice el aparato cerca de bañeras, duchas, lavabos u otros recipientes que
contengan agua. No utilice el SmoothSkin Bare Fit si está mojado.
NO utilice el SmoothSkin Bare Fit si se calienta de manera excesiva al tacto. Puede
significar que el dispositivo está estropeado.
NO utilice una fuente de alimentación o alguna otra parte que no sea la facilitada por SmoothSkin
Bare Fit. Esto puede provocar daños en el dispositivo y detener su funcionamiento.
NO intente activar (emitir destellos) SmoothSkin Bare Fit en ninguna superficie que no sea la piel.
ADVERTENCIA: no se permite realizar ninguna modificación al dispositivo.
NO ubique el SmoothSkin Bare Fit de modo que sea difícil desconectar el dispositivo de la toma
de electricidad.
SEGURIDAD EN GENERAL
NO utilice si se ha sometido a un tratamiento de peeling cutáneo en la zona que desea tratar.
Aguarde 30 días luego del peeling cutáneo para realizar el tratamiento con SmoothSkin Bare Fit.
El tratamiento de piel bronceada con luz pulsada intensa (LPI) puede resultar en
hiperpigmentación (oscurecimiento) o hipopigmentación (aclaramiento) de la piel tratada.
NO utilice en áreas con tatuajes o maquillaje permanente.
