NEO-GEO
SERVICE
MANUAL
MV-1FZ

NOTES
ACopyright of this service manual belongs to SNK CORPORATION,
ft For questions and information regarding the contents in this
service manual, contact your SNK NEO GEO agent,
ft Minor changes may be put to the manual without advance notice
ft Any compensation against damages while using the MVS are out
of our responsibility.

INTRODUCTION
Welcome to the NEO-GEO MULTI VIDEO SYSTEM. This unique system by
SNK enables you to save space and maximize your income with PCBs
of high quality and of easy maintenance.
The newly developed MV-1FZ has been more compactly designed than
any former PCBs for carrying one NEO-GEO game, and the PCB can
be directly connected to the JAMMA standardized cabinet.
Income data keeping and other featured functions of all NEO-GEO
systems are of course available with MV-1FZ, too.
Please read this service manual carefully before starting to use
the MVS and keep it at your side for further reference.
ft JAMMA- •• Japan Amusement Machinery Manufacturers Association
CAUTION
QTo set up the MVS, avoid the following places:
*Where leaks or dew from moisuture may be caused
*Humid places like indoor swimming pools and showers
*Where direct heat strikes or in the hot air
*Near ignitable or volatile chemicals and other dangerous
articles
*Near emergency exits or fire extinguishers
^Inclined places or near vibrating places
*Dusty places
QKeep the temperature between 5°C and 40X1 •
QDo not put heavy objects on top of the PCBs.
QUse the power supply at DC5V11%.
-2-

CONTENTS
NOTES 1
INTRODUCTION 2
CAUTION 2
CONTENTS 3
COMPONENTS 4
1SETTING THE SOFT CARTRIDGES 4
-1 BEFORE SETTING 5
-2 SETTING CARTRIDGES 5
-3 POWER ON 5
2MODE SETTING 5
-1 STARTING 6
-2 MAIN MENU- 6
-3 HARDWARE TEST —7
-4 SETTING THE HARDWARE DIP 10
-5 SETTING THE SOFTWARE DIP 10
-6 INCOME DATA KEEPING 12
-7 SETTING THE CODE NUMBER 15
-8 SETTING THE CALENDAR 15
MAIN HARNESS 16
WIRING DIAGRAM 17
DIMENSION 18
-3-

1. SETTING THE SOFT CARTRIDGES
1-1 BEFORE SETTING
MAKE SURE THAT POWER IS OFF WHEN YOU INSERT OR REMOVE THE
CARTRIDGES. If power is not off, technical problems may occur.
1-2 SETTING CARTRIDGES
Make sure that the game cartridge is installed with the markings
()matching the main board.
1-3 POWER ON
Turn the power on after the cartridge is inserted firmly into
the slot.
If any abnormal sounds or graphics on the screen appear, turn
off the power immediately and try the procedure again.
CAUTION: ftKeep the slot from collecting dust and conductive
things
.
ADo not insert anything other than the NEO-GEO MVS
cartridge. NEO-GEO HOME USE CA-RTRIDGES cannot work on
MV-1FZ.
-5-

2. MODE SETTING
The MVS enables dip settings on the monitor screen instead of
the Hard dipswitch settings on the PCBs of other systems. Income
data keeping is also possible on the screen.
Read further for each operation.
2-1 STARTING
Press the test switch inside the cabinet, or, set the Hard
dipswitch "1" on the PCB "ON" and turn the power on.
2-2 MAIN MENU Use the joystick to move the cursor on
the screen and press the "A" button to
confirm mode.
cabinet switches, monitor adjustment
displays main PCB dipswitch
setting credit and difficulty
displays income data
setting memory card and code number
setting time and date
return to the game screen
UTARflWARI? TR9T
ruiiiuJWniUj lBol
CIPTTTUr TTD TUI? UADn nTD
oK 11ill vj Ur Inis HARD Dir
QPTTTWT' TTD TUT? CHET TTTD
oMilrtu Ur inK our! Dir
BOOK KEEPING
SETTING UP THE uODE NUMBER-
SETTING UP THE CALENDAR —-
EXIT
6

2-3 HARDWARE TEST Press the IP start button to go to the
next screen.
2-3-1 Crosshatch Adjust position and size of the game
,__ screen here.
232Color Adjustment Adjust color on the screen.
2-3-3 1/0 Check
"1" stands for "on" and "0" for "off" of
the dipswitch.
^SELECT, EL, LED1 &LED2 are not used
with MV-1FZ.
DP
DOWN
LBPT
RIGHT
P0SH1
P0SB2
P0SH3
P0SH4
START
I/O CHBCK
PI P2 12345678
00
O' 0
00
00
00
00
00
00
00
SELECT 00
Kwmm
0
0
0
TEST
com
C0II2
SERVICE 0
BL LED1 LED2
000 00
-7-

2-3-4 Sound Test
MV-1FZ IS FOR MONAURAL OUTPUT ONLY.
Sound at LEFT, RIGHT and CENTER are put
to the same speaker.
2-3-5 Memory Card Test
ftMV-IFZ doesn't have memory card
function. Go to the next.
MEMORY CARD TEST
&INSERT MBMORY CARD
2-3-6 Backup Clear
You can clear all previous data (income
data, etc.) by pressing A, B&Cbuttons
at the same time.
BACKUP CLEAR
0K=PUSB A, B, CBUTTON
-8 -

2-3-7 Calender
SETTING UP THE CALENDAR
CURRENT TIME
17/ 2/90 SAT
19:30:41
THE TIME TO BE SET UP
ABUTTON, JOYSTICK=SELECT
17/ 2/90 19:30:41
The time and date have already been set
from the factory.
If needed, you can change the numbers
indicated in red color. (''A'1button to
increase, "B" to decrease.)
Press "D" button to confirm setting.
After the HARDWARE TEST setting, turn the power off once
To return to the game screen, turn the power on again.
-9

2-4 SETTING HARD DIP Present status of the dipswitch is
displayed. Press "C" button to return to
the Main Menu.
SETTING UP THE HARD DIP
12345678
SETTING MODE 1ON -
COMMUNICATION ...000.. OFF
FREE PLAY 0. OFF
COIN SWITCH ..0 2-
STOP MODE 0OFF
0=OFF ION
—Test Mode /Game Mode
Set "0" (Normal Controller) .
—communication plays
—Game starts without inserting coins,
function to pause game
2-5 SOFT DIP SETTING
251Soft Dip Menu Use the joystick to select and press "A”
button to confirm mode.
SETTING UP THE CABINET -
SL0T1 NAM-1975
SL0T2 BASEBALL STARS -
SL0T3 MAHJONG
SL0T4 TOP PLAYERS GOLF
SL0T5 MAGICIAN LORD
setting Credit for
setting difficulty
coin
-10 -

2-5-2 Cabinet Setting
SETTING UP THE CABINET
COIN RATE 1C0IN-1CRRDIT
GAMB SELECT OKUriHBir GREDITED (^ANYTIME)
GAMB START COMPULSION 30 srt (“WITHOUT)
DEMO SOUND SET UP IN SAGE GAMB ("WITHOUT!
^Use the joystick to move the cursor
for each setting. Change mode with "A"
and "B" button,
ineffect at MV-1FZ
Setting the time limit to start game
"WITHOUT" is selected, no sound even
if "WITH" is set at CARTRIDGE SOFT DIP
SETTING.
Press "C" button to go to the SOFT DIP
SETTING Menu.
2-5-3 Soft Dip Setting
^Setting menu differs by each game
CONTINUE 3time («WITHOUT«FREB) —
DEMO SOUND YES («N0)
HOW TO PLAY YES («N0)
DIFFICULTY LEVBL 4
BONUS RATE SECOND BONUS («BVERY«N0)
BONUS 100000/200000
HERO 3
-setting the number of CONTINUE PLAYS
with or without demo sound
with or without "HOW TO PLAY" screen
setting difficulty of the game
Press "C" button to confirm the setting
and the SOFT DIP SETTING menu will
appear again. Press "C" button once more
to get to the Main menu.
-11 -

2-6 INCOME DATA KEEPING SYSTEM
2-6-1 Data Keeping
The MVS contains RAM for back-up and IC for calender in the
system. Income and other data of the games being used are kept
in the memory even when the power is off.
ftData of amaximum 8games can be kept at the MVS, even the game
cartridges are removed from the PCB.
For example: 2games, A&Bare being used on the MVS. If new
game titles C&Dare used to replace A&B, the previous data
for A&Bwill remain.
AaiB
BB
C
D
MVS
When the game cartridges, once removed,
are set again later, new data will be
added to the previous data.
When more than 8games are used, the oldest game's data will be
deleted from the memory to input data for the newest game.
To go to the Income Data Keeping System, press the "TEST" button
in the cabinet and select "BOOKKEEPING" mode on the screen.
12

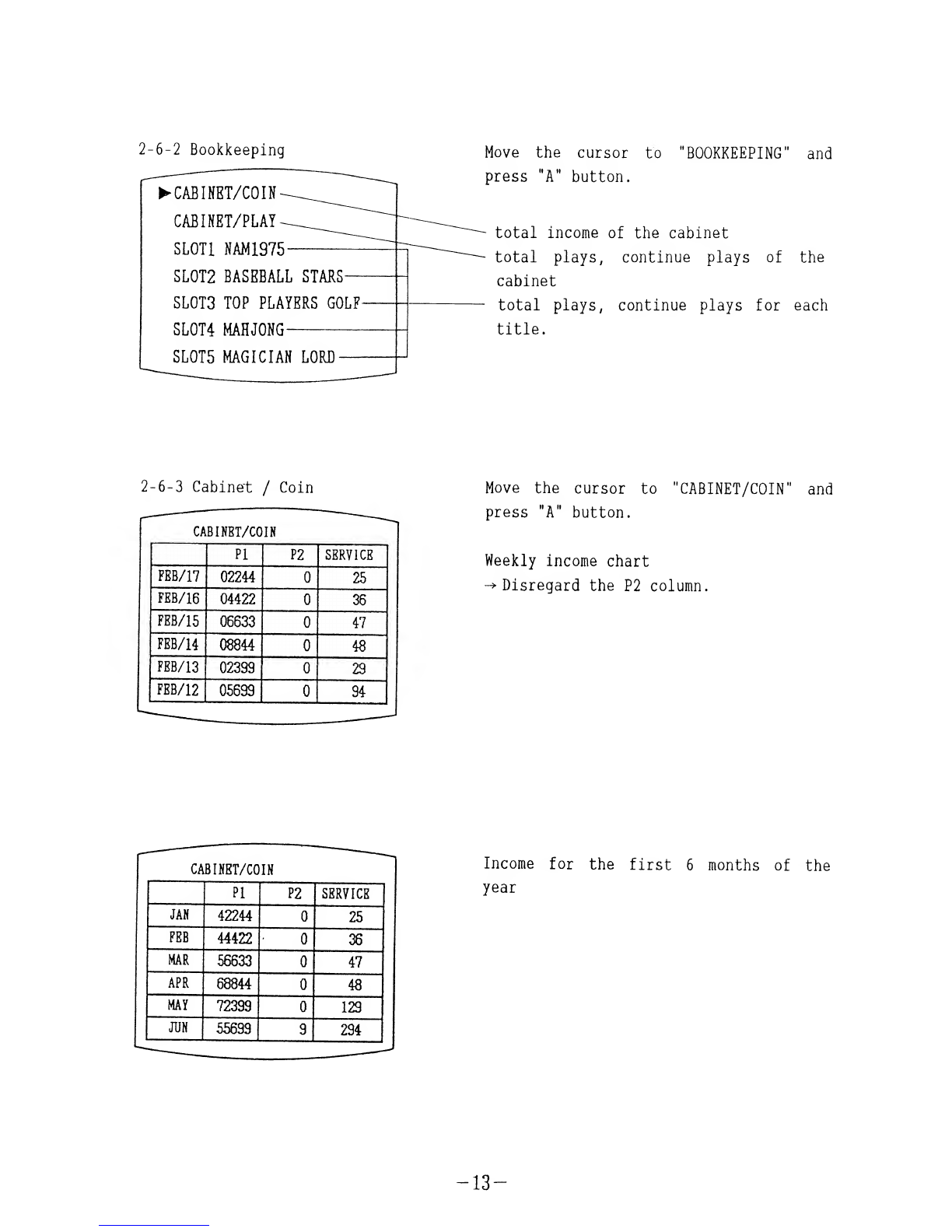

2-6-2 Bookkeeping Move the cursor to "BOOKKEEPING" and
press "A" button.
’’TcAbTnET/CO IN-
—
CAB INET/PLAY —
CTHTI WAMIOV^ i;—-
obuii
SL0T2 BASEBALL STARS
cr nT9 TOP PT rnr T?
-
Obvlo iUr uubr
ct HTA MAITTOWr, -
ubUl*t MAitd Uiiu
SL0T5 MAGICIAN LORD -
total income of the cabinet
total plays, continue plays of the
cabinet
total plays, continue plays for each
title.
2-6-3 Cabinet /Coin
CAB INBT/CO I
N
PI P2 SERVICE
FEB/17 02244 025
FEB/16 04422 036
FEB/15 06633 047
FEB/14 08844 048
FEB/13 02399 029
FEB/12 05699 094
Move the cursor to "CABINET/COIN" and
press "A" button.
Weekly income chart
-» Disregard the P2 column.
CABINET/COIN
PI P2 SERVICE
JAN 42244 025
FEB 44422 036
MAR 56633 047
APR 68844 048
MAY 72399 0129
JUN 55699 9294
Income for the first 6months of the
year
-13 -

CABINBT/COIN
PI P2 SERVICE
JUL 42244 025
AUG 44422 036
SEP 56633 047
OCT 68844 048
NOV 72399 0129
DEC 55699 0294
Income for the second 6months of the
year
2-6-4 Cabinet /Play
CABINBT/PLAY
PLAY CONT. AV. TIMB
FEB/17 22 33 5:20
FEB/16 44 55 6:20
FEB/15 66 77 7:20
FEB/14 88 99 8:20
FEB/13 23 32 9:20
FEB/12 56 55 4:20
FEB/11 11 88 5:20
Move the cursor to "CABINET/PLAY" and
press "A" button.
Weekly income chart
CABINBT/PLAY
PLAY CONT, AV, TIMB
JAN 42244 33363 5:20
FEB 44422 35543 6:20
MAR 56632 37773 7:20
APR 68844 39983 8:20
MAY 7239S 33232 9:20
JUN 5569S 15519 4:20
Income for the first 6months of the
year
-14 -

Income for the second 6months of the
year
rs* Income data of each game is shown in
the same way as "CABINET/COIN" and
"CABINET/PLAY".
2-8 SETTING CALENDER
To set the calendar, refer to 2-3-7, HARDWARE TEST.
15

MV-1FZ MAIN HARNESS
SOLDER SIDE
GND
GND
+5V
+5V
PIN #PART SIDE
GND
GND
+5V
-f 5V
+12V
KEY
COIN COUNTER2
COIN LOCKOUT2 K9
+12V
KEY
COIN COUNTER 1
COIN LOCKOUT 1
SPEAKER (-)L10 S PEAKER(+)
AUDIO (GND)M11
VIDE OGREEN N12VIDE0RED
.
VIDE 0SYNC P13VIDEOBLUE
SERVICE SWR14VIDEOG N D
S15TESTsw
C 0 IN 5W2T16C0INSW1
STA RTSW2U17ST A RTSW1
2PUPV181PUP
2PDOWN W191PDOWN
2PLEFT X201PLEFT
2PRIGHT Y211PRIGHT
2PPUSII 1Z221PPUSH1
2PPUSH2a231PPUSII 2
2PPUSH3b241PPUSH3
2PPUSII 4c251PPUSII 4
cl 26DAT AINPUT SW
GNDe27GND
GNDf28GND
DATA INPUT SW is not used at normal use.

WIRING DIAGRAM
17
oonntDUiDD

DIMENS ION
-18 -
