Solgaz SP-34-PM User manual

SOLGAZ Sp. z o.o.
www.solgaz.eu
Operation manual
Built-in-combination steam oven
with hot air and microwave
model
SP-34-PM
Read these instructions carefully before using
your microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you
with many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

CONTENTS
CONTENTS
2
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
3
ADDENDUM
3
SPECIFICATIONS
3
IMPORTANT SAFETY INSTRUCTIONS
4-5
TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION
6-8
SETTINGUPYOUROVEN
8
IMPORTANT INFORMATION ABOUT INSTALLING
9
FITTED UNITS
10

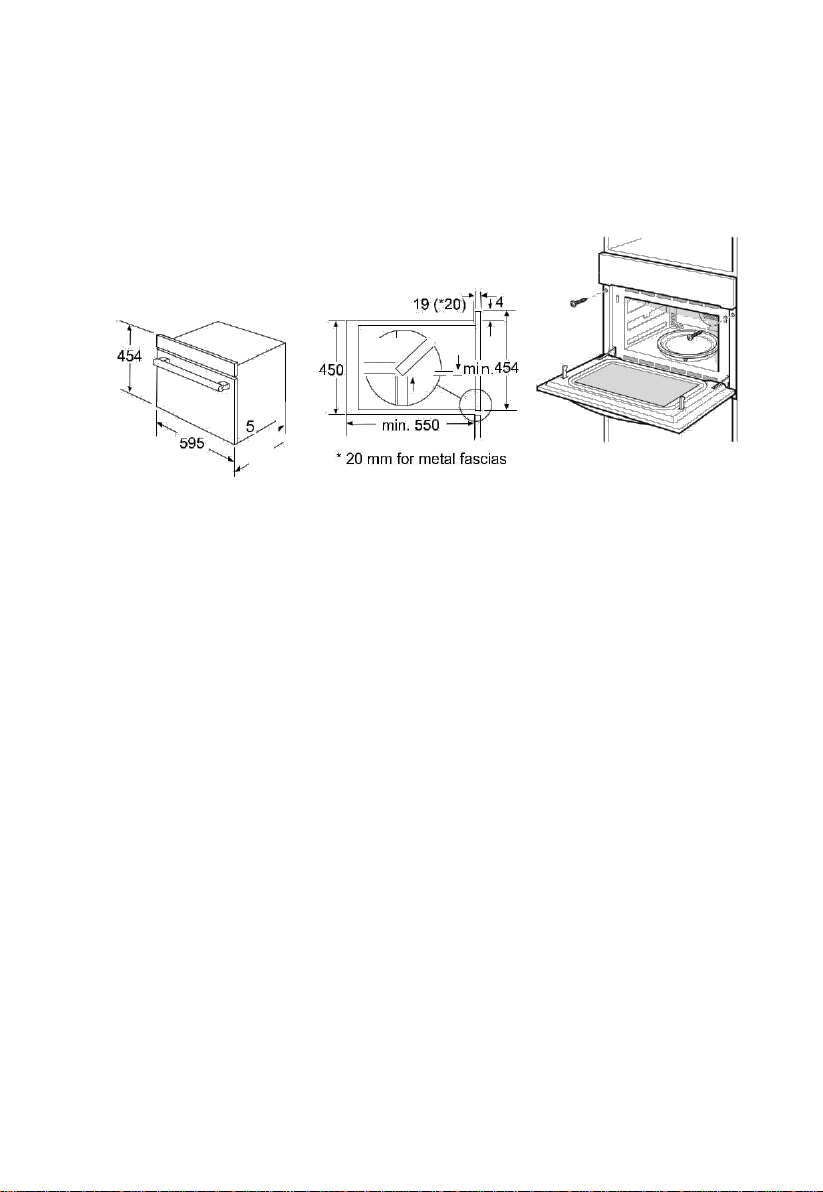

INSTALLATION DIMENSIONS
10
BUILDING IN
10-11
BEFORE FIRST USE
12
OPERATION INSTRUCTION
13-30
TROUBLESHOOTING
31
2

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be
operated until it has been repaired by a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface
could be degraded and affect the lifespan of the apparatus and lead to a
dangerous situation.
Specifications
Model:
TR934F6H-S00E/ TR934F2H-S00E
Rated Voltage:
230V~50Hz
Rated Input Power(Microwave):
1550W
Rated Output Power(Microwave):
900W
Rated Output Power(Grill):
1200W
Rated Output Power(Convection):
1750W
Rated Input Power(Steam):
1500W
Rated Input Power(Maxinmum):
3300W
Oven Capacity:
34L
External Dimensions:
595 525 454 mm
Net Weight:
Approx. 33 kg
3

IMPORTANT SAFETY INSTRUCTION
WARNING
To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
1. Warning: Liquids and other foods must
13. Install or locate this oven only in
not be heated in sealed containers since
accordance with the installation
they are liable to explode.
instructions provided.
2. Warning: It is hazardous for anyone other
14. Eggs in the shell and whole hard-boiled
than a competent person to carry out any
eggs should not be heated in microwave
service or repair operation that involves
ovens since they may explode, even
the removal of a cover which gives
after microwave heating has ended.
protection against exposure to microwave
15.This appliance is intended to be used in
energy.
household and similar applications such
3. This appliance can be used by children
as:
aged from 8 years and above and persons
-staff kitchen areas in shops, offices and
with reduced physical, sensory or mental
other working environments;
capabilities or lack of experience and
-by clients in hotels, motels and other
residential type environments;
knowledge if they have been given
-farm houses;
supervision or instruction concerning use
-bed and breakfast type environments.
of the appliance in a safe way and
16. If the supply cord is damaged, it must
understand the hazards involved.
be replaced by the manufacturer, its
Children shall not play with the appliance.
service agent or similarly qualified
Cleaning and user maintenance shall
persons in order to avoid a hazard.
not be made by children unless they are
17. Do not store or use this appliance
older than 8 and supervised.
outdoors.
4. Keep the appliance and its cord out of
18. Do not use this oven near water, in a
reach of children less than 8 years.
wet basement or near a swimming
5. Only use utensils suitable for use in
pool.
microwave ovens.
19. The temperature of accessible surfaces
6. The oven should be cleaned regularly and
may be high when the appliance is
any food deposits should be removed.
operating. The surfaces are liable to get
7. Read and follow the specific:"PRECAU-
hot during use.Keep cord away from
TIONS TO AVOID POSSIBLE EXPOSURE
heated surface, and do not cover any
TO EXCESSIVE MICROWAVE ENERGY".
vents on the oven.
8. When heating food in plastic or paper
20. Do not let cord hang over edge of table
containers, keep an eye on the oven due
or counter.
to the possibility of ignition.
21. Failure to maintain the oven in a clean
9. If smoke is emitted, switch off or unplug
condition could lead to deterioration
the appliance and keep the door closed
of the surface that could adversely
in order to stifle any flames.
affect the life of the appliance and
10. Do not overcook food.
possibly result in a hazardous situation.
11. Do not use the oven cavity for storage
22. The contents of feeding bottles and
purposes. Do not store items, such as
baby food jars shall be stirred or shaken
bread, cookies, etc. inside the oven.
and the temperature checked before
12. Remove wire twist-ties and metal handles
consumption, in order to avoid burns.
from paper or plastic containers/bags
before placing them in the oven.
4

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
24.Children should be supervised to ensure that they do not play with the appliance.
25.The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
26. Accessible parts may become hot during use. Young children should be kept
away. 27.Steam cleaner is not to be used.
28 During use the appliance becomes hot. Care should be taken to avoid touching
heating elements inside the oven.
29. Only use the temperature probe recommended for this oven.(for ovens provided with
a facility to use a temperature-sensing probe.)
30. WARNING: The appliance and its accessible parts become hot during use.Care
should be taken to avoid touching heating elements. Children less than 8 years of age
shall be kept away unless continuously supervised.
31. The microwave oven must be operated with the decorative door open.(for ovens with
a decorative door.)
32. Surface of a storage cabinet can get hot.
33. The microwave oven is intended for heating food andbeverages.Drying of food or
clothing and heating of warming pads,slippers,sponges,damp cloth and similar may
lead to risk of injury,ignition or fire.
34. WARNING: When move the stove, do not carry handle. ( Stove is overweight,
handles are easily broken.)
35. The water in the receiving tank, inside the oven and in the water tank should be
cleaned up after each use.
36. Do not use the paper cups and plastic containers with temperature below 120
degrees. The glass, ceramic, stainless steel utensils can be used.
37. Steam is the main heating function for this peoduce.

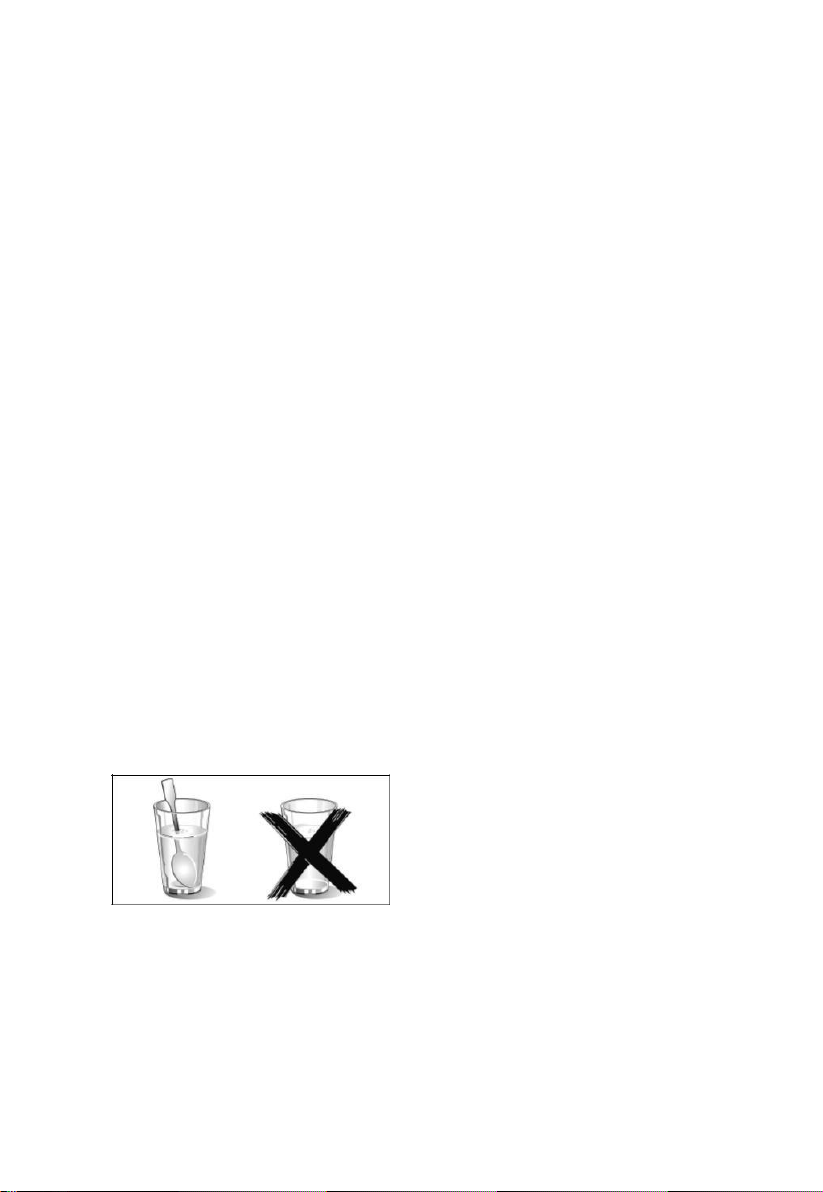

oIf you are heating liquid in the
microwave, then you must also place
a teaspoon in the container. This will
ensure that the liquid does not boil
suddenly after being removed from
the microwave cavity.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
5

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the interna components
can cause serious personal injury or death.
Do not disassemble this appliance.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so
that it will not drape over the counter top or
tabletop where it can be pulled on by
children or tripped over unintentionally.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for the
electric current. This appliance is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood or if doubt
exists as to whether the appliance is
properly grounded. If it is necessary to
use an extension cord , use only a 3-wire
extension cord.
1. A short power-supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is
used:
1)The marked electrical rating of the cord set
or extension cord should be at least as great
as the electrical rating of the appliance.
CLEANING
Be sure to unplug the appliance
from the power supply.
1. Clean the cavity of the oven after
using with a slightly damp cloth.
2. Clean the accessories in the usual
way in soapy water.
3. The door frame and seal and
neighbouring parts must be
cleaned carefully with a damp
cloth when they are dirty.
4. Do not use harsh abrasive cleaners
or sharp metal scrapers to clean
the oven door glass since they can
scratch the surface, which may
result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of
the cavity walls that the food cooked
can touch:
Place half a lemon in a bowl, add
300ml (1/2 pint) water and heat on
100% microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.
6

UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for anyone other
than a compentent person to
carry out any service or repair
operation that involves the
removal of a cover which gives
protection against exposure to
microwave energy.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test
the utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil
is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil
Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Browning dish
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking
Follow manufacturer’s instructions. Do not close with metal tie. Make
bags
slits to allow steam to escape.
Paper plates
Use for short–term cooking/warming only. Do not leave oven unattended
and cups
while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Parchment
Use as a cover to prevent splattering or a wrap for steaming.
paper
Plastic
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers
Microwave-safe only (meat and candy thermometers).
Wax paper
Use as a cover to prevent splattering and retain moisture.
7

Materials to be avoided in microwave oven
Utensils
Remarks
Aluminum tray
May cause arcing. Transfer food into microwave-safe dish.
Food carton with
May cause arcing. Transfer food into microwave-safe dish.
metal handle
Metal or metal-
Metal shields the food from microwave energy. Metal trim may
trimmed utensils
cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood
Wood will dry out when used in the microwave oven and may split
or crack.
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
1
7
2
3
4
8
5
6
1. Control panel
2.
Grill element
7.
Grill Rack
3.
Light
8.
Grass Pan
4. Level
5. Door glass
6. Hinge
8

IMPORTANT INFORMATION ABOUT INSTALLING
•This appliance is NOT intended for use in a commercial environment.
•Please observe the installation instructions provided and note that this appliance
should only be installed by a qualified technician.
•The appliance is fitted with a plug and must only be connected to a properly
installed earthed socket.
•In case a new socket is needed, installation and cable connection must only be done by a
quali fied electrician. If the plug is no longer accessible following installation, a pole
disconnecting device must be present on the installation site with a contact gap of at least
3 mm.
•Adapters, multiway strips and extension cords must not be used. Overloading can result
in fire.
•If the appliance is not fitted with a supply cord and a plug, the connection equipment must
have a contact separation in all poles that provide full disconnection, and the appliance
must be incorporated in the fixed wiring in accordance with the wiring rules.
The accessible surface
may be hot during
operation.
9

Installation dimensions
min 45
min 45
460
50
250
Ventilation grid Cupboard feet
Note: There should be gap above the oven.
Building in
•Do not hold or carry the appliance by the door handle. The door handle cannot
hold the weight of the appliance and may break off.
1. Carefully push the oven into the box, making sure that it is in the centre. 2. Open
the door and fasten the oven with the screws that were supplied.
10

10
25
Fully insert the appliance and centre it.
Do not kink the connecting cable.
Screw the appliance into place.
The gap between the worktop and the appliance must not be closed by
addtional battens.
11

BEFORE FIRST USE
Initial cleaning and heating
Removing the microwave oven all of the protection foil on the front.
For more information see the "CLEANING". Before the first use of the appliance,
￭Remove all accessories and wash out of the microwave.
￭Electric heating empty containers. New appliances typically smell when first used.
Before using the electrical appliance to cook food faster to heat it helps to banish
odors.
●Before heating, it is best to wipe the microwave oven interior with a damp cloth. In this
way, storage and untwisting appliances accumulated in the packaging process in
furnace dust or residual packing material can be removed.
● Touch “ ” keys. Appliance turn on, the main menu appears in the display.
●Touch " " to choose the convection function.
Recommended temperature will be highlighted, along with microwave
started directly.
●Raise the temperature to maximum temperature. This can be achieved by
using adjustment keys to achieve.
●Touch " " symbol next to the sensor keys. Heat the empty oven for at least an
hour.
When you do this, make sure that the room well ventilated. Close the door to the other
room to avoid odor pervaded the House.
●Let the appliance cool down to room temperature. Then solution of neutral detergent
mixed with hot water to clean inside the microwave oven, then wipe dry with a clean
soft cloth.
Keep the door open until completely dry in the oven.
12

OPERATION INSTRUCTION
Control Panel
This microwave oven uses modern electronic control to adjust cooking parameters to
meet your needs better for cooking.
1.Clock Setting
When the microwave oven is electrified, "00:00" will blink, buzzer will ring once.
1) Press " " or " " to set the right time(between 00:00 and 23:59.)
2) After you have set the right time, press " ". The clock has been set.
Note: 1) If you want to change the time, you have to press and hold the " "
button for 3 seconds. The actuall time disappears and then the time will
blink in the display.
Press" " or " " to set the new time and press the " " button
to confirm the setting.
2) When you set the clock, long press " " or " " when adjusting 10MIN, short
press time (each time you adjust 1MIN).
NOTE: When press " ",you could choose Microwave,Grill,Convection,
Grill+Fan,MW+Convection, MW+Grill function,Microwave+Grill+Fan.
2. Microwave Cooking
1) Press the " " button to activate the microwave function. "01:00" displays and
the microwave icon appears.
2) Press " " or " " or " " to select cooking mode.
3)Press " ", then press " " or " " to adjust the microwave power
(900W,700W,450W,300W, 100W). The default power is 900W.
4) Press " " ,then press " " or " " to set the cooking time.
The max. cooking time depends on the power that has been set. When the power is
900W, the MAX. time is 30 minutes and other powers are 90 minutes.
5) Press " " button to start cooking.
13

Microwave Power Chart
Microwave Power
100%
80%
50%
30%
20%
Display
900W
700W
450W
300W
100W
You can see from the table below from which power levels you can choose and
for which foods the power levels are suitable.
Power level
Food
900 W
- Boiling water, reheating
- Cooking chicken, fish, vegetables
700 W
- Reheating
- Cooking mushrooms, shell fish
- Cooking dishes containing eggs and cheese
450 W
- Cooking rice, soup
300 W
- Defrosting
- Melting chocolate and butter
100 W
- Defrosting sensitive/delicate foods
- Defrosting irregularly-shaped foods
- Softening ice cream
- Allowing dough to rise
3. Grill Cooking
1) Press the " button to activate the microwave function. "01:00" displays and
the microwave icon appears.
2) Press " " or " " or " " to select grill mode. The default grill power is the third
level.
3) Press " " to choose the grill level.
4) Press " "or " " to select the level 3(the MAX.), level 2 or level 1 ( the MIN.). 5) Press "
" to select the time setting mode. The default time is 10 minutes.
Press"
"or "
" to select the cooking time of grill. The MAX.time is 90 minutes.
6) Press "
" button to start cooking.
14

4. Convection Cooking
1) Press the " " button to activate the microwave function. "01:00" displays and
the microwave icon appears.
2) Press " " or " " or " " to select convection mode. The
default temperature is 180 degrees.
3) Press " " to enter to the temerpature mode.
4) Press" " or " " to select temerpature. The temperature is from 50 to 230
degrees.(50,100,105,110,115,120,125,130,135,140,145,150,155,160,
165,170,175,180,185,190,195,200,205,210,215,220,225,230)
5)Press " " to select the time setting mode. The default time is 10 minutes. Press
" " or " " to select the cooking time. The MAX.time is 5 hours.
6) Press " " button to start cooking.
5. Grill Fan Cooking
1) Press the " " button to activate the microwave function. "01:00" displays and
the microwave icon appears.
2) Press " "or " "or " " to select grill fan mode. The default temperature is 180
degrees.
3) Press " " to enter to the temperature selection.
4) Press " " or " " to select the temperature . The temperature is
from 35 to 180 degrees.(35,100,105,110,115,120,125,130,135,140,145,150,
155,160,165,170,175,180)
5) Press" " to select the time setting mode. The default time is 10 minutes. Press
" " or " " to select the cooking time. The MAX.time is 5 hours.
6) Press " " button to start cooking.
15

6. Microwave + Grill Cooking
1) Press the " " button to activate the microwave function. "01:00" displays and
the microwave icon appears.
2) Press" " or " "or " " to select the " MW+GRILL" combination mode.
3) Press " " to enter to the grill level selection.
4)
Press"
"or "
" to select the level 3(the MAX.), level 2 or level 1(the MIN.).
5)
Press "
" to enter to the microwave power level selection.
6) Press "
" or "
" to select the microwave power(700W, 450W, 300W,
100W). The default power is 300W.
7) Press"
" to select the time setting mode. The default time is 10 minutes.
8) Press"
"or "
" to select the cooking time . The MAX.time is 90 minutes.
9) Press " " button to start cooking.
7. Microwave + Convectionl Cooking
1) Press the " " button to activate the microwave function. "01:00" diaplays and
the microwave icon appears.
2) Press" " or " "or " " to select the "MW+ CONV."combination mode.
3) Press " " to enter to the temperature selection. The
default temperature is 180 degrees.
4)Press " " or " " to select the temperature between 50 to 230 degrees.
(50,100,105,110,115,120,125,130,135,140,145,150,155,160,
165,170,175,180,185,190,195,200,205,210,215,220,225,230)
5) Press " " to enter to the microwave power level selection.
6) Press " " or " " to select the microwave power(700W, 450W, 300W,
100W). The default power is 300W.
16

7) Press"
" to select the time setting mode. The default time is 10 minutes.
8) Press"
"or "
" to select the cooking time . The MAX.time is 90 minutes.
9) Press "
" button to start cooking.
8. Microwave + Grill Fan Cooking
1) Press the " " button to activate the microwave function. "01:00" displays and
the microwave icon appears.
2) Press" " or " "or " " to select the "MW+GRILL+FAN"combination mode.
3) Press " " to enter to the temperature selection.
The default temperature is 180 degrees.
4) Press " " or " " to select the temperature. The temperature is from 100 to 180
degrees.(100,105,110,115,120,125,130,135,140,145,150,155,160,165,170,175,180)
5) Press "
" to enter to the microwave power level selection.
6) Press "
" or "
" to select the microwave power(700W, 450W, 300W, 100W).
The default power is 300W.
7) Press"
" to select the time setting mode. The default time is 10 minutes.
8) Press"
"or "
" to select the cooking time . The MAX.time is 90 minutes.
9) Press " " button to start cooking.
9. Auto Cook
1) In standby mode, press " " button once, the display " " lights, go into defrost menu mode;
press the key more than once, you can switch between the different cooking types
such as d01, P01, S01, at this point you can press the " " or " " to choose defrost,
non steam menu, steam menu switches between three types of cooking.
When the display " " lights, enter menu mode automatically, the default symbol weight,
cooking time and cooking weight light; the display shows P01 or S01.
2)Press the " " and flashing display shows P01 or S01, at this point, you can
press " "or " ", select the menu type (P01-P40 or S01-S40).
17

Note:
1) For non-steam menu (P01-P20), press " " to confirm menu selection and
enter the weight of menu selection state automatically, at this point, you can
press " " or " ", choose the automatic menu weight cooking time display.
2) For the steam menu, at this time, if you need to adjust the default cooking time,
you can press , and makes the default cooking time of flashing, at this point,
press "
" or "
" to adjust the Cook time menu.
3) Press "
" button to start cooking.
NOTE:
1) After steam auto menu, the water pump will withdraw the water back to water tank, there will be
some noise sound.
2) After steam auto menu, you need to clean the water on cavity and door panel.
3) If the menu need preheating, don't put the food in the oven during preheating. Only when the
temperature is reached, can you put in the food to start cooking.
10. Defrost
1)In standby mode, press" " button once, select defrost mode, the display " "
lights, into auto defrost mode; display displays d01, initial weight, cooking time and
cooking signs light up;
2) Press " ", to confirm the selected defrost mode and enter the defrost
weight selection state, press " "or " "to select automatic defrost weight
cooking time display;
3) Press " " button to start cooking.
11. Preheating Function
The prehating function can be activated after you have set the functions:
Convection, Grill fan, ,MW-convection,MW-Grill fan.
1) Press " " button. When the preheat icon appears in the display.
2) Press " " button to start preheating. When the right temperature is reached, you will
hear three beeps. You can stop the preheating by opening the oven door or by pressing
the " " button.
Note: The preheating function only works if you have already chosen one of the
modes above. During preheating, the microwave function is switched off. During
preheating, don't put the food in the oven. Only when the temperature is reached,
can you put in the food to start cooking.
18

12. Steam Function
1) In standby mode, press " " button, enter the steam mode, time lights up by default
10:00. Press the key several times, in steam mode swich between other work.
You can also press " " or " " other ways of cooking made the swich.
2) when you select Steam mode, the icon is displayed, signs light up, there is no Parallax
display "10:00", "Min" and "℃"symbol lit, tank icon on the right show the current water
level (Water, lack of water). The default temperature 100 lights up.
3) Press the " " key to switch to the temperature selected, the temperature flashes, at
this point, press " " or " " to select a temperature (50,60,70,80,90,100).
4) Press" " to select the time setting mode. The default time is 10 minutes.
5) Press" "or " " to select the cooking time . The MAX.time is 90 minutes. 6)
Press " " button to start cooking.
13. Convection+Steam Function
1) In standby mode, press " " button, enter the steam mode, time lights up by default
10:00. Press the key several times, in steam mode switch between other work. You
can also press " " or " " other ways of cooking made the switch.
2) when you select Conv.+Steam mode, the icon is
displayed, the default temperature is 180 degrees.
3) Press " " to enter to the temperature selection.
4) Press " " or " " to select temperature .(180,190,200,210,220 degree)
5) Press " " button, adjust the steam(10,20,30), and steam the display flashes, then
press " " or " " to set steam (default 30 percent), if the steam is not in Flash, you can
press the "
" key to make it Flash and then press "
" and "
" to set the steam.
6) Press"
" to select the time setting mode. The default time is 10 minutes.
7) Press"
"or "
" to select the cooking time . The MAX.time is 90 minutes.
8) Press " " button to start cooking.
19

14. Microwave+Steam Function
1) In standby mode, press " " button, enter the steam mode, time lights up by default
10:00. Press the key several times, in steam mode switch between other work. You
can also press " " or " " other ways of cooking made the switch.
2) when you select MW+Steam mode, the icon is displayed, then displays 300W.
3) Press "
" to enter to the microwave power
level selection.
4) Press "
" or "
" to select the microwave power(900W, 700W, 450W,
300W, 100W). The default power is 300W.
5) Press "
" button, adjust the steam, and steam the display flashes, then press
"
" or "
" to set steam (default 30 percent), if the steam is not in Flash, you can
press the "
" key to make it Flash and then press "
" and "
" to set the steam.
6) Press"
" to select the time setting mode. The default time is 10 minutes.
7) Press"
"or "
" to select the cooking time . The MAX.time depends on the
power that has been set. When the power is 900W, the MAX.time is 30 minutes
and other powers are 90 minutes.
8) Press "
" button to start cooking.
The ratio of the steam under different microwave power:
Microwave Power
Steam Ratio
100W
10%,20%,30%
300W
10%,20%,30%,40%,50%,60%
450W
10%,20%,30%,40%,50%,60%,70%
700W
10%,20%,30%,40%,50%,60%,70%
900W
10%,20%,30%,40%,50%,60%,70%,80%90%,100%
15. Lock-out Function for Children
Lock: In standby mode, press "
" for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state and "
" indicator will light.
Unlock : In locked mode, press "
" for 3 seconds, there will be a long
"beep" denoting that the lock is released, and "
" indicator will disapear.
20
