Sonny's SFB Series User manual

Bottom Motor Side Washer
SFB Series
Owner’s Manual
Sonny's Enterprises LLC
5605 Hiatus Road
Tamarac, Florida 33321

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 2 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
*Table of Contents*
WARNING *SAFETY REQUIREMENTS* WARNING..................................................................3
*INTRODUCTION*.......................................................................................................................5
Product Specifications ...........................................................................................................6
*INSTALLATION* ........................................................................................................................8
Utilities Requirements ............................................................................................................8
Equipment Installation..........................................................................................................13
Side Washers Installation..................................................................................................13
Adjustments and Testing .....................................................................................................15
*GENERAL OPERATION*.........................................................................................................16
*PREVENTIVE MAINTENANCE*...............................................................................................17
*WARRANTY*............................................................................................................................20
*CUSTOMER SERVICE* ...........................................................................................................21
Sonny’s and Sonny’s The CarWash Factory are Registered trademarks of Sonny’s Enterprises LLC
Make CarWashing Easy and OneWash are trademarks of Sonny’s Enterprises LLC
Designed here. Built here. Backed here. is a trademark of Sonny’s Enterprises LLC
Products mentioned herein are for identification purposes only and may be registered trademarks of their respective companies.
All other brand names, trademarks or registered trademarks are the property of their respective owners.

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 3 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
WARNING *SAFETY REQUIREMENTS* WARNING
1. All employees must be thoroughly trained in safe operation and standard maintenance
practices. All employees must review this entire manual monthly.
2. Do not enter the wash tunnel when the equipment is operating. Death or dismemberment
may occur.
3. Do not wear loose fitting clothing or jewelry around moving equipment. Do not allow any
part of your body or other objects (including ladders, hoses, or tools) to come in contact
with moving equipment. Entanglement may result causing death or dismemberment.
4. Do not leave a ladder or any other items such as wash down hoses or tools in the wash
tunnel while equipment is running. Vehicle damage and injury, including death, can
occur.
5. Always exercise caution when walking (never run) through the wash tunnel as there may
be slippery conditions. Be careful so you do not bump into or trip over equipment.
6. Only those employees specifically instructed and trained by the location management are
permitted to enter the wash tunnel to perform inspections or maintenance. At least two
qualified maintenance people must be present when performing equipment repairs or
preventive maintenance.
7. Do not perform any maintenance or work on equipment unless you first perform Lock-Out
Safety Precautions. All electrically powered equipment must have manually operated
disconnects capable of being locked in the “OFF” position. Equipment that has been
“locked out” for any reason must be restarted only by the person who performed the “lock
out” operation.
8. When working on any equipment that is higher than your shoulders, always use a
fiberglass ladder that is in good condition.
9. Do not attempt to repair or adjust any pressurized liquid or pneumatic part, hose, pipe or
fitting while that equipment is in operation.
10.Electrical connections and repairs must be performed by a Licensed Electrician Only.
11.Emergency “STOP” buttons must be well marked, and their location and proper use
reviewed with all personnel. Any activated “STOP” button must be reset only by the
person who activated it. Clear the wash tunnel of any people, ladders, hoses, tools, and
other loose items before restarting the equipment. An audible device must sound to warn
people that the equipment is starting.
12.Do not operate any piece of equipment that requires safety covers with those covers
removed or improperly installed. Do not operate any piece of equipment if any
component of that piece is suspected to be defective or malfunctioning.

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 4 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
13.Store all cleaning and washing solutions and oils in a well-ventilated area. Clean up fluid
spills immediately to prevent hazardous safety conditions. Be certain to follow all safety
procedures on SDS Sheets for each chemical product used.
14.All hydraulic and electric systems in the wash tunnel equipped with a torque relief or
overload should be checked and set at the minimum amount that will allow for proper
functionality under normal washing conditions.
15.No unauthorized people should ever be permitted in the wash tunnel or near the
equipment at any time. * * *
! ! CAUTION ! !
When a piece of equipment must be in operation during inspection or maintenance, one
qualified technician must stay at the power disconnect switch while another qualified
technician performs the inspection or maintenance.

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 5 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
*INTRODUCTION*
This Manual contains information that is vital to the successful installation,
operation and maintenance of your SONNY’S vehicle washing equipment.
Please read, and understand, the full contents of this manual before
installation and operation of the equipment. Keep this booklet in a location
where it may be used for ongoing reference.
Should you have any questions on the operation or servicing of this
equipment please contact
TECHNICAL SERVICES DEPT.
SONNY’S ENTERPRISES INC.
5605 Hiatus Road
TAMARAC, FLORIDA 33321
TELEPHONE: [phone] FAX: [phone]
THANK YOU FOR YOUR CONFIDENCE IN SONNY’S !!!!!
Designed here. Built here. Backed here.™

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 6 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A

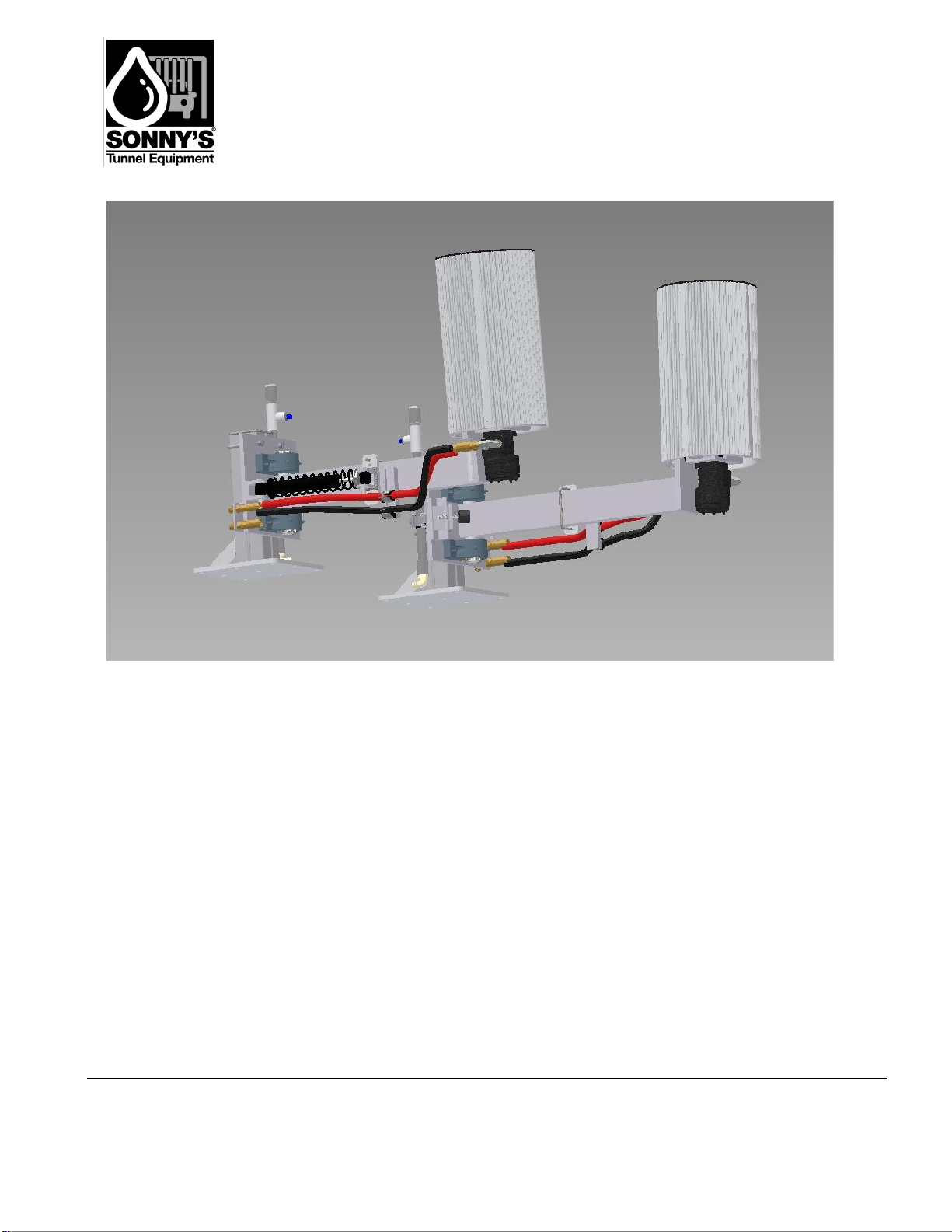

Product Specifications
➢Constructed from aluminum or stainless steel
➢Available in six cleaning heights: 18, 21, 28, 35, 50 or 63 inches
➢Positive motor to brush shaft coupling
➢Simple mechanical brush pressure adjustment
➢Soap solution spray bar for each brush
➢1/2 inch soap solution inlet fitting on each brush
➢Hydraulic drive motors require 3GPM when plumbed in series
➢Available electric drive motors in Low Voltage and High voltage
➢Staggered or opposed placement
➢66 inches of tunnel length required in opposed configuration
➢Properly contoured cloth included

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 7 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 8 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
*INSTALLATION*
Utilities Requirements
Utilities interconnection and the materials required for interconnection to Sonny’s
equipment are the responsibility of the customer!
Perform all trades work to all applicable local and national codes!
Water
•The Customer's Plumber is to provide and install a 1/2 inch city water line @60PSI
(nominal) to the solenoid valve on the chemical distribution system for the Washer.
Electrical
•The Customer's Electrician is to provide and install single phase power from the (24 or
110 VAC as determined at time of order) from the Customer’s Controller system to the
liquid solenoid valve for the brush spray bars and, if required, the motor starter coil for the
hydraulic power pack feeding the two brushes and any pump motor for the chemical
distribution system.
•Where applicable, the Customer’s Electrician is to provide materials and install 208VAC
or 230VAC or 460VAC, 3-phase, 60Hz power to the electric motor on the hydraulic power
pack or VFD panel from a properly sized three pole circuit breaker and motor starter with
three thermal overloads.
•Where applicable, the Customer’s Electrician is to provide materials and install 190~230
VAC or 380~460VAC, 3-phase, 60Hz power to the electric motor.
Technical Disclaimer
•Although building codes have been considered in the developing all drawings, verification
of site-specific conditions and compliance with federal, state, and local building codes is
the exclusive responsibility of the customer and/or architect and engineer.
Optional Retract Kit Requirements
Electrical
•The Customer's Electrician is to provide and install single phase power from the remote
push-button station through the tunnel equipment controller to the air solenoid valve for
retract of both washers upon selective signal (See Figure #3 in Dimensions Section).
Compressed Air
•The Customer's Plumber is to provide and install a 3/8 inch compressed air line (1.5CFM
@ 100PSI) from the Air Compressor to the Air Distributor for the Retract Functions (See
Figure #2 in Dimensions Section).

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 9 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
Dimensions

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 10 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
Figure #1

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 11 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
Figure #2

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 12 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
Figure #3
Figure #4

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 13 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
Equipment Installation
Side Washers Installation
Tools
Consumables
1. Safety Glasses
1. PTFE Paste
2. ½” Drive Ratchet Set
2. PTFE Tape
3. Standard Combo Wrenches
4. Impact Wrench Set
5. 4’ Level
6. Sledgehammer
7. 1” Hammer Drill
8. Pry Bar
9. Tape Measure
10. Permanent Marker
Work Force
Time (assuming no problems)
One (1) person
2.00 –3.00 hours
Installation Steps
1. Determine where the washer is to be installed. Refer to tunnel layout diagram.
2. Sweep any debris from where the washer will stand.
3. Place the washer mounting posts on the passenger and drivers sides according to the
dimensions on the tunnel layout diagram. DO NOT permanently anchor the base plates
until the brush hanger arms are level.
4. Level the brush hanger arms by placing shim material under the base plates.
Note: Before lagging the frame into position have a second person double check all
measurements against your tunnel equipment layout drawings to ensure all measurements were
performed correctly.
5. Lag one corner of each base plate and recheck all measurements. Once confirmed lag
the opposite corner of each base plate and recheck all measurements, then finish lagging
the plates into place.
6. Adjust brush hanger extension toward the center of the wash tunnel by adjusting the
rubber bumper stop to rest against the brush hanger to the following dimensions:
DRIVER SIDE - 23 inches from the center of the brush core to the passenger side
of the conveyor inside guide rail.

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 14 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
PASSENGER SIDE - 73 inches from the center of the brush core to the passenger
side of the conveyor inside guide rail.
7. Check that the shock absorbers on each brush hanger do not "bottom out" in their
fully extended position. If this occurs move the shock mounting position to a
different hole on the mounting bracket to prevent a fully extended condition.
8. With each brush hanger in its extended position measure the extend tension of the
hanger with a fish weigh scale hooked to the underside of the "C" channel brush
core and pulling the brush away from its extended position with the scale. The
weigh scale should indicate 10 to 15 pounds of tension for the initial spring tension
setting. Tension may be adjusted by moving the spring clamp position on the
shock absorber or by moving the shock absorber mounting bracket on the brush
hanger arm. The initial tension setting may need to be adjusted when the units are
in operation in order to achieve the desired 4 inches to 6 inches of cloth
penetration on the vehicle surface.
Note: The SONNY'S supplied BLACK high pressure hose on the washer unit is for the
hydraulic PRESSURE connection and the ORANGE OR RED high pressure hose on the
washer unit is for the hydraulic RETURN connection.
9. Run and connect ½ inch hydraulic lines (minimum rating 2000PSI) for pressure
and return from the hydraulic power pack to the brush motors. The driver side and
passenger side brushes require 3GPM (plumbed in series) to operate (see Figure
# 4 in Dimensions Section).
10.Where applicable, run and connect power lines to the electric motor of the
Washers, 190~230 VAC or 380~460VAC, 3-phase, 60Hz power, depending on
your configuration.
11.Run and connect 1/2 inch Poly tubing from the chemical distribution system to the
1/2 inch female thread inlet fitting on each washer frame.
12.Rotation of the Brushes is against vehicle travel. As viewed from the top of each
Brush the DRIVER side turns CLOCKWISE and the PASSENGER side turns
COUNTERCLOCKWISE.
13.Run and connect 3/8 in Poly tubing form the Air Distribution Manifold to the air
cylinder for each retract.
14.Install cloth on the Brush Cores according to the type of material being used (See
the Dimensions Section).

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 15 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
Adjustments and Testing
Adjust the Cleaning Pressure of the Washer
With each brush hanger in its extended position measure the extend tension of the
hanger with a fish weigh scale hooked to the underside of the "C" channel brush core and
pulling the brush away from its extended position with the scale. The weigh scale should
indicate 10 to 15 pounds of tension for the initial spring tension setting. Tension may be
adjusted by moving the spring clamp position on the shock absorber or by moving the
shock absorber mounting bracket on the brush hanger arm. The initial tension setting
may need to be adjusted when the units are in operation in order to achieve the desired 3
inches to 4 inches of cloth penetration on the vehicle surface.
Adjust the Angle of the Washer
The angle of the brush as it contacts the vehicle surface may be changed by rotating the
round plate attached to the end of the brush hanger. Use prudent caution when adjusting
this plate to prevent brush hardware contact with any vehicle surface.
Speed and Torque Adjustment (where applicable)
1. Hydraulic
a. The speed can be adjusted on the flow control for the power pack.
b. To increase the speed move the handle on the flow control closer to the number 10.
c. To decrease the speed move the handle on the flow control closer to the number 1.
d. The torque must be set prior to operation and should be set between 600 and 900
PSI. For information on how to set the torque please refer to the Hydraulic Power
Pack Manual.
2. Electric
a. The speed can be adjusted on the Variable Frequency Drive (VFD).
b. To increase the speed, adjust the Hertz on the VFD to a higher number.
c. To decrease the speed, adjust the Hertz on the VFD to a lower number.
d. The Overload on the Motor Starter protector(s) must be set at the lowest level to allow
for operation. Adjust the amps in accordance with motor(s) name plate.

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 16 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
*GENERAL OPERATION*
Side Washer Operation
Brush rotation starts and stops with a signal from the Customer supplied Controller
system to the Customer's hydraulic power pack which drives the hydraulic motors
on the brushes, or if applicable, from the controller system to the electric motors.
This Controller Start-Stop signal should also control soap solution delivery to the
spray bar on each brush.
BE CERTAIN THAT THE BRUSHES ROTATE AGAINST VEHICLE TRAVEL
With the brushes rotating (against the direction of vehicle travel and at proper
RPM) the vehicle front fender contacts the washers travel across the side of the
vehicle maintaining steady contact while cleaning the sides of the vehicle.
Proper cloth penetration on flat vehicle surfaces should be 3 to 4 inches. As the
side washers gear around corners, such as fenders, cloth penetration may be
greater, but not deeper than half the distance to the aluminum brush core.
Optional Retract Operation
When selected by the Operator's remote Programmer push button station the side
washer brushes will retract from the center of the wash tunnel toward the tunnel
outer walls. This can be done individually if one solenoid is used for each arm.
This is accomplished, when the push button is pressed, by completing an electrical
circuit through the equipment Programmer to pass single phase power at the
preset pulse count of the Programmer to the retract air solenoid valve. The air
solenoid valve now opens and allows compressed air to pass through to the rod
end port of each air cylinder causing the brush hangers to retract.

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 17 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
*PREVENTIVE MAINTENANCE*
DAILY
1. Check all hydraulic, air and chemical lines and fittings for leaks. Repair, or replace,
as needed.
2. Check electrical fittings and connections; make sure they are seal tight.
3. Check both brush units for proper operation and retract operation, listening for any
unusual noises from the equipment.
4. Inspect brush cloth for cuts, grease, or oil. Remove and repair, or replace, any
cloth panel if any of these conditions are found.
5. Check for proper chemical solution delivery.
WEEKLY
1. Grease the brush shaft four bolt flange bearings. Do not allow grease to come in contact
with brush cloth.
FOR THE FIRST MONTH OF OPERATION CHECK ALL HARDWARE AND FITTINGS FOR
TIGHTNESS EACH WEEK. PERFORM THIS INSPECTION TO THE SCHEDULE SHOWN
BELOW AFTER THE FIRST MONTH OF OPERATION.
MONTHLY
1. Inspecting all hardware and fittings for tightness.
2. Grease the brush hanger pillow block bearings. Do not allow grease to come in contact
with brush cloth.
3. Inspect soap solution spray nozzles for wear. Replace, as necessary.
4. Thoroughly clean the equipment and framework.
SEMI-ANNUALLY
1. Carefully inspect brush equipment cloth for wear and damage. Replace, as necessary.

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 18 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
*PARTS*

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 19 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A

Owner’s Manual
Bottom Motor Side Washer
SFB Series
© 2021 SONNY’S The CarWash Factory®. All Rights Reserved. SonnysDirect.com
This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 20 of 21
published without prior written consent. Content, prices, and availability subject to change without notice.
Manual-O, Bottom Motor Side Washer 16v1 –Rev 2021-A
*WARRANTY*
SONNY’S ENTERPRISES, INC.
FACTORY LIMITED
LIFETIME WARRANTY
Equipment manufactured by SONNY’S ENTERPRISES, INC. is warranted to be free from defect in
material and workmanship. Welded metal framework and other non-moving, non-wearable
fabricated metal components manufactured by SONNY’S are warranted for the life of the equipment
to the original purchaser. Fabricated metal wearable surface and moving components manufactured
by SONNY’S are warranted for a period of one (1) year to the original purchaser of the equipment.
All components assembled to SONNY’S equipment that are manufactured by others are
warranted by the appropriate manufacturer and subject to that manufacturer’s limited warranty.
Contact SONNY’S for the specific information on other component manufacturer’s warranty terms. All
new cloth shipped with new SONNY’S equipment is warranted for a period of one (1) year or 80,000,
whichever occurs first.
This warranty is not assignable or transferable. The warranty period begins the first day
following installation or 30 days from the original invoice date, whichever occurs first. The Seller’s
liability shall be limited to repair or replacement of materials found to be defective within the warranty
period. In the event of repair or replacement this limited warranty is noncumulative. The Purchaser
must supply the Seller with immediate written notice when any defects are found. The Seller shall
have the option of requiring the return of defective material to establish the Purchaser’s claim. Neither
labor nor transportation charges are included in this warranty. Transportation damage claims are to
be submitted to the carrier of the damaged materials.
This warranty is based upon the Purchaser’s reasonable care and maintenance of the warranted
equipment. It does not apply to any equipment which has been subject to misuse, including neglect,
accident or exposure to harsh chemicals or chemicals that react violently with water, organic acids
(e.g. acetic acid), inorganic acids (e.g. hydrofluoric acid), oxidizing agents (e.g. peroxides), and metals
(e.g. aluminum). Chemicals corrosive to aluminum alloys, carbon steel, and other metals. Nor does it
apply to any equipment which has been repaired or altered by anyone not so authorized by SONNY’S.
Further, the equipment must be properly installed with proper accuracy of all specified plumbing,
electrical, and mechanical requirements. This warranty does not apply to normal wear and tear or
routine maintenance components.
EXCEPT AS EXPRESSLY STATED HEREIN, SONNY’S SHALL NOT BE LIABLE FOR DAMAGES OF ANY
KIND IN CONNECTION WITH THE PURCHASE, MAINTENANCE, OR USE OF THIS EQUIPMENT INCLUDING
LOSS OF PROFITS AND ALL CLAIMS FOR CONSEQUENTIAL DAMAGES. THE LIMITED WARRANTY
EXPRESSED HEREIN IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED. SONNY’S NEITHER
ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY
IN CONNECTION HEREWITH.
