Sony CFM-D1 User manual

Battery FM recording Tape Playback
Sony Approx. 20 Approx. 18
R20P hours hours
Sony LR20 Approx. 48 Approx. 30
alkaline hours hours
Model Name Using Similar Machanism NEW
TapeTransport MechanismType MF-D1
SERVICE MANUAL
SPECIFICATIONS
E Model
CFM-D1
RADIO CASSETTE-CORDER
Frequency range
FM : Saudi Arabia model
87.6-107MHz
EXCEPT Saudi Arabia model
87.6-108MHz
MW : 530-1,605kHz
SW 1 : 2.3-7MHz
SW 2 : 7-22MHz
Aerials
FM/SW : Telescopic aerial
MW : Built-in ferrite aerial
Recording system
2-track, mono
Frequency response
50-12,000Hz
Speakers
Approx. 7.7 cm ( 31/8inches) dia.
Woofer x2
Maximum power output
2W
Output
Earphone jack(minijack) for
32 ohms impedance earphone
Power requirements
110-120 V, 220-240 VAC selectable, 50/60Hz
6V DC, four R 20 (size D) batteries
Dimensions
Approx 330x147x120 mm
(w/h/d)
(13x57/8x43/4inches) including
projecting parts
Mass
Approx. 2.2kg (4lb 9 oz) including
batteries
Accessory supplied
Mains lead (1)
Design and specifications are subject to change without
notice.
Power consumption
6WAC operation
Battery life
Ver 1.1 2002.02
9-960-487-12
2002B0200-1
© 2002.02
Sony Corporation
Personal Audio Company
Published by Sony Engineering Corporation

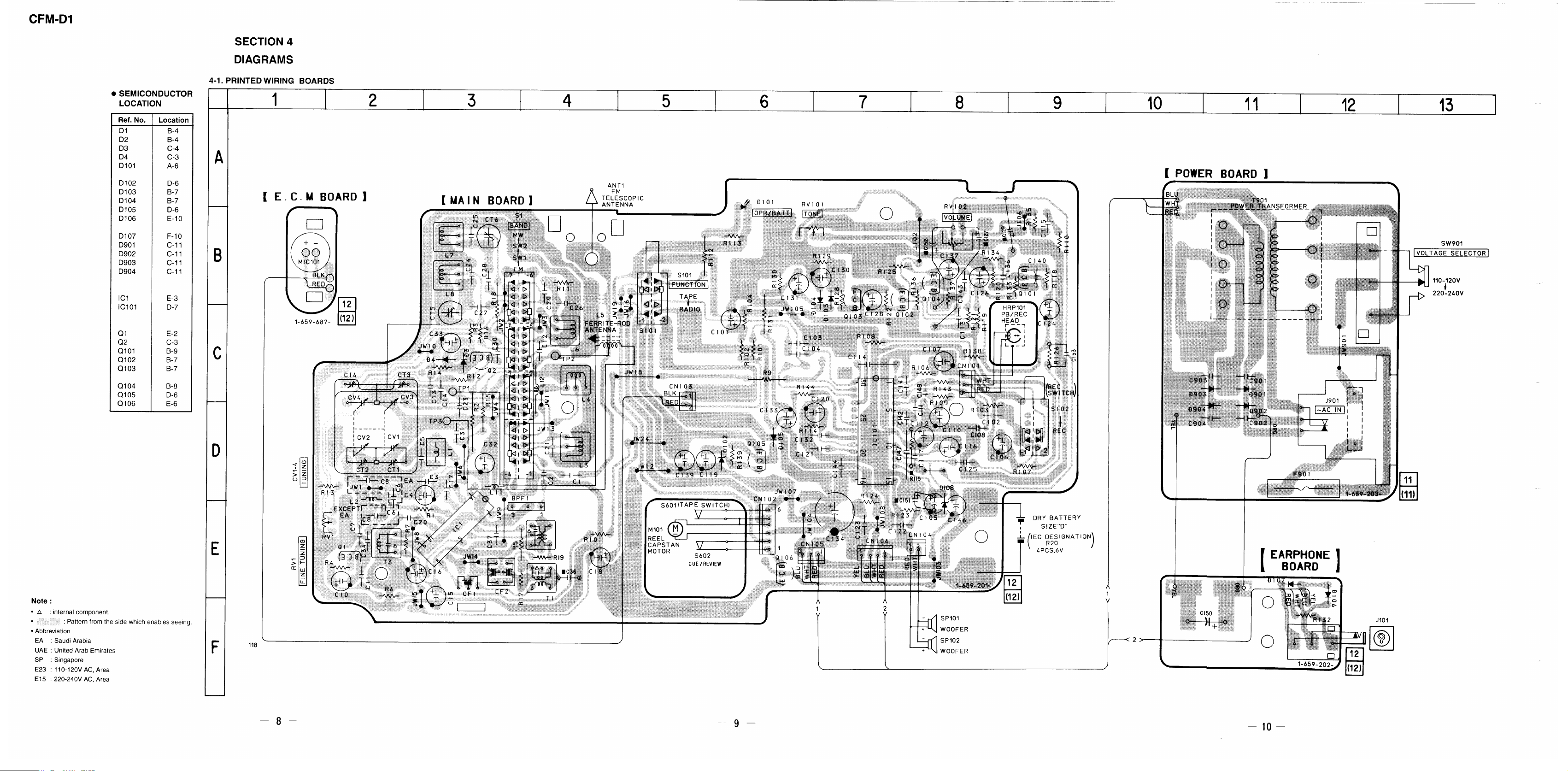

– 15 –
SECTION 5
EXPLODED VIEWS
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
1 3-928-329-01 WINDOW, CASSETTE
2 3-928-320-01 HOLDER, CASSETTE (BLACK)
2 3-928-320-11 HOLDER, CASSETTE (RED) (E15,EA,UAE)
3 X-3371-333-1 CABINET (FRONT) SUB ASSY (BLACK)
(EXCEPT EA)
3 X-3371-334-1 CABINET (FRONT) SUB ASSY (RED)(E15,UAE)
3 X-3371-335-1 CABINET (FRONT) SUB ASSY (BLACK) (EA)
3 X-3371-336-1 CABINET (FRONT) SUB ASSY (RED) (EA)
4 3-911-263-01 SPRING, CASSETTE
5 3-922-112-31 DAMPER
6 3-928-336-01 RACK, POINTER
*7 3-928-337-01 CHASSIS, TUNING
8 3-911-257-51 LID, BATTERY CASE (BLACK)
8 3-911-257-61 LID, BATTERY CASE (RED) (E15,EA,UAE)
*9 1-659-687-11 ECM BOARD
*10 3-911-281-01 CUSHION, MIC
SP101 1-505-202-11 SPEAKER (L-CH)
SP102 1-505-202-11 SPEAKER (R-CH)
MIC101 1-542-118-11 MICROPHONE, ELECTRET CONDENSER
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
#3
#3
8
1
2
3456
7
9
10
#1
#1
#1
#1
#2
#2
MIC101
not supplied
not supplied
SP102
rThe mechanical parts with no reference num-
ber in the exploded views are not supplied.
rHardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
NOTE :
r-XX, -X mean standardized parts, so they may
have some differences from the original one.
rColor indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ....... (RED)
rItems marked “ *”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
not supplied
The components identified by mark
!or dotted line with mark !are criti-
cal for safety.
Replace only with part number speci-
fied.
SP101
Parts color Cabinet's color
N
N
rAbbreviation
EA : Saudi Arabia
UAE : United Arab Emirates
E15 : 220-240V AC, Area

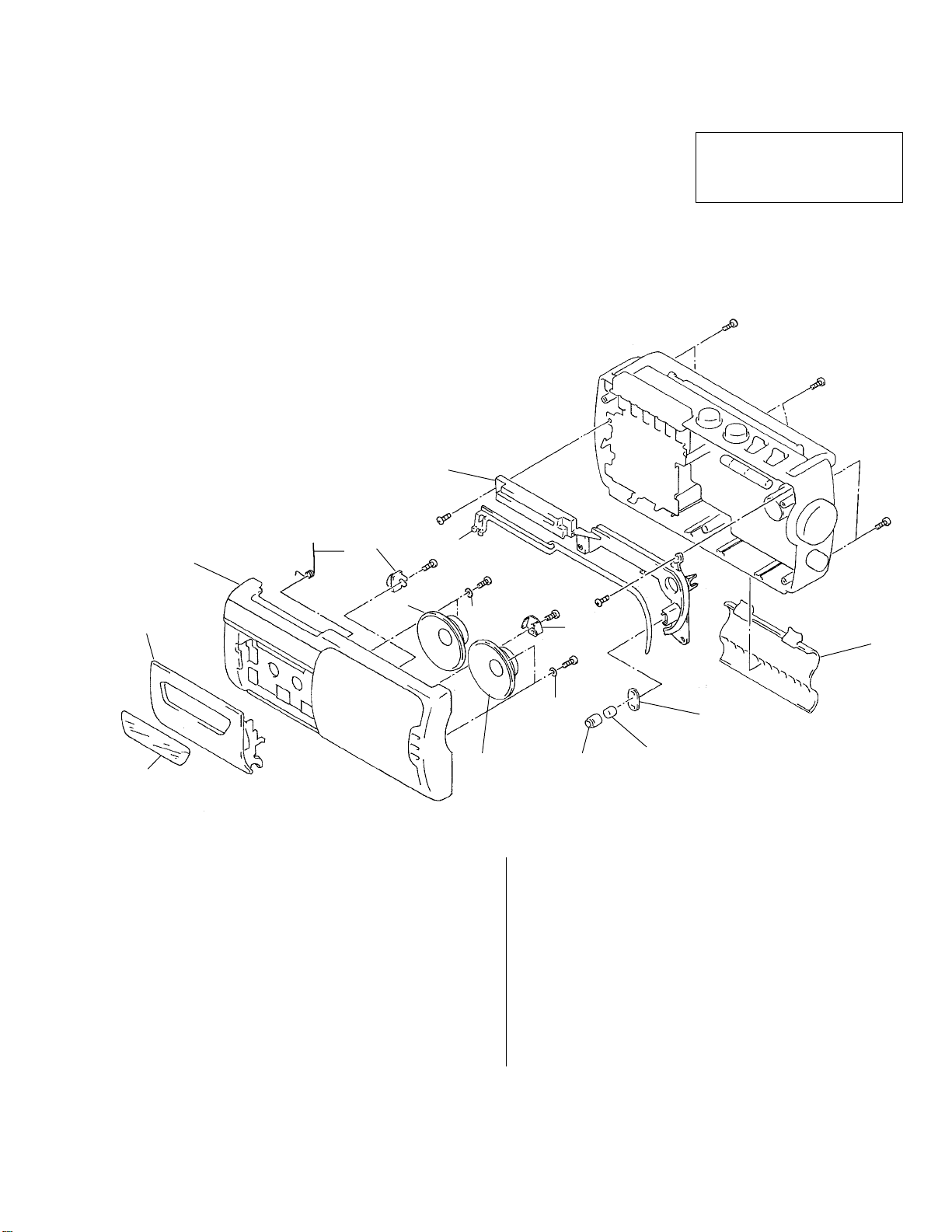

5-1. FRONT CABINET SECTION
#3
Ver 1.1 2002.02

– 16 –
5-2. REAR CABINET SECTION
The components identified by mark
!or dotted line with mark !are criti-
cal for safety.
Replace only with part number speci-
fied.
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– –––––– Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
Ver 1.1 2002.02
*51 3-928-688-01 HOLDER, ANT
*52 A-3305-528-A MAIN BOARD, COMPLETE (EA)
*52 A-3305-531-A MAIN BOARD, COMPLETE (EXCEPT EA)
53 3-911-282-21 KNOB (FUNC)
*54 1-659-203-11 POWER BOARD
55 1-533-233-31 HOLDER, FUSE
56 3-928-343-01 BUTTON, PAUSE
57 3-928-339-01 BUTTON, STOP
58 3-928-341-01 BUTTON, FF
59 3-928-342-01 BUTTON, REW
60 3-928-338-01 BUTTON, PLAY
61 3-928-340-01 BUTTON, RECORD
*62 3-928-327-01 SPRING, REC
*63 1-659-202-11 EARPHONE BOARD
64 3-928-319-01 CABINET (REAR) (BLACK)
64 3-928-319-11 CABINET (REAR) (RED) (E15,EA,UAE)
65 3-918-197-01 PLATE (L), SIDE, HANDLE
66 3-928-322-01 HANDLE (BLACK)
66 3-928-322-11 HANDLE (RED) (E15,EA,UAE)
67 3-918-198-01 PLATE (R), SIDE, HANDLE
68 3-911-268-01 SPRING (+.-), BATTERY
69 3-929-835-01 KNOB (VOLUME)
70 3-928-333-01 GEAR, SLIP
71 3-938-563-01 KNOB, TUNING (BLACK)
71 3-938-563-11 KNOB, TUNING (RED)
72 3-928-334-01 KNOB, FINE TUNING (BLACK)
72 3-928-334-11 KNOB, FINE TUNING (RED)
73 3-928-332-01 GEAR, TUNING
*74 3-928-325-01 TERMINAL, ANTENNA
75 3-928-324-01 SPRING (MINUS), BATTERY
76 3-928-323-01 SPRING (PLUS), BATTERY
77 3-928-331-01 GEAR, TUNING CAPACITOR
78 3-348-369-01 SCREW (M2X3), C TIGHT
ANT1 1-501-668-11 ANTENNA, TELESCOPIC
!F901 1-532-234-31 FUSE, TIME-LAG (0.080A 250V)
L5 1-501-705-11 ANTENNA, FERRITE-ROD (MW)
!T901 1-429-346-11 TRANSFORMER, POWER

– 17 –
5-3. MECHANISM DECK SECTION (1)
(MF-D1)
101 3-596-931-01 BELT, RF
102 3-913-441-01 CLUTCH ASSY, RF
103 3-933-845-01 LEVER, EJECT SLIDE
104 3-913-442-01 WASHER, POLY-SLIDER
105 3-913-434-01 WASHER, POLY-SLIDER
106 3-348-370-01 SCREW (M2X5), P TIGHT BIND
107 3-915-797-01 SENSOR
108 3-913-429-01 SPRING, BACK TENSION
109 3-913-430-01 REEL ASSY, SUPPLY
110 3-348-368-01 LEVER, REC SAFETY
111 3-913-431-01 REEL ASSY, TAKE-UP
112 3-348-357-01 GEAR, FF
113 3-348-367-01 PLATE, SP, PACK RETAINER
114 3-913-444-01 SCREW (2X3)
115 3-348-335-01 CHASSIS ASSY
116 3-598-855-01 MOTOR COLLER SCREW
117 3-913-435-01 BRACKET, MOTOR
118 3-395-984-01 PULLEY, MOTOR
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– –––––– Ref. No. Part No. Description Remark ––––––– ––––––– ––––––––– ––––––
119 3-915-758-01 SPRING
120 3-395-995-01 SCREW, MB
121 3-933-843-01 BELT, MAIN
122 3-348-356-01 FLYWHEEL ASSY
123 3-348-373-01 WASHER, POLYETHYLENE SLIDER
124 3-348-353-01 GEAR, CAM
125 3-913-433-01 WASHER, POLY-SLIDER
126 3-348-371-01 SCREW (M2X4.5), CAMERA TAPPING
127 3-348-341-01 SPRING
128 3-915-759-01 SPRING
129 3-936-902-01 RC SLIDE LEVER
130 3-936-900-01 RC SLIDE LEVER SPRING
131 3-936-903-01 RC LEVER
*132 3-916-519-01 BRACKET, SW
133 3-936-898-01 CAMERA SCREW M2x2.5
M101 X-3372-889-1 MOTOR ASSY (including PULLEY)
S602 1-692-978-11 SWITCH, LEAF (CUE/REVIEW)
Ver 1.1 2002.02
REVISED
@
!
132
131
133 115
M101
130
129
@

– 18 –

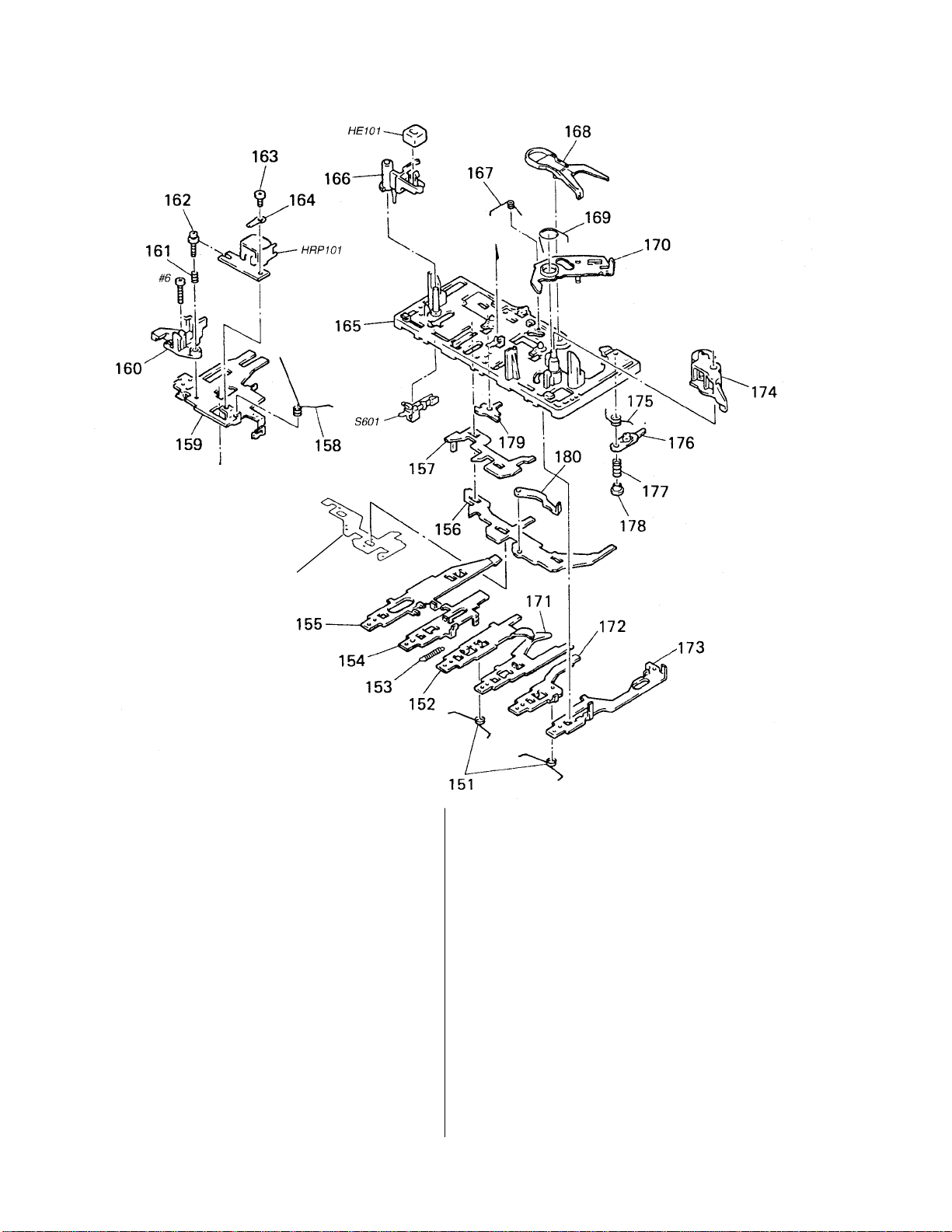

5-4. MECHANISM DECK SECTION (2)
(MF-D1)
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
151 3-915-756-01 SPRING (A)
*152 3-394-739-01 LEVER, REW BUTTON
153 3-936-901-01 RC SPRING
*154 3-394-738-01 LEVER, PLAY BUTTON
*155 3-394-737-01 LEVER, REC BUTTON
*156 3-936-896-01 PLATE, FUNCTION, PUSH BUTTON
*157 3-936-895-01 PLATE, FUNCTION, SWITCH
158 3-915-780-01 SPRING
*159 3-915-776-01 PANEL, HEAD
160 3-348-344-11 BASE, HEAD
161 3-598-845-01 SPRING
162 3-394-749-01 SCREW (M2X7), AZIMUTH
163 3-348-372-01 SCREW (M2X3), + BIND
164 3-394-748-01 LUG (B3)
165 3-348-347-01 CHASSIS (MOLD) ASSY
166 3-348-346-01 ARM, MG
167 3-913-437-01 SPRING, M CONTROLLER
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
168 3-913-439-01 LEVER, SENSING
169 3-348-351-01 SPRING
*170 3-913-440-01 PLATE ASSY, GEAR
*171 3-933-802-01 LEVER, FF BUTTON
*172 3-394-741-01 LEVER, STOP BUTTON
*173 3-394-742-01 LEVER, PAUSE BUTTON
174 3-913-438-01 ARM ASSY, PINCH ROLLER
175 3-348-330-11 SPRING
176 3-348-331-02 LEVER, PAUSE
177 3-915-754-01 SPRING
178 3-348-333-01 STOPPER, PAUSE
179 3-348-340-01 STOPPER, PR
*180 3-915-760-01 LEVER, E KICK
181 3-936-899-01 SACTUATOR
HE101 1-500-232-11 HEAD, MAGNETIC (ERASE)
HRP101 1-500-310-11 HEAD, MAGNETIC (RECORD/PLAYBACK)
S601 1-692-978-11 SWITCH, LEAF (TAPE SWITCH)
181
Ver 1.1 2002.02

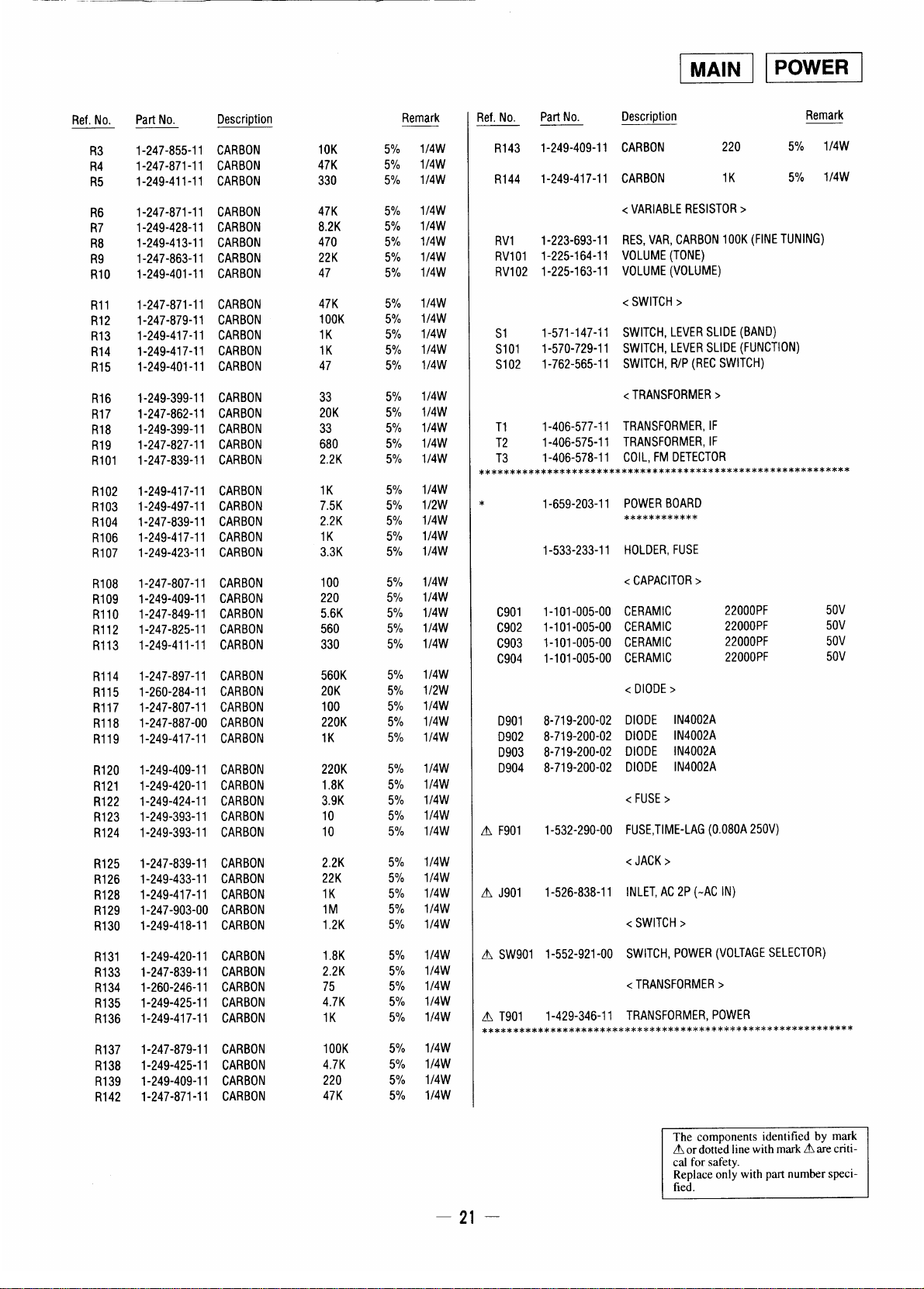

– 22 –
CFM-D1
MISCELLANEOUS
**************
55 1-533-233-31 HOLDER, FUSE
ANT1 1-501-668-11 ANTENNA, TELESCOPIC
!F901 1-532-234-31 FUSE, TIME-LAG (0.080A 250V)
HE101 1-500-232-11 HEAD, MAGNETIC (ERASE)
HRP101 1-500-310-11 HEAD, MAGNETIC (RECORD/PLAYBACK)
L5 1-501-705-11 ANTENNA, FERRITE-ROD (MW)
M101 X-3372-889-1 MOTOR ASSY (including PULLEY)
S601 1-692-978-11 SWITCH, LEAF (TAPE SWITCH)
S602 1-692-978-11 SWITCH, LEAF (CUE/REVIEW)
SP101 1-505-202-11 SPEAKER (L-CH)
SP102 1-505-202-11 SPEAKER (R-CH)
************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
!1-551-983-00 CORD, POWER (E23)
!1-569-007-11 ADAPTER, CONVERSION 2P (E23)
!1-569-008-21 ADAPTER, CONVERSION 2P (EA)
!1-769-412-11 CORD, POWER (E15, EA, SP, UAE)
3-810-800-11 MANUAL, INSTRUCTION
(ENGLISH/FRENCH/SPANISH)
3-810-800-31 MANUAL, INSTRACTION (ARABIC) (EA)
*3-934-613-01 CARTON, INDIVIDUAL
************************************************************
*********************
HARDWARE LIST
*********************
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-682-548-09 SCREW +B 3X8
#3 7-685-649-79 SCREW +BVTP 3X14 TYPE2 IT-3
#4 7-621-770-87 SCREW +B 2.6X5
#6 7-685-246-19 SCREW +KTP 3X8 TYPE2 SLIT
#7 7-682-547-04 SCREW +B 3X6
#8 7-621-255-45 SCREW +P 2X6
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
The components identified by mark
!or dotted line with mark !are criti-
cal for safety.
Replace only with part number speci-
fied.
Ver 1.1 2002.02

23
CFM-D1
Printing the page that exceedsA4-size two pages (or letter size) is possible by specifying the print
range. (Acrobat Reader Version 4.0 or later)
1. The enlarged print is made, if a smaller range than A4 size is specified and the A4 size is
selected as a print paper.
2. Almost real sized print is made, if the range is specified, meeting the print paper size.
3. The reduced print is made, if a larger range than the print paper size is specified.
Printing by Specifying a Range
In printing out the drawings such as a schematic diagram and a printed wiring board larger than
the printed paper size, they can be printed by specifying the range. (Acrobat Reader Version 4.0
or later)
1. Display the page to be printed.
2. From the File menu, select [Page Setup] and set the paper size.
3. From the Command bar, select [Graphic Select Tool].
(Keep pressing
T
, select )
4. Dragging the cursor, enclose the range on the page to be printed.
5. From the File menu, select [Print] and make sure thatthe[SelectedGraphic]isalreadychecked.
Also, if [Fit to page] is checked, the selected range is enlarged or reduced (and rotated as
necessary) meeting the paper size.
6. To cancel the printed range, click an arbitrary position on the screen.
Printing Method for Large Sized Documents Such As Circuit Diagrams
@
!

24
CFM-D1
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 1996.02 New. (Including : 9-960-487-91, -92)
1.1 2002.02 Correction of exploded views part list and Accesories list. (SPM-02007)
