Trinitron Color TV
Operating Instructions
• Before operating the unit, please read this manual thoroughly and
retain it for future reference.
KV-HA21
KV-HA14
© 2001 Sony Corporation
4-085-449-12 (1)
L80
M81
M80
GB

Sony KV-HA21L80_(GB)_4-085-449-12 (1) Group Q1
AGetting Started
Plug in the power cord, then press !on the TV to
turn it on.
Press SELECT and PROGR + on the TV at the same time
for one to two seconds to preset the channels
automatically. (See J)
Tip
• To stop the automatic channel presetting, press SELECT.
b
PROGR
SELECT
b
SELECT
Press SELECT on the remote until “LANGUAGE/ :
ENGLISH” appears on the screen, then press + or – to
change the on-screen display language.
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
Tip
• You can also connect your TV to other optional components.
(See E)
Step 1
Insert the batteries (supplied) into the remote.
Note
• Do not use old batteries nor use different types of batteries
together.
Step 2
Step 3
Step 4
Step 5

Sony KV-HA21L80_(GB)_4-085-449-12 (1) Group Q1

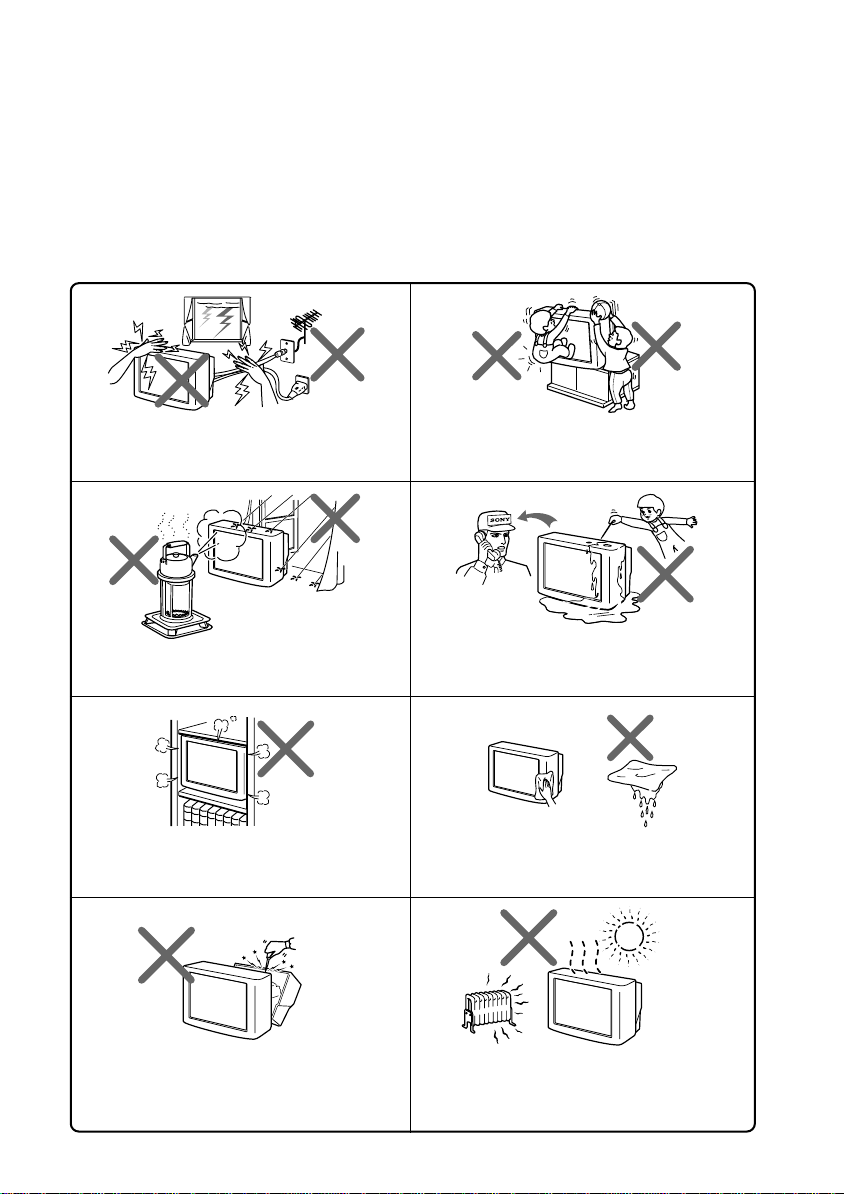

BWARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 110 – 240 V AC.
• Do not plug in the power cord until you have completed making all other connections;
otherwise a minimum leakage current might flow through the antenna and other terminals to
ground.
• To avoid battery leakage and damage to the remote, remove the batteries from the remote if
you are not going to use it for several days. If any liquid that leaks from the batteries touches
you, immediately wash it away with water.
To prevent fire or shock hazard, do not expose
the TV to rain or moisture.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Do not open the cabinet and the rear cover of the
TV as high voltages and other hazards are
present inside the TV. Refer servicing and
disposal of the TV to qualified personnel.
Your TV is recommended for home use only.
Do not use the TV in any vehicle or where it may
be subject to excessive dust, heat, moisture or
vibrations.
Do not block the ventilation openings of the TV.
Do not install the TV in a confined space, such
as a bookcase or built-in cabinet.
For children’s safety, do not leave children alone
with the TV. Do not allow children to climb onto
it.
Clean the TV with a dry and soft cloth. Do not use
benzine, thinner, or any other chemicals to clean
the TV. Do not scratch the picture tube.
For your own safety, do not touch any part of the
TV, the power cord and the antenna cable during
lightning storms.

Sony KV-HA21L80_(GB)_4-085-449-12 (1) Group Q1
Install the TV on a stable TV stand and floor which
can support the TV set weight. Ensure that the TV
stand surface is flat and its area is larger than the
bottom area of the TV.
Do not place any objects on the TV.

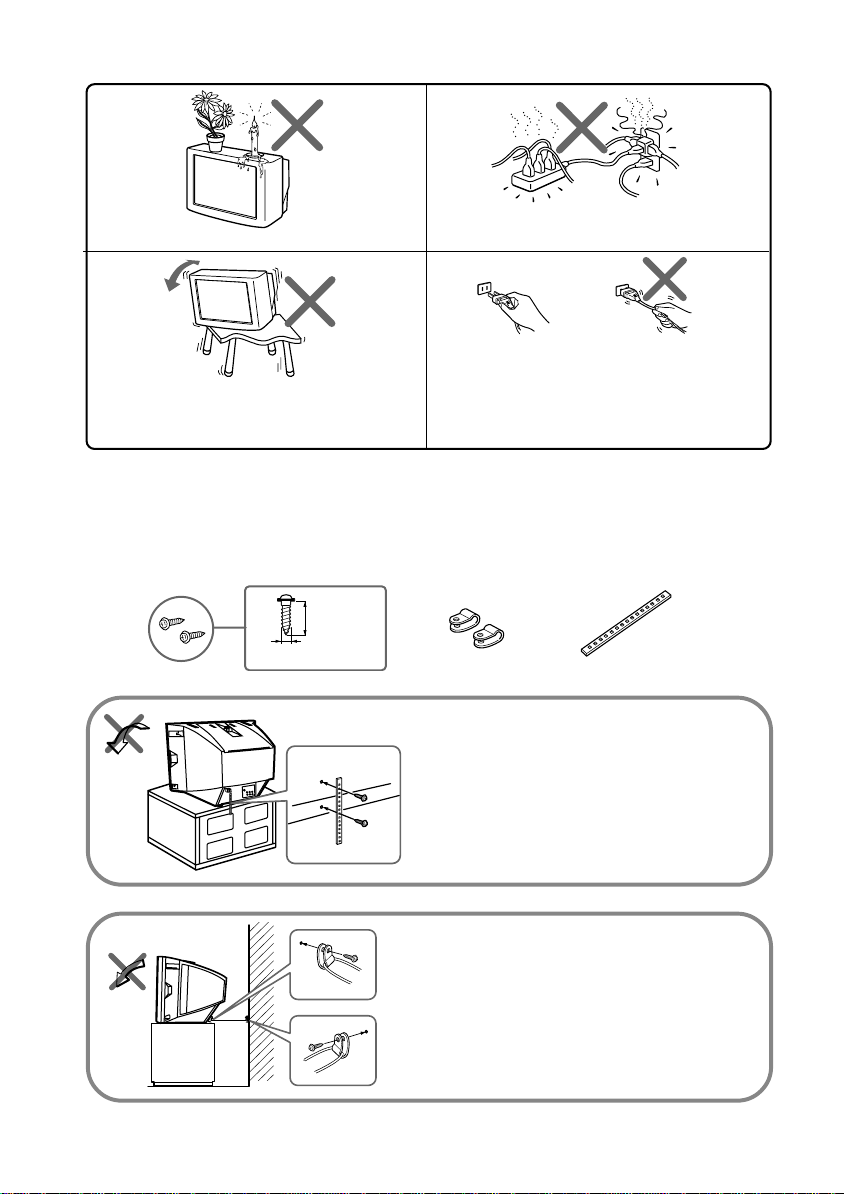

CSecuring the TV
B KV-HA21 only
To prevent the TV from falling, use the supplied screws, clamps and band to secure the TV .
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the
clamps.
(2) Screw one clamp to a wall or pillar
and the other clamp to the provided
hole at the rear of your TV.
Note
• Use only the supplied screws. Use of other screws may damage the TV.
20 mm
3.8 mm
screws clamps band
or
Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Pull the power cord out by the plug. Do not pull
the power cord itself. Even if your TV is turned
off, it is still connected to the AC power source
(mains) as long as the power cord is plugged in.
Unplug the TV before moving it or if you are not
going to use it for several days.
WARNING (continued)

Sony KV-HA21L80_(GB)_4-085-449-12 (1) Group Q1
DTV front and rear panels
!
!
PROGR
SELECT
(MONO)
LR
L(MONO)R
61
3
72
5
84
9
qa
qs
0
TV front panel
TV rear panel
Button Function
1!Turn off or turn on the TV.
2Remote control sensor.
31Standby indicator.
3Wake Up indicator.
4PROGR +/– Select program number.
52+/– * Adjust volume.
6tSelect TV or video input.
7SELECT Select the desired item.
8iHeadphone terminal.
9, qa tVideo input terminal.
08Antenna input terminal.
qs TMonitor output terminal.
* You can also use the 2+/– buttons on the TV to work as the +/– buttons on the remote.

Sony KV-HA21L80_(GB)_4-085-449-12 (1) Group Q1
EConnecting optional components
Connecting to the video input terminal ( t)
TV front panel
Camcorder
Audio/Video cable
(not supplied)
Note
• Do not connect video equipment to t(video input) at the front and the rear of your TV at
the same time; otherwise the picture will not be displayed properly on the screen.
TV rear panel
Audio/Video cable
(not supplied)
Connecting to the monitor output terminal (T)
L(MONO)R
(MONO)
LR
VCR
Video game
equipment
L(MONO)R
VCR
Audio system
Audio/Video cable
(not supplied)
TV rear panel
Antenna cable
(not supplied)

Sony KV-HA21L80_(GB)_4-085-449-12 (1) Group Q1
FTroubleshooting
If you find any problem while viewing your TV, please check the following
guide. If any problem persists, contact your Sony dealer.
Snowy picture,
noisy sound
Good picture,
noisy sound
No picture, no sound
Good picture, no sound
Dotted lines or stripes
Double images or
“ghosts”
No color
Abnormal color
patches
Teletext display is
incomplete (snowy
picture or double
images).
(KV-HA21M81 only)
The 1(standby)
indicator on your TV
flashes red several
times after every
three seconds.
TV cabinet creaks.
A "boom" sound is
heard when the TV is
turned on.
Symptom Solutions
• Check the antenna cable and connection on the TV, VCR and on the wall.
• Preset the channel manually again. (See J)
• Check the antenna setup. Contact a Sony dealer for advice.
• Select the appropriate TV system. (KV-HA21M81/HA21M80) (See J)
• Check the power cord, antenna and the VCR connections.
• Press ?/1 (power) or !(main power) to turn on the TV.
• Press 2+ to increase the volume level.
• Press %to cancel the muting.
• Do not use a hair dryer or other equipment near the TV.
• Check the antenna setup. Contact a Sony dealer for advice.
• Use the fine tuning ("FINE") function. (See J)
• Turn off or disconnect the booster if it is in use.
• Check the antenna setup. Contact a Sony dealer for advice.
• Select the appropriate color system. (See J)
• Adjust the color level. (See K)
• Check the antenna setup. Contact a Sony dealer for advice.
• Keep external speakers or other electrical equipment away from the TV.
Press !(main power) to turn off the TV for about 15 minutes, then turn it
on again to demagnetize the TV.
• Check the antenna cable and connection on the TV, VCR and on the wall.
• Use the fine tuning (“FINE”) function. (See J)
• Check the antenna setup. Contact a Sony dealer for advice.
• Count the number of times the 1(standby) indicator flashes. Press !
(main power) to turn off your TV. Contact your nearest Sony service
center.
• Changes in room temperature sometimes make the TV cabinet expand or
contract, making a noise. This does not indicate a malfunction.
• The TV's demagnetizing function is working. This does not indicate a
malfunction.

Sony KV-HA21L80_(GB)_4-085-449-12 (1) Group Q1
Power requirements 110-240 V AC, 50/60 Hz
Power consumption (W) Indicated on the rear of the TV
Television system B/G, I, D/K, M B/G
Color system PAL, PAL 60, SECAM, PAL, PAL 60, SECAM,
NTSC4.43, NTSC3.58 NTSC3.58 (AV IN), NTSC4.43
Teletext language English, Farsi (Persian), French KV-HA21M81 only
Channel coverage
B/G
VHF : E2 to E12
UHF : E21 to E69
CATV : S01 to S03, S1 to S41
I UHF : B21 to B68 __
CATV : S01 to S03, S1 to S41
D/K VHF : C1 to C12, R1 to R12
UHF : C13 to C57, R21 to R60 ––
CATV : S01 to S03, S1 to S41,
Z1 to Z39
M VHF : A2 to A13
UHF : A14 to A79 __
CATV : A-8 to A-2, A to W+4,
W+ 6 to W+84
8(Antenna) 75-ohm external terminal
Audio output (Speaker) 5W + 5W 3W + 3W
Number of terminal
(Video) Input: 2*Output: 1 Phono jacks; 1 Vp-p, 75 ohms *One input line
available
(Audio) Input: 2*Output: 1 Phono jacks; 500 mVrms *One input line
available
i(Headphone) Output: 1 Stereo minijack
Picture tube 21 in. 14 in.
Tube size (cm) 54 37 Measured diagonally
Screen size (cm) 51 34 Measured diagonally
Dimensions (w/h/d, mm) 639 ×458 ×490 466 ×346 ×419
Mass (kg) 26 13
GSpecifications
Design and specifications are subject to change without notice.
Note
KV-HA21M81
KV-HA21M80 KV-HA14L80

Sony KV-HA21L80 (GB) 4-085-449-11 (1) Group Q1

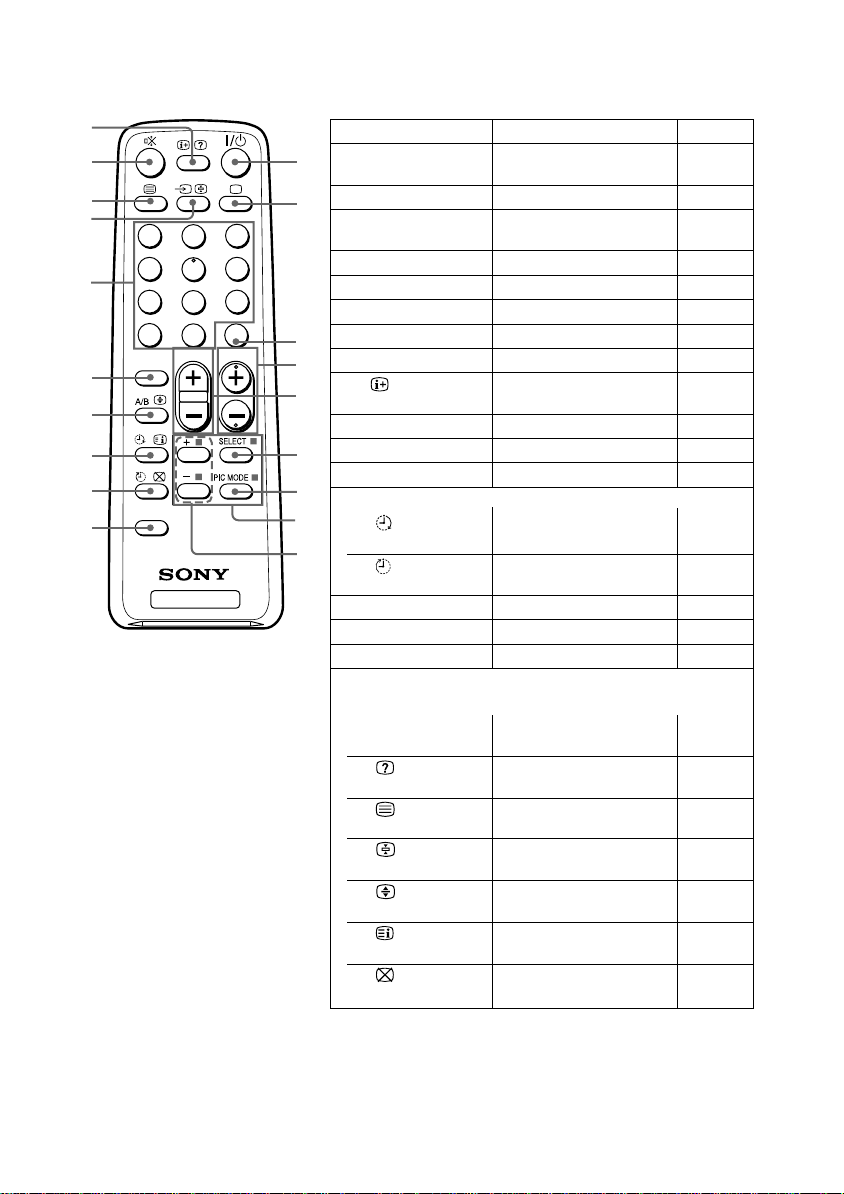

HRemote control
Button Function
1?/1 Turn off temporarily or
turn on the TV.
2aDisplay the TV program.
3JUMP Jump to previous
program number.
4PROGR +/– Select program number.
52+/– Adjust volume.
6SELECT Select the desired item.
7PIC MODE Select picture mode.
9+/– Adjust items.
0 Display on-screen
information.
qa %Mute the sound.
qd tSelect TV or video input.
qf 0 – 9, ÷Input numbers.
Timer operations
qj Set TV to turn on
automatically.
qk Set TV to turn off
automatically.
qg SOUND MODE Select sound mode.
ql SPACE SOUND Select space sound mode.
qh A/B Not function for your TV.
Teletext operations (green label)
(KV-HA21M81 only)
8x(red, green, Access a FASTEXT
yellow, blue) menu.
0Reveal concealed
information
qs Display Teletext
broadcast.
qd Stop Teletext display from
scrolling.
qh Enlarge the Teletext
display.
qj Display Teletext service
contents.
qk Show TV screen while
waiting for Teletext page.
See
–
–
–
–
–
–
K
–
–
–
–
–
I
I
K
K
–
M
M
M
M
M
M
M
TV
123
46
789
-0
5
JUMP
SOUND
MODE
SPACE
SOUND
PROGR
2
qa
0
qs
qd
qf
qg
qh
qj
qk
ql 8
9
7
6
5
4
3
2
1

Sony KV-HA21L80 (GB) 4-085-449-11 (1) Group Q1

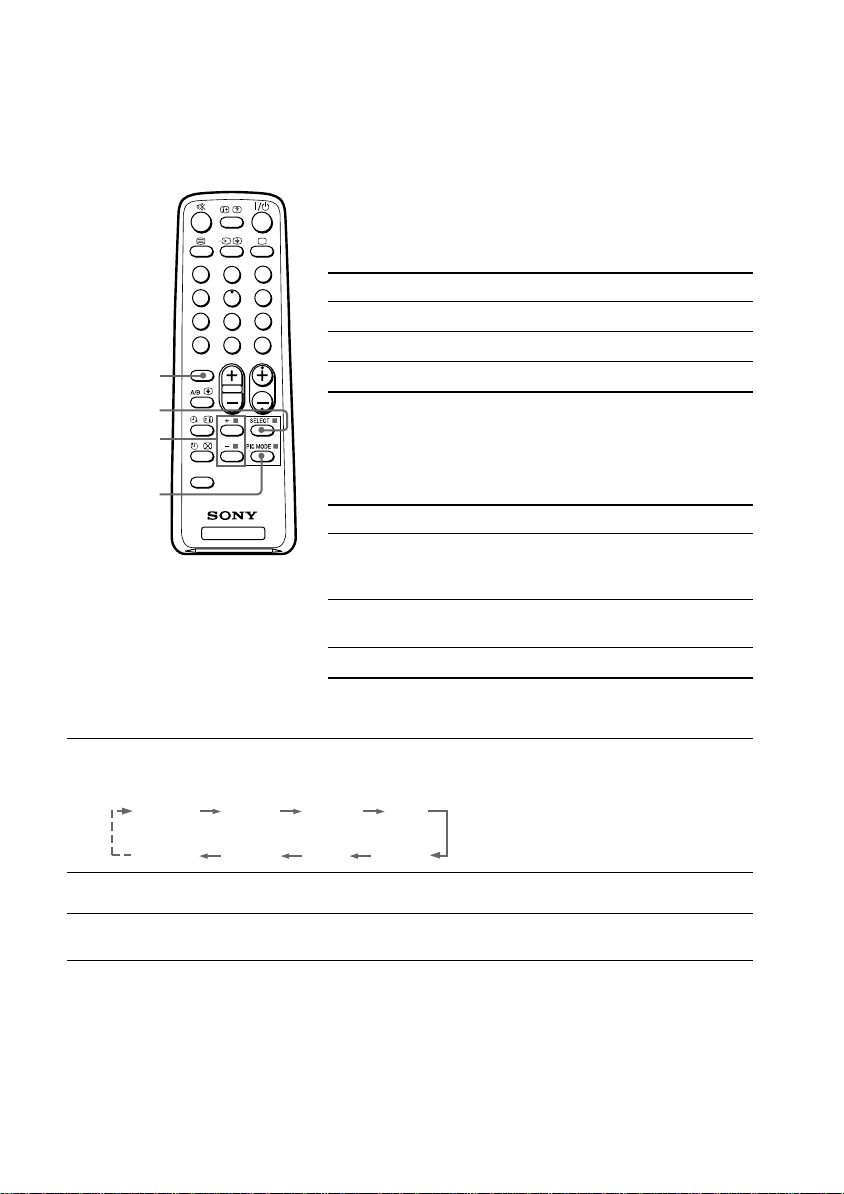

I Setting the timers
You can turn on and off your TV by using the and buttons respectively.
Setting the Wake Up timer
1Press until the desired period of time appears
on the screen.
The Wake Up timer starts immediately after you
have set it.
2Select the program number or video input you
want to wake up to.
3Press \/1, or set the Sleep timer if you want
the TV to turn off automatically.
The indicator on the TV lights up orange when
the TV goes into standby mode.
Setting the Sleep timer
Press until the desired period of time appears
on the screen.
The Sleep timer starts immediately after you have
set it.
Notes
• You can also cancel the Wake Up and Sleep timers by turning off the TV’s main power.
• If no buttons or controls are pressed for more than two hours after the TV is turned on using
the Wake Up timer, the TV automatically goes into standby mode.
\/1
TV
123
46
789
-0
5
JUMP
SOUND
MODE
SPACE
SOUND
PROGR
2
WAKE UP TIMER:0H10M
WAKE UP TIMER:OFF WAKE UP TIMER:12H00M
(After 10 minutes)
(No Wake Up timer) (After 12 hours)
SLEEP TIMER:30M SLEEP TIMER:60M
SLEEP TIMER:OFF SLEEP TIMER:90M
(After 30 minutes)
(No Sleep timer)
(After 60 minutes)
(After 90 minutes)

Sony KV-HA21L80 (GB) 4-085-449-11 (1) Group Q1
TV
123
46
789
-0
5
JUMP
SOUND
MODE
SPACE
SOUND
PROGR
2
JPresetting channels
You can automatically preset up to 100 TV channels in numerical sequence
from program number 1, or manually preset desired channels and channels
that cannot be preset automatically.
Presetting channels automatically
from a specified program number
1Press SELECT until “AUTO PROGRAM” appears
on the screen.
2Press + or – once to enter the “AUTO
PROGRAM” mode.
The on-screen display will start flashing.
3Press PROGR +/– or the number buttons until
the desired program number appears on the
screen.
4Press + or – to start presetting channels
automatically.
Presetting channels manually
1Press SELECT until “MANUAL PROGRAM”
appears on the screen.
2Press + or – once to enter the “MANUAL
PROGRAM” mode.
3Press PROGR +/– or the number buttons until
the desired program number appears on the
screen.
4Press + or – until the desired channel picture
appears on the screen.
5To preset other channels manually, repeat steps
3 to 4.
Number
buttons
SELECT
PROGR +/–
+ or –
PIC MODE

Sony KV-HA21L80 (GB) 4-085-449-11 (1) Group Q1
Presetting channels (continued)
To change the TV system setting (KV-HA21M81/HA21M80 only)
If the picture or sound is abnormal when receiving programs through the 8(antenna
input) terminal
(1) Press SELECT until “TV SYS” appears on the screen.
(2) Press + or – to select the appropriate TV system until the picture or sound quality
is optimal.
B/G I D/K M
To change the color system setting
If the color is abnormal when receiving programs through the 8 (antenna input)
terminal or the t(video input) terminal
(1) Press SELECT until “COLOR SYS” appears on the screen.
(2) Press + or – to select the appropriate color system until the color is optimal.
AUTO PAL SECAM NTSC3.58 NTSC4.43
To skip program numbers
(1) Press PROGR +/– or the number buttons until the unused or unwanted program
number appears on the screen.
(2) Press SELECT until “MANUAL PROGRAM” appears on the screen.
(3) Press + or – once to enter the “MANUAL PROGRAM” mode.
(4) Press PIC MODE to skip the unused or unwanted program number.
(5) Press SELECT to exit the “MANUAL PROGRAM” mode.
Note
• To restore the skipped program number again, preset the channel automatically or manually.
To use the fine tuning function
The fine tuning (FINE) function may help to reduce the following problems:
incomplete Teletext display (KV-HA21M81 only), double images and lines moving
across the TV screen.
You can use the fine tuning function as below:
(1) Select the program number you want to adjust.
(2) Press SELECT until “MANUAL PROGRAM” appears on the screen.
(3) Press + or – once to enter the “MANUAL PROGRAM” mode.
(4) Press to display “FINE” on the screen.
(5) Press + or – continuously until the above problems are minimized.
The + or – icon on the screen flashes while tuning.
(6) Press SELECT to exit the “MANUAL PROGRAM” mode.

Sony KV-HA21L80 (GB) 4-085-449-11 (1) Group Q1
KCustomizing the picture and sound
You can customize the picture and sound by selecting the picture and sound
modes or by adjusting its settings.
You can change the sound effect by selecting the space sound mode.
Selecting the picture mode
Press PIC MODE to select the desired picture
mode.
Select To
“DYNAMIC” view high contrast pictures.
“STANDARD” view normal contrast pictures.
“SOFT” view mild pictures.
Selecting the sound mode
Press SOUND MODE to select the desired sound
mode.
Select To
“9 DYNAMIC” listen to dynamic and clear
sound that emphasizes the low
and high sound.
“9 DRAMA” listen to sound that emphasizes
vocals and background music.
“9 SOFT” listen to soft sound.
Adjusting the picture and sound settings
1Press SELECT until the desired setting appears.
Each time you press SELECT, the setting item will change as follows:
2Press + or – to adjust the item.
3To adjust other items, repeat steps 1 to 2.
Notes
• “HUE” can be adjusted for the NTSC color system only.
• Reducing “SHARP” can also reduce picture noise.
SOUND
MODE
PIC MODE
SELECT
+ or –
PICTURE COLOR BRIGHT HUE
BALANCE TREBLE BASS SHARP
TV
123
46
789
-0
5
JUMP
SOUND
MODE PROGR
2
SPACE
SOUND

Sony KV-HA21L80 (GB) 4-085-449-11 (1) Group Q1
LAdjusting the picture position
BKV-HA21M81 only

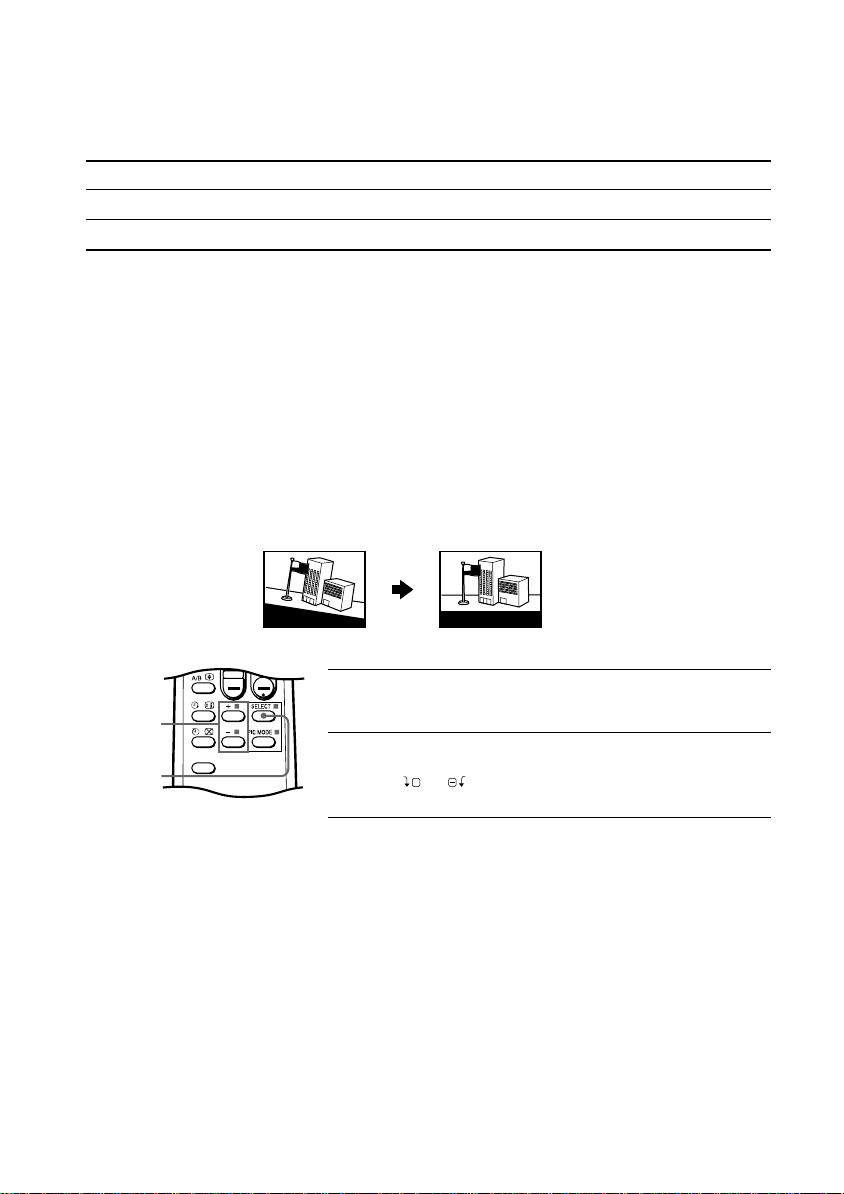

If the picture is slanting, you can adjust the picture position using the
“PIC ROTATION” function until it is optimal.
1Press SELECT repeatedly until “PIC ROTATION”
appears on the screen.
2Press + or – to adjust the picture position.
The
+
or icon on the screen flashes while
adjusting.
Note
• To reduce the slanting picture, keep external speakers or other electrical equipment away
from the TV.
+ or –
SELECT
Slanting Optimal
SPACE
SOUND
Good morning!
Good morning!
Selecting the space sound mode
Press SPACE SOUND.
Select To
“ON” listen to monaural sound with a stereo-like effect.
“OFF” turn off space sound mode.
Note
• You can also turn space sound on or off using the SELECT and + or – buttons.
Customizing the picture and sound (continued)

Sony KV-HA21L80 (GB) 4-085-449-11 (1) Group Q1

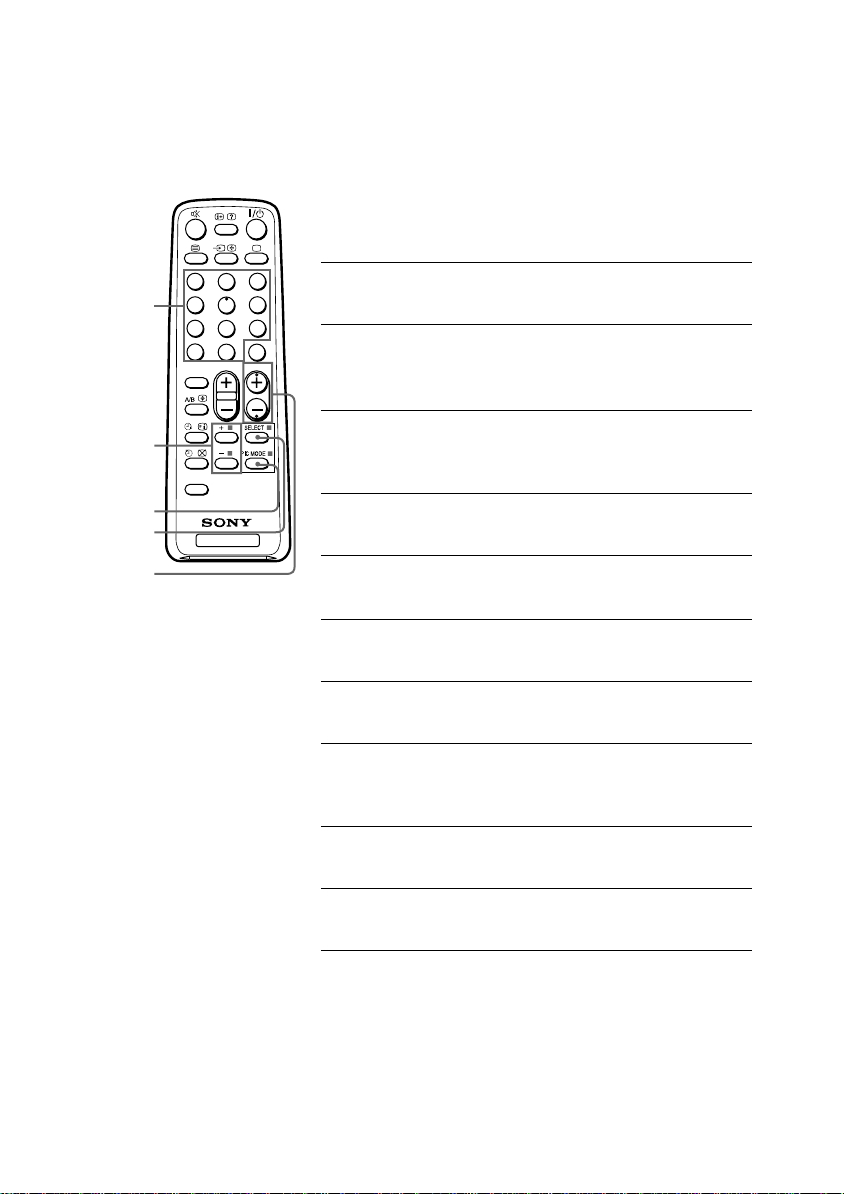

MViewing Teletext
B KV-HA21M81 only
Some TV stations broadcast an information service called Teletext which
allows you to receive various information, such as stock market reports and
news.
You can use the buttons on the remote to view Teletext.
To Do this
display a Teletext Press . Each time you press , the
page on the screen changes as follows:
TV picture Teletext tTeletext and TV tTV.
If there is no Teletext broadcast, “100” is
displayed at the top left corner of the
screen.
check the contents Press .
of a Teletext service An overview of the Teletext contents,
including page numbers, appears on the
screen.
select a Teletext page Press the number buttons to enter the
three-digit page number of the desired
Teletext page. If you make a mistake,
reenter the correct page number. To
access the next or previous page, press
PROGR +/–.
hold (pause) a Press to display the symbol “z” at
Teletext display the top left corner of the screen. To
resume normal Teletext viewing, press
or .
reveal concealed Press .
information (e.g., To conceal the information, press the
an answer to a quiz) button again.
enlarge the Teletext Press . Each time you press , the
display Teletext display changes as follows:
Enlarge upper half tEnlarge lower half
tNormal size.
stand by for a Teletext 1 Enter the Teletext page number that
page while watching you want to refer to, then press .
a TV program 2 When the page number is displayed,
press to show the text.
select a FASTEXT Press x(red, green, yellow and blue)
menu or the colored that corresponds to the desired menu or
boxes page number.
turn off Teletext Press a.
Note
• The FASTEXT feature can be used only when the FASTEXT broadcast is available.
TV
123
46
789
-0
5
JUMP
SOUND
MODE PROGR
2
SPACE
SOUND
x (red,
green,
yellow,
blue)
a
