Sony SA-VE502 User manual

MICROFILM
SERVICE MANUAL
MICRO SATELLITE SYSTEM
US Model
Canadian Model
AEP Model
UK Model
E Model
SPECIFICATIONS
SA-VE502/VE505/
WMS5/SS-MS5
The SA-VE502 system consists of one unit
of SA-WMS5 and two units of SS-MS5.
The SA-VE505 system consists of one unit
of SA-WMS5 and five units of SS-MS5. Photo: SA-WMS5 Photo: SS-MS5

– 2 –
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE !
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE
DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIÈCES SONY DONT LES
NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED
LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
TheAC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’instructions to use these
instruments.
2. A battery-operatedAC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indica-
tion is 0.75 V, so analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2VAC range are suit-
able. (See Fig. A)

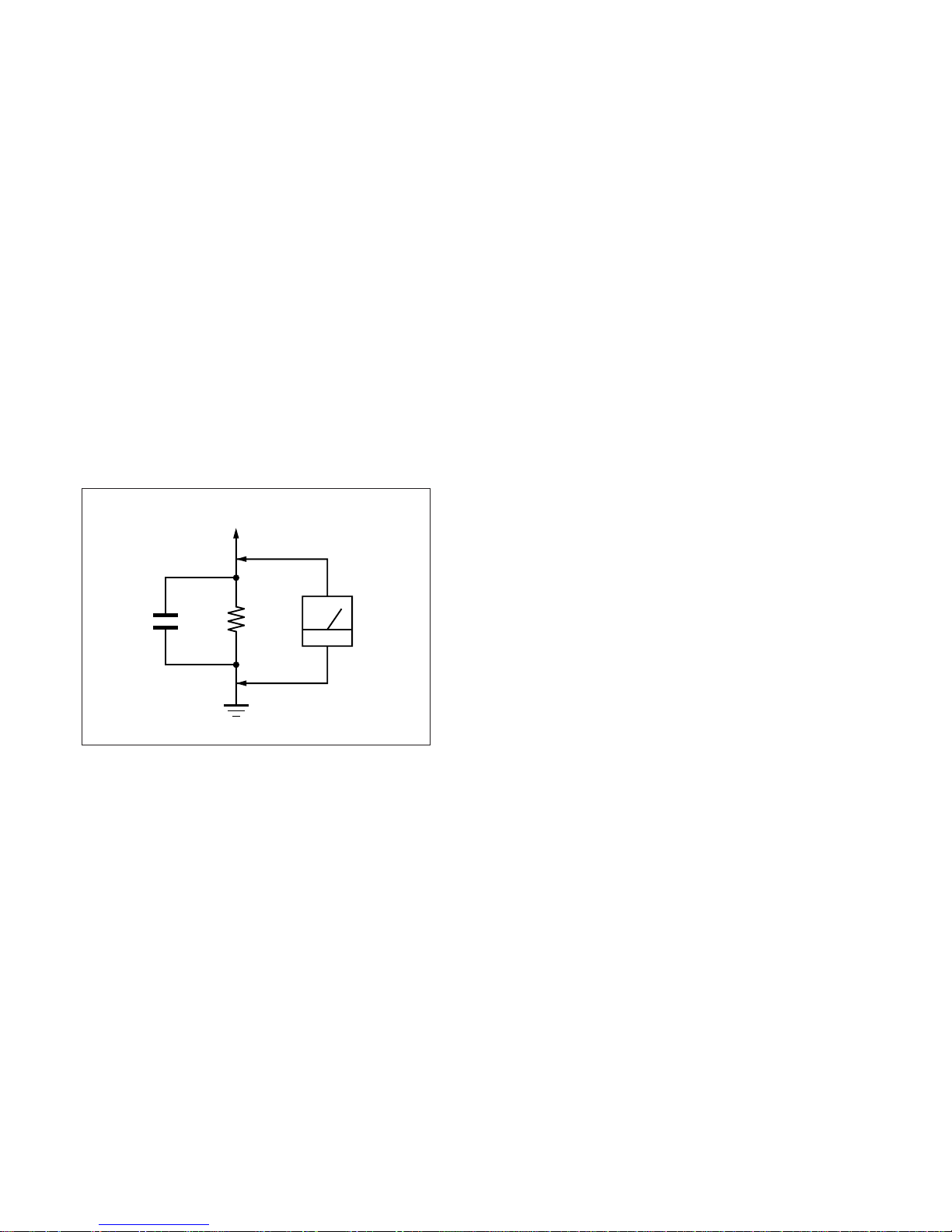

Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k Ω 0.15 µ FAC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground

– 3 – – 4 –
SECTION 1
GENERAL
• Location of Controls
SA-WMS5
– Front view –
– Rear view –
SECTION 2
DIAGRAMS
2-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
Note on PrintedWiring Board:
•X: parts extracted from the component side.
•b: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
•Indication of transistor.
B
These are omitted.
CE
Q
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•2: nonflammable resistor.
•C: panel designation.
•U: B+ Line.
•V: B– Line.
• Voltages are dc with respect to ground under no-signal
conditions.
no mark : AUDIO
• Voltages aretakenwithaVOM(input impedance10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F: AUDIO
• Abbreviation
CND : Canadian
Note:
The components identi-
fied by mark !or dotted
linewith mark !are criti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposants identifiés par
une marque !sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
• Circuit Boards Location
– SA-WMS5 –
POWER SWITCH board POWER board
LED board
CONTROL board
AUTO POWER board
MAIN boar
d
LINE IN/OUT jack
SPEAKER IN/OU
T
terminal
POWER SAVE
switch

SA-VE502/VE505/WMS5/SS-MS5
– 5 – – 6 –

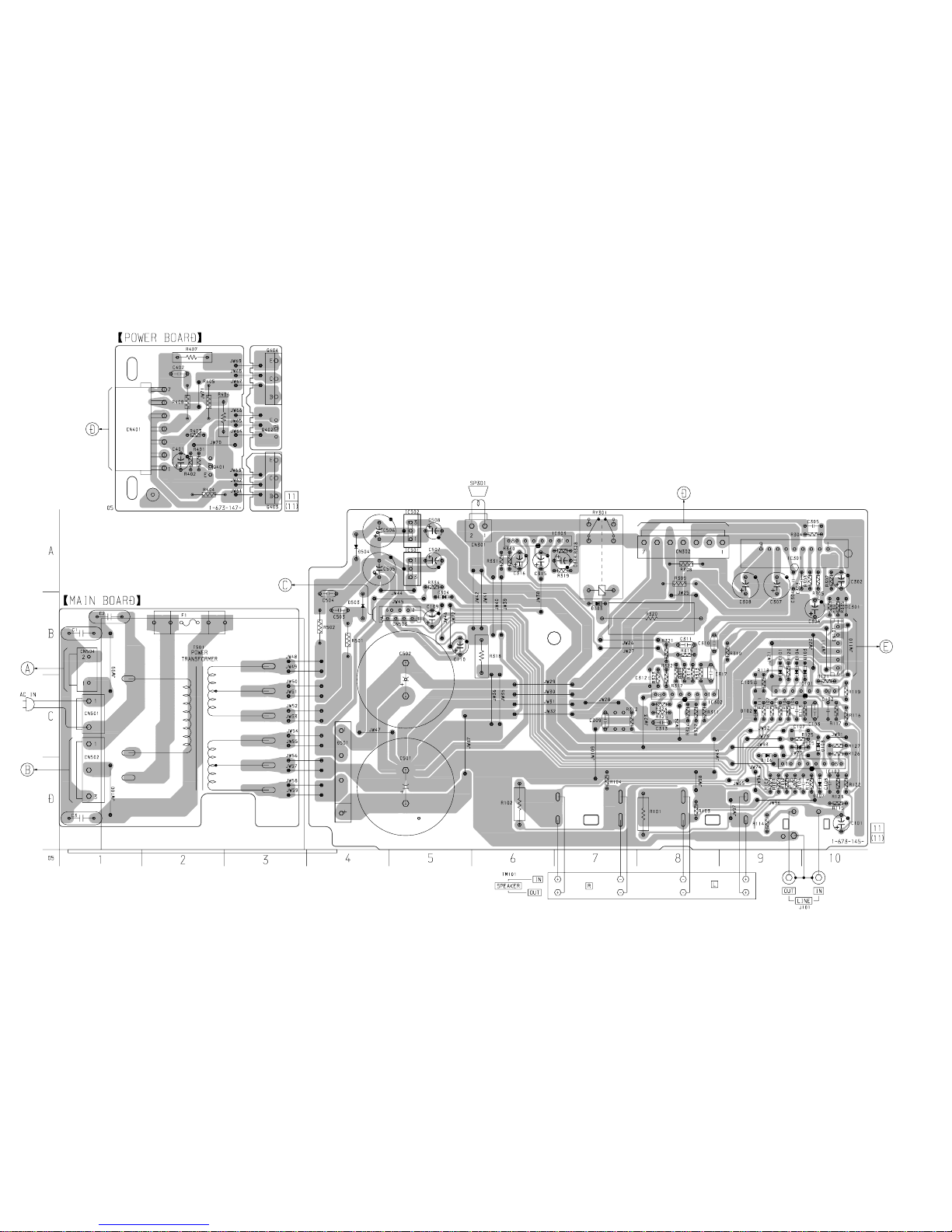

2-2. PRINTED WIRING BOARDS • See page 4 for Circuit Boards Location.
(Page 6)
(Page 8)
(Page 7)
(Page 7)
(Page 7)
(Page 5)

SA-VE502/VE505/WMS5/SS-MS5
• Semiconductor
Location
– MAIN Board –
Ref. No. Location
D101 B-9
D102 C-9
D103 B-10
D104 B-9
D105 C-9
D106 C-9
D107 D-10
D108 C-10
D303 B-7
D304 B-5
D501 D-4
D503 B-4
D504 A-4
IC101 C-10
IC102 D-10
IC301 A-9
IC302 C-8
IC303 A-6
IC501 A-5
IC502 A-5
D601 B-2
D602 B-2
D603 B-3
D604 B-3
D605 B-2
D606 D-3
IC601 C-2
IC602 C-2
Q601 B-1
Q602 D-3
Q603 C-2
Q604 D-2
Q605 D-2
• Semiconductor
Location
– AUTO POWER Board –
Ref. No. Location
– 7 – – 8 –
(Page 6)
(Page 5)
(Page 5)
(Page 8)
(Page 5)
(Page 7)

SA-VE502/VE505/WMS5/SS-MS5
– 9 – – 10 –
2-3. SCHEMATIC DIAGRAM • See page 11 for IC Block Diagrams.
The components identified by mark !or dotted
line with mark !are critical for safety.
Replaceonly with part numberspecified.
Lescomposants identifiéspar une marque !sont
critiques pour la sécurité. Ne les remplacerque
par une piéce portant le numéro spécifié.

– 11 –

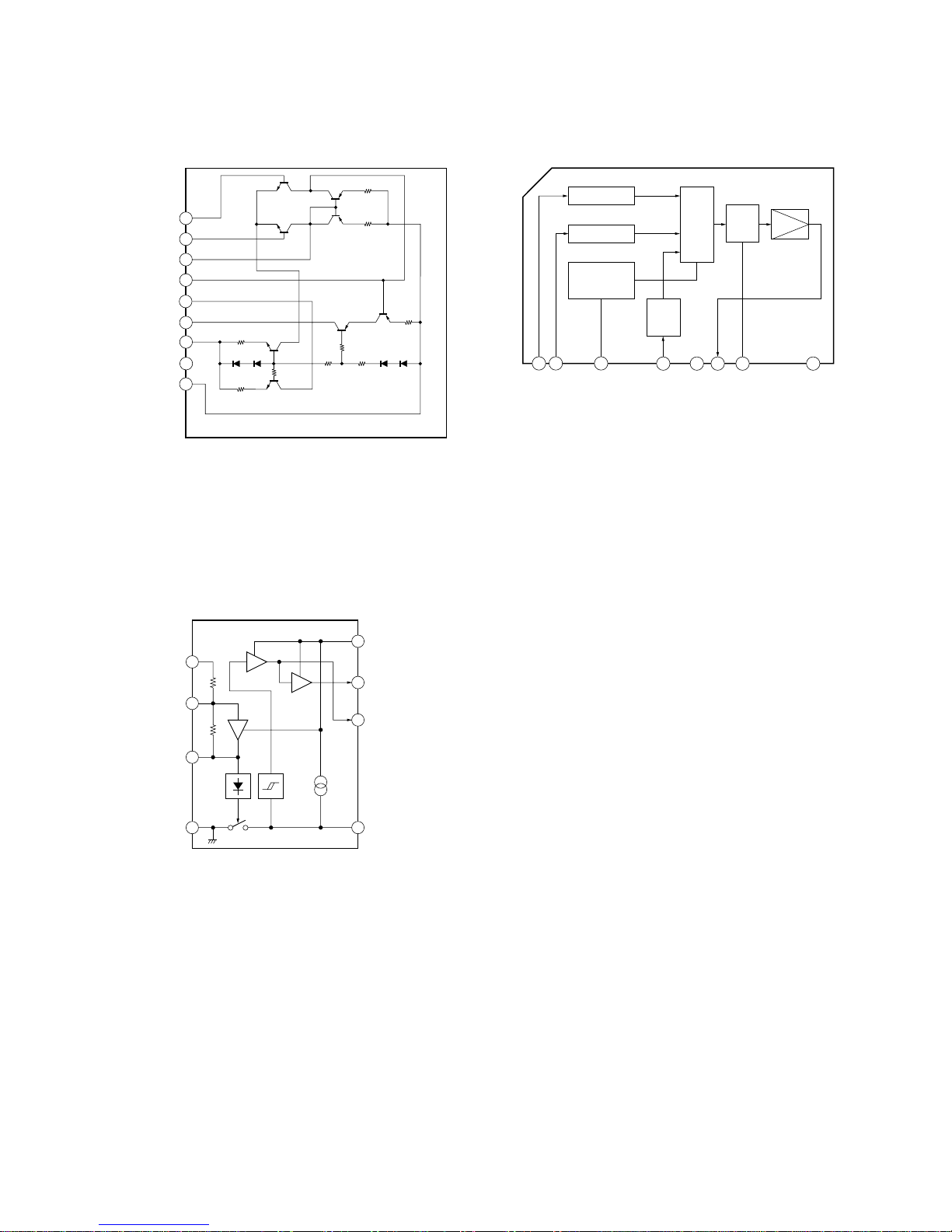

• IC Block Diagrams
– MAIN Board –
IC301 STK350-230
1
2
3
4
5
6
7
8
9
TR3 R1
R2
TR4
TR6
TR7
R4
R9
TR5
TR1
TR2
R6
D4 D3
R7
R8
TR8
D1 D2 R5
R3
INPUT
NF
-VEOUT
+VEOUT
VSS
GND
VCC
SUB
IC303 µPC1237HA
– AUTO POWER Board –
IC602 NJM2072D
1
2
3
4 5
6
7
8
INPUT
GAIN CONT
AMP OUT
GND
VCC
OUTPUT1
RECOVERY
TIME CAP
OUTPUT2
1 2 3 4 5 6 7 8
OVER LOAD DET
F/F
OFFSET DET
LATCH/
AUTORESET
V
CC ON
MUTE
AC OFF
DET
OVER LOAD DET
OFFSET DET
AUTO RESET
AC OFF DET
GND
RELAY DRIVE VCC ON MUTE
VCC

– 12 –
(1) FRONT PANEL SECTION
(SA-WMS5)
SECTION 3
EXPLODED VIEWS
Les composants identifiés par une
marque !sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark !or dotted line with mark
!are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 X-4951-099-1 FRAME ASSY, GRILLE
2 X-4951-100-1 PANEL ASSY, FRONT
3 1-673-150-11 LED BOARD
4 1-673-149-11 POWER SWITCH BOARD
5 1-673-146-11 CONTROL BOARD
6 4-217-284-01 PACKING
7 A-4411-447-A CABINET ASSY, SPEAKER
8 4-981-864-01 FOOT
9 4-217-642-01 SHEET
10 4-999-482-21 KNOB (VOL)
11 4-973-938-41 KNOB (A), PUSH
SP1 1-529-296-11 SPEAKER (20cm)
• Abbreviation
CND: Canadian model
G : German model
1
23
4
9
10
11
supplied with
RV201, S201
not supplied
not supplied
#1
#9
#9
#8
#8
#10
#10
#2
#3
5
SP1
6
8
7
A
A
MY : Malaysia model
SP : Singapore model

– 13 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

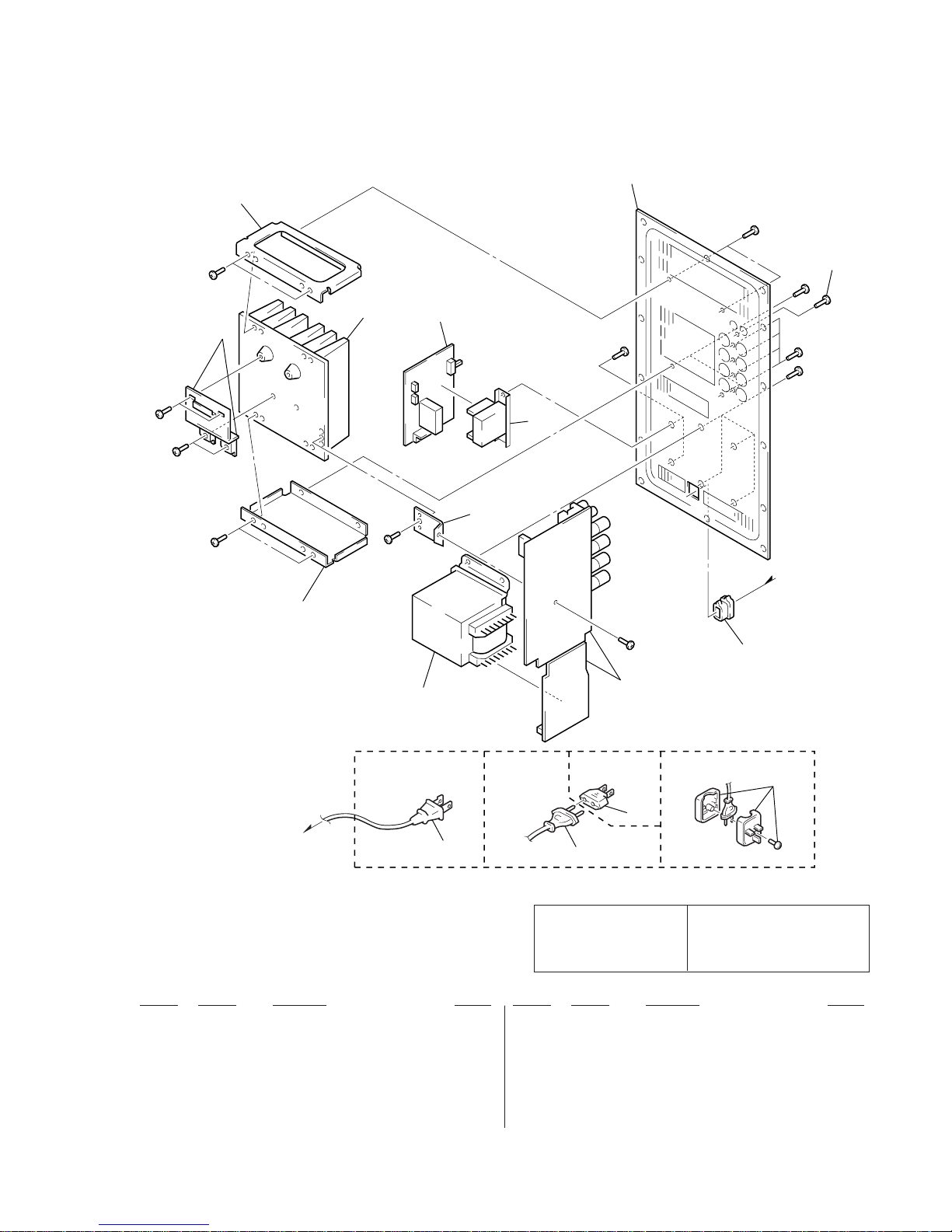

(2) AMPLIFIER SECTION
(SA-WMS5)
51 1-673-147-11 POWER BOARD
52 A-4419-290-A AUTO POWER BOARD, COMPLETE
53 4-217-294-01 PANEL, REAR
54 A-4419-286-A MAIN BOARD, COMPLETE
*55 3-703-244-00 BUSHING (2104), CORD
!56 1-769-744-11 CORD, POWER (AEP, UK, G, MY, SP)
!56 1-783-531-11 CORD, POWER (US, CND)
!57 1-569-008-21 ADAPTOR, CONVERSION 2P (SP)
!58 1-770-019-21 ADAPTOR, CONVERSION PLUG 3P (UK)
59 3-710-901-11 SCREW, TAPPING
!T501 1-433-726-11 TRANSFORMER, POWER (US, CND)
!T501 1-433-728-11 TRANSFORMER, POWER (EXCEPT US, CND)
!T601 1-433-731-11 TRANSFORMER, POWER (US, CND)
!T601 1-433-732-11 TRANSFORMER, POWER (EXCEPT US, CND)
The components identified by
mark !or dotted line with
mark !are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque !sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
56
US, CND AEP, UK, G,
SP, MY SP UK
54
55
56
57
58
T501
B
B
#6
#4
#4
#4
#4 #4
#4
#6
#6
#5
#5
T601
53
59
52
51
not
supplied
not supplied
not supplied
not
supplied

– 14 –
(3) SS-MS5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 X-4951-148-1 GRILLE ASSY, FRONT
102 X-4951-498-1 EMBLEM ASSY, SONY
103 4-217-715-01 SCREW (3.5X50), +P TAPPING
104 4-217-295-01 PANEL, FRONT
105 1-694-516-11 TERMINAL, SPEAKER
106 X-4951-147-1 CABINET ASSY
107 4-986-971-11 SCREW (3.5)
108 3-701-436-21 WASHER, POLYEHTHYLENE
109 4-220-713-01 SHEET
SP100 1-529-292-11 SPEAKER (5cm)
105
not supplied
SP100
SP100
not supplied
#7
104
103
106
107
109
102
108
101
103

– 15 –
SECTION 4
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
AUTO POWER
CONTROL
A-4419-290-A AUTO POWER BOARD, COMPLETE
****************************
< CAPACITOR >
C601 1-126-964-11 ELECT 10uF 20% 50V
C602 1-126-964-11 ELECT 10uF 20% 50V
C603 1-162-306-11 CERAMIC 0.01uF 20% 16V
C604 1-162-306-11 CERAMIC 0.01uF 20% 16V
C605 1-164-159-11 CERAMIC 0.1uF 50V
C606 1-164-159-11 CERAMIC 0.1uF 50V
C607 1-126-956-91 ELECT 0.1uF 20% 50V
C608 1-162-294-31 CERAMIC 0.001uF 10% 50V
C609 1-126-916-11 ELECT 1000uF 20% 6.3V
C610 1-126-964-11 ELECT 10uF 20% 50V
C611 1-161-494-00 CERAMIC 0.022uF 25V
C612 1-126-942-61 ELECT 1000uF 20% 25V
C613 1-126-964-11 ELECT 10uF 20% 50V
C614 1-162-294-31 CERAMIC 0.001uF 10% 50V
C615 1-104-665-11 ELECT 100uF 20% 25V
C616 1-162-294-31 CERAMIC 0.001uF 10% 50V
< CONNECTOR >
CN601 1-568-439-11 SOCKET, CONNECTOR 7P
*CN602 1-564-687-11 PIN, CONNECTOR 3P
*CN603 1-565-513-11 PIN, CONNECTOR 2P
CN604 1-569-315-11 SOCKET, CONNECTOR 5P
< DIODE >
D601 8-719-991-33 DIODE 1SS133T-77
D602 8-719-200-82 DIODE 11ES2
D603 8-719-200-82 DIODE 11ES2
D604 8-719-200-82 DIODE 11ES2
D605 8-719-200-82 DIODE 11ES2
D606 8-719-985-85 DIODE HZS6A2L
< IC >
IC601 8-759-634-50 IC M5218AL
IC602 8-759-701-55 IC NJM2072D
< TRANSISTOR >
Q601 8-729-029-66 TRANSISTOR DTC114ESA
Q602 8-729-026-68 TRANSISTOR 2SD2525
Q603 8-729-422-57 TRANSISTOR UN4111
Q604 8-729-422-57 TRANSISTOR UN4111
Q605 8-729-422-57 TRANSISTOR UN4111
< RESISTOR >
R601 1-247-887-00 CARBON 220K 5% 1/4W
R602 1-247-887-00 CARBON 220K 5% 1/4W
R603 1-249-431-11 CARBON 15K 5% 1/4W
R604 1-249-433-11 CARBON 22K 5% 1/4W
R605 1-249-435-11 CARBON 33K 5% 1/4W
R606 1-249-431-11 CARBON 15K 5% 1/4W
R607 1-249-433-11 CARBON 22K 5% 1/4W
R608 1-249-435-11 CARBON 33K 5% 1/4W
R611 1-249-431-11 CARBON 15K 5% 1/4W
R612 1-249-431-11 CARBON 15K 5% 1/4W
R613 1-249-415-11 CARBON 680 5% 1/4W
R614 1-249-417-11 CARBON 1K 5% 1/4W
R615 1-249-417-11 CARBON 1K 5% 1/4W
!R616 1-215-865-81 METAL OXIDE 220 5% 1W F
!R617 1-215-865-81 METAL OXIDE 220 5% 1W F
R618 1-249-429-11 CARBON 10K 5% 1/4W
R619 1-249-429-11 CARBON 10K 5% 1/4W
< RELAY >
!RY601 1-755-276-11 RELAY, POWER
< SWITCH >
S701 1-570-707-31 SWITCH, SLIDE (POWER SAVE)
< TRANSFORMER >
!T601 1-433-731-11 TRANFOORMER, POWER (US, CND)
!T601 1-433-732-11 TRANFOORMER, POWER (EXCEPT US, CND)
************************************************************
1-673-146-11 CONTROL BOARD
**************
< CAPACITOR >
C201 1-104-664-11 ELECT 47uF 20% 25V
C202 1-104-664-11 ELECT 47uF 20% 25V
C203 1-136-176-00 FILM 0.82uF 5% 50V
C204 1-136-158-00 FILM 0.027uF 5% 50V
C205 1-136-163-00 FILM 0.068uF 5% 50V
C206 1-136-163-00 FILM 0.068uF 5% 50V
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
Les composants identifiés par une
marque !sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark !or dotted line with mark
!are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
• Abbreviation
CND: Canadian model SP : Singapore model

– 16 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C207 1-136-170-00 FILM 0.27uF 5% 50V
C208 1-136-170-00 FILM 0.27uF 5% 50V
C210 1-136-177-00 FILM 1uF 5% 50V
C211 1-136-165-00 FILM 0.1uF 5% 50V
C212 1-126-965-11 ELECT 22uF 20% 50V
C213 1-126-965-11 ELECT 22uF 20% 50V
C214 1-126-965-11 ELECT 22uF 20% 50V
C215 1-126-964-11 ELECT 10uF 20% 50V
C216 1-126-963-11 ELECT 4.7uF 20% 50V
< CONNECTOR >
*CN201 1-564-520-11 PLUG, CONNECTOR 5P
< IC >
IC201 8-759-634-50 IC M5218AL
IC202 8-759-634-50 IC M5218AL
IC203 8-759-634-50 IC M5218AL
< TRANSISTOR >
Q201 8-729-178-55 TRANSISTOR 2SC2785-E
< RESISTOR >
R201 1-249-427-11 CARBON 6.8K 5% 1/4W
R202 1-249-427-11 CARBON 6.8K 5% 1/4W
R203 1-247-887-00 CARBON 220K 5% 1/4W
R204 1-249-435-11 CARBON 33K 5% 1/4W
R205 1-249-417-11 CARBON 1K 5% 1/4W
R206 1-249-417-11 CARBON 1K 5% 1/4W
R207 1-247-883-00 CARBON 150K 5% 1/4W
R208 1-249-435-11 CARBON 33K 5% 1/4W
R209 1-249-427-11 CARBON 6.8K 5% 1/4W
R210 1-249-437-11 CARBON 47K 5% 1/4W
R211 1-249-432-11 CARBON 18K 5% 1/4W
R212 1-249-432-11 CARBON 18K 5% 1/4W
R213 1-249-417-11 CARBON 1K 5% 1/4W
R214 1-249-431-11 CARBON 15 5% 1/4W
R215 1-249-417-11 CARBON 1K 5% 1/4W
R216 1-249-427-11 CARBON 6.8K 5% 1/4W
R217 1-247-887-00 CARBON 220K 5% 1/4W
R218 1-247-887-00 CARBON 220K 5% 1/4W
R219 1-249-429-11 CARBON 10K 5% 1/4W
< VARIABLE RESISTOR >
RV201 1-225-826-11 RES, VAR, CARBON 20K (LEVEL)
< SWITCH >
S201 1-771-632-11 SWITCH, ROTARY (MODE)
************************************************************
1-673-150-11 LED BOARD
**********
< CONNECTOR >
CN801 1-569-299-11 SOCKET, CONNECTOR (L TYRE) 5P
< LED >
D801 8-719-061-31 LED SML72420CTH8F (POWER ON/SAVE)
************************************************************
A-4419-286-A MAIN BOARD, COMPLETE
*********************
1-533-233-11 HOLDER, FUSE
< CAPACITOR >
!C1 1-113-924-11 CERAMIC 0.0047uF 20% 250V
!C2 1-113-924-11 CERAMIC 0.0047uF 20% 250V
!C3 1-113-924-11 CERAMIC 0.0047uF 20% 250V
C101 1-126-964-11 ELECT 10uF 20% 50V
C102 1-162-282-31 CERAMIC 100PF 10% 50V
C103 1-136-176-00 FILM 0.82uF 5% 50V
C104 1-162-282-31 CERAMIC 100PF 10% 50V
C105 1-162-294-31 CERAMIC 0.001uF 10% 50V
C106 1-162-292-31 CERAMIC 680PF 10% 50V
C107 1-162-288-31 CERAMIC 330PF 10% 50V
C108 1-162-282-31 CERAMIC 100PF 10% 50V
C109 1-126-964-11 ELECT 10uF 20% 50V
C110 1-126-964-11 ELECT 10uF 20% 50V
C301 1-162-282-31 CERAMIC 100PF 10% 50V
C302 1-126-963-11 ELECT 4.7uF 20% 50V
C303 1-162-219-31 CERAMIC 68PF 5% 50V
C304 1-162-289-31 CERAMIC 390PF 10% 50V
C305 1-162-194-31 CERAMIC 3.9PF 10% 50V
C306 1-126-934-11 ELECT 220uF 20% 10V
C307 1-128-560-11 ELECT 22uF 20% 100V
C308 1-128-560-11 ELECT 22uF 20% 100V
C309 1-130-483-00 MYLAR 0.01uF 5% 50V
C310 1-136-177-00 FILM 1uF 5% 50V
C311 1-130-495-00 MYLAR 0.1uF 5% 50V
C312 1-162-294-31 CERAMIC 0.001uF 10% 50V
C313 1-130-491-00 MYLAR 0.047uF 5% 50V
C314 1-104-665-11 ELECT 100uF 20% 10V
C315 1-126-963-11 ELECT 4.7uF 20% 50V
C316 1-104-664-11 ELECT 47uF 20% 25V
C317 1-162-209-31 CERAMIC 27PF 5% 50V
C501 1-127-891-11 ELECT 12000uF 20% 63V
C502 1-127-891-11 ELECT 12000uF 20% 63V
C503 1-136-165-00 FILM 0.1uF 5% 50V
C504 1-136-165-00 FILM 0.1uF 5% 50V
C505 1-126-941-11 ELECT 470uF 20% 25V
C506 1-126-941-11 ELECT 470uF 20% 25V
C507 1-104-664-11 ELECT 47uF 20% 25V
C508 1-104-664-11 ELECT 47uF 20% 25V
< CONNECTOR >
*CN101 1-564-521-11 PLUG, CONNECTOR 6P
*CN301 1-565-792-11 PIN, CONNECTOR 2P
*CN302 1-564-915-11 PIN, CONNECTOR 7P
CN501 1-564-321-00 PIN, CONNECTOR 2P
*CN502 1-564-687-11 PIN, CONNECTOR 3P
CN503 1-568-439-11 SOCKET, CONNECTOR 7P
*CN504 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P
< DIODE >
D101 8-719-991-33 DIODE 1SS133T-77
D102 8-719-991-33 DIODE 1SS133T-77
CONTROL LED MAIN
The components identified by
mark !or dotted line with
mark !are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque !sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.

– 17 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D103 8-719-991-33 DIODE 1SS133T-77
D104 8-719-991-33 DIODE 1SS133T-77
D105 8-719-991-33 DIODE 1SS133T-77
D106 8-719-991-33 DIODE 1SS133T-77
D107 8-719-991-33 DIODE 1SS133T-77
D108 8-719-991-33 DIODE 1SS133T-77
D303 8-719-991-33 DIODE 1SS133T-77
D304 8-719-991-33 DIODE 1SS133T-77
D501 8-719-302-37 DIODE RBV-602
D503 8-719-200-82 DIODE 11ES2
D504 8-719-200-82 DIODE 11ES2
< FUSE >
!F1 1-532-501-31 FUSE (T0.8AL/250V) (EXCEPT US, CND)
!F1 1-533-296-11 FUSE, GLASS CYLINDRICAL (DIA.5) (2A/125V)
(US, CND)
< IC >
IC101 8-759-634-50 IC M5218AL
IC102 8-759-634-50 IC M5218AL
IC301 8-749-011-16 IC STK350-230
IC302 8-759-634-50 IC M5218AL
IC303 8-759-111-68 IC uPC1237HA
IC501 8-759-604-40 IC M5F78M15
IC502 8-759-604-46 IC M5F79M15
< JACK >
J101 1-785-795-11 JACK, PIN 2P (LINE IN/OUT)
< RESISTOR >
R101 1-260-107-11 CARBON 4.7K 5% 1/2W
R102 1-260-107-11 CARBON 4.7K 5% 1/2W
R103 1-249-421-11 CARBON 2.2K 5% 1/4W
R104 1-249-421-11 CARBON 2.2K 5% 1/4W
R105 1-249-429-11 CARBON 10K 5% 1/4W
R106 1-249-429-11 CARBON 10K 5% 1/4W
R107 1-249-429-11 CARBON 10K 5% 1/4W
R108 1-249-429-11 CARBON 10K 5% 1/4W
R109 1-249-429-11 CARBON 10K 5% 1/4W
R110 1-249-429-11 CARBON 10K 5% 1/4W
R111 1-249-429-11 CARBON 10K 5% 1/4W
R112 1-249-429-11 CARBON 10K 5% 1/4W
R113 1-249-417-11 CARBON 1K 5% 1/4W
R114 1-249-417-11 CARBON 1K 5% 1/4W
R115 1-247-887-00 CARBON 220K 5% 1/4W
R116 1-249-417-11 CARBON 1K 5% 1/4W
R117 1-247-887-00 CARBON 220K 5% 1/4W
R118 1-249-421-11 CARBON 2.2K 5% 1/4W
R119 1-249-427-11 CARBON 6.8K 5% 1/4W
R120 1-249-417-11 CARBON 1K 5% 1/4W
R121 1-249-417-11 CARBON 1K 5% 1/4W
R122 1-249-417-11 CARBON 1K 5% 1/4W
R123 1-249-441-11 CARBON 100K 5% 1/4W
R124 1-249-429-11 CARBON 10K 5% 1/4W
R125 1-249-429-11 CARBON 10K 5% 1/4W
R126 1-249-437-11 CARBON 47K 5% 1/4W
R127 1-247-903-00 CARBON 1M 5% 1/4W
R301 1-249-433-11 CARBON 22K 5% 1/4W
R302 1-249-438-11 CARBON 56K 5% 1/4W
R303 1-249-413-11 CARBON 470 5% 1/4W
R304 1-249-438-11 CARBON 56K 5% 1/4W
R305 1-249-442-11 CARBON 510 5% 1/4W
!R308 1-247-688-11 CARBON 10 5% 1/4W F
!R309 1-247-688-11 CARBON 10 5% 1/4W F
R310 1-249-417-11 CARBON 1K 5% 1/4W
R311 1-249-429-11 CARBON 10K 5% 1/4W
R312 1-249-437-11 CARBON 47K 5% 1/4W
R313 1-247-885-11 CARBON 180K 5% 1/4W
R314 1-249-429-11 CARBON 10K 5% 1/4W
R315 1-249-431-11 CARBON 15K 5% 1/4W
R316 1-249-415-11 CARBON 680 5% 1/4W
R317 1-249-417-11 CARBON 1K 5% 1/4W
!R318 1-217-158-00 METAL 0.47 10% 5W F
R319 1-249-441-11 CARBON 100K 5% 1/4W
!R320 1-216-505-51 METAL OXIDE 1.2K 5% 5W F
R321 1-247-838-00 CARBON 2K 5% 1/4W
R322 1-249-429-11 CARBON 10K 5% 1/4W
R323 1-249-420-11 CARBON 1.8K 5% 1/4W
R324 1-249-421-11 CARBON 2.2K 5% 1/4W
R325 1-249-425-11 CARBON 4.7K 5% 1/4W
R326 1-247-860-11 CARBON 16K 5% 1/4W
R327 1-249-422-11 CARBON 2.7K 5% 1/4W
R328 1-249-441-11 CARBON 100K 5% 1/4W
R330 1-249-439-11 CARBON 68K 5% 1/4W
R331 1-249-433-11 CARBON 22K 5% 1/4W
R334 1-249-436-11 CARBON 39K 5% 1/4W
R335 1-249-432-11 CARBON 18K 5% 1/4W
!R501 1-249-381-11 CARBON 1 5% 1/4W F
!R502 1-249-381-11 CARBON 1 5% 1/4W F
< RELAY >
RY301 1-515-920-11 RELAY (24V)
< TRANSFORMER >
!T501 1-433-726-11 TRANFOORMER, POWER (US, CND)
!T501 1-433-728-11 TRANFOORMER, POWER (EXCEPT US, CND)
< TERMINAL >
TM101 1-537-737-11 TERMINAL BOARD (SPEAKER IN/OUT)
************************************************************
1-673-147-11 POWER BOARD
*************
< CAPACITOR >
C401 1-104-664-11 ELECT 47uF 20% 25V
C402 1-137-372-11 FILM 0.022uF 5% 50V
< CONNECTOR >
*CN401 1-770-318-11 PIN, CONNECTOR 7P
< TRANSISTOR/IC >
Q401 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q402 8-729-141-30 TRANSISTOR 2SC3623A-LK
MAIN POWER
The components identified by
mark !or dotted line with
mark !are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque !sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.

– 18 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark !or dotted line with
mark !are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque !sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
Q403 8-749-010-25 IC MN2488-OPY-M
Q404 8-749-010-26 IC MP1620-OPY-M
< RESISTOR >
R401 1-249-421-11 CARBON 2.2K 5% 1/4W
R402 1-249-437-11 CARBON 47K 5% 1/4W
R403 1-249-414-11 CARBON 560 5% 1/4W
!R404 1-249-408-11 CARBON 180 5% 1/4W F
!R405 1-249-408-11 CARBON 180 5% 1/4W F
!R406 1-217-151-00 METAL 0.22 10% 2W F
!R407 1-217-151-00 METAL 0.22 10% 2W F
!R408 1-249-393-11 CARBON 10 5% 1/4W F
************************************************************
1-673-149-11 POWER SWITCH BOARD
********************
< CONNECTOR >
CN1 1-564-321-00 PIN, CONNECTOR 2P
< SWITCH >
!S1 1-554-920-11 SWITCH, PUSH (AC POWER) (1 KEY)
(ON/STANDBY U)
************************************************************
MISCELLANEOUS
**************
!56 1-769-744-11 CORD, POWER (AEP, UK, G, MY, SP)
!56 1-783-531-11 CORD, POWER (US, CND)
!57 1-569-008-21 ADAPTOR, CONVERSION 2P (SP)
!58 1-770-019-21 ADAPTOR, CONVERSION PLUG 3P (UK)
105 1-694-516-11 TERMINAL, SPEAKER
SP1 1-529-296-11 SPEAKER (20cm)
SP100 1-529-292-11 SPEAKER (5cm)
!T501 1-433-726-11 TRANSFORMER, POWER (US, CND)
!T501 1-433-728-11 TRANSFORMER, POWER (EXCEPT US, CND)
!T601 1-433-731-11 TRANSFORMER, POWER (US, CND)
!T601 1-433-732-11 TRANSFORMER, POWER (EXCEPT US, CND)
************************************************************
**************
HARDWARE LIST
**************
#1 7-685-645-79 SCREW +P 3X6 TYPE2 SLIT
#2 7-685-146-29 SCREW +P 3X8 TYPE2 SLIT
#3 7-682-147-01 SCREW +P 3X6
#4 7-685-648-79 SCREW +P 3X12 TYPE2 NON-SLIT
#5 7-685-660-19 SCREW +BVTP 4X10 TYPE2 N-S
#6 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
#7 7-624-200-11 NUT, PUSH 2
#8 7-685-163-01 SCREW +P 4X16 TYPE1
#9 7-685-116-01 SCREW +PTP 4X30 TYPE1
#10 7-685-662-79 SCREW +BVTP 4X14 TYPE2 N-S
************************************************************
POWER POWER SWITCH
SA-VE502/VE505/WMS5/SS-WMS5
Sony Corporation
Home A&V Products Company9-928-869-11
99D0587-1
Printed in Japan © 1999. 4
Published by Quality Assurance Dept.
(Shinagawa)
ACCESSORIES & PACKING MATERIALS
*******************************
1-769-329-21 CORD, CONNECTION (PIN-PIN)
1-790-503-11 CORD, SPEAKER (2.5m)
1-790-503-21 CORD, SPEAKER (10m) (VE505)
3-701-443-21 WASHER, 5 DIA.
3-866-761-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
3-866-761-21 MANUAL, INSTRUCTION (GERMAN, SPANISH,
DUTCH, SWEDISH, ITALIAN, PORTUGUESE,
POLISH, RUSSIAN, DANISH, FINNISH,
CHINESE) (EXCEPT US, CND)
4-219-450-01 SCREW (M5X16)
X-4951-476-1 STAY ASSY
X-4951-477-1 BASE ASSY
