Sound Sation Camden-30H User manual

This is for the connection with the out of the instrument
(1) INPUT:
(2) LEVEL:(CLEAN CHANNEL)
Controls the overall signal of the clean channel.
(3) CHANNEL SELECT:
Chooses between clean channel and main channel.
(4) GAIN:
Adjusts the amount of mean gain
(5) LEVEL:(MEAN CHANNEL)
Controls the overall signal of the mean channel.
(6) TREBLE:
Adjusts the amount of high frequency boost or cut as desired in EQ channel
(7) MIDDLE:
Adjusts the amount of middle frequency boost or cut as desire in EQ channel
(8) BASS:
Adjusts the amount of low frequency boost or cut as desired in EQ channel
(9) REVERB:
Adjusts the reverberation effect.
(10) VOLUME:
Controls the overall signal level of this tube guitar amplifier.
(11) STANDDY SWITCH:
Must be set to position ＂l＂during playing intervals.
(12) POWER SWITCH:
Turns the tube guitar amplifier on or off.

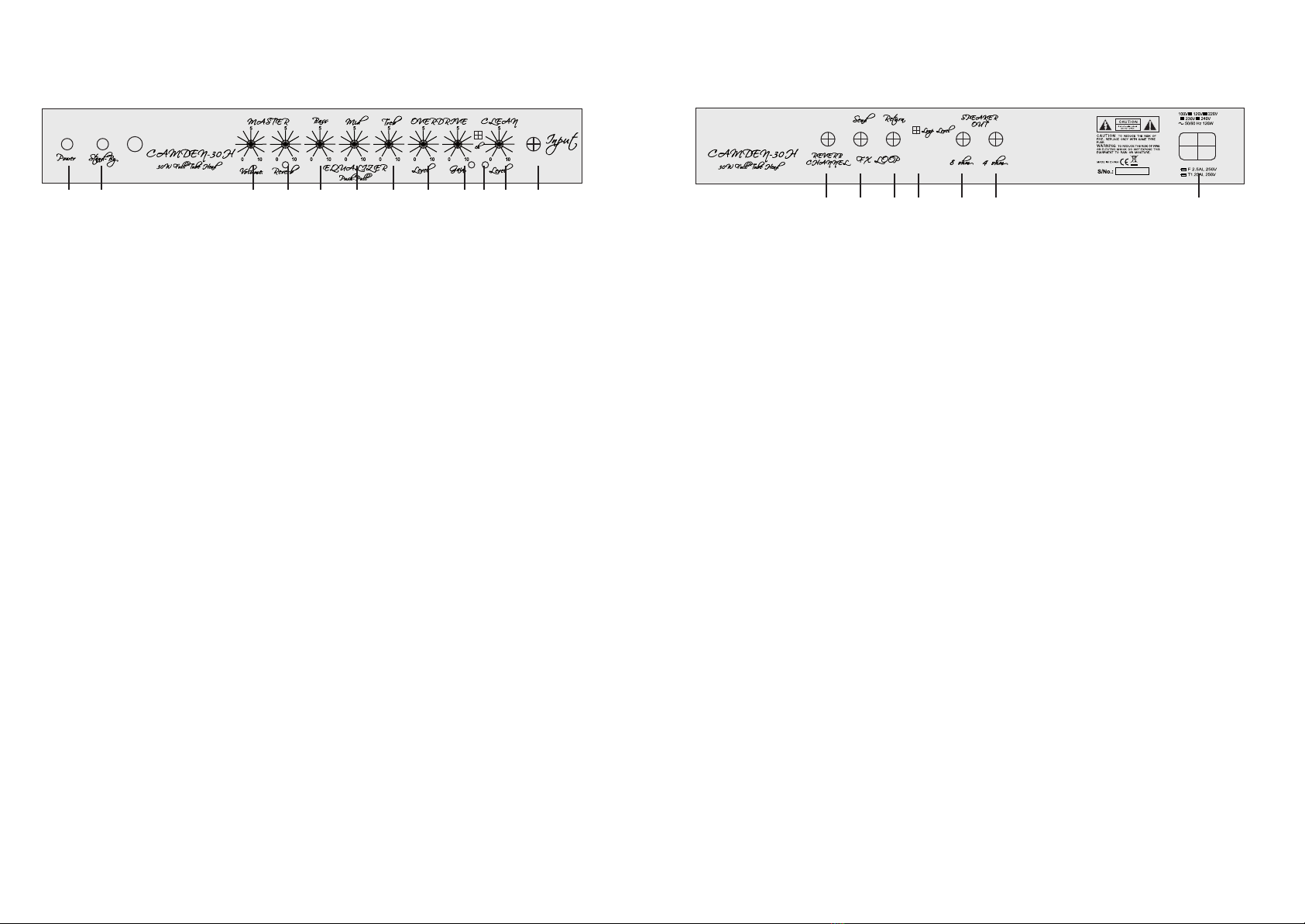

FRONT PANEL REAR PANEL
(13) AC SOCKET:
Connects AC power cable.
(14) SPEAKER OUTPUT JACK:
Connects the external speaker(s) with a minimum impedance of 4ohm,
and the internal speaker will be disconnected.
(15) SPEAKER OUTPUT JACK:
Connects the external speaker(s) with a minimum impedance of 8ohm.
(16) LOOP BUTTON:
Controls the level of the inserted effect signal.
(17) RETURN:
Connects the guitar amplifier to output of the effect unit.
(18) SEND:
Connects the guitar amplifier to input of the effect unit.
(19) CHANNEL REVERB:
Connects footswitch to select CLEAN/MEAN channel and to select
reverb on/off
FEATURES & SPECIFICATIONS
-1x12＂Speaker with Excellent
Sound Performance
-3-Band EQ(Bass/Middle/Treble)
-Master Volume
-Effects loop with level Adjustable
-30 Wrms ALL-Tube Amplifier
-2 Channels(Clean&Mean)
-Spring Reverb
-Footswitch Jack for Reverb On/Off
and Channel select
-Extension Speaker Outputs -510Wx252Hx246D mm/14 Kgs
(1)(2)(3)(4)(5)(6)(7) (8) (9)(10)(12) (11) (19) (18) (17) (16) (15) (13)(14)
