Sound Tube SM1001p Configuration guide

Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Removable feet
Power cord
Forgedeyebolt
Box contents: SM1001p
1 Subwoofer
4 Removable feet
1 Power cord
1 Forged eyebolt
1 Seismic cable
3 Zip ties
The SM1001p ships without mounting accessories.
Optional accessories include:
1. Surface Mount Bracket (AC-SM1001p-S)
2. Corner Mount Bracket (AC-SM1001p-C)
Mounting brackets include mounting instructions.
© 2010SoundTube Entertainment, Inc. All rightsreserved. PN SM1001p Rev 07.13.10
3. Connect signal wire to
either the balanced XLR
input or the 70.7 V binding
post.
7. Plug in the power cord,
and turn the unit on. The
SM1001p senses when no
signal is present, and
powers down to conserve
energy.
5. Set the low-pass filter
with the user-adjustable
knob. The low pass filter
ranges from 40 Hz - 200
Hz with over-toggle to full
range (LFE).
6. If signal pass-through is
desired, connect the signal
output to either the full
range pass-through or the
user-adjustable high pass
output (40 Hz - 200 Hz)
using the balanced XLR
outputs. Note: The 70v
input does not pass signal
through the balanced XLR
outputs.
1. Unpack subwoofer. 2. Place in desired location.
9. Set gain. 10. Done!
8. For optimal subwoofer
performance, set phase
switch to either 0º or 180º
(bass will be more rich when
set correctly for the
installation).
4. For a safety cable
attachment, screw the
forged eye bolt into the
1/4-20 inserts on the back
of the speaker. Attach
included safety cable from
forged eyebolt to secure
mounting point on
structure. Installer to supply
structural fastener.
SM1001p Floor-mount Installation For:
SM1001p Powered Subwoofer
1.435.647.9555 |800.647.TUBE | www.soundtube.com
Install Instructions For:
SM1001p Powered Subwoofer
SM1001p

Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Speakerbrackets
Mountingscrews
Corner-mount bracket
Note:Speaker shipsseparately.
Securityscrew
Box contents: Corner-mount kit
1 Corner-mount bracket
2 Speaker brackets
8 Fasteners (1/2 inch wood screws)
1 Security screw
For wiring instructions, consult SM1001p installation instructions.
Alternate optional accessory is a surface mount bracket (AC-SM1001p-S).
© 2010SoundTube Entertainment, Inc. All rightsreserved. PN SM1001p-C Rev 07.13.10
4. For a safety cable
attachment, screw the
forged eyebolt into the
1/4-20 insert on the back of
the speaker and attach
included safety cable from
forged eyebolt to a secure
mounting point on the
structure. Installer to supply
fasteners to structure.
6. Slide speaker onto
pre-mounted bracket.
1. Unpack subwoofer and
unscrew 4 feet. Remove
screws from rubber plugs
and replace screws to fill
holes.
5. Run wires through hole
in top or bottom of bracket.
Connect wires and set gain
and filters as described in
the SM1001p installation
instructions.
2. Choose a secure corner
and mount bracket with
tabs pointing up. Corner
mount bracket must be
mounted at least 3 inches
below ceiling, beam or other
top structure. Bracket
accepts up to 1/4 inch lag
bolts (installer supplies
fasteners). Be sure
mounting tabs point up.
3. Mount speaker brackets
to back of speaker with tabs
down. Use included 1/2
inch wood screws.
7. Install security screw. 8. Done!
AC-SM1001p-C Corner-mount Installation For:
SM1001p Powered Subwoofer
1.435.647.9555 |800.647.TUBE | www.soundtube.com
Install Instructions For:
SM1001p Powered Subwoofer Corner Mount Bracket
AC-SM1001p-C

Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

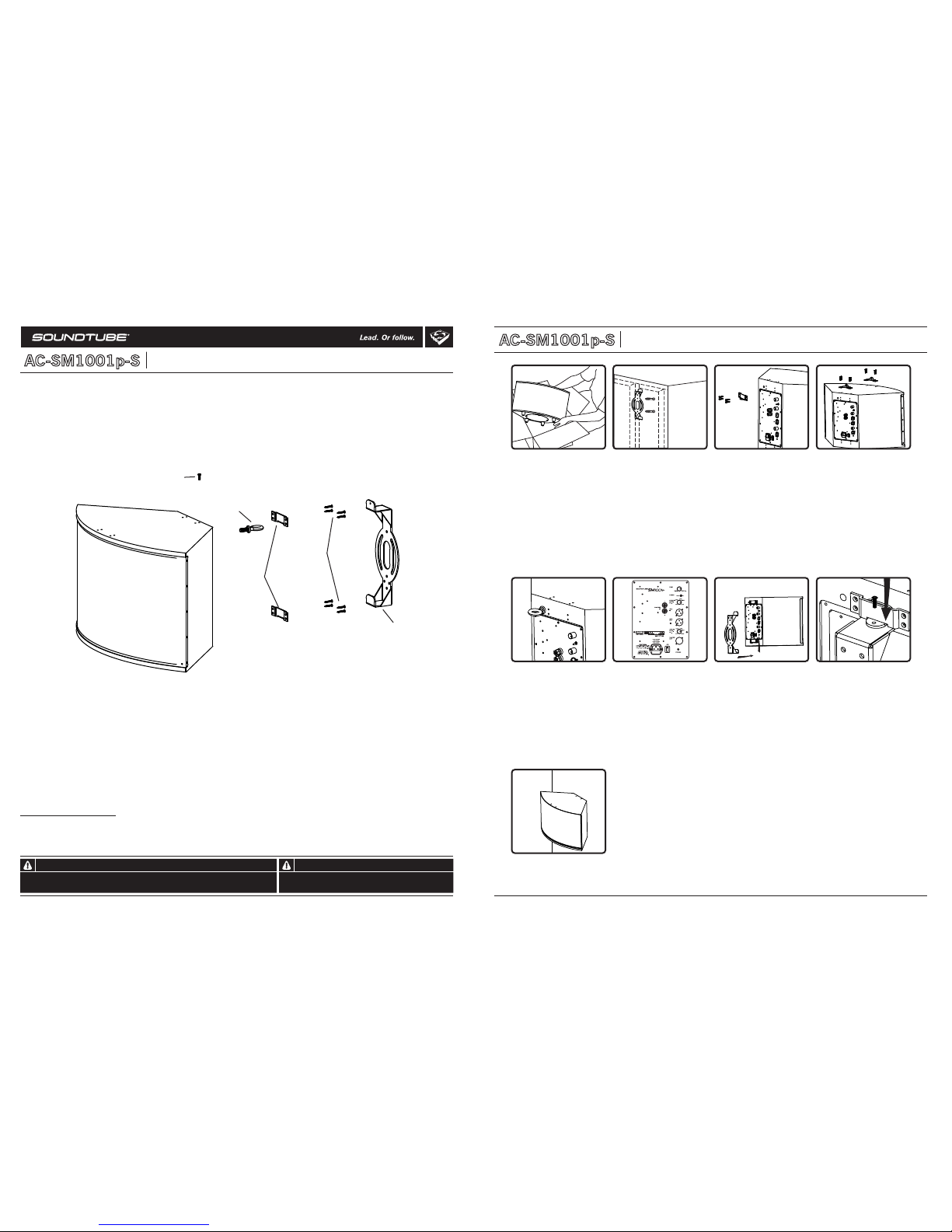

Securityscrew
Surface-mount bracket
Note: Speaker ships separately
Forgedeyebolt
Speakerbrackets
Mountingscrews
Box contents: Surface-mount kit
1 Surface-mount bracket
2 Speaker brackets
8 Fasteners (1/2" wood screws)
1 Security screw
For wiring instructions, consult SM1001p installation instructions.
Alternate optional accessory is a corner mount bracket (AC-SM1001p-C).
© 2010SoundTube Entertainment, Inc. All rightsreserved. PN SM1001p-S Rev 07.13.10
3b. Downward aiming:
Mount speaker brackets to
top of speaker with tabs
facing front of speaker. Use
included 1/2 inch wood
screws.
5. Connect wires and set
gain and filters as described
in the SM1001p installation
instructions.
1. Unpack subwoofer and
unscrew 4 feet. Remove
screws from rubber plugs
and replace screws to fill
holes.
4. For a safety cable
attachment, screw the
forged eye bolt into the
1/4-20 inserts on the back
of the speaker. Attach
included safety cable from
forged eyebolt to secure
mounting point on
structure. Installer to supply
fastener to structure.
2. Choose a secure
mounting surface with
sufficient strength to reliably
hold the speaker.
Surface-mount bracket must
be mounted at least 3
inches below ceiling, beam
or other top structure.
Bracket accepts 1/4 inch lag
bolts (installer to supply
fasteners). Be sure
mounting tabs point up.
3a. Outward aiming: Mount
speaker brackets to back of
speaker with tabs down.
Use included 1/2 inch wood
screws.
7. Install security screw.
8. Done!
6. Slide speaker onto
pre-mounted bracket.
AC-SM1001p-S Install Instructions For:
SM1001p Surface Mount Bracket
1.435.647.9555 |800.647.TUBE | www.soundtube.com
Install Instructions For:
SM1001p Surface Mount Bracket
AC-SM1001p-S
