Soundbarrier CUBE Series User manual

2

Equipment Features:
Full Product Specifications and Features are available for each individual
model within this manuals. Please continue reading the rest of this booklet
to familiarize yourself with this product.
3

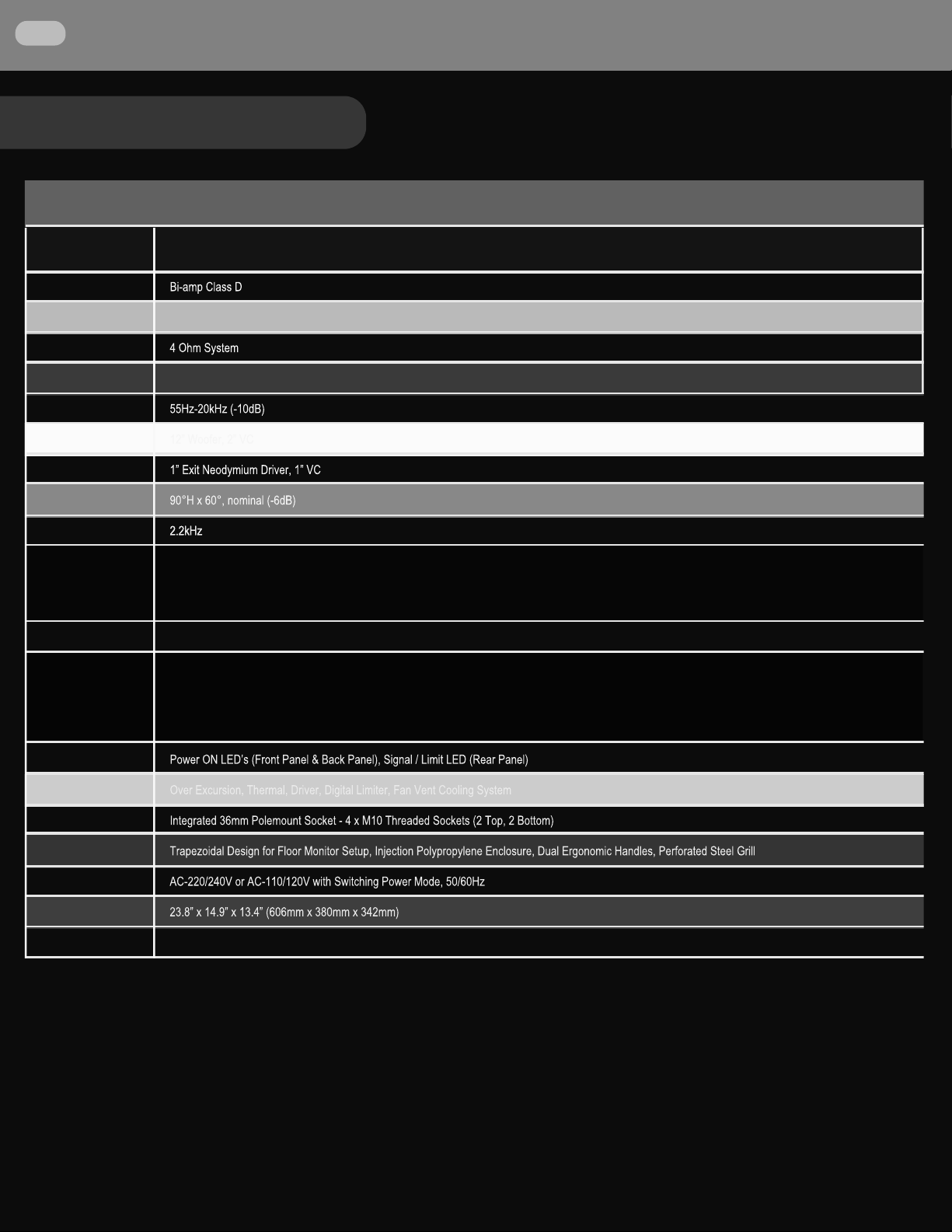

Bi-amp Class D
4 Ohm System
55Hz-20kHz (-10dB)
12” Woofer, 2” VC
1” Exit Neodymium Driver, 1” VC
90°H x 60°, nominal (-6dB)
2.2kHz2.2kHz
Power ON LED’s (Front Panel & Back Panel), Signal / Limit LED (Rear Panel)
Over Excursion, Thermal, Driver, Digital Limiter, Fan Vent Cooling System
Integrated 36mm Polemount Socket - 4 x M10 Threaded Sockets (2 Top, 2 Bottom)
Trapezoidal Design for Floor Monitor Setup, Injection Polypropylene Enclosure, Dual Ergonomic Handles, Perforated Steel Grill
AC-220/240V or AC-110/120V with Switching Power Mode, 50/60Hz
23.8” x 14.9” x 13.4” (606mm x 380mm x 342mm)
4

Bi-amp Class D
4 Ohm System
50Hz-20kHz (-10dB)
15” Woofer, 2” VC
1” Exit Neodymium Driver, 1” VC
90°H x 60°, nominal (-6dB)
2.2kHz2.2kHz
Power ON LED’s (Front Panel & Back Panel), Signal / Limit LED (Rear Panel)
Over Excursion, Thermal, Driver, Digital Limiter, Fan Vent Cooling System
Integrated 36mm Polemount Socket - 4 x M10 Threaded Sockets (2 Top, 2 Bottom)
Trapezoidal Design for Floor Monitor Setup, Injection Polypropylene Enclosure, Dual Ergonomic Handles, Perforated Steel Grill
AC-220/240V or AC-110/120V with Switching Power Mode, 50/60Hz
24.8” x 15.2” x 14.6” (631mm x 386mm x 372mm)
5

Connect almost any single audio device to RCA input
LINK
6

To Next Speaker
Mixer
Mixer
Line In
THRU to LINE IN
Link Speaker
Line In Line In
Main Out Left Main Out Right
Main Out Left Main Out Right
To Next Speaker
Line In
THRU to LINE IN
Link Speaker
7

8

9

10

11

The CUBE series speaker cabinet provides four M10 suspension points for permanent installations (2 Top, 2 Bottom).
The CUBE cabinet is creatively designed to serve as floor monitor when placed on the ground at a 45° angle.
12

The CUBE series amplifiers are prewired for the use and simple installation of optional accessory modules. Each module provides distinctly different functions
and can be purchased separately. Installation instructions and full module functions can be found at www.soundbarrier.com and included within the contents
of the modules packaging.
