SoundCraft Vi3000 User manual

®
User Guide v1.2

Vi3000 USER MANUAL
®
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT
Please read this manual carefully before using your mixer for the
rst time.
This equipment complies with the EMC directive 2004/108/EC
and LVD 2006/95/EC
This product is approved to safety standards
IEC 60065:2001 (Seventh Edition) +A1:2005
EN60065:2002 +A11:2008
UL60065-03
CAN/CSA-E60065-03
And EMC standards
EN55103-1: 1996 (E2)
EN55103-2: 1996 (E2)
Warning: Any modication or changes made to this device, unless explicitly approved by
Harman, will invalidate the authorisation of this device. Operation of an unauthorised
device is prohibited under Section 302 of the Communications act of 1934, as amended,
and Subpart 1 of Part 2 of Chapter 47 of the Code of Federal Regulations.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna
* Increase the separation between the equipment and the receiver
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help
© Harman International Industries Ltd. 2014 All rights reserved
Parts of the design of this product may be protected by worldwide patents.
Part No. 5042292
Rev 1.0
E&OE September 2014
Soundcraft is a trading division of Harman International Industries Ltd. Information in this manual is subject to change
without notice and does not represent a commitment on the part of the vendor. Soundcraft shall not be liable for any
loss or damage whatsoever arising from the use of information or any error contained in this manual. No part of this
manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic,
electrical, mechanical, optical, chemical, including photocopying and recording, for any purpose without the express
written permission of Soundcraft.
Harman International Industries Limited
Cranborne House, Cranborne Road, Potters Bar, Hertfordshire, EN6 3JN, UK
Tel: [phone]
Fax: [phone]
http://www.soundcraft.com

Vi3000 USER MANUAL: CONTENTS
®
CONTENTS
1.0 INTRODUCTION
1.1: Saftey Notices & Warnings
1.2: Product Warranty
2.0: SPECIFICATIONS
3.0: QUICK START GUIDE
To be included in the next revision of this manual
4.0: HARDWARE OVERVIEW
4.1: Local I/O
5.0 OPERATIONS OVERVIEW
5.1: Manual Conventions
5.2: Vistonics II
5.3: Console Bays
5.4: FaderGlow™
5.5: Buttons
5.6: Encoders
5.7: Gangs
5.8: Labelling
6.0: INPUTS
6.1: Navigation - Fader Pages
6.2: The Channel Strip
6.3: Encoder Mode
6.4: VST Control
6.5: Touchscreen / Signal Path
6.5.1: Input Section
6.5.2: EQ
6.5.3: Dynamics
6.5.4: Busses
6.5.5: Output Section
7.0: OUTPUTS
7.1: LCR Mix Masters
 7.2:BusConguration
7.3: Bus Master Control
7.3.1: Master Vistonics Control
7.3.2: Channel Strip
7.3.3: Processing Chain
7.3.4: Graphic EQs
8.0: MATRIX SYSTEM
9.0: MUTE & VCA GROUPS
9.1: Mute Groups
9.2: VCA Groups
9.3: Aux VCA Groups
10.0: MONITORING
10.1: Console Controls
10.2: Setup
10.2.1: MON Setup
11.0: SOLO SYSTEM
11.1: Primary Behaviour
11.2: Input Priority Mode
11.3: Autocancel Behaviour
11.4: Follow Output Solo Mode
12.0: METERING
12.1: Inputs
12.2: Busses
13.0: EDIT SYSTEM
(COPY, PASTE, AND LIBRARY)
13.1: Copy, Paste, Undo
13.2: Library Basics
13.3: Library File Screen
14.0: SNAPSHOTS, CUELISTS, GLOBAL FILTER
14.1: Console Controls
14.2: Cuelist Control
14.3: Cue Details
14.3.1: Cue Number & Timecode
14.3.2: Snapshot/Cue Name
14.3.3: MIDI
14.3.4: GPIO
14.4: Snapshot Filters
14.4.1: Snapshot Filter Scope
14.4.2: Global Filter
15.0: TALKBACK & OSCILLATOR
15.1: Console Controls
15.2: Oscillator Setup & Use
15.3: Talkback Setup
15.4: Talkback Return Setup
16.0: MAIN MENU
16.1: Main (Screen, Security)
16.2: Shows
16.2.1: Show File Data
16.3: GPIO
16.4: Sync
16.5: Tielines
16.6: FX
16.7: MIDI
16.8: Log
16.9: Settings
16.10: System
17.0: LEXICON FX
17.1: Using The FX Processors
17.1.1: Tap Tempo Functionality
17.2: FX Algorithms & Parameters
17.2.1: Reverbs
17.2.1: Delays
17.2.1: Misc
18.0: VM² WIreless Status Monitoring / HiQnet
 18.1:HiQnetNetworkConguration
18.1.1: VM ² Device List
18.2: Status Displays
18.2.1: Channel Strip Status
18.2.2: VST Status
Please note - this is a early-version Vi 3000 user manual, to be
revised shortly. Missing graphics will be included in subsequent
versions.s

Vi3000 USER MANUAL
®
1.0 1.0 Introduction
1.0: Introduction
New Look

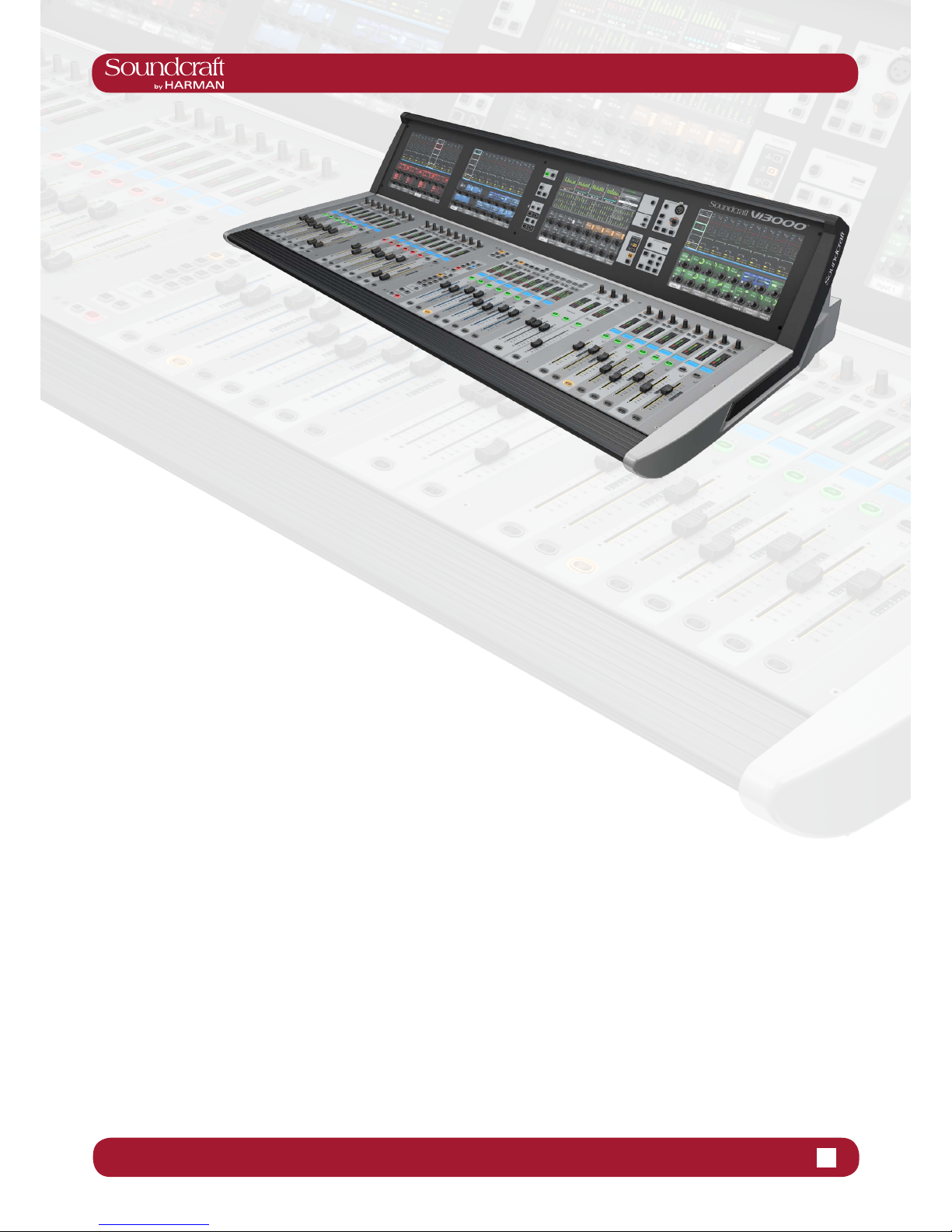

The Soundcraft Vi3000 features an all-new appearance
with a more efciently designed control surface, 36
faders, 24 mono/stereo busses and a sweeping black
screen panel with four Vistonics II™ touchscreen interfac-
es with sleek, updated 3D graphics. Because the Vi3000
has four touchscreens, it’s the only console in its class
that can be used by two engineers at the same time. And
at show time... Settings libraries, copy/paste functions,
sophisticated automation and radio mic status monitoring,
FaderGlow™, processing from dbx, BSS, Lexicon and
Universal Audio (Optional Realtime Rack), and more will
not let you down.
SpiderCore DSP
The Vi3000 is a console with friends in high places.
Sound quality is assured by Soundcraft SpiderCore - a
brand new 40-bit oating point DSP engine that mixes
FPGA and DSP technology in a unique combination
that maximises I/O routing and DSP mixing capability
in a footprint small enough for inclusion within a control
surface.
FX
Internal FX come courtesy of 4 independent stereo
Lexicon multi effects units, each providing a choice of 14
reverbs, 7 delays and 8 pitch shifting effects, patchable
to input channels, aux outputs and channel inserts. BSS
third-octave Graphic EQ is available on every bus output,
with fader bays illuminating in red to indicate GEQ mode.
...And More FX
The Vi3000 can also accommodate the new Soundcraft
Realtime Rack, a hardware/software unit designed in col-
laboration with plug-in manufacturer Universal Audio that
provides access to 74 industry-standard UAD plug-ins.
DANTE As Standard
The Vi3000 is the rst Soundcraft console to incorporate
a Dante interface as standard, for seamless digital audio
networking with Dante-enabled devices.
Connectivity
In addition to a full complement of analog and digital in-
puts and outputs, the console provides MIDI, USB, Ether-
net, DVI out, Dante/MADI record feed outputs, redundant
power supply and other connections. The Vi3000 has two
expansion bays that can be tted with MADI Stagebox
cards, to connect multiple Soundcraft Stagebox input
expander modules.
Shine A Light
Along with its greatly expanded functionality, the Vi3000
retains all the features that have made the Soundcraft Vi
Series the consoles of choice for live sound engineers
worldwide, such as FaderGlow™ - illuminated faders that
display different colors according to function, the ability
to store and recall snapshots and cues, compatibility with
Soundcraft’s ViSi app that allows remote control from an
iPad.
Optional 64 channel stagebox
With up to 48 on-board mic inputs, Vi3000 is happy to
work with existing analogue multicore systems. Also
available is an optional remote stagebox housing 64
analogue mic/line inputs and 32 analogue line outputs,
with 48V phantom power and a 80Hz HPF before the A-D
converters. Mic amp gain can be controlled remotely from
the console surface.
Welcome To The Vi3000!

4.3: INPUT CHANNEL > DYNAMICS
Vi3000 USER MANUAL
®
4.3 INPUT CHANNEL > De Esser
Vi3000 USER MANUAL
®
1.1 1.1: INTRODUCTION > SAFETY
1.1: INTRODUCTION > SAFETY
THIS UNIT MUST BE EARTHED
Under no circumstances should the mains earth be disconnected from the mains lead.
The wires in the mains lead are coloured in accordance with the following code:
Earth: Green and Yellow (Green/Yellow - US)
Neutral: Blue (White - US)
Live: Brown (Black - US)
As the colours of the wires in the mains lead may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol.
The wire which is coloured Blue must be connected to the terminal in the plug which is marked with
the letter N.
The wire which is coloured Brown must be connected to the terminal in the plug which is marked
with the letter L.
Ensure that these colour codings are followed carefully in the event of the plug being changed.
The internal power supply unit contains no user serviceable parts. Refer all servicing to a
qualied service engineer, through the appropriate Soundcraft dealer.
SAFTEY NOTICES
For your own safety and to avoid invalidation of the warranty
please read this section carefully.

Vi3000 USER MANUAL
®
1.1 1.1: INTRODUCTION > SAFETY
1.1: INTRODUCTION > SAFETY
WARNINGS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Clean the apparatus only with a dry cloth.
• Do not install near any heat sources such as radiators, heat resistors, stoves, or other apparatus
(including ampliers) that produce heat.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not use this apparatus near water.
• Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. When the provided plug does not
t into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience rececta-
cles and the point where they exit from the apparatus.
• Only use attachments/accessories specied by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been
damaged in any way such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally or has been dropped.
• Use only with the cart, stand, tripod, bracket or table specied by the manufacturer, or sold
with the apparatus. When the cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
• No naked ame sources, such as lighted candles or cigarettes etc., should be placed on the
apparatus.
• Warning: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
Do not expose the apparatus to dripping or splashing and do not place objects lled with liquids, such
as vases, on the apparatus.
• No user serviceable parts. Refer all servicing to a qualied service engineer, through the appropri-
ate Soundcraft dealer.
• Ventilation should not be impeded by covering the ventilation openings with items such as
newspapers, table cloths, curtains etc.
• It is recommended that all maintenance and service on the product should be carried out by Sound-
craft or its authorised agents. Soundcraft cannot accept any liability whatsoever for any loss or damage
caused by service, maintenance or repair by unauthorised personnel.

4.3: INPUT CHANNEL > DYNAMICS
Vi3000 USER MANUAL
®
4.3 INPUT CHANNEL > De Esser
Vi3000 USER MANUAL
®
1.2 1.2: INTRODUCTION > WARRANTY
1.2: INTRODUCTION > WARRANTY
WARRANTY
1 Soundcraft is a trading division of Harman International Industries Ltd.
End User means the person who rst puts the equipment into regular operation.
Dealer means the person other than Soundcraft (if any) from whom the End User purchased the Equipment, pro-
vided such a person is authorised for this purpose by Soundcraft or its accredited Distributor.
Equipment means the equipment supplied with this manual.
2 If within the period of twelve months from the date of delivery of the Equipment to the End User it shall prove
defective by reason only of faulty materials and/or workmanship to such an extent that the effectiveness and/or
usability thereof is materially affected the Equipment or the defective component should be returned to the Dealer
or to Soundcraft and subject to the following conditions the Dealer or Soundcraft will repair or replace the defec-
tive components. Any components replaced will become the property of Soundcraft.
3 Any Equipment or component returned will be at the risk of the End User whilst in transit (both to and from the
Dealer or Soundcraft) and postage must be prepaid.
4 This warranty shall only be available if:
a) The Equipment has been properly installed in accordance with instructions contained in Soundcraft’s manual.
b) The End User has notied Soundcraft or the Dealer within 14 days of the defect appearing; and
c) No persons other than authorised representatives of Soundcraft or the Dealer have effected any replacement
of parts maintenance adjustments or repairs to the Equipment; and
d) The End User has used the Equipment only for such purposes as Soundcraft recommends, with only such
operating supplies as meet Soundcraft’s specications and otherwise in all respects in accordance Soundcraft’s
recommendations.
5 Defects arising as a result of the following are not covered by this Warranty: faulty or negligent handling, chem-
ical or electro-chemical or electrical inuences, accidental damage, Acts of God, neglect, deciency in electrical
power, airconditioning or humidity control.
6. The benet of this Warranty may not be assigned by the End User.
7. End Users who are consumers should note their rights under this Warranty are in addition to and do not affect
any other rights to which they may be entitled against the seller of the Equipment.

Vi3000 USER MANUAL
®
2.0  2.0:Vi3000Specications
 2.0:Vi3000Specications
Frequency Response
StageboxorLocalMicinputtoLineoutput +0/-1dB, 20Hz-20kHz
AES/EBUIntoAES/EBUOut +0/-0.2dB, 20Hz-20kHz
T.H.D. & Noise
(22Hz-22kHz, unweighted)
StageboxorLocalMicIn(mingain)toLocalLineOut <0.004% @ 1kHz
StageboxMicIn(maxgain)toLocalLineOut <0.035% @ 1kHz
Mic Input E.I.N. <-127dBu (150Ω source)
(22Hz-22kHz bandwidth, unweighted)
Residual Noise -95dBu
(Stagebox line output; no inputs routed, Mix fader @0dB)
CMRR 80dB @ 1kHz
(Stagebox Mic input)
Sampling Frequency 48kHz
Latency < 2ms @48kHz
(Stagebox Mic Input to Local Line output)
AES/EBU Input Sample Rate 32–108kHz (with SRC enabled)
DSP Resolution 40-bit oating point
Internal Clock
Accuracy < +/- 50ppm
Jitter < +/- 2ns
Vi3000 Specications

4.3: INPUT CHANNEL > DYNAMICS
Vi3000 USER MANUAL
®
4.3 INPUT CHANNEL > De Esser
Vi3000 USER MANUAL
®
2.0  2.0:Vi3000Specications
 2.0:Vi3000Specications
External Sync BNC Wordclock, Dante network clock
Input & Output Levels
Mic/lineInputs   +28dBu max
LineOutputs   +22dBu max
NominalOperatingLevel +4dBu (-18dBFS)
Input & Output Impedances
MicInputs   2k7Ω
AllotheranalogueInputs >10kΩ
LineOutputs   <75Ω
AES/EBUOutputs  110Ω
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Channel Filters
MicInHPFilter 80Hz xed, 12dB per octave
ChannelHPFilter 20Hz-600Hz, 18dB per octave
ChannelLPFilter 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs)
HF  20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Hi-Mid  20Hz-20kHz, +/-18dB, Q=0.3-8.7
Lo-Mid  20Hz-20kHz, +/-18dB, Q=0.3-8.7
LF  20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and
Outputs Peak hold variable from 0-2s.
Mains Voltage Operating Range 90-264V, 47-63Hz, auto-ranging

Vi3000 USER MANUAL
®
2.0  2.0:Vi3000Specications
 2.0:Vi3000Specications
Mains Power Consumption
Console 300W (both PSUs operating)
Stagebox(64in/32out) 150W (both PSUs operating)
Internal Mass Storage 120GB SSD Hard Drive
Temperature/Humidity Range
OperatingTemperatureRange 0°C – 45°C (32°F – 113°F)
RelativeHumidity 0% – 90%, non-condensing Ta=40°C (104°F)
StorageTemperatureRange -20°C – 60°C (-4°F – 140°F)
Weight 65kg
Soundcraftreservestherighttoimproveorotherwisealteranyinformationsuppliedinthis
documentoranyotherdocumentationsuppliedhereafter.E&OE05/2014

Vi3000 USER MANUAL
®
3.0 - 1 3.0 QUICK START
3.0 QUICK START
Quick Start Guide
This chapter is a pictorial guide through the main concepts and functionality of the Vi3000 console.
Subsequent chapers go into these functions in more detail.
Console Sections
Vistonics II

4.3: INPUT CHANNEL > DYNAMICS
Vi3000 USER MANUAL
®
4.3 INPUT CHANNEL > De Esser
Vi3000 USER MANUAL
®
3.0 - 2 3.0 QUICK START
3.0 QUICK START
Buttons And Encoders
Ganging

Vi3000 USER MANUAL
®
3.0 - 3 3.0 QUICK START
3.0 QUICK START
Inputs & Controls
Input Channel Access

4.3: INPUT CHANNEL > DYNAMICS
Vi3000 USER MANUAL
®
4.3 INPUT CHANNEL > De Esser
Vi3000 USER MANUAL
®
3.0 - 4 3.0 QUICK START
3.0 QUICK START
Fader Pages
Output Assignment

Vi3000 USER MANUAL
®
3.0 - 5 3.0 QUICK START
3.0 QUICK START
Outputs & Control

4.3: INPUT CHANNEL > DYNAMICS
Vi3000 USER MANUAL
®
4.3 INPUT CHANNEL > De Esser
Vi3000 USER MANUAL
®
3.0 - 6 3.0 QUICK START
3.0 QUICK START
Monitoring

Vi3000 USER MANUAL
®
3.0 - 7 3.0 QUICK START
3.0 QUICK START
Copy, Paste, Move, LIbrary

4.3: INPUT CHANNEL > DYNAMICS
Vi3000 USER MANUAL
®
4.3 INPUT CHANNEL > De Esser
Vi3000 USER MANUAL
®
3.0 - 8 3.0 QUICK START
3.0 QUICK START
Snapshot & Cuelist

Vi3000 USER MANUAL
®
3.0 - 9 3.0 QUICK START
3.0 QUICK START
Main Menu System
Lexicon FX

Vi3000 USER MANUAL
®
4.1 4.1: Hardware > Local I/O
4.1: Hardware > Local I/O
Most of the Vi3000 local I/O is located on the rear panel of the console. The main I/O slots have a variety of possible
congurations, inlcuding digital (AES) and analogue input and output cards. However, the monitor / masters output
section cannot be changed - this contains the xed-routing Monitor A and Monitor B outputs, plus the master LCR
analogue outputs.
There are also user-congurable D21m IO expansion slots that can accept any of the available Soundcraft D21m com-
patible I/O cards. Options for these include MADI (Optical or CAT 5), ADAT, Blu Link, Aviom, Ethersound, Cobranet,
Line in, line out, AES/EBU, and mic in. The D21m IO Expansion slots are also used for connecting a Soundcraft
Stagebox.
Fixed I/O on the rear panel includes all data/digital connections such as MIDI, USB, HiQnet, AES I/O, DANTE, MADI,
Word Clock, and DVI Out, plus the dual redundant power supply connections.
There are also two 12v lamp connections.
The control surface of the console features two additional USB sockets and a talkback microphone XLR connection.
Hardware - Local I/O
Main I/O Slots
The main local I/O slots.
The monitor / masters output section cannot be changed
(bottom left of the main picture) as this contains the
xed-routing Monitor A and Monitor B outputs, plus the
master LCR analogue outputs.//P//Conguration options
for the other slots are: 32 mic in/32 line outs, 48 mic in /
16 line out (the upper line out card is replaced by a mic
in 33-48 card), 16 mic in / 16 in 16 out AES / 16 line out
(the mic in 17-24 card is replaced by a blank, the upper
line out module 1-16 is replaced by a 16 in 16 out AES
module).
