Soundstream VR-64HBL User manual

2-Din DVD Headunit
Owner’s Manual
VR-64HBL
EN
2 DIN 6.2'' Monitor
Touch screen
DVD/CD/MP3/MP4/USB/SD
AM/FM Radio
Support Android Phone Link
Support Bluetooth

•
Thank you for using our company multi-media
player! To operate the unit correctly, please
read the operation manual carefully before
using. Keep this operation manual for further
reference.The unit is designed only fo r DC 12V
negative ground operation system. Make sure
your vehicle is connected to DC 12V negative
ground electrical system. Do not connect it to
24V power supply in trucks or buses, or else it
will be damaged. Be sure to connect the
speaker (-) leads to the speaker (-) terminal.
Never connect the left and right channel speaker
wires together or to the vehicle body. The normal
temperature for operation is between -20 and
+60 degree Celsius. Do not work in extreme
high or low temperature and block vents or
radiator panels of the unit, blocking them will
cause heat to build up inside the unit and may
cause damage or fire.
Do not put the device in a moist environment or
water to avoid electric shock, damage and/or fire
due to a short circuit.
This unit can play the following discs (12 cm) and
media files: DVD±R/RW / WMV / VCD / MP3 /WMA
/ CD-R/RW / JPEG. Please use genuine discs instead
of incompatible discs, or it will damage the device
and/or shorten the service life.
Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ballpoint pen or
similar tool with the sharp tip.
•
•
•
Before use
Before use
Cleaning the unit
Caution 3
How to reset the unit 3
Protecting the monitor 2
3
Important notice & precaution 2
Basics
Installation
Trouble Shooting 22
Specication 21
Panel Description 6
Remote Control 6
Operation
Main menu 9
Audio & Video setting 9
Settings menu 10
Radio operation 15
Disc/USB/SD operation 15
Bluetooth operation 17
APP operation 18
AUX IN operation 18
F-Camera operation 19
Phonelink operation 19
Installation 4
Wiring 5
Speaker Connection 4
Parking wiring 4
IMPORTANT NOTICE & PRECAUTIONS
Contents
22

Installation
1. Make sure the ignition i s turned off, and
disconnect the cable from the vehicle battery’s
negative (-) terminal.
You never want electricity running while you
install this 2-DIN car receiver.
2. Before installation, disconnect the wire harness
and the antenna.
3. Attach the brackets on the both sides of the car
receiver with screws as shown as the above figure.
4. Consult with your nearest dealer if installation
requires the drilling of holes or other modification of
the vehicle.
5. Install the car receiver in the dashboard.
6. Connect the wire harness & antenna to the car
receiver being carefully not to pinch any wires or
cables.
7. Install the plastic outer trim ring onto the car
receiver.
8. Reconnect the battery and run through all of the
options on this car receiver to ensure that everything
is working correctly.
9. Particulars will vary widely depending upon the
kind of your car and the car you intend to install it in.
Please choose the correct installation method
according to the actual situation of your car. Always
contact the car dealer or manufacturer if you have
any questions.
Note:
Note: The parking wire is connected with brake
signal; for safety, the programs can be seen on
the monitor after braking the car.
Connecting the revising line to taillight on the
car.
After connection, when you start up the reverse
gear, the unit will receive the picture from car
rear view camera.
Parking Wire
Speaker connection
Note:
1. Only use groudless loudspeakers
2 Use only loudspeakers of munimum 40 Watt,
using fewer watts may result in damaging
your loudspeakers at higher volumes.
3.Use 4-8 ohm impendace loudspeakers only,
suing higher or lesser inpendance may
damage the unit.
4.Do not use 3-cable loudspeakers and do not
connect the loudspeakers mumis to the car.
The unit is using a BTL circuit and eachloud-
speaker must be connected
with insulated cables according the diagram.
5. Loudspeaker cables and/or optional external
power amplifiers must always be about 30 cm
away from the antenna and/or antenna
extension parts.
Connect the speakers accordind the following
diagram,incorrect connections will damage
the unit or your loudspeakers.
Installation
4

Wiring Diagram
Wiring
Green Subwoofer
Yellow Video-out 2
Yellow Video-out 1
Yellow Rear Camera
White Audio-out FL
FM/AM antenna input
Blue Bluetooth Antenna
RL
SW
FL
V-OUT1 V-OUT2
F-CAM
RR
FR
R-CAM
5

Panel description Remote control
Remote control
1 2
4
1 15
16
17
2
4
6
5
3
5
6
7
8
9
10
11
12
13
3
Remote Sensor
• Receives the remote control signal.
1Microphone
• Built-in Microphone.
2Disc slot
• Insert or eject the disc.
USB
5+ (Volume)
•Press to increase the volume value.
When the unit is turn off, press to turn on the unit.
When the unit is turn on, press and hold to turn off.
During unit working, press to mute or unmute.
6– (Volume)
•Press to decrease the volume value.
8
Eject button
• Press to eject the disc.
9
• USB slot.
Return button
10
• Press to back to previous menu.
Mode button
11
• Press to selet the desired mode.
3Reset
4Power / Mute
• If the unit or the connected unit fails to
operate properly, the unit returns to
factory settings when this button is
pressed.
•Pressing and hold to turn the source unit
power off.
•When the unit is working, short pressing
for Mute, press again for un-mute.
•When the power off, press to power on.
7
SD slot
12
•
AUX
13
• AUX jack for AUX playback.
Micro SD slot for audio/video playback.
18
19
20
21
22
23
24
7
8
10
11
12
13
9
14
1[]
/
2 EQ/LOUD
Press repeatedly to select desired equalizer mode.
Long press to switch Loudness is ON or OFF.
3 SOURCE
Press repeatedly to select the desired mode for
operation.
6

Cleaning the Unit
If the front panel of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth. If
the front panel is stained badly, wipe the stain
off with a cloth moistened with neutral cleaner,
then wipe it again with a clean soft dry cloth.
How to reset your unit
If the unit or the connected unit fails to operate
properly, reset the unit.
Reset button
CAUTION
•
•
•
Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the front
panel with a hard cloth or using a volatile liquid
such as thinner or alcohol may scratch the
surface or erase screened print.
Before use Installation
Supplied accessories
1 .Trim Ring
7 .Remote Control
6 .User Manual
4 .Power Cable
5 .Wrranty Card
3 . Screws
2 .Mounting Bracket
x1 x2
x8 x1
x1
x1
x1
2-Din DVD Head unit
Owner ’s Manua l
VR-64HBL
EN
2DI N 6.2'' Monitor
Touchscreen
DVD/CD/MP3/MP4/USB/SD
AM/FMRadio
SupportAndroid Phone Link
SupportBluetooth
Bracket
Bracket
1.Putthe 2 brackets to the left and right side
of the headunit.
2.Use screws to fix the brackets to the unit.
Before installation of this unit, please note
the following precautions.
Installation
WARNINGS
If you connect the ignition wire (red) and the
battery wire (yellow) to the car chassis (ground),
you may cause a short circuit, that in turn may
start a fire.
Always connect those wires to the power source
running through the fuse box.
Do not cut out the fuse from the ignition wire
(red) and the battery wire (yellow). The power
supply must be connected to the wires via the f
use.
1)To prevent a short circuit, remove the key from
the ignition and disconnect the terminal
of the battery.
2)Make the proper input and output wire
connections for each unit.
3)Connect the wire on the wiring harness.
3

Remote control
4
5
8 OSD
BND
[ ]
(Phone) , press to reject an incoming call;
Hang-up the conversation call.
[ ]
(AM/FM) , press repeatedly to select the
desired radio band for broadcasting.
[ ]
(Disc / USB / SD)
(BT Music)
[Video] press to stop playback.
[Music] press to stop playback and shift to
folder / playlist menu for playback selection.
Press again to stop playback and shift to
tuner mode.
[DVD/Folder/Play list] press to select
the desired setting/setup and press ENT to
confirm/enter.
[DVD] At DVD menu/title display mode,
press to select the desired setting/setup
and press ENT to confirm/enter.
[Photo] Press to rotate photo position
or show up-down, left-right mirror image.
[Folder/Play list Menu Mode] During
folder/playlist menu display at media
playback mode, press repeatedly
to shift page up and down, press ▲/▼
repeatedly to select track/folder for
playback. Once selected, press ENT to
confirm.
[Music] Press to stop playback and will shift
back to tuner operation mode.
6
7[]
(AM/FM) , Press to tune the radio frequency
downward and stop for broadcasting when a
radio station received. Press & hold shortly
to shift to manual tuning downward.
(USB/SD ) , press repeatedly to shift previous track .
Press and hold to activate various speed of fast
rewind. (Not available for photo playback).
(Bluetooth Music) , press repeatedly to shift
previous track.
(Video) , press and hold to display the contents
of the playback details on screen.
9 AUDIO
(Video) , press and hold to display the contents
of the playback details on screen.
10 REPEAT
(USB/SD ) , press repeatedly to shift repeat setting:
REPEAT1>REPEAT ALL>REPEAT FOLDER> REPEAT
OFF.
11 SUB-Title
(Video) , press and hold to select different SUB-
TITLES that recorded in the inpur devices of media
files.
12
ZOOM
13
SLOW
(Video/Photo) , press to select various zoom
in and zoom out of screen for viewing.
(Video) , press repeatedly to select different
speeds on slow motion playback.
14
VOL+ / VOL-
Pess VOL+ to increase sound output level.
Pess
VOL- to decrease sound output level.
15
(Music/Video/Photo/BT Music) , press to pause,
rusume or start playback.
[ ]
(AM/FM) , press to start scanning all preset
stations on memory and stop for a few seconds
broadcasting.
Press and hold to start searching the frequency
and storing the strongest signal stations into
the preset memory stations number 1-6. After
storing the satations, the unit starts scanning
all the preset stations on memory and stop for
a few seconds broadcasting.
7

Remote control
16 24 NUMBERS
19 ANGLE
18 []
(AM/FM) , Press to tune the radio frequency
upward and stop for broadcasting when a
radio station received. Press & hold shortly
to shift to manual tuning upward.
(USB/SD ) , press repeatedly to shift next track .
Press and hold to activate various speed of fast
forward. (Not available for photo playback).
(Bluetooth Music) , press repeatedly to shift
next track.
CLR /SYSTEM
In Bluetooth mode, press to delete the digit input
by error.
17
PHONE
(Phone) , press to answer an incoming call;
Dial out after input a phone number;
Redial lastest dial out number.
[ ]
(Phone) , press and hold to shift conversation
between headunit and mobile phone.
(Video) , press and hold to view angle changes
in sequential order.
Note: Available on media les recorded with this features.
20 INT
(Video/Music) , press and hold to switch Intro
Playback On or Off.
21 TITLE
(Video) , press and hold to display on screen
the title for setting.
22 SETUP
During unit working, press and hold to activate
SETUP menu for various settings. press again
to return to previous working mode.
Only for VCD.
23 MENU
PBC
(Video) , press and hold to display the menu
for video playback.
[1-6]
(AM/FM) , press any one of the number key 1-6
to select a station that had been stored in the
preset memory number key 1-6 for broadcasting.
[0-9]
(USB/SD) , press directly to input the number of
track for playback.
[0-9,*,#] (Phone) , press directly to input the number
for dial out.
8

Operation
MAIN MENU OPERATION
At MAIN MENU, touch the icon of the desired
mode on screen and the unit will then enter
into the mode that selected for operation.
At MAIN MENU, touch & hold on screen and
slide to left or right will shift screen to second
page operation selection.
1. Touch to start disc input operation (when
a disc inserted).
2. Touch to start tuner operation (when the
radio antenna connected).
3. Touch to start phone (Bluetooth) operation
(when a mobile phone connected).
4. Touch to start Bluetooth streaming operation
(when a mobile phone connected).
5. Touch to start USB input operation (when an
USB device inserted).
6. Touch to start mobile phone mirror linking
operation (when the mobile phone connected
to the front USB port/
7. Touch to start SD card input operation (when a
micro SD card inserted).
8. Touch to start camera input operation (when
connected with front camera).
9. Touch to start auxiliary input operation (when
an external device has been connected).
10. Touch to start various setup of the unit.
11. Touch to select desired wallpaper.
12. Touch to shift back to previous operation
mode.
13. Touch repeatedly to select brightness of
screen or turn off the screen. When the
screen is off, touch any portion of the
screen to turn it on again. Below preset
brightness modes can be selected.
13. Touch to activate audio & visual setting.
(Refer to AUDIO & VISUAL SETTINGS).
1. Touch to shift to volume control menu.
2. Hold & slide to adjust sound output level.
3. Touch to MUTE or UNUNTE.
1. Touch to shift to equalizer control menu.
2. Touch to select the desired EQ mode.
AUDIO & VISUAL SETTINGS.
14. Touch to EJECT the inserted disc from unit.
Volume Control
Preset Equalizer Control
At this mode, brightness of screen
is set by the user. Refer to ILLUMI-
NATION BACKLIGHT SETUP under
ON SCREEN -SETUP OPERATION
for details.
Volume
9

Operation

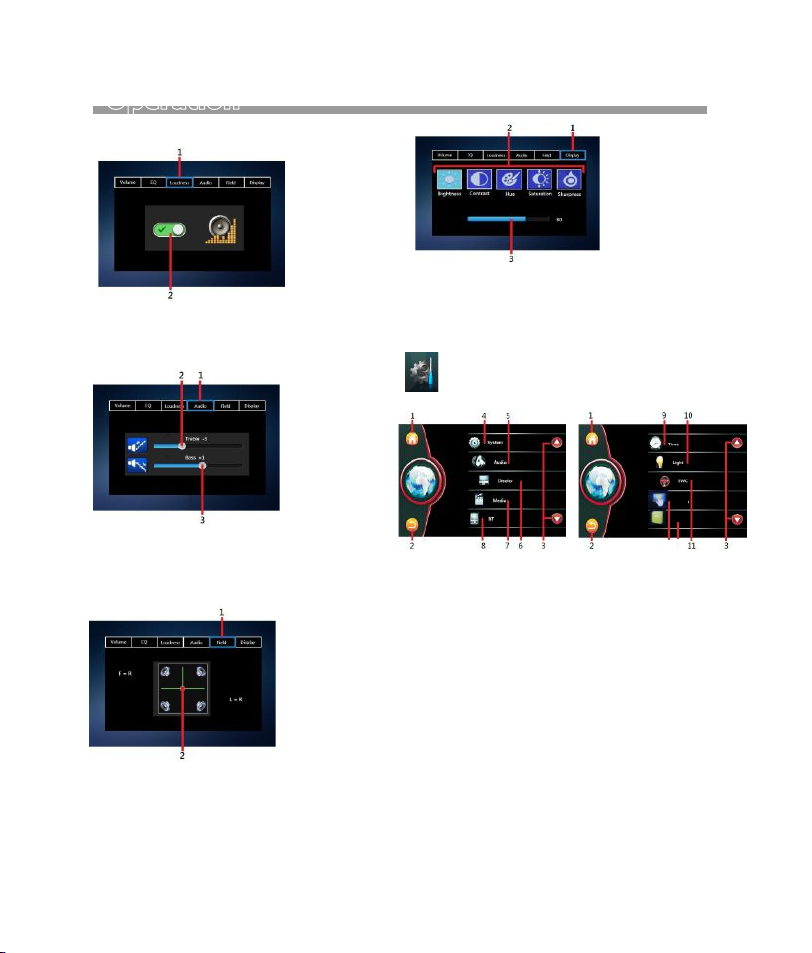

LOUDNESS
Visual Control
Audio Control
1. Touch to shift to Loudness control .
2. Touch to switch On or Off.
1. Touch to shift to Display control .
2. Touch to select the desired setting mode:
Brightness.Contrast,Hue, Saturation, Sharpness.
3. Hold & Slide to adjust the level.
1. Touch to shift to MAIN MENU for operation mode
selection.
2. Touch to back to previous setting menu.
3. Touch to shift to previous /next SETTINGS MENU.
4. Touch to shift to SYSTEM MENU for system setting.
5. Touch to shift to AUDIO MENU for audio setting.
6. Touch to shift to Display MENU for display setting.
7. Touch to shift to MEDIA MENU for media setting.
8. Touch to shift to Bluetooth MENU for bluetooth
setting.
9. Touch to shift to Time MENU for time setting.
10. Touch to shift to Light MENU for illumination
backlight setting.
11. Touch to shift to SWC MENU for steering wheel
control setting.
12. Touch to shift to Calibration.
13. Touch to show the VERSION informations.
At MAIN MENU, touch on screen and shift to
SETTINGS MENU for various setup selection
of the unit.
1. Touch to shift to Audio control .
2. Hold & slide to set for Treble.
3. Hold & slide to set for Bass.
Field Control
1. Touch to shift to Field control .
2. Hold & slide to set for the Fader
and Balance.
Touch
Version
12 13
10

Operation
SYSTEM SETUP AUDIO SETUP
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
3. Hold & slide to show hidden setting items.
4. Touch to select the radio frequency that suits the
area located.
5. Touch to select the desired language.
6. Touch to shift Front Camera is On or Off.
7. Touch to shift Rear Camera is On or Off.
8. Touch to shift shift Headlamp is On or Off.
ON: When the headlamp of the car is turned on,
Brightness of screen will shift to the default
setting by user. User can also adjust the
brightness of screen at this mode.
OFF:When the headlamp of the car is turned on,
Brightness of screen will not be affacted.
9. Touch to shift to Brake Detection is On or Off.
10. Touch to shift to Subwoofer is On or Off.
11. Touch to shift to Beepis On or Off.
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
3. Touch to access to EQ MENU.
4. Touch to access to FIELD MENU for sound output
setting.
5. Touch to shift LOUNDNESS is On or Off.
6. Touch to access to Subwoofer for subwoofer
setting.
7. At custom control mode, hold and slide the cursor
set to desired equalizer level.
8. Touch repeatedly to select the desired preset
equalizer mode .
9. Hold and slide the cursor to set to desired Balance
level (Left and right speakers).
10. Hold and slide the cursor eo set to desired Fader
level (front and rear speakers).
11. Hold and slide to adjust the desired output level
between left & right speaker as well ad front &
rear speaker.
12. Choose the different subwoofer frequency:
80Hz > 120Hz > 160Hz.
13. Hold and slide to adjust output level.
7
11
8 9
10
11

Operation
VISUAL SETUP
MEDIA SETUP
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
3. Touch Type to access to PRESET VISUAL MENU.
4. Touch Adjust to access to CUSTOM VISUAL
MENU for visual settings.
5. Touch to select desired preset vusual mode of
screen.
6. Hold and slide the cursor to set to desired bright
-ness level.
7. Hold and slide the cursor to set to desired
contrast level.
8. Hold and slide the cursor to set to desired
Hue level.
9. Hold and slide the cursor to set to desired
Saturation level.
10. Hold and slide the cursor to set to desired
Sharpness level.
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
3. Hold & slide to show hidden setting items.
4. Touch to select desired AUDIO LANGUAGE
for DVD playback provided the DVD recorded
with relative language.
5. Touch to select desired Subtitle LANGUAGE
for DVD playback provided the DVD recorded
with relative language.
6. Touch to select desired MENU LANGUAGE
for DVD playback provided the DVD recorded
with relative language.
7. Touch to activate PASSWORD MEMU for changing.
8. Touch to select desired Rating level of video
playback.
9. Touch to activate ASPECT Ratio Menu
to select aspect ratio of screen for viewing.
10. Touch to select DVD REGION.
11. Input the old passward, then allow to set
new password.
12. Touch to erase the digit that input be error.
13. Touch to confirm the input number.
14. Touch to input the desired number.
15. Touch to erase the digit that input be error.
16. Touch to confirm the input number.
17. Touch to select aspect ratio of screen for viewing.
Area Region 0
10
17
11
12 13
14
15 16
12

Operation

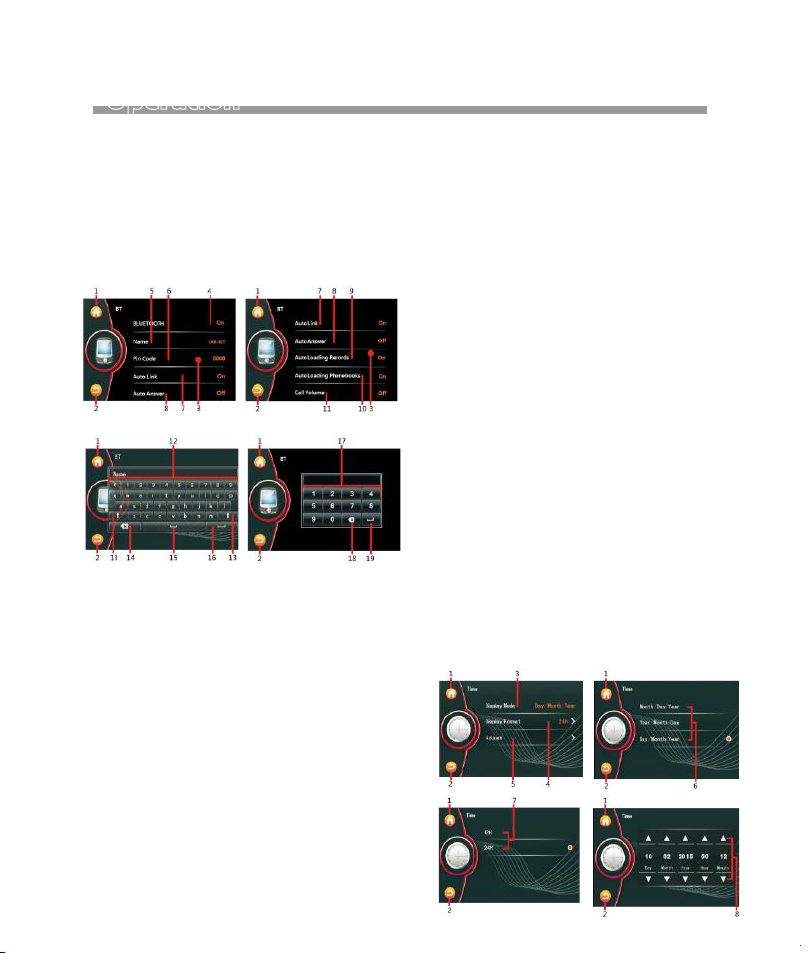

Bluetooth SETUP
CALENDAR & CLOCL SETUP
CALENDAR
Keyboard Pin Code
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
3. Hold & slide to show hidden setting items.
4. Touch to switch the Bluetooth is On / Off.
5. Touch to activate KEYBOARD MENU for
renaming the device. (Default name is
“CAR-KIT”).
6. Touch to activate PIN CODE MENU for
changing the pin code of the device.
(Default code is “0000” or “8888”).
7. Touch to turn on or off of Auto Link
with mobile phone.
(Note: When auto connect is turn on, the
unit will connect to the linked-up mobile
phone after ignition of the car)
8. Touch to turn on or off of auto answer
when an incoming call received.
9. Touch to turn on or off of automatic
loading record of incoming calls /
dial out/missing calls of the mobile
phone to the car unit.
(Note: Loading of record will start auto-
matically when the unit linked-up mobile
phone and shift to BT RECORD MENU at
first time. )
10. Touch to turn on or off of auto loading
phonebook once the unit linked-up with
the mobile phone.
11. Touch to turn on or off the default volume
level during Bluetooth conversation.
ON Mode: Volume level at Bluetooth con-
versation is shifted to the default volume
level.
OFF Mode: Volume level at Bluetooth con-
versation is same as current volume level.
(Note: Volume level can be adjusted at any
time during Bluetooth conversation ).
12. Touch to input the new name of device.
13. Touch to shift between caital letter or
small letter.
14. Touch to erase the digit or letter input by
error.
15. Touch for spacing.
16. Touch to confirm.
17. Touch to input the new pin code of the
device.
18. Touch to confirm.
1. During DVD plauback, new setting on “Audio
Language”, “Subtitle Language”,”Menu Language”,
can not be activated. It is recommended to make
relative setting before inserting a DVD for playback.
2.Default password is “0000” or “8888”.
Note:
TIME
13

Operation
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
3. Touch to activate CALENDAR FORMAT
MENU for date/ month/year format setting.
4. Touch to activate CLOCK FORMAT MENU
for 12H / 24H format setting.
5. Touch to activate SETTING MENU for
calendar & time setting.
6. Touch to select calendar display format.
7. Touch to select clock display format.
8. Touch repeatedly to set for calendar &
clock.
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
3. Touch to turn on or off SWC (when the steering
wheel control wires - gray & green as well as the
ground wire connected).
4. Touch to activate SWC STUDY MENU for
steering wheel control learning & setting as
below:
- touch any control key “5” on screen.
- press and hold the respective control of the
steering wheel of car.
- the unit starts learning and once completed,
indicator appears on screen.
- follow the above stepes to set all other controls.
- press “6” to cancel the setting.
5. Show the items avaliable for setting.
6. Touch to cancel settings.
7. When study & setting completed, touch to
confirm the setting.
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
3. Touch to activate Backlight Adjust Menu
for operation.
4. Touch to select illumination mode:
AUTO or PRIMARY.
5. Touch to select backlight color.
6. Hold & slide to set brightness of screen when
brightness of screen is set an USER Mode.
7. Hold & slide to set rightness of screen when
brightness of screen is set an USER SETTING
MODE under headlamp detection at ON mode
(refer to MAIN MENU OPERATION).
8. In Primary mode-Color Choice, you can choose
desired backlight color: Green>Blue>Red
>Yellow>Cyan>Fuchsine>White
ILLUMINATION BACKLIGHT
STEERING WHEEL CONTROL
AUTO PRIMARY
8
8
5
6
7
14

Operation
VERSION
RADIO OPERATION
DISC/USB/SD OPERATION
At MAIN MENU, touch on screen and shift to
Radio for radio operation.
At MAIN MENU, touch on screen and shift to disc
/ USB / SD input mode for media playback.
At media playback mode and depends on the
input device and playback media recorded, touch
on screen to show various PLAYBACK MENUS for
operation.
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to access to Bluetooth page quickly.
3. Touch access to Audio & Video settings quickly.
4. Touch to turn off the screen.
5. Press repeatedly to fine tune the radio frequency
upward or downward.
Due to the law of some countries and areas, watching
video is not allowed during driving. To allow video
playback, parking brake must be engaged (light green
wire - parking brake input must be connected).
6. Touch to turn the radio frequency upward or downward
and stop for broadcasting when a station received.
Press & hold shortly to activate manual tuning mode.
At this mode, press repeatedly to fine tune the radio
frequency upward or downward.
7. Touch, hold & slide the desired frequency, release for
broadcastiong.
8. Touch repeatedly to select radio band for broadcastiong.
9. Touch to start searching the radio frequency & storing the
strongest signal station into memory. After one cycle
searched, the unit starts intro broadcasting of the
preset memory stations for a few seconds.
10. Touch to select Stereo (ST) or MONO at FM radio.
When stero signal received, stereo indicator will
be appeared on screen and this is no indicator
for mono mode.
11. Touch to select Local(LOC) setting for reception
of strong signal stations and a distant(DX) setting for
reception of weak stations at FM radio band. When
Local setting is selected, LOC will be appeared on
screen and this is no indication for DX.
12. Touch to start into broadcasting of preset memory
stations for a few seconds. Touch again to stop
this intro broadcasting.
13. This shows the preset memory station.
Touch any one of the preset station to have broadcast-
ing of relative station.
Touch & hold shortly on any one of the preset station,
the current broadcasting station / frequency will be
stored in the respective preset memory station.
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
Brightness.Contrast,Hue, Saturation, Sharpness.
3. Show the version information.
TOUCH FOR CALIBRATION
3
3
1. Touch to shift to MAIN MENU for operation
mode selection.
2. Touch to back to previous setting menu.
3. Touch to calibration.
Note:
15

Operation
1. Hold and slide to show the hidden operation icons
for operation.
2. DVD Mode
Touch to display on screen the menu of the disc &
playback will resume after a while.
Video / Music / Photo Mode
Touch to shift to FOLDER / PLAYLIST MENU for
playback selection. Touch once or twice (as the
case may be) on the selected folder / track for
playback.
3. Touch to shift to next or previous track for playback.
At DVD / VCD / video / music playback mode, touch
& hold shortly to activate fast forward or fast rewind
mode. At this mode, touch repeatedly to select
various speed on fast forward or fast rewind.
4.Touch to start, pause or resume playback.
5. At video playback mode under disc input, touch
to stop playback.
At music / photo playback mode under disc input
and playback mode under USB/SD card input, touch
to stop playback temporary and will shift to playlist
for playback selection. Touch twice on the selected
track for playback or normal playback will resume
after a while.
6.Touch repeatedly to select various repeat playback
modes of the input device.
7. Touch to turn on or off of random playback mode
of the input device.
8. Touch repeatedly to view the angle changes in
sequential order (available for DVD recorded
with multi-angle senses).
9. Touch repeatedly to zoom in and zoom out of screen
for viewing.
10. Touch repeatedly to select the audio output
channels that recorded in the playback device.
11.Touch repeatedly to select different sub-titles that
recorded in the playback device.
16

Operation
BLUETOOTH OPERATION
12. At video playback mode, touch repeatedly to select
different speeds of slow motion playback.
13. DVD Mode, touch to display on screen the menu
of the disc.
VCD mode, touch to turn on or off of PBC mode.
At PCB on mode, playback will start at the
beginning in sequence order.
14.Touch to activate KEYBOARD INTERFACE to input
track number directly for playback
15.Hold & slide to select the position (time) for playback.
16.Hold & slide to select the position (time) for playback.
（for music).
17. Touch to select music playback mode.
18. Touch to select photo playback mode.
19. Touch to select video playback mode.
20. Touch to shift to FOLDER PLAYLIST or PLAYLIST
to select desired folder or file for playback.
To start playback, touch twice on the selected
track.
21. Touch to shift to previous FOLDER / PLAYLIST
MENU.
22. Touch to shift page up or down.
23. Touch to erase the digital input by error.
24. Touch to confirm the playback after inputting the
track number.
25. Show current playback device ( DISC/USB/SD).
26. Touch to shift back to PLAYBACK MENU.
27. Touch to turn off the screen. When the screen is
off, touch any portion of screen to turn on the
screen.
28. Touch to activate AUDIO & VISUAL MENU for
various audio & visual settings.
29. This Bluetooth icon will light up if the unit has
connected to a mobile phone.
Touch to access Bluetooth operaion.
30. Touch to shifr screen to MAIN MENU.
12. At video playback mode, touch repeatedly to select
different speeds of slow motion playback.
13. DVD Mode, touch to display on screen the menu
of the disc.
VCD mode, touch to turn on or off of PBC mode.
At PCB on mode, playback will start at the
beginning in sequence order.
14.Touch to activate KEYBOARD INTERFACE to input
track number directly for playback
15.Hold & slide to select the position (time) for playback.
16.Hold & slide to select the position (time) for playback.
（for music).
17. Touch to select music playback mode.
18. Touch to select photo playback mode.
19. Touch to select video playback mode.
20. Touch to shift to FOLDER PLAYLIST or PLAYLIST
to select desired folder or file for playback.
To start playback, touch twice on the selected
track.
21. Touch to shift to previous FOLDER / PLAYLIST
MENU.
22. Touch to shift page up or down.
23. Touch to erase the digital input by error.
24. Touch to confirm the playback after inputting the
track number.
25. Show current playback device ( DISC/USB/SD).
26. Touch to shift back to PLAYBACK MENU.
27. Touch to turn off the screen. When the screen is
off, touch any portion of screen to turn on the
screen.
28. Touch to activate AUDIO & VISUAL MENU for
various audio & visual settings.
29. This Bluetooth icon will light up if the unit has
connected to a mobile phone.
Touch to access Bluetooth operaion.
30. Touch to shifr screen to MAIN MENU.
LINK UP WITH MOBILE PHONE
To linkup Bluetooth connection with the mobile
phone, take your phone and follow the steps:
- set the mobile phone to Bluetooth state
- start to search new device
- after searched, new device (model number of
this unit) searched out, confirm the search
- in case of need, input default code “0000”
or “8888” in the mobile phone
- at the same time, Bluetooth icon light up
on screen
- connection succeeded and you can start using
Bluetooth function.
LINK UP WITH MOBILE PHONE
To linkup Bluetooth connection with the mobile
phone, take your phone and follow the steps:
- set the mobile phone to Bluetooth state
- start to search new device
- after searched, new device (model number of
this unit) searched out, confirm the search
- in case of need, input default code “0000”
or “8888” in the mobile phone
- at the same time, Bluetooth icon light up
on screen
- connection succeeded and you can start using
Bluetooth function.
At MAIN MENU, touch on screen and shift
to PHONE (KEYPAD) MENU for Bluetooth
Operation.
At MAIN MENU, touch on screen and shift
to BT MUSIC for Bluetooth music operation.
17

Operation
1. Touch to shift to BT DEVICE MENU to show the
current status on connection.
2. Touch to shift to PHONE (KEYPAD) MENU for dial
out.
3. Touch to shift to PHONE (PHONEBOOK) MENU to
show the phone book of the connected mobile
phone.
4. Touch to shift to PHONE (RECENT) MENU to show
the record on incoming / outgoing / missing calls.
5. Touch to shift to BT MUSIC for transmission of
music playback from the connected phone.
6.Touch to select the linked uo device.
7. Touch to delete the linked up device.
8. Touch to input the phone number for dial out.
9. Touch to erase the digit input by error.
10. Touch to dial out after input the phone number
or redial the last call number when no phone
number input.
11.Touch to hang up or refuse an incoming call.
12.Touch to shift conversation from Bluetooth of
the unit to the mobile phone.
13.Touch to turn on or off of sound muting of the
microphone of the unit.
14. Touch to input the data.
15. Touch to hang up or refuse an incoming call.
16. Touch to pick-up an incoming call.
17. Touch to start downloading / updating the call
history of the linked-up phone to the unit.
18. Touch to show the missing call history.
19. Touch to show the incoming call history.
20. Touch to show the outgoing call history.
21. Touch to shift page up or down.
22. Touch to start downloading / updating the call
history of the linked-up phone to the unit.
23. Touch to start / pause / resume playback
transmitted from the mobile phone.
24.Touch to shift to previous or next track for
playback.
25. Touch to turn off the screen. When the screen is
off, touch any portion of screen to turn on the
screen.
26. Touch to activate AUDIO & VISUAL MENU for
various audio & visual settings.
27. Touch to shifr screen to MAIN MENU.
1. Radio band selection
2. Adjust the volume up or down
3. Adjust the EQ selection
4. Select the desired mode
5. Mute or Unmute
6.Upward operation
7. Play/Pause control
8. Downward operation
9. Back to homepage
10. Settings
Remarks: The operation under this application is
limited to some modes and controls only>
User can download the following APP to the
mobile phone in order to have control of the
headunit by mobile phone via Bluetooth.
Take you phone and follow the steps:
- for Android device, search “iCon” from
Google Store and download & install,
-After installaion, open the application:
- The following menu appeared in the mobile
phone and you can start control the headunit
with this menu ( Bluetooth must be connected):
- The following shows the control option:
APPLICATION TO CONTROL THE UNIT
VIA BLUETOOTH OF MOBILE PHONE
(Android support only)
APPLICATION TO CONTROL THE UNIT
VIA BLUETOOTH OF MOBILE PHONE
(Android support only)
18

Operation
1. Touch to turn off the screen. When the screen is
off, touch any portion of screen to turn on the
screen.
2. Touch to activate AUDIO & VISUAL MENU for
various audio & visual settings.
3. This Bluetooth icon will light up if the unit has
connected to a mobile phone.
Touch to access Bluetooth operaion.
4. Touch to shifr screen to MAIN MENU.
1. Touch to turn off the screen. When the screen is
off, touch any portion of screen to turn on the
screen.
2. Touch to activate AUDIO & VISUAL MENU for
various audio & visual settings.
3. This Bluetooth icon will light up if the unit has
connected to a mobile phone.
Touch to access Bluetooth operaion.
4. Touch to shifr screen to MAIN MENU.
1. Scan the QR code by using the connected android
phone.
Follow the instruction of the connected phone &
download “ AUTOLINK” application from Google
Play Store or Amazon site.
Open “AUTOLINK” application after download,
mirror linking appeared on screen and mobile
phone operation can be started and controlled
by touching screen of the headunit.
1. Scan the QR code by using the connected android
phone.
Follow the instruction of the connected phone &
download “ AUTOLINK” application from Google
Play Store or Amazon site.
Open “AUTOLINK” application after download,
mirror linking appeared on screen and mobile
phone operation can be started and controlled
by touching screen of the headunit.
For ISO devices, mobile phone linking operation will
start automatically without any setting. Mirror linking
appeared on screen and mobole operation can be
controled by touching screen of the headunit.
For Android devices, when the phone is connected
at the first time, SETUP MENU appeared on screen.
For ISO devices, mobile phone linking operation will
start automatically without any setting. Mirror linking
appeared on screen and mobole operation can be
controled by touching screen of the headunit.
For Android devices, when the phone is connected
at the first time, SETUP MENU appeared on screen.
1. Touch to shifr screen to MAIN MENU.1. Touch to shifr screen to MAIN MENU.
AUX IN OPERATIONAUX IN OPERATION
Front Camera OPERATIONFront Camera OPERATION
At MAIN MENU, touch on screen to shift
to AUX IN MENU for audio input operation
(provided an AV device had been connected).
At MAIN MENU, touch on screen to start
mobile phone linking (mirror linking) of the
connected mobile phone operation.
Follow the instruction as shown on screen
for the first time connection.
At MAIN MENU, touch on screen to shift
to front camera viewing (provided
front camera and the pink/black wire
connected).
AUX MODE
AUX
AUX Mode
During AUX input operation, touch any portion on
screen to activate AUX IN operation.
WALLPAPER OPERATIONWALLPAPER OPERATION
PHONELINK OPERATIONPHONELINK OPERATION
At MAIN MENU, touch to select the
desired wallpaper of the headunit.
At Front camera viewing mode,touch any
portion on screen to activate FRONT CAMERA
INPUT MENU for operation.
19

Operation
2. Touch to connect with the mobile phone.
3. Touch to shift to USB DEBUG MENU and follow
the information to have USB debug on the
mobile phone before connecting again.
4. Touch to return to SETUP MENU.
5. Touch to exit mobile phone linking operation
and shift to previouse operation mode.
6. Touch to shifr screen to MAIN MENU.
7. This Bluetooth icon will light up if the unit has
connected to a mobile phone.
Touch to access Bluetooth operaion.
8. Touch to activate AUDIO & VISUAL MENU for
various audio & visual settings.
9. Touch to activate AUDIO & VISUAL MENU for
various audio & visual settings.
2. Touch to connect with the mobile phone.
3. Touch to shift to USB DEBUG MENU and follow
the information to have USB debug on the
mobile phone before connecting again.
4. Touch to return to SETUP MENU.
5. Touch to exit mobile phone linking operation
and shift to previouse operation mode.
6. Touch to shifr screen to MAIN MENU.
7. This Bluetooth icon will light up if the unit has
connected to a mobile phone.
Touch to access Bluetooth operaion.
8. Touch to activate AUDIO & VISUAL MENU for
various audio & visual settings.
9. Touch to activate AUDIO & VISUAL MENU for
various audio & visual settings.
1. Touch to activate FLOATING DOCK MENU on screen
for various functions and controls of the unit. Hold
& slide can move this icon to other desired position
on the screen.
2. Touch to activate volume & sound mute control of
the car unit.
3. Touch to shift screen to the MAIN MENU of the car
unit.
4. Touch to shift screen to previous page of the
connected phone.
5. Touch to shift horizontal / vertical viewing of the
connected phone.
6. Touch to shift screen to the main menu of the
connected phone.
7. Touch to turn off the screen. When the screen
turned off, touch any portion of the screen to
turn the screen on.
1. Touch to activate FLOATING DOCK MENU on screen
for various functions and controls of the unit. Hold
& slide can move this icon to other desired position
on the screen.
2. Touch to activate volume & sound mute control of
the car unit.
3. Touch to shift screen to the MAIN MENU of the car
unit.
4. Touch to shift screen to previous page of the
connected phone.
5. Touch to shift horizontal / vertical viewing of the
connected phone.
6. Touch to shift screen to the main menu of the
connected phone.
7. Touch to turn off the screen. When the screen
turned off, touch any portion of the screen to
turn the screen on.
Important notice on mobile phone linking
operation on Android mobile phone:
1. This head unit supports Android phone 6.0 or
above with USB mirror linking function.
2. USB cable should be used to connect the
phone to the front USB slot of the head unit.
3. In case connection failed, SETUP MENU will
remain on screen.
4. Phone set up may be varied from different
phones and USB debug may be necessary.
Refer to the operation method of the mobile
phone for details (usually at setting mode >
developer options >USB debugging).
5. Depends on the connected smart phone,
operation & setting may varied.
Important notice on mobile phone linking
operation on Android mobile phone:
1. This head unit supports Android phone 6.0 or
above with USB mirror linking function.
2. USB cable should be used to connect the
phone to the front USB slot of the head unit.
3. In case connection failed, SETUP MENU will
remain on screen.
4. Phone set up may be varied from different
phones and USB debug may be necessary.
Refer to the operation method of the mobile
phone for details (usually at setting mode >
developer options >USB debugging).
5. Depends on the connected smart phone,
operation & setting may varied.
FLOATING DOCK OPERATION UNDER
PHONELINK:
FLOATING DOCK OPERATION UNDER
PHONELINK:
FLOATING DOCKFLOATING DOCK
At PHONELINK operation and when this
floating dock icon appeared on screen,
touch to activate FLOATING DOCK MENU
on screen for various functions and controls
of the unit.
This menu will be closed when no operation
for a while.
Touch any blank portion on screen will also
close this menu.
20
