Sovereign FB510 User guide

Sovereign
1400W High Pressure Washer
Original instruction manual FB510
Important –Please read these instructions fully before operating or maintaining your pressure washer.
These instructions contain important information that will help you get the best from your
pressure washer, ensuring it is assembled correctly and safely.
Oct 2014 Rev A
Technical Support & Parts
01904 727503
www.gardenservicecentre.co.uk

Safety Information
Important - Please read these instructions fully before operating or maintaining
Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Contents
Safety Information......................................................................................................................................3
Warning Symbols .................................................................................................................................3
General Safety......................................................................................................................................4
Personal Safety.....................................................................................................................................4
Operating Safety....................................................................................................................................5
Maintenance and Storage Safety..........................................................................................................7
Intended Use........................................................................................................................................8
Service..................................................................................................................................................8
In the Box ..................................................................................................................................................9
Preparing to Operate the Pressure washer...............................................................................................11
Operating the Pressure Washer................................................................................................................13
Maintenance and Repair...........................................................................................................................17
Storage and Transportation.......................................................................................................................17
Troubleshooting.........................................................................................................................................19
Technical Data........................................................................................................................................... 20
Recycling and Disposal.............................................................................................................................20

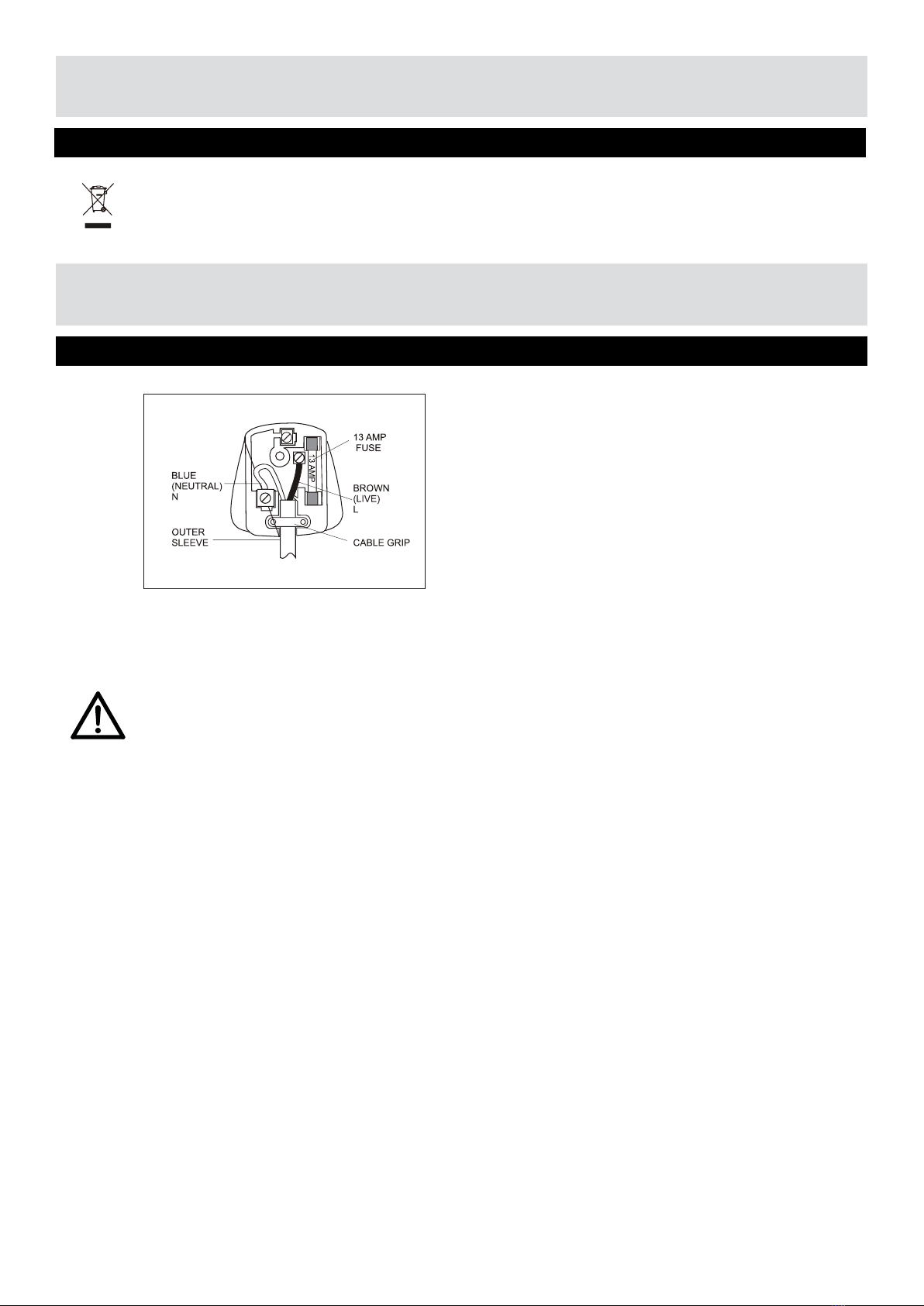

Plug Replacement.....................................................................................................................................21
Getting Help...............................................................................................................................................22
Guarantee..................................................................................................................................................23

Safety Information
Important - Please read these instructions fully before operating or maintaining
Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Warning Symbols
The following warning symbols appear through this manual and indicate the appropriate safety
measures you should take when operating and maintaining the pressure washer.
Warning
Read the instruction manual
Conforms to all relevant safety standards.
Wear eye and ear protections.
Disconnect the mains plug immediately if the cable is damaged, has been badly twisted or is
completely cut through and in the event that the device is left unattended for a short time.
WARNING: Never direct discharge stream at persons, animals, the unit or electric
components.
Appliance not suitable for connection to the potable water mains.
Water that has own through backow preventers is considered to be non-potable.
The appliance is not intended to be connected to the potable water mains. If necessary, please
use only with a water backow preventer or inlet hose-set approved by IEC 61770.
Double insulations, Class II appliance
Waste Disposal and Environmental Protection!
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre
when you have nished with them.
Electrical machines do not belong in domestic waste.
Take the equipment to a waste disposal site. The plastic and metal parts that are used can be
separated out into pure grade, which allows recycling.
Guaranteed sound power level
98

Safety Information
Important - Please read these instructions fully before operating or maintaining
Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
IMPORTANT!
- Keep this instruction manual in a safe place for future reference.
- Read the instructions carefully. Be familiar with the controls and the proper use of the
equipment.
- Never allow children or people unfamiliar with these instructions to use the pressure washer.
Local regulations can restrict the age of the operator.
- Never use the machine while people, especially children, or pets are nearby. Keep in mind
that the operator or user is responsible for accidents or hazards occurring to other people or
their property.
- This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
- Don’t use the appliance without reading the instruction sheet.
- Children should be supervised to ensure that they do not play with the appliance.
Personal Safety
WARNING!
- Risk of fatal injury!
Use special care when cleaning tyres. Vehicle tyres/tyre valves may become damaged or burst
when handled improperly. First signs of damage included discolorations on the tyre. Damaged
vehicle tyres/tyre valves pose a life-threatening risk. Keep the jet at a distance of at least
30 cm!
- Never direct the jet against yourself or others in order to clean clothes or footwear.
- The appliance is not designed for connecting to tap water. If necessary, please use
only with a water backow preventer or inlet hose-set approved by IEC 61770.
- Risk of injection or injury, do not direct discharge stream at persons.
- Do not use the appliance when there are other people around, unless they are also wearing
safety equipment.
General Safety

Safety Information
Important - Please read these instructions fully before operating or maintaining
Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
- High-pressure jets can be dangerous if misused. The jet must not be directed at persons,
animals, electrical equipment or the appliance itself.
- Know how to stop the product and bleed pressure quickly, be thoroughly familiar with the
controls.
- Stay alert -watch what you are doing.
- Do not operate the product when fatigued or under the inuence of alcohol or drugs.
- Keep operating area clear of all persons.
- Do not overreach or stand on unstable support. Keep good footing and balance at all times.
- Always wear protective clothing and safety glasses. Loose particles and other debris may be
propelled at high speed by the water jet. Wear ear protectors.
- The operator or user is responsible for accidents or damages to other people or their property.
WARNING!
- High-pressure hose ttings and couplings are important for the safety of the appliance.
Use only hose tting and couplings recommended by the manufacturer.
- Inadequate extension cables can be dangerous.
- The electrical supply connection shall be made by a qualied electrician can comply with
IEC60364-1
- The electric supply connection shall be made by a qualied electrician and comply with IEC
60364-1. It is recommended that the electric supply to this machine should include either a
residual current device that will interrupt the supply if the leakage current to earth exceeds
30 mA for 30 ms or a device that will prove the earth circuit.
- Disconnect from the electrical power supply before carrying out user maintenance.
- Don’t use the appliance if a supply cables or important parts of the appliance are damaged,
e.g. safety devices, high-pressure hoses, trigger gun.
- If extension cable is used, the plug and socket outlet must be of a watertight construction.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
a similarly qualied person in order to avoid a hazard.
Personal Safety (continued)
Operating Safety

Safety Information
Important - Please read these instructions fully before operating or maintaining
Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
- Water that has own through backow preventers is considered to be non-potable.
- The PVC or polychloroprene sheathed power cord, or extension cables (H05VV-F) are
acceptable for use at temperatures at or above 0 OC.
- Always ensure that a machine which has been switched off and cannot be restarted
unintentionally.
- Only use hoses, ttings and couplings supplied and recommended by the manufacturer.
- Never carry the equipment by the cable or the hose. Do not carry the equipment with your
nger on the On/Off switch when it is connected to the mains.
- Remove the plug from the plug socket if you are not using the equipment, when transporting it
or when it is left unattended, when checking the equipment, cleaning it or removing blockages,
when undertaking maintenance work or changing accessories, if the power or extension cable
is damaged, after contact with foreign bodies, or in the event of abnormal vibration.
- Do not use the equipment near ammable liquids or gases. In case of non-observance, there
is a risk of re of explosion.
- Do not use the pressure washer if a supply cord, safety devices, hoses, switch or trigger gun
is damaged.
- If an extension cord is used, the plug and socket must be of watertight construction.
Inadequate extension cords can be dangerous.
- Ensure that the mains voltage matches the information on the label.
- Before each use, check the equipment, power cable and plug for damage, avoiding an
electrical shock.
- Damaged cables, coupling and plugs or connecting leads that are not compliant with
specications are not to be used. Remove the plug from the plug socket immediately in case of
damage or cutting through of the mains cable.
- Do not use the equipment when the switching action of the On/Off switch is impaired. Have
damaged switches replaced at our Service Centre.
- Do not overload your equipment. Work only within the indicated range of performance. For
heavy work, do not use a machine with insufcient power. Do not use your equipment for
purposes other than those specied.
Operating Safety (continued)

Safety Information
Important - Please read these instructions fully before operating or maintaining
Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
WARNING!
- To ensure the appliance safety, use only original spare parts from the manufacturer or
approved by the manufacturer.
- Retrotting or making any unauthorized changes to the machine, as well as the use of
unapproved parts will invalidate your warranty.
- Do not attempt to repair the equipment yourself. All work not indicated in these instructions is
to be carried out only by service stations authorized by us.
- Store the equipment in a dry location and out of reach of children.
- Handle the equipment with care. Keep the equipment clean for save and more efcient
working. Follow the maintenance directions.
- Machine may be damaged by frost.
There is always residual water left inside the high-pressure washer and in the pump. Do not
store the machine at temperatures below freezing point in order to avoid frost damage.
Maintenance and storage safety

Safety Information
Important - Please read these instructions fully before operating or maintaining
Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
This high-pressure cleaner is designed for domestic use only:
- to clean machines, vehicles, buildings, tools, facades, terraces, garden equipment etc. using
a high-pressure water jet (and detergents if required).
- to use with accessories, replacement parts and detergents approved by Sovereign.
Observe the instructions provided with these detergents.
Any use of the machine that deviates from its intended use and is not included in these
instructions is considered unauthorized use and relieves the manufacturer from his or her legal
liability.
Service
Have your tool repaired by an authorized service agent. This tool is manufactured in
accordance with the relevant safety regulations. To avoid danger, electrical appliances must
only be repaired by qualied technicians. Call our customer helpline at 01904 727503 for
advice.
Intended Use

In the Box
Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Ahigh pressure washer
Btrigger gun with hose attached
Cextend lance
Dspray lance
E water inlet male connector (attached to the machine)
Fnozzle pin
If there are any parts missing, please call the customer helpline on 01904 727503
Parts
Ginstruction manual
A
C
D
E
F
B
G

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk

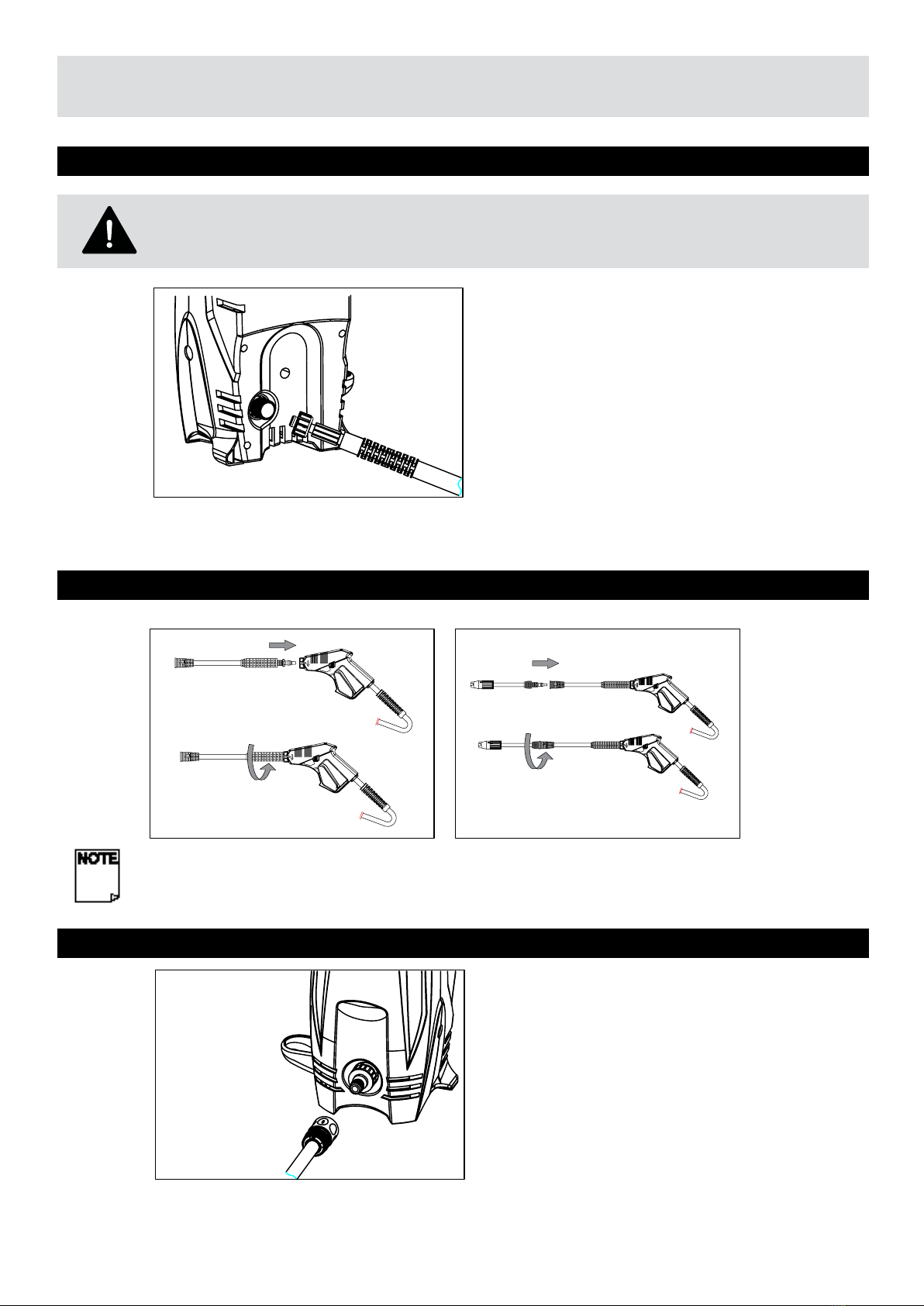

Preparing to Operate the Pressure Washer
Step 1 - Fit the high pressure hose to the washer
WARNING! Always wear safety gloves when doing any work on the pressure washer.
Connect the high pressure hose to the pressure washer. Attach high pressure hose to the
machine’s water outlet (hand tighten only).
Step 2 - Fit the spray lance to trigger gun
Insert the extend lance to trigger gun, and twist 1/4 turn to lock in position.
Insert the spray lance to extend lance, and twist 1/4 turn to lock in position.
Note! Check that it is rmly securely located in place.

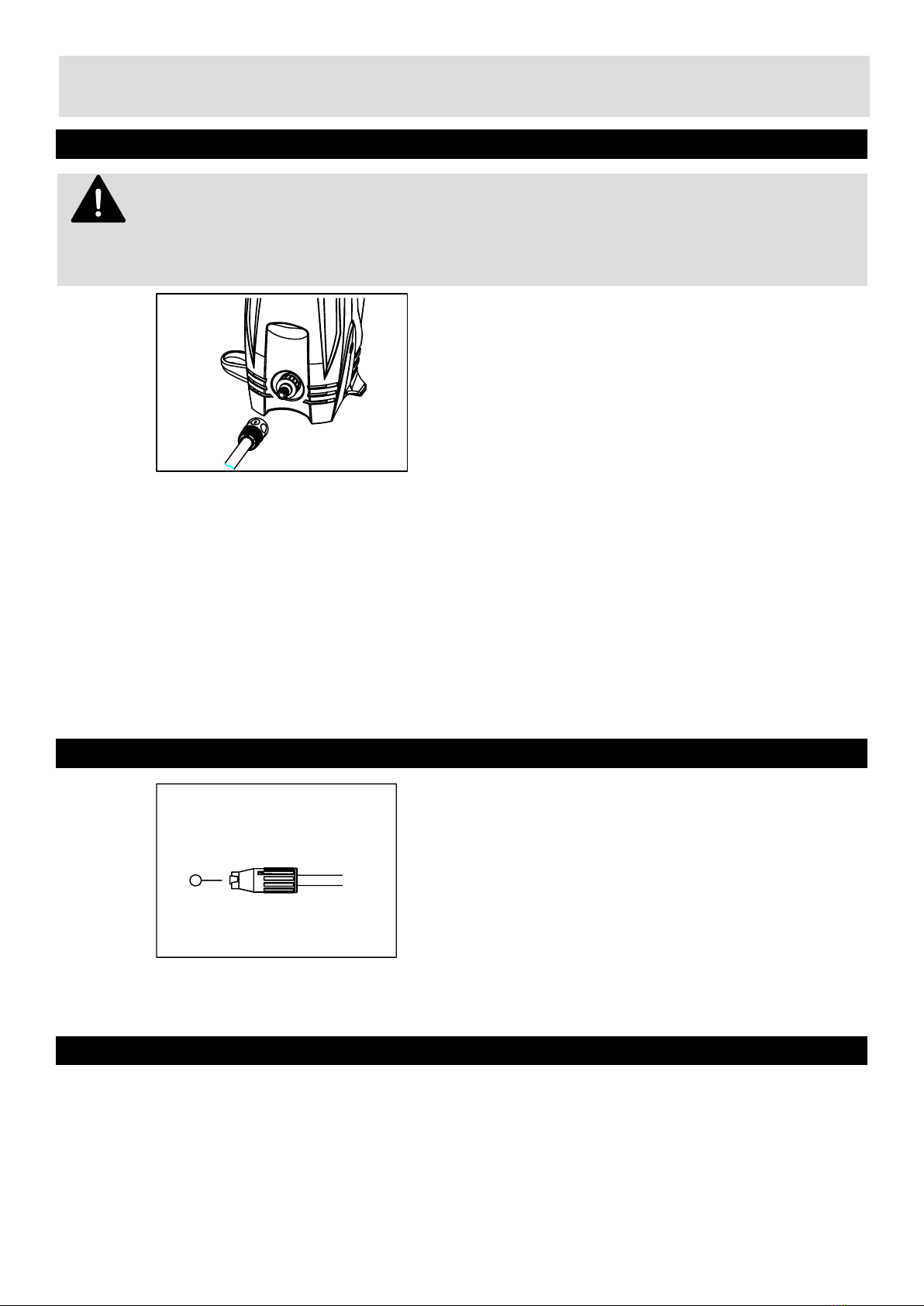

Step 3 - Connect garden hose and inlet adapter.
Before you attach your water hose (not included), run the water through to eliminate any air in
the hose to avoid air locking. Attach the hose with a quick connect coupling (not included) to
the high pressure washer.

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Step 4 - Connect garden hose and water supply.
Attach garden hose to water supply and turn water on.
Step 5 - Connect socket
Make sure the ON/OFF switch is in the OFF position and your hands and plug are
dry. Connect the plug to the mains socket.
Note! We Recommend the use of a RCD Safety protection adapter.
Preparing to Operate the Pressure Washer
OFF

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Operate the Pressure Washer
Step 1 - Starting
WARNING!
Wear suitable clothing, ears and eyes protecting when working with the equipment. Ensure that
the equipment is functional before each use. Ensure that the mains voltage value matches the
label on the equipment. Check the safe condition of the machine:
– Check it for visual defects.
– Check that all parts of the machine have been securely tted.
– Check if the water connector and the high-pressure pipes are tight.
1. Place the high pressure washer on level ground. Stand in a secure and stable position.
2. Unlock the safety trigger on the spray gun, and press the trigger until there is a steady
stream of water.
3. To switch the machine on, set the On/Off switch to ON.
Step 2 - Stopping
1. Release the trigger, and replace the safety lock.
2. To switch the machine off, set the On/Off switch to OFF.
Preparing to Operate the Pressure Washer
2
1

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Step 3 – Use the high pressure lance
WARNING!
- Always turn off the machine when changing the high pressure lance.-The trigger gun is
subjected to a recoil force when the water jet is discharged. Make sure that you have a rm
footing and are also holding the trigger gun and spray lance with both hands.
1. Hold the hand-held spray lance and the jet tube rmly with both hands. Be aware of the
recoil when switching on the high-pressure jet.
2. Unlock the safety button and press the trigger on the handheld spray lance. It takes
approximately 5 seconds to release the high pressure.
NOTE!
- Clogging of the spray tips causes the pump pressure to be too high and cleaning is immedi-
ately required. You can clean the spray tips by carefully inserting a using the supplied cleaning
pin into the tip to remove deposits.
Operate the Pressure Washer
2
1

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
CAUTION!
- Jet spray adjustment is very aggressive. Do not adjust while spraying.
Switch the machine off when interrupting your work for extended periods of time.
- The high-pressure pump starts running as soon as you operate the hand-held spray gun. The
high-pressure pump stops running as soon as you release the trigger on the hand-held spray
gun.

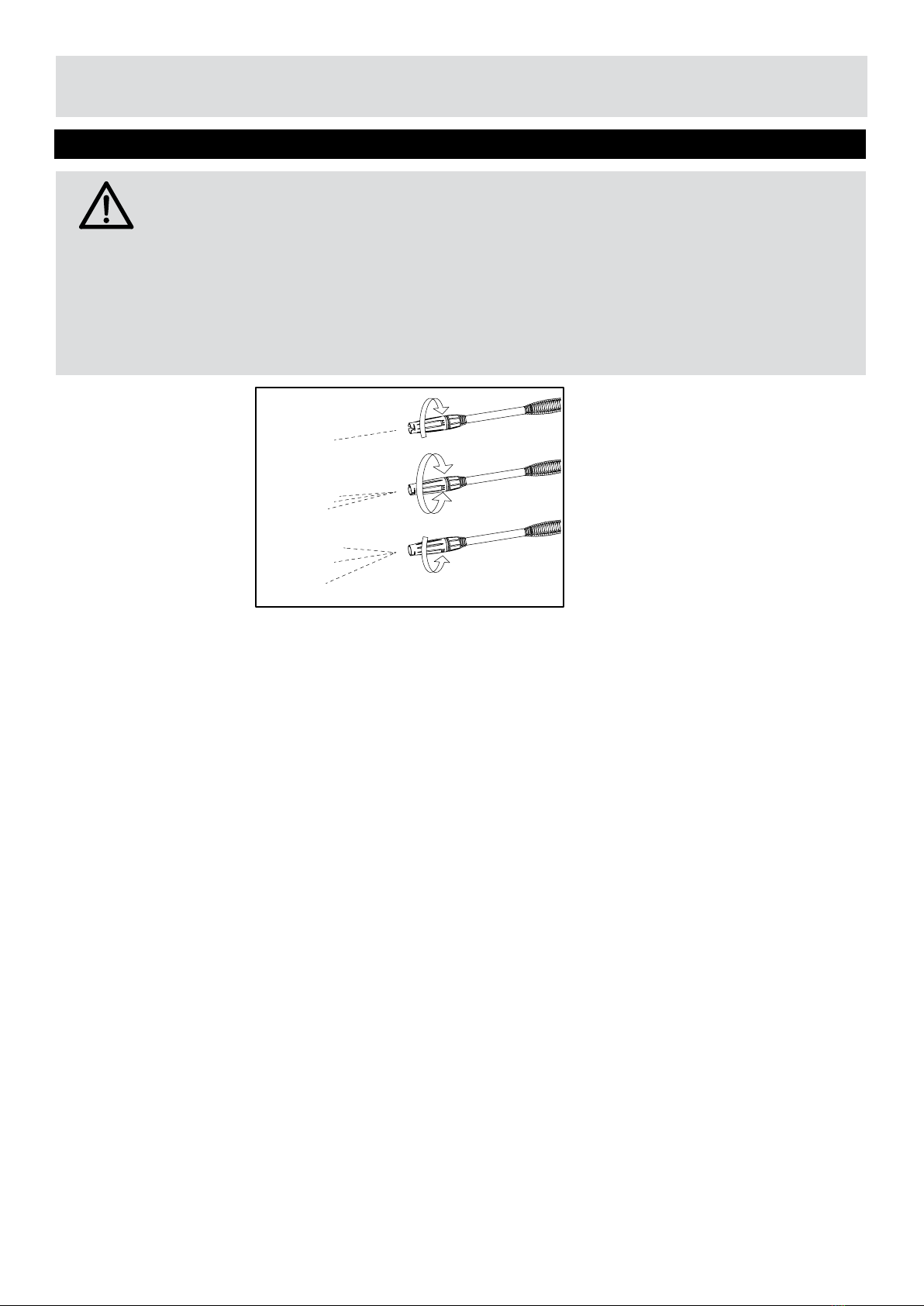

3. Use with adjustable spray lance, 180 degree rotation of the nozzle. It takes a couple of
seconds for the spray to adjust to setting.
The trigger gun safety lock prevents the trigger from being engaged accidentally and ensures
the trigger gun cannot be locked in the ON position.
Without turning the gun, adjust the spray to desired angle by turning the nozzle with 180°
marking as shown.
Operate the Pressure Washer
Step 4 – Use the high pressure lance (continued)

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Maintenance and Repair
WARNING! Always switch the product off, unplug from the power socket and let the product
cool down before performing inspection, maintenance and cleaning work!
- After every use wipe the machine with a slight damp cloth. Do not clean the machine using a
high-pressure water jet.
- Clean the high-pressure jet nozzle.
The pressure washer is equipped with a water lter to protect the pump. If the lter is not kept
clean, the water ow to the machine will be restricted and the pump may be damaged.
To clean water lter, remove inlet adapter and get the lter out.
− Rinse lter until it is free of debris and blockage.
− Replace the lter and inlet adapter.
Clearing of the Lime scale
From periods of time, water lime scale may build up on your lance outlet, use the Nozzle
cleaning pin to clean this away.
Storing
Frost can damage your pressure washer that has not been completely emptied of water. The
machine should be stored in a frost free room.
Do not kink high pressure hose.
Maintenance and Repair

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
General Troubleshooting
WARNING!
- Only perform the steps described within these instructions!
All further inspection, maintenance and repair work must be performed by an authorised
service centre or a similarly qualied specialist if you cannot solve the problem yourself!
- Always turn off the machine and remove the plug before making any adjustment.
Problem Possible cause Solution
1. No power - Check the plug socket, cable, line
and plug.
- Any of the parts are defective,
such as On/Off switch / motor etc.
(please contact service agent).
- Connect to mains socket.
- Check by a specialist electrician
2. The high pressure
washer operates
intermittently.
- Power cable is damaged.
- Internal loose electrical
connection.
- On/Off switch defective (please
contact service agent).
- Check by a specialist electrician
3. No or only little
pressure is built up.
- Check if there is any air in the
system.
- Check all inlet pipes leading to
the pump for leaks or the hose is
blocked or there is a kink in the pipe
- Check the setting on the
hand-held spray gun.
- If so, please ventilate the machine!
Run the machine without the high-
pressure hose connected until water
starts leaking without bubbles. Re-
attach the high-pressure hose.
- Check by a specialist electrician
- Follow the Operation part again.
4. Pressure varieties - Check the high pressure jet nozzle
- Check the water inlet pressure.
- If blocked, clean it with pin.
5. Machine is leaking. Machine is leaking Please contact the service agent.
6.Engine is running but
no pressure is build
up
You might have air locked in the
hose.
Turn off machine, disconnect hose, run
water through and connect again
If the problem continues --then please
contact the customer helpline
Troubleshooting

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Recycling and disposal
Technical Data
Technical Data Table
Voltage 230-240V~/50Hz
Input power 1400W
Working pressure 60bar
Max pressure 90bar
Rated ow 4.5l/min
Max ow 5.5l/min
Inlet Tmax 40oC
Net weight 4kg
Measured sound pressure level 83dB (A), k=3 dB (A)
Measured sound power level 95dB (A), k=3 dB (A)
Guaranteed sound power level 98dB (A)
Vibration 2.179m/s2 ,k=1.5m/s2
The declared vibration value has been measured in accordance with a standard test method
and may be used for comparing one tool with another. The declared vibration value may also
be used in a preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the tool can differ from the
declared value depending on the ways in which the tool is used. Identify safety measures to
protect the operator that are based on an estimation of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as the times when the tool is switched
off and when it is running idle in addition to the trigger time).
The sound intensity level for the operator may exceed 85dB(A) and ear protection measures
are necessary.
Recycling and disposal
Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and
packaging should be sorted, taken to the local recycling centre and disposed of in an
environmentally safe way.
Recycle rather than dispose of unwanted material in landll whenever possible. The machine
must be delivered in rigid packaging to avoid damage during transportation. The packaging
and the machine itself are manufactured from recyclable materials and should be disposed of
accordingly.
Only dispose of electrical/electronic/battery terms in separate collection schemes, which cater
for the recovery and recycling of materials contained within. Your cooperation is vital to ensure
the success of these schemes and for the protection of the environment.
Recycle packaging where facilities exist.

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Recycling and Disposal
This symbol is known as the Crossed out Wheelie Bin Symbol. When this symbol is marked
on a product or battery, it means that it should not be disposed of with your general household
waste. Some chemicals contained within electrical/electronic products or batteries can be
harmful to health.
Your high pressure washer is tted with a moulded plug. However If you need to replace a
tted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:
Blue - Neutral Brown – Live
As the colours of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows.
The wire which is coloured blue must be connected to the terminal which is marked with N
The wire which is coloured brown must be connected to the terminal which is marked with
the letter L
If a 13AMP (BS1363/A) plug is used, a 13A fuse must be tted, or if any other type of plug is
used a 13AMP fuse must be tted, either in the plug or adapter, or on the distribution board.
Note: If a moulded plug is tted and has to be removed take great care in disposing of the plug
and severed cable, it must be destroyed to prevent engaging into a socket.If the supply cord is
damaged it must be replaced by a service agent or a similarly qualied person in order to avoid
hazard.
Recycling and disposal (continued)
Plug Replacement
Plug Replacement

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
CABLES
IMPORTANT
• Use only 1.00mm2size cable up to 40 metres length maximum.
Maximum rating: 1.00mm2size cable, 10 amps 250 volts AC.
• YOUR HIGH PRESSURE WAHSER IS SUPPLIED WITH CABLE WIRED DIRECTLY INTO
THE PRODUCT.
1. Mains Cables and Extension Cables are available from your local Approved Service Centre.
2. Do not wire an extension cable directly to your product yourself. Please contact your local
Approved Service Centre for further information on the connectors and kits available.
3. Only use extension cables specically designed for outdoor use.
CONNECTORS
IMPORTANT
• Connectors are suitable for use with 2 core cable only. Under no circumstances should these
connectors be used for earthed products.
• All connectors and cables are of splash proof construction. They are not waterproof and must
not be left outside permanently nor should they be submerged or immersed in water. Do not let
cable lay or trail through pools of water or splashed with water from hose pipes.
MAINS PLUG REPLACEMENT
IMPORTANT
• If the plug supplied is cut off it should be destroyed.
There is an electric shock hazard if a cut off plug is inserted into a 13 amp socket.
Our dedicated UK based customer helpline is open 7 days a week to assist you with assembly,
parts queries and technical support. We are open during ofce hours but you can always send an
email via [email protected]. Our experts are here to get you back enjoying
your garden in no time.
For useful assembly, starting and maintenance videos and ordering spares please visit
www.gardenservicecentre.co.uk.
Calling our service does not affect your statutory rights.
UK/Ireland 01904 727503
Monday to Friday 9am – 5pm Saturday & Sunday 11am – 4pm
www.gardenservicecentre.co.uk
email: [email protected]
Plug Replacement
Plug Replacement (continued)
Getting Help
Customer Helpline 01904 727503
Getting Help

Customer Helpline 01904 727503
www.gardenservicecentre.co.uk
Guarantee
Dear Customer,
In the unlikely event that your device develops a fault, please contact our Customer service
department on the telephone number shown below.
1. These guarantee terms cover additional guarantee rights and do not affect your statutory
warranty rights. Claims must be accompanied by Proof of Purchase. This must be in the form
of a Sales receipt or Bank statement and must show that the product has been purchased
within 1 years prior to the claim, from the retailer that it was originally sold to.
2. Our guarantee covers problems caused by material or manufacturing defects, and will result
in the repair of these defects or replacement of the device with a like for like or similar article.
Please note that our devices have not been designed for use in commercial, trade or industrial
applications. Consequently, the guarantee is invalidated if the equipment is used in
commercial, trade or industrial applications or for other equivalent activities.
3. The following are also excluded from our guarantee :
A. Faults due to accidents, customer misuse or unauthorized repairs
B. Consumable Parts such as detergent bottle, patio cleaner, jet lance, x brush and nozzle
pin
C. Failure due to lack of routine maintenance.
D. Failure as a result of not using the equipment in accordance with the manual and safety
instructions
E. The adjustment of cables, drives belts or recoil starters.
4. The guarantee is valid for a period of 1 years starting from the purchase date of the de-
vice. Guarantee claims should be submitted before the end of the guarantee period within two
weeks of the defect being noticed. No guarantee claims will be accepted after the end of the
guarantee period. The original guarantee period remains applicable to the device even if re-
pairs are carried out or parts are replaced. In such cases, the work performed or parts tted will
not result in an extension of the guarantee period, and no new guarantee will become active
for the work performed or parts tted.This also applies when an on-site Service is used.
5. Please keep your sales receipt in a safe place. If is covered by our guarantee your device
will either be repaired under the terms of guarantee or we will send you a replacement device.
This device may be re-conditioned or like for like replacement .
