SPÜLBOY NU User manual
THINK NEW.
CLEAN GREEN!
INSTRUCTION MANUAL / SPÜLBOY NU®
CONTENTS
1Foreword 1
2Unit Description & Purpose 1
3Safety Instructions 1
4Exploded View, Spare Parts & Accessories 2
5Operating Instructions 3
5.1 Setup & Assembly 3
5.2 Start-up 3
5.3 Close of business 3
6Washing 4
6.1 Pre-washing 4
6.2 Rinsing & Post-rinsing 4
7Cleaning, Care & Maintenance 4
8Shut-down 5
9Sustainability & Disposal 5
10 The Original
Spülboy
®Warranty 5
DEAR SPÜLBOY®CUSTOMER,
We are delighted that you have chosen the NU®, an
Original
Spülboy
®quality product. The globally established
Spülboy
®brand is recognised internationally for
All
Spülboy
®glass washers are portable and ensure the best
washing results in all serving areas.
Incidentally, benet now from our complete range of products
and accessories at www.spuelboy.de
Have fun with your new NU®!
Your
Spülboy
®team
Perfect hygiene in manual glass cleaning
CertiedproductioninaccordancewithDINENISO9001:2008
Pioneeringproductinnovations
TopqualitymadeinGermany
SPÜLBOY®productsconformtoDIN6653-3
• Construction! One-piece construction, two wash canisters
• Hygienicdesign! Quick and easy cleaning
• Versatility! Connection, cleaning, care and use - pioneering technology
• Quality! 100% made in Germany
• Sustainability! Washing without electricity and with very little water
• Style! Contemporary style, modern and clean washing area
• Safety! Bacteria and virus-free washing results
CRYSTAL-CLEARADVANTAGES
MADE
IN
GERMANY
3SAFETYINSTRUCTIONS!
• Continuously check the visual cleanliness of
the NU®/ NU®water+
• Check the connection hose and hose
connections for damage or leaks
• Clean the glass washer at a maximum
temperature of 60° C in a dishwasher
• The minimum pressure is 2 bar; the permissible
maximum pressure is 6 bar (static)
• The glass washer must only be operated in its
original condition and with original spare parts
• Stop the washing cycle immediately in case of
broken glass and clean the unit thoroughly as
described; proceed extremely cautiously and
carefully remove all fragments of glass
• Do not tip any food leftovers or other drink
residues into the unit!
This can lead to blockages of the water drain
and therefore have a negative impact on the
cleaning results.
• Turn o the tap at the close of business!
1FOREWORD
Please read the instruction manual before using your NU
®
and keep it accessible for further use and for all users.
The NU
®
may only be used by persons who are familiar with
the safety instructions.
2
UNIT DESCRIPTION & PURPOSE
Your NU
®
glass washer consists of the following parts:
•
1 x Unit incl. pre-wash and rinsing system
•
1 x Bayonet middle brush with head
•
1 x Brush strip
•
1 x Overow pipe
•
1 x Water connection hose incl. easy clix
®
quick
connector and 3/8“ connection
•
Optional: Drain hose (portable)
Cut-out template (portable/ built-in)
Detergent (tablets + sanitizer powder)
This Spülboy
®
glass washer is used for the hygienic cleaning
of serving receptacles in the catering sector, such as glasses,
tankards and carafes.
1
SPÜLBOY NU®1700130
SPÜLBOY NU®with detergents 1700132
SPÜLBOY NU® portable 1700134
SPÜLBOY NU®portable with detergents 1700136
SPÜLBOY NU®water + 1700230
1 NU®brush head, standard 1700370
NU®brush head, big 1700372
2 NU®bayonet middle brush with head, standard 1700360
NU®bayonet middle brush, XL with head, XL 1700362
3 NU®brush strip, standard 1700350
NU®brush strip, XL 1700352
4 NU® overow pipe 1700514
5 NU®head valve 1700522
6 NU®shock protection, telescope rinsing 1700532
7 NU®connection hose with easy clix®1700692
8 NU®suction feet with screws 1700650
NU®glass washing tablets, 500g/100 pcs. 1700410
NU®sanitizer powder, 750g 1700412
4UNIT VERSIONS
2
Dimensions
Width: 39,7
cm
Height: 33,7
cm
Depth: 27
cm
Inner canister: 20
x
17
cm
Bürstenstreifen
brush strip
Kopfventil
head valve
Glasschutz, oben
shock protection
Anschlussschlauch
connection hose
Haftsauger
suction feet
Überlaufrohr
Bajonett-Mittelbürste
bayonet middle brush
Bürstenkopf
brush head
1
2
3
4
5
6
7
water+
8

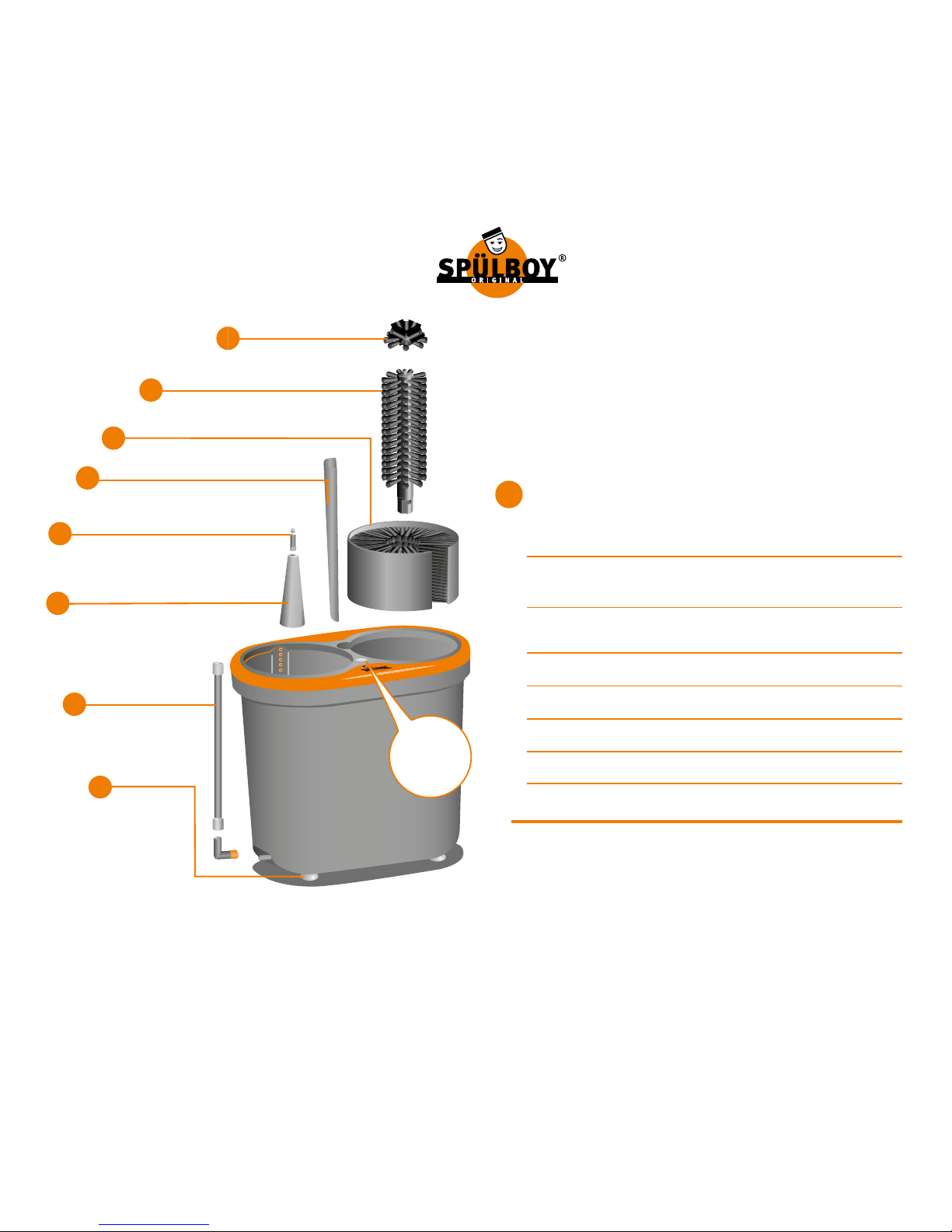

overflow pipe 4SPARE PARTS & ACCESSORIES
5.2Start-up
•
Before starting up your NU® for the rst time, after a
prolonged period out of use or after repairs, please rinse
the glass washer for approx. 5 seconds by actuating the
rinsing function.
•
Fill the pre-wash canister with tap water up to the top over-
ow and add one (1) NU®glass washing tablet in accordance
with the dosing instructions.
Alternatively, use a quarter of a
Spülboy
®^ Classic glass
washing tablet.
•
Adjust the water on the rinse valve. The water pressure is
perfect when the water jets and rinsing function meet
horizontally.
5.3Closeofbusiness
•Turn o the tap at the close of business
•Clean the unit (see point 7)
3
5OPERATING INSTRUCTIONS
5.1Setup&assembly
•
Install the NU®traditionally, in a counter sink or on a coun-
ter or built into a counter with a suitable tap connection
and drain.

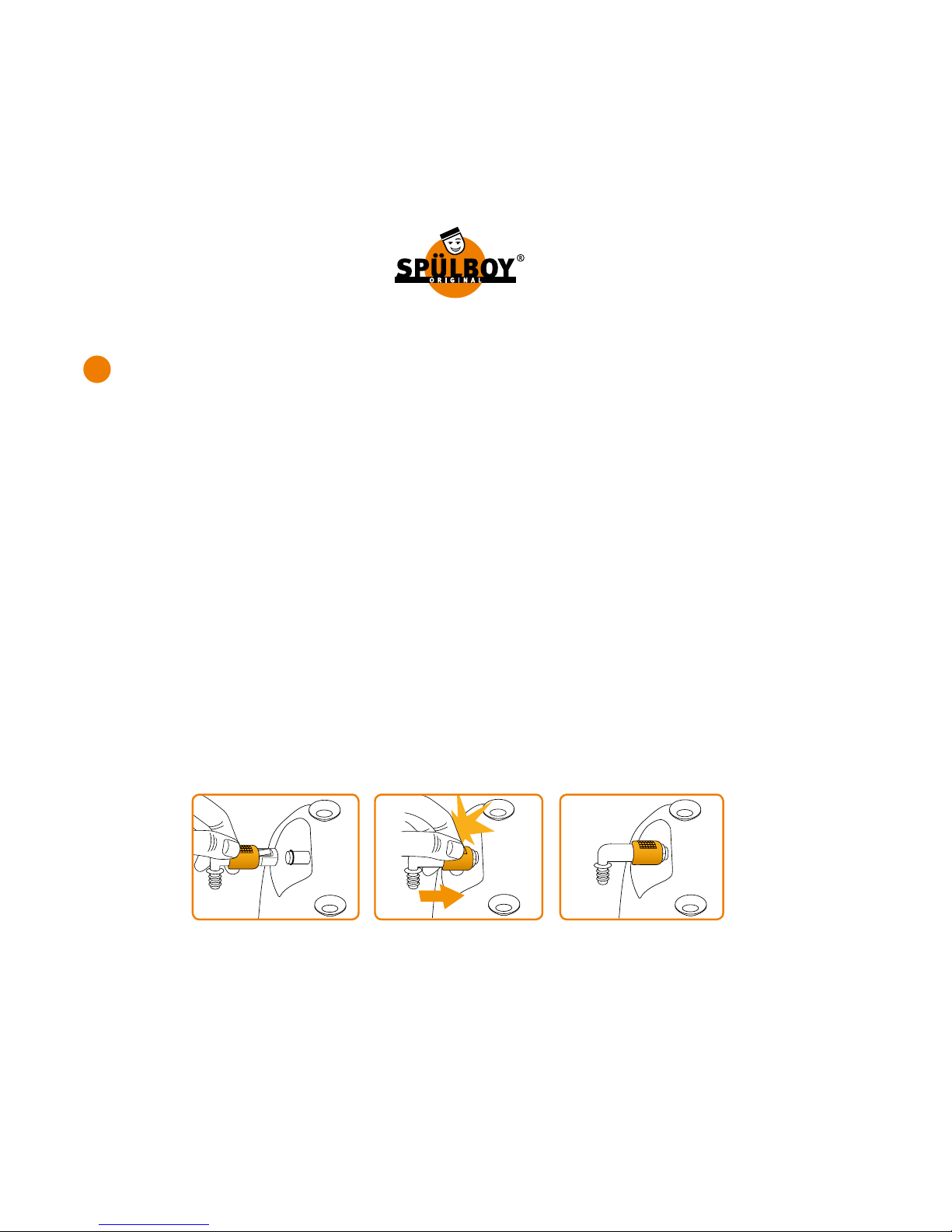

•Fasten the enclosed connection hose to the unit.
Figure 1-3.
•
Please make sure that the sealing ring is lodged in the
designated groove on the unit side to avoid leaks.
•
Set the safety slide to „OFF“, attach the connector to the
NU®connection nozzle and then engage the slide in the
„ON“ position, thus activating the lock. A „clix“ signals a
safe connection. See Fig. 2
•
Set up the NU®at a suitable location and connect the end
of the water connection hose to the tap water connection.
Please also make sure that the seal ts correctly on the
hose side.
Your
Spülboy
® team will be happy to inform you about
alternative connection options.
5.2 Start-up
•Before starting up your NU®forthersttime,aftera
prolonged period out of use or after repairs, please rinse the
glass washer for approx. 5 seconds by actuating the rinsing
function.
•Fillthepre-washcanisterwithtapwateruptothetopoverow
and add one (1) NU®glass washing tablet in accordance with
the dosing instructions.
Alternatively, use a quarter of a SPÜLBOY®Classic glass
washing tablet.
•Adjust the water on the rinse valve. The water pressure is
perfect when the water jets and rinsing function meet hori-
zontally.
5.3 Close of business
•Turnothetapatthecloseofbusiness
•Clean the unit (see 7)
3
5OPERATING INSTRUCTIONS
5.1 Setup & assembly
•Install the NU®traditionally, for example, in a counter
sink or on a counter or built into a counter with a suitable
tap connection and drain.
•Fasten the enclosed connection hose to the unit.
Figure 1-3.
•Please make sure that the sealing ring is lodged in the
designated groove on the unit side to avoid leaks.
•Set the safety slide to „OFF“, attach the connector to the
NU®connection nozzle and then engage the slide in the
„ON“ position, thus activating the lock. A „clix“ signals a
safe connection. See Fig. 2
•Set up the NU®at a suitable location and connect the end
of the water connection hose to the tap water connection.
Pleasealsomakesurethatthesealtscorrectlyonthe
hose side.
Your SPÜLBOY®team will be happy to inform you about
alternative connection options.
CLIX
CLIX
CLIX
1 2 3
SPÜLBOY NU®1700130
SPÜLBOY NU®Portable 1700134
SPÜLBOY NU®water + 1700230
All versions can be ordered optionally
with Spülboy®detergent.
1 NU®brush head, standard 1700370
NU®brush head, large 1700372
2 NU®bayonet middle brush with head, standard 1700360
NU®bayonet middle brush, XL with head 1700362
3 NU®brush strip, standard 1700350
NU®brush strip, XL 1700352
4 NU®overowpipe 1700514
5 NU®spray control valve 1700522
6 NU®glass protection, top, orange 1700532
7 NU®connection hose with easy clix®, orange 1700692
8 NU®plastic suction feet with screws 1700650
NU®glass washing tablets, 500g/100 pcs. 1700410
NU®sanitizer powder, 750g/powder 1700412
4SPARE PARTS & ACCESSORIES
7CLEANING, CARE & MAINTENANCE
•
Make sure that you continuously check and keep the
glass washer and the surrounding area clean, even when
it is being used. The cleanliness of the unit, brushes and
surrounding area should be checked at least once an hour.
•
Clean the glass washer thoroughly at least once a day when
used regularly. It should also be cleaned before starting up
the unit for the rst time, after a prolonged period out of use
or after repairs.
•
To do this, remove the overow pipe and drain the water.
Remove the middle brush and brush strip from the unit and
clean with the Original NU®sanitizer powder. Take the NU®
out of the sink and clean thoroughly with a suitable cloth and
Spülboy®detergent.
•
Place the brushes in a container, sprinkle 2 tablespoons of
Spülboy®sanitizer powder over the brushes and add hot
water so that the brushes are completely covered.
Note! The cleaning results may vary and the unit may be
damaged if third-party substances are used.
•Allow the sanitizer powder to take eect for approx.
8-12 hours.
•
Rinse the brushes thoroughly with fresh water and reinsert
into the pre-wash canister before using the unit again.
4
6WASHING
6.1Pre-washing
•Check each receptacle / glass to be cleaned for any drink
residues or other foreign bodies (e.g. lemon slices, straws)
before starting the washing cycle and place them in a separate
container.
•Hold the glass centrally in the pre-wash canister over the middle
brush and clean with at least 4 full upward and downward move-
ments (do not rotate).
•Light foaming of the rinsing water shows that the NU®glass
washing tablet is working. If no foam appears, simply place another
(1) glass washing tablet in the pre-wash canister.
•1 NU®tablet ensures satisfactory cleaning performance for approx.
4-6 hours.
Please note: The washing results may vary when third-party
detergent is used.
6.2Rinsing&Post-rinsing
•Place the glass on the telescopic rinsing unit and carefully rinse
it from the inside and outside.
Rinse with tap water for 3 seconds for the best results.
•The rinsing function also activates the fresh water supply
in the pre-wash canister at the same time.
•NU®water+: You have the option to top up the
prewash canister with additional fresh water
manually and/or as required by pressing the
soft point.
•The average water consumption per
glass cleaning cycle is approx. 8 cl.
7CLEANING, CARE & MAINTENANCE
•Make sure that you continuously check and keep the
glass washer and the surrounding area clean, even when
it is being used. The cleanliness of the unit, brushes and
surrounding area should be checked at least once an hour.
•Clean the glass washer thoroughly at least once a day when
used regularly. It should also be cleaned before starting up
theunitforthersttime,afteraprolongedperiodoutofuse
or after repairs.
•Todothis,removetheoverowpipeanddrainthewater.
Remove the middle brush and brush strip from the unit and
clean with the Original NU®sanitizer powder. Take the NU®
out of the sink and clean thoroughly with a suitable cloth
and Spülboy®detergent.
•Place the brushes in a container, sprinkle 2 tablespoons of
Spülboy®sanitizer powder over the brushes and add hot
water so that the brushes are completely covered.
Note! The cleaning results may vary and the unit may
be damaged if third-party substances are used.
•Allowthesanitizerpowdertotakeeectforapprox.
8-12 hours.
•Rinse the brushes thoroughly with fresh water and reinsert
into the pre-wash canister before using the unit again.
4
6WASHING
6.1 Pre-washing
•
Check each receptacle / glass to be cleaned for any drink
residues or other foreign bodies (e.g. lemon slices, straws)
before starting the washing cycle and place them in a separate
container.
•Hold the glass centrally in the pre-wash canister over the middle
brush and clean with at least 4 full upward and downward move-
ments (do not rotate).
•Light foaming of the rinsing water shows that the NU®glass
washing tablet is working. If no foam appears, simply place another (1)
glass washing tablet in the pre-wash canister.
•1 NU®tablet ensures satisfactory cleaning performance for approx.
4-6 hours.
Please note: The washing results may vary when third-party
manufacturer‘ detergent is used.
6.2 Rinsing & Post-rinsing
•Place the glass on the telescopic rinsing unit and carefully rinse
it from the inside and outside.
Rinse with tap water for 3 seconds for the best results.
•The rinsing function also activates the fresh water supply in
the pre-wash canister at the same time.
•NU®water+: You have the option to top up the pre-
wash canister with additional fresh water manually
and/or as required by pressing the soft point.
•The average water consumption per glass
cleaning cycle is approx. 8 cl.
40°C
8
hours
10 THE ORIGINAL SPÜLBOY®WARRANTY
Schäfer Produkte GmbH oers you a manufacturers war-
ranty of 2 years from the date of purchase. We remedie all
defects free of charge during this period, which are proven to
be due to faulty material or workmanship and substantially
impair its function. Other claims are excluded, e.g. wear down
on brushes.
The warranty does not cover damage resulting from failure to
follow the operating instructions, improper handling or normal
wear and tear.
The warranty becomes void in case of any kind of intervention
not authorised by Schäfer Produkte GmbH. If a repair should be
necessary, please send the NU®without accessories, cleaned and
well packed, with a description of the fault and proof of purchase,
directly to Schäfer Produkte GmbH.
The statutory warranty rights towards the seller and any possible
seller warranties remain unaected.
Lossofwarrantyinthefollowingcases:
•Improper handling
•Improper cleaning
•Inappropriate use
•Destruction of the unit by force
•Opening of the glass washer
•Use of caustic or chlorinated products
8SHUTDOWN
• Turn o the tap
•Disconnect the NU®from the water supply
•Clean the unit and brushes (see point 7)!
9SUSTAINABILITY & DISPOSAL
Perfect hygiene and cleanliness as well as environmental
production compatibility give each other mutually at
Spül-
boy
®All
Spülboy
®model work without electricity and with
minimum and highly ecient water consumption per glass
cleaning cycle.
Approx. 8 cl of water are required for each washing cycle
and the water is only used when the rinsing function is actu-
ated. The Original Spülboy®washing tablets are completely
biodegradable.
Spülboy
®uses only high-quality and tested plastics. The
long service life is further enhanced by the modular product
system – each component can be replaced as a spare part.
All
Spülboy
®glass washers are fully recyclable
and therefore do not need to be disposed of as
hazardous waste.
Spülboy
®is a member of
Resy Organisation für Wertstoentsorgung GmbH.
Please dispose used products and packaging in
the designated bins.
5
Schäfer Produkte GmbH
Simonshöfchen 53
42327 Wuppertal Germany
phone +49 202 69532-0
fax +49 202 69532-10
e-mail info@spuelboy.de
www.spuelboy.de
Fortranslationsjustclick.
NU®instruction manuals are available for
download in many languages at www.spuelboy.de
02/18
Table of contents
Other SPÜLBOY Dishwasher manuals
