SPALDING M6711041 User manual

102/07 ID# M6711041
© COPYRIGHT 2007 bySPALDING
REQUIRED TOOLS AND MATERIALS:
• Two (2) Capable Adults
• Tape Measure
• Wood Board (scrap)
• Sawhorse or Support Table
• Step Ladder 8 ft. (2.4m)
• Safety Glasses
• (2 each) Wrenches
(2) Socket Wrenches and Sockets
• Extension
7/16" 1/2" 9/16" 3/4"
AND/OR
• Garden Hose or Sand
• Optional: Large & Small
Adjustable Wrenches
SAND
SAND
(280 lb.)
(280 lb.)
(128 kg)
(128 kg)
7/16" 1/2" 9/16" 3/4"
PortableSystem
OwnersManual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING
INSTRUCTIONS COULD
RESULT IN INJURY OR
DAMAGE TO PROPERTY.
WARNING!
Write Model Number From
Box Here:
This manual, accompanied by sales receipt, should be saved and kept on hand as a convenient reference, as it
contains important information about your model.
Adult Assembly Required.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1800 632 792
Internet Address: www.huffysports.com www.spalding.com
• Phillips-Head
Screwdriver

2
ID# M6711041 02/07
BEFORE YOU START!
To ensure optimal playability of backboard system, a close tolerance fit between the elevator
components and hardware is required. Test-fit large bolts into large holes of elevator tubes, backboard
brackets, and triangle plates. Carefully rock them in a circular motion to ream out any excess paint from
holes if necessary.
NOTE: Not all items pictured are included with every model.

02/07 ID# M6711041
3
Owner must ensure that all players know and follow these rules
for safe operation of the system.
WARNING
• DO NOT HANG on the rim or any part of the system including
backboard, support braces or net.
• During play, especially when performing dunk type activities,
keep player's face away from the backboard, rim and net.
Serious injury could occur if teeth/face come in contact with
backboard, rim or net.
• Do not slide, climb, shake or play on base and/or pole.
• After assembly is complete, fill system completely with water
or sand. Never leave system in an upright position without
filling base with weight, as system may tip over causing
injuries.
• When adjusting height or moving system, keep hands and
fingers away from moving parts.
• Do not allow children to move or adjust system.
• During play, do not wear jewelry (rings, watches, necklaces,
etc.). Objects may entangle in net.
• Surface beneath the base must be smooth and free of gravel or
other sharp objects. Punctures cause leakage and could cause
system to tip over.
• Keep organic material away from pole base. Grass, litter, etc.
could cause corrosion and/or deterioration.
• Check pole system for signs of corrosion (rust, pitting,
chipping) and repaint with exterior enamel paint. If rust has
penetrated through the steel anywhere, replace pole
immediately.
• Check system before each use for proper ballast, loose
hardware, excessive wear and signs of corrosion and repair
before use.
• Check system before each use for instability.
• Do not use system during windy and/or severe weather
conditions; system may tip over. Place system in the storage
position and/or in an area protected from the wind and free
from personal property and/or overhead wires.
• Never play on damaged equipment.
• When moving system, use caution to keep mechanism from
shifting.
• Keep pole top covered with cap at all times.
• Do not allow water in tank to freeze. During sub-freezing
weather add 2 gallons of non-toxic antifreeze, sand or empty
tank completely and store. (Do not use salt.)
• While moving system, do not allow anyone to stand or sit on
base or have added ballasting on base.
• Do not leave system unsupervised or play on system when
wheels are engaged for moving.
• Use Caution when moving system across uneven surfaces.
System may tip over.
• Use extreme caution if placing system on sloped surface.
System may tip over more easily.
• See instruction manual for proper installation and
Read and understand warnings listed
below before using this product.
Failure to follow these warnings may
result in serious injury and/or property
damage.
ID#: 561000 01/06
In the U.S.: 1-888-713-5488 In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339
In the U.S.: 1-800-334-9111
In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339

4
ID# M6711041 02/07
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
To ensure safety, do not attempt to assemble this system without following the instructions carefully. Check
entire box and inside all packing material for parts and/or additional instruction material. Before beginning
assembly, read the instructions and identify parts using the hardware identifier and parts list in this
document. Proper and complete assembly, use, and supervision are essential for proper operation and to
reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed,
maintained, and operated properly.
Most injuries are caused by misuse and/or not following instructions.
Use caution when using this system.
• If using a ladder during assembly, use extreme caution.
• Two (2) capable adults are recommended for this operation.
• Check base regularly for leakage. Slow leaks could cause system to tip over unexpectedly.
• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections
to separate during play and/or transport of the system.
• Climate, corrosion or misuse could result in system failure.
• Minimum operational height is 6' 6" (1.98 m) to the bottom of backboard.
• This equipment is intended for home recreational use only and NOT excessive competitive
play.
• Read and understand the warning label affixed to pole. Label is shown to the right.
• The life of your basketball pole depends on many conditions. The climate, placement of the
pole, the location of the pole, exposure to corrosives such as pesticides, herbicides or salts
are all important.
• If technical assistance is required, contact Customer Service.
• Adult supervision is recommended when adjusting height.
2
2
1
3
TO ADJUST BACKBOARD:
1. While holding handle, remove pin.
2. Move elevator up or down to
desired height.
3. Replace pin full length to lock
system at desired height.
201252 2/99
1
2
4
3
MOVING SYSTEM
1. Adjust basketball backboard
height to lowest position.
2. While holding pole, rotate
basketball system forward
until wheels engage with
ground.
3. Move basketball system to
desired location.
4. Carefully rotate basketball
system upright.
5. Reattach ground restraint and
check system for stability.
HEIGHT ADJUSTMENT
46

02/07 ID# M6711041
5

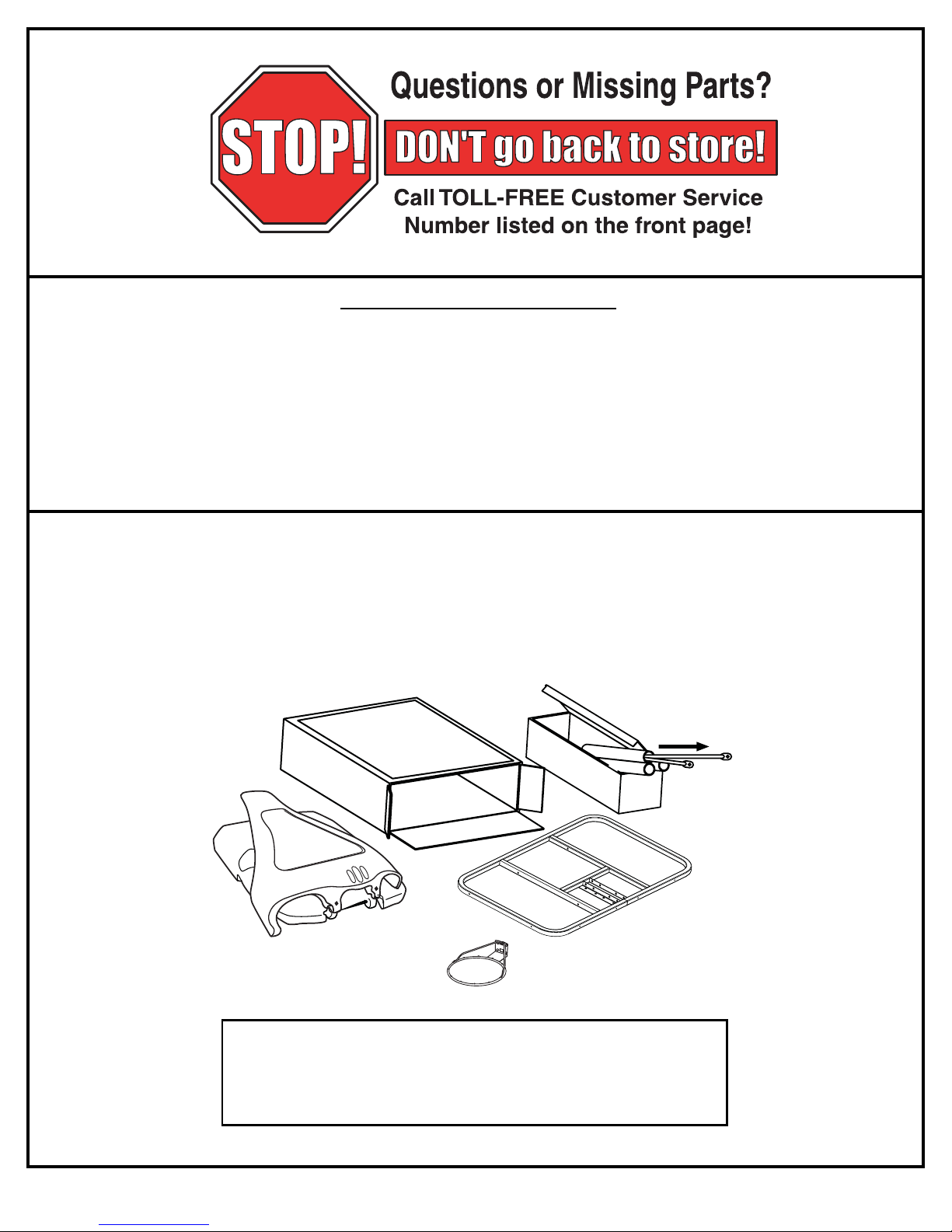

IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections;
hardware and additional parts are packed inside.
NOTICE TO ASSEMBLERS
Adult Assembly Required. Dispose of ALL packaging materials promptly. As with all products,
periodically inspect for loose small parts.
Assembled unit MUST be filled with sand or water at ALL times.
ALL basketball systems, including those used for DISPLAYS, MUST be assembled and installed
according to instructions. Failure to follow instructions could result in SERIOUS INJURY. It is NOT
acceptable to devise a makeshift support system.
PRODUCT REGISTRATION:
Please remember to complete your product registration form on-
line at:
www.huffysports.com/customer_support/product_registration.

6
ID# M6711041 02/07
Get to know the basic parts of your basketball system....
FRONT
PANEL
BACKBOARD
RIM
BASE
FRONT VIEW
POLE

02/07 ID# M6711041
7
Item Qty. Part No. Description
1 1 203470 Washer, Flat, 1.5” O.D.
2 1 80662001 Base Assembly
3 1 804833 Exacta Height Assembly
4 1 908006 Top Pole Section
5 1 90810701 Middle Pole Section
6 1 908142 Bottom Pole Section
7 2 206934 Large Eyebolt, 3/8”
8 8 203063 Nylon Insert Lock Nut, 3/8-16
9 1 206634 Rod, 1/2 x 9-1/2 Long
10 1 203099 Nut, Ny-lock, 5/16-18
11 4 201681 Spacer, Plastic .530 I.D. x .88 Long
12 1 202662 Bolt, Hex Head, 5/16-18 x 4-1/2 Long
13 2 200341 Nut Cover
14 11* 203100 Hex Flange Nut 5/16-18
15 1 204832 Bracket, Pole Mount
16 2 203053 Carriage Bolt, 5/16-18 x 4 Long
17 4 203232 Washer, Metal, 3/4” O.D.
18 4* 201124 Lock Nut, 3/8-16
19 4 206360 Bolt, Hex Head, 3/8-16 x 2-5/8 Long
20 2 204858 Spacer, Plastic Biscuit
21 2 204857 Spacer, Metal 1/2” O.D. x 1.44 Long
22 2 204859 Cover, Pin Slide
23 1 203038 Carriage Bolt, 5/16-18 x 2-3/4 Long
24 1 204850 Pin, Locking
25 1 204853 Lanyard, Black Coil
26 4 201683 Spacer, .530 I.D. x 1.5 Long
Item Qty. Part No. Description
27 2 908256 Bracket, Backboard Support
28 2 200874 Spacer, Steel .402 I.D. x .5 O.D. x 1.5
Long
29 6 206244 Bolt, Hex Head, 1/2-13 x 8 Long
30 4 201642 Spacer, Plastic, .530 I.D. x .625 Long
31 7 206340 Lock Nut, Hex Head, 1/2-13
32 2 904820 Elevator Tube, Lower - Long
33 1 204837 Spring, Counter Balance
34 1 Rim
35 2 904808 Elevator Tube, Upper - Short
36 2 201682 Spacer, .530 I.D. x 1.875
37 2 900867 Plate, Triangle, (Black)
38 1 207103 Cap, Pole Top
39 2* 200520 Screw, #8 x 1/2
40 1 202605 Bolt, Hex, 1/2-13 x 4.25 Long
41 1 206219 Plug, Tank Cap
42 1 206990 Reinforcement Bracket
43 1 204290 Net
44 4* 205528 Bolt, Hex Flange, 5/16-18 x 1 Long
45 6 203309 Washer, .406 I.D. x 1 O.D. Flat
46 1 511679 Label, Height Adjustment and Moving
47 4 204961 Bolt, Hex Head, 5/16-18 x .625 Long
48 1 900033 Bracket, Slam Jam
49 1 203796 Bolt, Tee, 3/8-16, 5” Long
50 1 200318 Bracket, Reinforcement, Slam Jam
51 1 203472 Spring, Rim
52 1 203795 Nut, Special, 3/8-16
* YOU MAY HAVE EXTRA PARTS WITH THIS MODEL.
Hardware kit is designed for
more than one style of
basketball system. Not all
hardware will be used.
NOTE:
WARNING!
IF YOUR SYSTEM IS EQUIPPED WITH AN ACRYLIC BACKBOARD, EXAMINE BACKBOARD FOR ANY DAMAGE
THAT MAY HAVE OCCURRED DURING SHIPMENT. CRACKS IN THE BACKBOARD COULD RESULT IN
SUDDEN BREAKAGE. IF BACKBOARD IS DAMAGED IN ANY WAY PRIOR TO OR AFTER ASSEMBLY, CALL
TOLL-FREE NUMBER:
U.S. 1-800-558-5234; CANADA: 1-800-284-8339; http://www.huffysports.com
PARTS LIST - (See Hardware Identifier)

8
ID# M6711041 02/07
HARDWARE IDENTIFIER (BOLTS & SCREWS)
* You may have extra parts with this model.
#7 (2)
#40 (1)
#39 (2)
Item #23 (1)
#29 (6)
#16 (2)
#12 (1)
#44 (4)*
#19 (4)
#47 (4)
#49 (1)
HARDWARE IDENTIFIER (STEEL SPACERS)
#28 (2)
#21 (2)

02/07 ID# M6711041
9
HARDWARE IDENTIFIER (NUTS & WASHERS)
HARDWARE IDENTIFIER (PLASTIC SPACERS CAPS & CLIPS)
HARDWARE IDENTIFIER (OTHER)
#13 (2)
#20 (2)
#26 (4) #30 (4)
#36 (2) #11(4)*
#18 (4)*
#14 (11)*
#10 (1)
#8 (8)
#31 (7) #17 (4)
#45 (6)
#52 (1)
#1 (1)
#48 (1)
#50 (1)
#51 (1)

10
ID# M6711041 02/07
TOOLS REQUIRED FOR THIS SECTION
SECTION A: ASSEMBLE THE BASE
This is what your system will look like when you’ve
finished this section.
Phillips-Head Screwdriver
9/16”
1/2”
(2) 1/2” and (2) 9/16" Wrenches (2) Socket Wrenches and Sockets
AND/OR

02/07 ID# M6711041
11

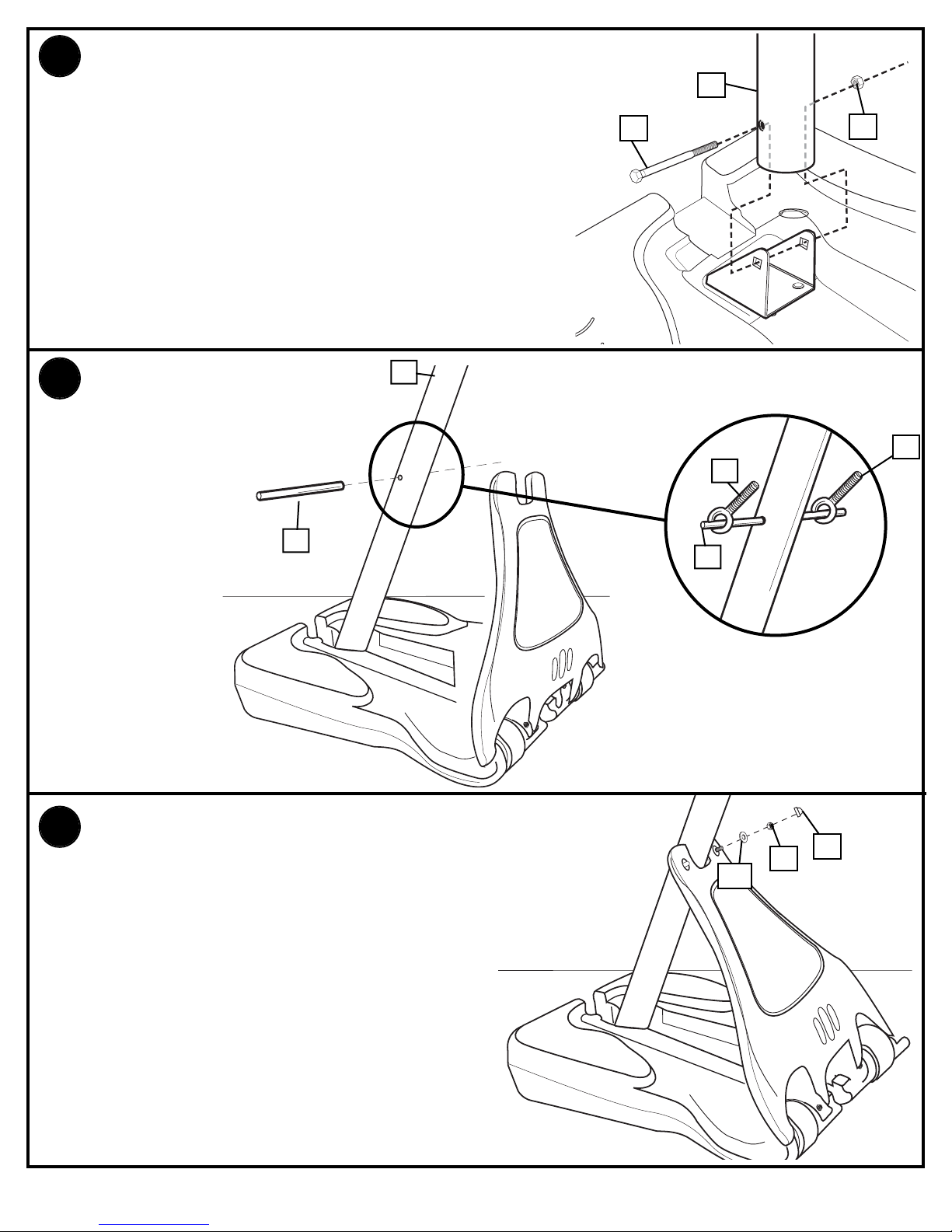

1A. Check the following pre-assembled base areas for tightness: Eye bolts P/N 203452, Washer P/N
203218, Nut P/N 203100, Carriage Bolts P/N 203223.
Eye bolts
P/N 203452
Reinforcement Bracket
P/N 206091
Carriage Bolts
P/N 203223
Pole Bracket
P/N 201581
Base
P/N 206620
Hex Flange Nut
P/N 203100
Washer
P/N 203218 Nut
P/N 203100
Front Cover
P/N 206002

12
ID# M6711041 02/07
Check the following pre-assembled handle areas for tightness: Screw P/N 204803, Nut P/N 203100,
Carriage Bolts P/N 203103.
Carriage Bolt P/N 203103
Nut P/N 203100
Nut P/N 203100
Handle, Right
P/N 204856
Handle, Left
P/N 204855
Screw P/N 204803
Carriage Bolt P/N 203103
Height Adjustment Rod
P/N 904833
Label,Height
Indicator
P/N 204872
Label,Height
Indicator
P/N 204872
1B.

02/07 ID# M6711041
13
6
5
4
3.
WOOD SCRAP
(NOT SUPPLIED)
5
4
While maintaining alignment, bounce middle pole section (5) into top section (4) using a wood scrap as
shown until the top pole no longer moves toward the pole identification sticker on the middle pole.
Identification Sticker
Align dimple of top pole section (4) into trough of
middle pole section (5) as shown.
IMPORTANT!
HOLE
DIMPLE
middle pole
5"
middle pole
1-1/2"
2. Identify pole sections.
ID
STICKER
THE IDENTIFICATION STICKER IS
LOCATED 5" FROM THE END OF
THE POLE. WHEN PROPERLY
POUNDED TOGETHER, THE
POLE SECTIONS SHOULD HAVE
A 3-1/2" MINIMUM OVERLAP,
LEAVING 1-1/2" BETWEEN THE
OVERLAPPING POLE AND THE
IDENTIFICATION STICKER.
CAUTION!

14
ID# M6711041 02/07
4.
4
5
6
WOOD SCRAP
(NOT SUPPLIED)
RODS SHOWN ARE
FOR VISUAL
REPRESENTATION
OF ALIGNMENT
AND ARE NOT
SUPPLIED WITH
THE HARDWARE
Align dimple of middle pole section (5) into trough
of bottom pole section (6) as shown.
IMPORTANT!
HOLE
DIMPLE
Bottom pole
5"
1-1/2"
ID
STICKER
Bottom pole
Bounce top and middle pole assembly (4 & 5) onto bottom pole section (6) using a wood scrap as shown.
Bounce until the top and middle pole assembly no longer moves toward the pole identification mark on the
bottom pole.
THE IDENTIFICATION STICKER IS
LOCATED 5" FROM THE END OF
THE POLE. WHEN PROPERLY
POUNDED TOGETHER, THE
POLE SECTIONS SHOULD HAVE
A 3-1/2" MINIMUM OVERLAP,
LEAVING 1-1/2" BETWEEN THE
OVERLAPPING POLE AND THE
IDENTIFICATION STICKER.
CAUTION!

02/07 ID# M6711041
15
9
7
6
9
7
13
8
45
5. Install bolt (12) through bracket and bottom pole section (6)
and secure with nut (10) as shown. Nut should be tightened
until flush (even) with locknuts outer edge. 12 10
6
7. Secure cover to rod (9) using washers (45) nuts (8) and
nut covers (13) as shown.
Install rod (9) through
bottom pole section (6) as
shown. Install large eye
bolts (7) onto rod (9) as
shown.
6.

16
ID# M6711041 02/07
8.Install pole mount bracket (15) and reinforcement bracket (42) with carriage bolts (16) as shown.
Tighten flange nuts (14) completely.
4
42
16
16
15
14
14
9. Attach spacers (20, 21) to pole mount bracket (15) with bolts (19), washers (17), and nuts (8) as shown.
15
17
17
8
19
17
17
21
20
20
21
IMPORTANT!
Tighten just until
washers (17) stop
moving.

02/07 ID# M6711041
17
Assemble lanyard (25) to locking pin (24) as shown (FIG A). Attach covers (22) onto pole mount bracket
(15) with carriage bolt (23) and nut (14) as shown.
10.
15
14
24
22
22
25
23
FIG. A
25
24 Loop end of pin
lanyard (25) over
carriage bolt (23)
as it passes
through the pole
mount bracket
(15) during this
assembly.
IMPORTANT!
23
25
24
Insert handle assembly (3) through pole mount assembly as
shown. Lock pole assembly in place at the 10’ (3.05 m)
mark with pin (24).
24
11.3

18
ID# M6711041 02/07
TOOLS REQUIRED FOR THIS SECTION
SECTION B: ATTACH THE BACKBOARD
This is what your system will look like when you’ve
finished this section.
Phillips-Head Screwdriver
9/16”
1/2”
(2) 1/2”, (2) 9/16", and (2) 3/4” Wrenches (2) Socket Wrenches and Sockets
AND/OR
3/4”
Sawhorse or Support Table
35
32
Upper Elevator tube
Lower Elevator tube
Identify elevator tubes.

02/07 ID# M6711041
19
Assemble backboard brackets (27) using bolts (47), and nuts (8) as shown.
1.
27
47
8
8
47

20
ID# M6711041 02/07
Attach lower elevator tubes (32) and counter balance spring (33) to backboard support brackets (27)
using spacers (11, 26), bolt (29), and nut (31) as shown.
Insert T-bolt (49) into rim bracket (48) then, attach that assembly to board using bolts (44) and nuts (14)
32
32
27
2.
3.
29
32 32
26
26
14
14
31
27
33
49
48
48
44
11
