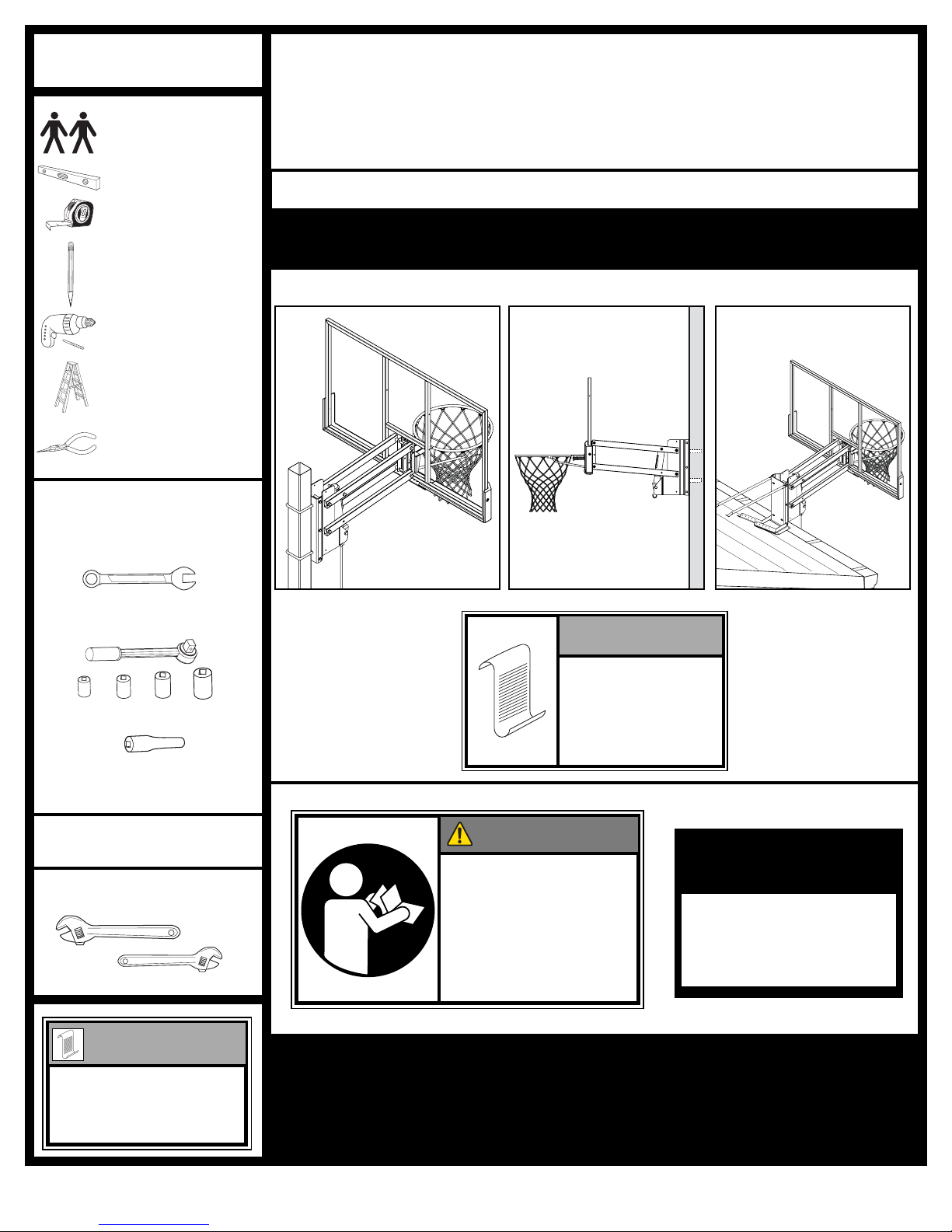

SPALDING M316001 User manual

101/07 ID# M316001
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-632 792
Internet Address: www.huffysports.com www.spalding.com
REQUIRED TOOLS
AND MATERIALS:
• (2 each) Wrenches and/or
Socket Wrenches and Sockets
(Deep-Well Sockets are
Recommended).
• Extension is Recommended.
AND/OR
• Large & Small Adjustable
Wrenches
OPTIONAL TOOLS
AND MATERIALS:
UniversalElevatorMount
OwnersManual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
Write Model Number
From Box Here:
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
WARNING!
• 2 Capable Adults
• Carpenter’s Level
• 15’ Tape Measure
• Pencil
• Drill and Drill Bit (3/8")
• Step Ladder 8ft. (2.4 m)
• Needle-Nose Pliers
7/16" 1/2" 9/16" 3/4"
7/16" 1/2" 9/16" 3/4"
This manual, accompanied by sales receipt, should be saved and kept on hand as a
convenient reference, as it contains important information about your model.
Adult Assembly Required.
Due to various mounting
methods, additional
tools and materials may
be required.
NOTE:
Mount, Pole
and Board
style will vary.
NOTE:

2
ID# M316001 01/07

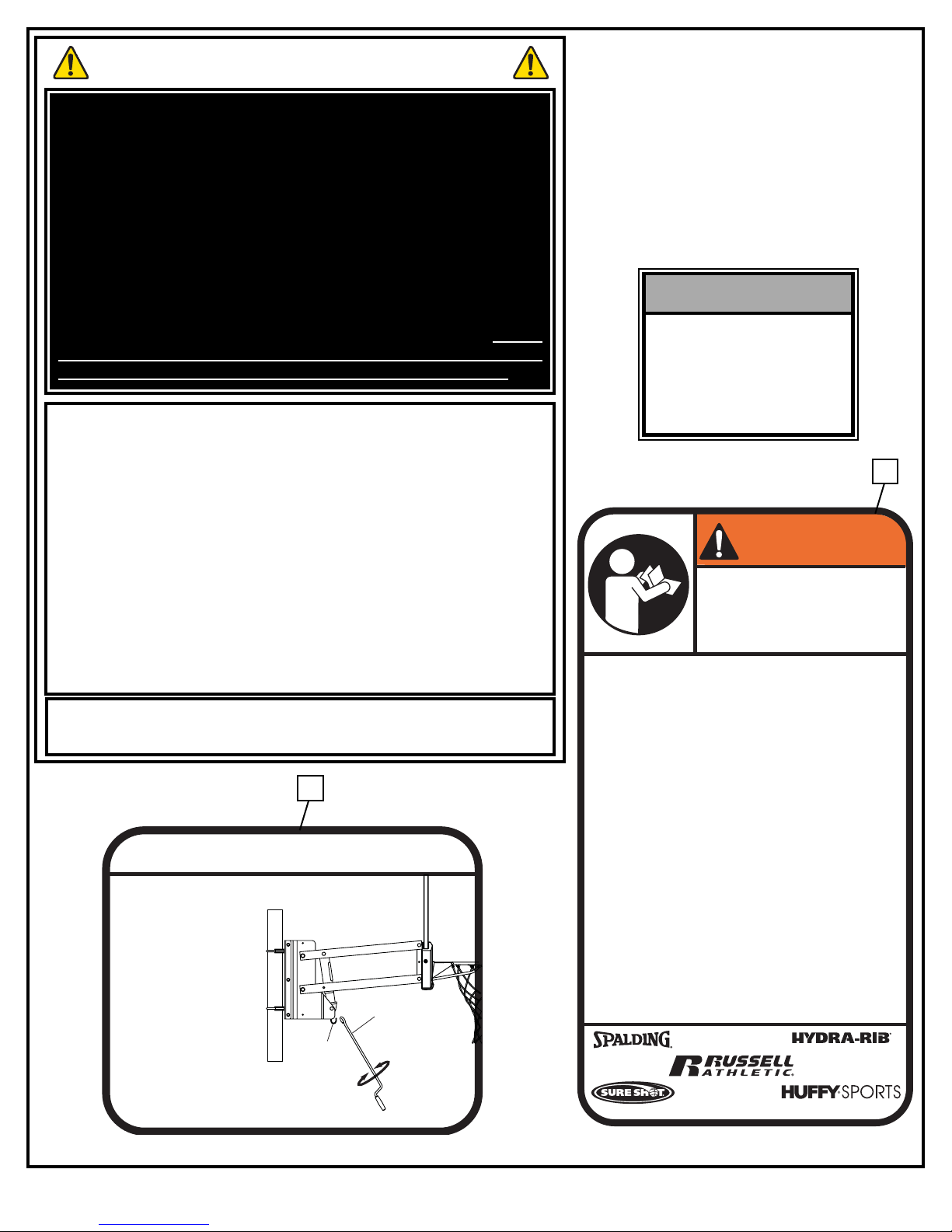

SAFETY INSTRUCTIONS
• This equipment is intended for home recreational use only
and NOT excessive competitive play.
• Read and understand the warning label enclosed with
hardware. It is the responsibility of the customer to mount
this label. It should be affixed to the pole, wall, or door
near playing area, at a height between 4-6 feet (1.2 -1.8 m)
above ground level and in a location visible to all players.
• If using a ladder during assembly, use extreme caution.
• Two (2) capable adults are recommended for this
operation.
• If technical assistance is required, contact Customer
Service.
• Adult supervision is recommended when adjusting height.
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY
RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE AND
WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules
for safe operation of the system.
To ensure safety, do not attempt to assemble this system without
following the instructions carefully. Proper and complete
assembly, use and supervision is essential for proper operation
and to reduce the risk of accident or injury. A high probability of
serious injury exists if this system is not installed, maintained,
and operated properly. Check entire box and inside all packing
material for parts and/or additional instructional material. Before
beginning assembly, read the instructions and identify parts
using the hardware identifier and parts list in this document.
Most Injuries are caused by misuse and/or not following instructions.
Use caution when using this unit.
Owner must ensure that all players know and follow these rules
for safe operation of the system.
WARNING
• DO NOT HANG on the rim or any part of the system including
backboard, support braces or net.
• During play, especially when performing dunk type activities,
keep player's face away from the backboard, rim and net.
Serious injury could occur if teeth/face come in contact with
backboard, rim or net.
• Do not slide, climb, shake or play on base and/or pole.
• When adjusting height or moving system, keep hands and
fingers away from moving parts.
• Do not allow children to move or adjust system.
• During play, do not wear jewelry (rings, watches, necklaces,
etc.). Objects may entangle in net.
• Keep organic material away from pole base. Grass, litter, etc.
could cause corrosion and/or deterioration.
• Check pole system for signs of corrosion (rust, pitting,
chipping) and repaint with exterior enamel paint. If rust has
penetrated through the steel anywhere, replace pole
immediately.
• Check system before each use for proper ballast, loose
hardware, excessive wear and signs corrosion and repair
before use.
• Check system before each use for instability.
• Never play on damaged equipment.
• Keep pole top covered with cap at all times.
• See instruction manual for proper installation and
maintenance.
R ea d a nd und e r s t a nd w a r ning s li s t e d
b e low b e f o r e u s ing t hi s p r odu c t .
F
a ilu r e t o f ollow t h ese w a r ning s m ay
r es ul t in se r iou s inju r y a nd / o r
p r op e r t y d a m a g e .
ID#: 588000 05/05
In the U.S.: 1-888-713-5488 In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339
In the U.S.: 1-800-334-9111
In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339
After installation is
complete, adhere this
WARNING label (7) in
a clearly visible
place.
NOTE:
Crank
Hook

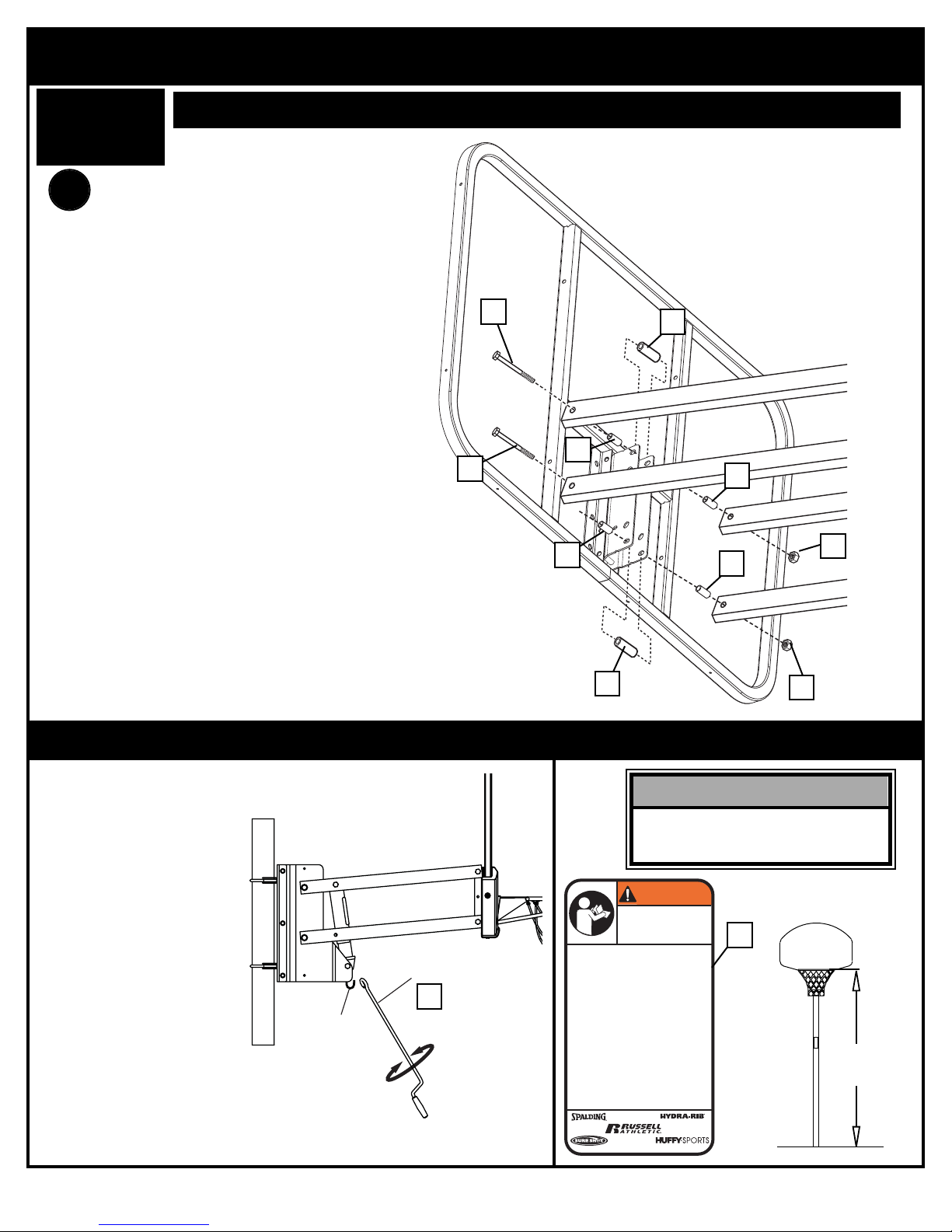

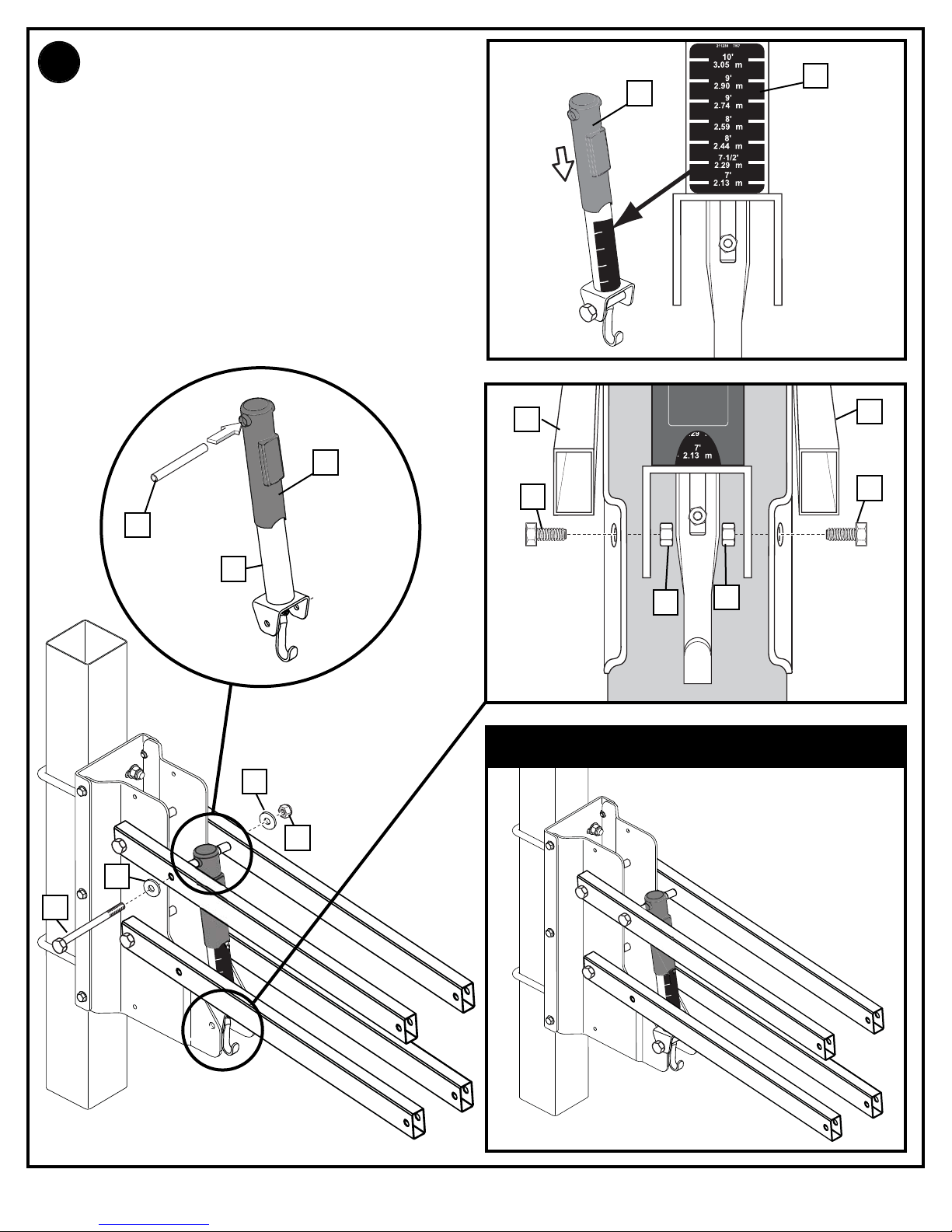

HEIGHT ADJUSTMENT
TO ADJUST BACKBOARD:
Position looped end of
crank onto hook as shown.
Rotate crank handle to
raise or lower backboard
509000 1/07
33
7

01/07 ID# M316001
3

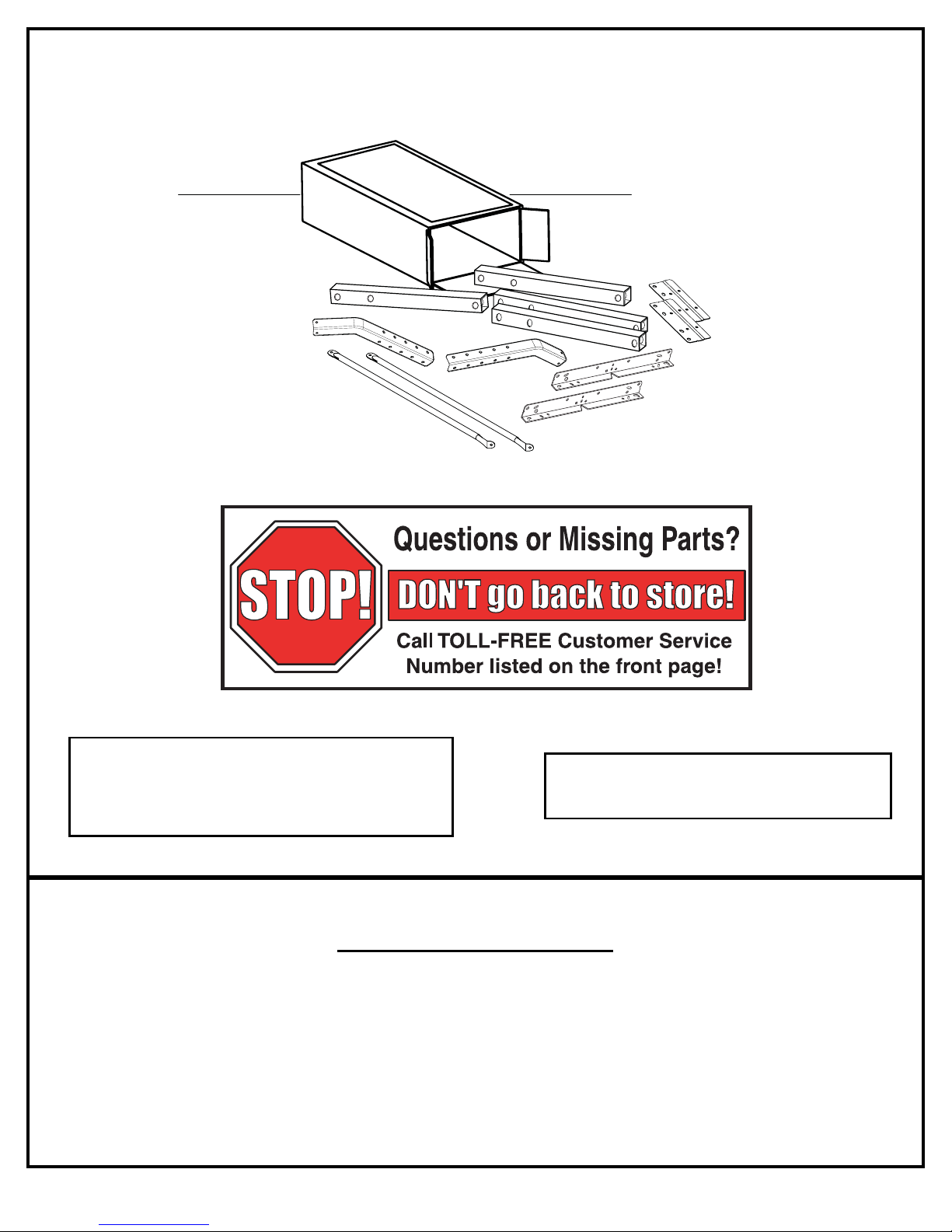

IMPORTANT!
Remove all contents from box.
For more information on assembly, placement, proper
use, and maintenance, visit The American Basketball
Council website at http://www.smarthoops.com.
NOTICE TO ASSEMBLERS
Adult Assembly Required. Dispose of ALL packaging materials promptly. As with all products, periodically
inspect for loose small parts.
ALL basketball systems, including those used for DISPLAYS, MUST be assembled and installed according
to instructions. Failure to follow instructions could result in SERIOUS INJURY. It is NOT acceptable to
devise a makeshift support system.
PRODUCT REGISTRATION:
Please remember to complete your product registration form on-
line at:
www.huffysports.com/customer_support/product_registration.

4
ID# M316001 01/07
Item Qty. Part No. Description
1 2 205807 U-Bolt, Round 3/8-16 x 4.68
2 2 202675 Clamp, Saddle
3 6 203589 Bolt, Hex Head, 5/16-18 x 1-1/4” Long
4 1 201129 Spacer, 1.8 Long
5 1 240017 Bolt, Hex Head, 1/4-20 x 2-1/4" Long
6 5 205678 Bolt, Hex Head, 1/2-13 x 7" Long
7 1 588000 Label, Warning
8 9 206340 Locknut, Hex Head, 1/2-13
9 12 203218 Washer, Flat, 5/16
10 10 202651 Washer, Flat, 1/2
11 6 203099 Locknut, Nylon Insert, 5/16
12 1 509000 Label, Height-Adjustment
13 1 240027 Nut, Hex, Locking 1/4-20
14 2 265500 Bolt, Hex Head, 1/2-13 x 1" Long
15 4 202587 Spacer, Plastic, 1" Long
16 3 206269 Spacer, Metal, .75 O.D., 4” Long
17 1 908525 Bracket, Pole
18 1 908528 Bracket, Jack Support, RIGHT
Item Qty. Part No. Description
19 1 908529 Bracket, Jack Support, LEFT
20 2 900846 Bracket, Elevator
21 1 206234 Sleeve, Plastic, Height-Indicator
22 1 806259 Handle Assembly, Crank
23 2 906206 Struts, Board Support
24 1 818093 Screw Jack Assembly
25 2 204620 Spacer, Plastic, .73 O.D., 1.7” Long
26 1 906349 Bracket, Angle, RIGHT
27 1 906350 Bracket, Angle, LEFT
28 1 211236 Label, Height-Indicator
29 2 220150 U-Bolt, Square, 1/2-13 x 5
30 4 901883 Tube, Elevator
31 2 201656 Spacer, Metal .3.5” Long
32 4 265533 Washer, Flat, Nylon
33 4 205593 Locknut, Nylon Insert, 3/8-16
34 4 203232 Washer, 3/8

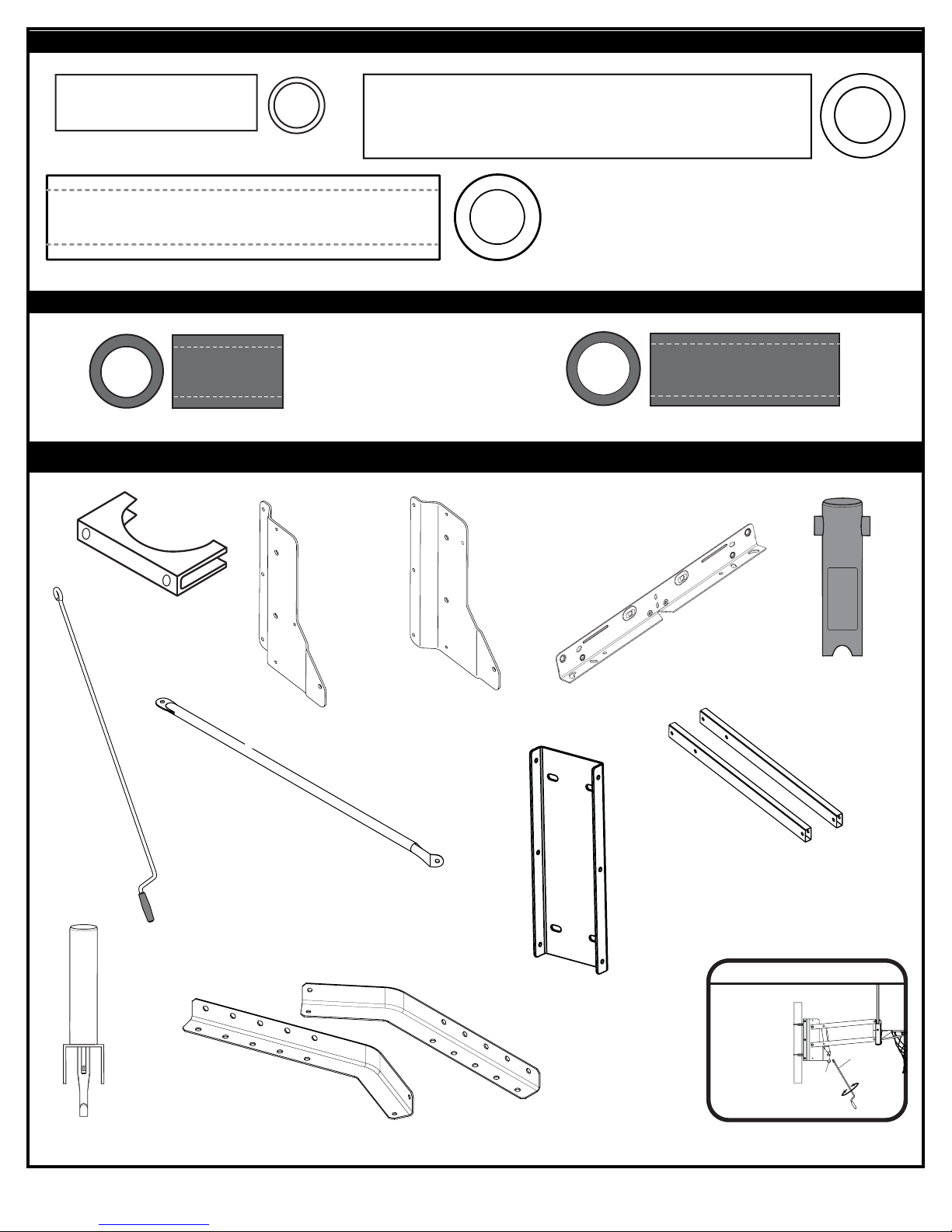

PARTS LIST - See Hardware Identifier
#8 (9) #9 (12) #34 (4)
#10 (10)
#11 (6) #33 (4)
#13 (1)
#6 (5)
#5 (1)
#14 (2)
#1 (2) - (NOT ACTUAL SIZE) #29 (2) - (NOT ACTUAL SIZE)
#3 (6)

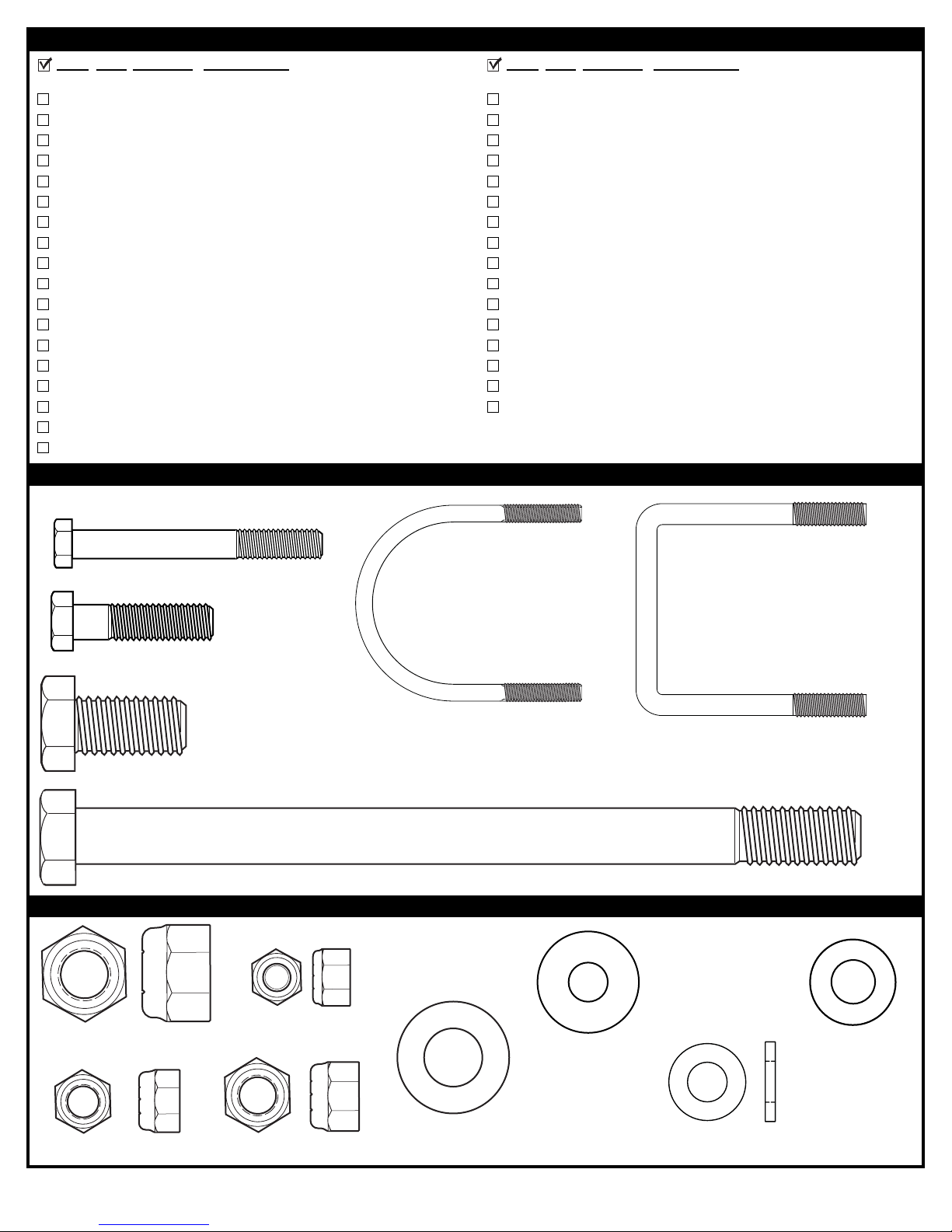

HARDWARE IDENTIFIER - ACTUAL SIZE (BOLTS AND SCREWS)
HARDWARE IDENTIFIER (NUTS AND WASHERS)
#32 (4)

01/07 ID# M316001
5
#4 (1)
#15 (4) #25 (2)
#16 (3)
HARDWARE IDENTIFIER - ACTUAL SIZE (STEEL SPACERS)
#31 (2)
HARDWARE IDENTIFIER - ACTUAL SIZE (PLASTIC SPACERS, CAPS, CLIPS AND OTHER)
HARDWARE IDENTIFIER (NOT ACTUAL SIZE)
#24 (1)
21 (1)
#23 (2)
#26 (1)
#30 (4)
#27 (1) #12 (1)
Crank
Hook
HEIGHT ADJUSTMENT
TO ADJUST BACKBOARD:
Position looped end of
crank onto hook as shown.
Rotate crank handle to
raise or lower backboard
509000 1/07
#20 (2)
#19 (1)
#18 (1)
#17 (1)
#22 (1)
#2 (2)

6
ID# M316001 01/07

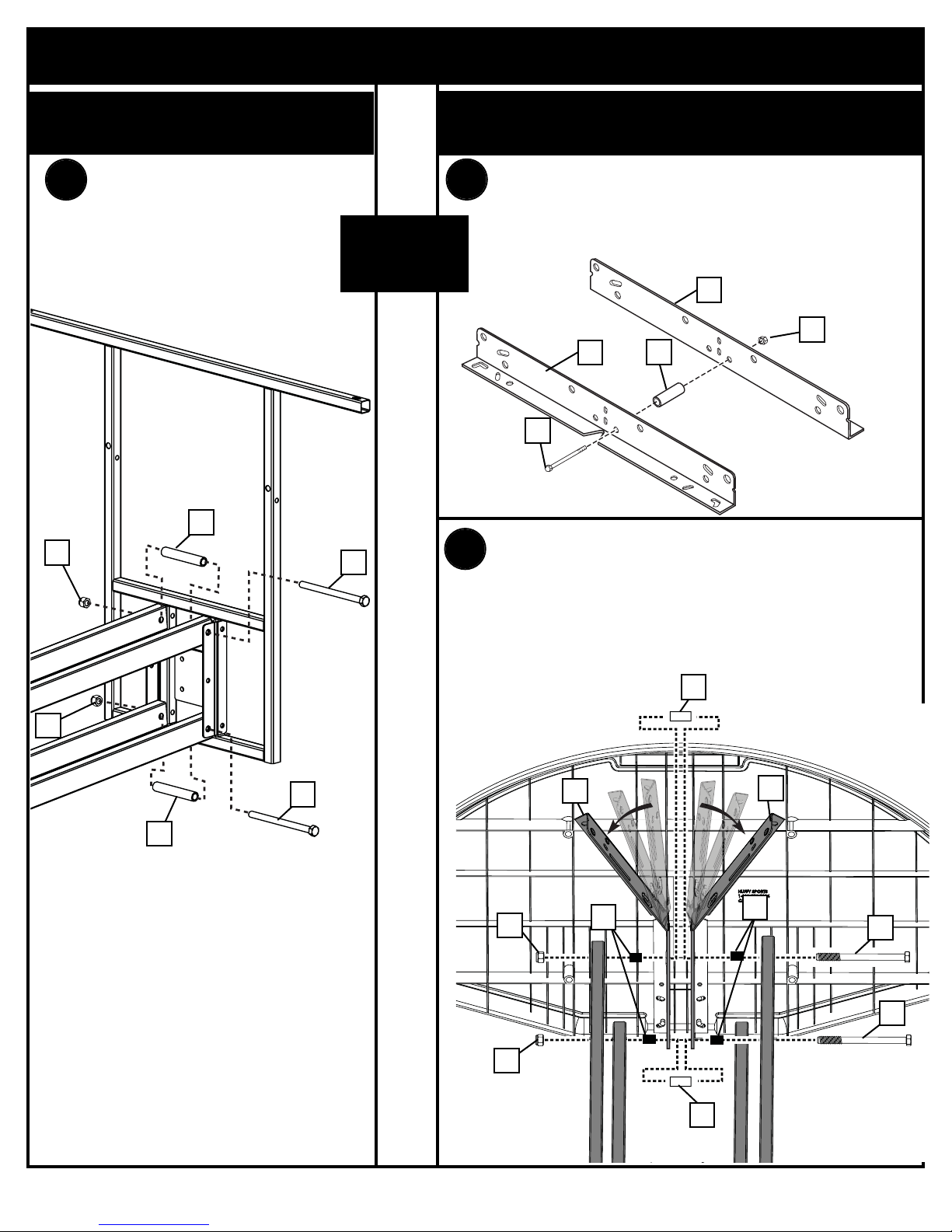

SECTION A: ASSEMBLE THE ELEVATOR MOUNT TO
DIFFERENT MOUNT SURFACES (POLE, WALL & ROOF)
30
Identify elevator tubes (30).
Toward
Mount
Toward
Board

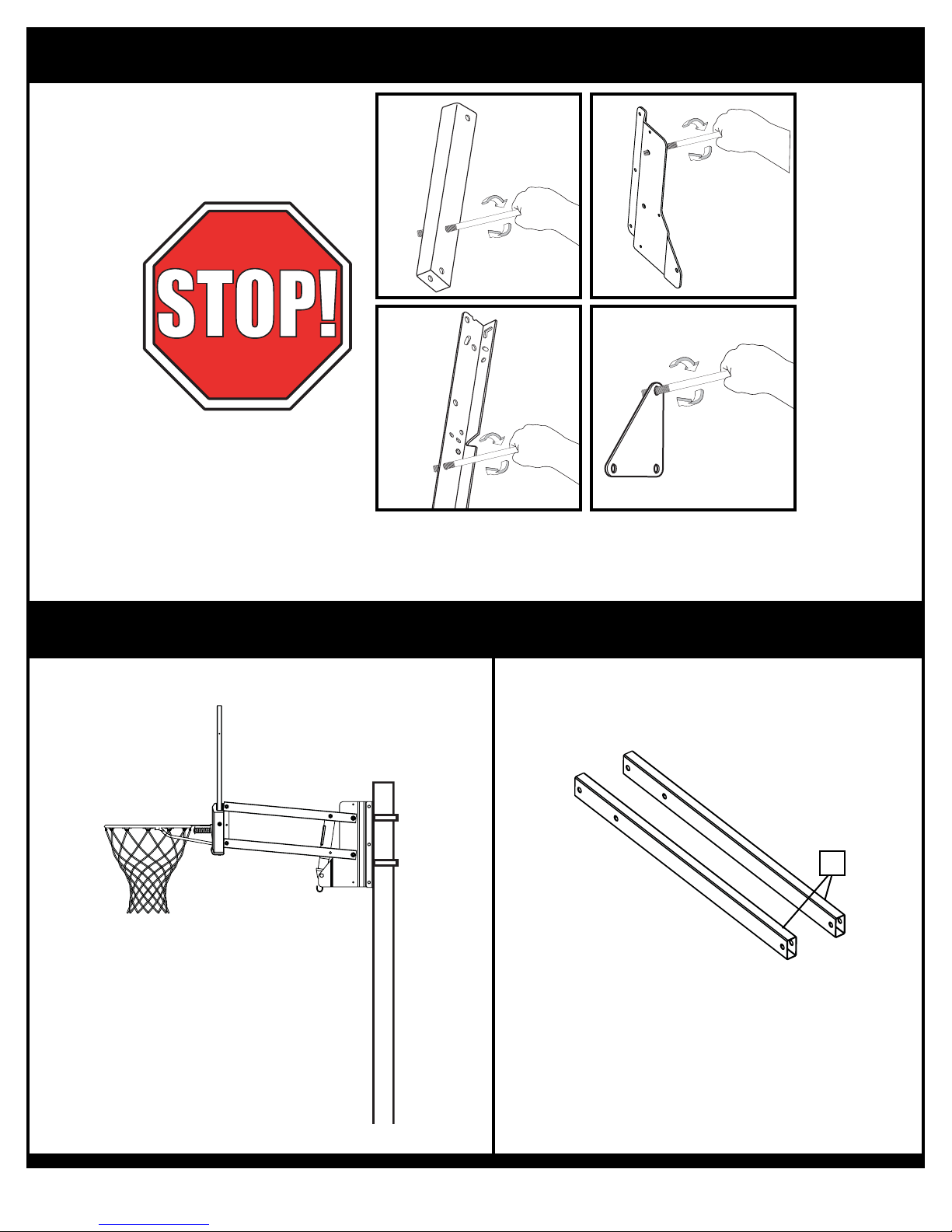

BEFORE YOU START!
To ensure optimal playability of backboard system, a close tolerance fit between the elevator components and
hardware is required. Test-fit large bolts into large holes of elevator tubes, backboard brackets, and triangle
plates. Carefully rock them in a circular motion to ream out any excess paint from holes if necessary. Not all parts
shown are included with every system.
Elevator Tubes

01/07 ID# M316001
7
At a position near the ground surface, assemble pole
bracket (17) to square pole using u-bolts (29), washers
(10) and nuts (8) as shown.
Attach jack support brackets (18 & 19) to pole bracket
(17) using bolts (3), washers (9) and nuts (11) as shown.

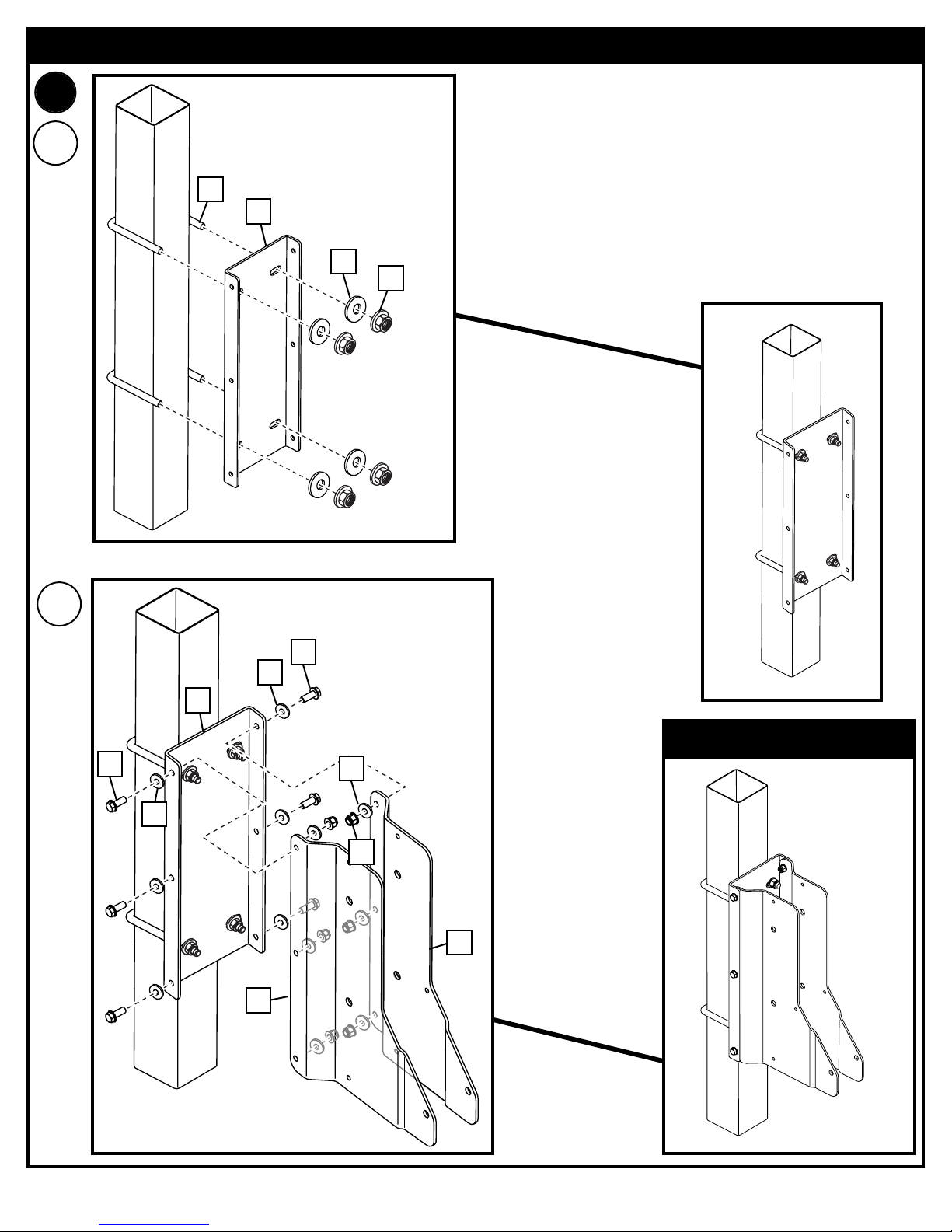

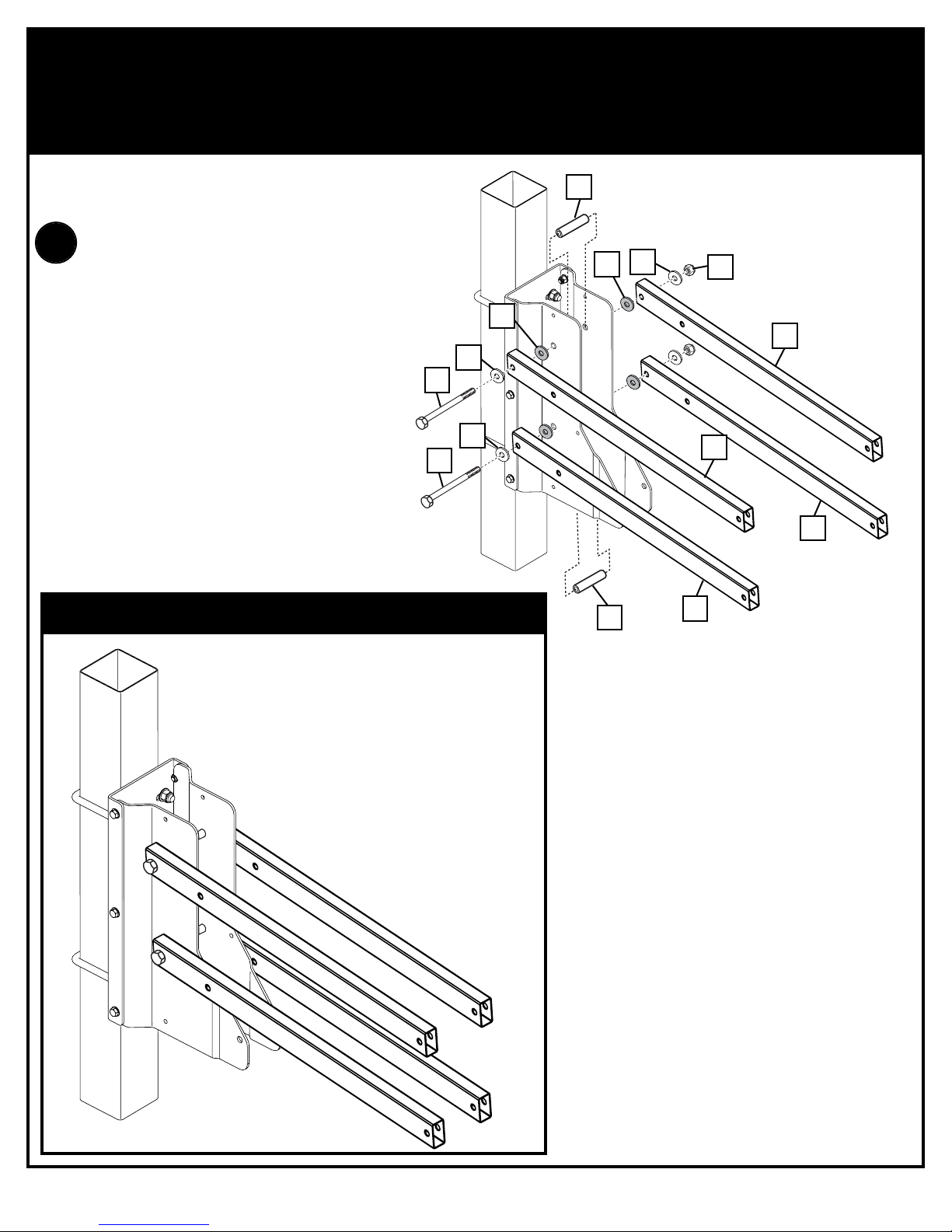

1.
29 17
8
10
Completed Assembly
ASSEMBLE THE ELEVATOR MOUNT TO A SQUARE POLE
11
9
3
18
19
A.
17
9
3
9
B.

8
ID# M316001 01/07

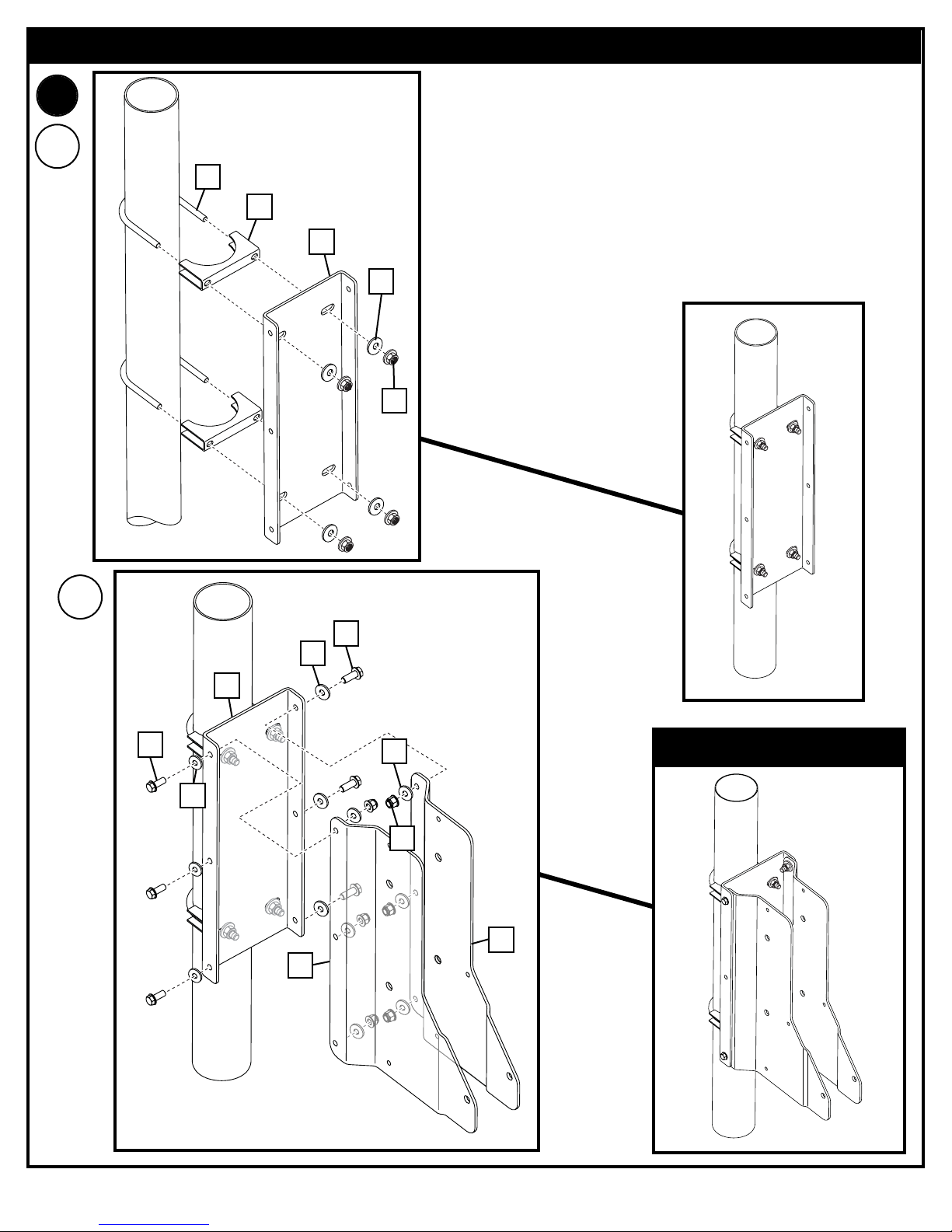

At a position near the ground surface, assemble pole
bracket (17) to round pole using u-bolts (1), clamps
(2), washers (34) and nuts (33) as shown.
Attach jack support brackets (18 & 19) to pole bracket
(17) using bolts (3), washers (9) and nuts (11) as
shown.
ASSEMBLE THE ELEVATOR MOUNT TO A ROUND POLE
2.
A.
1
2
17
33
34
18
19
Completed Assembly
B.
3
17
9
3
9
11
9

01/07 ID# M316001
9

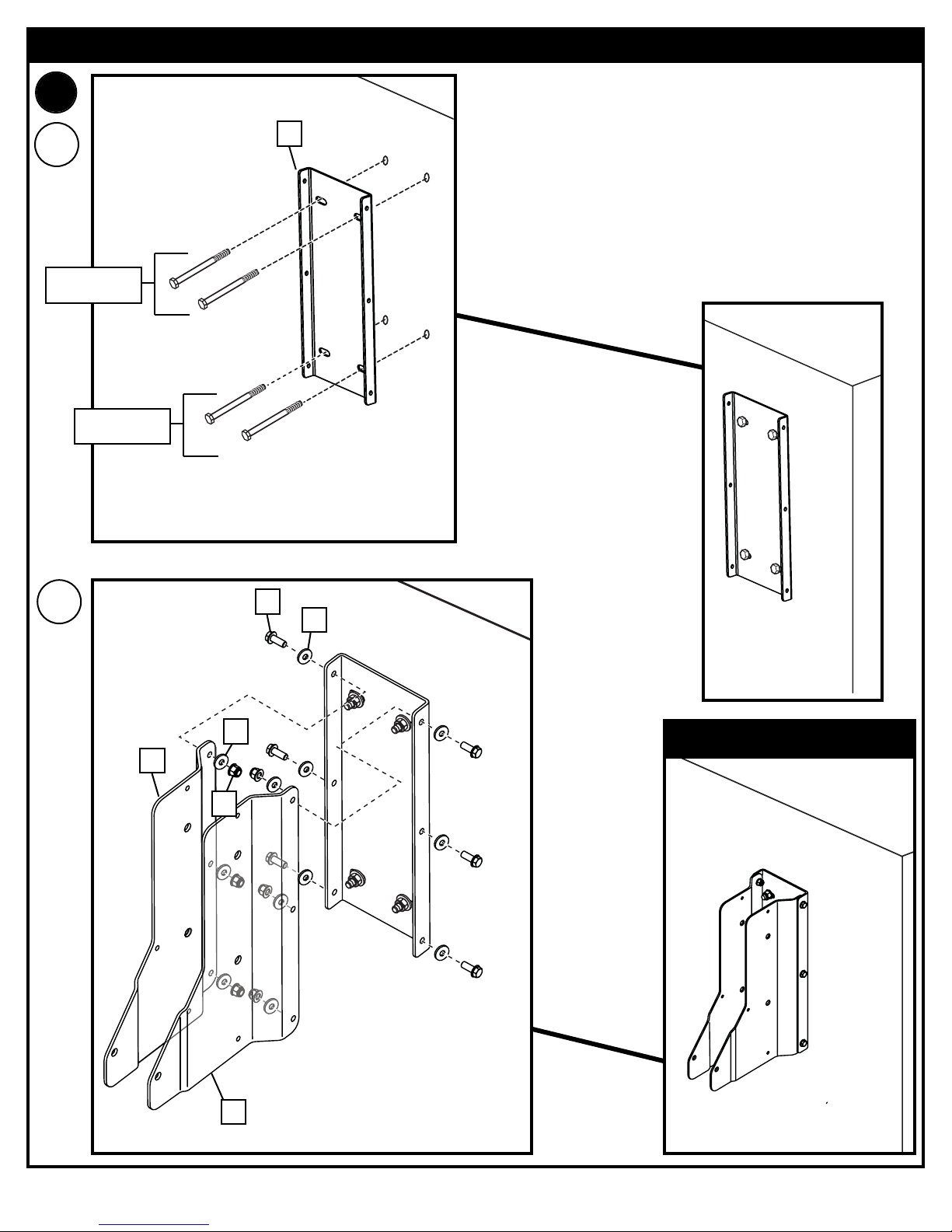

ASSEMBLE THE ELEVATOR MOUNT TO A WALL OR FLAT SURFACE
3.
17
Completed Assembly
3
19
18
9
11
B.
Not Included
with Hardware
Not Included
with Hardware
Secure pole bracket (17) to flat solid surface. Install bolt
heads outside for safety reasons.
Attach jack support brackets (18 & 19) to pole bracket (17)
using bolts (3), washers (9) and nuts (11) as shown.
A.
9

10
ID# M316001 01/07

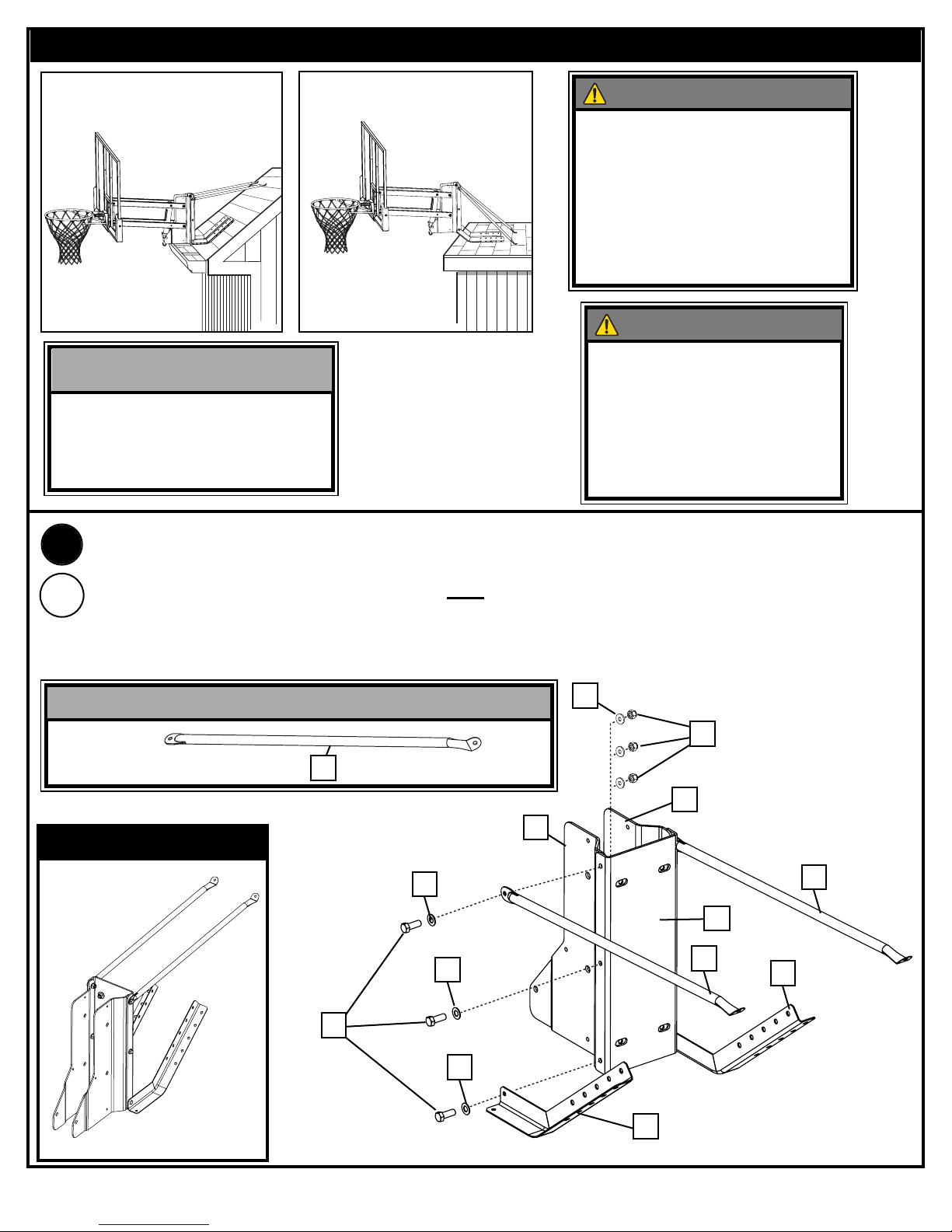

ASSEMBLE THE ELEVATOR MOUNT TO A FLAT OR ANGLED ROOF
4.
A.
Preassemble as shown below prior to mounting on roof.
Attach struts (23), angle brackets (26 & 27) AND jack support brackets (18 & 19) to pole bracket
(17) with bolts (3), washers (9) and nuts (11) as shown.
9
18
9
23
23
27
26
17
19
9
9
3
11
Hardware for these procedures
are not included due to various
roof and wall construction
materials and design structure.
NOTE:
Carefully inspect mounting
area for structural integrity
and hidden electrical wiring.
All mounting points should
be sealed to prevent leaks
and water damage"
WARNING!
A solid mounting base and/or
surface, capable of withstanding
normal recreational use forces,
must be provided by the
customer. A reliable carpenter
or building contractor should be
consulted if there are questions
regarding this procedure.
WARNING!
Completed Assembly
NOTE: Strut Position
To
U-Channel To
Roof
23

01/07 ID# M316001
11
FLAT OR ANGLED ROOF (continued)
4. Drill holes in roof.
Position angled
brackets and secure
to roof.
B.
4.
C.
23 Keep assembly upright and position
struts (23) on desired location on roof
approx. 26”-30” (66-76 cm) apart.
Level in all directions. Mark and drill
holes. Secure struts in place.
All mounting points should
be sealed to prevent leaks
and water damage"
WARNING!
Note position of angle brackets (26 & 27)
in relation to pole bracket per style roof.
To achieve 106-3/4” (2.7 m) you may
have to make some adjustments
such as moving angled brackets
backward or adding height to the
entire assembly with wood between
angled brackets and roof.
NOTE:
Minimum distance
should be 106-3/4” (2.71
m) from top elevator
hole to playing surface.
Homeowner must
assume all
responsiblilty for any
personal or property
damage if backboard
height is lower than
recommended.
WARNING!
USE CAUTION; ASSEMBLY IS HEAVY. TWO
CAPABLE ADULTS REQUIRED FOR THIS
PROCEDURE. FAILURE TO FOLLOW THIS
WARNING COULD RESULT IN SERIOUS
INJURY AND/OR PROPERTY DAMAGE.
WARNING!
106-3/4”
(2.71 m)
27 & 26
23
Not Included
with Hardware

12
ID# M316001 01/07
1.
8
610
32
32
10
30
30
30
30
10
6
Attach elevator tubes (30) to the
jack support brackets (18 & 19)
using bolts (6), washers (10),
spacers (31 & 32) and nuts (8)
as shown.
31
31
Completed Assembly
SECTION B:
FROM THIS SECTION FORWARD
THE ASSEMBLIES ARETHE SAME FOR SQUARE AND ROUND POLE, WALL MOUNT, AND
ROOF MOUNT

01/07 ID# M316001
13
7
7
9
8
7
9
8
7
7
7
9
8
7
9
8
7
Completed Assembly
7
7
9
8
7
9
8
7
16
21
24
8
10
6
10
2.
88
30
14 14
30
1
7
9
8
1
7
9
8
Attach height decal (28) on screw jack (24). Align
lower edge of decal (28) with screw jack bottom.
Place cover (21) over screw jack (24).
Insert spacer (16) into screw jack assembly (24)
as shown.
Install screw jack assembly (24) using
bolts (6 & 14), washer (10) and nut (8) as shown.
28
21

14
ID# M316001 01/07
ATTACH AN H-FRAME STYLE
BACKBOARD (STYLE WILL VARY) ATTACH A COMPOSITE STYLE BACKBOARD
(STYLE WILL VARY)
16
6
6
8
8
16
1. 1.
BACKBOARD MOUNTING
Attach backboard using hardware
shown.
Folow instructions that are
packaged with backboard for
specific assembly details.
413
20
20
5
2.
86
25
20
20
25
6
8
15
15
Attach backboard using hardware shown.
Bend support brackets (20) to line up with upper holes
in backboard.
Folow instructions that are packaged with backboard
for specific assembly details.
Assemble backboard brackets (20) using bolt (5)
spacer (4) and nut (13) as shown.
Folow instructions that are packaged with backboard
for specific assembly details.
OR

01/07 ID# M316001
15
Owner must ensure that all players know and follow these rules
for safe operation of the system.
WARNING
• DO NOT HANG on the rim or any part of the system including
backboard, support braces or net.
• During play, especially when performing dunk type activities,
keep player's face away from the backboard, rim and net.
Serious injury could occur if teeth/face come in contact with
backboard, rim or net.
• Do not slide, climb, shake or play on base and/or pole.
• When adjusting height or moving system, keep hands and
fingers away from moving parts.
• Do not allow children to move or adjust system.
• During play, do not wear jewelry (rings, watches, necklaces,
etc.). Objects may entangle in net.
• Keep organic material away from pole base. Grass, litter, etc.
could cause corrosion and/or deterioration.
• Check pole system for signs of corrosion (rust, pitting,
chipping) and repaint with exterior enamel paint. If rust has
penetrated through the steel anywhere, replace pole
immediately.
• Check system before each use for proper ballast, loose
hardware, excessive wear and signs corrosion and repair
before use.
• Check system before each use for instability.
• Never play on damaged equipment.
• Keep pole top covered with cap at all times.
• See instruction manual for proper installation and
maintenance.
R ea d a nd und e r s t a nd w a r ning s li s t e d
b e low b e f o r e u s ing t hi s p r odu c t .
F
a ilu r e t o f ollow t h ese w a r ning s m ay
r es ul t in se r iou s inju r y a nd / o r
p r op e r t y d a m a g e .
ID#: 588000 05/05
In the U.S.: 1-888-713-5488 In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339
In the U.S.: 1-800-334-9111
In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339
Adhere WARNING label (20) in
a clearly visible place.
NOTE:
7
10 ft.
(3.05 m)
REGULATION RIM HEIGHT
IS 10 FEET (3.05 m).
ATTACH A STEEL-FRAMED STYLE BACKBOARD (STYLE WILL VARY)
BACKBOARD MOUNTING (continued)
25
15
15
6
15
6
15
25 8
8
3. Attach backboard using hardware
shown.
Folow instructions that are packaged
with backboard for specific assembly
details.
Crank
Hook
TO ADJUST BACKBOARD:
Position looped end of
crank onto hook as shown.
Rotate crank handle to
raise or lower backboard
HEIGHT ADJUSTMENT AND WARNING LABEL PLACEMENT
OR
22
