SPARK MODERN FIRES
RETROFIT FIRE RIBBON
VENTED DECORATIVE APPLIANCE
OWNER’S OPERATION AND INSTALLATION MANUAL
-
Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
-
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHA T TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not
use any phone in your building .
Immediately call your gas supplier
from a
neighbor’s phone. Follow the gas
supplier’s instructions.
If you cannot reach
your gas supplier, call
the fire department.
WARNING: If the information in this
manual is not followed exactly, a fire
or explosion may result causing
property damage, personal inju
ry, or
loss of life.
WARNING: Improper installation, adjustment,
alteration, service, or maintenance can cause injury
or
property damage. Refer to this manual for
correct installation and operational procedures. For
assistance or additional information consult a
qualified installer, service agency, or gas supplier.
WARNING: This appliance is for install
ation only in
a solid-fuel burning masonry or UL127 factory-
built
fireplace, constructed of noncombustible material,
and connected to a working flue (see page 4
for
minimum flue opening) .
WARNING: This is a gas-
fired appliance. It uses air
(oxyge
n) from the room in which it is installed.
Provisions for adequate combustion and ventila-
tion air must be provided.
INSTALLER: Leave this manual with the appliance.
CONSUMER:Retain t his manual for future reference

2
SAFETY
INFORMATION
WARNINGS
Carbon Monoxide Poisoning:
Early signs of carbon monoxide
poi soning resemble the flu, with
headaches, dizziness, or nausea. If
you have these signs, the fire
Ribbon may not be working
properly. Get fresh air at once!
Have F ire Ribbon serviced. Some
people are more affected by
carbon monoxide than others.
These include pregnant women,
people with heart or lung disease
or anemia, those under the
influence of alcohol, and those at
high altitudes.
Natural and Propane /LP Gas:
Natural and propane /LP gases are
odorless. An odor making agent is
added to the gas. The odor h elps
you detect a gas leak. However,
the odor added to the gas can fade.
Gas may be present even though
no odor exists.
Make certain you read and under-
stand all warnings. Keep this
manual for reference. It is your
guide to safe and proper operation
of thi s F ire Ribbon .
1. This appliance, as supplied, is
only for use with the type of
gas indicated on the rating
plate.
2. If you smell gas :
shut off gas supply
do not try to light any appli -
a nce
do not touch any electrical
switch; do not use any phone
in your building
immediately call to your gas
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions
if you cannot reach your gas
supplier, call the fire depart-
ment
3. Never install the F ire Ribbon :
in a recreational vehicle
where curtains, furniture,
clothing, or other flammable
objects are less than 42 inches
from the front, top, or sides of
the F ire Ribbon
in the high traffic areas
in windy or drafty areas
4. Before installing in a solid
fuel burning fireplace, the
ch imney flue and firebox
must be cleaned of soot,
creosote, ashes and loose
paint by a qualified chimney
cleaner. Creosote will ignite if
highly heated. Inspect chim-
ney flue for damage.
5. You must operate the F ire
Ribbon with a fireplace screen
in place. Make sure fireplace
screen is closed before
running the F ire Ribbon .
6. Fire Ribbon is designed to be
smokeless. If it ever appears
to smoke, turn off appliance
and call a qualified service
person. NOTE: During initial
opera -tion, slight smoking
could occur due to unit curing
and the burning of
manufacturing residues.
7. To reduce the creation of soot,
follow the instructions in
Cleaning and Maintenance ,
page 9.
8. Do not allow fans to blow
directly into the fireplace.
Avoid any drafts that alter
burner flame patterns, as it
could increase soothing .
9. Do not use a blower insert,
heat exchanger insert or other
accessory not approved for
use with this F ire Ribbon .
10 . This F ire Ribbon needs fresh,
outside air ventilation to run
properly.
11 .Keep the appliance area clear
and free from combustible
materials, gasoline and other
flammable vapors and liquids.
12 .Do not burn solid fuel in the
fireplace after installing the
F ire Ribbon . Do not use this
appliance to cook food or
burn paper or other objects.
13 . Fire Ribbon becomes hot
when in use. Keep children
and adults away from hot
surface to avoid burns or
clothing ignition. Fire Ribbon
will remain hot for a time
after shut-down. Allow
surface to cool before
touching.
14 .Carefully supervise young
children when they are in the
room with F ire Rib bon .
WARNING:
Any change
to this F ire Ribbon
or its
controls can be dangerous.
WARNING: Keep flue
open when operating unit .
IMPORTANT: Read
this
owner’s manual carefully
and completely before trying
to assemble, operate, or
service this F ire Ribbon
.
Improper use of this unit can
cause serious injury or
death from burns, fire,
explosion, electrical shock,
and carbon monoxide
poisoning.
DANG ER: Carbon mo-
noxide poisoning may lead
to death!

3
15 .Do not use appliance if any
part has been exposed to or
under water. Immediately call
a qualified service technician
to inspect the room appliance
and to replace any part of the
control system and any gas
control which has been under
water .
16 .Turn the R ibbon off and let
cool before servicing,
installing, or repairing. Only a
qualified service person
should install, service, or
repair F ire Ribbon .
LOCAL CODES
Install and use F ire Ribbon with
care. Follow local codes. In the
absence of local codes, use t he
latest edition of The National Fuel
Gas Code ANSZ223.1, also
known as NFPA 54 available
from:
American National Standards
Institute, Inc., 1430
Broadway, New York,
NY 10018
National Fire Protection
Association, Inc.,
Batterymarch Park, Quincy,
MA 02269.
PRODUCT ASSEMBLY
1. Remove Burner Assembly ,
Front Cover, Access Panel
and Burner Media from
packaging (see Parts List ,
page 14 ).
2. Connect the Burner Assembly
to gas supply using supplied
flex connector and shutoff
valve.

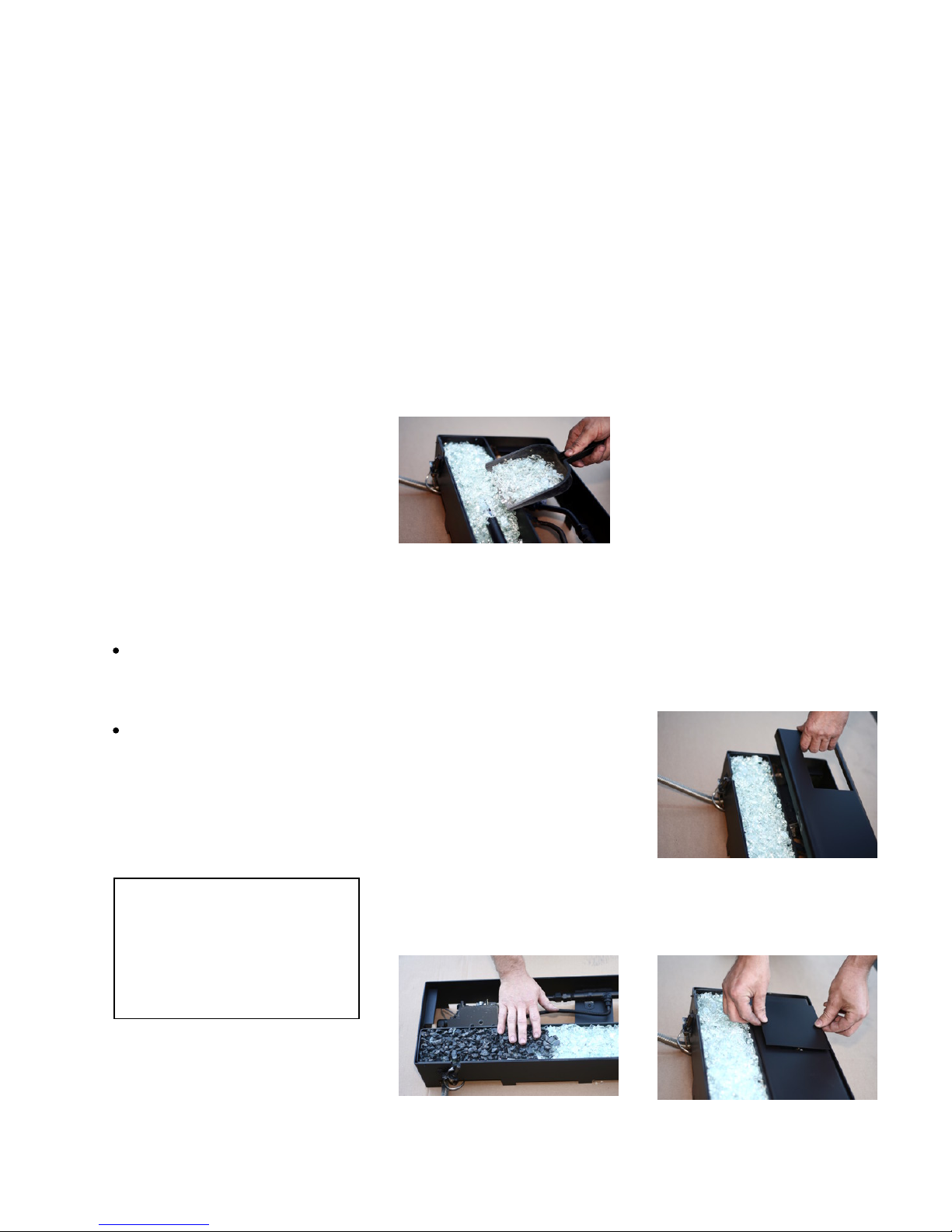

3. Evenly fill the media
compartment with burner
media (broken tempered
glass) fully covering the
burner as shown on a picture.
If you are NOT planning to
add optional topping media,
then fill the media
compartment in full and
proceed to the step 5.
NOTE: If you are planning to
add some topping media
(optional colored glass or lava
rock), leave approximately ¾”
not filled on top of burner
media and proceed to the next
step.
4. Place and evenly distribute
topping media (optional
colored glass or lava rock) on
top of burner media as shown
on a picture .
Make sure that pilot opening
is not blocked with excess of
media .
5. Carefully leak test all
connections following the
procedure on page 5.
6. Having free access to the
valve and manifold
compartment of the Burner
Assemb ly turn ON the
appliance following the
procedure on page 7.
Make sure the flame is even
along the burner and
appliance is fully operational
and safe for use. Turn OFF
the appliance and let it cool
before proceeding to the next
step.
7. C over manifold and valve
compartment of the Burner
Assembly with Front Cover
making sure that access
window is located above the
valve as shown on a picture.
Cover the window with
Access Panel as shown on a
picture.
WARNING: Failure to position
the parts in accordance with
these diagrams or failure to
use only parts specially
approved with this appliance
may result in property
damage or personal injury.

4
INSTALLATION
NOTE: This vented appliance
must be installed only in a solid-
fuel burning fireplace with a
working flue and constructed of
noncombustible material. The
installation of appliances designed
for manufactured home (U.S.
only) or mobile home installation
must conform with the Standard
CAN/CSA Z240 MH , Mobile
Housing, in Canada, or with the
Manufactured Home Construction
and Safety Standard, Title 24 CFR,
Part 3280, in the USA, or when
such a standard is not applicable,
ANSI/NCSBCS A225.1/NFPA 501A,
Manufactured Home Installations
Standard.
The fireplace must include a
working flue and venting system
with minimum opening. Please,
make sure that the following
technical data related to proper
installation of the F ire Ribbon are
applicable before install ation is
attempted .
VENTING
SPECIFICATIONS FOR
INSTALLATION
The fireplace chimney flue and
vent must be drafting properly. To
check the vent for proper drafting:
Light a tightly rolled newspaper
on the end and place it at th e
inside front edge of the fireplace.
Observe the smoke and be sure
the vent is properly drawing it up
the chimney. If the smoke spills
out into the room, extinguish the
flame and remove any obstruction
until proper venting is achieved.
The chimney flue must remain
open a minimum of 3” at all times
during the operation of this F ire
Ribbon .

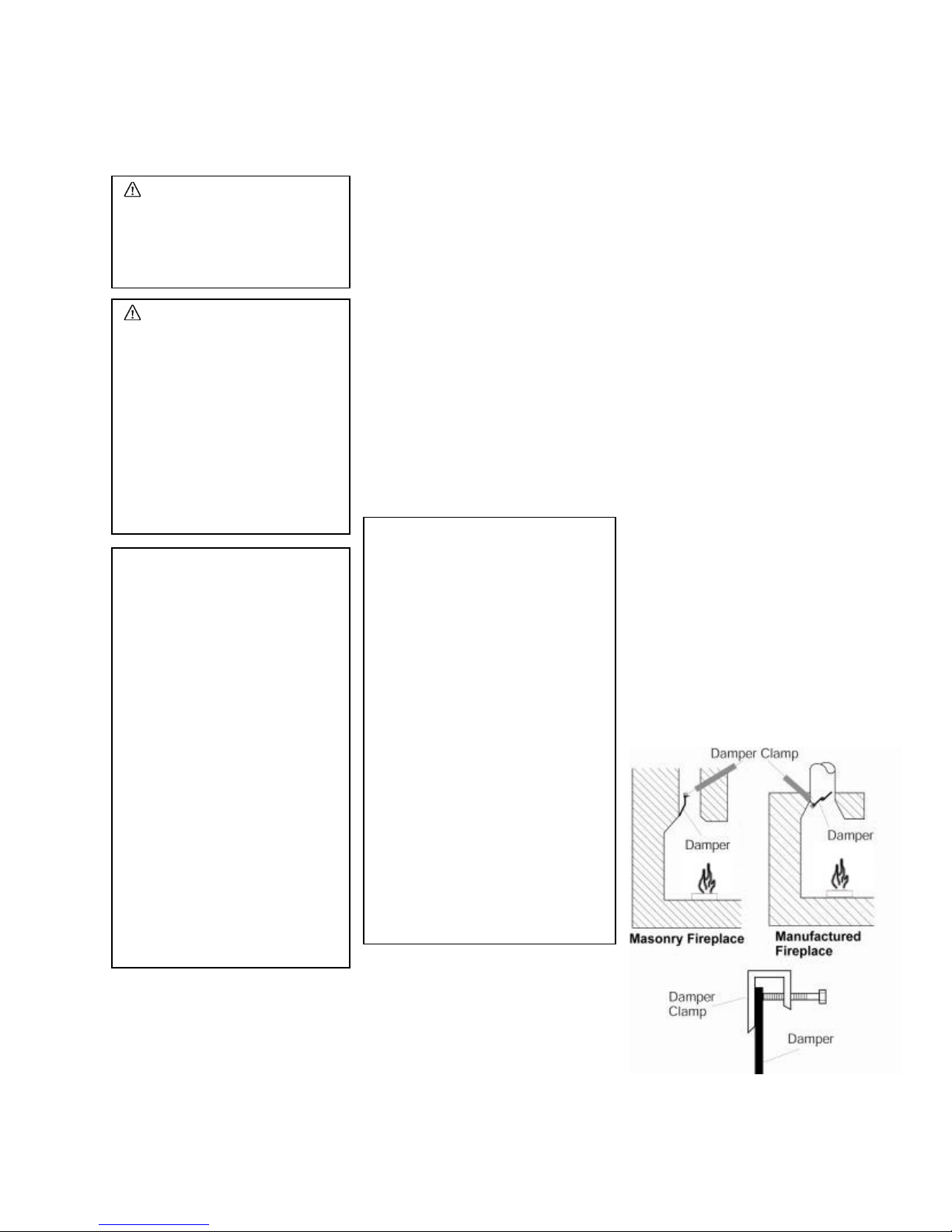

INSTALLING DAMPER
CLAMP
Secure the damper stop clamp
provided to the leading edge of
the damper as shown below . If for
any reason this clamp doesn’t
work on your fireplace, another
suitable clamp or permanent stop
must be installed, or the damper
blade must be cut or removed.
CAUTION: Do not remove
the metal data plates
attached to the F ire Ribbon
.
These plates contain
important information.
NOTICE: Installation, ser-
vice, and repair of this ap-
pliance must be performed
by a qualified install
er,
service agency, company or
gas supplier experienced
with this type of gas
appliances. Only factory
authorized components lis-
ted in this instructi
on may
be u
sed in accordance with
the manufacturer’s instruct -
tions and all codes and
requirements of the autho-
rity having jurisdiction. Any
modifications to this appli -
ance
or use of unauthorized
components or accessory
items will void the manu-
facturer’s warranty,
and may
result in a hazardous
condition.
WARNING: Before install -
ling in a solid fuel burning
fireplace, the chimney flue
and firebox must be cleaned
of soot, creosote, ashes
and
loose paint by a qualified
chimney cleaner. Creosote
will ignite if highl
y heated. A
dirty chimney flue may
create and distribute soot
within the house. Inspect
chimney flue for damage.
Minimum firebox size:
- Height 18”
- Depth 14”
- Width /Model:
RETRO - 2 ……..…..28”
RETRO - 3 ……..…..40”
RETRO - 4 ……..…..52”
RETRO - 5 ……..…..64”
RETRO - 6 ……..…..72”
RETRO - 7 ……..…..84”
RETRO - 8 ……..…100”
Fuel Pressure Specification:
- Inlet (NG) 4.5.-10.5”w.c.
- Manifold (NG) 3.5”w.c.
- Inlet (LP) 11-13”w.c.
- Manifold (LP) 10”w.c.

5
A.G.A. Design - Certified
Manual Shutoff Valve
With 1/8” NPT Tap
Cap Pipe Nipple Tee Joint
Sediment Trap (Optional for Propane/LP Installation)
3” Minimum
Approved Flexible
Gas Hose
C ONNECTING TO GAS
SUPPLY
Installation Items Needed
Before installing the F ire Ribbon ,
make sure you have all items
listed bellow:
piping (check local codes)
sealant (resistant to propane/LP)
manual shutoff valve (included)
adjustable (crescent) wrench or
pliers
sediment trap
tee joints
pipe wrench
Installation must include a manual
shutoff valve, union, and plugged
1/8 ” NPT tap. Locate NPT tap
within reach for test gauge hook
up. NPT tap must be upstream
from the appliance.
Apply pipe joint sealant lightly to
male threads. This will prevent
excess sealant from going into
pipe. Excess sealant in pipe could
result in a cl ogged burner injector.
Install sediment trap in supply line
as shown below. Locate sediment
trap where it is within reach for
cleaning and trapped matter is not
likely to freeze. A sediment trap
traps moisture and contamina nts.
This keeps them from going into
F ire Ribbon controls. If sediment
trap is not installed or is installed
wrong, unit may not run properly.
CHECKING GAS
CONNECTION
Test Pressures in Excess Of 1/2
PSIG
1. Disconnect F ire Ribbon and
its individual manual shutoff
valve from gas supply piping
system.
2. Cap off open end of gas pipe
where manual shutoff valve
was connected.
3. Pressurize supply piping
system by either using com-
pressed air or opening main
gas valve located on or near
gas meter.
4. Check all joints of gas supply
piping system. Apply a mix-
ture of liquid soap and water
on all joints. Bubbles forming
show a leak. Correct all leaks
at once.
5. Reconnect F ire Ribbon and
manual shutoff valve to gas
supply. Check re connected
fittings for leaks.
Test Pressures Equal To or
Less Than 1/2 PSIG
1. Close manual shutoff valve.
2. Pressurize supply piping sys-
tem by either using compres-
sed air or opening main gas
valve located on or near gas
meter.
3. Check all joints from gas
met er to manual shutoff valve.
Apply a mixture of liquid
soap and water on all joints.
Bubbles forming show a leak .
4. Correct all leaks at once.
.
CAUTION:
Use pipe joint
sealant that is resistant to
liquid petroleum (LP) gas.
WARNING:
A quali
fied
service person must con-
nect appliance to gas sup-
ply. Follow all local codes.
CAUTION:
Use only new,
black iron or
steel pipe.
Internally
tinned copper
tubing may be used in
certain areas. Use pipe of
1/2" diameter or greater to
allow proper gas volume to
F ire Ribbon
. If pipe is too
small, undue loss of pres-
sure will occur.
WARNING:
Test all gas
piping and connect
ions for
leaks after installing or
servicing. Correct all leaks
at once.
WARNING:
Never use an
open flame to check for a
leak. Apply a mixture of
liquid soap and water on
all
joints. Bubbles
forming
show a leak. Correct all
leaks at once.
From Gas Meter (5” W.C. to
10.5” W.C. pressure)

MEDIA BURNER TRAY
PILOT

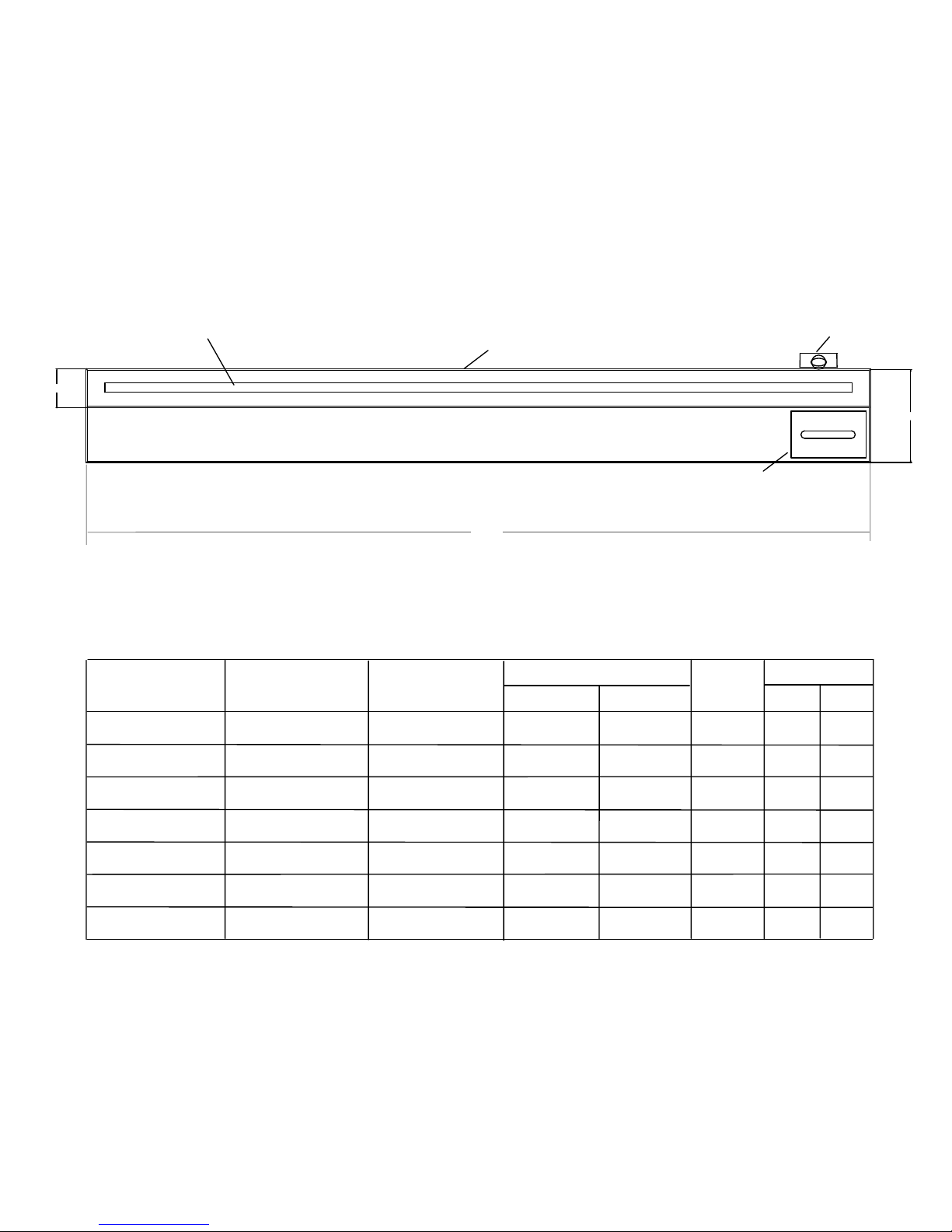

FIRE RIBBON RETROFIT BURNER
MODEL SPECIFICATIONS
CONTROL ACCESS PANEL
BURNER TUBE
4"
10"
INPUT RATE (BTU/Hr)
OVERALL
24"
36"
48"
60"
72"
84"
96"
61,000 54,000
72,000
90,000
82,000
129,000
116,000
102,000
142,000
128,000
110,000
146,500
41,000 33,500
4
8
5
6
7
2
3
43 55
43 55
43 55
43 55
43 55
44 55
44 55
MODEL #
RETRO 2 - NG/LP
RETRO 3 - NG/LP
RETRO 4 - NG/LP
RETRO 5 - NG/LP
RETRO 6 - NG/LP
RETRO 7 - NG/LP
RETRO 8 - NG/LP
N.G. L.P. # ORIF. ORIF. SIZE
N.G. L.P.
LENGTH (L) FIREPLACE
WIDTH (min)
28"
40"
52"
64"
76"
90"
100"
Minimum fireplace depth required = 14”Minimum fireplace height required = 18”
(L)
see chart below
6

32 L100001
7
A.This appliance iha pilot which must be lit with built-in ignitor while following these
instructions exactly.
B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the oor because
some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in, or turn the gas control knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it. Call a qualied service technician. Force or attempted repair may result in
a re or explosion.
D. Do not use this appliance if any part of it has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of the control system and any gas control that has been under
water.

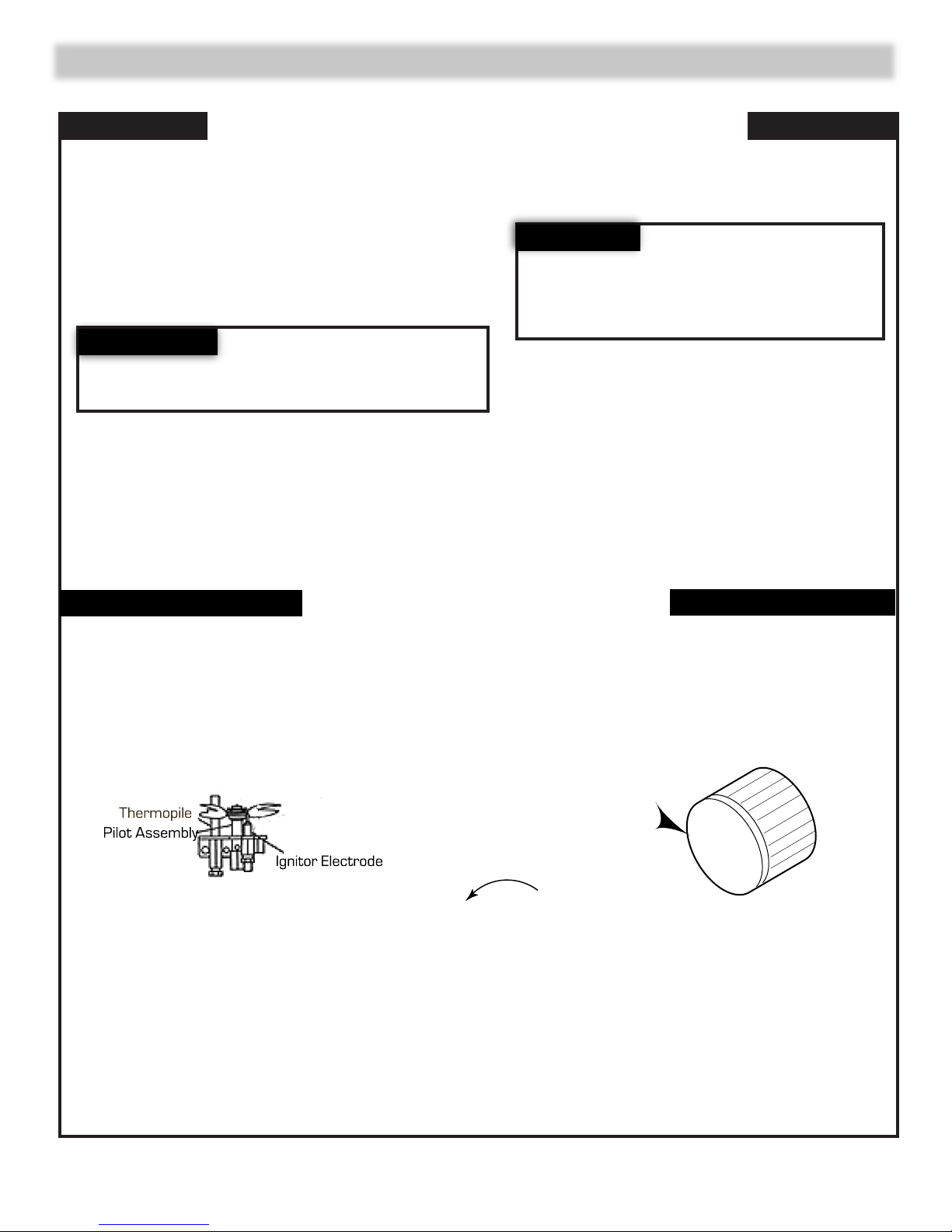

LIGHTING INSTRUCTION
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING PILOT FOR THE FIRST TIME
INITIAL LIGHTING
Purge air from the supply line as follows:
• Open main shutoff valve.
• Unscrew main pressure test point.
• Leave inlet test screw open until gas comes in.
• When gas is owing, tighten inlet screw immediately.
LEAK TESTING
1. Follow the pipe from the gas supply line connection to the gas valve. Check connection for leaks with soap
and water mixture.
2. Next check for gas leaks at the burner with soap and water mixture.
3. Check the pilot for gas leaks with soap and water mixture.
If you do not follow these instruction exactly,
a fire or explosion may result causing property
damage, personal injury or loss of life.
WARNING
Never use an open flame to check for gas leak.
DANGER

L100001 35










Continued
APPROVED LEAK TESTING METHOD
You may check for gas leaks with the following methods only:
• Soap and water solution
• An approved leak testing spray
• Electronic sniffer
NOTE: Remove any excessive pipe compound from
the connections. Excessive pipe compound can set
off electronic sniffers.
7. Depress fully and hold pilot gas knob.
Repeatedly push spark ignitor button to light pilot.
Keep knob fully depressed for a few seconds. Release
and check that pilot continues to burn.
LIGHTINGINSTRUCTIONS
Check for gas leaks in each of the following locations:
• Pipe from the gas supply line connection to the gas valve
• Burner connections, pilot • Field made joints / gas shutoff valve
• All joints on valve and control body • Factory made joints, each joint and connection
LIGHTING PILOT FOR THE FIRST TIME
WA
If using a soap and water solution to test
for leaks, DO NOT spray solution onto
control body.
WARNING
Never use an open flame to check for gas leak.
DANGER
1. STOP! Read the safety information on previous page.
2. Remove lower cover.
3. Turn the gas control knob to the "OFF" position.
4. Wait five (5) minutes to clear out any gas. If you then smell gas, STOP! Follow "B" in the safety
information on the previous page. If you don't smell gas, go to the next step.
5. Locate the Pilot Assembly on the back of Fire Ribbon
6. Depress and turn pilot gas knob counterclockwise to "PILOT" position.
• If the pilot does not stay lit, repeat steps 1 and 2.
• If the pilot knob does not pop up when released, STOP and immediately call service technician or gas supplier
• If the pilot will not stay lit after several tries, turn the gas control knob to "OFF" position
and call your service technician or gas supplier.
WARNING
Knob at Pilot Position
8
Ignitor Electrode
Pilot Assembly
Thermopile

34 L100001
9
T






















On Position











On/Off Switch
ON
OFF
Continued
LIGHTING BURNER
MAIN BURNER SWITCH
The “ON/OFF” switch for the main burner can be found behind the cover.
This switch allows you to turn on and to turn off the main burner without
using the gas valve knob. Make sure the button is in the “ON” position to light
thmain burner.
LIGHTING THE BURNER
Depress and turn the knob counterclockwise to the “ON” position.
It will take less than four (4) seconds for the burner to ignite.
PILOT POSITION
Depress and turn knob to pilot position to keep burner off while maintaining the
pilot light.
1. Remove lower cover. Depress and turn knob clockwise to “OFF” position.
TO TURN OFF GAS TO APPLIANCE
Off Position
Pilot Position
2. Replace lower cover.

Pilot Flame
Thermopile
CLEANING AND MAINTENANCE
BURNER, PILOT AND CONTROL COMPARTMENT
Keep the control compartment clean by vacuuming or brushing at least twice a year.
Make sure the burner porting, pilot air opening and burner air opening are free of obstructions at all times.
PILOT FLAME
The ames from the pilot should be visually checked as soon as the unit is installed
and periodically during normal operation. The pilot ame must always be present
when the replace is in operation. The pilot ame has two distinct flames, one
engulng the thermopile and the other reaching to the main burner.
BURNER
Inspect area around the injector. Remove any lint or foreign material with a brush
or vacuum.
Turn off gas before servicing fireplace. It
is recommended that a qualified service
technician perform these check-ups at the
beginning of each heating season.
WARNING
VENTING SYSTEM
Have the venting system of the solid fuel burning fireplace inspected and cleaned
annually by a qualified agency.
1
10
0

11
TROUBLESHOOTING
WARNING:Turn off Fireribbon
and letcool before servicing. Only
aqualified service person should
service and repair this appliance.
POSSIBLE CAUSE REMEDY
OBSERVED PROBLEM
1. Poor fuel quality
2. Fireplace venting system not drafting
properly
3. Excessive flame impingement or block-
age
4. Improper fuel/air mixture
5. Excessive gas supply/pressure
1. Passage of air/gas across irregular sur-
faces
2. Excessive gas pressure on natural gas
units
1. Incorrect gas supply or pressure
2. Blocked burner orifice or burner mani-
fold ports
3. Improper burner orifice size
1. Battery is not installed. Battery power
is low
Unit is smoking /sooting excessively
( Note: It is natural and unavoidable for
appliance sets to produce moderate
levels of carbon (soot) where flames
contact the media. This is especially
true with propane/LP gas.)
Burner is excessively noisy
( Note: The movement and combustion of
gas will create low, unavoidable levels of
noise.)
Burner flame is too low or too high
Remote does not function
1. Contact local natural or propane/LP gas
company
2. Adjust damper wide open and/or have
fireplace and venting professionally
cleaned and checked
3.Separate the stones to allow more flame
passage
4. Remove any foreign items from the
flame pattern and/or check for proper
orifice sizing
5. Preheat flue in very cold weather
1. Relieve any tight bends or kinks in gas
supply line
2.Check/reset gas regulator pressure
1. Check for proper gas supply pressure
2. Free burner orifice and manifold ports
of any burrs, paint, or other blockage
3. Verify proper burner orifice sizing (see
page 6)
1.Replace batteries in receiver and
remote control
Note: Alltroubleshootingitemsarelistedin
order of operation.

12
OBSERVED PROBLEM
When ignitor button is pressed, there is no
spark at pilot
When ignitor button is pressed, there is
spark at pilot but no ignition
Pilotlights but flame goes out when control
knob is released
Burner does not light after pilot is lit
Delayed ignition burner
REMEDY
1. Reconnect ignitor cable
2. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
3. Scrape away paint on bracket for better
contact with ground on piezo ignitor
4. Replace ignitor cable
5. Replace piezo ignitor
6. Replace electrode
7. Reposition electrode
1. Turn on gas supply or open manual
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holding down control knob.
Repeat igniting operation until air is re-
moved
5. Adjust pilot flame for approximately
1" blue flame
6. Clean pilot (see Cleaning and Mainte-
nance, page 100) or replace pilot assembly.
7.Replace gas control
1. Press in control knob fully
2. After pilot lights, keep control knob
pressed in 30 seconds
3. Fully open manual shut-off valve
4. A) Contact local natural gas company
B) Clean pilot (see Cleaning and Mainte-
nance, page 10) or replace pilot assembly
5. Hand tighten until snug, then tighten
1/4 turn more
6.Replace thermopile
7. Replace control valve
1. Clean burner orifice
2. Contact local natural or propane/LP gas
company
3. Replace burner orifice
4. Reconnect leads
1. Adjust pilot flame for approximately
1" blue flame
Continued
POSSIBLE CAUSE
1. Ignitor electrode not connected to igni-
tor cable
2. Ignitor cable pinched or wet
3. Bad ground on piezo ignitor
4. Broken ignitor cable
5. Bad piezo ignitor
6. Ignitor electrode broken
7. Ignitor electrode positioned wrong
1. Gas supply turned off or manual shutoff
valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. Pilot adjustment screw closed
6. Pilot is clogged
7. Low gas pressure
1. Control knob not fully pressed in
2. Control knob not pressed in long enough
3. Manual shutoff valve not fully open
4.Pilot flame not touching thermopile,
which allows thermopile to cool,
causing pilot flame to go out. This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged pilot
5.Thermopile connection loose at con-
trol valve
6.Thermopile damaged
7. Control valve damaged
1. Burner orifice clogged
2. Inlet gas pressure is too low
3. Burner orifice diameter is too small
4.Thermopileleads disconnected or im-
properly connected
1. Pilot flame needs adjusting

13
WARNING: If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• Ifyoucannotreachyourgassupplier,callthefiredepartment.
POSSIBLE CAUSE
1.Unit burning vapors from paint, hair
spray, glues, cleaners, chemicals, new
carpet, etc. (See IMPORTANT state-
ment above)
2. Gas leak. SeeWarning statement at
top of page
1. Gas leak. SeeWarning statement at
top of page
2. Control valve defective
1. Gas leak. SeeWarning statement at
top of page
OBSERVED PROBLEM
Fireribbon produces unwanted odors
Gas odor even when control knob is in OFF
position
Gas odor during combustion
REMEDY
1. Open flue to maximum. Stop using odor
causingproducts while unit is running
2. Locate and correct all leaks (see Check-
ing Gas Connections, page 5)
1. Locate and correct all leaks (see Check-
ing Gas Connections, page 5)
2. Replace control valve
1. Locate and correct all leaks (see Check-
ing Gas Connections, page 5)
IMPORTANT: Operating unit where impurities in air exist may create odors.
Cleaningsupplies,paint,paintremover,cigarettesmoke,cementsandglues,new
carpet or textiles, etc., create fumes. These fumes may mix with combustion air
and create odors. These odors will disappear over time.
Continued

ILLUSTRATED PARTS LIST
SE E NE XT P AGE
14
1
2
3
4
5
6
7
8
9
10
11
FOR PART DESCRIPTION
12
13

PARTS LIST
This list contains replaceable parts used in your firebox
Part Number a ccording to the Fire Ribbon Model for Natural Gas (and LP )
Key
#
Part Description
RETRO - 2’ RETRO - 3’ RETRO - 4’ RETRO - 5’ RETRO - 6’ RETRO - 7’ RETRO - 8’
Q- ty
1 Burner Assembly R100012 R100013 R100014 R100015 R100016 R100017 R100018 1
(R200012)
(R200013)
(R200014)
(R200015)
(R200016)
(R200017)
(R200018)
2 Main Gas Valve R100020 R100020 R100020 R100020 R100020 R100020 R100020 1
(R200020)
(R20002 0)
(R200020)
(R200020)
(R200020)
(R200020)
(R200020)
3 Valve Bracket R100021 R100021 R100021 R100021 R100021 R100021 R100021 1
4 Pilot Assembly R100022 R100022 R100022 R100022 R100022 R100022 R100022 1
(R200022)
(R200022)
(R2000 22)
(R200022)
(R200022)
(R200022)
(R200022)
5 Burner Flex Connector R100023 R100023 R100023 R100023 R100023 R100023 R100023 1
6 Wire Assembly R100024 R100024 R100024 R100024 R100024 R100024 R100024 1
7 Tubing Assembly R1 00025 R100025 R100025 R100025 R100025 R100025 R100025 1
Continued on Next Page

PARTS LIST (Continued)
This list contains replaceable parts used in your firebox
Part Number according to the Fire Ribbon Model for Natural Gas (and LP)
Key
#
Part Description
RETRO - 2’ RETRO - 3’ RETRO - 4’ RETRO - 5’ RETRO - 6’ RETRO - 7’ RETRO - 8’
Q- ty
8 Orifice / Air Mixer R 100044 2
(R200055)
R100044 3
(R200055)
R100043 4
(R200055)
R10004 3 5
(R200055)
R100043 6
(R200055)
R100043 7
(R200055)
R100043 8
(R200055)
Continued on Next Page

PARTS LIST (Continued)
This list contains replaceable part s used in your firebox
Part Number according to the Fire Ribbon Model for Natural Gas (and LP)
Key
#
Part Description
RETRO - 2’ RETRO - 3’ RETRO - 4’ RETRO - 5’ RETRO - 6’ RETRO - 7’ RETRO - 8’
Q- ty
9 Burner Manifold R100032 R100033 R100034 R1000 35 R100036 R100037 R100038 1
(R200032)
(R200033)
(R200034)
(R200035)
(R200036)
(R200037)
(R200038)
10 Front Cover R100102 R100103 R100104 R100105 R100106 R100107 R100108 1
11
12
Access Panel
Spark Igniter
R100026
C100014
R100 026
C100014
R100026
C100014
R100026
C100014
R100026
C100014
R100026
C100014
R100026
C100014
1
1
13 ON/OFF Switch C100018 C100018 C100018 C100018 C100018 C100018 C100018 1
xxx Damper Clamp (not shown) F100037 F100037 F100037 F100037 F100037 F100037 F100037 1
xxx Glass Burner Media (not shown) F200503 F200503 F200503 F200503 F200503 F200503 F200503 N/A
xxx Top Media (many available) N/A N/A N/A N/A N/A N/A N/A N/A
xxx Remote Control (Optional ) RCB RCB RCB RCB RCB RCB RCB 1
NOTE: Specifications, finishes and dimensions are subject to change !

18
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
NOTES

LIMITED LIFETIME WARRANTY
The following components are warranted for life to the original owner, subject to proof of purchase: Fire
Ribbon Burner Assembly.
BASIC WARRANTY
Spark Modern Fires warrants the components and materials in your gas appliance to be free from manufacturing
and material defects for a period of two years from date of installation. After installation, if any of the compo-
nents manufactured by Spark Modern Fires in the appliance are found to be defective in materials or workman-
ship, Spark Modern Fires will, at its option, replace or repair the defective components at no charge to the origi-
nal owner. Spark Modern Fires will also pay for reaonable labor costincurred in replacing or repairing such com-
ponents for a period of two years from date of installation. Any products presented for warranty repair must be
accompanied by a dated proof of purchase.
This Limited Lifetime Warranty will be void if the appliance is not installed by a qualified installer in accord-
ance with installation instructions. The Limited Lifetime Warranty will also be void if the appliance is not ope-
rated and maintained according to the operating instructions supplied with the appliance, and does not extend to (1)
firebox/burner assembly damaged by accident, neglet, misuse, abuse, alterations, negligence of others, inclu-
ding the installation thereof by unqualified installers, (2) the costs of removal, reinstallation or transportation of
defective parts on the appliance, or (3) indentical or consequential damage. All service work must be performed
by an authorized service representative.
This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchanta-
bility of fitness for purpose and of all other obligations or liabilities. Spark Modern Fires does not assume for it
any other obligations or liabilities in connection with sale or use of the appliance. It states that do not allow limi-
tations on how long an implied warranty lasts, or do not allow exclusion of indirect damage, those limitations of
exclusions may not apply to you. You may also have additionalright not covered in the Limited Lifetime War-
ranty. Spark Modern Fires reserves the right to investigate any and all the claims against this Warranty and de-
cide upon method of settlement. For information about this warranty contact:
Spark Modern Fires
53 Chestnut Woods Rd.
Redding, CT 06896
U.S.A.
Rev.1 09/07
WARRANTY INFORMATION
KEEP THIS FOR WARRANTY
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
