Speedfit Speedboard ProXL User manual

This product is a non-powered treadmill that is controlled by the self-control
of the exerciser.
To use this product properly and prevent potential risk, it is essential to
maintain, Use and manage this product after reading this user’'s manual
thoroughly.
This content and specifications are subject to change without prior notice to improve the performance of the product.
User’s Manual

1_
2_
3_
4_
5_
6_
7_
8_
SAFETY INSTRUCTIONS
ENVIRONMENTAL SPECIFICATIONS
DESCRIPTION OF EACH PART
ASSEMBLY PROCEDURES
SPECIFICATIONS
PRODUCT INFORMATION
MAINTENANCE
WARRANTY INFORMATION
_ _ _ _ _ _ _ _
_ _
_ _ _ _ _
_ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _
_02
_05
_06
_08
_10
_11
_12
_13
TABLE
OF
CONTENTS

2
1. SAFETY INSTRUCTIONS
Be sure to read this manual before using the treadmill.
Safety signs are attached to the treadmill.
Post a safety sign near the equipment.
Before using the treadmill, check the following notes and information.
Safety instructions before use

3
2. Safety Issue for Use
»Be careful not to let the product get wet or get water or drink inside.
»Do not place a water bottle with the lid open on the product.
»If you find a problem with the product, stop using it immediately and contact the
customer service center. Never repair the treadmill yourself.
»Always install the product only on a horizontal and firm floor.
1. SAFETY INSTRUCTIONS
Please read the owner’'s manual in its entirety before operating the treadmill.
◈ To help the user’s understanding, this manual uses the following symbols.
1. Danger / Warning / Caution / Safety Notice
[Danger] If the product is used after ignoring this symbol,
it may cause a serious injury to the user.
[Warning] If the product is used after ignoring this symbol,
the user may receive a serious injury.
[Caution] If the product is used after ignoring this symbol,
the user may receive an injury or the product may be damaged.
[Notice] This symbol indicates a helpful note for using,
installing, and managing this product.
If the product is used after ignoring this symbol,
it may cause a serious injury to the user.

4
1. SAFETY INSTRUCTIONS
»Talk to your doctor before starting your workout. If you have heart disease, high blood
pressure, diabetes, chronic respiratory disease, high cholesterol, smoking or other
chronic illness or disability, you should consult your doctor.
»Pregnant women should consult their physician before beginning an exercise program.
»If you feel dizzy or nauseous while exercising, stop using the product immediately, and
consult the doctor for your health.
»Must be supplied or approved by the manufacturer and must be used for repair or
maintenance of the treadmill.
»This product is a non-powered treadmill with speed controlled by user's self-control.
It has no emergency stop function. The treadmill user must adjust the speed to stop.
You should be familiar with the operation principle and function of the product before
using the treadmill.
»When putting on a treadmill, do not go directly to the belt.
Use the footrest by holding the handle on the back of the machine.
Never ride from the front.
»Please be careful that loose clothes, towels, shoelaces, etc. are not caught on the belt
as foreign materials may get caught between the treadmill and the belt.
»Wear shoes with rubber soles or shoes with good friction. Do not wear leather soles or
high shoes.
»Maintain an appropriate speed for you without forcing the pace while using the
treadmill. Do not run faster than your physical ability.
»Never touch the walking belt or the part connected to the walking belt or lean against
the walking belt while using the treadmill.
»To use this treadmill safely, a space of at least 2 x 1m(80 x 40inch) is needed around
the treadmill.
»Never leave children unsupervised around a treadmill.
»Two or more users should not use the treadmill at the same time.
»Check the normal operation of the treadmill before use, and replace worn or damaged
parts immediately and do not use until repaired.
»Accelerate and decelerate for safety, please hold the handle when riding on the treadmill.
»Inspect the product on a regular basis and keep it safe.
Regular maintenance is the responsibility of the user / owner or facility operator.
If the product is used after ignoring this symbol,
the user may receive a serious injury.
If the product is used after ignoring this symbol,
the user may receive an injury or the product may be damaged.

2m
30cm
5
2. ENVIRONMENTAL SPECIFICATIONS
»Operating Conditions
Ambient Temperature : +10°C to +40°C (50°F to +104°F)
Relative Humidity : 20 to 95%
»Transportation & Storage Conditions
Temperature Range : -18°C to +49°C (0°F to +120°F)
Relative Humidity : 20 to 95%
»This product is a non-powered treadmill that can be controlled by the user's own will
and does not need an electrical outlet.

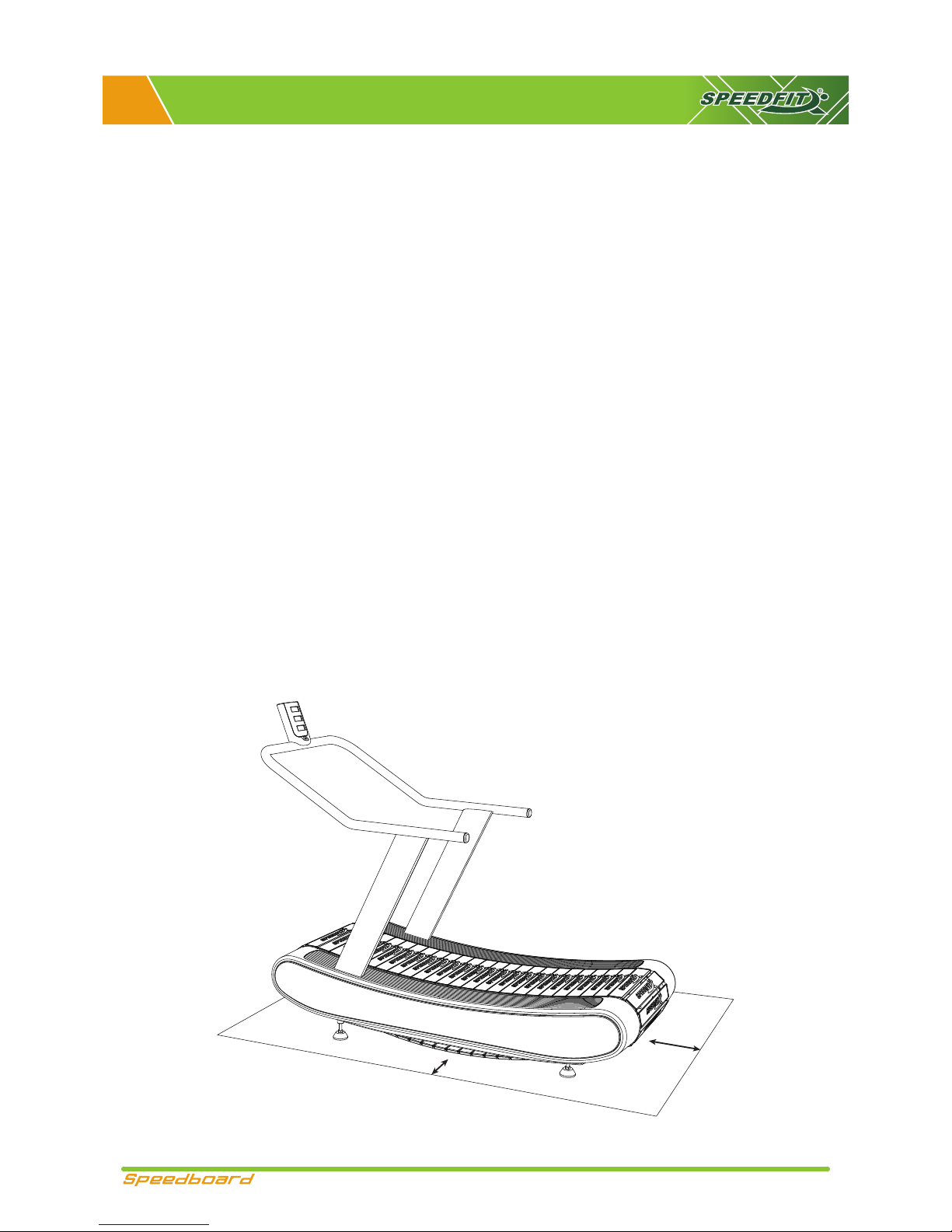

»For safe use, at least 2,000 mm of safety space is required at the rear of the treadmill
and at least 300 mm left and right.
»The product should only be installed in a hardened room. Do not place on a soft carpet.
»Adjust the level foot so that the product does not sway, and tighten the level foot nut
so that it does not come loose.
»To move the product, hold the shift knob and tilt the product to roll the wheel on the
ground.
»Do not lift the product by the injection cover and belt.
1. Environmental specifications
2. Installation and Transportation

6
This content and specifications are subject to change without prior notice to improve the performance of the product.
3. DESCRIPTION OF EACH PART
1
2
3
4
5
6
7
8
9
10
Handle_L
Handle_R
Post_L
Post_R
Side Cover_L
Side Cover_R
Working Belt
Moving Handle
Moving Wheel
Level Foot
1
1
1
1
1
1
1(set)
2
1
4
NO Part name Quantity
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
1. Pro XL

7
3. DESCRIPTION OF EACH PART
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
Part name
1
2
3
4
5
6
7
8
9
10
1(set)
1
1
1
1
1
1(set)
2
1
4
NO Quantity
Console
Handle
Post_L
Post_R
Side Cover_L
Side Cover_R
Working Belt
Moving Handle
Moving Wheel
Level Foot
2. Pro XL
This content and specifications are subject to change without prior notice to improve the performance of the product.

8
※ The main body and ⑤ and ⑥ covers are delivered in assembled condition.

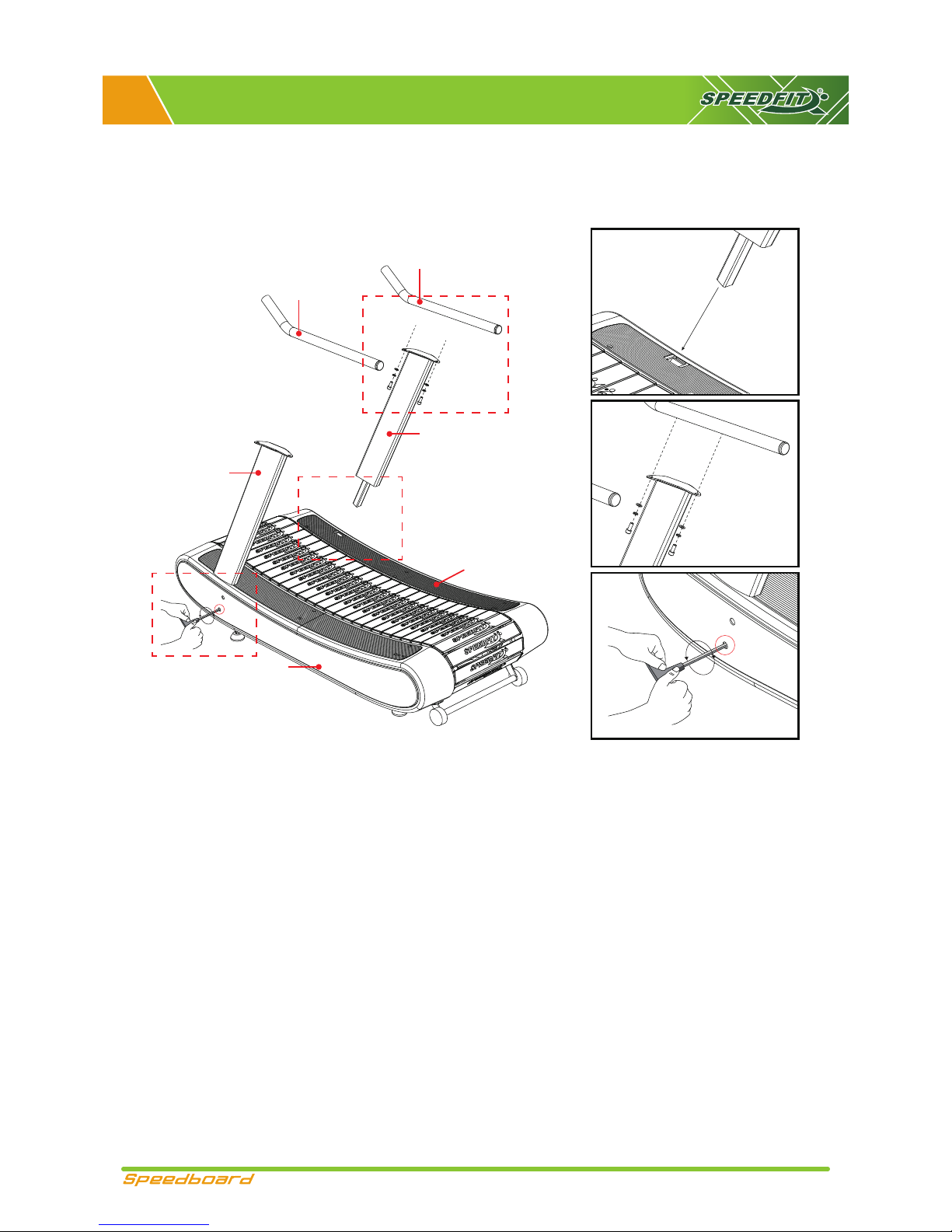

1. Components: Treadmill main body, handle _ left / right (①, ②), column _ left / right (③, ④)
2. Insert the ③ and ④ pillar (the round part is out) into the pillar grooves of cover ⑤ and ⑥.
3. ①, ② Put the handle on the column and tighten the bolt, spring washer, and flat washer.
4. Tighten the bolts to the grooves on the sides of ⑤ and ⑥ cover with the T wrench (6mm).
5. Adjust the level foot and tighten the nuts so that the product does not shake.
How to assemble Pro XL
4. ASSEMBLY PROCEDURES
2
3
4
1. Pro XL
①
③
④
⑤
⑥
②

9
※ The main body and ⑤ and ⑥ covers are delivered in assembled condition.
1. Components: Treadmill body, console (①), handle (②), column left / right (③, ④), tool
2. Connect the cable connection cable of cover ⑥ of the main body to the lower cable
connection line of ④ pole.
3. Insert the ③ and ④ pillar (the round part is out) into the groove of the cover of ⑤ and ⑥
cover.
4. (2) Connect the connecting wire of the handle to the upper connecting wire of column (4).
5. ② Place the handle on the column and tighten the bolt, spring washer, and flat washer.
6. Tighten the bolt with a T wrench (6mm) to the groove on the side of cover ⑤ and ⑥.
7. ② Connect the connector on the top of the handle to the console.
7. Insert the console into the handle joint ②, tighten the bolts, insert the batteries, and check
the operation.
8. Adjust the level foot and tighten the nuts so that the product does not shake.
How to assemble Pro XL
4. ASSEMBLY PROCEDURES
1
3,4
5
6
2. Pro XL
①
②
③
④
⑤
⑥

10
This content and specifications are subject to change without prior notice to improve the performance of the product.
5. SPECIFICATIONS

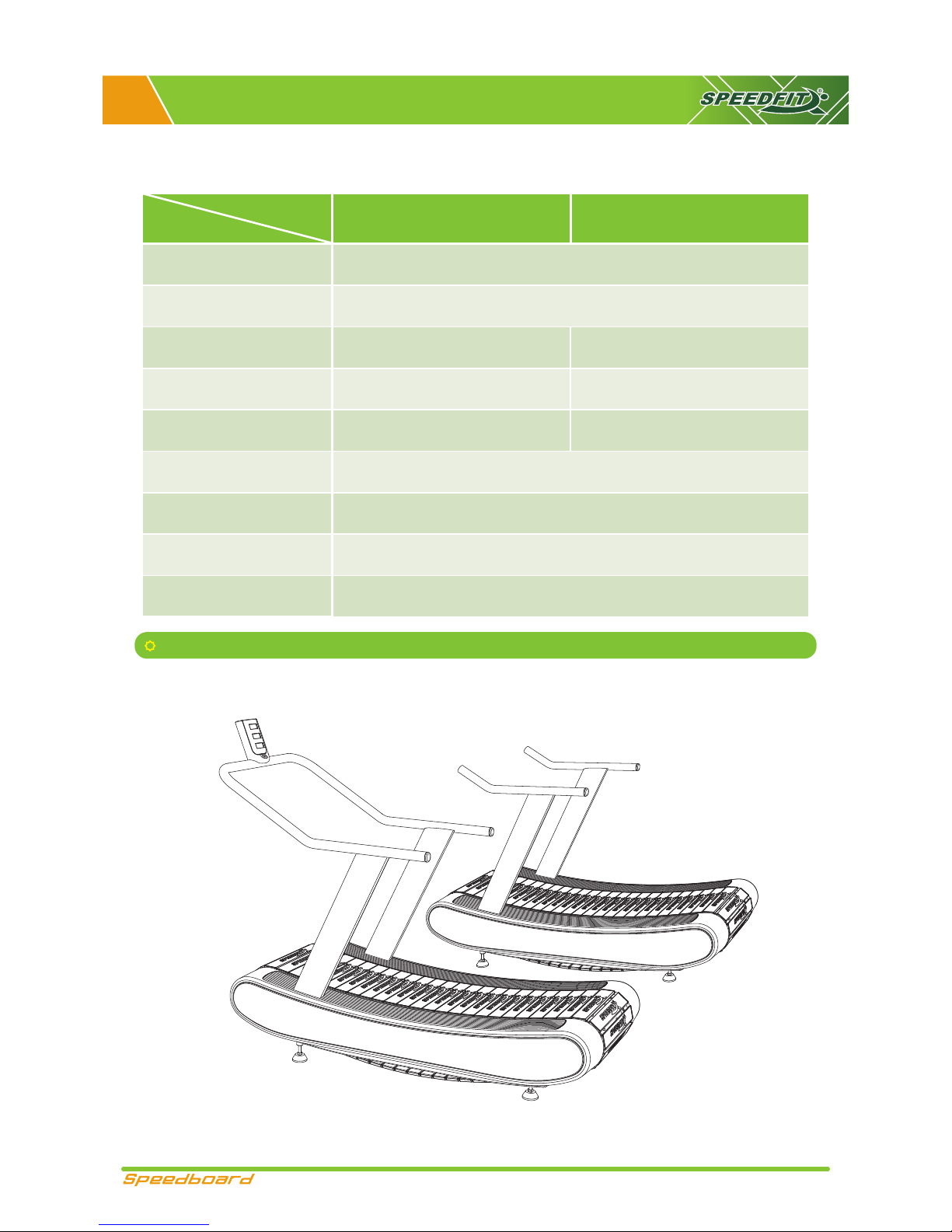

1. SPECIFICATIONS
Non-Powered Treadmill
430(W) x 1450(L)
56 Individual Slats
96 Precision Ball Bearings with /14 Roller Guides
180Kg (400lb)
3 Years
ProXL
ProXL
ProXL
ProXL
Motor specification
Track size (mm)
Product size (mm)
Product weight
LED Display Board
Belt Type
Drive System
Maximum weight
※Warranty
785(W) x 1640(L) x 1220(H)
105Kg
-
785(W) x 1740(L) x 1650(H)
110Kg
TIME, DISTANCE, SPEED

11
6. PRODUCT INFORMATION
»This product is a non-powered treadmill with speed controlled by user's self-control.
It has no emergency stop function. The treadmill user must adjust the speed to stop.
You should be familiar with the operation principle and function of the product before
using the treadmill.
»Curve shapes are designed to rotate in one direction only for safety reasons.
When climbing a treadmill for a workout, do not go directly to the belt, but grab the
handle on the back of the machine and climb onto the footstool.
»The curved belt is accelerated by gravity as it moves forward. If you step on the belt
from the front, the belt may spin faster and cause injury. When reducing the speed or
stopping the movement, move slowly to the curve behind the belt to slow down the
speed and stop using the footrest after the belt stops completely.
»Be sure to read and follow the instructions for your safety.
Do not exercise excessively beyond your own abilities.
1. How to use the product
»TIME: Displays the exercise time. (Mm:ss)
»DISTANCE: Displays the distance of exercise. (Km)
»SPEED: Displays the current speed. (Km/h, mi/h)
2. Display Parameters
3. RESET button
»Short press once: Displays exercise information.
»Press for more than 2 seconds: Reset all display values on the screen.
»Press for more than 5 seconds: SPEED value is changed in km/h - mi/h.
4. Belt Specifications
»Type : Slats assembly method on guide belt
»Feature : Slat / plastic, footstool / rubber
»Color : Black
»Slat Quantity : 56

12
7. MAINTENANCE
»Periodic cleaning and maintenance will provide users with safe use and help extend the
life of the product.
»Do not use abrasive brushes or cleaners, as they may scratch the paint and plastic
surfaces. Clean the exterior of product by using a dry, soft cloth.
»Please manage more frequently in contaminated environment.
1. Cleaning and Inspection
»Clean the treadmill handle, belt and cover.
»Check the normal operation of the running machine belt.
»Check the leveling foot to make sure that the treadmill is stable and level.
2. Weekly maintenance
»Check the bearing damage under the running machine belt and the bearing bolt
loosening.
»Check the belt for breakage and bolt loosening.
»Remove the cover and check the tightness of the bolts and nuts.
3. 6 months maintenance
»Check the maintenance for 6 months.
»Remove the cover and check the condition of the front and rear roller bearings (4) and
apply grease if the bearing is not rotating smoothly.
In countries with autumn and winter or dry climates, static electricity can occur.
Regularly spraying with a static spray can help prevent premature impact.
4. Annual maintenance
검사항목
Cleaning handle, cover, running belt
Running belt breakage and bolt check
Level foot leveling
Check the tightness of the belt bearing
Check belt bearing damage status
Front / rear bearing lubrication
Check bolt / nut condition
주 간 매 달 1년에 2번 매 년

13
8. WARRANTY INFORMATION
»Warranty after purchase You can get free service only if the product breaks down within
3 years.
»Compensation may be paid only if the function occurs in normal use conditions.
2. Customer's Cost
Service applications will be charged in the event of a free service period, even if the
following services are applied.
»Failure to repair, disassemble, or modify a product by others, not by our service
technician.
»In the case, the failure occurred due to the input of the foreign matters(Water,
Beverage) inside the product.
»Fault caused by intentional shock.
»Damages caused by organic solvents such as benzene and deformation.
»Failure due to damages caused by natural disasters, useer negligence and carelessness.
1. Service for Free of Charge
경기도 파주시 탑삭골길 330-22
TEL : [phone]~6
FAX : [phone]
KAESUN SPORTS
Service Request
SPEEDFIT 169 Buckskill Rd East Hampton NY 11937
Home page : www.speedfit.com
E-mail : [email protected]
SPEEDFIT
