TREADMILL OWNER’S MANUAL
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
PARAGON 4
PARAGON 5
PARAGON 6

2

3
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage
to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on the front stabilizer tube and enter it in the space provided
below. Also locate the model name which is next to the serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
WARNING
SERIAL NUMBER:
MODEL NAME: HORIZON TREADMILL

4
Paragon 6
shown
KONSOLE
LÜFTER
AN/AUS SCHALTER
HAUPTSICHERUNG
STROMKABEL

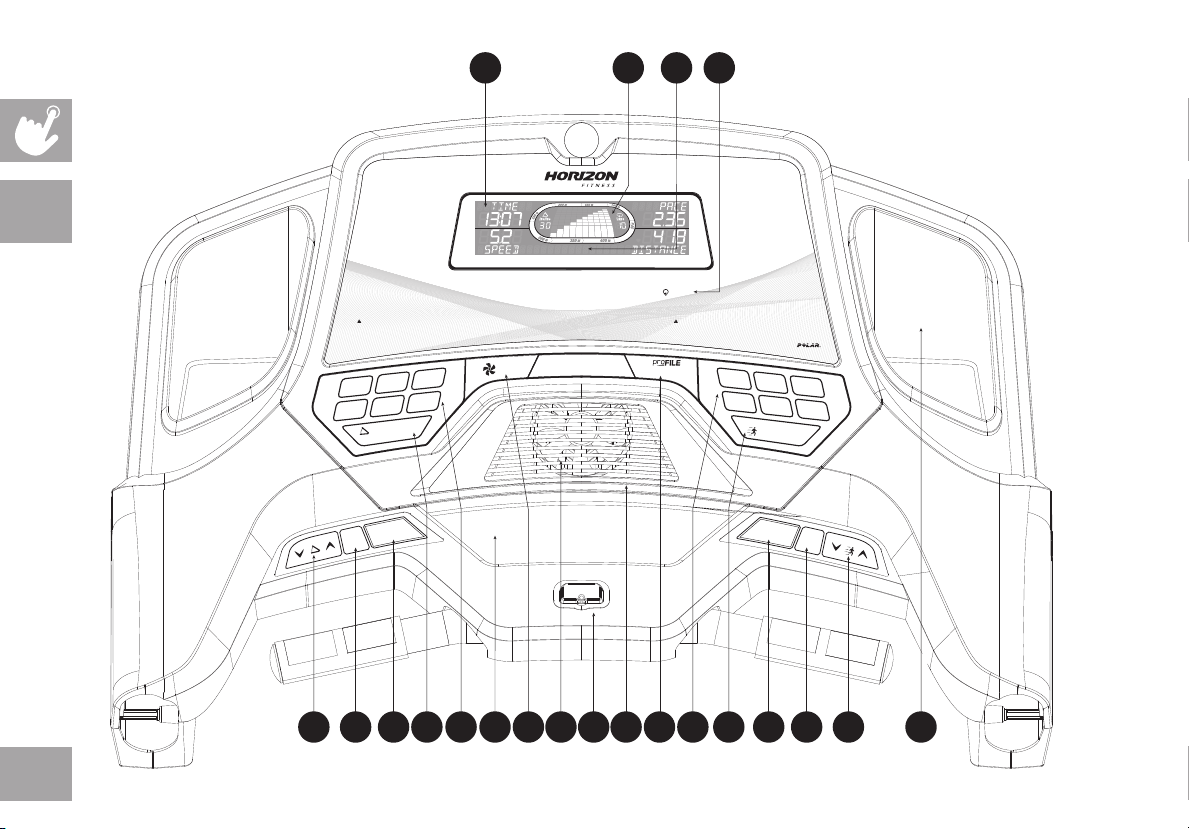

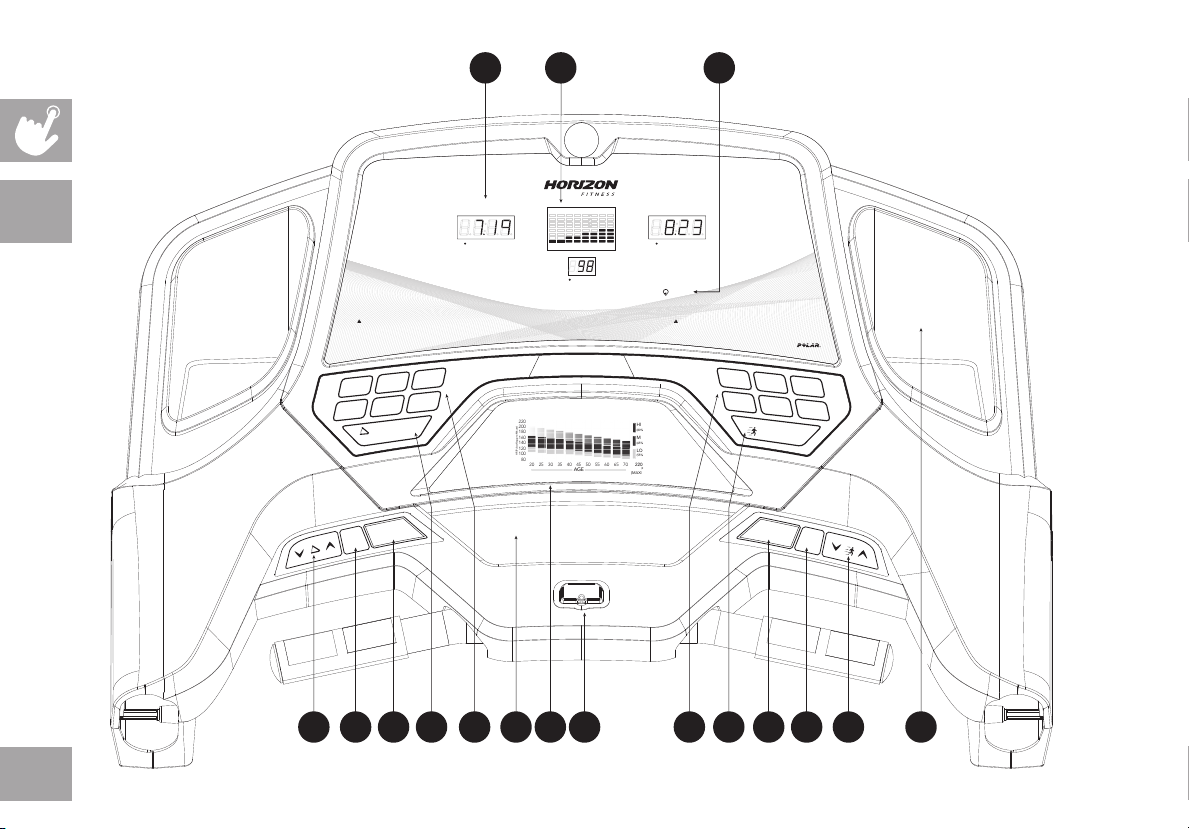

KONSOLENKONTROLLE UND DISPLAYFENSTER
SICHERHEITSSCHLÜSSEL HALTERUNG
ENDKAPPE
HINTERE JUSTIERFÜßE
REICHWEITEKONTROLLE
FLASCHENHALTER
ARMSTANGEN MIT PULSFÜHLERN
TRANSPORTROLLEN
LESEGESTELL
ARMSTANGE
KONSOLENMASTABDECKUNG
MOTORABDECKUNG
SEITLICHE TRITTFLÄCHE
KONSOLENMAST
LAUFMAT TE

5
TOOLS INCLUDED:
F5 mm L-Wrench/Screwdriver
F6 mm T-Wrench
FScrewdriver (not included)
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F1 Hardware Kit
F1 Safety Key
F1 Power Cord
F2 Handlebar Cover Set
F2 Water Bottle Holder
If you have questions or if
there are any missing parts,
contact your local dealer.
NEED HELP?
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled. Unpack and assemble the unit
where it will be used. Never grab hold of any portion of the incline frame and attempt to
lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
PRE ASSEMBLY
ALL
MODELS

6
HARDWARE FOR STEP 1 :

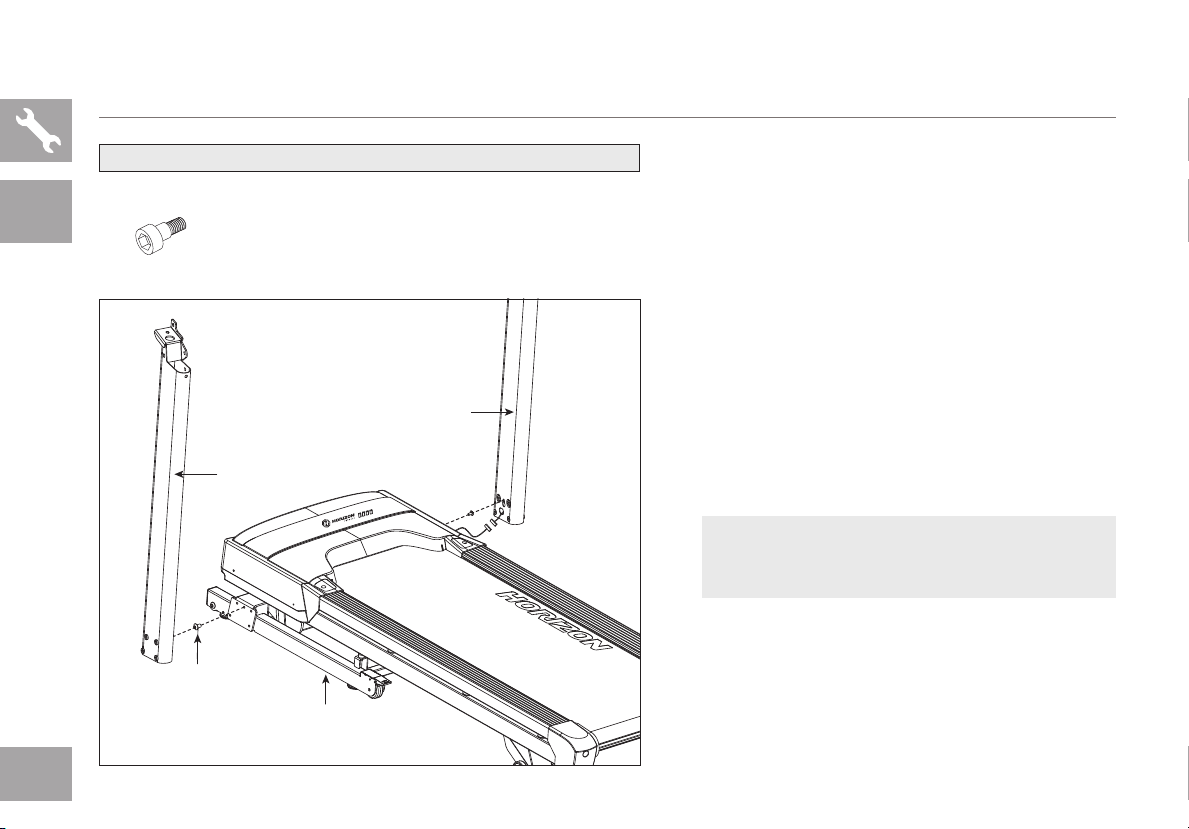

ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the running
deck upward to remove all contents from underneath
the running deck.
B Open HARDWARE BAG 1
C Screw in the 2 BOLTA to the MAIN FRAME
BRACKET.
D Connect the CONSOLE CABLES at RIGHT
CONSOLE MAST an carefully tuck wires to
CONSOLE MAST to avoid damage.
E Align and attach right CONSOLE MAST with MAIN
FRAME BRACKET using BOLTA and repeat on the
other side.
B O LT (A)
M8 x 10
Qty: 2
NOTE: Do not pinch console cable when placing
the mast onto the main frame bracket. You may
need extra help assembling step 1 o 2
Paragon 6
Shown
BOLT(A)
MAIN FRAME BRACKET
RIGHT CONSOLE MAST
LEFT CONSOLE MAST

7

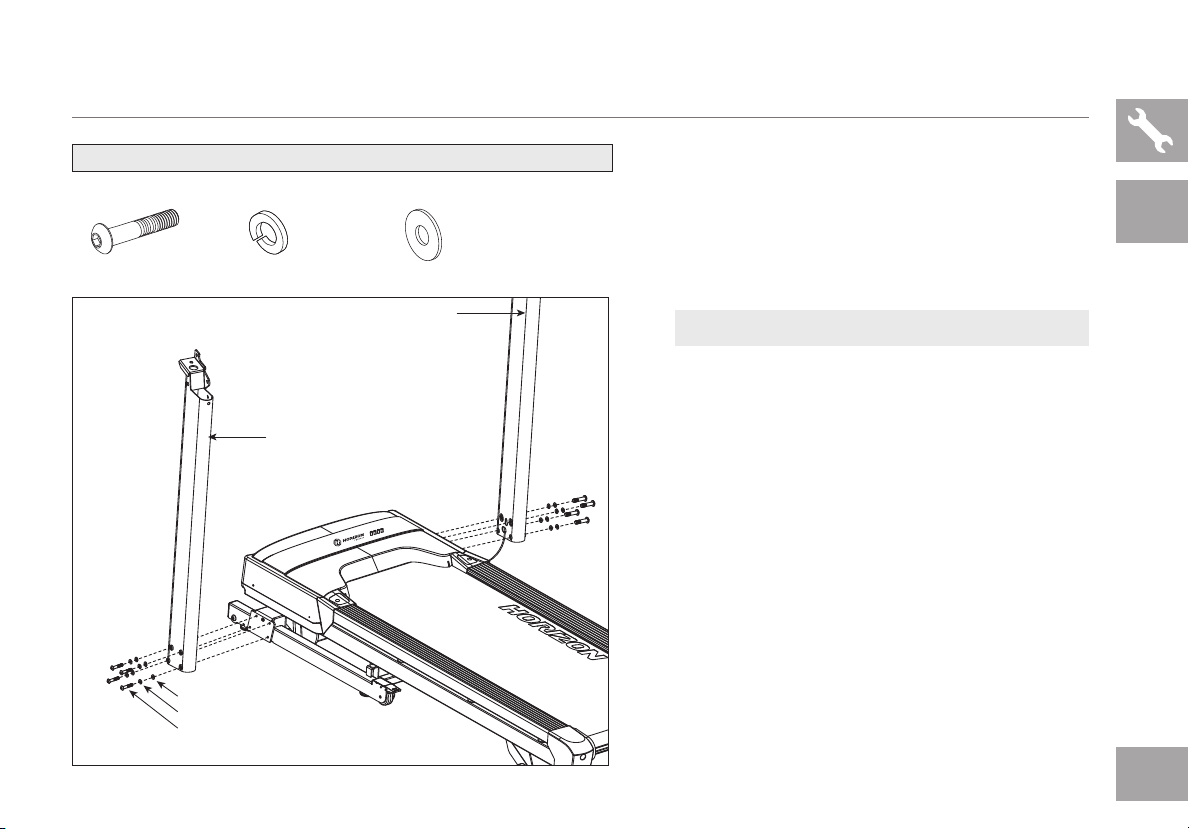

ASSEMBLY STEP 2
BOLT (B)
M8 x 70 mm
Qty: 8
SPRING WASHER (C)
Φ 8.2 mm
Qty: 8
FLAT WASHER (D)
Φ 8.2 mm
Qty: 8
HARDWARE FOR STEP 2 : A Open HARDWARE BAG 2
B Attach CONSOLE MAST to MAIN FRAME
BRACKET using 4 BOLTS B, 4 SPRING
WASHERS C and 4 FLAT WASHERS D.
C Repeat step B on other side.
NOTE: Do not tighten bolts until step 4 is complete.
Paragon 6
Shown
LEFT CONSOLE MAST
RIGHT CONSOLE MAST
FLAT WASHERS (D)
SPRING WASHERS (C)
BOLTS (B)

8

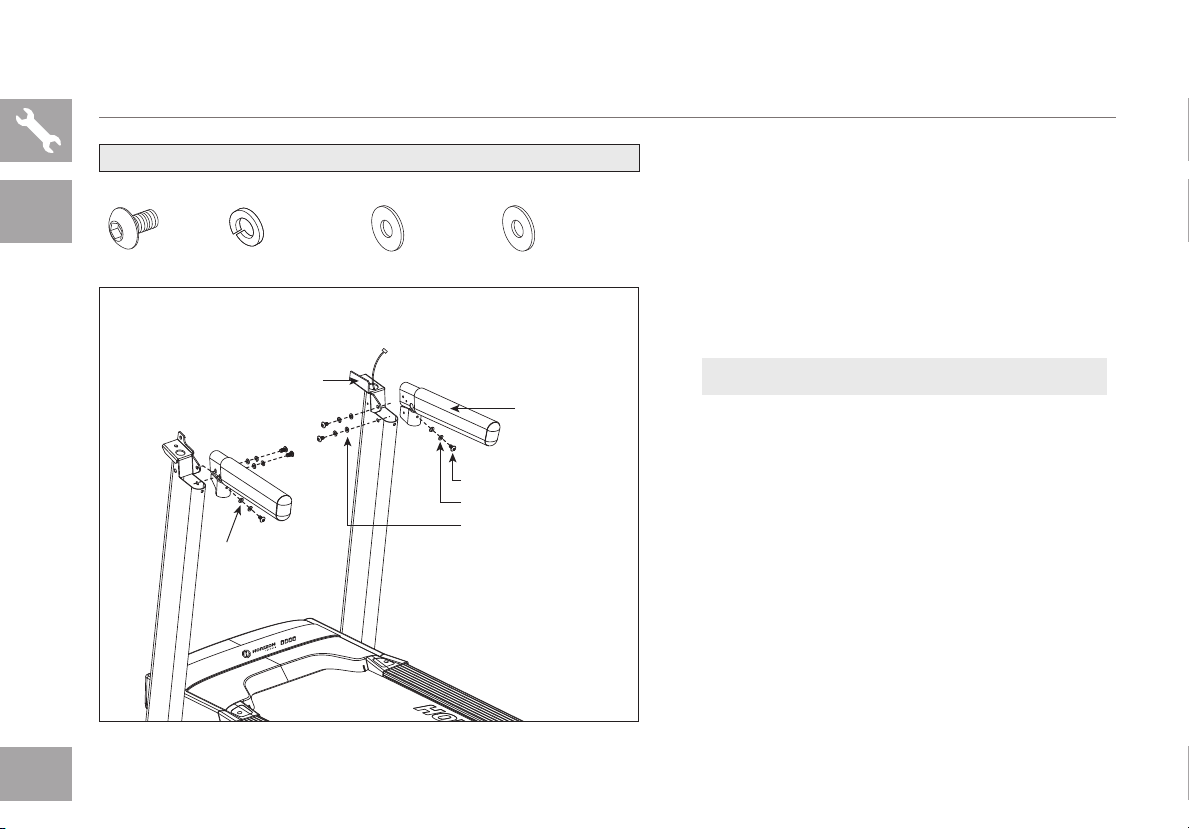

A Open HARDWARE BAG 3.
B Slide HANDLEBAR onto CONSOLE MAST
BRACKET and attach using 3 BOLTS E, 3
SPRING WASHERSSF, 2 FLAT WASHERSG &
1 ARC WASHER H.
(Refer to graphic at left for more details)
C Repeat on other side.
NOTE: Be careful not to pinch any wires.
BOLT (E)
M8 x 20 mm
Qty: 6
FLAT WASHER (G)
Φ 8.2 mm
Qty: 4
ARC WASHER (H)
Φ 8.2 mm
Qty: 2
SPRING WASHER (F)
Φ 8.2 x Φ14
Qty: 6
ASSEMBLY STEP 3
HARDWARE FOR STEP 3 :
SPRING WASHER (F)
FLAT WASHER (G)
ARC WASHER (H)
HANDLEBAR
CONSOLE MAST BRACKET
BOLT (E)
Paragon 6
Shown

9

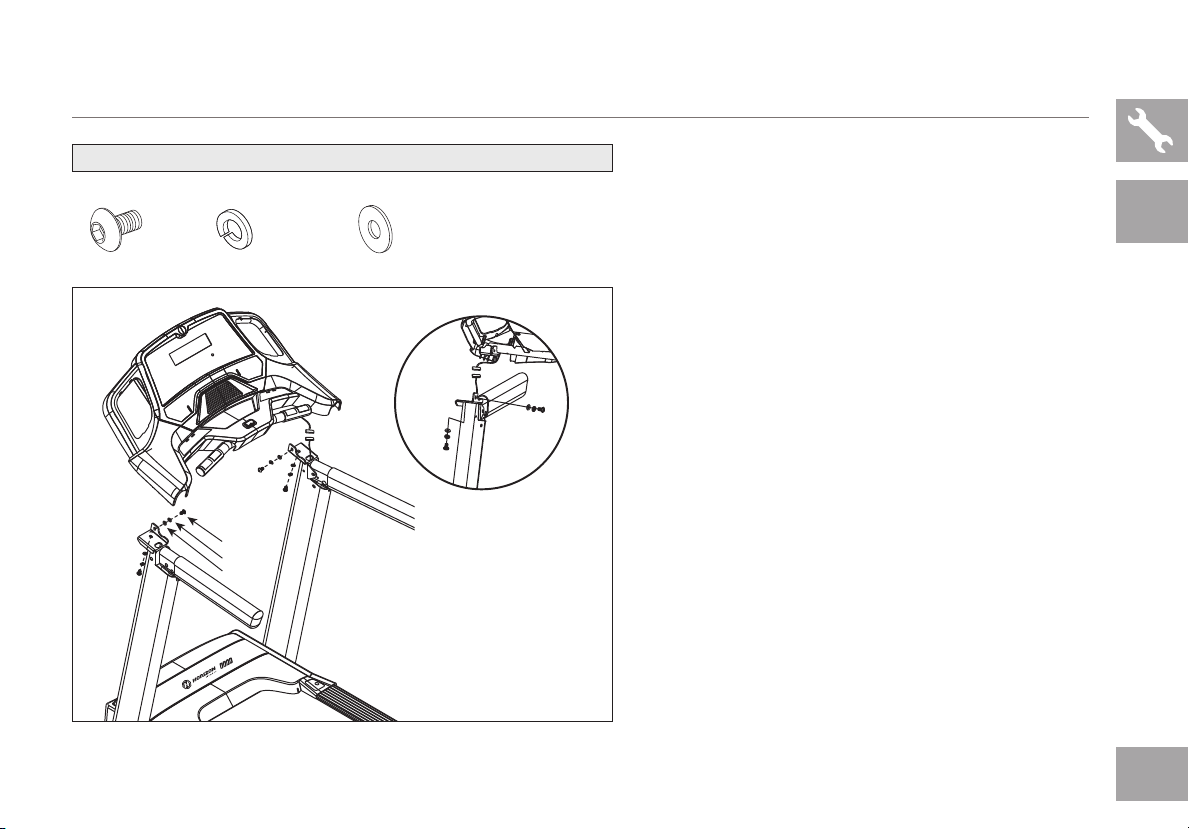

ASSEMBLY STEP 4
A Open HARDWARE BAG 4.
B Gently hold the CONSOLE above the
CONSOLE MAST.
C Connect the CONSOLE CABLES, carefully
tucking wires in masts to avoid damage.
D Attach the CONSOLE to the CONSOLE
MAST using 4 BOLTS I, 4 SPRING
WASHERS C and 4 FLAT WASHERS D.
E Fold the DECK into the upright position until
the foot latch engages. Make sure the spacing
between the HANDLEBARS and the DECK
are the same then tighten BOLTS from step 2
to step 4.
BOLT (I)
M8 x 15 mm
Qty: 4
FLAT WASHER (D)
Φ 8.2 mm
Qty: 4
SPRING WASHER (C)
Φ 8.2 mm
Qty: 4
HARDWARE FOR STEP 4 :
BOLT (I)
SPRING WASHER (C)
FLAT WASHER (D)
BOLT (I)
SPRING WASHER (C)
FLAT WASHER (D)
(PARAGON 6)
Paragon 6
Shown

10 (PARAGON 6)

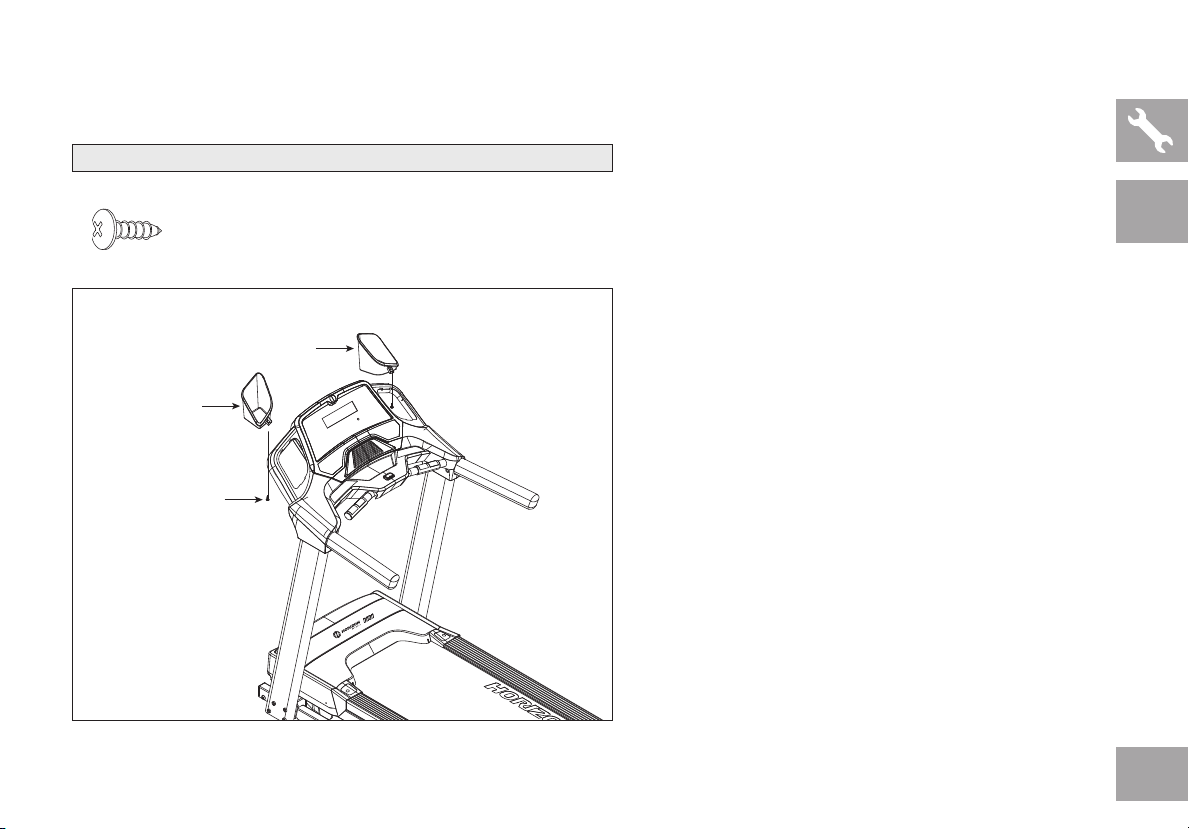

ASSEMBLY STEP 5
HARDWARE BAG 5:A Open HARDWARE BAG 5.
B Carefully attach RIGHT CONSOLE MAST OUTER
&INNER COVER together using 4 SCREWS J
and adjust the gaps between console shell and
CONSOLE MAST OUTER COVERS. Then tighten 4
BOLTS (I) from step 4
C Attach the left and right INNER COVERS using 4
SCREWS (J).
RIGHT HANDLEBAR
RIGHT COVER
LEFT COVER
SCREW (J)
SCREW (J)
Φ 4 x 12
Qty: 8
NOTE: Connect and screw in the outer cover
before fixing the inner cover. Be careful not to
scratch or brake the plastic while assembling.
Make sure the cover set is centered and well
assembled before tighten the screws.
Paragon 6
Shown
