zebris FDM-T-Sports User manual

FDM-T-Sports
Operating Instructions and Specifications

Seite 2/69
Seite 2/41FDM-T-Sports
Operating Instructions FDM-T-Sports
describes included functions up to and including version 1
Illustrations of this manual may differ.
© 2021 zebris Medical GmbH
All rights reserved. Reproduction in whole or in part only with
permission of zebris Medical GmbH.
Textrelease: R 1
Stand: 30.08.2021
REF-Nr: 79010094
Manufacturer
zebris Medical GmbH Phone [phone] - 300
Am Galgenbühl 14 Fax [phone] - 50
D-88316 Isny im Allgäu Email [email protected]
Germany Internet www.zebris.de
Sales/Support
zebris Medical GmbH Phone [phone] - 300
Am Galgenbühl 14 Fax [phone] - 50
D-88316 Isny im Allgäu Email [email protected]
Germany Internet www.zebris.de
Please always provide the serial number
of the product for inquiries!

Seite 3/69
Seite 3/41FDM-T-Sports
Content
1 Introduction
1.1. Structure of the FDM-T system user manual
1.2. Conventions and symbols used
2 Safety
2.1. Environmental conditions
2.2. Storage and transport
2.2.1. User obligations
2.2.2. General safety instructions
2.2.3. Safety instructions for the treadmill
2.2.4. Prohibited use
3 Product description
3.1. System components
3.2. Specifications FDM-T sensor
3.3. Technical Specifications FDM-T measuring systems
3.4. Measuring principle FDM-T system
3.5. Controls and connectors
3.6. LED indicator lights of the interface box
3.7. zebris SYNC
3.7.1. Synchronisations input (SYNC-IN)
3.7.2. Synchronisations output (SYNC-OUT)
3.8. Spare parts FDM-T system
3.9. Accessories FDM-T measuring system
4 Video module
4.1. Connection to the FDM-T system
4.1.1. Connection to the zebris SYNCCam
4.1.2. Connection scheme SYNCLightCam
4.2. SYNCCam
4.3. SYNCCam HS
4.4. SYNCLightCam – variant 30 Hz
5
5
6
7
7
7
8
9
10
11
12
12
12
13
17
18
18
18
19
20
21
22
24
24
24
25
26
27
29

Seite 4/69
Seite 4/41FDM-T-Sports
5 Setup and operation of the FDM-T system
5.1. Positioning of the measuring system
5.2. Connection of the measuring system to mains supply
5.2.1. Power supply of the FDM-T sensors
5.2.2. Connection of the system
5.3. Computer requirements
5.4. Installing the zebris FDM-T software
5.5. How to switch the FDM-T sensor on/off
5.6. Setting the system out of operation
5.7. Recommendations for recording data
5.7.1. Treadmill analysis
5.7.2. Data recording
5.7.3. Walking speed
5.7.4. Posture
5.7.5. Weals
6 Maintenance and safety inspections
6.1. General maintenance procedures
6.2. Mandatory periodic inspections and STK
6.3. Maintenance of the FDM-T sensor
6.3.1. Control procedures
6.3.2. Calibration procedures
6.4. Troubleshooting
6.5. Cleaning and disinfection
6.5.1. Cleaning procedure
6.5.2. Disinfection procedure
6.6. Disposal
6.6.1. Packaging
6.6.2. Weee-directive
6.6.3. Accumulators and batteries
32
32
33
33
34
34
34
35
35
35
35
35
35
35
35
36
36
37
38
38
38
39
40
40
40
41
41
41
41

The exact adherence to the instructions in all sections of the operat-ing
instructions for the measuring system is a precondition for its in-tended use.
Please also be sure to adhere to the user manuals supplied by manufacturers
of the treadmill and the accessories when setting the system into operation,
while using it, maintaining it, and transporting it.
Seite 5/69
Seite 5/41FDM-T-Sports
1 Introduction
1.1. Structure of the FDM-T system user manual
The FDM-T measuring system consists of a treadmill, the pressure distribution measuring sensors,
and the corresponding application software, including the PC. The sensors and treadmill can also
be used completely independently of each other and feature a separate power supply and CE mark.
The user manual for the FDM-T measuring system therefore consists of several sections:
1. FDM-T specifications and hardware user manual
2. zebris FDM user manual for the application software
3. Specifications and user manual supplied by the treadmill manufacturer.
4. User manual and specifications of accessories like projector or PC
The section FDM-T specifications and hardware user manual mainly contains information regar-
ding the specifications and operation of the FDM-T pressure distribution measuring sensors and
their safe operation in combination with the treadmill, as a measuring system. Instructions regarding
the treadmill are restricted to the main safety and servicing measures.

Seite 6/69
Seite 6/41FDM-T-Sports
1.2. Conventions and symbols used
“WARNING” symbols indicate a potential hazard to the health and safety of
the users and/or patients. The warnings describe the risks involved and those
that can be avoided.
Note symbols indicate a potential hazard that can result in dam-age of the
device. The notes explain the type of hazard and how it can be prevented.
This symbol indicates a potential hazard that can cause a loss of eyesight.
This warning indicates the type of hazard and how it can be avoided.
CE mark according to EC Directives 2014/30/EEC and 2014/35/EEC
(Low Voltage Directive and EMC Directive).
Manufacturer
Direct Current
USB-Interface
Do not dispose of with household waste
Item Number
Serial Number
REF
SN

All FDM-T systems can be stored without power supply for a maximum
of 6 to 9 months. After this period, the battery may be totally discharged
due to lacking power supply. If the storage of the device exceeds this period,
a reprogramming of the treadmill control may be necessary.
FDM-T systems must NOT be operated in wet zones, wet rooms
(swimming pools, saunas) or climatic chambers.
Direct contact with liquids must always be avoided, as the measuring
system is not protected against the entry of liquids. Liquids penetrating
the device can cause fire, electrical shock, or other severe accidents.
The FDM-T system is NOT specified for the operation in vacuum, hyper-
baric or altitude chambers.
The measuring systems are not intended for operation in potentially
explosive atmospheres of medically used rooms or oxygen-enriched
atmospheres.
The devices must not be operated in proximity to e.g., engines or
transformers with a high connected load as well as mains current
lines, as electrical or magnetic interference fields can falsify correct
measurements resp. turn them impossible.
Therefore, the devices must be protected against humidity.
The ventilation slots of the treadmills must be always free, so that
air can circulate freely.
Seite 7/69
Seite 7/41FDM-T-Sports
2 Safety
2.1. Environmental conditions
FDM-T measuring systems are suitable for application in dry interiors
with level ground such as those in hospitals, doctors’ surgeries, and laboratories.
Temperature 10°C to 40°C
Relative humidity 30% to 70%
Air pressure 700 hPa to 1100 hPa
2.2. Storage and transport
Storage and transport of the measuring system are only to be affected in the original
packaging provided by zebris.
Temperature -20°C to +70°C
Relative humidity max. 95%, non-condensing
Protect from moisture

Seite 8/69
Seite 8/41FDM-T-Sports
2.2.1. User obligations
Users are obliged to:
■Observe all safety guidelines of the user manual.
■Carry out any inspection and maintenance work on a regular basis as stipulated in the user manual.
■Only use work equipment that is free of defects.
■Check the functional safety and the proper condition of the device before operating.
■Make all user manuals that are included in delivery and part of the measuring system accessible
to all users at all times and keep the manuals in close proximity of the measuring system.
■Protect him-/herself, the patient or third parties against dangers.
■Avoid a contamination through the product.
When using the system, national legal regulations must be observed, in particular:
■The valid industrial safety regulations.
■The valid accident prevention measures.
For the safety, reliability and performance of the components delivered by zebris, responsibility
is assumed, if:
■Assembly, extensions, resettings, changes, or repairs were carried out through zebris or third
parties authorised by zebris, trained technicians or employees of authorised dealers. Storage
and transport are only to be affected in the original packaging delivered by the manufacturer.
■The device is operated in accordance with the user manual.
■The components of information technology provided by the operator correspond to the technical
requirements of hard and software included in this user manual and were installed and set up
according to the relevant descriptions in this user manual.
■The set-up room corresponds to the given environmental conditions of the measuring system
and the valid installation regulations.
■The FDM-T system including accessories is connected to the mains socket with a protective
grounding conductor and is operated with the correct mains voltage.
■Exclusively the software provided by zebris as well as the components and accessory parts listed
in this user manual are used together with the system.

Laser Radiation
Do not stare
into Beam
LASER CLASS 2
EN608 25-1:2003
P>1mW, 633-650 mm
Seite 9/69
Seite 9/41FDM-T-Sports
2.2.2. General safety instructions
■The application and operation of the system and the evaluation of the measuring
data and their interpretation may only be carried out by trained qualified personnel.
The manufacturer assumes no liability for any injury to persons, damage to property,
or loss of data due to improper use of the software, the device or its component parts.
■The client’s data and measuring data may only be copied, moved or deleted using the database
function provided by the zebris application programs. In the case of data being changed inten-
tionally without using the database functions, the user alone bears the full risks involved.
■Should there be any detectable damage to the device or component parts, they should be re-
turned to the manufacturer for a safety check. It is not permissible to continue using the device
or its component parts, as severe damage, and serious injuries – even lethal injuries - may result.
The manufacturer or authorized sales partner must always be contacted in all cases of fault or doubt.
■If any fluids should penetrate the device, it is mandatory for the device to undergo a technical,
safety test. Damaged plug connections and leads are to be replaced by an authorized service
technician. The device must be put out of operation immediately, marked as “Not working“
and prevented from being used by removing the mains cable. Please refer to an authorized
technician immediately.
■Be sure that all the mains and connection cables are laid safely and that they are protected
against stepping on, so that nobody can trip over them. Check all the cables and the connection
plug regularly for any damage. Damaged power supplies and cables must be replaced before
further operation.
■Never insert any objects in the components of the measuring system.
■A highly precise speedometer is integrated within the FDM-T System. This
device contains a laser Class 2 ( = 650 nm, P > 1 mW). It is strictly forbid-
den to remove all covers of the treadmill which are marked with the symbol
shown left if the measuring platform is connected to mains supply (if the
external power supply unit of the platform is plugged to mains supply).
Caution: If other procedures than those described within this user manual
are conducted, dangerous laser radiation can be released. Direct eye contact
with the laser beam may lead to serious injuries of the eye.

Seite 10/69
Seite 10/41FDM-T-Sports
2.2.3. Safety instructions for the treadmill
■The treadmill belonging to the FDM-T measuring system is a very powerful device.
For safe operation of the FDM-T system it is mandatory to adhere exactly to the
safety regulations described in the following.
■The measuring procedure on the treadmill must never be commenced without a thorough
instruction of the patient by trained personnel. No measurements may be taken without a supervisor.
■Do not place the treadmill on an unstable ground.
■Do not set up the system near a source of heating or in direct sunlight in front of a window as
a strong rise in temperature can lead to inaccurate measuring results.
■Directly behind the treadmill it is mandatory for a safety zone of 2 m in length and 1 m in width
to be kept free, and ought to be padded (with a soft mat). No items may be left in this zone during
operation (such as video camera, lighting equipment etc.).
■Dangerous drawing-in gaps are located at the rear end of the running belt and along its sides and
(if existing) on the elevating mechanism. Do not wear any loose clothing that could get caught up
in the rollers. Make sure that if a person trips over, their long hair, loose clothing, jewellery, etc.,
do not encounter the rear part of the treadmill belt (e.g., wear a hair net). Due to danger of
stumbling, do not place any clothing or jewellery on or within close proximity of the treadmill.
■Never use the treadmill without the safety clip being fastened to your clothing and always be sure
that the folding mechanism (if existing) is properly locked during operation. (Please also be sure to
read the safety instructions in the user manual supplied by the treadmill manufacturer.)
■During operation, the emergency STOP facilities must always be within easy reach for the user and
the operating personnel.
■The patient should walk slowly to begin with. Then gradually speed can be increased after a few
minutes, depending on the patient’s physical condition. Improper or excessive strain through tests
resp. measurements can have harmful effects on health.
■Never jump onto the running belt and never jump off it whilst it is running. Never stop walking
while the treadmill is running, never turn round or step sideward or backwards. Should movement
patterns of this kind be necessary for your measurements, please make sure to use a type of tread-
mill with a safety arch, protection against falling and a “fall stop” chest belt.
■Pull out the power plug before transporting the treadmill.

Seite 11/69
Seite 11/41FDM-T-Sports
2.2.4. Prohibited use
■Improper and/or prohibited use of the measuring system is impermissible and zebris
warn explicitly against all prohibitions included in this section.
■Do not try to service the treadmill in any manner other than that described in this user manual.
By the removal of the protective covers, it is possible that you could expose yourself to lethal high
voltages or other hazards.
■We also point out that if any changes are made to this certified device or its accessories without
the prior written consent of zebris, your legal right to operate the device will be void. If changes
are made to the device without obtaining approval, the operator is obligated to carry out suitable
investigations and tests to guarantee safe use.
■It is prohibited to embed the treadmill in the floor to reduce (track) access height. This way of
installation might create a highly dangerous capture area at the rear guide pulley of the treadmill.
The zebris Medical GmbH expressively will undertake no liability for injuries to any person when
the treadmill is operated under such condition!
■All applications using wheels are prohibited (cycling, wheelchair, inline skating or roll ski) as well
as running shoes with spikes or studs. Besides their extremely high risk of injury, these can cause
irreparable damage to the sensors.
■There should never be more than one person on the treadmill at a time once it is in operation.
■Children and animals are not allowed to use the treadmill without supervision and must maintain
a safety distance of at least 5 m.
■Any manner of over-exerting the test persons is strictly prohibited. In cases of nausea and dizziness,
the measuring is to be discontinued immediately and a doctor consulted.
■Any form of operation involving an increased hazard is strictly prohibited, e.g., sprinting or also
using test persons having an increased risk.
■
The use of the measuring system under the influence of alcohol, drugs or narcotics is strictly prohibited.
■zebris measuring systems may not be operated in any other environmental conditions than those
listed in the section: 3.3. Technical specifications, p.13, (e.g., in wet zones, moisture-prone areas,
or in climatic, vacuum, hyperbaric or decompression chambers, etc.). Direct contact with liquids
must always be avoided, as the measuring system is not protected against entering liquids. Liquids
entering the device can cause fire, electric shock, or other severe accidents.

Seite 12/69
Seite 12/41FDM-T-Sports
3 Product description
3.1. System components
In its basic configuration the measuring system consists of the following components:
■Treadmill with integrated sensor equipment for measuring the pressure distribution
■Safety clip for the emergency shutdown
■Mains cable for connecting the treadmill
■External power supply unit for the FDM-T pressure plate
■USB cable (Type A-B)
■zebris application software zebris FDM
■Windows-compatible computer or notebook
■Silicone oil for lubricating the belt
■Cable guard with screws
■User manual for FDM-T system, treadmill, zebris FDM software
3.2. Specifications FDM-T sensor
The sensors of the different FDM-T systems only vary in size of the measuring area,
the number of single sensors included in the sensor module and the supported
sampling frequency. All other technical specifications are identical.
Interfaces USB synchronization input/output
videosync.
infrared synchronization (optional)
Connectors interface box on the treadmill housing frame
or connection on the back of the treadmill
Measuring principle capacitive pressure measurement
Operating voltage 16-18 V DC
Power consumption maximum 60 W (depending on the type)
Power supply via external power supply unit 100 – 240 VAC/50/60 Hz
Measuring range 1 – 120 N/cm²
Accuracy of the calibrated measuring range (1 – 80 N/cm²)±5% of maximum range
Hysterese ≤3%
Pressure threshold 1 N/cm²

Seite 13/69
Seite 13/41FDM-T-Sports
3.3. Technical specifications FDM-T measuring systems
REF 01543134
Speed 1 to 13 km/h (in 0,1 km/h steps)
Walking area 120 x 41 cm
Motor 1.1 kW
Weight approx. 75 kg
Dimensions (L x W x H) 160 x 80.4 x 136 cm
folded: 160 x 80.4 x 28 cm
Step height 18 cm
Incline adjustment manually, 2 steps
Max. user weight 120 kg
Colour white/black
Measuring range 1 - 120 N/cm²
Sampling rate 100 Hz
Sensor area 94.8 x 40.6 cm
Number of sensors 5,376
Accuracy 1 to 80 N/cm² ± 5 % (FS)
Hysteresis 1 to 80 N/cm²
# 3 %
Interface Videosync.
PC interface USB
FDM sensor
FDM treadmill TLR4
Measuring system FDM-TLR4

Seite 14/69
Seite 14/41FDM-T-Sports
3.3. Technical specifications FDM-T measuring systems
REF 01543137
Speed 1 to18 km/h (in 0,1 km/h steps)
Walking area 140 x 46 cm
Motor 1.65 kW
Weight approx. 88 kg
Dimensions (L x W x H) 177 x 69 x 115 cm
Step height 16 cm
Incline adjustment 0% to 15 % (in 1% steps)
Max. user weight 120 kg
Colour black/green
Measuring range 1 - 120 N/cm²
Sampling rate 100 Hz
Sensor area 94.8 x 40.6 cm
Number of sensors 5,376
Accuracy 1 to 80 N/cm² ± 5 % (FS)
Hysteresis 1 to 80 N/cm²
# 3 %
Interface Videosync.
PC interface USB
FDM sensor
FDM treadmill TR40
Measuring system FDM-TR40

Seite 15/69
Seite 15/41FDM-T-Sports
3.3. Technical specifications FDM-T measuring systems
REF 01543109 / 01543117
Speed 0.8 to 20 km/h (in 0,1 km/h steps)
Walking area 150 x 51 cm
Motor 2.94 kW
Weight approx. 100 kg
Dimensions (L x W x H) 187 x 74 x 115 cm
Step height 16 cm
Incline adjustment 0% to 15 % (in 1% steps)
Max. user weight 150 kg
Colour black/green
Measuring range 1 - 120 N/cm² 1 - 120 N/cm²
Sampling rate 100 Hz 120 Hz optional 240 Hz
Sensor area 94.8 x 40.6 cm 108.4 x 47.4 cm
Number of sensors 5,376 7,168
Accuracy 1 to 80 N/cm² ± 5 % (FS) 1 to 80 N/cm² ± 5 % (FS)
Hysteresis 1 to 80 N/cm²
# 3 % 1 to 80 N/cm² # 3 %
Interface Videosync. Videosync.
PC interface USB USB
FDM sensor TR70L TR70
FDM treadmill FDM-TR70L / TR70
Measuring system FDM-TR70L / TR70

Seite 16/69
Seite 16/41FDM-T-Sports
3.3. Technical specifications FDM-T measuring systems
REF 01543222
Speed 0.1 to 20 km/h
Walking area 140 x 48 cm
Motor 2 HP, AC
Weight approx. 150 kg
Dimensions (L x W x H) 188 x 70 x 142 cm
Step height 20 cm
Incline adjustment -3% bis + 19% (0% to + 22%)
Max. user weight 150 kg
Colour white
Measuring range 1 - 120 N/cm²
Sampling rate 120 Hz
Sensor area 91 x 39 cm
Number of sensors 2,232
Accuracy 1 to 80 N/cm² ± 5 % (FS)
Hysteresis 1 to 80 N/cm²
# 3 %
Interface Videosync.
PC interface USB
PDM-C sensor
FDM treadmill TRUN2011-2i
Measuring system zebris PhysioWalk®– FDM-TRUN2011-2i

Seite 17/69
Seite 17/41FDM-T-Sports
3.4. Measuring principle FDM-T systems
The system contains a measuring matrix consisting of capacitive pressure sensors that are arranged
in columns and lines running closely next to each other. For determining the pressure distribution
over the measuring matrix, the capacity proportional to the pressure exerted is determined for each
individual sensor. To do this, the drive logic generates several sinus burst signals equivalent to the
number of columns via the column decoder and transmits them to the respective measuring column.
The analogue signal coupled into the shift register over the lines is proportional to the pressure-dependent
capacity and is passed on for further processing to the control and signal-processing electronics and
transmitted to the PC from there and shown on the display.
Schematic circuit diagram of the measuring system

The correct synchronisation of all measurement data must be verified in case
devices are connected to zebris SYNC which have not been manufactured by
zebris Medical GmbH. zebris does not accept any liability for correct function
and reliability of the system if the clock signal of external devices does not
comply with the signal specifications provided with in this user manual.
Seite 18/69
Seite 18/41FDM-T-Sports
3.5. Controls and connectors
All the cable connections are carried out via the interface box which is located on the side of the
treadmill frame.
3.6. Sockets and LED indicator lights of the interface box
POWER Lights up as soon as the power supply unit is plugged to the interface box and
connected to mains.
STANDBY Lights up if the power supply unit is connected to mains, the USB socket is con
nected to the PC and the hardware driver of the platform is installed properly.
USB socket and lights up when the USB socket is connected to the PC and the hardware driver of
control LED the platform is installed properly.
Videosync. and USB socket at the back of the tradmill (PDM-C sensor)
3.7. zebris SYNC
The zebris SYNC is the standard solution for synchronization of the FDM-T system with third party
measuring devices. The SYNC- IN and SYNC- OUT sockets provide input and output for support of
“sample by sample“ In- and Out synchronization. Both sockets provide galvanic protection between
third party systems and FDM-T sensor.
zebris-Sync. IN/OUT
Power supply Operation mode indicator Videosync.
IR-Sync.
USB socket and control LED
Videosync. USB socket

Seite 19/69
Seite 19/41FDM-T-Sports
3.7.1. Synchronization Input (SYNC-IN)
If a third-party device is connected to the synchronization input SYNC-IN then depending on
the setting of the configuration window from the application software the measurement will
start/stop or “sample by sample” synchronized by a signal from the third party device.
Input is protected against faulty polarisation and pin 1 is set to +5V (”1”) by an internal pullup-
resistor (2.7 k). If this input is set to 0 V (”0”) i.e., by a switch or break contact than the
SYNC-IN is triggered.
Electrical spezifications
Input Resistance (Pull-Up 5V) 2,7 k
VIH (High-Level Input Voltage) ≥2,0 V
VIL (Low-Level Input Voltage) ≤0,8 V
Required min. pulse time for triggering 1 ms

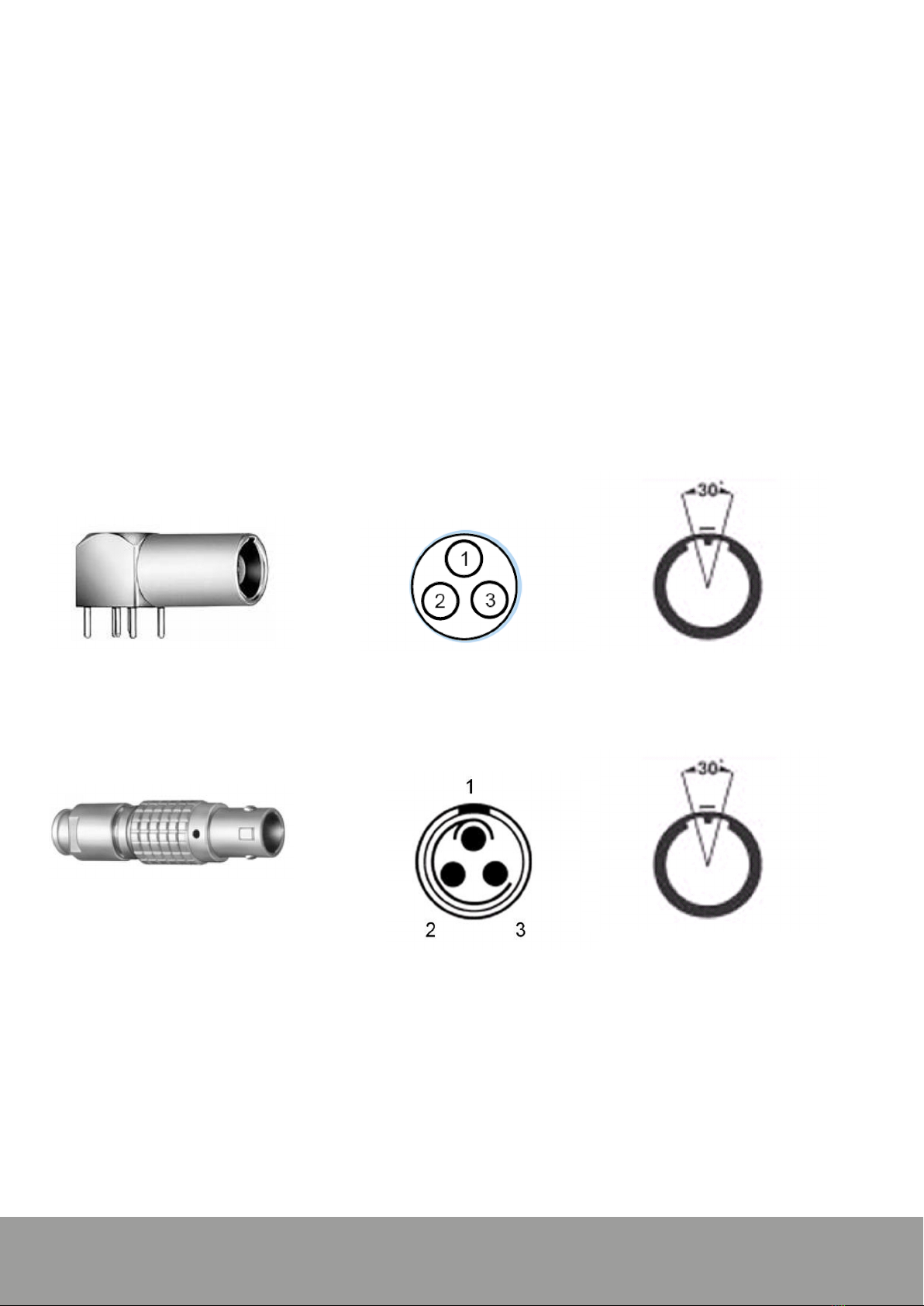

Integrated LEMO socket in the interface-box
Series ”00“, three pole, coding 30°
LEMO-Part-No.: EPA.00.303.NLN
Suitable plug for SYNC-IN:
LEMO-Part-No.: FGA.00 303.CLADxxxx
Pin assignment
Pin 1 Clk_IN
Pin 2 Activ_IN
Pin 3 GND
Socket coding: 30°
Plug coding: 30°
View socket,
front side
View plug,
solder side

Seite 20/69
Seite 20/41FDM-T-Sports
3.7.2. Synchronization Output (SYNC-OUT)
If a third-party device is connected to the synchronization output SYNC-OUT then depending on the
setting of the configuration window of the application software, a FDM-T system controlled, will
trigger a synchronized measurement of the third party device either via start/ stop or “sample by
sample” mode. Electrical specifications
Input Resistance (Pull-Up 5V) 100 V
VIH (High-Level Input Voltage) ≥2,0 V
VIL (Low-Level Input Voltage) ≤0,8 V

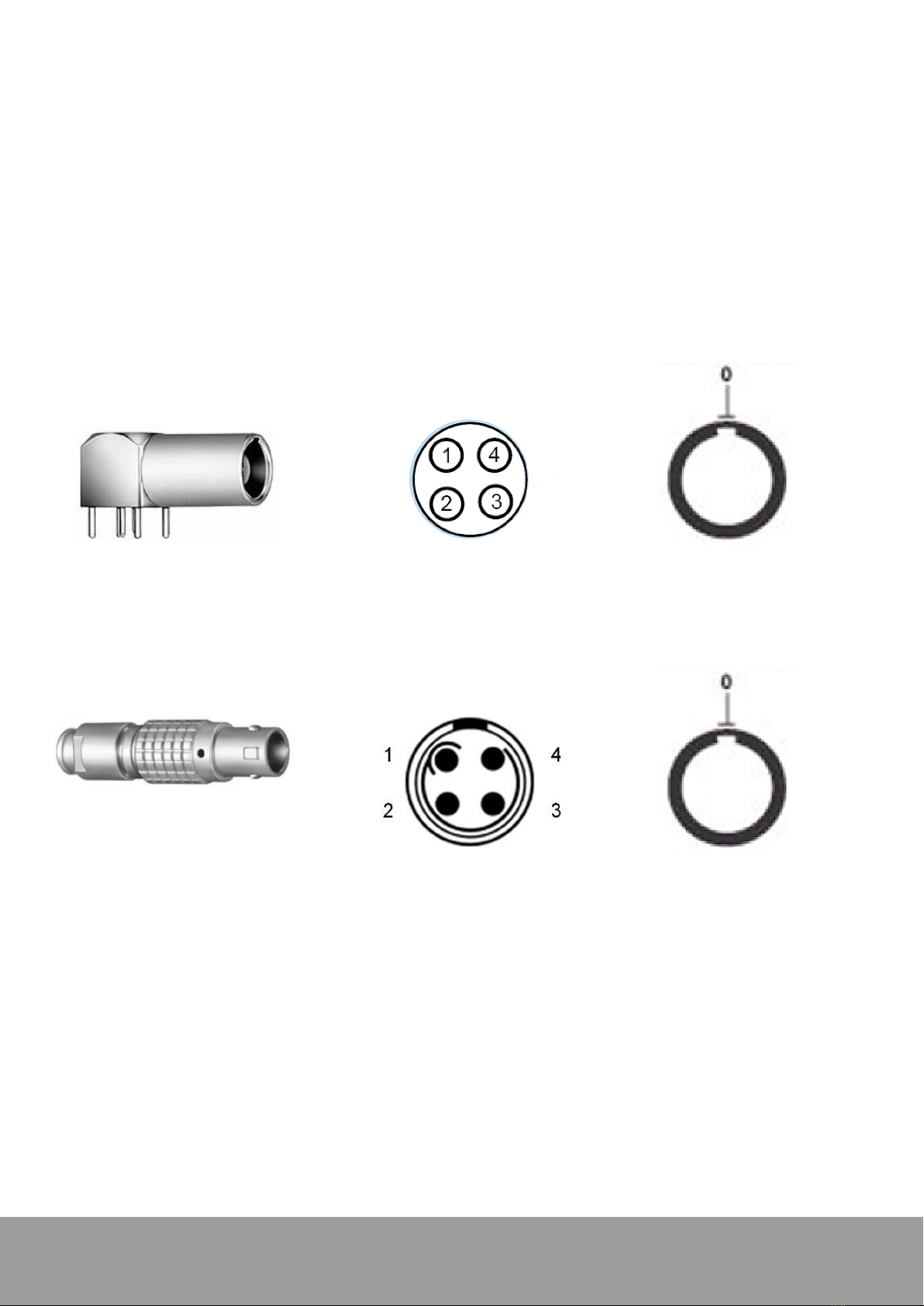

Integrated LEMO socket in the interface-box
Series ”00“, four pole, coding 0°
LEMO-Part-No.: EPG.00.304.NLN
Suitable plug for SYNC-IN:
LEMO-Part-No.: FGG.00 304.CLADxxxx
Pin assignment
Pin 1 +5V
Pin 2 GND
Pin 3 Activ_OUT
Pin 4 Clk_OUT
Socket coding: 0°
Socket coding: 0°
View socket,
front side
View plug,
solder side
