Speedway 46692 Operator's manual

MANUAL & SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may ignite
the dust or fumes.
• Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
• Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Safety equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energizing power tools that have
the switch on invites accidents.
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
• Only use safety equipment that has been approved by an appropriate standards
agency. Unapproved safety equipment may not provide adequate protection. Eye
protection must be ANSI-approved and breathing protection must be NIOSH-approved
for the specific hazards in the work area.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with grounded power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
• Avoid body contact with grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is grounded.
- 1 -

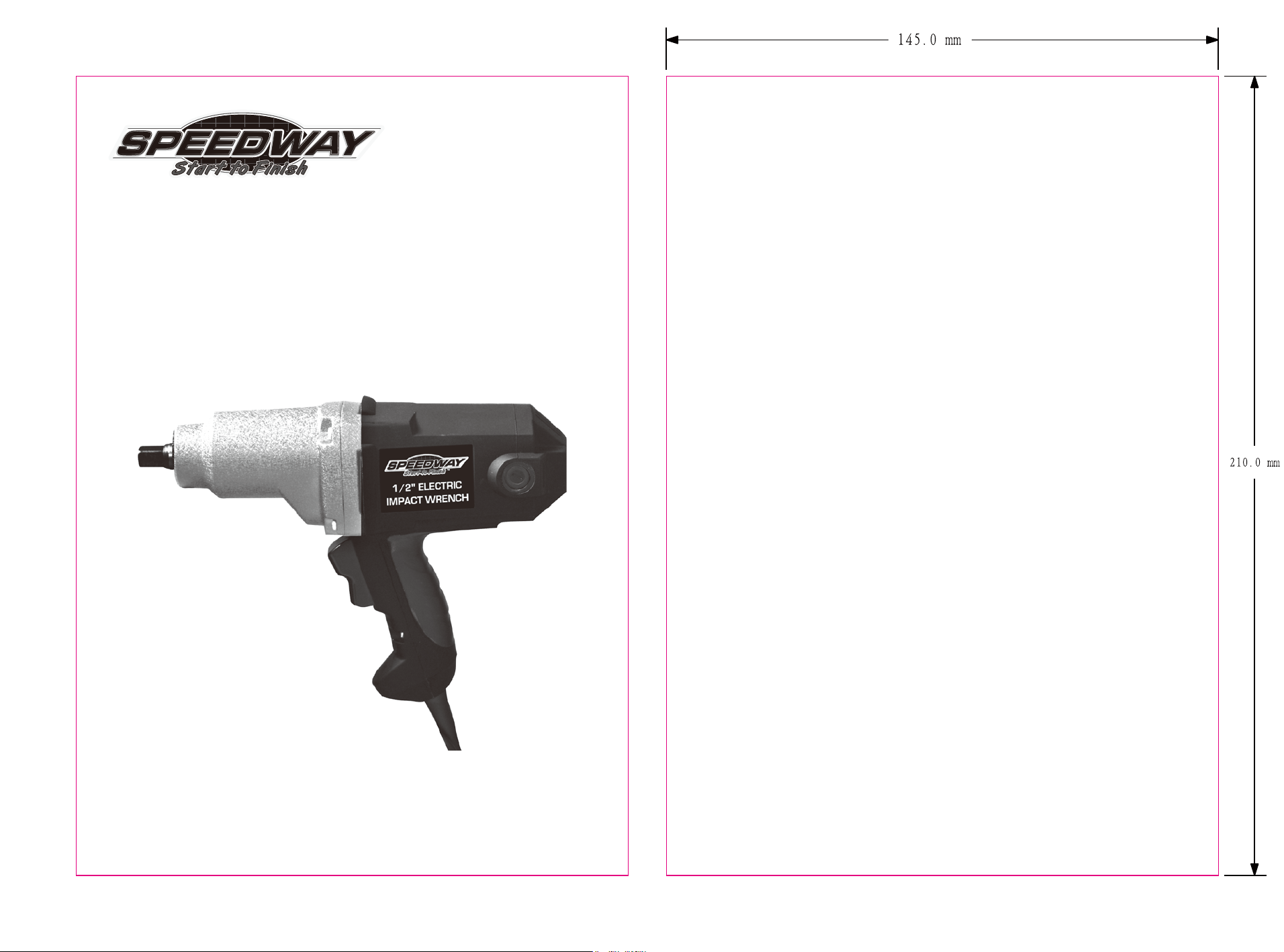

1/2" ELECTRIC
IMPACT WRENCH
46692

• Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
•
When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
The following parts must be lubricated with bearing grease before assembling:
“V” groove on the cam and the impactor, l.D. OF the impactor, all steel balls, spring
bearing surfaces and all thrust washers. Evenly distribute one ounce of grease in the
gear case before assembly.
- 3 -- 2 -
MOTOR BRUSHES
LUBRICATION DIRECTIONS:
For safety and depandability, only have this Electric tool repaired by a qualified
technician. when servicing this tools, as with all double insulated tolls, it is extremely
important only to use identical replacement parts as required.
IMPORTANT:
NOTE: UNPLUG WRENCH BEFORE INSPECTING BRUSHES:
• The brushes should periodically be inspected for repair. Unscrew plastic caps located
beside the motor housing to reveal the spring and brush assembly.
• Keep brushes clean and freely sliding. Symbols are inscribed on the brushes and if it
is worn down to the line closest to the spring replace immediately.
SWITCH
• This impact wrench is equipped with a rocker switch that:
Pressing the lower part of the switch makes the impact wrench to move clockwise.
Pressing the upper part of the switch makes the rotation to reverse.
LUBRICATION
• The impact wrench will require lubrication after 30 continuous hours or 50 intermittent
hours of use. Refer to the parts diagram or contact and approved service center for
lubrication services.
ACCESSORIES
• Only use impact sockets and extensions with impact wrenches. Use of other
attachments or accessories may result in injury and will likely void warranties
of the tools involved.
RECOMMENDED MINIMUM WIRE GAUGE
FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25’ 50’ 75’ 100’ 150’
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 ---
TABLE A * Based on limiting the line volt-
age drop to five volts at 150% of
the rated amperes.

ASSEMBLY DIAGRAM
- 4 - - 5 -
