Springbok Tracker Pro User manual
Tracker Pro
Quick Start Guide

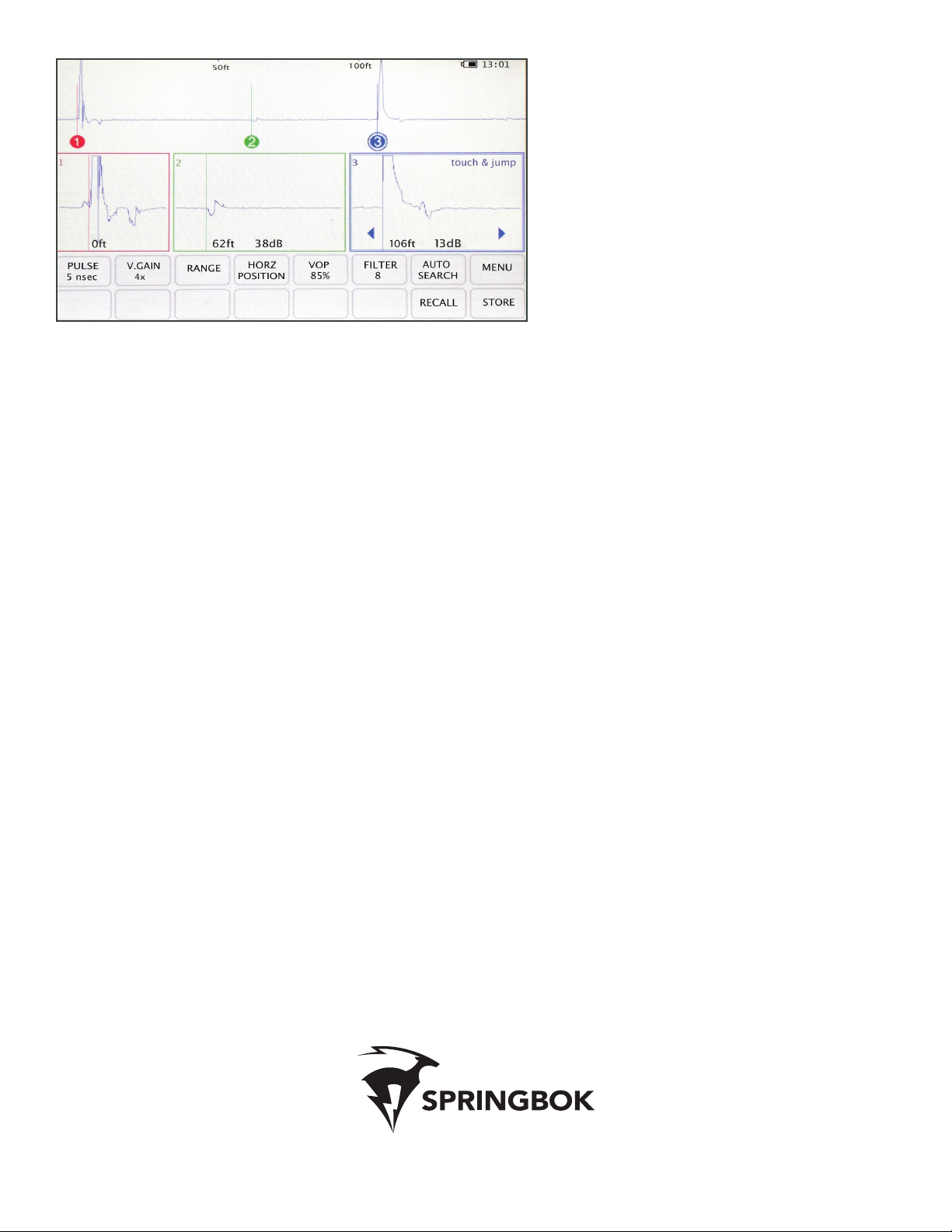

Touch and Jump
The Tracker Pro has the unique feature of touch &
jump. Touching inside of a zoom window, will select the
corresponding cursor. Once the desired cursor is selected
touching the overview window will jump the cursor to that
location on the waveform.
Splash Proof USB
BNC
Power Button
Charging LED
Charging Port
For more information about the Tracker Pro,
please refer to the instruction manual.
Navigation
Tracker Pro uses a touch screen navigation. By touching the PULSE, V.GAIN, RANGE, HORZ POSITION, VOP or
FILTER button, you will be given sub-choices in the buttons below.
Splash Proof USB
BNC
Power Button
Charging LED
Charging Port
Splash Proof USB
BNC
Power Button
Charging LED
Charging Port
Overview window
Zoom windows (1, 2 and 3)
Pulse (nsec)
5, 20, 50, 100, 300 and 500
V. Gain
1x, 2x, 4x and 8x
Range
1, 2, 3, 4, 5 and 6
Horz Position
left and right
VOP
up and down
Filter
1, 4, 8 and 16
The zoom windows provides a more detailed view of the waveform by being further horizontally magnified.
To move the zoom window to a different position on the waveform, touch the desired window and use the left
and right arrows.
Tracker View
Tracker View is used to update your Tracker Pro and download and view saved waveforms on a PC. To
download Tracker View to your computer go to sprinkbokinstruments.com/downloads and click the
appropriate download link for your operating system. Then follow the on screen installation instructions.
Updating the Tracker Pro
Your current software rev is listed in the MENU under the INFO tab. To view the latest rev available go to
sprinkbokinstruments.com and click the download tab. If your Tracker Pro is out of date, click the download link
for the new system firmware. On your Tracker Pro go to the MENU and touch the UPDATE tab. Now connect
your Tracker Pro to your PC using the USB cable. Open Tracker View on your PC and click Update Instrument
Firmware. Selecting the downloaded Firmware file will update your Tracker Pro to the latest revision.
Downloading Waveforms to your PC
To download the saved waveform to your PC, touch the RECALL button on your Tracker Pro and find the
waveform you are wanting to download. From there touch the USB button and connect the Tracker Pro to your
PC using the USB cable. Open the Tracker View software on your PC and click download from instrument.
Note: this file will be saved in your My Documents/Tracker View folder
The save time is approximately 30 seconds. You can now detach the cable from the Tracker Pro. Press RECALL
on the Tracker Pro to view the waveforms remotely. While viewing this waveform you can change the pulse,
v. gain, range, horz position and vop. The filter will remain the way it was when the waveform was stored.
Tracker Pro will display the latest stored waveform first. Continue to press RECALL to view the previous stored
waveforms. Once the Tracker Pro has saved 30 waveforms, it will overwrite the oldest waveform and replace it
with the newest. You can save waveforms to your PC using Tracker View.
Auto Search
By touching the auto search button, it
automatically moves cursor 3 to
the largest impedance and automatically
zooms to the proper range.
Store and Recall
Tracker Pro has the ability to store and
recall up to 30 waveforms. First, connect
the coaxial cable to the Tracker Pro and
press STORE. The store button will show
the progress of saving the waveform and
display the word STORE when finished.
402 505 8793
Springbok, Inc
Made in USA
