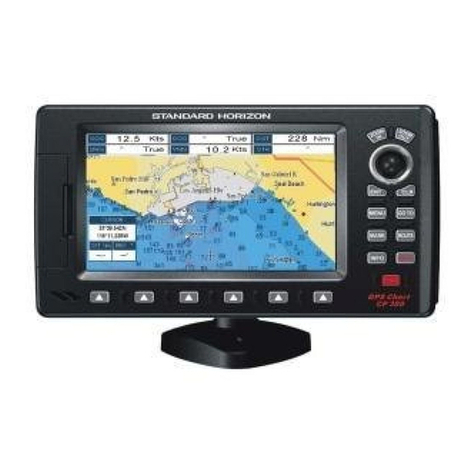

Standard Horizon CP180 User manual

CP180/CP180i
CP300/CP300i
Owner's Manual
Color GPS Chart Plotters

Page 4 GPS Chart Plotters
WARNING!!!
ElectronicchartsdisplayedbytheGPSChartPlotterarebelievedtobeaccurateand
reliable, but are not intended to be a substitute for the official charts, which should
remain your main reference for all matters related to the execution of safe
navigation.
Forthisreasonyoushouldalwayskeeptheofficialpublishedandapprovednautical
charts on board.
FCC Compliance Statement
ThisdevicecomplieswithPart15oftheFCClimitsforClassAdigitaldevices.This
equipment generates, uses and can radiate radio frequency energy and, if not
installedorusedinaccordancewiththeinstructionsmaycauseharmfulinterference
with radio communications.
Thereis no guarantee that interference will not occur in a particular instance. If this
equipment does cause harmful interference to other equipment, try to correct the
problem by relocating the equipment.
Consult an authorized STANDARD HORIZON dealer or other qualified service
technician if the problem cannot be corrected. Operation is subject to the following
conditions: (1) This device cannot cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
Copyright 2012. YAESU MUSEN CO., LTD. All rights reserved. Printed in Italy.
No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD.
OM CODE: S4x2SH5c_0ww 16.60rD78 & S4x2SH8wc_0ww 16.60rD80 - 151012

GPS Chart Plotters Page 5
CAUTION
·The GPS Chart Plotter is designed for maritime use. To avoid water intrusion, ensure
the C-MAP BYJEPPESEN C-CARD door is completely closed.
·Extensive exposure to heat may result in damage to the GPS Chart Plotter.
·The GPS Chart Plotter contains dangerous high-voltage circuits which only experien-
ced technicians can handle.
·STANDARD HORIZON will not be liable for errors contained herein, or for incidental
or consequential damages in connection with the performance or use of this material.
·Because we frequently update our software and applications, the pictures shown
through this Owner’s Manual may be slightly different from what you see.
CLEANING PROCEDURE FOR THE GPS CHART PLOTTER SCREEN
CleaningoftheGPSChartPlotterscreenisaveryimportantoperationandmustbe
done carefully. Since the surface is covered by a antireflective coating, the
procedure for cleaning all the surfaces can be performed using the following
procedure:Useaclean,soft,lint-freeclothtocleantheglass.Werecommendusing
a micro-fiber cloth. Spray a small amount of ammonia-free cleaner (isopropyl
alcohol) onto the cloth. Spraying on the cloth will prevent overspray. Fold the cloth
orlenscloth intoa triangularshape, moistenthe tipand usethe indexfinger behind
a corner to move the cloth across the surface in overlapping side to side strokes.
If the cloth is too wet, a noticeable wet film will be left in its path and you will need
to repeat the process. If too dry, the cloth won’t glide easily, and may damage the
surface.

Page 6 GPS Chart Plotters
TABLE OF CONTENTS
1. INTRODUCTION .................................................................................................................10
1.0 GENERAL INFORMATION .................................................................................... 10
1.1 PACKING LIST .......................................................................................................11
1.1.0 CP180/CP180i Packing List ......................................................................11
1.1.1 CP300/CP300i Packing List ......................................................................11
1.2 OPTIONAL ACCESSORIES .................................................................................. 12
1.3 RADAR UNIT SUPPLIED BY SI-TEX USA............................................................12
2. GETTING STARTED ........................................................................................................... 13
2.0 MOUNTING THE GPS CHART PLOTTER ............................................................ 13
2.1 BRACKET MOUNTING ..........................................................................................13

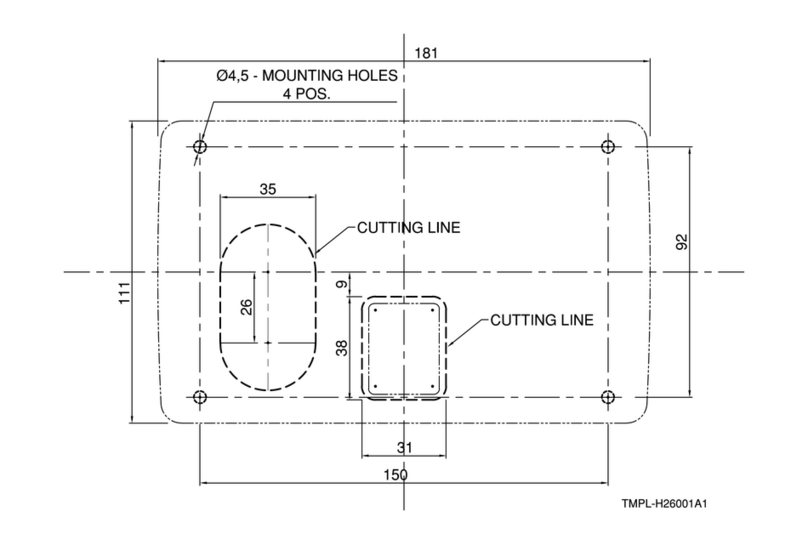

2.2 FLUSH MOUNTING................................................................................................14
2.3 MOUNTING THE CP180 OR THE CP300 EXTERNAL GPS ANTENNA .............15
2.3.0 Flush mounting the antenna ......................................................................16
2.4 CONNECTIONS .....................................................................................................17
2.4.0 CP180/CP180i Connection Table..............................................................17
2.4.1 CP300/CP300i Connection Table..............................................................18
2.4.2 CP180/CP180i Connections ......................................................................19
2.4.3 CP300/CP300i Connections ......................................................................20
2.5 BATTERY CONNECTIONS ...................................................................................22
2.6 NMEA CONNECTIONS..........................................................................................22
2.7 GPS POSITION ON A VHF RADIO .......................................................................22

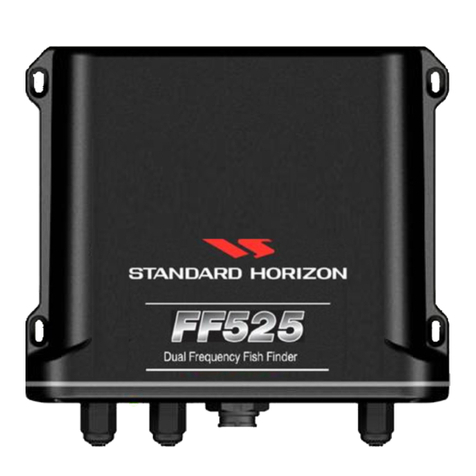

2.8 OPTIONAL BLACK BOX FISH FINDER ................................................................23
2.9 RADAR ANTENNA (USA ONLY) ...........................................................................23
2.10 PERSONAL COMPUTER CONNECTIONS...........................................................23
2.11 NMEA DATA PAGE................................................................................................24
2.12 CP300/CP300i VIDEO INPUT................................................................................25
2.12.0 Video Camera Input ................................................................................... 25
2.12.1 VCR or DVD Input......................................................................................25
2.13 DEMO MODE (For DEALER USE) ........................................................................26
3. CONTROLS AND INDICATORS ...................................................................................... 28
3.0 CONTROLS AND CONNECTIONS .......................................................................28
3.0.0 The CP300/CP300i Soft Keys ...................................................................29
3.1 GETTING STARTED ..............................................................................................29
3.1.0 Power On, Off and ShuttlePoint Knob operation ......................................29
3.1.1 Cursor Vs. Home Mode .............................................................................31
3.1.2 Cursor and Menu selection speed.............................................................31
3.1.3 Changing the Ship Icon .............................................................................32
3.1.4 Changing the Backlight and Contrast........................................................32
3.1.5 Selecting North Up or Course Up .............................................................. 32
3.2 AUTOMATIC TIME .................................................................................................33
3.3 SELECTING LORAN TD OR OTHER COORDINATE SYSTEM .......................... 34
3.4 CHANGING THE CHART COLOR.........................................................................35
3.5 SELECTING LANGUAGE ......................................................................................35
3.6 SELECTING PAGES USING SOFT KEYS ON CP300/CP300i ............................36
3.7 CUSTOMIZING THE SOFT KEYS ON CP300/CP300i .........................................37
3.8 SETTINGS IN GENERAL SETUP MENU.............................................................. 38
3.9 ABOUT PAGE ........................................................................................................40

GPS Chart Plotters Page 7
4. FIND SERVICES...............................................................................................................41
4.0 USING FIND SERVICES & MORE FUNCTIONS .................................................. 41
4.0.0 Port Services..............................................................................................41
4.0.1 Port.............................................................................................................42
4.0.2 Tide Stations ..............................................................................................42
4.0.3 Wrecks .......................................................................................................43
4.0.4 Obstructions...............................................................................................44
4.0.5 Lakes Information ......................................................................................45
Quick Info On Lakes ..................................................................................45
Full Info On Lakes......................................................................................46
4.0.6 Lakes By Name .........................................................................................46
4.0.7 Points Of Interest .......................................................................................47
4.0.8 User Points ................................................................................................48
4.0.9 Coordinates................................................................................................ 48
4.0.10 Information .................................................................................................49
5. MAX CARTOGRAPHY OVERVIEW.................................................................................50
5.0 INSERTING THE C-CARD .....................................................................................50
6. MAP FUNCTIONS ............................................................................................................ 52
6.0 MAX FUNCTIONS MENU ......................................................................................52
6.0.0 Zoom Type .................................................................................................52
6.0.1 Icon Size .................................................................................................... 53
6.0.2 Place Name Size .......................................................................................53
6.0.3 Perspective View .......................................................................................54
6.0.4 Dynamic Nav-Aids ..................................................................................... 55
6.0.5 Safety Status Bar (DSI - Data Safety Indicator)........................................55
6.0.6 Satellite Imagery ........................................................................................ 56
6.0.7 Currents Prediction .................................................................................... 56
6.0.8 Chart Language .........................................................................................57
6.0.9 Pictures and Diagrams ..............................................................................58
How to show the Pictures or Diagrams of a Object .................................. 58
6.0.10 Enhanced Port Info ....................................................................................59
7. CREATING MARKS ......................................................................................................... 60
7.0 CREATING A NEW MARK USING THE CHART PAGE .......................................60
7.1 EDITING A MARK ..................................................................................................60
7.1.0 Deleting a Mark or Waypoint .....................................................................61
7.1.1 Moving a Mark or Waypoint .......................................................................61
7.2 MARKS/WAYPOINTS LIST ...................................................................................62
7.3 CREATING A NEW MARK WITH THE USER POINTS LIST ...............................63
7.4 GOTO CURSOR, ROUTE AND MARK..................................................................64
8. MAN OVER BOARD (MOB) FUNCTION .........................................................................66
8.0 PLACING A MOB POINT .......................................................................................66
8.1 DELETING A MOB POINT .....................................................................................66
9. ROUTES ...........................................................................................................................67
9.0 CREATING A ROUTE USING WAYPOINTS ........................................................ 67
9.1 CHANGING THE NAME OF A ROUTE ................................................................. 68
9.2 CREATING AN OLYMPIC ROUTE ........................................................................68
9.3 MAKING ADDITIONAL ROUTES...........................................................................69
9.4 CREATING A ROUTE USING MARKS ON THE CHART PAGE .......................... 69
9.5 INSERTING A WAYPOINT INTO A ROUTE ......................................................... 70
9.6 GOTO A ROUTE ....................................................................................................70
9.6.0 Using [GOTO] to select Route...................................................................70

Page 8 GPS Chart Plotters
9.6.1 Using the ShuttlePoint knob ......................................................................71
9.7 DELETING A ROUTE.............................................................................................71
9.8 OTHER SETTINGS IN ROUTE MENU .................................................................. 72
9.8.0 Route Check ..............................................................................................72
10. TRACKS............................................................................................................................74
10.0 TRACKING .............................................................................................................74
10.0.0 Saving and starting a new Track ...............................................................75
10.0.1 Deleting a Track.........................................................................................75
10.0.2 Other settings.............................................................................................75
10.1 TRIP LOG ...............................................................................................................76
10.1.0 Using the Trip Log .....................................................................................76
10.1.1 Setup / Reset .............................................................................................76
11. USER C-CARD .................................................................................................................77
11.0 USER C-CARD MENU ...........................................................................................77
11.0.0 Formatting the optional User C-CARD ......................................................77
11.0.1 Transferring files to the optional User C-CARD ........................................77
11.0.2 Loading a file from the optional User C-CARD ......................................... 78
11.0.3 Deleting a file from the optional User C-CARD ......................................... 78
11.0.4 Refreshing the optional User C-CARD ...................................................... 78
12. PAGES ..............................................................................................................................79
12.0 CHART PAGE.........................................................................................................80
FOR CP300/CP300i 12.0.0 Focus Soft Key on Dual Chart page ...........................81
FOR CP180/CP180i 12.0.1 Change Focus on Dual Chart page ............................81
12.0.2 Single Chart page ......................................................................................82
12.0.3 Window Selections ....................................................................................82
12.0.4 Customizing the Data Windows ................................................................83
12.0.5 Additional Functions on Chart page .......................................................... 84
12.0.6 Turning Off Information on Icon Points .....................................................84
12.0.7 Display Mode ............................................................................................. 85
12.0.8 Marine Settings ..........................................................................................86
12.0.9 Depth Settings ........................................................................................... 86
12.0.10Land Settings .............................................................................................87
12.0.11Chart Settings ............................................................................................ 87
12.0.12Underwater Objects Settings .....................................................................88
12.1 CUSTOMIZING CHART SETTINGS ......................................................................89
12.2 NAVIGATION PAGE .............................................................................................. 89
12.3 HIGHWAY PAGE ...................................................................................................90
12.4 CELESTIAL PAGE ................................................................................................. 90
12.4.0 Changing date............................................................................................90
12.5 GPS STATUS PAGE .............................................................................................. 91
12.5.0 WAAS/EGNOS Setting..............................................................................92
12.5.1 GPS Setup Menu .......................................................................................92
12.6 NMEA DISPLAY PAGE ..........................................................................................92
12.6.0 Changing the NMEA page windows ..........................................................93
12.7 NMEA DATA PAGE................................................................................................93
12.8 NMEA TREND PAGES ..........................................................................................94
12.9 VHF DIGITAL SELECTIVE CALLING ....................................................................95
12.9.0 Interfacing ..................................................................................................95
12.9.1 Distress Call............................................................................................... 96
12.9.2 Position Request........................................................................................ 96

GPS Chart Plotters Page 9
13. ADVANCEDSETTINGS ...................................................................................................97
13.0 INPUT/OUTPUT (NMEA, AIS, RADAR) ................................................................97
13.1 NAVIGATE..............................................................................................................97
13.1.0 Loran TD ....................................................................................................98
13.2 COMPASS ..............................................................................................................98
13.3 ALARMS .................................................................................................................98
13.4 SIMULATION ..........................................................................................................99
13.4.0 Navigating a Route in Simulation Mode ..................................................100
13.5 DSC POLLING......................................................................................................100
14. AIS ...................................................................................................................................101
14.0 SYSTEM DEFINITIONS .......................................................................................101
14.1 MENU....................................................................................................................102
14.2 AIS SETUP ...........................................................................................................102
14.3 QUICK INFO ON AIS TARGET............................................................................102
14.4 LIST.......................................................................................................................103
14.5 AIS TARGET COLORS ........................................................................................103
15. C-WEATHER SERVICE.................................................................................................. 104
15.0 C-WEATHER SERVICE MENU ...........................................................................104
15.0.0 Download .................................................................................................104
15.0.1 Copy From User C-CARD .......................................................................105
15.0.2 Weather Forecast ....................................................................................105
15.0.3 Real Time View ........................................................................................ 105
15.0.4 Type of Data ............................................................................................105
16. MOBILARM .....................................................................................................................106
16.0 MOBILARM-GPS CHART PLOTTER CONNECTION .........................................106
16.1 SOFTWARE SETUP ............................................................................................107
16.2 MOBILARM STATUS ...........................................................................................107
16.3 MOBILARM PTX...................................................................................................108
16.3.0 MOBILARM MOB alert is received ..........................................................108
16.4 PLACING CURSOR ON THE PTX ICON ............................................................109
16.4.0 Delete PTX ............................................................................................... 110
16.4.1 Goto PTX .................................................................................................110
16.4.2 The MOBILARM Alarm Status List..........................................................111
17. TROUBLESHOOTING.................................................................................................... 112
18. TECHNICAL TESTS .......................................................................................................113
18.0 SYSTEM TEST .....................................................................................................113
18.0.0 RAM Menu (reset)....................................................................................113
18.0.1 DIM Menu.................................................................................................113
18.0.2 Cartridges.................................................................................................114
18.0.3 Serial Ports ..............................................................................................114
19. SPECIFICATIONS ..........................................................................................................115
19.0 CP180/CP180i SPECIFICATIONS.......................................................................115
19.1 CP300/CP300i SPECIFICATIONS.......................................................................116
19.2 OPTIONAL WAAS GPS RECEIVER SPECIFICATIONS.................................... 117
20. APPENDIX: TERMS ....................................................................................................... 118
ANALYTICALINDEX ............................................................................................................120

Page 10 GPS Chart Plotters
1. INTRODUCTION
Congratulations on your purchase of the STANDARD HORIZON GPS Chart Plotter.
Whether this is your first STANDARD HORIZON product or not, we are committed to
ensuring your enjoyment and satisfaction with this unit. Our Technical support personnel
stand behind every product we sell. Post-Sales Support can be obtained from your dealer
or distributor. USA customers should contact STANDARD HORIZON on 714-827-7600 or
emailto[email protected].UKcustomersshouldcontactSTANDARDHORIZONon
01962866667oremail[email protected].Europeancustomersshould
contact their local dealer or distributor for support.
1.0 GENERAL INFORMATION
The CP180, CP300 (with external GPS antenna) and CP180i, CP300i (with internal GPS
antenna) are precision-crafted high-performance receivers for the Global Positioning
System (WAAS GPS) constellation of satellites that provide precise location data with a
hostof navigationfeatures and areideal for nauticaluse and sealedagainst wateringress.
The GPS Chart Plotter is housed in rugged, impact-resistant cases with outstanding
ergonomic design for effortless operation. The CP180, CP180i and CP300, CP300i are
IP56 water resistent.
The advanced features of the GPS Chart Plotter include:
·Direct sunlight-readable color LCD display
·CP180i/CP300i - Internal 50 channels WAAS GPS
·Fish Finder capable when the optional FF525 50/200kHz (Black Box Fish Finder) is
installed
·Capable of using a Radar antenna (USA ONLY)
·C-MAP BYJEPPESEN NT+/MAX cartography compatible
·Improved Worldwide background showing details up to 2.0Nm
·CP180/CP300 - WAAS GPS antenna, bracket and flush mounting hardware
·CP300/CP300i - Video Input with ”picture-in-picture” display
·Dual chart window with independent zoom levels
·Satellite images on base chart
·Selectablesailboatandpower boatShipIconswithredandgreen forportand starboard
·Compass Rose indication around Ship Icon
·Route Checking
·Color Targets AIS
·Dedicated AIS List page
·Navigate to an Olympic Route
·SOG Speed Filter function to resolve erratic speed readings in rough seas
·3000 Marks / 50 Routes / 10000 Track Points
·User selectable data fields
·NMEA Data pages
·CP180/CP180i - 3 NMEA Outputs and 2 Inputs (2 Inputs FOR CP180i)
CP300/CP300i - 5 NMEA Outputs and 3 Inputs (2 Inputs FOR CP300i)
·Connections to and from STANDARD HORIZON compatible DSC VHF’s for Distress

GPS Chart Plotters Page 11
and Position Request calls
·3 year limited warranty, lifetime flat rate
NOTE
The screen imagines on this manual refer to the CP180/CP180i GPS Chart Plotters unless
specified.
1.1 PACKING LIST
When the package containing the Navigation device is first opened, please check for the
following contents. If any parts are missing contact the dealer this Navigation device was
purchased from. Accessories and replacements parts may be ordered in the USA by
contacting STANDARD HORIZON’s Parts department on 714-827-7600 Extn. 6800 or by
email at [email protected]. UK customers may contact STANDARD HORIZON on
01962 866667 or by email to [email protected].
1.1.0 CP180/CP180i Packing List
PART CODE ITEM
S8002224A External bracket
S8002225 Mounting knob with two washers
S8002222 Dust cover
T9101553 Power data cable
S8002223 Flush mounting screws (CP180 ONLY)
EM016N550 Flush mounting template (CP180 ONLY)
Q7000619A GPS ANT Unit GSU-5H Series UX0GSU51SD* (CP180 ONLY)
EM022U110 Owner’s Manual
EM023U512 Quick Reference Guide
NOTE: “*” is a revision number
1.1.1 CP300/CP300i Packing List
PART CODE ITEM
S8002224A External bracket
S8002225 Mounting knob with two washers
S8002235 Dust cover
T9101553 PWR & ACC1 cable
T9101553 ACC2 cable
S8002223 Flush mounting screws (CP300 ONLY)
EM022U500 Flush mounting template (CP300 ONLY)
XUCMP0052 2 Amp fuse and holder
Q7000619A GPS ANT Unit GSU-5H Series UX0GSU51SD* (CP300 ONLY)
EM022U110 Owner’s Manual
EM023U512 Quick Reference Guide
NOTE: “*” is a revision number

Page 12 GPS Chart Plotters
1.2 OPTIONAL ACCESSORIES
1.3 RADAR UNIT SUPPLIED BY SI-TEX USA
TheRadarantennasaresuppliedbySI-TEX(631)996-2690intheUSAandCanada.Refer
to the table below for compatible models:
MODEL NUMBER DESCRIPTION
MDS-1 2kW 24 Mile 12.4” diameter Radome antenna
MDS-8 2kW 24 Mile 20” diameter Radome antenna
MDS-9 4kW 36 Mile 23.5” diameter Radome antenna
MDS-10-4 4kW 48 Mile 4FT Open Array
MDS-10-5 4kW 48 Mile 5FT Open Array
NOTE
For UK customers: Please contact the STANDARD HORIZON Authorized dealer, STANDARD
HORIZON product technical support or SI-TEX directly for additional information.
For European customers: Please contact your local dealer for information.

GPS Chart Plotters Page 13
2. GETTING STARTED
NOTE
Throughout this Owner’s Manual same conventions are used. See the legend below:
[MENU]If you see brackets around a bold and capital letter word this refers to a key press.
[CHART]If you see brackets around a bold and small capital letter word this refers to a Soft Key
press.
GENERAL SETUP When a word(s) is bold capital letters and underlined, this refers to a menu
selection item.
2.0 MOUNTING THE GPS CHART PLOTTER
TheCP180andCP300areavailableineitherinternalorexternalGPSantennavariants.The
GPS Chart Plotters are designed for bracket or flush mounting and are supplied with both
bracket and flush mounting kits. NOTE
Flush mounting of the internal GPS version of the CP180i or CP300i may result in a significantly
reduced GPS performance or no fix at all when using the internal antenna.
BothexternalandinternalGPSmodelsmaybeflushmounted,buttheusershouldascertain
that they can obtain a satisfactory GPS fix when using the internal GPS version. If this is
not possible, then the optional external GPS antenna [UX0GSU51SD] may be required to
receive GPS signals at sufficient strength to enable a satisfactory fix. The flush mounting
kit is available as an option for those CP180i or CP300i users who wish to flush mounting
their GPS Chart Plotter.
WhenanexternalGPS antennais usedwith theCP180i orCP300i, theinternal GPSaerial
must be switched off. This can be done using the following procedure:
1. Turn the CP180i and CP300i on and select the GPS STATUS page.
2. Press [ENT] to show the GPS SETUP menu.
3. Move the ShuttlePoint knob to highlight INTERNAL GPS and press [ENT].
4. Move the ShuttlePoint knob to highlight OFF and press [ENT].
Figure 2.0 - GPS Setup menu
5. Press [CLR] to exit the GPS SETUP menu.
6. ConfirmtheGPSStatuspageisshowingsatellitesignalstrengthbarsandreceiveafix.
2.1 BRACKET MOUNTING
TheCP180/CP180iandCP300/CP300icanbemountedusingthesuppliedswivelmounting
bracket. Before installing ensure the area the bracket is mounted to is strong enough to
support the weight of the GPS Chart Plotter especially while under way.

Page 14 GPS Chart Plotters
Afterthelocationisfound,attachthemountingbasetotheareausingthe suppliedhardware.
Figure 2.1 - Example of Bracket installation (CP180 on the left side and CP300 on the right side)
2.2 FLUSH MOUNTING
TheCP180/CP180iandCP300/CP300iaresuppliedwithaflushmountingtemplateforthe
cutout hole and screw holes required to install the GPS Chart Plotter.
NOTE
Before drilling holes make sure there is enough room to mount the GPS Chart Plotter and there
are no obstructions.
Figure 2.2 - Example of CP180 Flush installation

GPS Chart Plotters Page 15
Figure 2.2a - Example of CP300 Flush installation
1. After a location is found, peel the template label from the backing and apply the label
to the mounting area.
2. Drill a hole in one area of the cutout area that will allow the blade of a jig saw to be
inserted. Insert and cut out the area on the panel using the jig saw.
3. NextdrillthefourholesrequiredtoinserttheGPSChartPlotterwiththemountingstuds.
4. Install the mounting studs on the GPS Chart Plotter and insert into the mounting hole.
5. Attach the GPS Chart Plotter to the mounting location by attaching the supplied
hardware to the mounting studs.
M4 threaded
M4 threaded
20 mm4mm
27 mm
Figure 2.2b - Mounting Screws
2.3 MOUNTING THE CP180 OR THE CP300 EXTERNAL GPS
ANTENNA
The CP180 and CP300 are supplied with an external WAAS GPS antenna with 15 meter
of routing cable. This antenna is designed to be mounted on a base, installed on an
extension or even flush mounted.
Choose a location for the antenna that has a clear view of the sky and is not located within

Page 16 GPS Chart Plotters
3FT of a Radar or other transmitting antennas. Ensure there are no major obstructions or
fixturesintheimmediateproximitytotheantenna.Theantennareliesondirect“lineofsight”
satellitereception. Ifyou are unsureof the chosenlocation, temporarilymountthe antenna
in the desired location to verify correct operation. If mounted close to Radar, after the GPS
ChartPlotterhasafix,turnonthe Radar to ensure the GPS Chart Plotter holds the fix (use
the GPS Status page).
Thethreadusedontheantennaisanindustrystandard(1inch14TPI)usedonawiderange
of mounting brackets. NOTE
The antenna cable can be cut and spliced to ease installation. Care must be taken when
reconnecting the antenna cable to protect from water and corrosion.
2.3.0 Flush mounting the antenna
NOTE
Beforedrilling holes,it isrecommended theantennabe positionedwhere thelocation isplanned,
cable connected to the GPS Chart Plotter and power turned on to ensure a GPS Fix is received.
1. Remove the threaded base from the antenna dome.
2. To ease installation a flush mounting template for the antenna has been included.
3. Apply the mounting template sticker to the area that was verified for GPS reception.
4. Then, drill out the 0.78” (20mm) and 0.13” (3.2mm) holes, and remove the template.
5. Insert the cable into the 0.78” (20mm) hole and route to the GPS Chart Plotter.
6. Apply a small amount or RTV to the underside of the antenna.
7. Place the antenna and then screw it into place using the screws.
NOTE
In some cases the screw may not be long enough. If this happens simply apply more RTV to the
underside of the antenna to glue it into place.
S8002348
Figure 2.3.0 - Installing the external GPS antenna

GPS Chart Plotters Page 17
Smart GPS Cable
Pin Wire Color Description
1 Red Battery Positive
2 Green Smart GPS NMEA Input
3 Brown Smart GPS NMEA Output
4NC
5NC
6 Black/Yellow Battery Ground
2.4 CONNECTIONS
The GPS Chart Plotter has connectors that are used to connect to the power supply, GPS
antenna (CP180 AND CP300 ONLY), optional FF525 50/200kHz Black Box Fish Finder and
to NMEA devices* such as VHFs, AIS Receivers, digital instruments and Autopilots.
NOTE
TheGPS ChartPlottercan sendmany sentencestoexternal NMEAdevices*. TheNMEAOutput
wiresare yellow andwhite. If youhave connected devicesas shown inthetable onthenext page
andneedtofeedNMEAtootherdevices(Autopilot,Radar…)youcanparallelwiresfromtheyellow,
brown or white wires to other devices.
NOTE*
RS232 not opto-isolated electrical interface
2.4.0 CP180/CP180i Connection Table
12VDC Power cable
Pin Wire Color Description Connection Example Additional Comments
1 Black Battery Ground Connect to Battery Ground
2 Red Battery Positive Connect to Battery Positive
3 Green NMEA Common Common (ground) for NMEA devices***
4 Blue Port1 Input Connect to Output of NMEA devices*** Default is NMEA-0183*
5 Brown Port1 Output Connect to Input of NMEA devices*** DefaultisNMEA-0183withGGA,GLL, RMC,
DBT, DPT, MTW, VHW and XTE sentences
6 Grey Port2 Input Connect to FF525 Default is Fish Finder
7 White Port2 Output Connect to FF525 Default is Fish Finder
8 Yellow Port3 Output Connect to Input of NMEA devices*** Defaultis NMEA-0183 with APA,APB,BOD,
GGA, GLL, RMC and BOD sentences**
NOTE*: AIS RECEIVER OPTION
When an optional AIS Receiver is connected, Port1 (or other Port the AIS is connected to) of the
NMEA In/Out Connections menu must be changed to AIS 38400 as shown below for communica-
tions. When AIS 38400 is selected the Output Port is disabled.
1. From the Chart page, press [MENU], move the ShuttlePoint knob to highlight SETUP MENU
and press [ENT].
2. Move the ShuttlePoint knob to highlight ADVANCED SETUP and press [ENT] or move the
ShuttlePoint knob to the right.
3. MovetheShuttlePointknobtohighlightIN/OUTCONNECTIONSandpress[ENT]ormovethe
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to highlight PORT1 INPUT and press [ENT] or move the
ShuttlePoint knob to the right.
5. Move the ShuttlePoint knob up/down to select AIS 38400 and press [ENT] or move the
ShuttlePoint knob to the right.
6. Press [CLR] or move the ShuttlePoint knob to the left until the Chart page is shown.

Page 18 GPS Chart Plotters
NOTE** AUTOPILOT CONNECTION
CaremustbetakenwhenconnectingtheGPSChartPlottertoanAutopilot.NormallyPort3(Yellow
wire)willbeusedtoconnecttoanAutopilotInput,howeverolderAutopilotsmaynotbeabletoread
the sentences due to the talker ID that is being used (II Integrated Instrument). If the Autopilot
connections aremadetoPort3(Yellowwire)andtheAutopilotisnotreadingthesentences,change
theconnections to Port1(Brown wire)andchange thesentences to APA,APB, BOD, GGA,GLL,
RMC and XTE.
NOTE***
RS232 not opto-isolated electrical interface.
2.4.1 CP300/CP300i Connection Table
12VDC Power and NMEA PWR & ACC1 cable
Pin Wire Color Description Connection Example Additional Comments
1 Black Battery Ground Connect to Battery Ground
2 Red Battery Positive Connect to Battery Positive
3 Green NMEA Common Common (ground) for NMEA devices**
4 Blue Port1 Input Connect to Output of NMEA devices** Default is NMEA-0183
5 Brown Port1 Output Connect to Input of NMEA devices** DefaultisNMEA-0183withGGA,GLL, RMC,
XTE, DBT, DPT, MTW, VHW sentences
6 Grey Port2 Input Connect to FF525 Default is Fish Finder
7 White Port2 Output Connect to FF525 Default is Fish Finder
8 Yellow Port3 Output Connect to Input of NMEA devices** Defaultis NMEA-0183 with APA,APB, BOD,
GGA, GLL, RMC and BOD sentences
NMEA ACC2 cable
Pin Wire Color Description Connection Example Additional Comments
1 Black NC
2 Red NC
3 Green NMEA Common Common (ground) for NMEA devices**
4 Blue Port4 Input Connect to Output of NMEA devices** Default is NMEA-0183*
5 Brown Port4 Output Connect to Input of NMEA devices** Default is NMEA-0183 with GLL, RMB, RMC
and XTE sentences
6 Grey Port5 Input Connect to Output of NMEA devices** Default is NMEA-0183
7 White Port5 Output Connect to Input of NMEA devices** Default is NMEA-0183 with GLL, RMB, RMC
and XTE sentences
8 Yellow NC
NOTE*: AIS RECEIVER OPTION
When an optional AIS Receiver is connected, Port4 (or other Port the AIS is connected to) of the
NMEA In/Out Connections menu must be changed to AIS 38400 as shown below for communica-
tions. When AIS 38400 is selected the Output Port is disabled.
1. From the Chart page, press [MENU], move the ShuttlePoint knob to highlight SETUP MENU
and press [ENT].
2. Move the ShuttlePoint knob to highlight ADVANCED SETUP and press [ENT] or move the
ShuttlePoint knob to the right.
3. MovetheShuttlePointknobtohighlightIN/OUTCONNECTIONSandpress[ENT]ormovethe
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to highlight PORT4 INPUT and press [ENT] or move the
ShuttlePoint knob to the right.
5. Move the ShuttlePoint knob up/down to select AIS 38400 and press [ENT] or move the
ShuttlePoint knob to the right.
6. Press [CLR] or move the ShuttlePoint knob to the left until the Chart page is shown.

GPS Chart Plotters Page 19
NOTE**
RS232 not opto-isolated electrical interface.
Video Connector
Pin Description Connection Example
1 Ground Connect to Video Signal Ground of DVD/VCR/Video Cameras
2 + 9 / 12 VDC Connect to Video Cameras Power Input
3 Video Signal + Connect to Video Signal + (NTSC/PAL) of DVD/VCR/Video Cameras
2.4.2 CP180/CP180i Connections
2.4.2.0 DC Power Connection
2.4.2.1 Connection of the FF525, AIS Receiver, VHF and Autopilot
SMART GPS
Antenna
CP180
Battery
10-35Vdc
Red
2A
Fuse
Black Switch
+
-
VHF
PILOT
Green
Blue
Brown
Gray
White
NMEA Common
Port 1 Input
Port 1Output
Port2Input
Port2Output
Yellow Port3Output
AIS
PWR & ACC 1 Cable

Page 20 GPS Chart Plotters
SMART GPS
Antenna
CP180
Battery
10-35Vdc
Red
2A
Fuse
Black Switch
+
-
Tee
Optional
FishFinder
Transducer
VHF
Green
Blue
Brown
Gray
White
NMEA Common
Port 1 Input
Port 1Output
Port 2 Input
Port 2 Output
Yellow Port 3 Output
AIS
PWR & ACC 1 Cable
NOTE
Port2 Input and Output is used by the optional FF525. In the diagram above you will notice Port2
Input and Output wires are shown in gray and not used.
2.4.2.2 AIS Setup
TheCP180orCP180ihastobesetuptobeabletoreceiveNMEAinformationfromtheAIS
Receiver. The GPS Chart Plotter reads the AIS NMEA message VMD, type 1, 2, 3 and 5
for AIS Class A and type 18, 19, 24 for AIS Class B. Select the used Port and transmission
speed by following the procedure:
1. Press [MENU], move the ShuttlePoint knob to highlight SETUP MENU and press
[ENT].
2. MovetheShuttlePointknobto highlightADVANCED SETUP andpress[ENT]ormove
the ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight IN/OUT CONNECTIONS and press [ENT] or
move the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to highlight PORT1 INPUT and press [ENT] or move the
ShuttlePoint knob to the right.
5. MovetheShuttlePoint knobup/down toselect AIS 38400 andpress [ENT] ormove the
ShuttlePoint knob to the right. NOTE
IfanAISReceiverisnotconnected,Port1InputcanbeconnectedtomostDSCVHF’sforposition
polling.
2.4.3 CP300/CP300i Connections
2.4.3.0 DC Power Connection

GPS Chart Plotters Page 21
2.4.3.1 Connection a Video Camera, FF525, AIS Receiver, VHF and Autopilot
NOTE
Port2 Input and Output is used by the optional FF525. In the diagram above you will notice Port2
Input and Output wires are shown in gray and not used.
Port4,and Port5 Outputs arecan be connected toNMEA devices* capableoflistening to NMEA-
0183sentences.
Port4,andPort5InputscanbeconnectedtoNMEAdevices* capableofoutputtingtoNMEA-0183
sentences.
