star sat SR-x1010hd User manual

SAFETYPRECAUTION
CAUTION:
The lighteningflashwith
arrowheadsymbol,withinan
equilateral triangle, isintended
toalert theuserto"dangerous
voltage"andtoprevent froma
riskof electricshock.
Warning:
Toreducetheriskof electric
shock,don'topen thecabinet.
Referservicingtoqualified
personnelonly.
The exclamationpointwithinan
equilateral triangleisintended to
alert theusertoimportant
operatingandmaintenance
(servicing).
WARNING: Theapparatusshallnotbeexposed tod
rippingorsplashingandthatnoobjectsfilled
withliquids,suchasvases, shallnotbeplaced ontheapparatus.
WARNING: Donotplacenakedflamesources,suchaslightedcandlesontheapparatus
;
otherwise, thereisthedangeroffire.
WARNING: T
heunitshouldbeconnected toapowersupplyonlyofthetypedescrybed inthe
operating instructionsorasmarked ontheunit. Ifyouarenot sureof thetypeofpowersupply(for
example:120 or230V) toyourhome, consultyourlocal dealerorlocal powercompany.
WARNING:
Donotopenthecabinetortouchanypartsintheinnermechanism.Consultyourlocal
dealerfortechnical serviceiftheopeningisrequired.
WARNING: Themainsplugisused asthedisconnectdevice,thedisconnectdeviceshall
remain
readilyoperable.
WARNING:
Takeattention totheenvironmental aspectsofbatterydisposal. Thebatteryofremote
control shouldnotbeexposed excessiveheatsuchassunshine,fireorthelike.
WARNING: Maintenancemanmustusetheappointed screwintherearplate.
WARNING: Ensureaminimumdistanceof 5cmaroundtheapparatusforsufficientventilation.
WARNING:
Ensurethattheventilation isnotimpededbycovering theventilation openingswith
itemssuchasnewspapers, table-cloths, curtains,etc.
WARNING: Usetheapparatusonlyinmoderateclimates(notintropical climates).
Note: Donotopen thecabinettoavoid theunitdirectexposuretoradiation.

UnitCleaning: Aftertheunitpoweristurned off,youcancleanthecabinet,
panel and remote
control withasoft clothlightlymoistened withamilddetergent solution.
Attachments: Neveraddanyattachments
and/orequipmentwithout themanufacturerconsent;as
suchadditionsmayresultintheriskoffire,electricshockorotherpersonal injury.
Locating:
Slotsandopeningsin thecabinetareprovided forventilation toprotectitfrom
overheating.Donotblocktheseopeningsorallowthemtobeblocked byplacingtheSTBon abed,
sofaorothersimilarsurface,norshoulditbeplaced overaradiatororheatregister.
Power-Cord Protection: Placethepower-
supplycordout oftheway,whereit willnotbewalked on.
Pleasetakespecial attentionstocordsatplugs,conveniencereceptaclesandthepoint
wherethey
exit fromtheunit.
ObjectandLiquidEntry: Neverputobjectsofanykindintothis
STBthroughopenings,asthey
maytouchdangerousvoltagepointsorshort-
outpartsthatcould resultinafireorelectricshock.
Neverspillanyliquidon theSTB.
Note: Moisturemaybeformed insidetheunit inthefollowingconditions:
Whentheunit issuddenlymoved fromacold environmentoran air-condition roomtoawarmplace.
Immediatelyafteraheaterhasbeen turned on.
Inasteamyorveryhumidroom.
Ifthemoistur
eformsinsidetheunit, itmaynotoperateproperly.Tocorrectthisproblem,turnonthe
powerandwaitabout twohoursforthemoisturetoevaporate.
PartsReplacement:
Whentheunitpartsneedtobereplaced,usershould makesuretheservice
technic
ian usethereplacementpartsspecifiedbythemanufacturerorhavingthesame
characteristics astheoriginal part. Unauthorizedreplacementmayputtheunitintheriskoffire,
electricshockorotherhazards.
SafetyCheck: Afterallthemaintenances
andrepairsaredone,userisrequired torequestthe
servicetechniciantoconducttheoverallsafetychecktoensurethemachineisintheproper
condition.

Contents
1
Contents
1RemoteControl &PanelDescription.......................................................................................3
1.1FrontPanel Description............................................................................................................3
1.2RearPanelDescription.............................................................................................................4
1.3RemoteControl Description.....................................................................................................5
2.BasicOperations..........................................................................................................................7
2.1Switchon STB..........................................................................................................................7
2.2StandbyMode...........................................................................................................................7
2.3Mute..........................................................................................................................................7
2.4TV/Radio...................................................................................................................................8
2.5Format.......................................................................................................................................8
2.6V.OUT.......................................................................................................................................8
2.7Audio.........................................................................................................................................8
2.8SUB...........................................................................................................................................8
2.9TXT............................................................................................................................................8
2.10 Pause......................................................................................................................................9
2.11 Zoom.......................................................................................................................................9
2.12 Sleep.....................................................................................................................................10
2.13 SAT.......................................................................................................................................10
2.14 FAV.......................................................................................................................................10
2.15 Lock.......................................................................................................................................11
2.16 EPG.......................................................................................................................................11
2.17 Recall( )..............................................................................................................................12
2.18 INFO( ).................................................................................................................................12
2.19 CH /▼.................................................................................................................................13
2.20 V /►....................................................................................................................................13
2.21 OK.........................................................................................................................................13
2.22 MENU....................................................................................................................................15
2.23 EXIT......................................................................................................................................15
2.24 PGUP/ PGDN......................................................................................................................15
2.25 HOME( )...........................................................................................................................15
2.26 ChannelNumber...................................................................................................................15
2.27 DEL.......................................................................................................................................15
2.28 CAP.......................................................................................................................................15
2.29 USB.......................................................................................................................................16
2.30 MP3.......................................................................................................................................16
2.31 JPEG.....................................................................................................................................16
2.32 Movie( )..............................................................................................................................16
2.33 Cal.........................................................................................................................................16
2.34 Weather.................................................................................................................................16
2.35 PVRLIST..............................................................................................................................16
2.36 A-B........................................................................................................................................16
2.37 T.S.........................................................................................................................................17
2.38 GOTO....................................................................................................................................17
2.39 ■...........................................................................................................................................17
2.40 ●...........................................................................................................................................18
2.41 /►► ...............................................................................................................................18
2.42 ►II.........................................................................................................................................18

Contents
2
2.43 ►I......................................................................................................................................18
2.44 I /►►I.............................................................................................................................18
2.45 FAV.......................................................................................................................................18
2.46 LNBShort..............................................................................................................................19
3Menu Operations.........................................................................................................................20
3.1EasyInstallation......................................................................................................................21
3.2SatelliteInstall.........................................................................................................................22
3.2.1AntennaSetting............................................................................................................22
3.2.2PositionerSetting.........................................................................................................23
3.2.3MultiSatelliteSearch...................................................................................................23
3.2.4Manual Search.............................................................................................................24
3.2.5Edit Satellite..................................................................................................................25
3.2.6UnicableConfiguration.................................................................................................26
3.3Settings...................................................................................................................................26
3.3.1SystemSetting.............................................................................................................27
3.3.2Parental Control............................................................................................................28
3.3.3Local TimeSetting........................................................................................................29
3.3.4PowerSetting...............................................................................................................30
3.3.5FactoryDefault.............................................................................................................30
3.3.6SoftwareUpgrade........................................................................................................31
3.3.7Information....................................................................................................................34
3.3.8CAS...............................................................................................................................34
3.4Calendar..................................................................................................................................35
3.5USB.........................................................................................................................................37
3.6Record.....................................................................................................................................40
3.7Photo.......................................................................................................................................42
3.8Music.......................................................................................................................................42
3.9Movie.......................................................................................................................................42
4Troubleshooting...........................................................................................................................43
5TechnicalSpecification..............................................................................................................44

RemoteControl&PanelDescription
3
1RemoteControl &PanelDescription
1.1FrontPanelDescription
1. POWER: Isused toswitchbetweentheworkingmodeandthestandbymode.
2. MENU: Toenterintothemainmenuandexitallmenus.
3. VOL+/-: Tochangevolumetomovecursor,changenumbersinthemenuortochangethe
choice.
4. CH+/-: Tochangechannelsorfornavigatingandchangingvaluesinmenus.
5. OK: Toselect an iteminthemenuand confirmitorpopupchannel list when nomenu.
6. EXIT: Usethiskeyreturntotheviewingmodefromanymenufunction.
7. Display(4-Digit/7-Segment): Displaysthereceivedchannel numberwhileoperating and
timewhileinstandbymode.
8. RemoteSensor: Detectstheinfrared signalsfromtheremotecontrolunit.

RemoteControl&PanelDescription
4

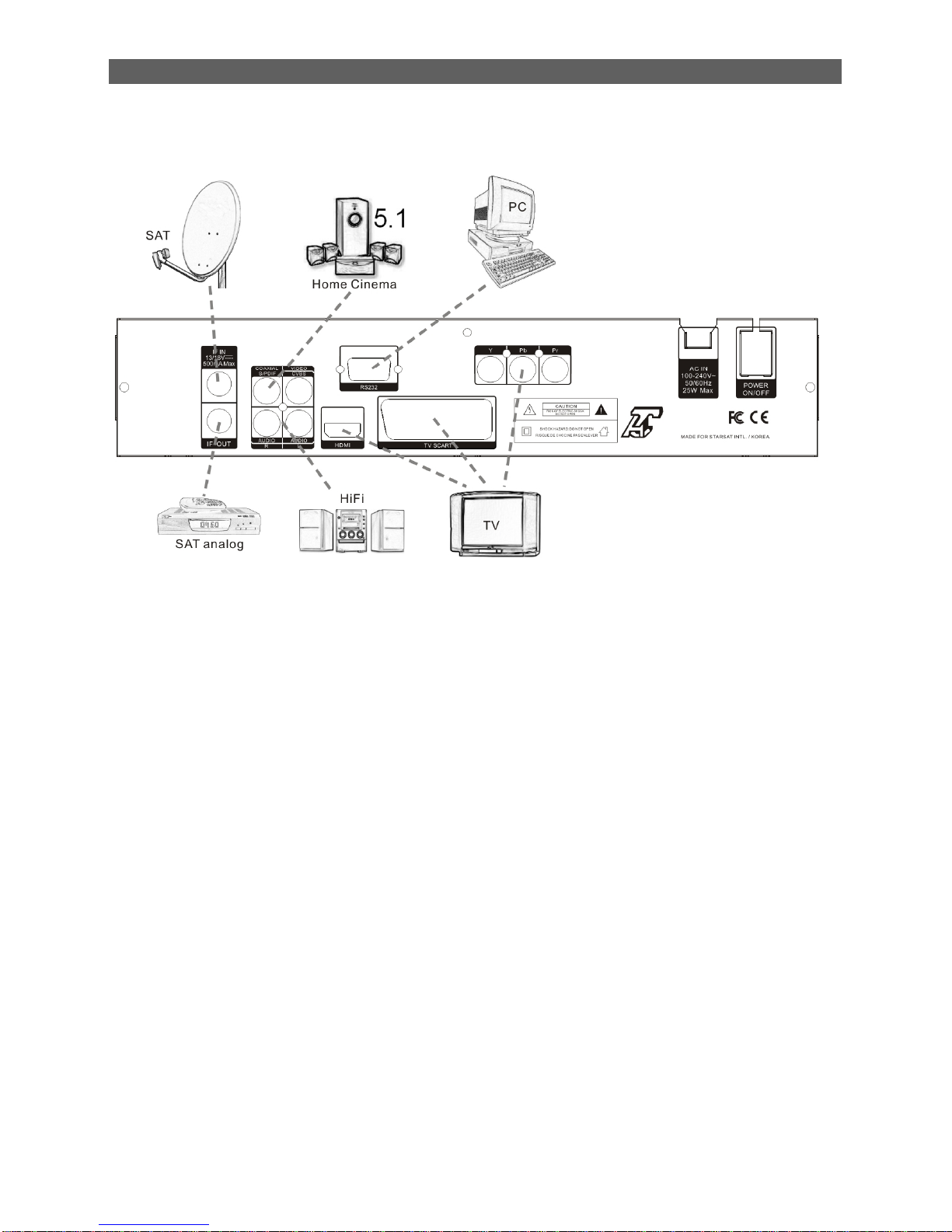

1.2Rear PanelDescription
1. IF IN: Satelliteinput.
2. IF OUT: Satelliteoutputforcascadingtootherdevices
Note: Theoperation ofanotherreceiveratthesametimeisonlypossiblewithlimited
channel selection.
3. S/PDIF: Coaxial output fordigital audio(AC3)
4. VIDEO: CVBS video output forTVAVin.
5. AUDIO: HiFioutputsforstereo set.
6. RS-232: Serial Portallowingsoftwareupgrades.
7. HDMI: HDMIoutput fortheconnectiontoaTVset.
8. TVSCART: OutputSCART fortheconnectiontoaTVset.
9. YPbPr: ComponentOut.
10. ANTIN: Antennainput fortheterrestrial antenna.
11. TOTV: Modulatoroutput fortheconnectiontoaTVset.
12. ACIN: Mainsinputcable.
13. POWERON/OFF: Allowstocompletelyswitchoffthereceiver.

RemoteControl&PanelDescription
5
1.3RemoteControlDescription

RemoteControl&PanelDescription
6
Power:The powerkeyturnsthereceiveron andoff.
Mute:Thiskeyswitchesthesoundon andoff.
TV/R:SelectsTVorRadiochannels.
Format: Switchthedisplaymode.
V.OUT: Switchthevideo output.
Audio:Open theAudioModewindow.
SUB:Used todisplaythesubtitledata.
TXT:Used todisplaytheTeletextdata.
Pause:Topausevideo duringviewing normal displaybutaudioremainsactive.
Zoom:Allowsyoutomagnifyacertainareaon theimagesandtoenterthe
Multi-Picturemode.
Sleep:Sleepfunction intheviewingmode.
SAT:Thiskeyisused todisplaysatellitelist.
FAV:Changetolastfavoritechannelsorselectsthefavoritechannelsinthe
channel list.
Lock: Lock / UnlocktheRCU keys.
EPG:Thiskeyshowprograminformation abouttheselectedchannel.
Recall( ):Togglebetweentheactualand thelast selected channel.
INFO( ):Thiskeyisused todisplaychannel information.
CH▲/▼:Used tomovethehighlight barorchangechannel up/dn.
Vol /►:Used tomovethehighlight barorchangevolumeup/ dn.
OK:The OKkeyisused toselectaprogram, highlightlineorparametervalue.It
isalsoused toshowtheTV/RADIOchannellistwhilewatchingTVor
listeningtotheRADIO.
Menu:Used todisplaythemainmenu.
Exit: Usethiskeyreturntotheviewingmodefromanymenufunction.
Pgup/Pgdn:Used tomovethehighlight baronepageatatimeonmenu.
It isalsoused tochangethechannel up&down100channels.
HOME( ): Used todisplaythemainmenu.
Numeric(0-9):Numerickeysenabledirect channel selection.
DEL: Deletecharacterstotheleftof theinsertion point.
CAP: Isusedtoswitchthelowercaseandcapital letter.
USB:Access directlytothe"MediaManagement"menu.
MP3:Access directlytothe"MediaList-MP3"menu.
JPEG:Access directlytothe"MediaList-JPEG" menu.
Movie( ): Access directlytothe"MediaList-Video"menu.
Cal.: Access directlytothe"Calendar"menu.
Weather: Havenofunction.
PVRLIST:Access directlytothe"MediaList-RecordList"menu.
A-B:SetAtoBandrepeattheprogramsbetweenthistwopointsifnoany
interruption.
T.S.: youwillbeasked to"Doyouwanttotimeshift?"menu.
GOTO:Jumptoinputtimeprogram.
■: Will stop therecordedand want tostop playrecord.
●:Will beasked to"Doyouwant torecord?"Menu.
:Backtheprogramfast
►►:Fast forwardtheprogram.
►II: Will stop theprogramandagainwill playtheprogramcontinually.
►I:The screen willrecordtothean markpoint.
I:The screen willjumptothepriormarkpoint.
►►I: The screen willjumptothenext markpoint.

BasicOperations
7
2.BasicOperations
2.1Switchon STB
Switchthe[Device’sMain Power] switchon.
WhentheSTBisfirstused itwill display “Quick Setup”window. youwillsetLanguage,FirstAudio,
Second Audio,LNBPower,AntennaSetup andMultiSearch.
?FrequentlyAskedQuestion
Q: ThepowerofmySTBisonanditisrunninginTVmodebuttheTVscreenshows
nothing:
A:Make suretheTVsethasbeensettothecorrectvideoinput(nottheTVchannels).
Forexample, ifyou have connectedtheunittothevideo1inputoftheTVsetthenyou
needtoselectthecorrespondinginputoftheTV.MostlyitisdonewiththeAV
button oftheTVsremotecontrol unit.
Q: MySTBisrunningin TVmodebuttheTVscreenshowsnothingexceptoneballand
NoSignal”.
A: Thatmeansthechannelyouselectedhasnosignal. Thiscanbecausedbyseveral
reasons:
1. The channel youselectedisnotfromthesatellitetowhichyourdishispointing.Select
anotherchannel.
2. The signalofcurrentTVchannelistoo weak.Youcantrytochangetootherchannelswitha
strongersignal.Iftheproblemsstillexist,pleaseconsultyourlocaldealerorinstallerfor
technical service.
3. YouselectedthewrongLNBtypeintheinstallationmenuoryourDiSEqCswitch
configuration isnot correct.
2.2StandbyMode
1. Press [Power]buttontoswitchfromTV/radiomodetostandbymode
2. Instandbymodepress [Power]buttonagaintoswitchbacktoTV/radiomode.Thelast
activechannel willbeshowed.
3. ToswitchofftheSTBcompletepress themainpowerbutton.
2.3Mute
1. Press the[Mute]button tomutethesound.Onthescreen an icon willbedisplayedto
indicatethemutedsound.
2. Press the[Mute] button againtorestorethesound.

BasicOperations
8
2.4TV/Radio
InTVmode,press [TV/Radio]toswitchtoRadiomode.InRadiomodepress [TV/Radio]againto
switchback toTVmode.
2.5Format
InTVmode,press [FORMAT] button todisplayModeisused toswitchthedisplaymode.
2.6V.OUT
InTVmode,press [V.OUT] button todisplayModeisused toswitchthevideo output.
2.7Audio
1. InTVmode,press the[Audio]button toopen theAudioModewindow.
2. Select theitemyouwanttoadjust with[CH▲/▼]andchangethevaluewith[VOL /►].
2.8SUB
In “SubtitleDisplay”menu. Subtitle:Press [VOL /►] toselect “standard”or “Off”. Press [Vol /►]
toselectlanguages.Ifthecurrentchannel hassubtitleinformation,itwill bedisplayed ifthis
function is “On”.Ifthisfunction is “Off”subtitleswon’tbedisplayed.
2.9TXT
1. Press [TXT]button in TVmodetoopen theteletext page.Thisserviceisdependingon the
supportof thechannel provider.
2. Ifthechanneldoesnotsupportteletextinformation,itwill show “NoTeletextData”on the
screen.

BasicOperations
9
2.10 Pause
1. Inplaying mode,press [PAUSE], thepicturewill bepaused,butthe soundofthechannel
willstillcontinues.
2. Press [PAUSE]again,thescreen’spicturewill skipovertothecurrentplaying picture,and
thesoundofthechannel willcorresponding playing.
2.11Zoom
InTVmode,press [Zoom] toenterthe “MULTI”menu.
1. The[Zoom]keyallowsyoutomagnifyacertain area on theimagesandthecurrentscreen
willshow.
2. Press [Zoom&OK]keyagain,theimagewillenlargerotateasx1,x2,x4,x6,x8, x12,x16.
3. In “x2~x16”image,using[CH▲/▼/VOL /►]keystomovetheimagecenterarea you
wanttosee.
4. Inzoommode,press [Exit] toclose “Zoom”window.

BasicOperations
10
2.12 Sleep
Press [Sleep]button inTVmodetosetthesleeptimer.Youwillsee “SleepTIMEOFF/Sleep
TIME10~SleepTIME120”.
Ifyousetasleeptime,thesystemwillchangetostandbymodeafterthechosen timeperiod.
2.13 SAT
1. InTVmode,press [SAT]button toopensatellitelistandselectthere,thenpress [OK]to
open “TVChannelList”menu, select channel of thecurrent.
2. Insatellitelist,press [PageUp/Down]toswitchdirectlybetweensatellites.
2.14 FAV
InTVmodepress the[FAV]button todisplaytheFavoriteGroupwindow.
1. IntheFavoriteGroupwindowyoucanselectthedesired favoritechannel with[CH▲/▼]
andconfirmitwith[OK]toswitchtoit.Inbiggergroupsyoucan navigatewith[Pgup/Pgdn].
2. Press [VOL /►] toswitchFavorGroup 1~FavorGroup5.
3. Press [Exit] toclosetheFavoriteGroupwindow.

BasicOperations
11
?FrequentlyAsked Question
Q: Whythescreendisplays Nofavoriteprogram!”afterpressing the[Favorite]button?
A: NochannelshavebeenassignedtoaFavoriteGroup yet.Youcandothisinthechannel
menu.
2.15 Lock
Press [Lock],then currentkeyson RCU arelocking;Press [Lock]keyagain,thenRCU keyswill
beunlocked.
2.16 EPG
The STBsupportsElectronicProgramGuides(EPG)togiveyouinformationabouttheactual
programsofcertainchannelslikeeventname,subtitle,description,startandfinishtime.This
featureisdepending ontheserviceofthechannelprovider.
Press [EPG]toopen theEPGwindow.
1. Youcan movethehighlightedchannel with[CH▲/▼]and previewthehighlightedprogram
in thepreviewwindow. with[Vol /►] and displaytheevent’sdetailed description.
2. Press the[INFO]buttonin theEPGmenutodisplaythedetailedinformation of theactual
event intheselected channel.

BasicOperations
12
3. Press the[Red] button intheEPGmenutoprogramatimerwiththeactual eventsdata.
4. Press the[Green/Yellow]toselectdate.
5. ToclosetheEPGmenu press [Exit / Menu].
2.17 Recall ( )
Pressingthe[Recall]button allowsyou totogglebetween theactualandthelastselected
channel.
2.18 INFO()
InTVmode,press [INFO]buttoncan open informationscreen,inthewindowshowsthe
parametersofcurrent channel.

BasicOperations
13
2.19 CH▲/▼
InTV/Radiomodepress [CH▲/▼] tochangechannel.
2.20 V◄/►
InTV/Radiomode,press [Vol /►]toadjustvolume.
2.21 OK
1. InTVmodepress [OK]buttontoopen theChannel Listwindow.
2. Press [CH▲/▼]toswitchchanneland confirmitwith[OK]toswitchtoit.
3. The colorbuttonsofferfurtherfunctionstomanagethechannellist.

BasicOperations
14
ØPress [Red]toopenthesortwindow.Press [CH▲/▼]toselectand [OK]toconfirm
yourchoice.
The waysofsortingare:
²Default: Sortchannelfactorydefault.
²FTA/CAS: Sortchannelbyfree and scrambledsequence. Free channelswill be
listed firstandscrambled channelsbehindinthechannellist.
²Lock: Unlocked channelsarelisted firstendlockedchannelsattheend.
²Name(A-Z):Sorting inAlphabeticalorder,ignoring “$”symbol.
²Name(Z-A):Sorting inAlphabeticalorder,ignoring “$”symbol.
ØPress [Green]toopen theedit window.
YoucanMove,Lock, Delete, Renameand AddtoFavorite.
Press [MENU]toleavethechannel editing.Thesystemwill askyoutoconfirmthe
savingofthechangesyoumade.
ØPress [Yellow]button toopentheFindwindow.You can usethisfeaturetofind
channel bytheirnames.

BasicOperations
15
2.22 MENU
Press [Menu]buttontoenterorexit thecurrentmenu.
2.23 EXIT
Press [Exit] buttontoexit thecurrentmenu.
2.24 PGUP/PGDN
Inmenulist, Press [PGUP/ PGDN]on theRCU tojumpbetweenthelistbypages.
2.25 HOME ( )
Used todisplaythemainmenu.
Thiskeycan allowgoing tovisit themainmenudirectlyfromanysubmenu.
2.26 ChannelNumber
InTVmodeyoucanenterthechannel numberdirectlywithyourremotecontrol unitandconfirm
thenumberwiththeOKbutton tochangetothedesired channel.
2.27 DEL
While editting thetextthroughkeyboard,usethiskeytodeletecharacterstotheleftofthe
insertion point.
2.28 CAP
Isusedtoswitchthelowercaseandcapital letterduringedittingthetextthroughkeyboard.

BasicOperations
16
2.29 USB
InTVmode,press [USB]button toaccess directlytothe “MediaManagement”menu.
2.30 MP3
InTVmode,press [MP3]buttontoaccessdirectlytothe “Partition”menu.Press [CH▲/▼]to
selectthewanteditempartition,press [OK] toconfirmit.
2.31 JPEG
InTVmode,press [JPEG]buttontoaccess directlytothe “Partition”menu.Press [CH▲/▼]to
selectthewanteditempartition,press [OK] toconfirmit.
2.32 Movie( )
InTVmode,press[Movie] buttontoaccess directlytothe “Video”menu.Press[CH▲/▼]toselect
thewanted itempartition,press [OK] toconfirmit.
2.33 Cal.
InTVmode,press [USB]button toaccess directlytothe “Calendar”menu.
2.34 Weather
Havenofunction.
2.35 PVRLIST
InTVmode,press [PVRLIST] buttontoaccess directlytothe “RecordList”menu.
2.36 A-B
Inrecorded mode,during yourwatching,press [A-B]button tosetupastartingpoint A,then set
anotherpoint Bbypress [A-B]button again afterawhile,then itwillstarttoplaybackfromAtoB
andrepeattheprogramsbetweenthistwopointsifnoanyinterruption.

BasicOperations
17
2.37 T.S.
InTVmode,press [T.S.] button if youwanttotimeshift.
2.38 GOTO
Whenyouplaytherecorded channels,press [Goto]button,the “Jumpto”messageboxwill pop
up,inputtheTimeandpress [OK], then thereceiverwillbacktotheinputtimepointandplaythe
programfromthatpointcontinually.(Iftheinputtimeismorethan therecorded time,thepicture
willbacktolastpicture, pleasenoted.)
2.39 ■
Whenyouplayarecorded program,press [■]button will stop therecorded channel playing and
back totheRecordManagementmenu. Whenyouarerecordingaprogram,press [■]buttonyou
willbeasked to “Select therecordtostop!”menu,press [■]toconfirmit.

BasicOperations
18
2.40 ●
InTVmode,press [●] buttonyouwanttorecord,press [●] toconfirmit.
2.41 ◄◄/►►
Whenyou playarecordedchannel, press [ ]button tobacktheprogramfastandPress [►►]
tofast forwardtheprogram.
Selection:2x,4x,8xspeed.
2.42 ►II
Whenyou playacurrentorrecorded program,press [►II] willstoptheprogram, press [►II] again
willplaytheprogramcontinually,And Timeshift isstartedbythiskey.
2.43 ►I◄
Press [►I]button when you playamarked program,thescreen willrecordtothemarked point.
2.44 I◄◄/►►I
Press [I /►►I]button when youplayamarkedprogram,thescreenwill jumptothemarked
point.
1. JumpStep Value: “1Mins/3Mins/ 5Mins/ 10Mins/ 15Mins”jump.
2. JumpStep Value: Recordthean markpoint.
2.45 FAV
1. InTVmodepress the[FAV]button todisplaytheFavoriteGroupwindowonthescreenas
thepicturebesideshows.
