starlight FCF-02WH User manual

1
USER MANUAL
Stove Oven
FCF-02WH
FCF-03WH

2
Please first read this manual!
Dear Customer, We desire you take the most advantage of this
product, which is produced in the modern facilities and subject
to meticulous control procedures. For this reason, please read
the entire manual carefully before you use the product and
keep the manual under hand for future reference. If you transfer
the product to anybody else, give the manual together with it.
User manual help you use the product quickly and reliably.
 Read the user manual before you install and operate
the product.
 Definitely comply with the instructions on safety.
 Keep the user manual as easily accessible for future
use when required.
 Read other documents given together with the product
as well.
Remember this user manual may also apply to the other
models.
Differences between the models are clearly indicated in the
manual.

3
Symbols and Description:
The following symbols take place in the user manual:
1-Important information and useful hinds on use
2-Warning against dangerous situations in terms of life and
property
3-Warning against fire risk
4-Warning against hot surfaces

4
Table of Contents
1) Your product 5
 General Appearance 5
 Technical Specifications 6
2) Important Safety Instructions 7
 General Safety 7-8
 Safety for children 9
 Intended use 10
3) Installation 10
 Prior to use of the product 10-11
 Connections 11
 Gas connection 11-12
 Leakage control 13-14
 Waste of the product
Destruction of the packaging 13
 Future Transportation procedures 14
 Disposal of the old product 14
4) Preliminary preparation 15
 First use 15
 First cleaning 15
 Description of use of the stove 16
5) Maintenance and cleaning 17
 General information 17-18
 Cleaning of the control panel 18

5
1) Your Product

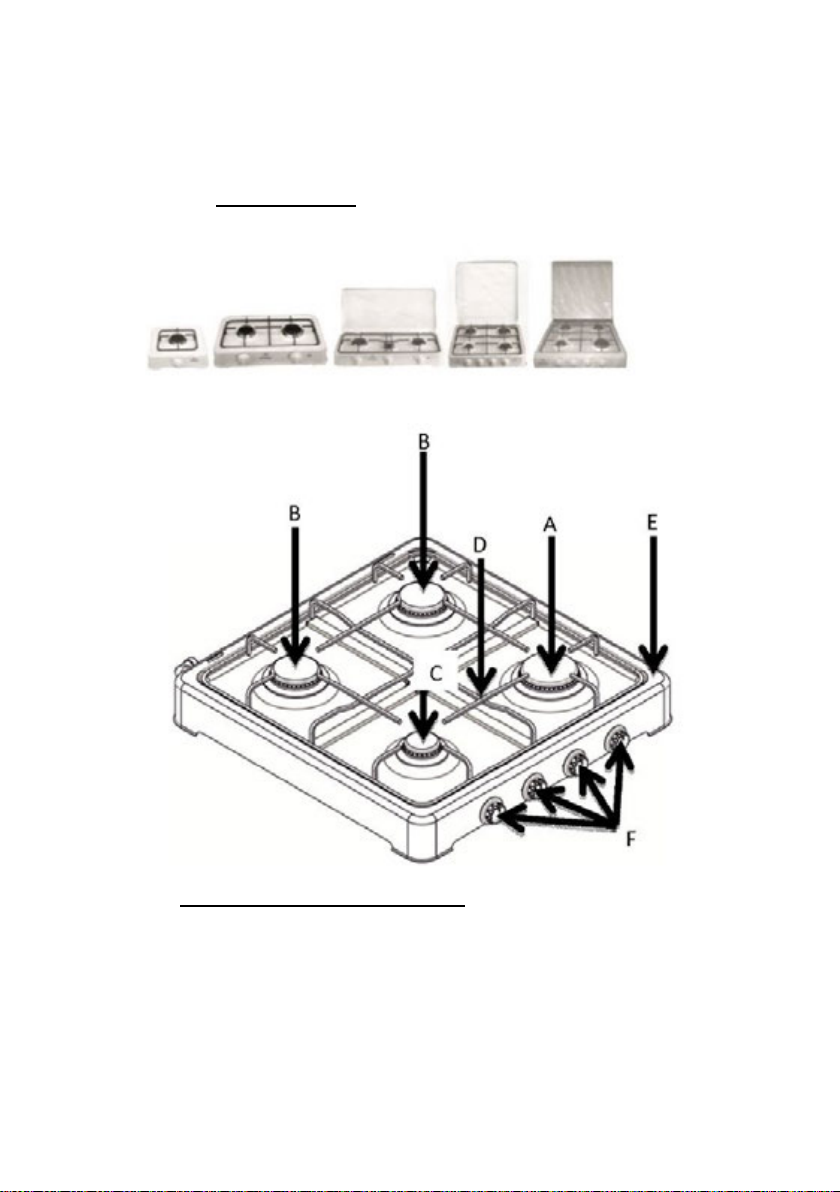

GENERAL APPEARANCE
A. Strong burner
B. Normal burner
C. Auxiliary burner
D. Upper grill

6
E. Body
F. Control switch
Technical Specifications
TECHNICAL SPECIFICATIONS OF THE PRODUCT
Specifications
G30
30mba
r
Inject
or
Single
Stove
Dual
Stove
Triple
Stove
Quartet
Stove
Quartet
Stove
Quartet
Stove
Quartet
Stove
Quartet Stove
Gas
Category
13B/
P
13B/P
13B/P
13B/P
13B/P
13B/P
13B/P
13B/P
13B/P
Strong
burner
Ø
0.65
1.85
kW
1.85
KW
1.85
kW
1.85 kW
1.85 kW
1.85 kW
1.85 kW
1.85 kW
Normal
burner
Ø
0.60
1.50
KW
1.50
KW
2x1.50KW
2x1.50KW
2x1.50KW
2x1.50KW
2x1.50KW
Auxiliary
Burner
Ø
0.50
1 KW
1 KW
1 KW
1 KW
1 KW
1 KW
Your stove is designed to operate by G30 29mbar (LPG) gas.
It is not possible to convert the stove to operate by
different gases.
Use 1.5 kg/300mm SS Pressure-reducing valve on your
stove as per TSE standards.
This product is designed to operate outdoors only.
Technical specifications may be changed without prior
advice in order to improve product.
Figures given in the manual are schematic and they may
not exactly match with your product.
The declared values on the markings of the products or
in other printed documents provided together with the product
are values obtained in laboratory as per the respective
standards. These values may vary depending on the use and
environment of the product.

7
1) Important safety instructions
This section contains safety instructions that may help
prevent risks of personal injury or property damage. If you fail
to observe these instructions, the warranty will become invalid.
General Safety
 This product is not designed by any handicapped
people, mentally, physically and sensually or by any
people having no knowledge and experience (including
children) unless they are attended by a person that
may assume their safety or give directions for use of it.
The children will be supervised and they will never be
allowed playing with the product.
 If venturies of your stove becomes clogged due to food
overflow, contact with the authorized service center
and have the eye of the stove unclogged.
 If the product is damaged or has any visible defect, do
not operate the product.
 Do not perform any repair or modification on the
product.
 Do not use the product when your discernment is
impaired due to taking drugs and/or alcohol.
 Always call authorized service center for installation
and repair operations. The manufacturing company
may not be kept responsible for any damage that may
arise as a result of operations by unauthorized persons
and the warranty will become invalid as a result of it.
 Be careful when using alcohol in your food.
Alcohol evaporates at high temperature and when it
comes into contact with hot surfaces, it blazes up and
cause fire risk.
 Do not heat the closed tin cans and glass jars.
Pressure to develop may cause burst of the jar.

8
 Do not bring flammable materials near when the
product operates because its sides may be hot.
 This equipment should be kept away from the
flammable materials.
 The product may get hot when operating. Do
hot the hot departments, inner parts and heating parts
of the furnace.
 The product and its parts accessible by hand
are hot when using.
 The product may be hot after use of it. If you
have to touch it, wear heat-resistant gloves.
 Do not move the stove when using it
 Keep all ventilation channels unobstructed around
them.
 After each use of the product, make sure the pressure-
reducing valve is closed..
 Do not use sharp and piercing materials to clean inside
and glass of the product; such materials may give
damage to your product.
 As hot oil may cause fire risk, always be alert when the
product operates.
 In case of any possible fire, do not attempt to
extinguish the fire with water; immediately cut off the
power connection of the product and cover the burning
part by help of a wet blanket.
 Do not use steam cleaning agent.
 Do not product the product any nylon, flammable and
any materials not resistant to a
 temperature of 100oC.
 Pans to be placed on the furnace heaters should be in
proper sizes.

9
 When you feel gas smell (leakage, close the pressure-
reducing valve immediately.
Safety for children
During and after operation of the product, the exposed parts of
the product will remain hat until it gets cool; keep the children
away from it.
 CAUTION: During operation of the grill, the accessible
parts may be hot. Keep small children away from it.
 It is risky that children below 8 years old to contact with
the product when they are not attended by an adult
person.
 This product may be used by the children above 8
years old and/or by any physically, sensually or
mentally handicapped people if they are informed
about the risks and proper operation of the product is
shown to them.
 Children should not play with the product. Cleaning
and maintenance of the product may not be performed
by the children not supervised by the adult people.
 Packaging materials may be risky for the children.
Keep them at such places out of reach of the children
and sort them out according to the waste instructions
and dispose them.

10
Intended use
This product is designed for outdoor use. It is not allowed for
commercial use. “CAUTION: This product may be used only for
cooking. It should not be used to heat the room or any
other purpose.”
The manufacturer may not be held responsible for any damage
that may occur as result of improper use or during handling.
Service life of the product you have purchased is 10 years. This
is the period during which the manufacturer will make available
the replacement parts if the product is used as specified.
1) Installation
Prior to use of the product
 Install your stove in the sizes shown in the figure.
 Make sure the vents are open.
 Make sure the place where you install
the stove is made of heat-resistant
material. Do not place it on plastic and
similar materials.
Make sure the gas installation is
proper.
Preparation of the installation place
as well as gas installation is for responsibility of the product.
The rules set forth in the applicable local standards
regarding gas should be during installation of the product.
Damaged products may pose danger for your safety.

11
Any operation on the gas equipment and systems
should be performed by authorized and competent persons.
The product is not equipped with a system for
evacuation of the gases that may form after
combustion. The product should be installed and
connected as per the applicable installation
regulations. Requirements related to ventilation should
be specially observed.
Connections
Property damage! Do not use the cover, gas hose and/or
gas control switches to carry or move the product.
Gas connection
Any operation on the gas equipment and systems should
be performed by authorized and competent persons.
Prior to installation, make sure the local distribution conditions
(gas type and gas pressure) are compliant with the settings of
the product.

12
LPG connection
 Be careful that gas hose and gas-reducing valve you
will use for the stove should be reliable. Fix the gas
supply hose to the hose nozzle behind the stove and
tighten with a hose clamp and screwdriver (Figure 6).
Make sure it is tightened well.
 Length of the gas hose of the stove should not be
longer than 1500mm.
 Pressure of the gas-reducing valve to be used for LPG
should be 1.5 kg/300mmSS and duly certificated.
 Hoses old, cracked, softened, hardened and used
more than 2 years should be replaced.
 Hoses for connecting the containers to the equipment
should comply with TS1846 standard and should be
made of such material as not to be affected by gas.
 Use your stove with 12 kg gas container.
Gas supply hose should not pass through the hot part
at the rear of the stove. Temperature of the gas hose should
not exceed 90oC.
Make sure the system does not leak gas prior to use of it.

13
Figura 6
Leakage control
Open the gas-reducing valve and control with highly foamed
soap water for any gas leakage on the connection you have
made.
Never control it with flame.
Final control
1- Make sure the installation of your stove is proper.
2- Control the functions.
Disposal of the product
Destruction of the packaging
Packaging materials are dangerous for the children. Keep the
packaging materials at a place out of reach of the children.
Packaging of the product is produced by recyclable materials.
Sort them out according to the waste instructions and dispose.
Do not throw them together with the domestic waste.

14
Future handling operations
 Keep the original cartoon of the product and carry the
product inside this box. Comply with the instructions
given on the cartoon. If its original cartoon is not
available, wrap it by use of bubble packaging material
or a thick cardboard and band it tightly
 Band and fix the heads and pan supports tightly.
 Do not use the cover or handle to carry or move the
product
Do not put any article on the product. The product should
be carried upright.
Control the product visually against any damage that may
have occurred during the handling.
Disposal of the old product
Symbol (WEEE) on it, indicating that electric and
electronic equipment waste should be collected separately.
You should comply with the Directive 2002/96/EC in order to
recycle or divide into part for minimization of its possible effect
on the environment. For further details please apply to the local
or regional authorities. Electronic products not subject to the
controlled collection operation would constitute potential risk for
both environment and human health due to the harmful
materials they contain. You may contact your dealer or the
garbage collection department of the municipality. Prior to
disposal of the product, cut the power cable and break the
cover lock in order to prevent any risk against the children.

15
1) Preliminary Preparation
First use
Make sure the requirements set forth in the manual have been
fulfilled.
First cleaning
Some detergents or cleaning agents may give damage to
the surface.
1. Remove all packaging materials
2. Wipe clean the surface of the product with a damp cloth
or sponge and then wipe it dry with a cloth

16
Description of the use of the stove
1. Push and turn anticlockwise the gas stove switch to
bring to high flame.
2. Ignite the lighter according to the characteristic of your
stove.
3. Bring it to the desired flame position.
4. When the cooking is over, turn the switch clockwise to
the high point to cut off the burner.
Gaz este intrerupt
Flacara mare
Flacara mica

17
Size of the container and size of the gas flame should exactly
comply with each other. Adjust the gas flame in such a way that
it will exceed the base of the container. Put the container on the
center of the pan supporter.
2) Maintenance and cleaning
General information
If the product is regularly cleaned, its service time will be
extended and frequently encountered problems will be
reduced.
Hot surfaces may cause burns!
Allow the product to cool down before you clean the product.

18
 The product should be cleaned thoroughly after each
use. Thus the food deposits are easily cleaned off and
thus such deposits are prevented from burning in the
subsequent use of the product.
 No special cleaning agent is required to clean the
product. Clean the product with the washing liquid,
lukewarm water and soft cloth or sponge and wipe it
dry.
 Make sure that no liquids left after the cleaning process
and you immediately clean any splash of food during
the cooking.
 Do not use any cleaning agent containing acid or
chlorine to clean the stainless or inox surfaces and
handle. Clean by wiping in one direction by help of soft
cloth soapy and liquid (no-scratch) detergent

Some detergents or cleaning agents may give
damage to the surface. Do not use aggressive
detergents, cleaning powder/cream or sharp
objects.
Do not use steam cleaning products for cleaning purpose.
Cleaning of the control panel
Clean the control panel and control buttons with a damp cloth
and wipe it with a dry cloth.
Control panel may be damaged! Do not remove the control
switch to clean the control panel.

1
MANUAL DE UTILIZARE
Aragaz
FCF-02WH
FCF-03WH
