Warmlite WL45037 User manual

www.warmlite.co
1800W
COMPACT STOVE FIRE SUITE
WL45037
APPLICABLE TO ALL COLOUR VARIANTS
YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY

2
CUSTOMER SUPPORT TEAM: [phone]
TECHNICAL DATA
Description: Compact Stove Fire Suite
Model: WL45037 Applicable to All Colour Variants
Rated Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 1800W
DOCUMENTATION
We declare that this product conforms to the following product legislation in accordance with the
following directive(s):
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.
2009/125/EC Eco-Design of Energy Related Products.
RK Wholesale LTD Quality Assurance, United Kingdom
WARRANTY
This product is guaranteed for 12 months from the date of original purchase. If any defect arises due
to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• RK Wholesale LTD has limited liability for incidental or consequential loss or damage.
• This guarantee is only Valid in the UK and Eire Only.
An extended warranty is available for this appliance.
See back page for details.

3
www.warmlite.co
WARNING:
This Appliance MUST be Earthed
WIRING SAFETY FOR UK USE ONLY
IMPORTANT
As the colours in the mains lead of this appliance
may not correspond with the coloured markings
identifying the terminals in your plug, please
proceed as follows:
The wires in the mains lead are labelled in
accordance with the following code:
Blue neutral [N] Brown live [L]
Green/Yellow [EARTH]

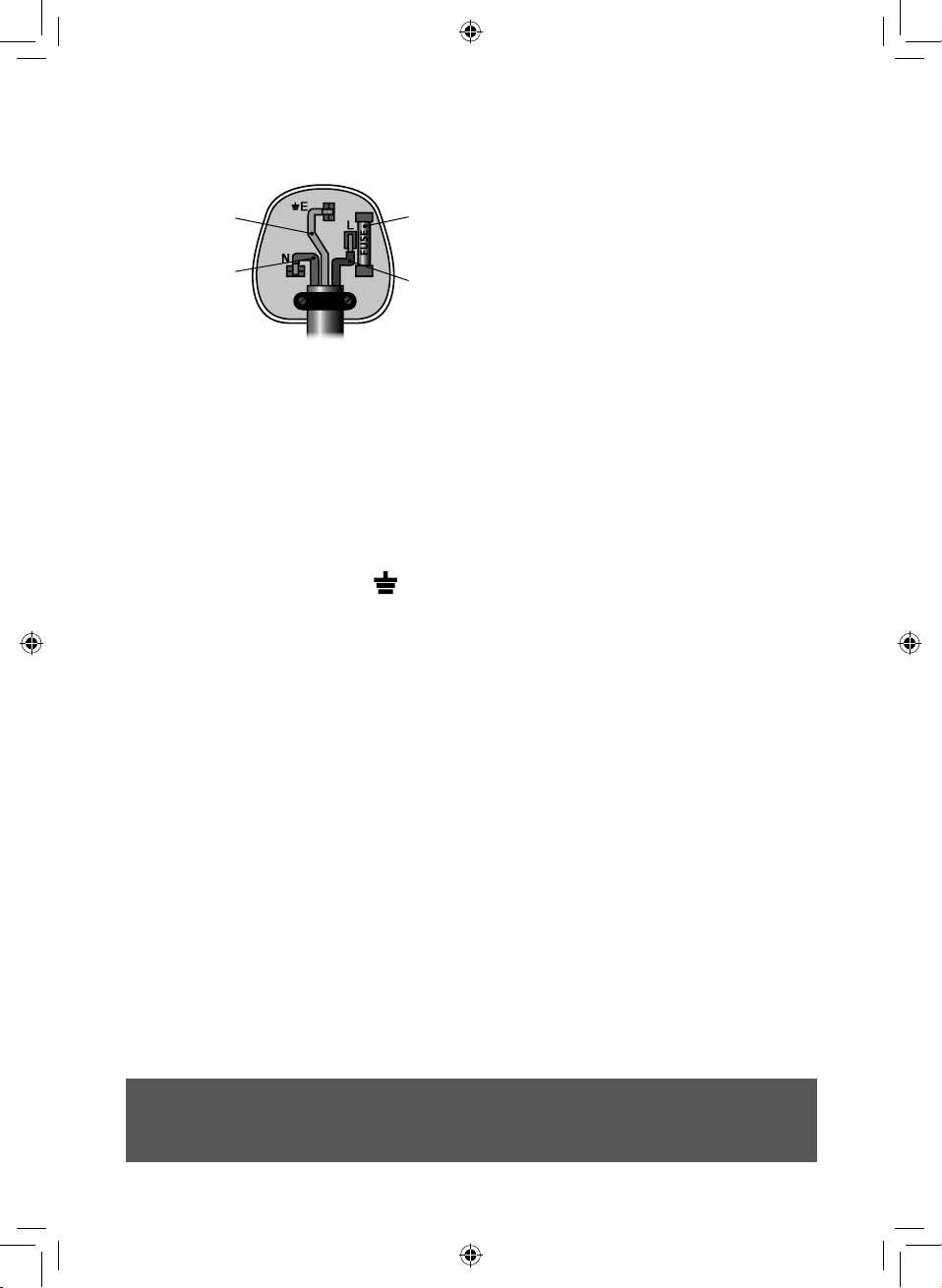

Plug Fitting Details (Where Applicable). The
wire labelled blue is the neutral and must be
connected to the terminal marked [N].
The wire labelled brown is the live wire and must
be connected to the terminal marked [L].
The wire labelled green/yellow must be
connected to the terminal marked with the letter
[E].
On no account must either the brown or the blue
wire be connected to the [EARTH] terminal.
Always ensure that the cord grip is fastened
correctly.
The plug must be tted with a fuse of the same
rating already tted and conforming to BS 1362
and be ASTA approved.
If in doubt consult a qualied electrician who will
be pleased to do this for you.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-
rewireable plug tted to the mains lead and
should the fuse need replacing, you must use an
ASTA approved one (conforming to BS 1362 of
the same rating).
If in doubt, consult a qualied electrician who will
be pleased to do this for you.
If you need to remove the plug - disconnect it
from the mains - then cut it o of the mains lead
and immediately dispose of it in a safe manner.
Never attempt to reuse the plug or insert it into a
socket outlet as there is a danger of an electric
shock.
FUSE
Earth
(Green/Yellow)
Fuse
Neutral
(Blue)
Live
(Brown)

4
CUSTOMER SUPPORT TEAM: [phone]
PRODUCT SAFETY
When using any electrical appliance, basic safety precautions should
always be followed including the following:
• Check that the voltage of the
main circuit corresponds with
the rating of the appliance
before operating.
• Please ensure that the
appliance is used on a
stable, level, and heat
resistant surface.
• DO NOT immerse cords,
plugs or any part of the
appliance in water or any
other liquid.
• DO NOT leave the appliance
unattended while it is
operating.
• Close supervision is
necessary when any
appliance is used by or near
children.
• Take care when any
appliance is used near pets.
• This appliance can be
used by children aged
from 8 years and above
and persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved.
• Children should not play with
the appliance.
• Cleaning and user
maintenance should not
be undertaken by children
without supervision.
• Switch o at the wall socket
then remove the plug from
the socket when not in use
or before cleaning.
• If the supply cord or
appliance is damaged,
stop using the appliance
immediately and seek advice
from the manufacturer, its
service agent or a similarly
qualied person.
• DO NOT let the cord hang
over the edge of a table
or counter or let it come
into contact with any hot
surfaces.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer
apart from those supplied
with this product. DO NOT
use extension cords with the
appliance.

5
www.warmlite.co
• DO NOT pull the plug out by
the cord as this may damage
the plug and/or the cable.
• DO NOT use this product
for anything other than its
intended use.
• This appliance is for
household use only.
• DO NOT carry the appliance
by the power cord.
• DO NOT use any extension
cord with this appliance.
• DO NOT use the appliance
outdoors.
• This heater is not equipped
with a device to control
the room temperature.
DO NOT use this heater in
small rooms when they are
occupied by persons not
capable of leaving the room
on their own, unless constant
supervision is provided.
• Always ensure that the
heater is placed on a rm
level surface. Ensure that the
heater is not positioned close
to curtains, furniture or any
combustible materials as this
could create a re hazard.
• Never sit or stand on the re.
• Never use this surround with
a gas re
• Never stand or sit on the
surround.
• Never cut o the plug and
hard wire into a xed fused
spur.
• The heater must not be
located immediately below a
mains socket outlet.
• DO NOT cover the heater as
this may lead to a re risk.
• DO NOT obstruct any of the
openings of the heater.
• DO NOT insert any object
through any openings on the
heater.
• Check the heater from time
to time for accumulated dust.
• DO NOT use the heater
in areas where ammable
liquids are stored or where
ammable fumes may be
present.
• DO NOT operate the heater
on a timer, or leave on
overnight.

6
CUSTOMER SUPPORT TEAM: [phone]
• When not being used, please
unplug the heater from the
mains socket.
• Keep the mains lead away
from the hot body of the
heater and ensure that it is
not pulled tight between the
socket and the heater.
• Always unplug the heater
and allow it to cool before
moving it from one location
to another.
• WARNING! This product
must be installed correctly,
failure to do so may cause
damage to your product and/
or your surroundings.
• DO NOT attempt to
dismantle or repair any part
of the heater. This should
only be done by a qualied
service agent.
• In the unlikely event the
appliance develops a fault,
stop using it immediately
and seek advice from the
Customer Support Team.
HIGH VOLTAGE HOT SURFACE DO NOT COVER

7
www.warmlite.co
WHAT’S IN THE BOX
Instruction Manual
1. Mantel
2. Log eect
3. Legs
4. Hearth
5. Hot Air Vent
6. Controls
7. 8mm screw x4
8. Mirror clip x2
9. 35mm screw x2
10. 8mm Wall plug x2
BEFORE YOUR FIRST USE:
1. Remove your appliance from the packaging.
2. Install your appliance in accordance with the installation & safety instructions.
3. Your appliance is now ready for normal use.
Dispose of the packaging in a responsible manner.
WARNING: This product must be installed correctly, failure to do so may result in injury, electric
shock to the user or damage to your product and your Property.
TOOLS NEEDED (not supplied)
1. 2mm & 6mm drill bit (the 6mm drill bit may need to be a masonry bit)
2. Philips screw driver
3. Power drill
The images are for illustration purposes only and might not be a true indication of the actual product.
1
3
4 5
2
6
7 8 9 10

8
CUSTOMER SUPPORT TEAM: [phone]
HANDLING
Before continuing any further with the
installation of this re please read the following:
• One person should be sucient to lift the
re.
• When lifting always keep your back
straight. Bend your legs and not your
back.
• Avoid twisting at the waist. It is better to
reposition your feet.
• Avoid upper body / top heavy bending.
Always bend from the knees rather
than the waist. Do not lean forward or
sideways whilst handling the re.
• Always grip with the palm of your hand.
Do not use the tips of ngers for support.
• Always keep the product as close to the
body as possible to prevent unnecessary
and undue strain on the body.
• Use gloves to provide additional grip.
• Always use assistance if required.
UNPACKING THE PRODUCT
The unit is supplied in a single package
carton. Carefully unpack the product using the
following procedure:
• Ensure that the product is in the correct
position with the carton wording legible.
• Remove the straps and sleeve.
• Carefully lift the replace out of the box.
• Remove the protective packaging and
bag from the suite.
• Locate the xing pack and put aside.
• Carefully remove the protective lm
covering the re.
IMPORTANT: This surround is only suitable
for use with electric res.
Please ensure both the wall and oor are
at before installation, and that an area of at
least 77cm x 25cm is available for installation.
Always ensure there is enough room to place
the re suite before attempting to install it.
Please ensure that there is an accessible
electrical socket within the space for
installation. The electrical socket must not be
behind or above the suite.
WARNING! Ensure the supply cord is
correctly located within the notches and will
not be trapped when the surround is tted to
the wall.
1. Route the supply cord through the notch
at the back of the suite.
2. Route the supply cord through the side
of the suite. There will be a notch located
at each side of the suite. Use the notch
nearest to the electrical socket.

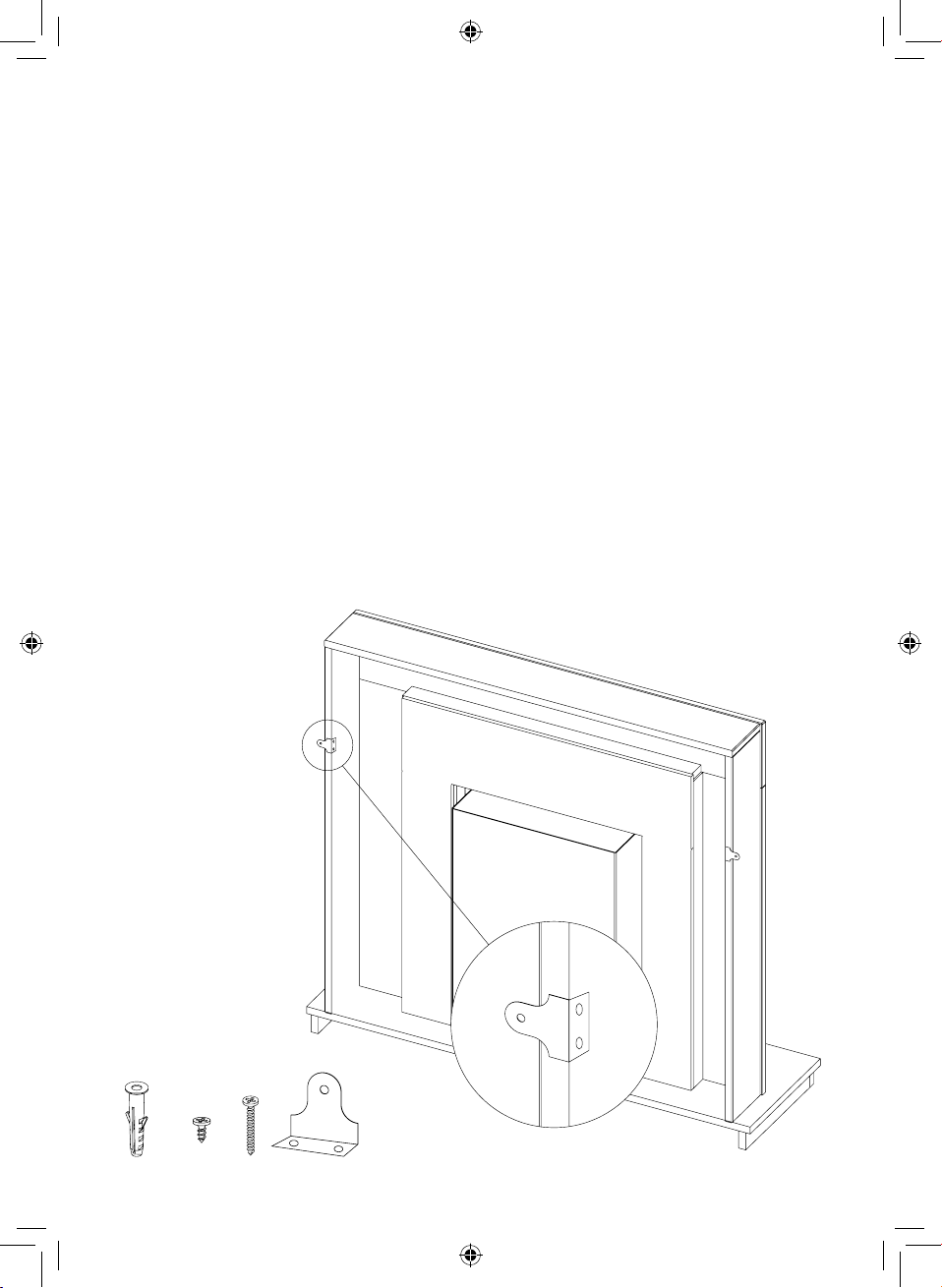

SECURING THE SUITE TO THE WALL
(SEE DIAGRAM ON PAGE 10)
1. Attach a mirror clip to the back of each
edge as shown using the 4 x short
screws. Using a 2mm diameter drill bit, re-
drill the holes to stop the MDF splitting.
2. Place the suite to the wall, and mark the
positions of the remaining holes on both
mirror clips.
3. For solid walls, drill 2 holes, each
approximately 35mm deep. Use a 6mm
diameter drill bit. Note: if tting the re
to plaster board with a cavity behind it,
proprietary wall xings (not supplied) will
be required.
4. Insert the wall plugs, then secure the suite
with 2 x long screws (supplied).

9
www.warmlite.co
USING YOUR APPLIANCE

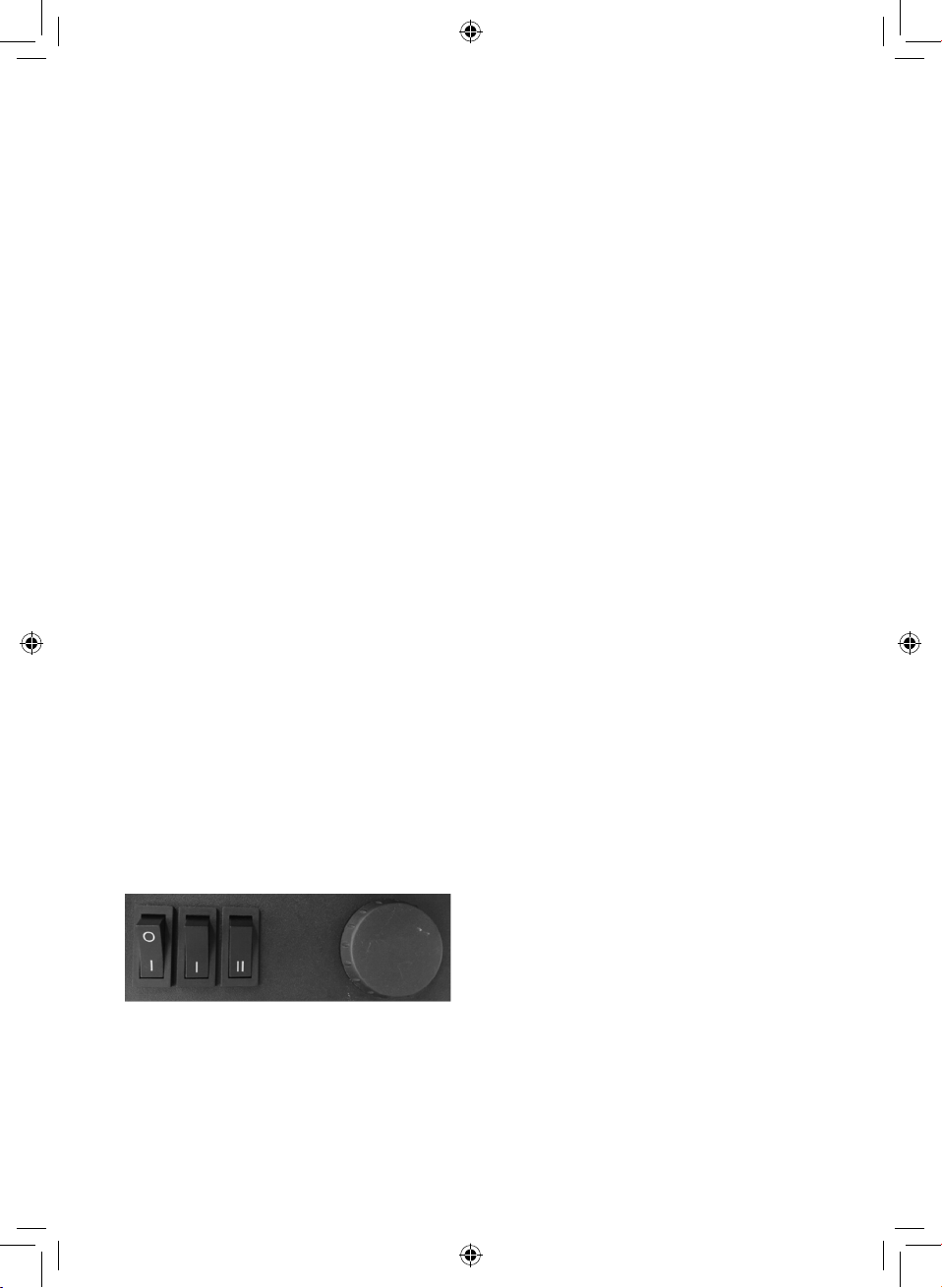

1. Use the “I/O” switch located on the side
of the stove unit to turn the unit and ame
eect on and o. Flick this switch to the
On position (represented by the symbol
‘I’) to turn the ame eect on, or to the O
position (represented by the symbol ‘O’)
to turn the ame eect o.
2. Use the switches marked ‘I’ and ‘II’ to
select and set the heating level. Turn the
‘I’ switch to the On position to select the
Low heat setting (900W) or turn the ‘II’
switch to the On position to select the
High heat setting (1800W). Flick either of
these switches back to the O position to
turn the heating o.
3. Once the desired heating level has been
selected, turn the thermostat dial to the
maximum temperature to activate the
heating function.
4. The re will now operate continuously until
it reaches an internal temperature of 75
degrees. Once this temperature has been
reached, the automatic cut-o feature
will activate and the unit will turn itself
o, to allow the internal temperature to
decrease. The replace will then continue
to carry out this automatically controlled
On-O cycle until manually turned o or
unplugged from the mains.
PLEASE MAKE NOTE OF ALL THE
FOLLOWING INSTRUCTIONS:
Do:
• Always install the re in accordance with
this guide. If in doubt obtain expert advice.
• Always make sure the electrical socket is
accessible and located adjacent to, but
not above or behind the re.
• Always disconnect the re from the
electrical supply before carrying out
cleaning or maintenance.
• Always ensure the product is assembled
in an area that is free from dust, grease or
liquids.
• Always ensure that the correct tools are
used to assemble/install this product.
• Always make sure the re is rmly secured
in place when complete.

10
CUSTOMER SUPPORT TEAM: [phone]
Don’t:
• Never leave children unsupervised in a
room where the re is on and unguarded.
• Never obstruct or cover the fan outlet or
force items into the re openings.
• Never install or use the re near water. DO
NOT place the re in bathrooms, kitchens,
shower rooms, swimming pools or any
other wet or humid locations.
• Never use aerosols or steam cleaners on
or around the re.
• Never route the mains supply cable under
carpets or any other oor coverings.
• Never install the re close to curtains or
combustible materials.
• Never use the re to dry clothes or other
similar items.
• Never sit or stand
on the re.
• Never cut o the
plug or attempt to
hard wire the unit
into a xed fused
spur.
Note: Any new wiring
required must be in
accordance with local
and national codes
and other applicable
regulations in order to
reduce the risk of re,
electric shock, or other
injuries.
Note: When the re is turned on for the rst
time or when it has not been used for some
time, it may release a slight, harmless odour.
This odour is a normal occurrence caused
by the initial heating of the internal heating
elements or dust, and will disappear with use.
SAFETY OVER HEAT PROTECTION
WARNING!
Please do not obstruct the unit’s air vents, as
this will cause it to overheat.
This appliance is equipped with a self-resetting
safety overheat protection mechanism. If
the temperature exceeds 75oC, the heating
element will cut out until a safe temperature is
regained.
x 2 x 2x 4 x 2

11
www.warmlite.co
TROUBLESHOOTING
Safety Overheat Protection Device:
To reset the unit after the safety overheat
protection feature has activated, carry out the
following steps
1. Turn the replace o by icking the On/O
switch to the O position, represented by
the symbol ‘O’.
2. Unplug the power cord from the electrical
mains supply socket and leave it
disconnected for at least 10 minutes.
3. Ensure the air vents are free from any
obstructions.
4. Plug the unit back into the mains socket.
5. Turn the re back on by icking the On/O
switch to the On position, represented by
the symbol ‘I’.
6. If the replace does not operate correctly
after it has been reset, check if the fuse in
the plug is damaged.
7. If the fuse is not damaged but the re is
still not functioning correctly, contact a
qualied service person.
Problem Potential cause Corrective action
The re will not turn on. The unit is not plugged into
the mains.
The ON/OFF switch has not
been turned on.
The fuse in the plug has
blown.
Check the mains socket to
ensure the plug has been
inserted correctly.
Turn the ON/OFF switch
to the ON position,
represented by the symbol
‘I’
Check and change the fuse
in the plug.
No heat. The heat selection switches
have not been turned on.
Ensure that the heat
selection switches have
been correctly switched on.
The heat suddenly cuts
out whilst the unit is in
operation.
The safety overheat
protection feature may have
activated.
Reset the unit as detailed in
the Troubleshooting section
above.

12
CUSTOMER SUPPORT TEAM: [phone]
CLEANING AND CARE
• Always switch o the re and remove
the plug from the electrical socket before
cleaning.
• Ensure the unit is suciently cool before
attempting to clean it.
• Wipe the appliance with a dry cloth to
remove dust.
• Never use abrasive powders or solvents.
• If the heater shows any signs of wear or
damage, IMMEDIATELY disconnect it from
the mains supply and contact a qualied
technician. DO NOT attempt to use the
heater if it appears worn or damaged.
CLEANING THE GLASS
• The unit’s glass is cleaned in the factory
during assembly. However, it is possible
that it may collect dust particles or other
residual debris in the process of shipping,
handling or installation. Should this be the
case, lightly dust the glass with a clean,
dry cloth to remove these particles.
• To remove ngerprints or other marks, use
a clean, damp cloth. The glass should be
completely dried with a lint free cloth to
prevent water spots.
• Do not use abrasive cleaners, as these
may scratch the glass.
REPLACING THE BULBS
The halogen bulbs inside the unit can become
very hot.
To avoid accidental burns, allow at least 10
minutes between turning o the appliance and
removing the bulbs.
Do not handle the halogen lamps with bare
ngers, as oils from your skin will damage the
bulbs when they heat up. Use gloves or a clean
dry cloth when handling the bulbs. To replace
the halogen bulbs, carry out the following
instructions:
1. Unscrew the unit’s back cover by
removing the two screws securing it.
2. Carefully remove the used halogen bulb
and replace it with a new one.
3. Replace the cover back into the unit and
tighten the two screws to secure it into
place. NOTE: A 25W halogen bulb is
provided with the unit.
WARNING:
DO NOT IMMERSE ANY ELECTRICAL PART
OF THE APPLIANCE IN WATER SUCH AS
MOTOR UNITS OR PLUGS.
PLEASE SEE CLEANING SECTION FOR
FURTHER INSTRUCTIONS.
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here
may not be disposed of in domestic rubbish.
You are required to dispose of old electrical
and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or
www.recyclenow.co.uk
for access to information about the recycling
of electrical items.
Please visit www.weeeireland.ie for access to
information about the recycling of electrical
items purchased in Ireland.
The WEEE directive, introduced in August
2006, states that all electrical items must be
recycled, rather than taken to landll.
Please arrange to take this appliance to your
local Civic Amenity site for recycling, once it
has reached the end of its life.

13
www.warmlite.co

14
CUSTOMER SUPPORT TEAM: [phone]
NOTES

15
www.warmlite.co
NOTES

We hope you enjoy your appliance for many years.
As a thank you for purchasing one of our fantastic products,
we are oering you an extra 1 year peace of mind.
*To receive your extra guarantee period, register your appliance online
within 28 days of purchase by visiting:
www.warmlite.co
Make sure to retain your original receipt.
Should you have a problem
with your appliance or need any spare parts please call our
Customer Support Team on:
[phone]
Distributed throughout the UK by RK Wholesale LTD
0121.V3
