MODEL: ENCODE E516 - Truro
OWNER`S MANUAL
NOSTALGIC TURNTABLE
RADIO/CASSTTE/CD USB PLAYER/PHONOGRAPH
INSTRUCTION MANUAL
PLEASE READ BEFORE USE

2
IMPORTANT SAFETY INSTRUCTIONS
1. Operate controls and switches as described in the manual.
2. Please read and follow these Instructions and keep them for future
reference.
3. Pay attention to all warnings.
4. Do not use this apparatus near water. This appliance should not be
exposed to dripping or splashing water and no object filled with liquids,
such as vases, should be placed on the apparatus.
5. Do not attempt to clean this unit with chemical solvents as this might
damage the finish. Clean only with a soft, dry cloth.
6. Do not block any ventilation openings.
7. Install in accordance with the manufacturer’s instructions.
8. Do not install this unit in direct sunlight, near any heat sources such as
radiators, heaters, stoves, or other audio equipment (including amplifiers)
that produce heat or places subject to constant vibration or near strong
magnetic fields.
9. Protect the power cord from being walked on or kinked, in particular
where the plug is fitted and at the point where it exits from the apparatus.
10. Only use attachments / accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long
periods of time, or when moving the set to a different location.
12. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
13. Before turning on the power, make certain the AC power cord is plugged
into a suitable 230V AC Mains power socket. Do not overload the wall
power outlet.
THE LIGHTNING FLASH WITH AR-
ROWHEAD SYMBOLWITHIN AN
EQUILATERAL TRIANGLE IS IN-
TENDED TO ALERT THE USER TO
THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE
PRODUCT’S ENCLOSURE THAT MAY
BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC
SHOCK TO PERSONS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOIS-
TURE.
DO NOT REMOVE THE COVER.
NO USER SERVICEABLE PARTS
INSIDE.
THE EXCLAMATION POINT WITHIN
AN EQUILATERAL TRIANGLE IS
INTENDED TO ALERT THE USER
TO THE PRESENCE OF IMPOR-
TANT OPERATING AND SERVIC-
ING INSTRUCTIONS IN THE LIT-
ERATURE ACCOMPANYING THE
APPLIANCE.

3
Avoid installing this unit in places exposed to direct sunlight or close to
heat radiating appliances such as electric heaters, on top of other stereo
equipment that radiates too much heat, places lacking ventilation or dusty
areas, places subject to constant vibration and/or humid or moist areas.
Do not attempt to clean this unit with chemical solvents as this might damage
the finish. Use a clean dry cloth.
Operate controls and switches as described in the manual.
Before turning On the power, make certain the AC power cord is plugged in.
Store your CDs, Cassettes in a cool area to avoid damage from heat.
When moving the set, be sure to first disconnect the power cord.

4
IMPORTANT!!
TO PROTECT THE TURNTABLE FROM DAMAGE DURING
TRANSPORTATION, IT IS LOCKED INTO POSITION WITH A SILVER
TRANSIT SCREW, LOCATED IN THE UPPER RIGHT HAND
CORNER OF THE TURNTABLE PLATFORM.
BEFORE USING THE TURNTABLE, UNLOCK IT TO ALLOW THE
PLATTER TO “FLOAT” BY USING A SCREWDRIVER TO TURN THE
TRANSIT SCREW DOWN COMPLETELY, IN A CLOCKWISE
DIRECTION.
TO LOCK THE TURNTABLE AGAIN FOR TRANSPORTATION, TURN
THE SCREW IN AN ANTI-CLOCKWISE DIRECTION.
ADJUSTMENT FOR EARLY/LATE PICK-UP OF RECORD TONE ARM
Should you find that the record Tone Arm (2) is picking up before the end of the
record, this may be due to movement in transit or the extended non-standard
length of some records. Adjust the pick up time as follows:
1. Unplug the unit from the mains
supply.
2. Rotate the unit so you can access
the rear of the unit.

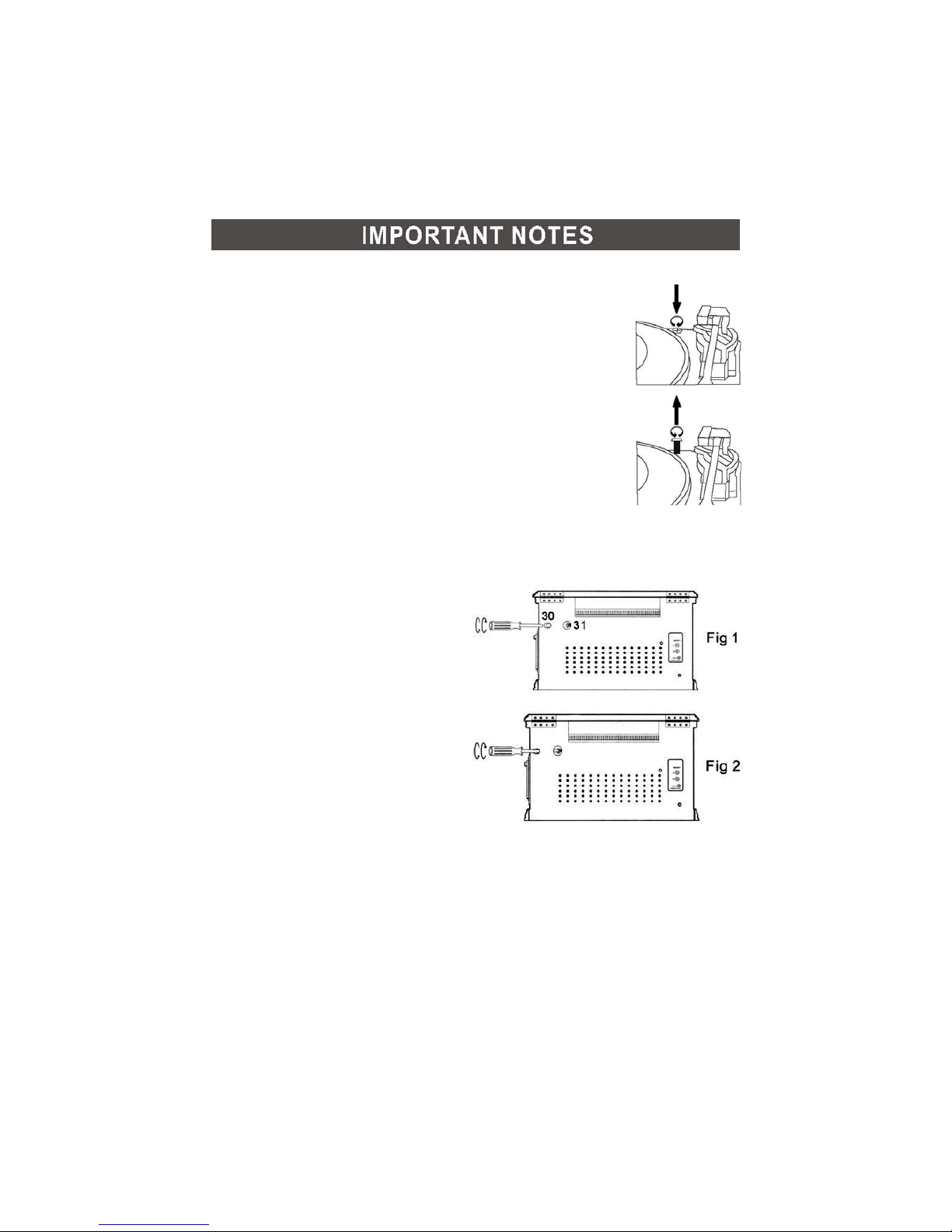

3. Use the screwdriver provided, and
insert this into the hole (30), as
indicated by the label on the back
of the unit. See Fig 1.
4. Shine a torch light or similar into
the second hole (31) to help locate
the adjustment screw. See Fig 2.
5. When playing a record the arm is
picking up too early, you need to
locate the screw as instructed
above, rotate the screw clockwise by approximately 1/4 turn only.
6. Reconnect the unit to the power supply.
7. Replay the record to see if the adjustment has been successful.
8. If the record still picks up too early, make another adjustment, as before, but
in very small movements. Remember to disconnect from the mains supply
before attempting this.
9. Should the unit fail to pick up, make the adjustment by rotating the screw
anti-clockwise - but again, only a very small movement is required.

5
UNPACKING AND SET UP
• Carefully remove the unit from the carton and remove all polystyrene and
other packing material from the unit. Please keep the box and all its packing
materials until you are fully satisfied all parts are working satisfactorily or in
case the unit needs returning for service.
• Unwind the AC power cord and extend it to its full length.
• Unwind the FM Antenna wire and extend it to its full length.
• Place the unit on a stable, level surface*, near a suitable AC outlet, out of
Direct sunlight, and away from sources of excess heat, dust, moisture,
humidity or strong magnetic fields. Note: * A matching stand is available for
purchase from your Dealer, Model STD E516.
• Lift up the lid to expose the Turntable. See label on deck and separate note
on how to close the lid.

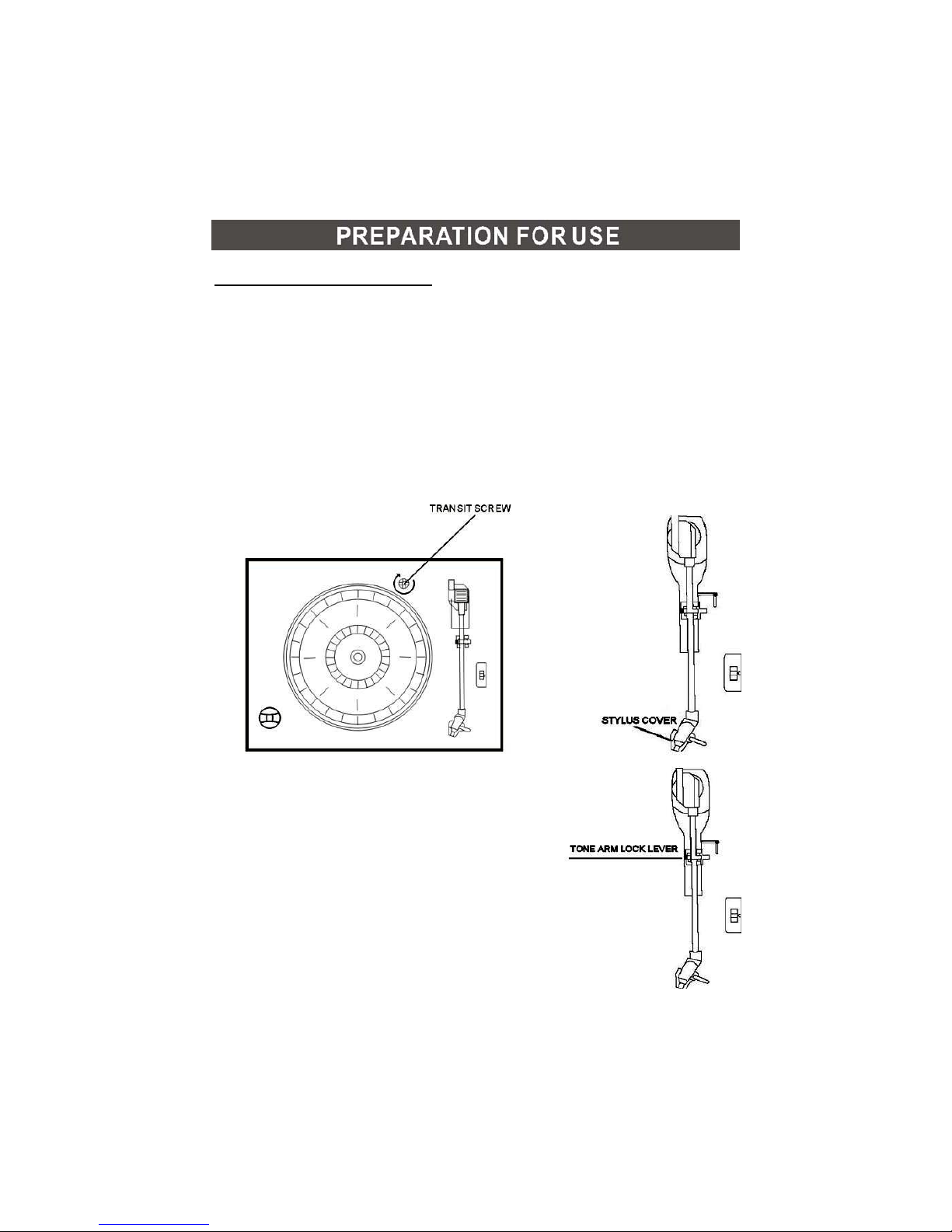

• The Turntable has been secured for
transportation with a Transit Screw. Use a coin
or screwdriver to turn the transit screw clockwise.
This will allow the turntable to “float”.
• Remove the opaque white plastic stylus cover
from the stylus by sliding it forward and down.
• When transporting the unit it is advisable to refit
the stylus cover to protect the needle from
damage.
• Remove the twist-tie that was used to secure the
tone arm during shipment.
• Release the tone arm lock lever.
• Connect the 3-pin plug to your AC power outlet.

6
POWER SOURCE
This product is designed to operate on 230V 50Hz AC Mains only. Attempting to
operate this system from any other power source may cause damage to the
system, and such damage is not covered by your
warranty.
NOTE: You will note that this system is equipped with a
standard domestic AC power 3-pin plug. If this plug will
not fit into your outlet, you probably have an outdated
non-polarized AC outlet. You should have your outlet
changed by a qualified licensed electrician.

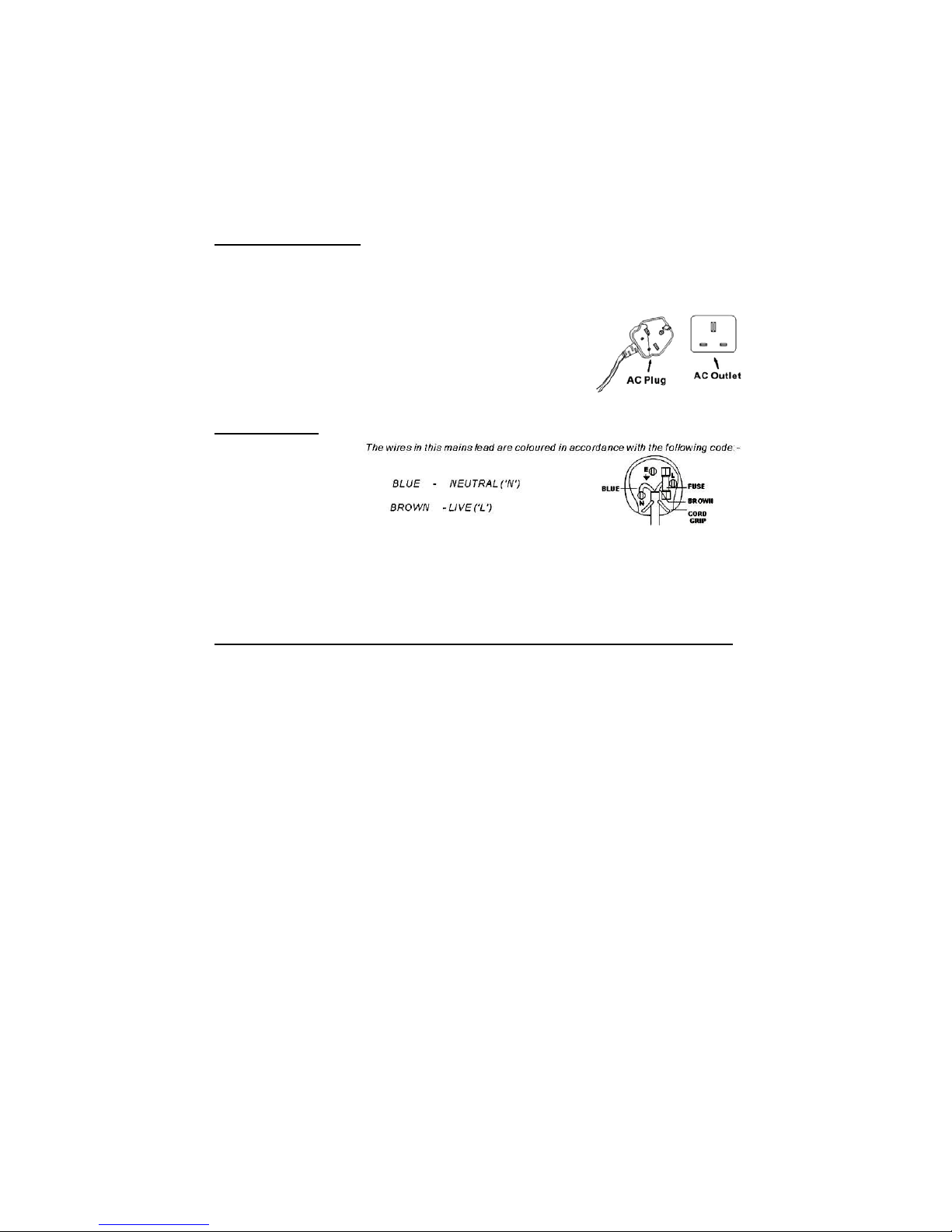

IMPORTANT
If the colours in the
Mains Lead of this
appliance do not
correspond with the
coloured markings
identifying the
terminals in your plug, proceed as follows:
• The wire which is coloured BROWN must be connected to the terminal which
is marked 'L' or coloured RED.
• The wire which is coloured BLUE must be connected to the terminal which is
marked 'N' or coloured BLACK.
DO NOT CONNECT EITHER WIRE TO THE ‘E’ EARTH TERMINAL OF A 3-PIN PLUG
This appliance must be protected by a 3A fuse in a 13A Type (BS1363) plug.
Should you need to replace the fuse, use only a BS1362 fuse.
PROTECT YOUR FURNITURE
This model is equipped with non-skid rubber 'feet' to prevent the product from
moving when you operate the controls. These 'feet' are made from non migrating
rubber material specially formulated to avoid leaving any marks or stains on your
furniture. However certain types of oil based furniture polishes, wood
preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and
leave marks or a rubber residue on the furniture. To prevent any damage to your
furniture we strongly recommend that you purchase small self-adhesive felt
pads, available at hardware stores and home improvement centres everywhere,
and apply these pads to the bottom of the rubber 'feet' before you place the
product on fine wooden furniture.
IMPORTANT: Raising and Lowering the Lid
To open the lid, raise it as far as it will go until the lid support bracket locks in the
open position. To close the lid, lift the lid upward slightly, pull the lid support
bracket slightly forwards, and then gently lower the lid.
TO AVOID DAMAGING THE CABINET OR THE LID, NEVER FORCE THE LID CLOSED.
ALWAYS RAISE THE LID TO RELEASE THE LID SUPPORT BRACKET.

7

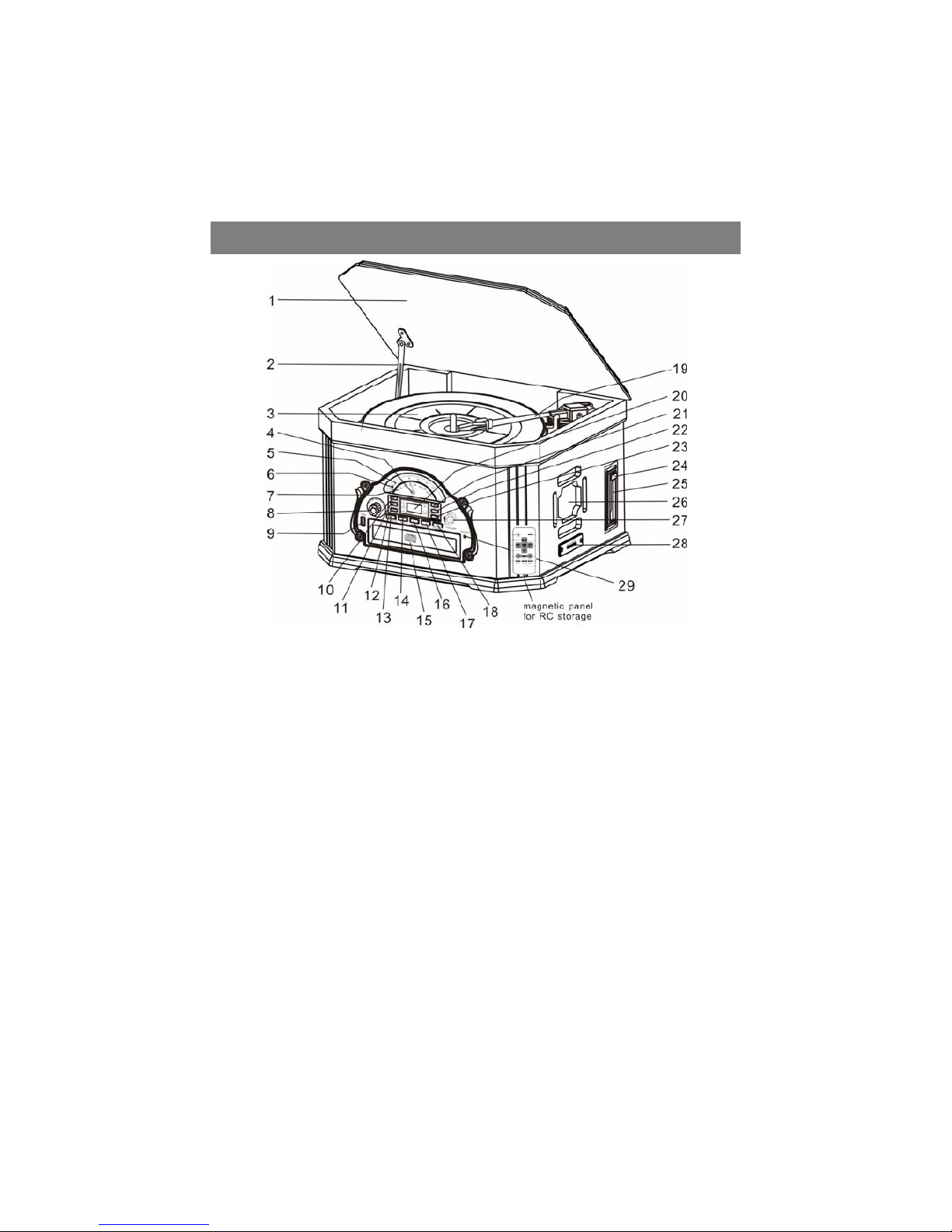

LOCATION OF CONTROLS AND INDICATORS
1) Phonograph Lid
2) Phonograph Lid Support Bracket
3) Turntable
4) Tuning Control Knob.
5) FM Dial Scale.
6) FM ST (stereo) Indicator
7) MW Dial Scale.
8) AM/FM/PH/CD/TAPE
Function Selector
9) USB Socket.
10) RANDOM Control Button
11) REPEAT Control Button.
12) PROGRAM Control Button.
13) PLAY/PAUSE Control Button
14) STOP Control Button.
15) CD Drawer
16) SKIP REV. Control Button
17) SKIP FWD. Control Button
18) OPEN/CLOSE Control Button
19) Tone Arm
20) CD Track Number Display
21) REC Control Button.
22) FOLDER+/+10 Control Button
23) FOLDER-/-10 Control Button
24) Cassette EJ/FF Button
(Eject/Fast Forward)
25) Cassette Player Slot
26) Speaker (L + R)
27) OFF/VOLUME Knob
28) SD/MMC/MS CARD Slot
29) Headphone Jack

8
BACK PANEL
30) Tone Arm Return
Adjustment Hole
31) Tone Arm Return
Adjustment Window
32) Subwoofer Jack (6.7mm)
(signal out)
33) AUX IN (9.5mm L + R) Jack
(external signal Input)
34) FM Wire Antenna
35) AC Power Cord
36) GAIN Hi-Lo Switch
RECORD PLAYER
1) Turntable Platter
2) 45rpm Adaptor
3) Transit Screw
4) Cue Lever
5) Speed Selector
(331/3, 45 & 78 rpm)
6) Tone Arm Lock
7) Tone Arm with Stylus
REMOTE CONTROL
R1) OPEN/ CLOSE R7) STOP
R2) RECORD R8) TRACK -10
R3) REPEAT R9) TRACK +10
R4) PLAY/PAUSE R10) RANDOM
R5) DN/FB (SKIP REV.) R11) DELETE
R6) UP/FF (SKIP FWD) R12) PROGRAM
Notes:
• The Remote has a magnetic strip on the rear which allows it to be stored
magnetically against the front right hand side corner of the cabinet.
• The Remote Control functions are for CD, USB & SD (MP3) Mode.
• The buttons on the Remote Control have the same functions as the buttons
on the main unit.

9
LISTENING TO THE RADIO
1) Turn the system on by turning the OFF/VOLUME control knob (27)
clockwise until a click is heard and set the Volume to a medium level.
2) Set the (AM/FM/PH/CD/TAPE) Function Selector (8) to the AM (= MW) or
FM position.
3) Rotate the TUNING control knob (4) to tune in to the desired radio station. If
you tune in to a strong FM Stereo station, the FM ST. Indicator (6) in the
Tuning Dial will light up and reception will be in Stereo. If you tune in to a
weaker FM station, the reception will automatically switch to Mono.
4) Adjust the OFF/VOLUME control knob (27) to the desired level.
5) For extra Bass effect, connect a separate powered Subwoofer (not supplied)
to the socket on the rear of the cabinet (32).
6) When you have finished listening, turn the OFF/VOLUME (27) control knob
anti-clockwise until a click is heard.
Note: To get clear Radio reception when listening to an AM or
FM Radio broadcasting station, move the GAIN Hi-Lo Switch
(36) on the back panel to the “Lo” position.
Antenna Information
The AM (MW) antenna is inside the cabinet. If AM reception is unsatisfactory,
try repositioning the cabinet slightly until the internal antenna picks up the
strongest signal.
The FM wire Antenna (34) is located on the back of the cabinet. Unwind this
completely. If necessary, adjust the position and direction of this antenna until
you find the position that provides the best reception.

10
PLAYING COMPACT DISCS
1) Turn the system on by turning the
OFF/VOLUME control knob (27)
clockwise until a ‘click’ is heard, and
set the volume to a medium level.
2) Set the (AM/FM/PH/CD/TAPE)
Function Selector (8)

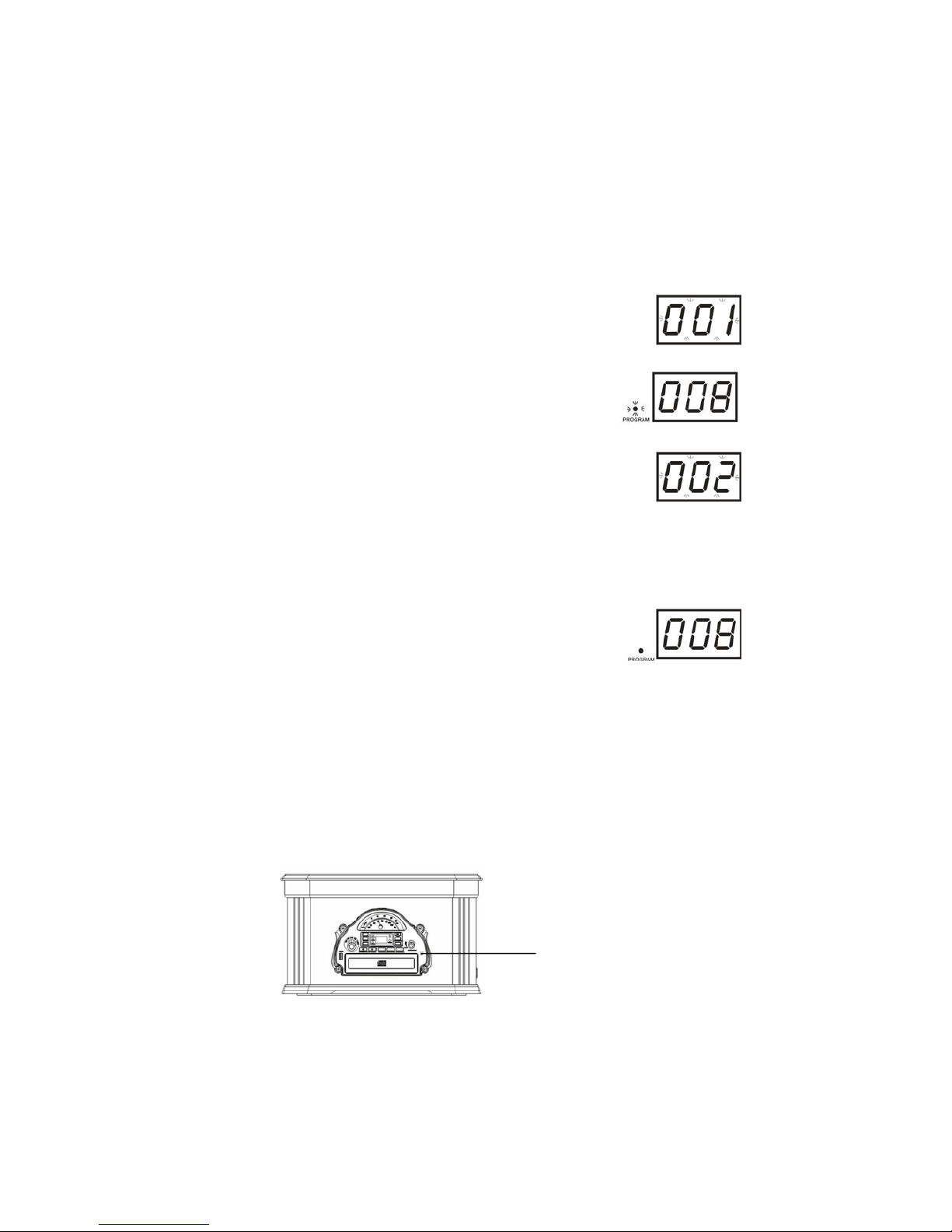

to the CD position, the
CD Track number
display “- - - “ will show
on the LED Display.
3) Press the CD OPEN/CLOSE button (18/R1) to open the CD drawer - <OP>
will show on the LED display.
4) Place a CD or MP3 CD (15) in the drawer with printed label
side facing up.
5) Press CD OPEN/CLOSE (18/R1) once more to close the
drawer, <CLO> will show on LED Display. The disc will
spin for a few seconds while the player reads the disc, the
disc stops, the display will show the total number of tracks
(e.g. “020”) on the disc and then track number “001”.
6) If in CD Mode no disc is detected in the CD
Tray, ‘ - - -’ flashes briefly on the display
and then shows ’Nod’.
7) Playback will start automatically and will
continue until the end of the disc. When the disc ends, the
display again shows the total number of tracks on the disc.
8) Press the STOP button (14/R7) at any time to stop play.
9) To pause momentarily during playback, press the CD PLAY/PAUSE button
(13/R4). Playback stops, but the disc continues to spin and the Track
Number display flashes.
10) Press the PLAY/PAUSE button again to cancel Pause mode and resume
playback. The Play indicator stops flashing.
11) Press the SKIP FWD Button (17) or UP/FF (R6) or SKIP REV Button (16)
or DN/FB (R5) to play the next or the previous track.
12) Press and hold SKIP FWD/UP/FF Button (17/R6) or SKIP REV/DN/FB
Button (16/R5) to forward or rewind the track. Release the button,
playback will resume from that point.
13) Adjust the OFF/VOLUME control (27) to the get the desired volume level.
14) Playback will continue until the end of the disc. When the disc ends, the
display again shows the total number of tracks on the disc.
15) Press the CD STOP button (14/R7) at any time to stop playback.
Note:
a) A separate (powered) Subwoofer (not supplied) can be connected to the
unit to add extra Bass sound.

11
PLAYING CASSETTE TAPES
Note: Before inserting a cassette tape in the player, ensure there is no excess
slack in the tape that could become jammed in the mechanism. *Refer to the
CARE AND MAINTENANCE section on how to remove excess slack from the
cassette before inserting it into the slot..
1) Rotate the OFF/VOLUME control knob (27) in a clockwise direction
until a click is heard - set the Function Selector (AM/FM/PH/CD/TAPE) (8)
to TAPE and the display lights up and shows “7AP” (fig 1).
Set the Volume to a medium level. Fig 1
2) Insert your cassette into the slot*, as shown in the illustration.
Cassette playback begins as soon as the tape is inserted.
3) Adjust the volume by turning the OFF/VOLUME control knob (27).
4) To advance the tape rapidly, depress the EJ/FF (Eject/Fast
Forward) button (24) approximately half way. The tape will move
forward rapidly as long as the button is depressed.
Normal playback will resume when the button is released.
5) When the tape ends, the player stops automatically. Depress the
EJ/FF (Eject/Fast Forward) (24) button completely to eject and
remove the cassette from the player. You may press the EJ/FF
(Eject/Fast Forward) button to stop playback at any time during play.
6) To turn the system off, rotate the OFF/VOLUME control (27)
anti-clockwise until a “click” is heard.
b) In CD Playback Mode - ‘current song number - - Cd’shows on the display
alternately and 2 seconds apart.
c) In Stop Mode, the ’disc’s total track number - - Cd’ shows on the display
alternately and 2 seconds apart.
b) In MP3 Playback Mode - ‘current song number - - Cd - - Folder number’
shows alternately on the display 2 seconds apart. In Stop Mode, the disc`s
total track number - - Cd’ shows on the display alternately 2 seconds apart.

12
PLAYING RECORDS
Before playing any records:
• Please ensure the round black turntable mat supplied is placed on the platter
to avoid the record slipping.
• Also make sure the white protective stylus cover has been removed to
expose the stylus. To remove it, hold the tone arm head with one hand and
carefully pull the cover off towards the front of the unit.
• See ‘IMPORTANT NOTES‘in this Manual regarding the Transit Screw (3).
1) Turn the OFF/VOLUME control knob (27) in a clockwise direction until a
“click” is heard, and set the Volume to a medium level.
2) Set the Function selector (AM/FM/PH/
CD/TAPE). To
PH and the display light up and shows
‘PHO’
3) Use the Speed Selector switch (5) to
select the appropriate speed for the
record (331/3, 45* or 78rpm).
Note*: If you wish to play a 45rpm ‘single’, which has the centre part missing, lift
off the 45rpm adaptor (2) off the turntable deck and place it on the Spindle of the
turntable platter. The 45rpm record can now be placed on the turntable.
4) Place your record on the centre spindle of the Turntable Platter. Push the
Tone Arm Holding clip to the right to release the Tone arm. Lift the Tone
arm off its rest (6) and move it towards the Turntable Platter (1) and over
edge of the record to be played. Lower the Tone arm by gently pulling the
Cue Lever (4) forward. The record will start playing.
5) Adjust the OFF/ VOLUME control (27) to the desired level.
6) When the record finishes playing, the tone arm will return to its rest position
(6) automatically. However, the TONE ARM (7) may not always return to its
original position due to the non-standard record length. See **Note below.
8) To turn the system ‘OFF’, rotate the OFF/VOLUME control knob (27)
in an anti-clockwise direction until a “click” is heard.
Note**: There is a Tone Arm Adjustment Hole on the rear of the cabinet
(30/31). Please read additional instructions in the ‘IMPORTANT NOTES‘ in this
Manual on how to adjust the tone arm “pick up”.

13
USB & SD CARD OPERATION
1) Turn the OFF/VOLUME control knob (27) in a clockwise direction until a
click is heard, and set the volume to a medium level.
2) Insert a USB device (MP3 Player /Flash Drive) or an SD Card (none

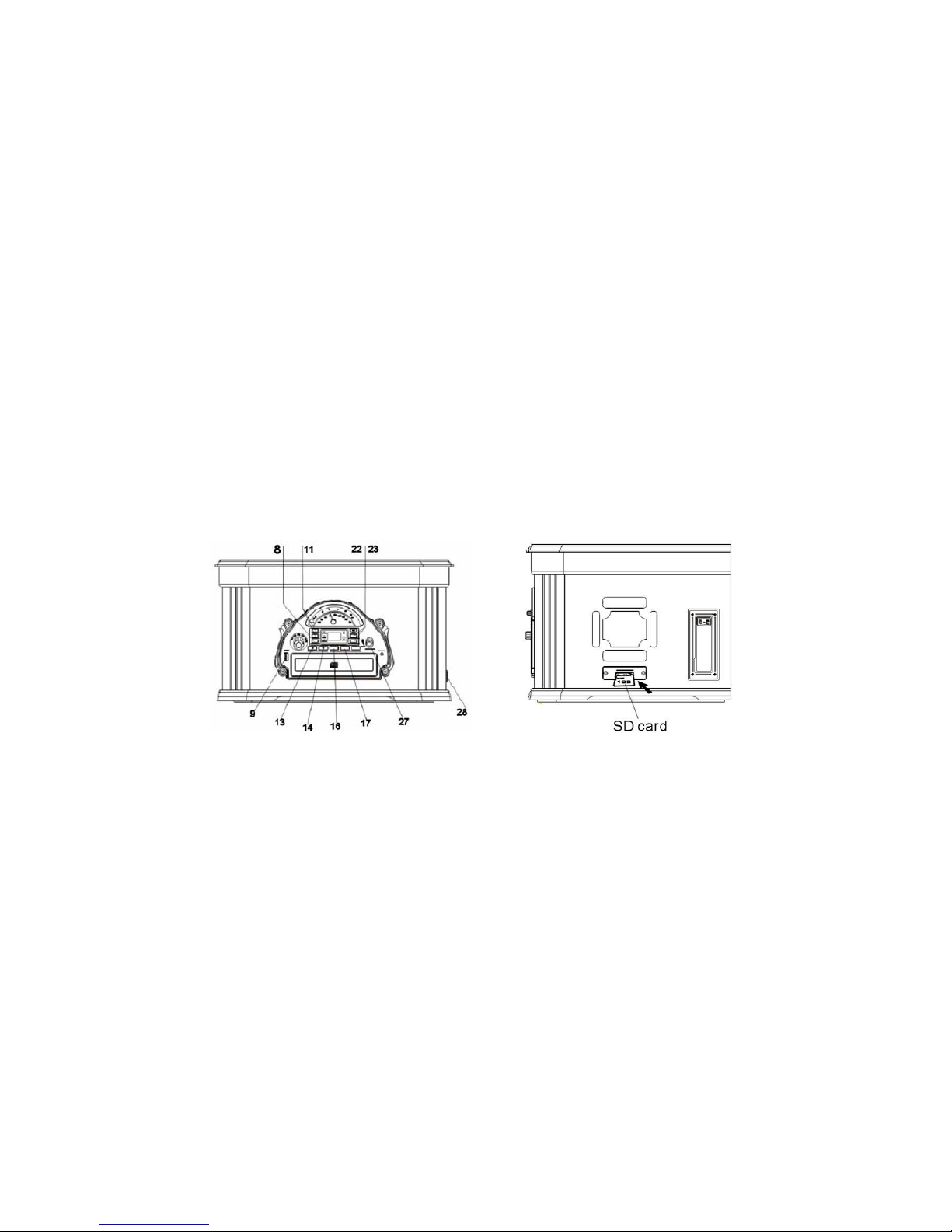

supplied) into the appropriate socket (9 or 28) - see diagrams.
2) Set the Function Selector (AM/FM/PH/CD/TAPE) (8) to the CD position.
3) Press and hold the PLAY/PAUSE button (13/R4) briefly to select USB or SD
Card mode.
4) Insert USB or SD card - the unit will automatically start playing when the
system has read the song information from the drive/card and will continue
playing until the end of the USB/SD Card. When playing a track on the USB
device, “USb”, “F01” and then “001” (if 1st track) will show alternately on the
display.
Notes:
• The system supports USB 2.0, Flash Drive/SD memory size up to 2GB.
• When in CD Mode no CD/MP3 disc has been detected in the CD Tray,
songs on the USB device or SD card connected, will automatically start
playing.
5) Press the PLAY/PAUSE button (13/R4) to pause playback and press it
again to resume play.
6) Press the SKIP FWD (17/R6) or SKIP REV (16/R5) buttons to select a track.
7) To skip forward or backward 10 tracks at a time, press the FOLDER+/+10
Button (22/R9) or FOLDER-/-10 Button (23/R8).
FOLDER PLAYBACK IN MP3-USB or SD MODE
1) While in STOP mode, select a desired folder by pressing FOLDER+/+10 (22/
R9) or FOLDER-/-10 (23/R8).
2) Press PLAY/PAUSE (13/R4) to start playback of the selected song and
folder - folder and track number will show alternately 2 seconds apart.
3) You may stop playback at any time by pressing the STOP button (14/R7).
4) To select a particular part of the currently playing track, press and hold SKIP
FWD (17/R6) or SKIP REV (16/R5) buttons and then release the buttons.
Playback will resume from that point.

14
NOTE:
A) In USB mode - when there is nothing connected to the USB
Port, ‘- - -’ flashes for a moment on the LED display and then
shows “NOU“ (fig1).
B) In USB playback mode - ‘current track number - - USb - - folder
number’ (e.g. “F01”) will show every 2 seconds. In STOP mode,
‘total number, - - USb’ will show alternately every 2 seconds.
C) In SD mode - when no SD card has been inserted, ‘- - -’
flashes briefly on the display and then shows “NOS“ (fig2).
D) In SD card playback mode - ‘current track number - - Sd - -
folder number’ show alternately every 2 seconds.
In STOP mode, ‘total number - - Sd’ show alternately every 2 seconds.
MP3 ENCODING & RECORDING FUNCTION
This unit can encode from Radio, Vinyl, Cassette or CD into MP3 format and
record direct to either a USB device (MP3 Player/Flash Drive) or SD Card, max.
size up to 2GB.
RECORDING FROM RADIO, PHONO OR CASSETTE
Recording from Radio
1) Select the AM/FM function (8).
2) Insert a USB device (MP3 Player/Flash Drive) or SD card
(none supplied) into the appropriate socket.

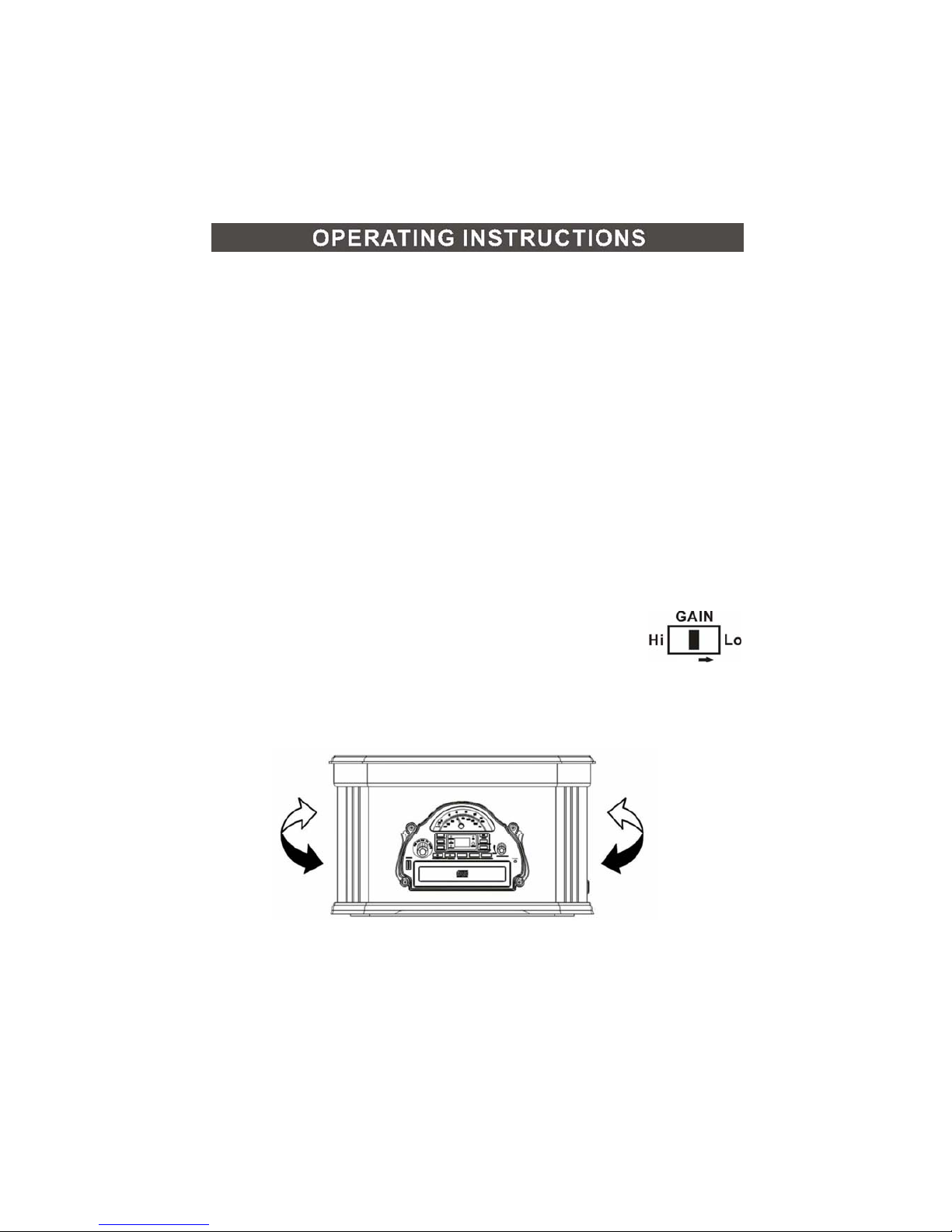

3) Make sure the GAIN Hi-Lo Switch* (36) on the back panel is
in the “Hi” position, simultaneously the instruction “7UN” will
show on the LED display.
Important: *If the switch is in the “Lo” position this disables the
encoding/recording function and no music will be recorded to the USB device/
SD Card.
4) Turn the TUNING control knob (4) to tune into a station.
5) When a station with clear reception has been found,
press the REC/RECORD button(21/R2), ‘rEC’ shows on
the display and the REC indicator lamp lights up.
6) Press the REC/RECORD button once more, the ‘rEC’
indicator flashes, the display will show ‘rAD’ and after 3
seconds this will automatically change to ‘rEC’.
7) The word ’rEC’ and the ‘rEC indicator lamp will flash simultaneously and
recording to USB or SD card starts.
8) To stop or cancel recording, press the STOP button (14/R7) once.
Note: For clearer radio reception when listening to AM or FM
Radio broadcasting stations, make sure the GAIN Hi-Lo Switch
(36) on the back panel is in the “Lo” position.
fig1
fig2

15
Recording from Phono or Cassette
1. Set the AM/FM/PH/CD/TAPE Function Selector (8) to “PH” or “TAPE”.
2. In Phono or Tape Playback Mode, press the REC button (21/R2) twice to
start recording, play the music (on record/tape) to be recorded to USB/SD.
3. The PH and TAPE recording procedure from RADIO is similar.
RECORDING FROM CD
1) Set the AM/FM/PH/CD/TAPE Function Selector (8) to “CD” mode.
2) Place a CD or MP3 disc into the CD Drawer (15) - the CD will start playing
automatically. You can choose one track to be recorded or record the
whole CD/MP3 CD.
3) Connect a USB or SD card to the unit (not supplied)
4) Press the REC/RECORD button (21/R2) once, the unit displays “rEC” and
the REC LED lights up - press the REC/RECORD button (21/R2) again to
start recording to USB or SD - the REC indicator starts flashing and ‘rAD’
disappears from the display after three seconds.
5) To stop or cancel recording, press the STOP (14/R7) button.
DELETING USB/SD TRACKS
If you wish to delete a song on the USB device/SD Card that is playing:
1) Press and hold the STOP button on the main unit (14) for 2 seconds, or
2) Press and hold the DELETE button (R11)on the Remote Control for 2
seconds.
3) The LED displays <DEL>and the song will be deleted.
REPEAT PLAYBACK IN CD/MP3/USB/SD MODE:
Select CD/MP3/USB or SD play mode:

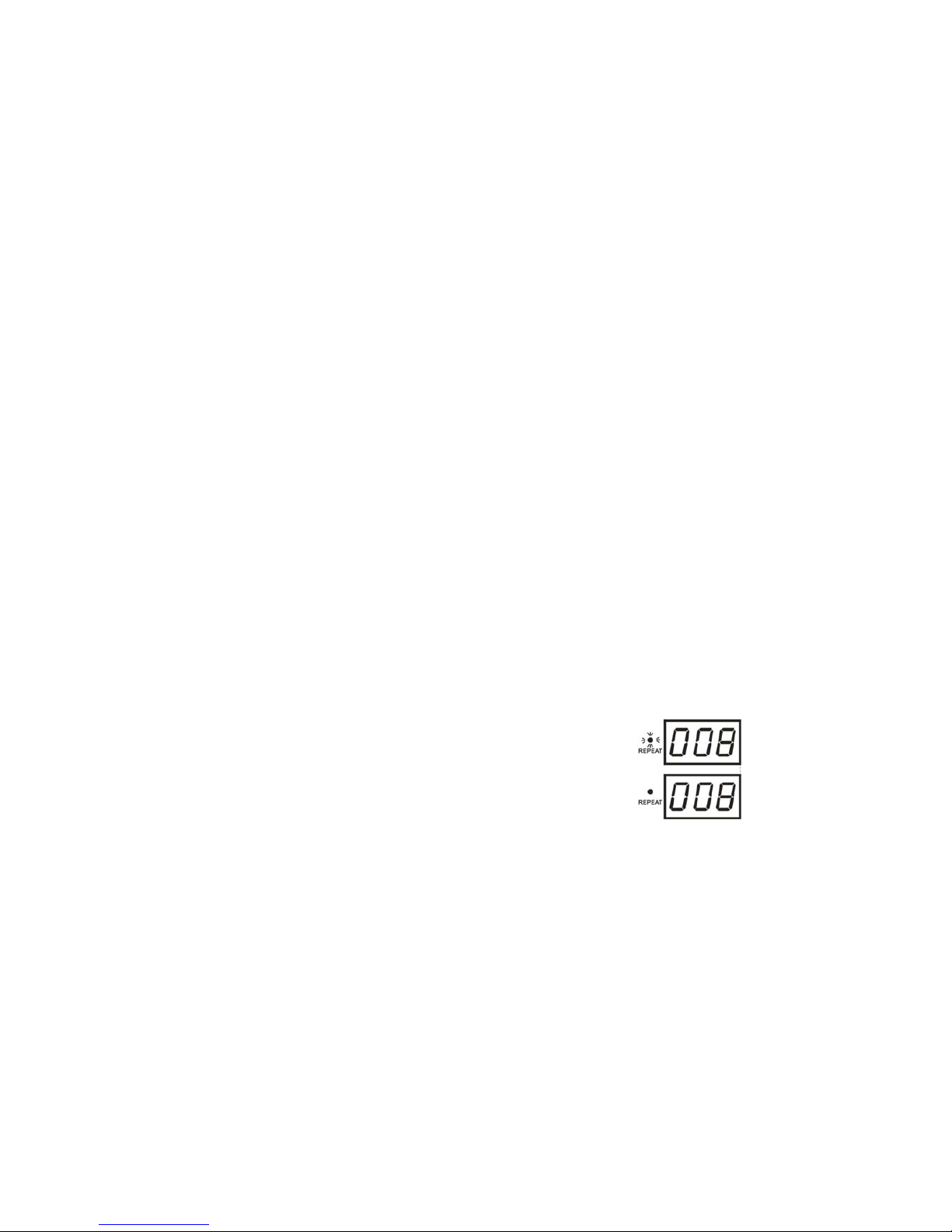

1) Press the REPEAT button (11/R3) once to repeat the track
currently playing - the REPEAT LED indicator light will flash
2) Press this button again to repeat all songs - the REPEAT
LED indicator stops flashing.
3) To cancel Repeat Playback, Repeat indicator light goes out
4) Repeat Playback is also cancelled by pressing the STOP
button (14/R7).
RANDOM PLAYBACK IN CD/MP3/USB/SD MODE
Select CD/MP3/USB or SD play mode.
1) Press the RANDOM button (10/R10) to start random playback of songs, the
RANDOM LED indicator lamp will show.
2) Press the RANDOM button again to cancel the Random function.

16
PROGRAM FUNCTION IN CD/USB or SD MODE
This feature allows you to program up to 20 CD tracks and 99 MP3 (USB/SD)
tracks for playback in any order.
1) Press the PROGRAM button (12/R12) to enter the Program
Mode. The Program number briefly shows '0 0 1', and the
PROGRAM indicator light flashes on the display.
2) Press the SKIP FWD or SKIP REV button (17/16) or DN/FB
(R5) or UP/FF (R6) on the Remote Control to select the
first track number you wish to enter into the program
memory - for example: Track Number '008’.
3) When the desired track number appears on the display,
press the PROGRAM button (12/R12) again to memorize the
track. The program number briefly shows '0 0 2', the
PROGRAM indicator will flash on the display.
4) Repeat the same steps above to select a different track number
to be programmed into memory until you have entered up to 20
CD and 99 MP3 (USB or SD) tracks into memory.
Note: It is possible for the same track to be programmed to play multiple times
in the program sequence.
Press the PLAY/PAUSE (13/R4) button to start playback of
the programmed tracks. The PROGRAM indicator light stops
flashing. Playback will start with the first programmed track
and carries on until the last one has been played.
Cancel the programmed sequence by pressing the STOP button (14/R7) twice.
PHONES jack
Using Stereo Headphones (Not Included)
During playback of all modes, connect a set of stereo headphones with a 3.5mm
mini-plug to the “PHONES” or Headphone Jack (29) on the front panel.
Before putting on the headphones, always set the OFF/VOLUME (27) control to
a low level. Then put the headphones on and gradually increase the Volume to
a comfortable listening level. Sound from the built-in speakers automatically
cuts out when the headphones are connected.

17
AUX IN OPERATION
1) Select to the PH function (8).
2) Insert two ends (L + R) of the connecting cord of the external device (not
supplied) into the AUX IN socket on the rear of the cabinet (33) and the
other end into the corresponding socket of the external device (which is not
supplied).
3) Operate the external device as usual - the songs on the external device will
be heard through the built-in stereo speakers of the main unit .
SUBWOOFER OPERATION
To add extra bass sound in CD/MP3/USB/SD/RADIO/CASSETTE/PHONO
playback mode:
1) Insert one end of the Subwoofer connecting cord (not supplied) into the
SUBWOOFER socket (32) on the rear of the main unit and the other end
into the corresponding socket of the connected Subwoofer (not supplied).
2) Operate the unit as usual and the songs played on the main unit will be
heard through the speaker of the external device as well as the built-in
speakers of the main unit.

18
CASSETTE CARE
Two common causes of trouble experienced when using cassettes are:
1. Tape jamming - leading to uneven speed in playback
2. Tape entangling - the tape wraps itself around vital parts of the mechanism.
To reduce the likelihood of these problems occurring, the following precautions
should be taken:
• Check that there are no loose layers of tape
visible through the cassette centre window
(see Fig. 1).
• Take up any loose layers, using a pencil or
ballpoint pen with hexagonal barrel, before
inserting the cassette into the machine
(see Fig. 2).
• If the cassette feels tight whilst performing the
operation shown in Fig. 2, the tape may be
jamming due to ridges formed during winding of
the tape (visible through the centre window).
These may be removed in most cases, by fast
winding of the cassette from one end to the other
and back again.
• Use only well-known brands of Cassette Tape. Avoid using C-120
Cassettes.
• Furthermore, do not expose cassettes to direct sunlight, dust or oil,
and do not touch the tape surface.

19
COMPACT DISC CARE

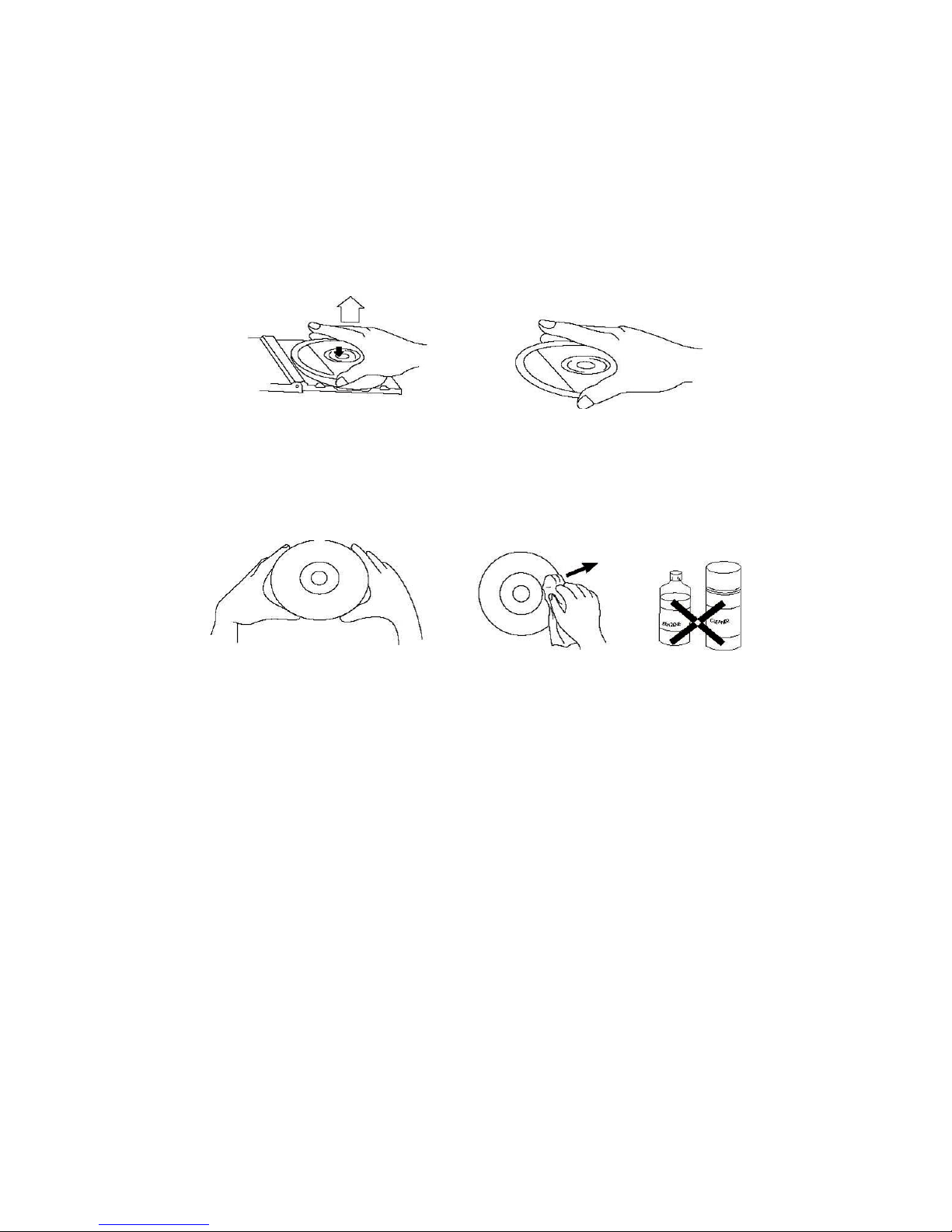

• To remove a disc from its storage case, press down on the centre of the case
and lift the disc out, holding it carefully by the edges.
• Fingerprints and dust should be carefully wiped off the disc’s recorded
surface with a soft cloth. Unlike conventional vinyl or shellac records,
compact discs have no grooves to collect dust and microscopic debris, so
gently wiping with a soft cloth should remove most particles. Wipe in a
straight line from the inside to the outside of the disc. Small dust particles
and light stains will have absolutely no effect on sound reproduction quality.
• Clean the disc periodically with a soft, lint-free, dry cloth. Never use
detergents or abrasive cleaners to clean the disc. If necessary, use a CD
cleaning kit.
• Never affix labels to the surface of compact discs or write on them, except
very gently with specialist CD-R Pens.
CARE OF THE CABINET
You should care for the cabinet as you would care for any piece of fine furniture.
When the cabinet becomes dusty, wipe it with a soft, non-abrasive dusting cloth.
If the cabinet becomes smudged with finger prints, you may use any good
quality commercial dusting and polishing spray cleaner. However, we
recommend that you spray the cleaner onto your dusting cloth first and not
directly onto the cabinet to avoid getting any of the spray on the plastic or metal
parts.

20
THE TURNTABLE DRIVE BELT IS FACTORY FITTED - USE THESE
INSTRUCTIONS ONLY IF THE TURNTABLE FAILS TO REVOLVE ….
