Stinger WD05250 User manual

WA NING: For Your Safety: ead All Instructions Carefully
QUESTIONS O COMMENTS?
In the US or Canada: 1-866-994-8759
In Mexico: 001-888-237-8981
Part No. SP6928 Printed in Mexico
• Assembly •Operation
OWNE S MANUAL
WD05250
WET/D Y VAC 5.0 GAL/18.0 LITE
!
Stock No. WD0525
odel No. WD05250
Model and serial number may be found on the silver label near the blowing port.
You should record both model and serial number in a safe place for future use.
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 1

2
Table f C ntents
Section Page
Section Page
I PORTANT SAFETY INSTRUCTIONS
Safety is a combination of using common
sense, staying alert, and knowing how your
Wet/Dry Vacuum cleaner (“Vac”) works.
Safety Signal Words
DANGER: ndicates a hazardous
situation which, if not avoided, will result
in death or serious injury.
WARNING:ndicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION: ndicates a hazardous
situation which, if not avoided, could
result in minor or moderate injury.
When using your Vac, always follow basic
safety precautions including the following:
•Read and understand this manual and
all labels on the Wet/Dry Vac before
operating.
•Use only as described in this manual.
•Do not leave Vac running while
unattended - you may fail to notice
important signs indicating abnormal
operation such as loss of suction,
debris/liquid exiting the exhaust, or
abnormal motor noises. mmediately
stop using Vac if you notice these
signs.
•Do not leave Vac when plugged in.
Unplug from outlet when not in use and
before servicing.
!
!
!
• Sparks inside the motor can ignite
flammable vapors or dust. To reduce
the risk of fire or explosion, do not use
near combustible liquids, gases, or
dusts, such as gasoline or other fuels,
lighter fluid, cleaners, oil-based paints,
natural gas, coal dust, magnesium
dust, grain dust, aluminum dust, or gun
powder.
• Do not vacuum anything that is burning
or smoking, such as cigarettes,
matches, or hot ashes.
• Do not vacuum drywall dust, cold
fireplace ash, or other fine dusts with
a filter bag or a standard pleated filter.
These may pass through the filter
material and be exhausted back into
the air. Use a fine dust pleated filter
instead.
• To reduce the risk of inhaling toxic
vapors, do not vacuum or use near
toxic or hazardous materials.
• To reduce the risk of electric shock,
do not expose to rain or allow liquid to
enter motor compartment. Store
indoors.
• This Wet/Dry Vac is not intended for
use by persons (including children)
with reduced physical, sensory, or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible for
their safety.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
WARNING
- To reduce the risk of fire,
electric shock, or injury:
!
ntroduction . . . . . . . . . . . . . . . . . . . . . . 4
Checking Carton Contents . . . . . . . . . . 4
Caster Assembly . . . . . . . . . . . . . . . . . . 5
Wet/Dry Vac Assembly . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . 6-8
Filter Removal & nstallation . . . . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . 10-11
Repair Parts . . . . . . . . . . . . . . . . . . 12-13
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . 16
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 2

3
SAVE THIS ANUAL
•To reduce the risk of personal injury or
damage to Vac, use only ST NGER
recommended accessories.
• When using as a blower:
- Direct air discharge only at work
area.
- Do not direct air at bystanders.
- Keep children away when blowing.
- Do not use blower for any job except
blowing dirt and debris.
- Do not use as a sprayer.
• To reduce the risk of eye injury, wear
safety eyewear. The operation of any
utility Vac or blower can result in
foreign objects being blown into the
eyes, which can result in severe eye
damage.
CAUTION:
• To reduce the risk of hearing damage,
wear ear protectors when using for
extended time or in a noisy area.
• For dusty operations, wear dust mask.
• Static shocks are common when the
relative humidity of the air is low.
Vacuuming fine debris with your Vac can
deposit static charge on the hose or
Vac. To reduce the frequency of static
shocks in your home or when using this
Vac, add moisture to the air with a
humidifier.
•Do not use with a torn Filter or without
the Filter installed except when
vacuuming liquids as described in this
manual. Dry debris ingested by the
impeller may damage the motor or be
exhausted into the air.
• Turn off Vac before unplugging.
• To reduce the risk of injury from
accidental starting, unplug power cord
before changing or cleaning Filter.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug or
other parts. f your Vac is not working
as it should, has missing parts, has
been dropped, damaged, left outdoors,
or dropped into water, call customer
service.
• Do not pull or carry by cord, use cord
as handle, close a door on cord, or pull
cord around sharp edges or corners.
Do not run Vac over cord. Keep cord
away from heated surfaces.
• Do not handle plug, switch, or the Vac
with wet hands.
• Use only extension cords that are rated
for outdoor use. Extension cords in
poor condition or too small in wire size
can pose fire and shock hazards. To
reduce the risk of these hazards, be
sure the cord is in good condition and
that liquid does not contact the
connection. Do not use an extension
cord with conductors smaller than 16
gauge (AWG) in size. To reduce power
loss, use a 14 gauge extension cord if
25 to 50 ft long and 12 gauge for 50 ft
or longer.
• This Wet/Dry Vac is double-insulated,
eliminating the need for a separate
grounding system. Use only identical
replacement parts. Read the
instructions for Servicing Double-
nsulated Wet/Dry Vacs before
servicing.
• Do not put any object into ventilation
openings. Do not vacuum with any
ventilation openings blocked; keep free
of dust, lint, hair or anything that may
reduce air flow.
• Keep hair, loose clothing, fingers, and
all parts of body away from openings
and moving parts.
• To reduce the risk of falls, use extra
care when cleaning on stairs.
Observe the following warnings that
appear on the motor housing of your Vac:
WARNING: For your own safety,
read and understand owner’s
manual. Do not run unattended.
Do not pick up hot ashes, coals,
toxic, flammable or other hazardous
materials. Do not use around
explosive liquids or vapors.
WARNING: To reduce the risk of
electric shock - do not expose to
rain - store indoors.
DOUBLE NSULATED
GROUND NG NOT REQU RED.
WHEN SERV C NG USE ONLY
DENT CAL REPLACEMENT PARTS.
!
!
!
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 3

4
Intr ducti n
This Wet/Dry Vac is intended for house-
hold use. t may be used for vacuuming
wet or dry debris and may be used as a
blower.
Checking Cart n C ntents
Read this owner’s manual to familiarize
yourself with the product features and to
understand the specific usage of your
new Vac.
Remove entire contents of carton.
Check each item against the Carton
Contents List. n the US or Canada
call 1-866-994-8759 or in Mexico
call 001-888-237-8981 if any parts are
damaged or missing.

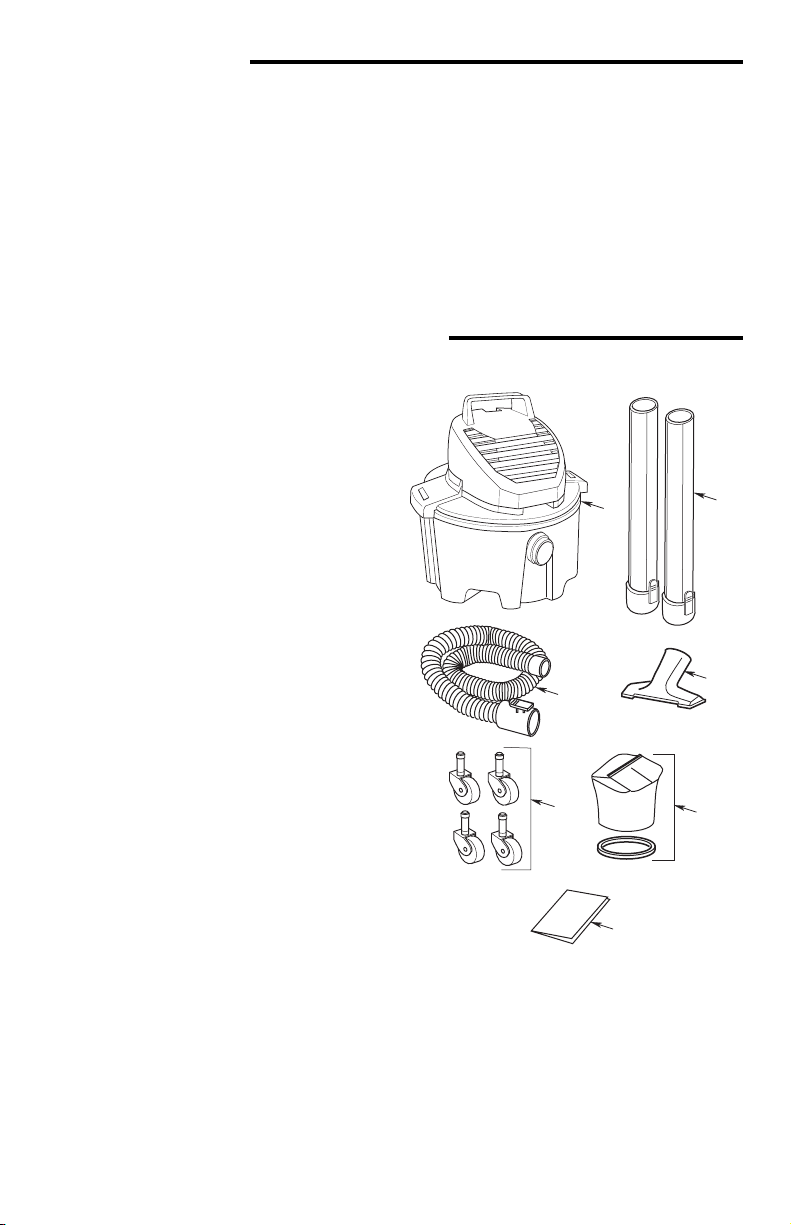

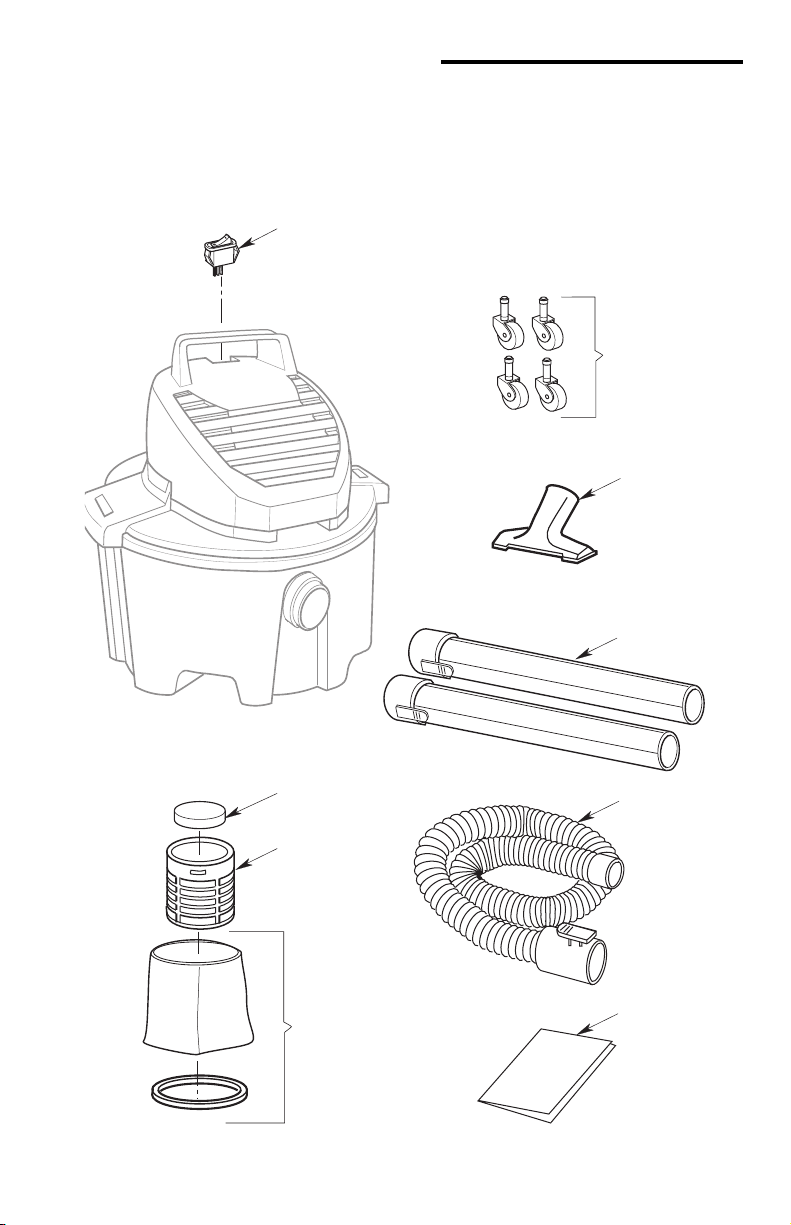

Cart n C ntents List
(WD05250)
Key Description Qty
A Wet/Dry Vac (5 Gallon) ...............1
B Locking Hose ...............................1
C Caster ..........................................4
D Extension Wands ........................2
E Utility Nozzle ................................1
F* Filter w/Retainer Band .................1
G Owner’s Manual...........................1
* The filter bag comes preassembled to the
power head.
A
B
D
G
F
E
C
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 4

5
Caster
Stem
Caster
Ball
Socket
Dust
Drum
Caster Assembly
With the power head and lid assembly
removed from the drum, and the drum
upside down on the floor:
1. nsert the caster stem into the socket
of the drum, as shown (4 places).
2. Push on the caster until the ball on the
caster stem is inserted all the way into
the socket. You will hear the ball snap
into the socket and the caster will
swivel easily when positioning is
correct.
3. Turn the drum upright.

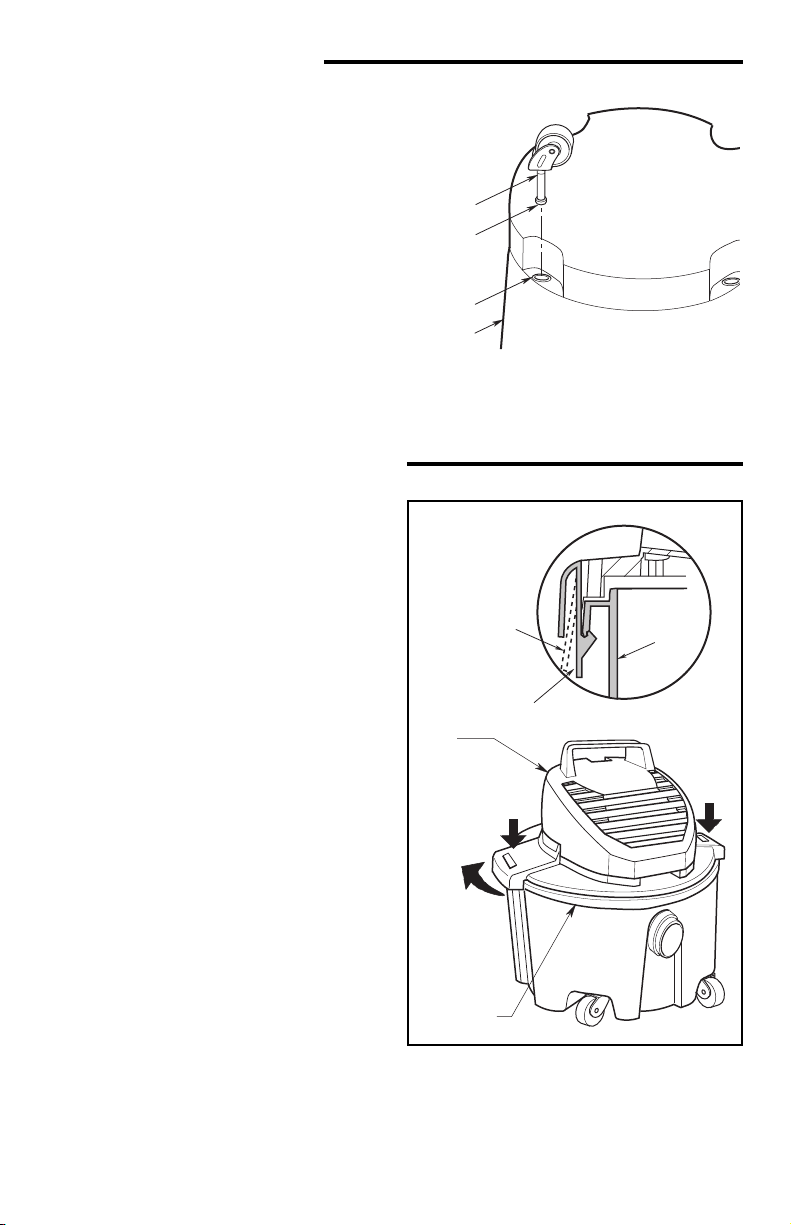

Wet/Dry Vac Assembly
1. Line up front of power head assembly
with vacuum port located on the front
of the drum, as shown.
2. Place power head assembly on top of
drum.
3. Be sure lid completely covers the top
of the drum so leakage does not
occur.
4. Push down on top of the drum latch
areas to cause the flexible locking
tabs to hook onto the drum channel.
5. Make sure that the locking tabs are
snapped in place to prevent the lid
from coming off. (See inset).
Top
Assembly
Drum
Channel
Push
Down
Push
Down
Drum
Out
Flexible
Locking Tab
Pull Out
Flexible
Locking
Tab
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 5

6
Wet/Dry Vac Assembly (C ntinued)

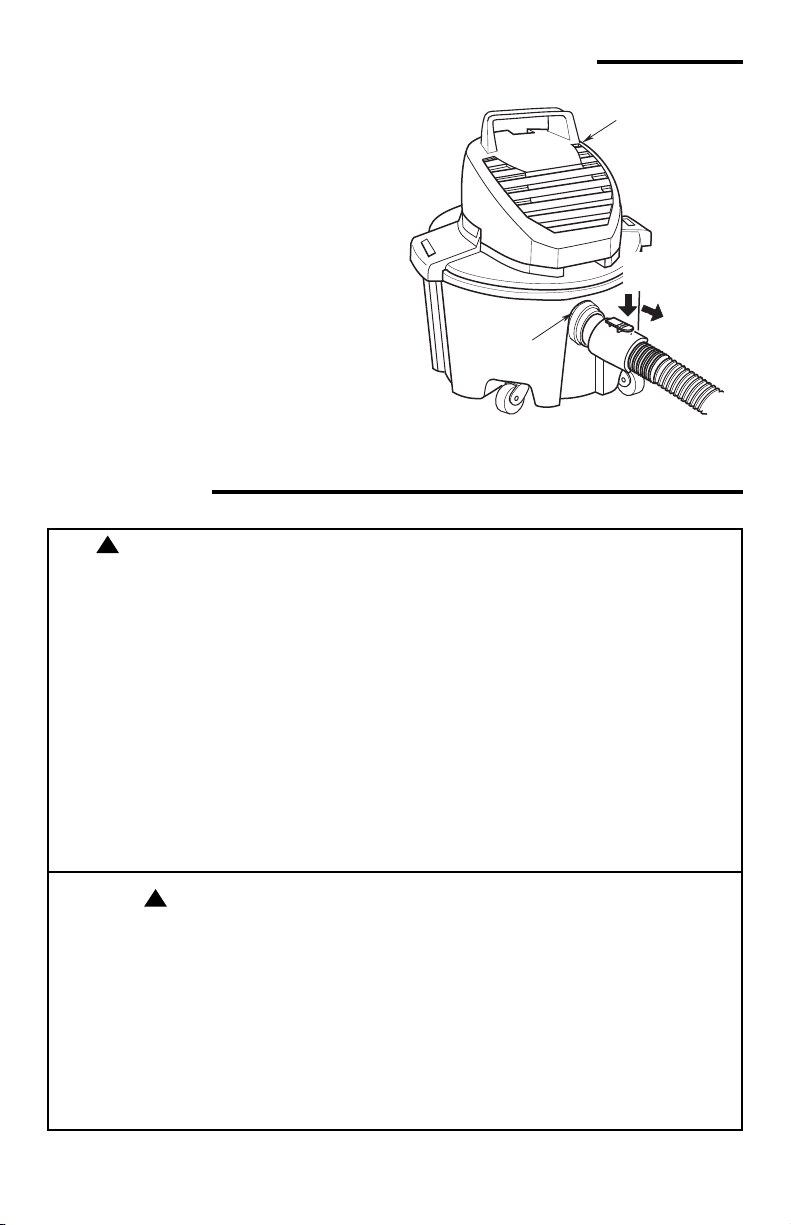

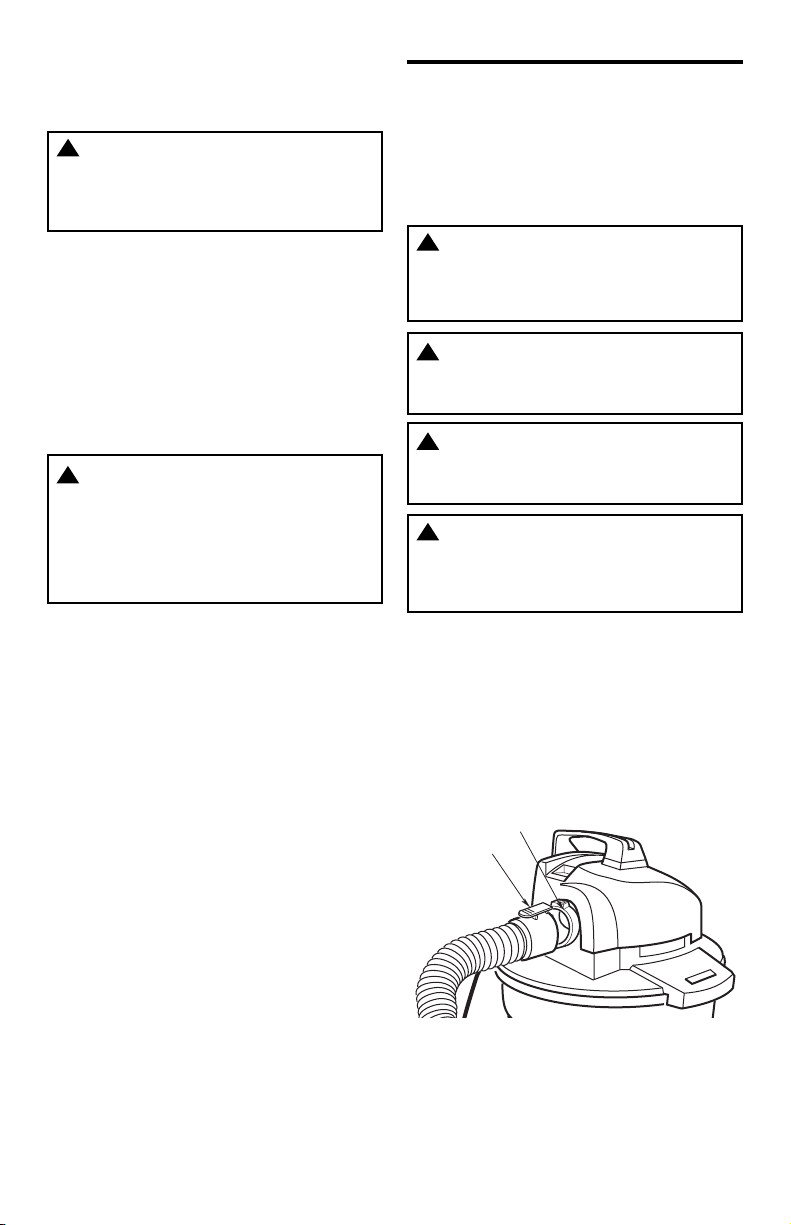

Insert Hose
nsert the push button end of the Locking
Hose into the inlet of the Vac. The hose
should snap into place. To remove the
hose from the Vac, press the release
button in the hose assembly and pull the
hose out of the Vac inlet, as shown.
Vac Inlet
Power Head
Assembly
Release
Button
Operati n
WARNING: To reduce the risk of fire, explosion, or damage to Vac:
• Do not leave Vac running while unattended - you may fail to notice
important signs indicating abnormal operation such as loss of suction,
debris/liquid exiting the exhaust, or abnormal motor noises. Immediately
stop using Vac if you notice these signs.
• Do not leave Vac plugged in when not in use.
• Do not continue running when float has cut off suction.
• Sparks inside the motor can ignite airborne flammables. Do not operate Vac
near flammable liquids or in areas with flammable gases, vapors, or
explosive/airborne dust. Flammable liquids, gases, and vapors include:
lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol, and
aerosol sprays. Explosive dusts include: coal, magnesium, aluminum,
grain, and gun powder.
• Do not vacuum up explosive dusts, flammable liquids, or hot ashes.
WARNING: To reduce the risk of electric shock or injury:
• Do not expose to rain or allow liquid to enter motor compartment. Store
indoors.
• Do not handle plug, switch, or Vac with wet hands.
• Unplug Vac before servicing. If your Vac is not working as it should, has
missing parts, has been dropped, damaged, left outdoors, or dropped into
water, return it to an independent service center or call customer service.
• When using an extension cord, use only outdoor-rated cords that are in
good condition. Do not allow the connection to come into contact with
liquid.
!
!
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 6

Operati n (C ntinued)
7
To reduce the risk of electric shock, this Vac
has a polarized plug. This plug will fit in a
polarized outlet only one way. f the plug
does not fit fully in the outlet, reverse the
plug. f it still does not fit, contact a qualified
electrician to install the proper outlet. Do not
change the plug in any way.
After you plug the power cord into the
outlet, turn the unit on by pushing the
switch from position "O" to position "l".
The symbols used on the switch actuator
are international "On & Off" symbols:
=OFF =ON
Familiarize yourself with the accessories
included with the vac. Each accessory
may be used in various ways for
vacuuming and blowing debris. Here is a
list of the accessories and their uses.
Utility Nozzle - General purpose nozzle
for most vacuuming applications.
Extension Wands - These wands can
be connected together and provide
additional length.
Hose - Provides transfer of vacuum or
blowing capability to work site. Provides
the means of attaching extension wands
and nozzles.
Vacuuming Dry aterials
1. The filter must always be in correct
position at all times to avoid leaks and
possible damage to vac.
2. When using your vac to pick up fine
dust, it will be necessary for you to
empty the drum and clean the filter at
more frequent intervals to maintain
peak vac performance.
NOTE: A dry filter is necessary to pick up
dry material. f you use your vac to pick
up material when the filter is wet, the filter
will clog quickly and be very difficult to
clean.
3. f your filter is wet but you need to use
the vac to pick up dry material, you
must first allow the filter to dry.
Vacuuming Liquids
1. When picking up small amounts of
liquid (less than 1 inch in the bottom of
the drum) the filter may be left in place.
2. When picking up large amounts of
liquid (more than 1 inch in the bottom
of the drum) it is recommended that the
filter be removed. f the filter is not
removed, it may become saturated and
misting may appear in the exhaust.
3. When the liquid in the drum reaches a
predetermined level, the float
mechanism will rise automatically to cut
off air-flow. You will know that the float
has risen because suction stops and
the motor noise will become higher in
pitch, due to increased motor speed.
When this happens, turn off the vac,
unplug the power cord, and empty the
drum.
4. After using the vac to pick up liquids,
the filter must be dried to avoid
possible mildew and damage to the
filter.
WARNING: To reduce the risk of
damage to the Vacuum, do not run
motor with float in raised position.
A Filter Bag or Cartridge Filter
should be used and positioned
correctly during all vacuuming
operations to avoid debris leaks
and possible damage to the vacuum
motor.
!
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 7

Operati n (C ntinued)
8
Blowing
Port
Locking
Hose
WARNING: To reduce the risk of
back injury or falls, do not lift a Vac
heavy with liquid or debris. Scoop
or drain enough contents out to
make the Vac light enough to lift
comfortably.
WARNING: To reduce the risk of
injury from accidental starting,
unplug power cord before emptying
the drum.
Emptying the Drum
1. Pull the flexible latches outward on
each side of the lid to release from the
drum.
2. While holding the latches out, lift the
top assembly up and away from the
drum.
3. Dump the drum contents into the
proper waste disposal container.
!
!
Blowing Feature
Your Wet/Dry Vac features “Full Blowing”.
t can blow sawdust and other debris.
Follow the steps below to use your Vac
as a blower.
WARNING: Always wear safety
eyewear complying with ANSI Z87.1
(or in Canada, CSA Z94.3) before
using as a Blower.
CAUTION: Wear a dust mask if
blowing creates dust which might
be inhaled.
CAUTION: To reduce the risk of
hearing damage, wear ear protectors
when using the Vac/Blower for
extended time or in a noisy area.
WARNING: To reduce the risk of
injury to bystanders, keep them
clear of blowing debris.
!
!
!
!
1. Locate blowing port of your Wet/Dry
Vac.
2. nsert the tabbed end of hose into the
blowing port of the Vac.
3. Turn Vac on and you are ready to use
your Vac as a blower.
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 8

9
There are a variety of Filters available
for ST NGERTM Wet/Dry Vacuums.
The Filters you choose should depend
upon the task you are performing.
Use the filter bag for larger, general dirt
and debris. For smaller particles such
as dust, use optional cartridge filter
(VF3500). For fine dust pickup, a fine
dust cartridge filter is recommended.
Removal and Installation of the
Filter Bag
1. Remove the retainer band and the
Filter Bag from the filter cage.
2. Place new filter bag on filter cage until
the open end touches the bottom of
the lid.
3. Stretch the retainer band over the filter
bag, securing it to the lid.
4. Make sure the retainer band is
positioned on the Filter Bag properly,
covering the black printed line.
Removal and Installation
of the Qwik Lock™ Filter
Filter Installation:
1. Carefully slide the Qwik Lock™ Filter
over the filter cage and press down on
the outside edge of the filter until the
rubber gasket on the bottom of the
filter seats securely around the base
of the filter cage and against the lid.
2. Align the small center hole in the top
of the filter over the Qwik Lock™ stud
on the filter cage. Press firmly on top
of the filter near the stud to allow the
filter to snap over the ball on the end
of the stud. The filter is now attached.
Filter Removal:
1. Hold the filter tabs of the Qwik Lock™
Filter in each hand.
2. With one thumb on the Qwik Lock™
stud, which protrudes through the
integrated filter plate, lift up on the
filter tabs while pushing down on the
stud.
3. This action will cause the filter to
release from the filter cage. Slide filter
off cage.
Filter
Integrated Filter
Plate with Center
Hole
PUSH
DOWN
PULL
UP
Rubber
Gasket at
Bottom of
Filter
(cutaway view)
Qwik Lock™
Stud
Lid
Filter Cage
NOTE: Failure to properly seat the
bottom gasket could result in debris
bypassing the filter.
WARNING: Do not operate
without filter cage and float, as they
prevent liquid from entering the
impeller and damaging the motor.
!
Lid
Filter Cage
Retaining
Band
Filter Bag
Filter Rem val & Installati n
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 9

Maintenance
Cleaning and Disinfecting the
Wet/Dry Vac
To keep your Wet/Dry Vac looking its
best, clean the outside with a cloth
dampened with warm water and mild
soap.
To clean the drum:
1. Dump debris out.
2. Wash drum thoroughly with warm
water and mild soap.
3. Wipe out with dry cloth.
Before prolonged storage or as needed
(i.e.; waste water pick up) the drum
should be disinfected.
To disinfect the drum:
1. Pour 1 gallon of water and 1 teaspoon
chlorine bleach into the drum.
2. Let solution stand for 20 minutes,
carefully swishing every few minutes,
making sure to wet all inside surfaces
of the drum.
3. Empty drum after 20 minutes. Rinse
with water until bleach smell is gone.
Allow drum to dry completely before
sealing the motor on the drum.
Cord aintenance and Storage
When vacuuming is complete, unplug the
cord and wrap it around the motor cover
and snap the connector on the plug to a
wrap of the cord. f the power cord is
damaged, it must be replaced by the
manufacturer to reduce the risk of
accident.
WARNING: To reduce the risk of
injury from accidental starting,
unplug power cord before changing
or cleaning Filter.
Your filter bag should be cleaned often to
maintain peak Vac performance.
NOTE: The Filter Bag is made of high
quality material designed to stop larger,
general dirt and debris. Handle the Filter
Bag carefully when removing to clean or
installing a new Filter Bag. Do not tear
the Filter Bag during removal or
installation if your intent is to reuse the
Filter Bag.
Filter Bag
Cartridge Filter
!
Cleaning A Dry Cartridge Filter
NOTE: For best cleaning results due to
accumulated dust, clean the Filter in an
open area. Cleaning SHOULD be done
outdoors and not in the living quarters.
1. Light cleaning of some dry debris from
the Filter can be accomplished without
removing the Filter from the Vac.
Simply slap your hand on top of the
handle while the Vac is turned off.
2. Remove Filter from Vac. Gently tap
the Filter against the inside wall of
your dust drum and the debris will
loosen and fall.
3. For thorough cleaning of a dry Filter
with fine dust (no debris) you may run
water through it as described under
“Cleaning A Wet Cartridge Filter”
Section.
Cleaning A Wet Cartridge Filter
After Filter is removed, run water through
the Filter from a hose or spigot. Take care
that water pressure from the hose is not
strong enough to damage Filter. Allow
Filter to dry out before storing.
NOTE: The Pleated Paper Cartridge
Filter is made of high quality material
designed to stop dust and smaller
particles. Handle the Cartridge Filter
carefully when removing to clean or
installing a new filter. Do not tear the
Cartridge Filter during removal or
installation if your intent is to reuse the
filter.
10
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 10

Maintenance (C ntinued)
Storage
Before storing your Vac, the drum should
be emptied and cleaned. The cord should
be wrapped around the unit and the hose
should be stored as described in this
manual. Accessories should be kept in
the same area as the Vac so they can be
readily available. The Vac should be
stored indoors.
WARNING: To assure product
SAFETY and RELIABILITY, repairs
and adjustments should be
performed by Authorized Service
Centers, always using STINGER
replacement parts.
!
Casters
f your casters are noisy, you may put a
drop of oil on the roller shaft to make
them quieter.
11
Power
Cord
Hose
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 11

12
WARNING
SERVICING OF DOUBLE-INSULATED WET/DRY VAC
In a double-insulated Wet/Dry Vac, two systems of insulation are provided
instead of grounding. No grounding means is provided on a double-insulated
appliance, nor should a means for grounding be added. Servicing a double-
insulated Wet/Dry Vac requires extreme care and knowledge of the system,
and should be done only by qualified service personnel. Replacement parts
for a double-insulated Wet/Dry Vac must be identical to the parts they replace.
Your double-insulated Wet/Dry Vac is marked with the words "DOUBLE
INSULATED" and the symbol (square within a square) may also be
marked on the appliance.
To reduce the risk of injury from electrical shock, unplug power cord before
servicing the electrical parts of the Wet/Dry Vac.
!
Repair Parts
5 U.S. Gallon Wet/Dry Vac
odel Number: WD05250
Key
No. Part No. Description
1 832086 Rocker Switch
2 831388 Float
3 818977-1 Filter Cage
4 VF2000 Filter Bag
5 331605 Caster
6 VT1709 Utility Nozzle
7 VT1708 Extension Wand
8 VT1720 Locking Hose
9 VT3500 Fine Dust Filter (Optional)
10 SP6928 Owner’s Manual
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 12

13
Repair Parts (Continued)
5 U.S. Gallon We /Dry Vac
Model Number: WD05250
Always order by Par Number - No by Key Number
1
9
7
5
8
2
4
3
6
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:58 AM Page 13

N tes
14
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 14

N tes
15
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 15

Part No. SP6928 Form No. SP6928 Printed in Mexico 07/14
c 2014 Emerson
odel Number: WD05250
One Year Warranty
This limited warranty is offered by Emerson Tool Company, a division of Emerson Electric Co.,
located at the address below (“ETC” or “we” or “our” or “us”) and applies to our ST NGER -
branded Wet/Dry Vacuums (collectively, the “ST NGERTM Product”).
f you have any questions or need assistance regarding the warranty of your ST NGER
Product, please contact ETC's ST NGER Product Customer Service Department at the toll
free number or at the address provided below.
STINGERT Limited Warranty
ETC, located at 8100 W Florissant Ave, St. Louis, MO 63136 provides the following limited
warranty to the original purchaser only (“you” or “your”) subject to the exclusions described
below: Your ST NGER Product will be free from defects in material and workmanship when
used under normal conditions in accordance with the terms of the Owner's Manual provided
to you with the ST NGER Product for a period of one (1) year beginning on the original date
of purchase (the “Warranty Period”). This limited warranty terminates if the original purchaser
transfers the ST NGER Product to any other person or entity.
What is Not Covered - Warranty Exclusions
This limited warranty does not extend to and expressly excludes:
• Normal wear and tear and/or replacement attachments or accessories, including, without
limitation, power cords, hoses, filters, and other attachments or accessories that may be
offered for sale by us for use with the ST NGER Product.
• Damage or burnout of the ST NGER Product motor resulting from failure to clear a blockage
occurring during the normal course of use.
• Loss or damage to the ST NGER Product resulting from conditions beyond ETC's control
including without limitation, misuse, accident, abuse, neglect, negligence (other than ETC's),
overuse beyond intended capacity as set forth in the Owner's Manual, or modifications or
alterations made by anyone other than ETC.
• Loss or damage to the ST NGER Product resulting from failure to use the ST NGER Product
in accordance with the written instructions, guidelines, and terms and conditions set forth in
the Owner's Manual.
Limited Warranty Notification and Claim Procedures
f you discover within the Warranty Period applicable to you that your ST NGER Product has
a defect that you believe is covered by this limited warranty, you must contact ETC's
ST NGER Product Customer Service Department at 1-866-994-8759 between the hours of
8:30 a.m. and 4:30 p.m. Central Time.
n order to make a warranty claim, you will need to provide us with a copy of your sales receipt
or other proof of purchase showing the purchase date to confirm that your claim is within the
Warranty Period and that you are the original purchaser.
WET/D Y VAC 5.0 GAL/18.0 LITE
QUESTIONS O COMMENTS?
In the US or Canada: 1-866-994-8759
In Mexico: 001-888-237-8981
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 16

ADVE TENCIA: Para su seguridad: Lea detenidamente todas las instrucciones
¿P EGUNTAS O COMENTA IOS? LLAME AL
En los EE.UU. o Canadá: 1-866-994-8759
En México: 001-888-237-8981
No. de pieza SP6928 Impreso en éxico
• Ensamblaje • Funcionamiento
MANUAL DEL USUA IO
WD05250
ASPI ADO A PA A POLVO Y AGUA 5,0 GAL/18,0 LIT O
!
o. de existencias WD0525
o. de modelo WD05250
El número de modelo y el número de serie se pueden encontrar en la etiqueta platinada
ubicada cerca del orificio de soplado. Se debe anotar tanto el número de modelo como el
número de serie en un lugar seguro para uso futuro.
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 17

18
Índice
Sección Página
Sección Página
I STRUCCIO ES DE SEGURIDAD IMPORTA TES
La seguridad es una combinación de sentido común,
permanecer alerta y saber cómo funciona la
aspiradora para mojado/seco (“la aspiradora”).
Palabras de señal de seguridad
PELIGRO: indica una situación inminentemente
peligrosa que, si no se evita, causarála muerte o
lesiones graves
ADVERTECIA: indica una situación potencial
-
mente peligrosa que, si no se evita, podríacausar la
muerte o lesiones graves
PRECAUCIÓ : indica una situación potencial
-
mente peligrosa que, si no se evita, pudieracausar
lesiones leves o moderadas.
Cuando utilice la aspiradora para mojado/seco, siga
siempre las precauciones básicas de seguridad,
incluyendo las siguientes.
ADVERTE CIA
– Para reducir el riesgo de incendio, sacudidas
eléctricas o lesiones:
•Lea y entienda este manual del usuario y todas las
etiquetas que están colocadas en la aspiradora para
mojado/seco antes de utilizarla.
•Utilice la aspiradora únicamente de la manera que
se describe en este manual.
• No deje la aspiradora en marcha mientras esté
desatendida. Usted podría no notar señales
importantes que indiquen un funcionamiento
anormal, tal como pérdida de succión, residuos o
líquido que salen por el escape o ruidos anormales
del motor. Deje de usar la aspiradora inmedia -
tamente si observa estas señales.
• No abandone la aspiradora cuando esté enchufada.
Desenchúfela del tomacorriente cuando no la esté
utilizando y antes de realizar servicio de revisión.
•Las chispas que se producen en el interior del
motor pueden incendiar los vapores inflamables o
el polvo. Para reducir el riesgo de incendio o
!
!
!
explosión: No recoja con la aspiradora líquidos,
gases, o polvos combustibles como gasolina u
otros combustibles, líquido encen dedor,
limpiadores, pinturas a base de aceite, gas natural,
hidrógeno, polvo de carbón, polvo de magnesio,
polvo de aluminio, polvo de granos de cereal o
pólvora, ni use la aspiradora cerca de estos
materiales.
• No recoja con la aspiradora nada que esté ardiendo
o humeando, como cigarrillos, fósforos o cenizas
calientes.
• No recoja con la aspiradora polvo de panel de
yeso, ceniza fría de chimenea u otros polvos finos
con una bolsa de filtro o un filtro plisado estándar.
Estas sustancias pueden atravesar el material del
filtro y ser expulsadas de vuelta al aire. En lugar de
dicha bolsa o dicho filtro, utilice un filtro plisado
para polvo fino.
• Para reducir el riesgo de inhalar vapores tóxicos, no
recoja con la aspiradora materiales tóxicos o
peligrosos ni la use cerca de dichos materiales.
• Para reducir el riesgo de descargas eléctricas, no
exponga la aspiradora a la lluvia ni deje que entren
líquidos en el compartimiento del motor. Guarde la
aspiradora en un lugar interior.
• Esta aspiradora mojado/seco no se destina para
utilizarse por personas (incluyendo niños) cuyas
capacidades físicas, sensoriales o mentales sean
diferentes o estén reducidas, o carezcan de
experiencia o conocimiento, a menos que dichas
personas reciban una supervisión o capacitación
para el funcionamiento del aparato por una persona
responsable de su seguridad.
• No permita que la aspiradora se utilice como un
juguete. Se necesita prestar máxima atención
cuando sea utilizada por niños o cerca de éstos.
• No use la aspiradora con un filtro desgarrado o sin
tener el filtro instalado, excepto cuando recoja con
ella líquidos de la manera que se describe en este
manual. Los residuos secos absorbidos por el
impulsor podrían dañar el motor o ser expulsados
de vuelta al aire.
!
Introducción. . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Comprobación del contenido
de la caja de cartón . . . . . . . . . . . . . . . . . . . 20
Ensamblaje de las ruedecillas . . . . . . . . . . . . . 21
Ensamblaje de la aspiradora
para mojado/seco . . . . . . . . . . . . . . . . . . . . 21
Funcionamiento . . . . . . . . . . . . . . . . . . . . . 22-24
Remoción e instalación del filtro. . . . . . . . . . . 25
antenimiento . . . . . . . . . . . . . . . . . . . . . . 26-27
Piezas de repuesto . . . . . . . . . . . . . . . . . . . 28-29
Garantía . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 18

GUARDE ESTE MAUAL
daños a la aspiradora, utilice únicamente
accesorios recomendados por STINGER.
• Cuando utilice la aspiradora como soplador :
- Dirija la descarga de aire solamente hacia el área
de trabajo.
- No dirija el aire hacia las personas que estén
presentes.
- antenga alejados a los niños durante la
operación de soplado.
- No utilice el soplador para trabajos que no sean
soplar suciedad y residuos.
- No use la aspiradora como rociador.
• Para reducir el riesgo de lesiones en los ojos,
use pro tección ocular de seguridad. La utilización
de cual quier aspiradora utilitaria o soplador utilitario
puede hacer que se soplen objetos extraños hacia
los ojos, lo cual puede causar daños graves en
los ojos.
• Apague la aspiradora antes de desenchufarla.
• Para reducir el riesgo de lesiones debidas a un
arranque accidental, desenchufe el cordón de
energía antes de cambiar o limpiar el filtro.
• No desenchufe la aspiradora tirando del cordón.
Para desenchufarla, agarre el enchufe y no el
cordón.
• No use la aspiradora con el cordón dañado, el
enchu fe dañado u otras piezas dañadas. Si la
aspira dora no funciona como debe, le faltan piezas,
se ha caído, ha sido dañada, se ha dejado a la
intem perie o se ha caído al agua, llame a servicio
al cliente.
• No tire de la aspiradora usando el cordón ni la lleve
por el cordón, ni use el cordón como asa, ni cierre
una puerta sobre el cordón, ni tire del cordón alre -
dedor de bordes o esquinas afilados. No pase la
aspiradora en marcha sobre el cordón. antenga el
cordón alejado de las superficies calientes.
• No maneje el enchufe, el interruptor o la aspiradora
con las manos mojadas.
• Utilice únicamente cordones de extensión que
tengan capacidad nominal para uso a la intemperie
y tengan un conductor de conexión a tierra. Los
cordones de extensión que estén en malas
condiciones o tengan un tamaño de alambre
demasiado pequeño pueden crear peligros de
incendio y descargas eléctricas. Para reducir el
riesgo de estos peligros, asegúrese de que el
cordón esté en buenas condiciones y que el líquido
no entre en contacto con la conexión. No utilice un
cordón de extensión que tenga conductores con un
diámetro menor al calibre 16 (AWG). Para reducir la
pérdida de potencia, utilice un cordón de extensión
de calibre 14 si la longitud es de 25 a 50 pies, y de
calibre 12 si la longitud es de 50 pies o más.
• Esta aspiradora tiene aislamiento doble, lo cual
elimina la necesidad de un sistema independiente
de conexión a tierra. Utilice única mente piezas de
repuesto idénticas. Lea las instruc ciones de servicio
de revisión de las aspiradoras para mojado/seco
con aislamiento doble.
• No ponga ningún objeto en las aberturas de venti -
lación. No recoja nada con la aspiradora cuando
cualquiera de las aberturas de ventilación esté
bloqueada; mantenga dichas aberturas libres de
polvo, pelusa, pelo o cualquier cosa que pueda
reducir el flujo de aire.
• antenga el pelo, la ropa holgada, los dedos y
todas las partes del cuerpo alejados de las aber -
turas y de las piezas móviles.
• Para reducir el riesgo de caídas, tenga cuidado
adicional al limpiar en escaleras.
• Para reducir el riesgo de lesiones corporales o
PRECAUCIÓ :
• Para reducir el riesgo de daños a la audición, use
protectores de oídos cuando utilice la aspiradora
durante muchas horas seguidas o cuando la
emplee en un área ruidosa.
• Para operaciones que generan polvo, use una
máscara antipolvo.
• Las descargas de estática son comunes cuando
la humedad relativa del aire es baja. Si recoge
residuos finos con la aspiradora, se puede
depositar carga estática en la manguera o en la
aspiradora. El mejor remedio para reducir la
frecuencia de las descargas de estática en su casa
o cuando use esta aspiradora es añadir humedad
al aire con un humidificador.
!
Siga las siguientes advertencias que aparecen en la
caja del motor de la aspiradora.
AISLAMIENTO DOBLE. NO SE EQUIE E
CONEXION A TIE A.
CUANDO HAGA SE VICIO DE EVISIÓN DE
LA ASPI ADO A, UTILICE ÚNICAMENTE PIEZAS DE
EPUESTO IDÉNTICAS.
ADVERTE CIA: Para reducir el riesgo de
sacu didas eléctricas, no exponga la aspiradora
a la lluvia y guárdela en interiores.
ADVERTE CIA: Para su propia seguridad, lea
y entienda el manual del operador. o tenga en
marcha la aspiradora desatendida. o recoja
cenizas calientes, carbón caliente, materiales
tóxicos ni inflamables ni otros materiales
peligrosos. o use la aspiradora alrededor de
líquidos o vapores explosivos.
!
!
19
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 19

20
Saque todo el contenido de la caja de cartón.
Asegúrese de que no falte ningún artículo utili -
zando la lista del contenido de la caja. En los
EE.UU. o Canadá, llame al 1-866-994-8759, o en
éxico llame al 001-888-237-8981, si alguna
pieza está dañada o falta.
Lista del contenido de la caja de cartón
(WD05250)
Clave Descripción Cant.
A Aspiradora para mojado/seco
(5 galones)...........................................1
B Manguera de fijación ..............................1
C uedecilla................................................4
D Tubos extensores ....................................2
E Boquilla de uso general...........................1
F* Filtro con banda retenedora ....................1
G Manual del usuario..................................1
* La bolsa de filtro viene preensamblada en el
cabezal del motor.
A
B
D
G
F
E
C
Introducción
Comprobación del contenido
de la caja de cartón
Esta aspiradora para mojado/seco está diseñada
para uso doméstico solamente. Se puede utilizar
para la recogida ligera de medios mojados o
secos y también puede utilizarse como soplador.
Familia rí cese con las siguientes características del
producto y lea todo el manual del usuario para
obtener instruc ciones sobre la utilización específica
de su nueva aspiradora para mojado/seco.
SP6928 Stinger 7/30/141_SP6568-2 Stinger.qxd 8/7/14 8:55 AM Page 20
