STODDART Culinaire EVO40ST User manual

A guide on the use, care and maintenance
of your quality Culinaire product
UNDER BENCH GLASS WASHER
EVO40ST
SPECIFICATION, INSTALLATION
AND OPERATION MANUAL
READ ALL INSTRUCTIONS BEFORE USE
Revision Date: 25/02/2019

Page Intentionally Left Blank
Page 1
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

Page 2
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Your New Culinaire Product� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Warranty Registration � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Product Overview� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Attention � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
General Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Service
Installation
Setting Up � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Handling
Unpacking
Positioning
Disposal
Electrical Connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Information
Plumbing Connections � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Information
Detergent Connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Detergent Installation and Adjustment
Rinse Aid Connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Rinse Aid Installation and Adjustment
Specication
Technical Specifications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Operation
Initial Start-up & Operation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Operation
Washing Cycles
Automatic Draining
Cleaning � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
General Information
Corrosion Protection
Surface Finish
Cleaning Schedule
Materials Required
Filter Trap
External Surfaces
Filter Trap
Troubleshooting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13

Page 3
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Control Panel
Door
Adjustable Feet
Thank you for choosing this quality Culinaire product� All our products are designed and made to meet the needs of food service professionals�
By using, caring and maintaining your Culinaire product according to these instructions, your Culinaire product should give you many years of
reliable service�
Stoddart is a wholly Australian owned company, which manufactures and distributes Culinaire commercial catering equipment�
Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering-value-for-money, ease-of-use
and reliability�
Stoddart manufacture and distribute a comprehensive range of equipment for kitchens, food preparation and presentation�
To register your new product go to: http://www�stoddart�com�au/warranty-registration
Configuration may vary according to model�
Your New Culinaire Product
Warranty Registration
Product Overview

Page 4
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on
hand in a safe place for future reference by other operators or users�
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use & must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety� Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• Do NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• If any fault is detected, refer to troubleshooting
• Threaded fasteners can loosen in service� Regular inspection and tightening should be carried out as required
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
When using any electrical unit, safety precautions must always be observed�
Our units have been designed for high performance� Therefore, the unit must be used exclusively for the purpose for which it has been designed�
Read these instructions carefully and retain for future reference�
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons,
units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation�
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install� Any installation, removal, servicing,
maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in accordance to this
documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorized modifications or repairs� All modifications or repairs must
be approved by the manufacturer in writing before initiating� All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST.
Attention
General Information
Service
Thank you for choosing this quality Culinaire product� All our products are designed and made to meet the needs of food service professionals�
By using, caring and maintaining your Culinaire product according to these instructions, your Culinaire product should give you many years of
reliable service�
Stoddart is a wholly Australian owned company, which manufactures and distributes Culinaire commercial catering equipment�
Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering-value-for-money, ease-of-use
and reliability�
Stoddart manufacture and distribute a comprehensive range of equipment for kitchens, food preparation and presentation�
To register your new product go to: http://www�stoddart�com�au/warranty-registration
Configuration may vary according to model�

Page 5
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation
• Use suitable means to move the unit: e�g�
- For smaller items use two people
- For large items a lift truck or fork pallet trucks (the forks should reach more completely beneath the unit)�
• Check the unit for damage before and after unpacking� If unit is damaged, contact the distributor and manufacturer
• Should any item have physical damage, report the details to the freight company and to the agent responsible for the dispatch within
seven (7) days of receipt� No claims will be accepted or processed after this period
• The unit is supplied fully assembled
• Remove all protective plastic film, tapes, ties and packers before installing and operating
• Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water
• Choose an area that is well ventilated and provides access for future maintenance
• Place the unit on a level stable work surface capable of supporting its weight
• Do not position the unit in: wet areas, near heat and/or steam sources, near flammable substances
• Allow an air gap between the unit and other objects or surfaces� We recommend a minimum gap of 100mm from all sides for normal
operational use (if the unit is near any heat sensitive material we suggest you allow additional space)
• Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement
• At the end of the appliance’s working life, make sure it is scrapped & components recycled properly
• Current environmental protection laws in the state/country of use must be observed
• Doors must be removed before disposal (if applicable)
• Power supply cable must be removed before disposal
• For further information on the recycling of this product, contact the local dealer/agent or the local body responsible for waste disposal
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death.
Setting Up
Handling
Unpacking
Positioning
Disposal

Page 6
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual�
Single Phase Units:
Supplied with an appropriately rated plug and lead fitted and be indicated as:
• 15A plug & lead fitted
Some procedures in this manual require the power to the equipment to be turned
off and isolated. Turn the power OFF at the power point and unplug the power
supply lead by the plug body. If the power point is not readily accessible turn the
equipment off at the isolation switch or the circuit breaker in the switchboard.
Attach a yellow “CAUTION-DO NOT OPERATE” tag. This must be performed
where relevant unless the procedures specify otherwise.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.
WARNING
WARNING
This unit must be installed in accordance with AS/NZS 60335.1
Notes:
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard� Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard
• The power cable should be dry and/or isolated from moisture or water
Electrical Connection
Information
Installation

Page 7
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

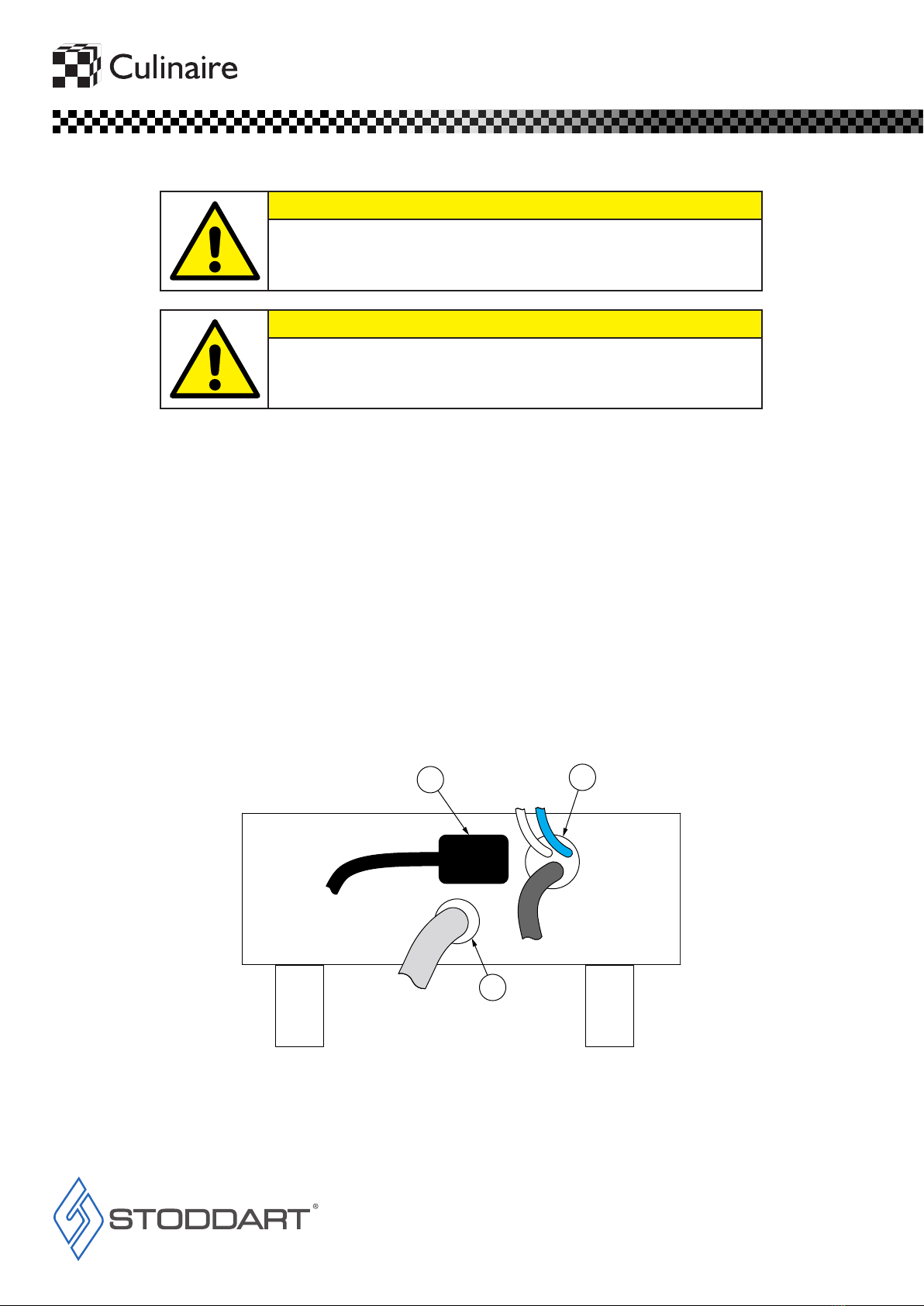

Plumbing Connections
Information
• Shut-off valve, single direction, spool, sphere, lid control type, which can shut water supply off quickly and totally
• Position the dishwasher and level by adjusting the height of the feet
• Connect the solenoid valve, which feed the unit, to water shut valve, using a flexible line� Each unit must have its own water line supply
• Check that dynamic water supply pressure, measured between the appliance and the main, is between 200 and 500kPa� If the pressure
is too high, fit a suitable PRV to the inlet pipe� If the pressure is low, install an additional external pressure motor pump
• 3/4” water connection
• Tempered water supply of 50°C - 65°C, If water is over 65°C a tempering valve must be installed
• Connect the drain hose (supplied) to a suitable drainage point� Typically, this will be the dishwasher connection spigot on a P or S Trap
1� Water Supply, Detergent Hose (clear), Rinse Aid Hose (blue)
2� Power Connection
3� Waste Outlet
IMPORTANT
This unit must be operated on potable water. If the water has a
high mineral content, pretreatment may be necessary or your
warranty could be voided.
IMPORTANT
This unit must be installed in accordance with AS/NZ 3500.1
Installation
1
2
3

Page 8
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Detergent Connection
Rinse Aid Connection
Detergent Installation and Adjustment
Rinse Aid Installation and Adjustment
• Isolate from power supply if connected
• Locate the correct hose/tube (Clear) on the rear of the unit
• Place the correct hose/tube into the detergent bottle
• Open the front panel by removing the two screws, then lifting the panel off carefully
• Locate the peristaltic detergent pump (left) and its adjustment screw
• To reduce the amount of detergent, screw the needle valve anticlockwise
• To increase the amount of detergent, screw the needle valve clockwise
• Isolate from power supply if connected
• Locate the correct hose/tube (Blue) on the rear of the unit
• Place the correct hose/tube into the Rinse Aid bottle
• Open the front panel by removing the two screws, then lifting the panel off carefully
• Locate the rinse aid pump (right) and its adjustment screw
• To reduce the amount of rinse aid, screw the needle valve anticlockwise
• To increase the amount of rinse aid, screw the needle valve clockwise
IMPORTANT
NEVER USE CHLORINE OR HYPOCHLORITE BASED
DETERGENTS!
FAILURE TO FOLLOW WILL VOID WARRANTY.
Installation
Adjustment
Screw
Adjustment
Screw

Page 9
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Technical Specications
SPECIFICATIONS
Model EVO40ST
Width 480mm
Depth 515mm
Height 820mm - 850mm (adjustable feet)
Pressure 200-500KPA
Bar 2-5
Flow 20-30 Lt/min
Chlorides <50ppm
Hardness 70-140ppm
Mineral Residues Mg/l 300/400
Conductivity 300/400 FS/cm
Voltage 220-240V, 50Hz
Power (kW) 2.85kW
Connection 1 Phase, Neutral, Earth
515
340
700
820
120
480
FRONT VIEW
TOP VIEW DRAIN HEIGHT
SIDE VIEW
480
1000
MAX
515
Specication

Page 10
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Initial Start-up & Operation
Operation
Washing Cycles
Automatic Draining
• Before switching ON the appliance - Open the door and verify that all internal components, water flow device included, are in the
correct position
• Open main water supply cock
• Switch the power supply on at the mains
• Close the door and press the “ON/OFF” button to turn ON the unit� The unit will start to automatically fill with water� During the water
filling process the “Temperature” display will show the following:
• If during this process the door is opened, the display will flash until the door is closed
• During the filling/water heating process the “Start” button will be illuminated amber
• After the water has reached temperature the “Start” button will be illuminated green (ready to use)
• Open the door
• Insert dirty loaded dishes basket
• Close the door
• Choose one of the four available wash cycles (each wash cycle increases wash time)
• Press the “Start” button to begin the wash cycle
• Once the wash cycle has finished the “Temperature” display will flash “END”
• Turn OFF the unit by pressing button “On/Off”
• Open the door and remove the water flow plug from the centre of the filter trap (see page 12), close the door
• During this process the “Temperature” display will show the following:
In order to have optimal washing results and a clean tank, it is recommended to change the water of the unit at least twice a day and clean
accurately all the filters inside the tank� Filters must be removed only once all the water is drained out of the unit
• Wait until all the water is completely drained out from the tank� The unit will turn OFF automatically after completing drain process
WARNING
The water in this unit are HOT when operating. Take
caution when opening the glass washer door
Operation

Page 11
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
• Threaded fasteners can loosen in service� Regular inspection and adjustment should be carried out as required
• Cleaning is recommended for health and safety purposes and to prolong the life of the unit
• Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit
• Do NOT use industrial chemical cleaners, caustic based cleaners or bleaches and bleaching agents, many will damage the metals and
plastics used on this unit
• When drying, metal surfaces should be wiped with a soft cloth in the same direction as grained polish
• Do NOT remove any screws for cleaning� All internal sections of the unit are to be cleaned by a qualified technician
• This unit is NOT waterproof, do NOT hose, do NOT pour water directly onto the unit, do NOT immerse in water
• Stainless steel exhibits good resistance to corrosion however, if not properly maintained stainless steel can rust and/or corrode
• Any sign of mild rust and/or corrosion should be thoroughly cleaned with warm soapy water and dried as soon as possible
• NEVER use abrasive pads or cleaners for cleaning
• All metal surfaces should be checked while cleaning for damage, scuffs or scrapes as these can lead to rust and further damage to the
product
• Mild rust and/or corrosion can be treated with a commercial cleaning agent that contains citric/oxalic/nitric/phosphoric acid� Do NOT
use cleaning agents with chlorides or other harsh chemicals as this can cause corrosion� After treatment, wash with warm (not hot)
soapy water and dry thoroughly
• Thoroughly wipe the surfaces dry after cleaning and do NOT let water pool on the unit� Check crevices and folds for pooling
• When using, ensure all liquids and moisture is cleaned up straight away� Food liquids such as juices from vegetables and fruits should
NOT be left on preparation surfaces
• Do NOT leave items on the stainless steel such as cutting boards, rubber mats and bottles
• To protect the polish, stainless steel should be dried by wiping a dry soft cloth in the same direction as grained polish
• For NON-food contact surfaces, a light oil can be wiped on the surfaces with a cloth to enhance the stainless steel surface� Wipe in the
direction of the grain
• Some commercial stainless steel cleaners can leave residue or film on the metal; this may trap fine particles of food on the surface,
thus deeming the surfaces not food safe
IMPORTANT WARNING
IMPORTANT WARNING
Threaded fasteners can loosen in service.
Regular inspection and adjustment
should be carried out as required
This unit is NOT waterproof, do NOT
hose. DO NOT pour water directly onto
the unit. DO NOT immerse in water
Some commercial stainless steel
cleaners leave residue or fi lm on the
metal that may entrap fi ne particles of
food, deeming the surface not
FOOD SAFE.
Wait until the unit has cooled to a safe
temperature before undertaking any
cleaning or maintenance. Contact with
hot surfaces can cause burns and
serious injury.
Cleaning
General Information
Corrosion Protection
Surface Finish
Operation

Page 12
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Materials Required
• Non Abrasive Cleaning pad
• Clean Sanitised Cloth
• Paper Towel
• Container of warm water
• Appropriate PPE (Personal Protective Equipment)
Cleaning Schedule
• Daily cleaning is required for the Glass Washer external surfaces� This will help to maintain and prolong the efficiency of your unit
• The unit should be cleaned at the end of each work day
External Surfaces
Filter Trap
Filter Trap
1� Isolate from the power supply
2� Wipe clean using a cloth dampened with clean warm water until all soil has been removed (Care should be taken to avoid wetting the
electronic controller)
3� Using a clean sanitised cloth, thoroughly wipe the stainless steel and metal parts dry� Do NOT let water pool on the unit� Check crevices
and folds
1� Isolate from the power supply
2� Manually remove the wash pump filter trap in the front right hand position of the washing chamber
3� Wash and clean the filters under a tap with fresh water
4� Carefully replace all filters inside the unit
Operation
1� Water Flow Plug
2� Outer Filter Trap
3� Inner Filter Trap
The filter trap is located in the front right corner of the chamber�
1
2
3

Page 13
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Troubleshooting
Problem Remedy
Unit does not operate / start
Verify inlet main water supply is correctly connected, open and free from any obstructions
Verify main electrical supply is working without any electrical breakdown connections
Verify the door is properly closed
Dishwasher does not wash well
Verify if the filter trap is clean
Verify if the washing water jets on the wash arms are not obstructed by any soils
Verify if used a correct amount and quality of detergent and rinse aid
Washing cycle used is too short� Use another cycle (if available) or repeat the washing cycle
Condensation on glasses
Empty the glasses rack immediately after the end of each cycle
Check rinse aid level, replace if empty
Verify the rinsing temperature is between 80°C - 90°C
Excessive foam in the tank
Verify washing water temperature is not less than 50°C
Ensure the tank has not been cleaned with unsuitable cleaners� Drain the tank and rinse
thoroughly before new wash cycles
If foaming detergent has been used, drain and refill the tank with water until the foam is gone
Operation
• If any faults/issues occur with the unit, follow the below troubleshooting procedures
• If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department

Page 14
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

www.stoddart.com.au
International
Sales
Tel: [phone]
Email: [email protected]
Service / Spare Parts
Tel: [phone]
Email: [email protected]
Email: [email protected]
www.stoddart.co.nz
New Zealand Business Number: 6837694
New Zealand
Sales
Tel: [phone]
Email: [email protected]
Service / Spare Parts
Tel: [phone]
Email: [email protected]
Email: [email protected]
www.stoddart.com.au
Australian Business Number: 16009690251
Australia
Sales
Tel: [phone]
Email: [email protected]
Service / Spare Parts
Tel: [phone]
Email: [email protected]
Email: [email protected]
