Storite rite 5 User manual

If you need advice, call us FREE on 0800 807
433 or email us at [email protected]
If you choose to vary from these instructions
your warranty will be impaired.
GABLE ROOF SHED
2280mm wide x 2280mm depth x 1830 - 2025mm high
ASSEMBLY
INSTRUCTIONS
You should have two packages:
• 1 cardboard package with the sheeting
• 1 plastic wrapped package
Some parts have sharp edges and should be
handled very carefully. We recommend the use of
protective gloves and footwear when assembling.
DO NOT attempt to erect this shed in windy weather.
All dimensions are approximate.
rite 5
Tools required:
• Battery or electric drill
• 3.3mm (1/8th inch) drill bit
• Screwdriver and riveter
• Tape measure
• Ladder
• Non-slip gloves, good shoes and goggles
• A set of helping hands
Call 0508 454 873
for an installer near you
ASSEMBLY
INSTRUCTION
DVD
WITH ALL SHEDS

If you choose to vary from these instructions
your warranty will be impaired.
1
Components checklist
Please check the parts carefully and advise immediately if any are damaged or missing.
Building your shed
The basic task is to join the sheets together to
form your panels, and t the channels to the top
and bottom of these panels. They will then join
together to form your shed (diagram 1, 2 and 3).
Pan
Rib
Important
• Remove the swarf (drill lings) from
the panels as you assemble them.
• All components are cut to length. Do
not cut any parts unless instructed.
• Fixings through the inside of the
channels into the sheeting are just
as important as xings from the
outside.
Ribs and Pans
• Generally most xings are spaced at
300mm apart.
• Keep the xings in the pans as close to
the ribs as possible for added strength.
• Ribs will always protrude to the outside
of the shed.
• Extra internal xings are strongly
recommended in high wind areas.
If you need advice, call us FREE on 0800 807 433
or email us at [email protected]
1 x 1770 x 780mm door
sheet.
2 x 1830 x 740mm
sheets (Beside
door - front)
3 x 1830 x 780mm
(back wall)
6 x 1200mm x 780mm
sheets (roof)
6 x gable angle cut
sheets (side walls)
8 x 2255mm “U”
channels for
front, back
and
roof.
2 x 2255mm (bottom)
& 2 x 2290mm (top)
“U” channels
for side
walls.
2 x 1770mm “U”
channels for door
sides.
2 x 793mm “U”
channels (door
spacers).
2 x 780mm “U”
channels (door
top and
bottom).
4 x 1200mm “L”
ashings (roof to side
ashings).
2 x 1830mm “Z”
door jambs.
(front)
1 x 310mm door plate. 1 x pack screws with
padbolt. 1 x pack of
rivets and hinges.
Door bracing. 1 x 2280mm long
ridge beam (roof)
2 x Gable plates (end
walls)
ABC D
E F G
J
M
H
K
N
I L
O P
Q
diagram 1 diagram 2 diagram 3

1 x 1770 x 780mm door sheet.
2 x 1770mm “U” channels.
2 x 780mm “U” channels.
1 x 310mm door plate.
Hinges.
Door bracing.
If you choose to vary from these instructions
your warranty will be impaired. 2
1. Attach the 780mm “U” channels Jto
the top and bottom of the door sheet
Aat the centre ribs only.
2. Attach the 1770mm “U” channels Hto
the door sheet Athrough the top and
bottom channels Jat the four corners.
3. Attach the door plate Min the centre of
the door sheet, slipping it under the two
side “U” channels and xing it to the
sheet ribs and the side “U” channels.
4. Attach the hinges Napprox 150mm
from the top and bottom of the door
through the “U” channels. The xings
should be centred on the side “U”
channels.
5. Turn the door over and x the four
corners through all the “U” channels
and t the door bracing from the bottom
corner to the opposite centre to the top
corner. (step 2 below).
Step 1:
Door Assembly A
A
N
O
H
H
H
J
J
J
M
You will need:
1. Attach the rst “Z” door jamb Lto the
740mm sheet Bon the rib with the
narrow pan. Attach the other “Z” door
jamb to the 740mm sheet B.
2. Lay the premade door face down on the
740mm sheet Bapprox 30mm up from
the bottom and down from the top.
3. Check the door is centralised on the
sheet (top and bottom). Fix the hinges
through the side of the “Z” door jamb
L, raising the door about 4mm off the
"Z" door jamb.
Step 2:
Hanging the
door
B
L
2 x 1830 x 740mm sheet.
1830mm “Z” door jambs.
You will need:
M
N
30mm
4mm
gap
Narrow pan
If you need advice, call us FREE on 0800 807 433
or email us at [email protected]
150mm
Hinges should
protrude over the
top of the channel

1. Lay down the door with the sheet attached and the 740mm
sheet B.
2. Cap the sheets with the 2255mm channels F.
3. Use the door spacers I to make sure the door ts the gap
(they sit on top of the “Z” door jambs L).
4. Drill and x (rivet or screw) the channels at every second rib down
through the top.
5. Attach the door spacers at each end through the “Z” door jambs
and channels.
6. Put three xings underneath through the channels into the
sheeting pan and the top and bottom of the door spacers and “Z”
door jambs (see diagram 1).
7. Fit the padbolt to the door strap on the outside of the door.
Tips
• To hinge the door on the opposite
side, simply put the top channel on the
bottom and the bottom on the top.
• Put the padbolt on the door before
erecting the panels. It will stop the door
swinging around!
diagram 1
Channels will come short of
the ends of the sheeting by
10-15mm on all panels.
Fix through the top and
bottom of the channels into
the door jamb and spacer.
The door jamb goes on
inside of the channel.
The higher side of the
channel goes to the inside of
the shed. It is very important
to include the xings on the
underside of all the channels
as they are structural (except
the roof channels).
inside
outside
If you choose to vary from these instructions
your warranty will be impaired.
3
Step 3:
Front wall I
B
L
N
F2 x 2255mm “U” channels.
2 x 793mm door spacers.
2 x 1830 x 740mm sheet.
“Z” door jambs (attached to B).
Padbolt
You will need:
I
I
B
N
L
F
If you need advice, call us FREE on 0800 807 433
or email us at [email protected]
spacer
channel
Padlock keeper assembly
keeper
washer
rivet

If you choose to vary from these instructions
your warranty will be impaired. 4
1. Join the three sheets C together with 2 xings
through the overlapping ribs, making sure the ends of
the sheets are ush.
2. Cap the sheeting with the 2255mm “U” channels F.
3. Fix the channels through the end ribs and
every second rib in between.
4. Make sure you put at least one xing per
sheet up through the underside of the
channel into the pan of the sheet.
1. Cap the sloping sheets Ewith the “U” channels
G.
2. Make a cut in the anges only at (1145mm) the
centre of the
G2290mm top channels
3. Cap the sheeting with the 2255mm “U” channels
G
4. Slip the gable
Qplate under the channel at the top
and x to sheeting at the shown side.
5. Fix the channels at every 2nd rib and through gable
plate into the sheeting ribs.
6. 3 xings up underneath through channel into pan of
sheet
7. Perform the same at the other end.
1. Join the sheets Dtogether, same as the back.
2. Cap the sheeting with the 2255mm “U” channels F.
3. Fix the channels at every second rib but not the corners
at this stage.
4. Place the short ange of the rst “L” ashing Kon
top of the rib at one end. Make sure the ends are ush
with the sheeting (diagram 1) and put one xing in the
centre to hold the “L” ashing. Fix the corners through
the channels and one more between the corner and the
centre xing.
5. Perform the same at the other end.
6. Fit the ridge beam Pto 1 roof panel only. Fix through the
ends and up through the internal ange on the underside.
Step 4:
Back wall
Step 5:
Roof
Step 6:
End walls
C
F
F
F
3 x 1830 x 780mm sheets.
2 x 2255mm “U” channels.
D
E
F
G
Q
K
P
6 x 1200 x 780mm sheets.
4 x 2255mm “U” channels.
4 x 1200mm “L” ashings.
1 x 2280mm long ridge beam
3 x gable angle cut sheets per side
2 x Channels per side
2 x Gable plates
You will need:
You will need:
You will need:
Channels
will end
15-20mm
short at
tops of end
walls and
10-15mm at
bottoms.
Tip
Put extra xings in
for high wind areas,
particularly on the
underside.
C
If you need advice, call us FREE on 0800 807 433
or email us at [email protected]
D
F
F
PK
K
diagram 1
Tip
Bend pan ends
up in high wind
areas, see DVD.

If you choose to vary from these instructions
your warranty will be impaired.
5

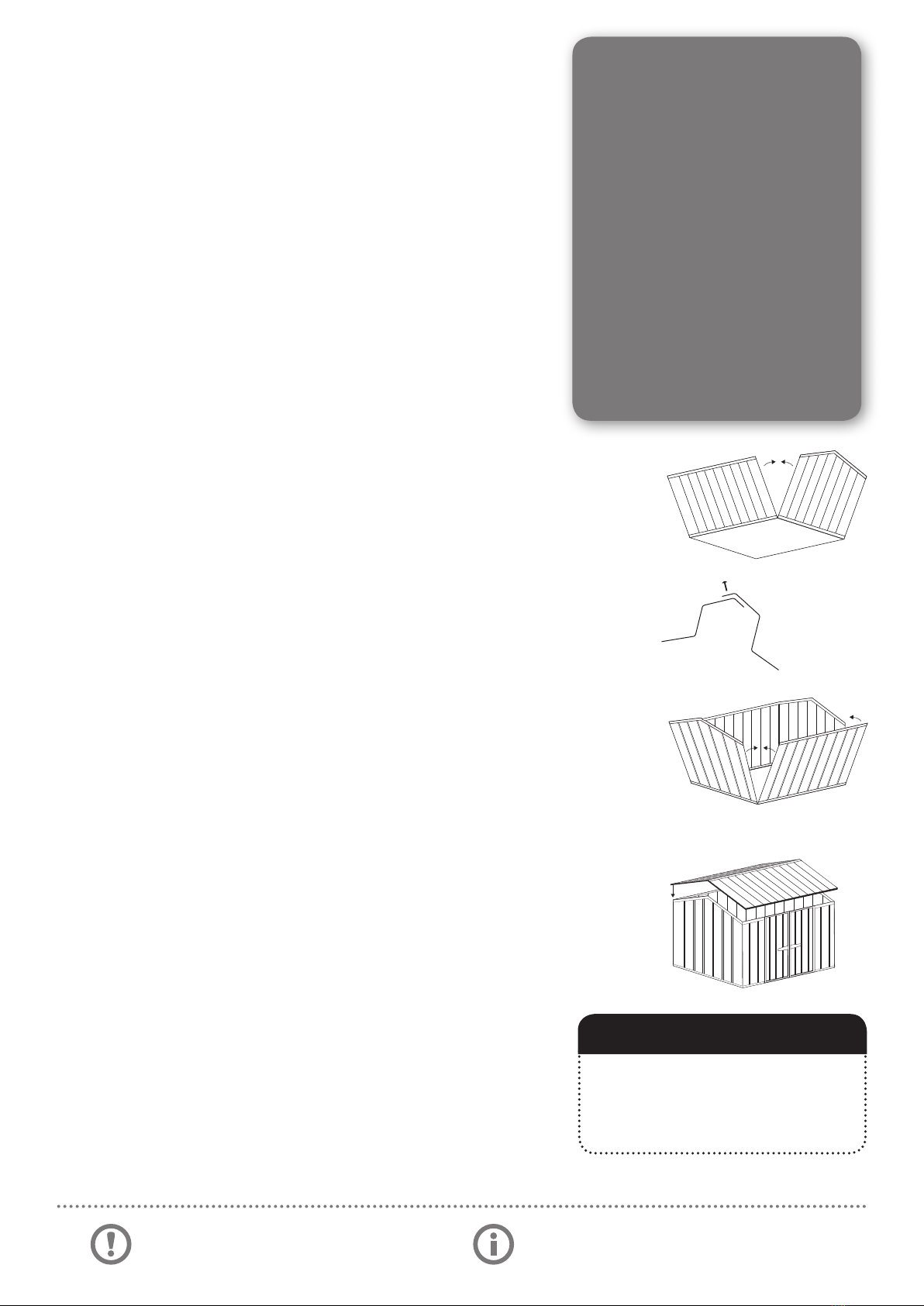

Step 7:
Installation
Tip
Use the handle end of a hammer in
the inside of the corner, but beware
of drilling holes on the end of your
hammer.
Important
• Do not attempt to assemble panels
in rain or windy conditions.
• Make sure your foundations are
squared and level before erecting
panels.
• It is easier to remove all swarf
(lings) before you stand your
walls up.
• Complete all panels before
erecting your shed.
• Keep a rm grip on panels when
handling. If they slip they will
cause damage.
• Always wear non-slip gloves,
protective footwear and eyewear.
diagram 1
diagram 2
diagram 3
diagram 4
If you need advice, call us FREE on 0800 807 433
or email us at [email protected]
Side wall assembly
1. Stand up the back wall and as your helping hand is holding
it up, bring the left end wall in to meet it at the left corner
(diagram 1) overlapping the corners (diagram 2). Drill and x
at approximately 100mm down from the top and up from the
bottom, drilling and xing from the outside.
2. Bring the right end wall into the right back corner and perform
the same again, checking to make sure the walls are sitting at
at the bottom.
3. Bring the front wall into place and join the front corners to
the end walls, same as the back (diagram 3).
4. Finish joining the corners by xing at approximately
200-300mm apart. You will nd it easier to drill these
corners if they are supported on the inside (see tip).
Fixing the roof
5. With a person at each end of the roof panel with the Ridge
beam attached, waft it over top of your upright walls and lower
down on top. Have your helping hand go inside and make sure
the roof panel is centralised by having the ridge beam sitting
right on the apex of the channel at the peak of the end wall. Fix
the “L” through the top channel to both end walls at the 1st rib
in from the lowest corner making sure it is still centralised. The
ridge beam will not be held down at this stage.
6. Now waft the 2nd roof panel onto the walls, slipping it into
the ridge beam. Make sure it is sitting rmly into ridge beam
and then x it to the inside ange of the ridge up underneath.
(Fig 2) Now nish off xing the “L” to the top channels at both
ends. Fix at 300mm apart and also through end of ridge beam
into “L”. If you nd the roof is binding and not wanting to sit
squarely on the walls, this will be caused by unlevel site or
walls are not square. Adjust accordingly.
7. Using the ladder and the tape measure, x down through the
top of the roof, through the pan into the top channel of the front
and the back walls (10mm more than the overhang). Fix beside
every second rib. You will not need to worry about these xings
leaking as any water seeping through these xings will end up
on the outside of the walls.
Fit the door braces and install shed
8. Fit the door braces, if not already done so. Check that all
lings/swarf is removed.
9. Important: Fix your shed down to its foundations. If your
foundations are unlevel or bowed, you will have problems with
your padbolt and door levels. This can be xed by slipping a
spade under either door jamb and lifting. You will soon get a
feel for which side needs propping up.

If you choose to vary from these instructions
your warranty will be impaired. 6
Recessed concrete floor plan for
specially poured concrete floors
Every shed must have a floor
Recessed oor clamps
For poured oors with
a recess around the
perimeter.
Flat oor clamps
For existing
concrete only.
Water can seep
underneath.
Storite kitset wooden floors
Storite accessories
We also offer a great range of accessories and extras to
complement your new Storite Shed.
Please ask your nearest hardware store for further details.
Internal dimensions for the RITE 5:
2235mm x 2235mm
Boxing Diagram
shed
recess
20mm - 25mm
20mm - 25mm
(1" x 1")
8mm Bolt set into concrete
Internal Dimensions
Approx 25mm recess
around the outside
100mm
25mm
2235mm
2235mm
approx
25mm
25mm
If you need advice, call us FREE on 0800 807 433
or email us at [email protected]
oor board
Important
It is essential that every shed has a oor, but the
only way to make sure your shed is there to stay
on windy sites is with a recessed concrete oor.
Phone 0800 80 SHED for free advice. See page
6 for more details.
Peg the oor to the ground in a windy area.
runner
shed

15 Year Warranty
If any component of your shed fails - we will replace it!
Make sure your shed is built and secured according to our
instructions as a minimum.
The warranty does not cover damage or loss through an
act of God. Please inform your insurance provider.
We would like
your feedback
Please email your comments to [email protected] or fax us on
06 878 5758. Customer satisfaction is our top priority and we are always on the look
out for ways in which we could do better.
Free gift
To receive a free gift, include your details when you send in your feedback or send in
a good photo of your nished shed with your details.
To help you we have listed some questions
that you may like to answer:
There is no need to type every question, only the question number and
your answers are necessary.
1. Where did you nd out about our sheds?
2. Where did you purchase your shed? Was the sales person helpful?
3. Were you happy with the delivery of your shed and your overall
purchase experience?
4. Did the assembly of your shed go smoothly and were these instructions
clear? If unhappy, what areas do you think we could improve on?
5. Does the shed t your needs? What might you order differently
next time?
6. Did you nd the DVD helpful?
7. Do you have any other comments or suggestions you would like
to make?
Call us on 0800 807 433 for
tips on high wind sites.
YEAR
WARRANTY
