Mercia Garden Products 01OVLPA08DDGP-V1 User manual

OVERLAP APEX SHED 10X8 & 12X8
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts
To identify the xings
required for each step use a
measuring tape.
REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:

P 2
01OVLPA08DDGP-V1
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
10x8ft FIXED WINDOW 10x8ft NO WINDOWS
12x8ft FIXED WINDOW 12x8ft NO WINDOWS
12 x 8 ft
Overall Dimensions:
Length = 3574mm
Width = 2482mm
Height = 2118mm
Base Dimensions:
Length = 3506mm
Width = 2350mm
10 x 8 ft
Overall Dimensions:
Length = 3028mm
Width = 2482mm
Height = 2118mm
Base Dimensions:
Length = 2974mm
Width = 2350mm
Front Gable Left QTY 1
AI-01OVLPFGL713X1897-V1
Back Gable Left QTY 1
AI-01OVLPHPGL1155X2089-V1
Door QTY 2
AI-01MBDR1660X437-V2
1 2 3 4 5
T Hinge QTY 4
PI-02-1043
Felt
L-Bracket QTY 2
PI-07-0012
Finial QTY 2
DIAMOND SHED FINIAL
18
17
Turn Button QTY 3
PI-07-0034
23
Back Gable Right QTY 1
AI-01OVLPHPGR1155X2089-V1
Front Gable Right QTY 1
AI-01OVLPFGR713X1897-V1
Front Gable Top QTY 1
AI-01OVLPFGT884X439-V1
Door Framing - 28x28x884mm QTY 1
F2828-884mm
Door Gable Strip - 7x125x1943mm QTY 1
OP7125-P-1943mm
19 20 21
22
Building Content - Gable :
01OVLPA08DDGP-V1
7
8
9
10
Truss Frame - 27x44x1262mm QTY 2
F2744-G-1302mm (1262mm nished length)
Truss Block - 27x44x140mm QTY 2
F2744-G-160mm (140mm nished length)
Door Block - 28x28x140mm QTY 2
F2828-140mm
Truss Support - 27x44x450mm QTY 1
F2744-G-490mm (450mm nished length)
11
12
Strip - 12x56x2000mm QTY 1
S1256-2000mm
Strip - 12x56x1585mm QTY 4
S1256-1585mm
16 Strip - 12x27x1585mm QTY 2
S1227-1585mm
15 Strip - 12x45x1000mm QTY 1
S1245-1000mm
13 Strip - 12x45x2051mm QTY 1
S1245-2051mm
Strip - 12x45x1585mm QTY 2
S1245-1585mm
6
14
Nail Bag
30mm Screw x 45
50mm Screw x 25
40mm Screw x 41
Felt Tacks x 190

P 3
Please retain product label and instructions for future reference
27

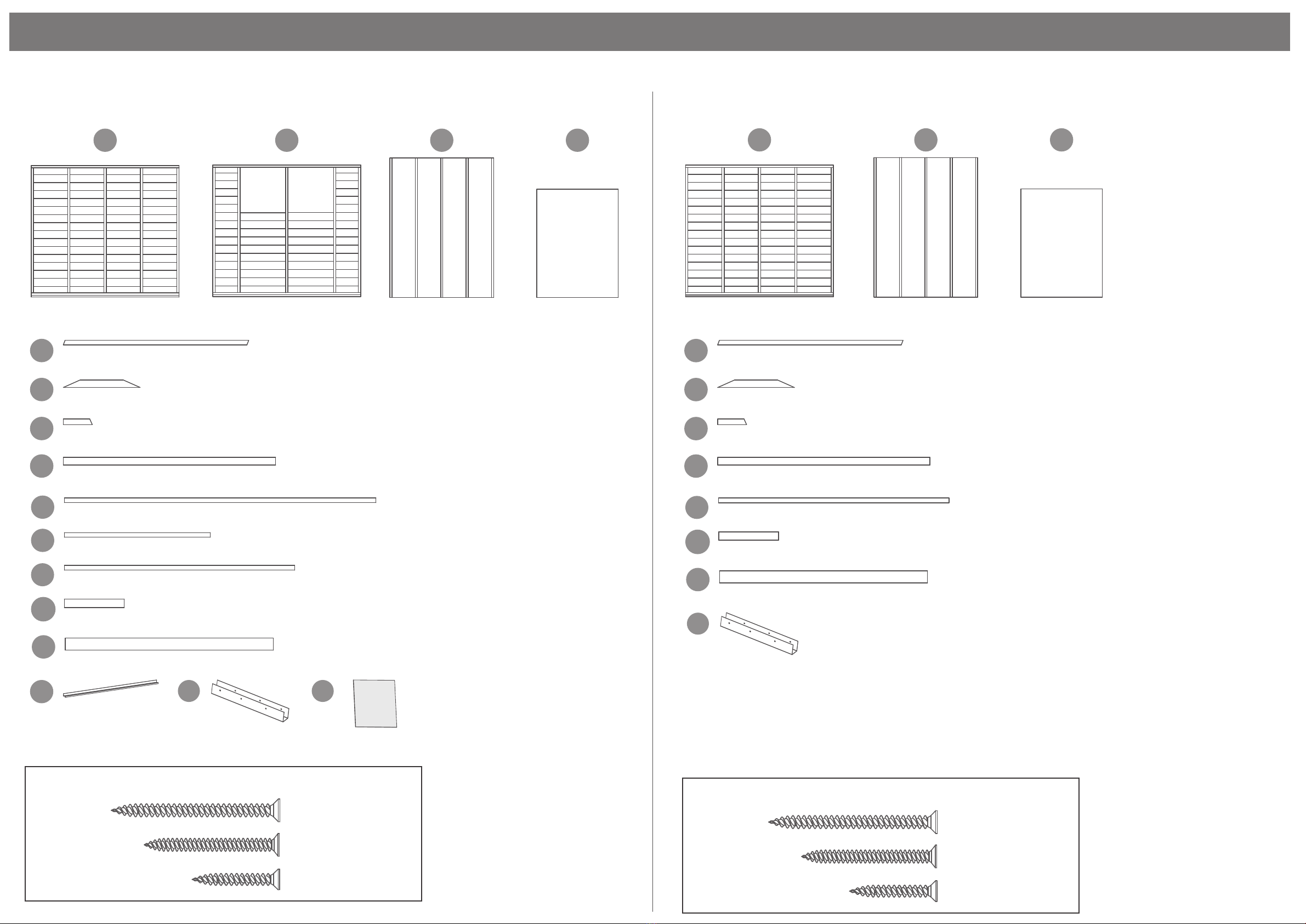

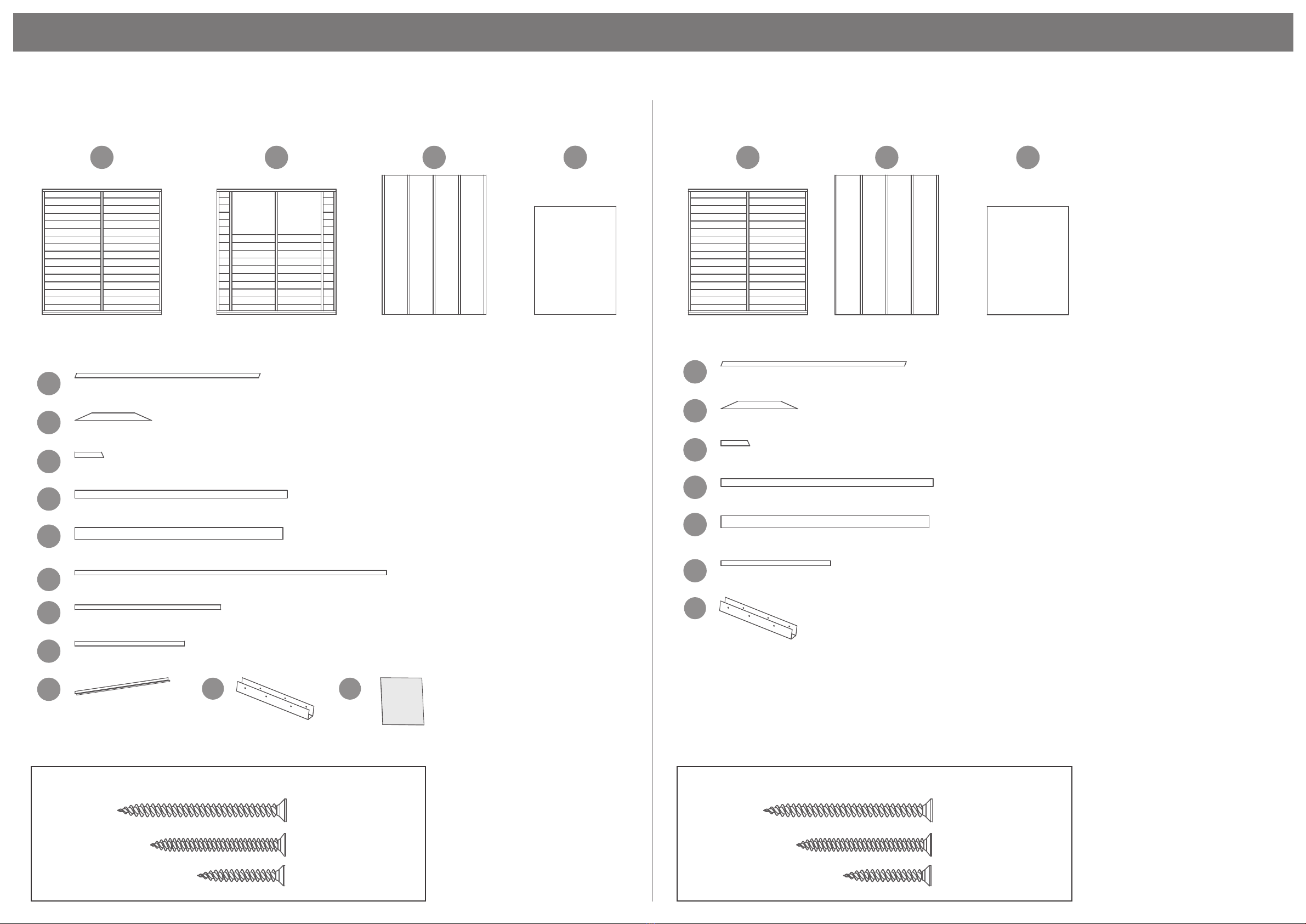

Building Content - 10X8 Pack B With Window :
With WIndow Pack - 01OVLPA0508FWPB-V1
Plain Side QTY 2
AI-01OVLPPS1490X1567-V2
Window Panel QTY 2
AI-01OVLPWS1490X1567-V2
Floor QTY 2
AI-01OVLPF2360X1487-V2
Roof QTY 8
PI-03-0224
28 Ridge Bar - 27x70x1462mm QTY 2
F2770-1462mm
Truss Frame - 27x44x1262mm QTY 4
F2744-G-1302mm (1262mm nished length)
Truss Block - 27x44x140mm QTY 4
F2744-G-160mm (140mm nished length)
Truss Support - 27x44x450mm QTY 2
F2744-G-490mm (450mm nished length)
29 Strip - 12x27x2000 QTY 2
S1227-2500mm
Plastic Window Cill
QTY 2
PI-08-0013
Styrene QTY 4
PI-05-0114
32
U Channel QTY 1
PI-07-0013
Strip - 12x45x1585mm QTY 4
S1245-1585mm
33 34
30 Strip - 12x27x1500 QTY 2
S1227-1000mm
31 Eaves Frame - 28x28x751mm QTY 8
F2828-751mm
14
7
8
9
262524 27
Building Content - 10X8 Pack C No Window :
No WIndow Pack - 01OVLPA0508NWPC-V1
Plain Side QTY 4
AI-01OVLPPS1490X1567-V2
Floor QTY 2
AI-01OVLPF2360X1487-V2
Roof QTY 8
PI-03-0224
28 Ridge Bar - 27x70x1462mm QTY 2
F2770-1462mm
Truss Frame - 27x44x1262mm QTY 4
F2744-G-1302mm (1262mm nished length)
Truss Block - 27x44x140mm QTY 4
F2744-G-160mm (140mm nished length)
Truss Support - 27x44x450mm QTY 2
F2744-G-490mm (450mm nished length)
U Channel QTY 1
PI-07-0013
Strip - 12x45x1585mm QTY 4
S1245-1585mm
33
31 Eaves Frame - 28x28x751mm QTY 8
F2828-751mm
14
7
8
9
2624
Contents for packs to create a 10x8 shed
Nail Bag
30mm Screw x 48
50mm Screw x 58
40mm Screw x 136
Nail Bag
30mm Screw x 48
50mm Screw x 58
40mm Screw x 136

P 4
Please retain product label and instructions for future reference
Plain Side QTY 2
AI-01OVLPPS1763X1567-V2
Window Panel QTY 2
AI-01OVLPWS1763X1567-V2
Floor QTY 4
AI-01OVLPF1753X1175-V2
Roof QTY 4
PI-03-0229
39 Eaves Frame - 28x28x1775mm QTY 4
F2828-1775mm
Plastic Window Cill
QTY 2
PI-08-0013
Styrene QTY 4
PI-05-0114
32
U Channel QTY 1
PI-07-0013
33 34
40 Floor Block - 28x28x400mm QTY 8
F2828-400mm
Building Content - 12X8 Pack B With Windows :
With Window Pack - 01OVLPA0608FWPB-V1
35 383736
41 Ridge Bar - 27x70x1735mm QTY 2
F2770-11735mm
Truss Frame - 27x44x1262mm QTY 4
F2744-G-1302mm (1262mm nished length)
Truss Block - 27x44x140mm QTY 4
F2744-G-160mm (140mm nished length)
Truss Support - 27x44x450mm QTY 2
F2744-G-490mm (450mm nished length)
29 Strip - 12x27x2000 QTY 2
S1227-2500mm
Strip - 12x45x1585mm QTY 4
S1245-1585mm
30 Strip - 12x27x1500 QTY 2
S1227-1000mm
14
7
8
9
Plain Side QTY 4
AI-01OVLPPS1763X1567-V2
Floor QTY 4
AI-01OVLPF1753X1175-V2
Roof QTY 4
PI-03-0229
39 Eaves Frame - 28x28x1775mm QTY 4
F2828-1775mm
U Channel QTY 1
PI-07-0013
33
40 Floor Block - 28x28x400mm QTY 8
F2828-400mm
Building Content - 12X8 Pack C No Windows :
No Window Pack - 01OVLPA0608NWPC-V1
35 3837
41 Ridge Bar - 27x70x1735mm QTY 2
F2770-11735mm
Truss Frame - 27x44x1262mm QTY 4
F2744-G-1302mm (1262mm nished length)
Truss Block - 27x44x140mm QTY 4
F2744-G-160mm (140mm nished length)
Truss Support - 27x44x450mm QTY 2
F2744-G-490mm (450mm nished length)
Strip - 12x45x1585mm QTY 4
S1245-1585mm
14
7
8
9
Contents for packs to create a 12x8 shed
Nail Bag
30mm Screw x 48
50mm Screw x 58
40mm Screw x 112
Nail Bag
30mm Screw x 48
50mm Screw x 58
40mm Screw x 112

P 4
Please retain product label and instructions for future reference

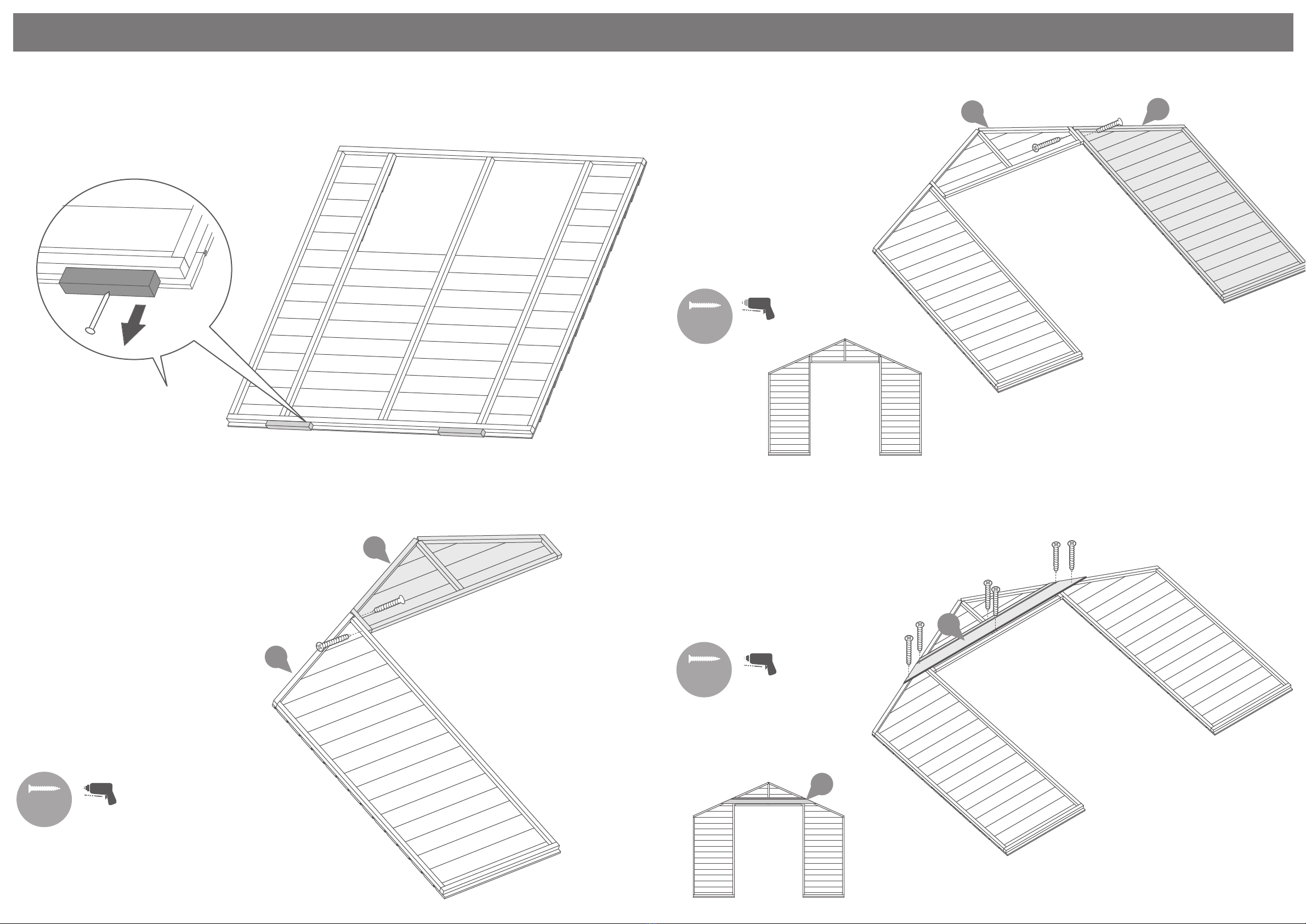

Remove transportation blocks
from the bottom of each panel
before beginning assembly.
Each Panel should have two
blocks.
Pre Assembly
1
3
50mm
screw Pre drill
hole
Step 1
Parts Needed - No. 1 QTY 1
No. 3 QTY 1
Lay the Front Gable Right (No. 1)
and Front Gable Top (No. 3) on a
level oor.
Place them next to each other,
ensuring they are level at the top
then x together using 2x50mm
screws.
**Ensure to stagger the screws so they
do not collide.
2 x 50mm screws
IMPORTANT : Pre-drill before xing screws.
2
50mm
screw Pre drill
hole
Step 2
Parts Needed - No. 2 QTY 1
Lay the Front Gable Left (No. 2)
next to the Front Gable Top (No. 3)
on a level oor.
Fix together using 2x50mm screws.
**Ensure to stagger the screws so
they do not collide.
2 x 50mm screws
3
IMPORTANT : Pre-drill before xing screws.
18
18
40mm
screw Pre drill
hole
Step 3
Parts Needed - No. 18 QTY 1
Line the Door Gable Strip (No.18) up
to the assembled front gable at the
corners as shown in the illustration
and x in place using 40mm screws
6 x 40mm screws
IMPORTANT : Pre-drill before xing screws.

P 5
Please retain product label and instructions for future reference
4
5
50mm
screw Pre drill
hole
Step 4
Parts Needed - No. 4 QTY 1
No. 5 QTY 1
Lay the Back Left Gable (No.5) and
Back Right Gable (No.4) on a level
oor.
Place them next to each other
ensuring they are level at the top
and bottom then x together using
10x50mm screws.
*Ensure to stagger the screws so they
do not collide.
10 x 50mm screws
IMPORTANT : Pre-drill before xing screws.
37
40mm
screw Pre drill
hole
Step 5
Parts Needed 10x8 - No. 26 QTY 2
Parts Needed 12x8 - No. 37 QTY 4
No. 40 QTY 8
Place the oors (No.26 or 37) on rm
and level base, ensure the base has
suitable drainage free from areas
where water can collect. (See front
page on base requirements).
10x8
Attach the oors together using
40mm screws.
12x8
Attach the oors together using
40mm screws.
Using the oor blocks (No. 40) secure
the oors (No.37) together by
screwing through the oor into the
oor blocks using 2x40mm screws per
block
*Ensure to stagger screws to avoid
colliding.
10x8 -12 x 40mm screws
12x8 - 32 x 40mm screws
IMPORTANT : Pre-drill before xing screws.
37
40
26
37
37
10 x 8 Floor
12 x 8 Floor
26

P 6
Please retain product label and instructions for future reference
IMPORTANT : Pre-drill before xing screws.
50mm
screw Pre drill
hole
Step 6
Parts Needed 10x8 - No. 24 QTY 1
Parts Needed 12x8 - No. 35 QTY 1
Place the assembled Back Gable
Panel (please refer to Step 4 if you
have not yet assembled this) and the
Plain Panel (No. 24 or 35) next to
each other and onto the oor as
shown in the illustration,
Ensure to position the panels so
there is equal spacing between the
oor and cladding on each side.
Fix the two Panels together by
screwing into the corner using
50mm screws.
3 x 50mm screws
4
5
24
10 x 8
12 x 8
35
4
5
50mm
screw Pre drill
hole
Step 7
Parts Needed 10x8 - No. 24 QTY 1 (No Window QTY 2)
No. 25 QTY 1 (Fixed Window only)
Parts Needed 12x8 - No. 35 QTY 1 (No Window QTY 2)
No. 36 QTY 1 (Fixed Window only)
IMPORTANT : Pre-drill before xing screws.
24
25

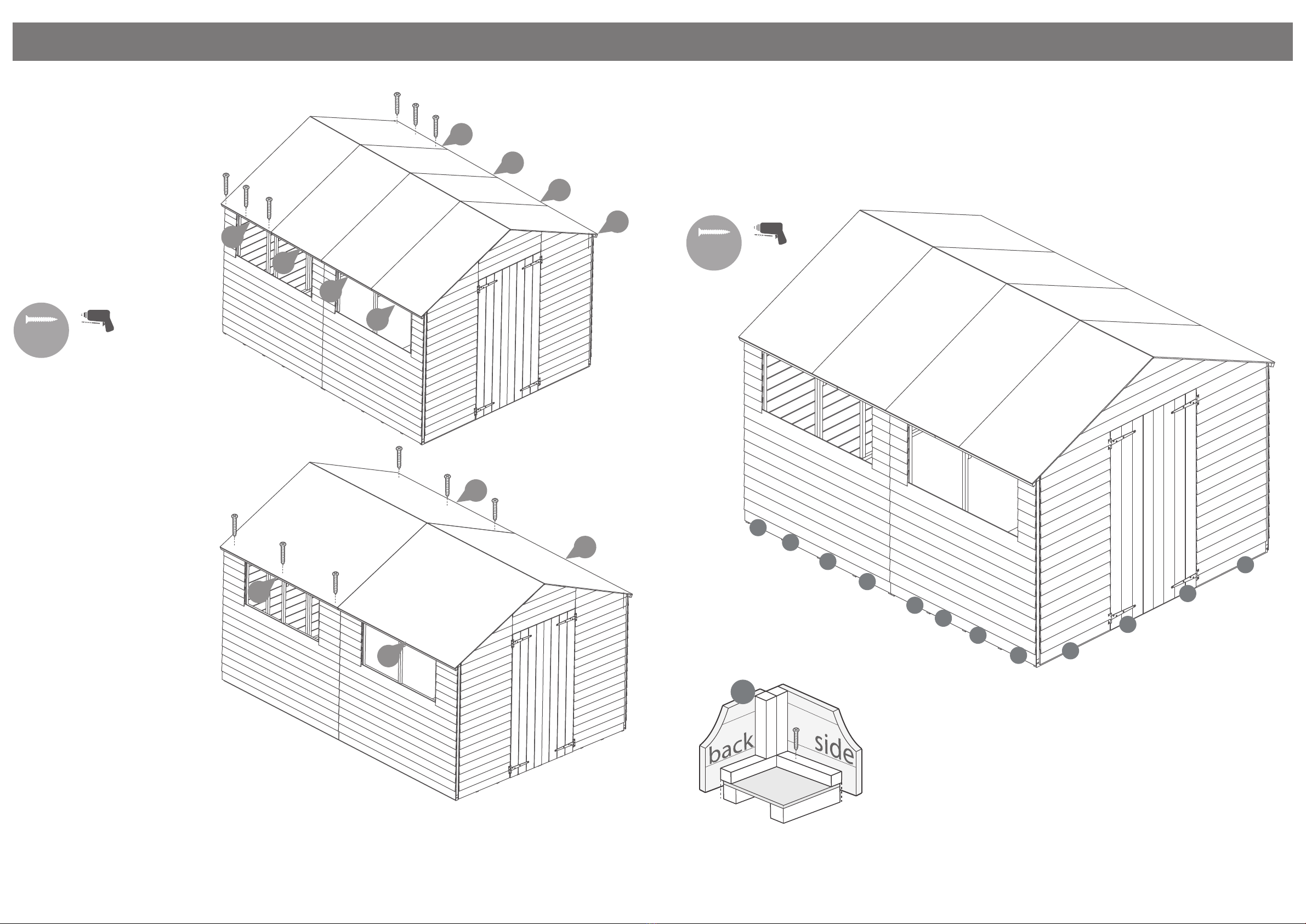

Place another Plain Panel (No.24 or 35)
next to the previously placed Plain
Panel and x in place at the corners
using 50mm screws.
On the opposite side of the Shed,
repeat the method used in Step 6 to x
either a Window Panel (No.25 or 36) or
another Plain Panel (No.24 or 35) onto
your Shed.
Ensure to position the panels so there is
equal spacing between the oor and
cladding on each side.
6 x 50mm screws
10 x 8
12 x 8
35
36

P 7
Please retain product label and instructions for future reference

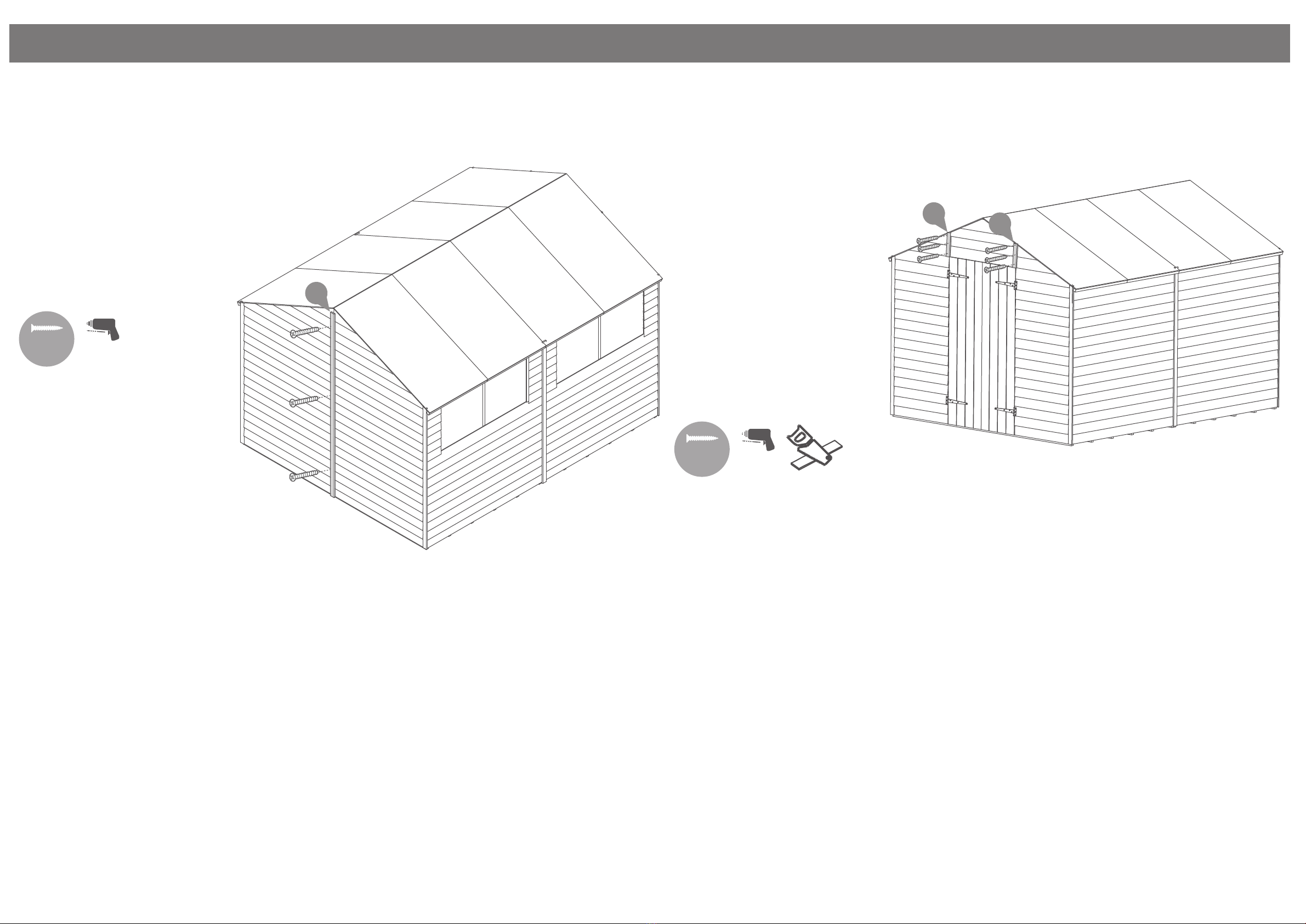

50mm
screw Pre drill
hole
Step 8
Parts Needed 10x8 - No. 24 QTY 1 (No Windows QTY 2)
No. 25 QTY 1 (Fixed Window ONLY)
Parts Needed 12x8 - No. 35 QTY 1 (No Windows QTY 2)
No. 36 QTY 1 (Fixed Window ONLY)
IMPORTANT : Pre-drill before xing screws.
Fix the remaining side panel
(No.24/25 or 35/36) onto the Shed at
the corners using 50mm screws as
shown in diagram.
Ensure to position the panel so there
is equal spacing between the oor
and cladding on each side.
3 x 50mm screws
25
10 x 8
12 x 8
36
1
2
3
50mm
screw Pre drill
hole
Step 9
Fix the Door Gable (please refer to steps 1
and 2 if you have not already assembled
this) to the Shed at the corners with
50mm screws as shown in diagram.
6 x 50mm screws
IMPORTANT : Pre-drill before xing screws.
17
50mm
screw Pre drill
hole
Step 10
Parts Needed - No. 17 QTY 1
Fit the Door Framing (No. 17)
between the Front Gable Left
and Right.
Fix to the oor using 3x50mm
screws, making sure the screws
go through to the oor framing.
3 x 50mm screws
IMPORTANT : Pre-drill before xing screws.

P 8
Please retain product label and instructions for future reference
21
30mm
screw Pre drill
hole
Step 11
Parts Needed - No. 6 QTY 2
No. 21 QTY 4
Fix the T Hinges (No. 21) onto the
doors (No. 6) and door gable using
7x30mm screws per hinge as shown.
Ensure that the screws go through
the cladding and into the framing
behind.
28 x 30mm screws
IMPORTANT : Pre-drill before xing screws.
6
6
33
28
22
22
30mm
screw Pre drill
hole
Step 12
Parts Needed 10x8 - No. 22 QTY 2
No. 28 QTY 2
No. 33 QTY 1
Parts Needed 12x8 - No. 22 QTY 2
No. 33 QTY 1
No. 41 QTY 2

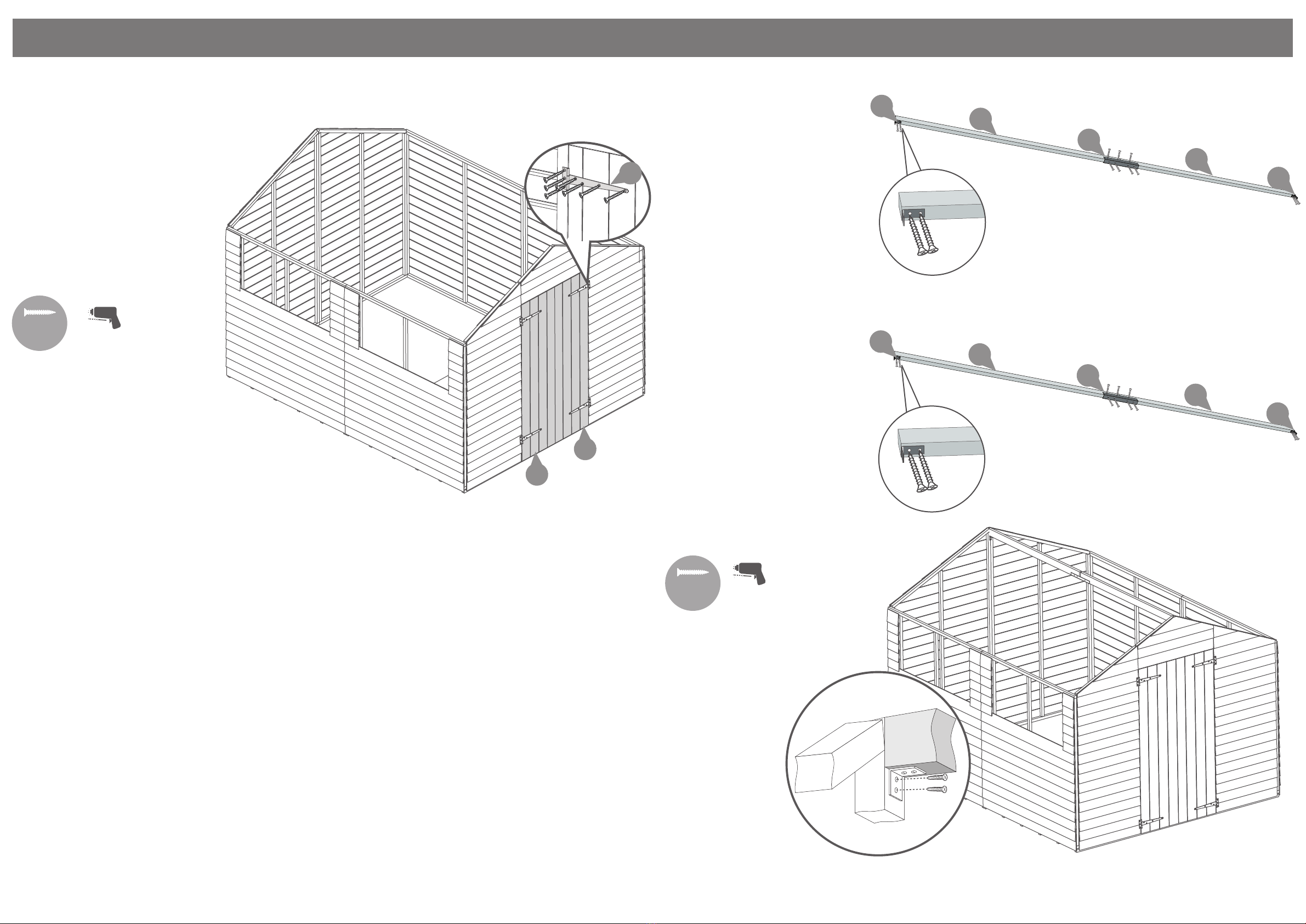

Position the two Ridge Bars (No. 28
or 41) within the ‘U’channel (No. 33)
Secure from either side with
3x30mm screws and 4x30mm
screws from underneath.
Secure an ‘L’ bracket (No. 22) to
either end of the ridge bar using
2x30mm screws per bracket.
Place the assembled ridge bar in
between the front and back Gables.
Ensure the top corners of the
support bar are ush with each top
point of the Gable.
Secure the ‘L’ brackets (No. 22) onto
both the Gables framing using
4x30mm screws.
18 x 30mm screws
IMPORTANT : Pre-drill before xing screws.
28
33
41
22
22
41
10 x 8
12 x 8

P 9
Please retain product label and instructions for future reference
7
50mm
screw Pre drill
hole
Step 13
Parts Needed - No. 7 QTY 6

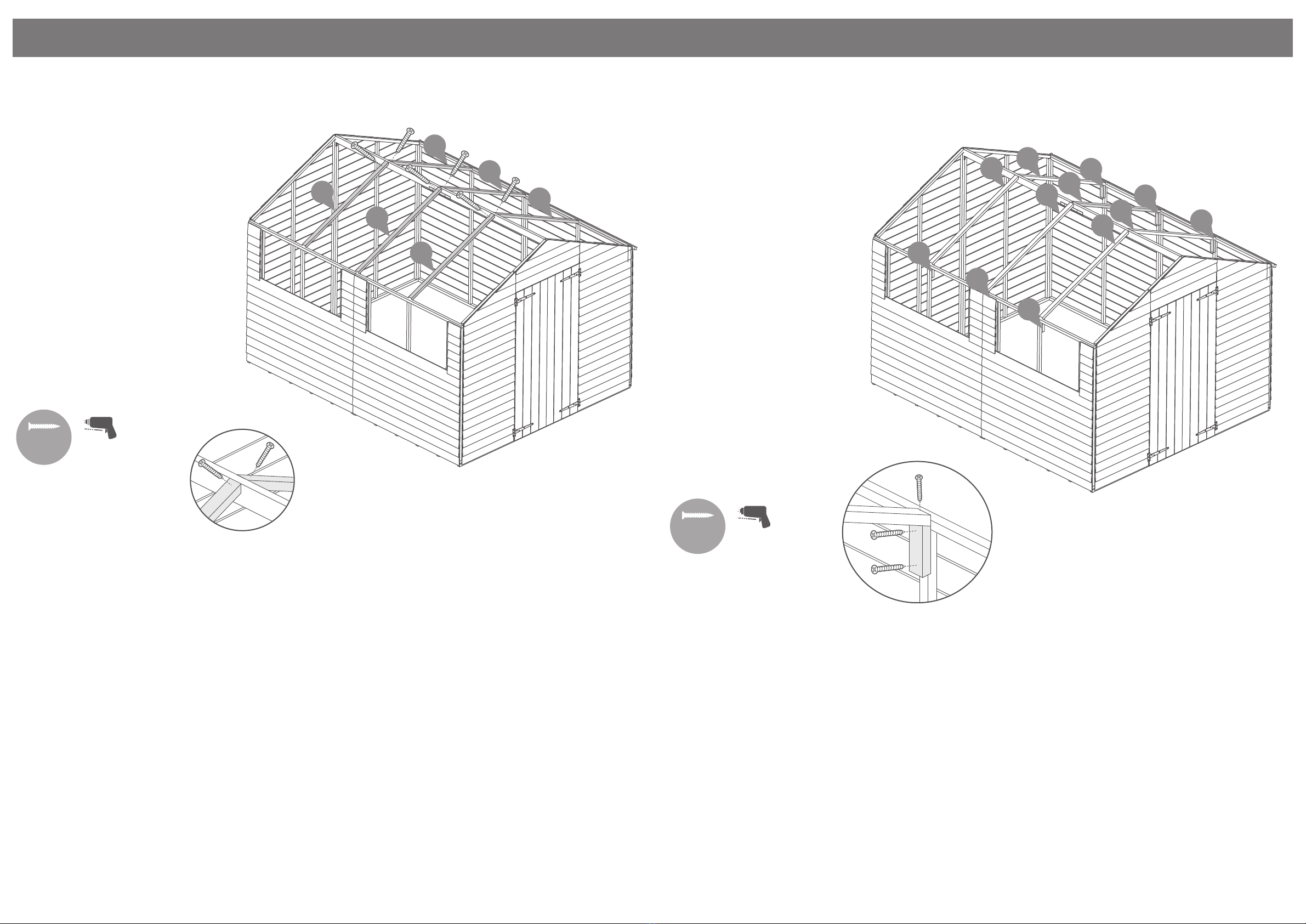

Position a Truss Frame (No. 7) to the
ridge bar (No. 28) so it is sloping down
towards the building side, ensuring it is
central to the middle upright of the side
panel, as shown in the illustration.
Fix in place by screwing through the
Truss at an angle into the ridge bar,
using 1x50mm screw.
Use this method to x a second Truss
Frame on the opposite side of the shed,
ensuring it’s aligned to the rst Truss.
Repeat this method to t 6 roof truss
frames to the shed.
6 x 50mm screws
IMPORTANT : Pre-drill before xing screws.
7
7
7
7
7
50mm
screw Pre drill
hole
IMPORTANT : Pre-drill before xing screws.
Step 14
Parts Needed - No. 9 QTY 6
Position the truss block (No.9)
at the top of the side panels
framing, ensuring the angle is
ush to the Truss Frame (No.7),
aligning the block centrally
along the join between the side
panels.
Fix in place by screwing
through the block into the side
panel framing using 2x50mm
screws.
Secure the Truss’ in place by
screwing through the truss
frame (No.7) into the truss block
(No.9) using 1 x 50mm screw.
Repeat for each of the roof truss
frames.
18 x 50mm screws
7
7
9
9
9
9
9
9
7
7
7
7
