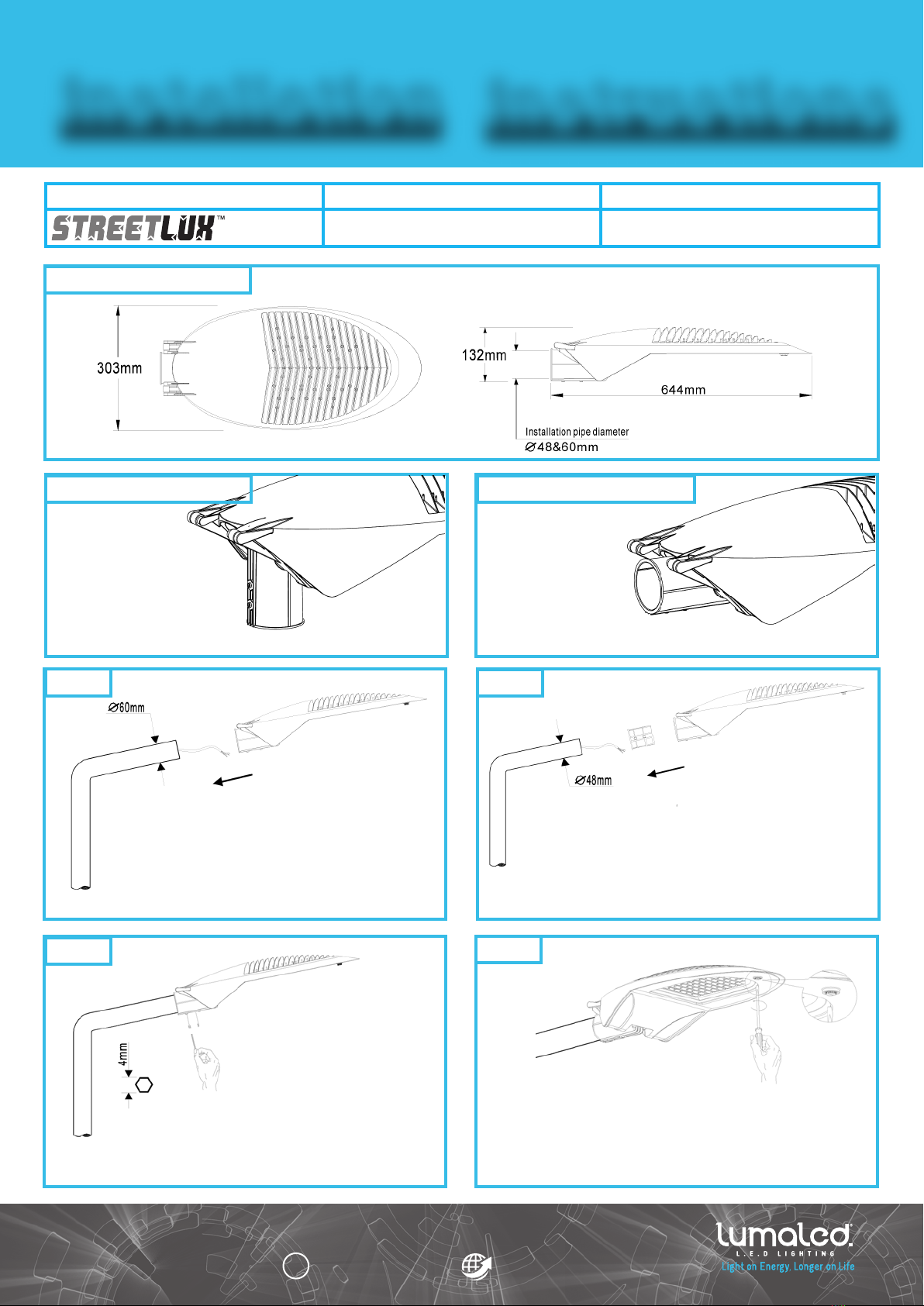

INSTALLATION
INSTRUCTIONS
Brand Light Type Model/s No
StreetLight LLRA2 - 40 & LLRA2 - 60
Product Dimensions
Vertical Installation Horizontal Installation
1 - A 1 - B
23
Maximum area against wind - 0.15m²
For the 60mm pole rst remove the supplied
adapter inside the pole attachment area.
Attach the light to the pole as per the diagram.
Ensure the wire is fed through the pole
into the light.
For the 48mm pole use the supplied adapter inside
the pole attachment area.
Attach the light to the pole as per the diagram.
Ensure the wire is fed through the pole
into the light.
Position the light securely over the pole
and tighten the screws with a 4mm
Allan key.
To connect the wires from the pole to the light
Loosen the screw as shown in the diagram
Open the light and connect the wires to their contacts.
Ensure that the screw is then tightened.
Screw should be locked tightly to ensure the light is
waterproof.

02 4961 4247 02 4961 5535 www.lumaled.com.au


Installation Instructions - cont.
Wire Connection
Electrical components
Connecting the
light source
Detailed sketch for
wire path.
The length of the
bare wire is 6 mm
Neutral (Blue Wire)
Earth (Yellow/Green Wire)
Active (Brown Wire)
!1. Inspect the light, to ensure it is intact.
2. Ensure that the top screw is tightened in order to make sure the light is waterproof
3. Lights must only be installed by an qualied and licensed electrician.
4. Ensure that the power is switched off before connecting the wires
5. The lights should be placed in an area that is cool, dry & clean. Do not place in water or in
a high temperature location.

02 4961 4247 02 4961 5535 www.lumaled.com.au


Installation Instructions - cont.
Installation options & Angle adjustments
0°
+5°
+10°
+5°
0°
- 5°
