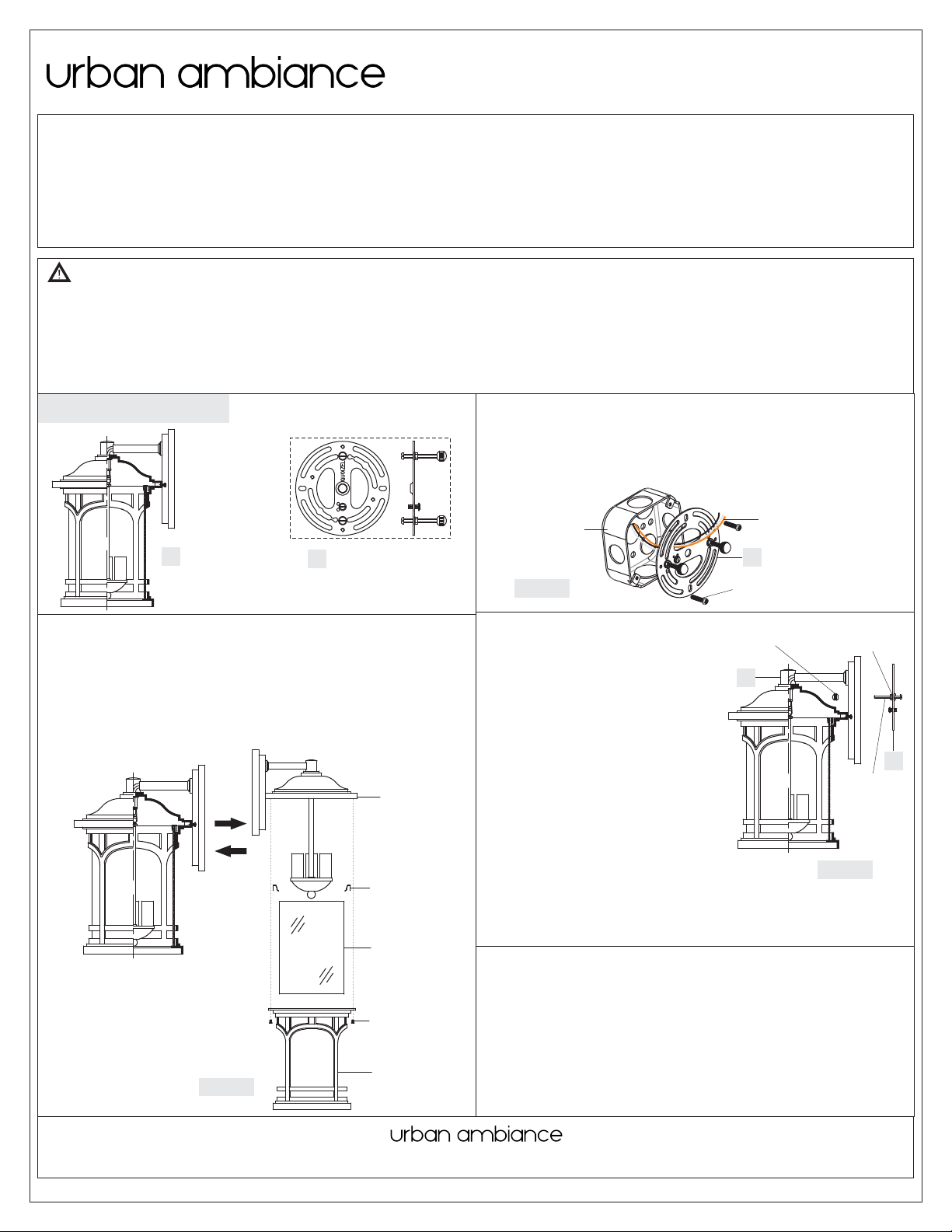

urban ambiance UQL1102 User manual

Package Contents
1of2
STEP 1 Install Shade-
A. Unscrew the Lock Screw, remove the Cage, the Glass Shade and the
Tab from the Fixture Body (A). Remove the Styrofoam from inside of
the shade.
B. Place Glass Shade into the Cage, secure by place the Tab into the
Cage press on the Glass Shade.
C. Set the Cage with Glass Shade into the Cap on the Fixture Body (A),
secure by threading the Lock Screw into the Cap, tighten until sung.
Figure 3
Figure 1
Mounting
Ball
Mounting
Screw
Hex Nut and
Lock Washer
STEP 2 Install Inner Backplate-
A. Pass the supply wires through the Crossbar Assembly (AA). Attach
the Crossbar Assembly (AA) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug.
Supply Wires with
Ground Wire
B
Outlet Box Screws
(not included)
Outlet Box
Figure 2
STEP 3 Fit Fixture Body to
Crossbar Assembly
-
A. Remove mounting balls from the
Crossbar Assembly (B). Fit the
Fixture Body (A) Crossbar
Assembly (B) and secure with
mounting balls. Note: The
backplate of the Fixture Body (A)
should be snug against the wall
surface and the mounting balls. If
not, adjust the length of the nipple
on the Crossbar Assembly (B) by
unscrewing the preassembled hex
nut and lock washer and then
screwing the mounting screws in or
out of the crossbar until the correct
length is achieved. Once the
backplate of the Fixture Body (A) is
secure, remove the mounting ball
and Fixture Body (A) and proceed
to Step 4.
B
A
BCrossbar Assembly
x1
Fixture
Body
x1
A
Fixture Body
Cage
Tab
Glass Shade
Lock Screw
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Bulb Recommended: (3) Candelabra Base 60W Maximum,Alternate bulb (3) 13W CFL
Estimated Assembly Time: 30-45 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Fixture can only be mounted in the direction indicated on page 2.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
STEP 4 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
Installation Instructions: UQL1102
www.urbanambiance.com

2of2
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION REQ.
NO.
1
Figure 5
STEP 5 Install Fixture Body-
A. Carefully tuck all wires into the outlet
box and position the backplate of
fixture body (A) over the outlet box.
Align the holes in the backplate with
the mounting screws. Place caulk (not
supplied) into the previously removed
mounting balls and then attach fixture
body (A) using the mounting balls.
Hand tighten until snug.
Figure 6
STEP 6 -Install Bulb
A. This fixture uses candelabra bulb with a
candelabra screw base. Maximum 60
watts.
B. Insert bulb and screw snugly into place.
Bulb
Figure 7
STEP 7 -Apply Silicone Sealer
A. Make sure exterior wall surface
and fixture backplate are free of
dirt before applying caulk. Using
exterior grade caulk, caulk over
top of backplate and down other
side. Do not caulk bottom of
fixture backplate to ensure proper
moisture drainage.
Your fixture is now assembled and
ready to use. Enjoy!
Backplate
Fixture can only be
mounted in the
direction indicated
Socket
Exterior
Grade
Caulk
Mounting
Ball
Mounting
Screw
B
A
(3)
(Not Supplied)
60W Candelabra
base bulbs
8”
5.5”
10” 9” Dia.
14.5”
UQL1102SH GLASS CLEAR SEEDY 1
1
Figure 4
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
SKU: UQL1102
