STS Mars 1210 User manual

Mars 1210 moving beam
User Manual
Ver1.0

1
Table of contents
INTRODUCTION ……………………………………………….…………………………..2
SAFETY INSTRUCTIONS…………………………………………………………………2
OPERATING DETERMINATIONS…………………………………………….…………..3
DESCRIPTION OF THE DEVICE…………………………………………………………4
INSTALLATION………………………………………………………………….…………..5
OPERATION……………………………………………………………………….………...6
Stand alone operation…………………………………………………………….…………6
Master slave operation…………………………………………………………….……..…6
DMX controlled operation………………………………………………………….…….…6
Addressing…………………………………………………………………………….…..…6
Control board………………………………………………………………………….…..…6
DMX protocol………………………………………………………………………….…..…7
TECHNICAL SPECIFICATIONS…………………………………………………….……7

2
Every person involved with installation. operation and maintenance of this fixture has to
- be qualified
- follow the instruction of this manual
- consider this manual to be part of the total product
- Keep this manual for the entire service life of the product
- pass this manual to every future owner or use of the product
INTRODUCTION
Thank you for choosing our fixture, if you follow up the instruction given in this manual we be sure that
you will enjoy this product for a long period of time
SAFETY INSTRUCTION
This device has left our premises in absolutely perfect condition .In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instruction and
warning notes written in this user manual. Important: Damages caused by the disregard of this user
manual are not subject o warranty, the dealer will not accept liability for any resulting defects of problem.
If the device had been exposed to drastic temperature fluctuation (e.g. after transportation),do not
switch it on immediately. The arising condensation water might damage your device. Leave the device
switched off until it had reached room temperature. Please make sure that there are no obvious
transport damages, should you notice any damages on the AC connection cable or on the casing, do
not take the device into operation and immediately consult your local dealer.
The device falls under protection-class. The power plug must only be plugged into a protection class I
outlet. The voltage and frequency must exactly be the same as stated on the device. Wrong voltages or
power outlets can lead to the destruction of the device and mortal electrical shock.Always plug in the
power plug last. The power plug must always be inserted without force .Make sure that the plug is tightly
CAUTION!
Be careful with your operations, With a dangerous voltage you can suffer a dangerous electric
shock when touching the wires.
CAUTION !
Keep this device away from rain and moisture
Unplug mains lead before opening the housing
For your own safety, please read this user manual carefully before you initially start-up

3
connected with the outlet.Never let the power-cord come into contact with other cables! Handle the
power-cord and all connections with the mains with particular caution! Never touch them with wet
hands .as this could lead to mortal electrical shock. Never modify, bend, strain mechanically, put
pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard
can lead to power cord damages, fire or mortal electrical shock.The cable insert or the female part in the
device must never be strained. There must always be sufficient cable to the device. Otherwise, the
cable may be damaged which may lead to mortal electrical shock. Make sure that the power-cord is
never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.If
extension cords are used, make sure that the core diameter is sufficient for the required power
consumption of the device. All warnings concerning the power cords are also valid for possible
extension cords.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord. Otherwise, the cable or plug
can be damaged leading to mortal electrical shock. If the power plug or the power switch is not
accessible, the device must be the disconnected via the mains. If the power plug or the device is dusty,
the device must be take out of operation, disconnected and then be cleaned with a dry cloth, Dust can
reduce the insulation which may lead to mortal electrical shock. More severe dirt in and at the device
should only be removed by a specialist. There must never enter any liquid into power outlets, extension
cords or any holes in the housing of the device. If you suppose that also a minimal amount of liquid may
have exerted the device it must immediately be disconnected. This is also valid, if the device was
exposed to high humidity. Also if the device is still running, the device must be checking by a specialist if
the liquid has reduced any insulation. Reduced insulation can cause mortal electrical shock. There must
never be any objects entering into the device. This is especially valid for metal parts. If any metal parts
like staples or coarse metal chips enter into the device, the device must be taken out of operation and
disconnected immediately. Malfunction or short-circuits caused by metal parts my cause mortal injuries.
Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially
meant for epileptics)Keep away children and amateurs. Never leave this device running unattended.
OPERATING DETERMINATIONS
This device is designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects. Do not shake the device. Avoid brute force when
installing or operation the device. Never lift the fixture by holding it at the projector-head. As the
mechanics may be damaged.When choosing the installation-spot, please make sure that the device is
not exposed to extreme heat, moisture or dust. There should not be any cable lying around. Please
make sure that the fixture can not be touched or bumped. Your endanger your own and the safety of
others. This device must never be operated or stockpiled in surroundings’ where splash water, rain,
moisture or fog may harm the device. Moisture or very high humidity can reduce the insulation and lead
to mortal electrical shocks. When using smoking machines, make sure that the device is never exposed
to the direct smoke jet and is installed in a distance of 0.5 meters between smoke machine and device.
The room must only be saturated with an amount of smoke that the visibility will always be more then 10
The ambient temperature must always be between -50C and + 450C. keep away from direct
insulation(particularly in cars)and heaters .The relative humidity must not exceed 50% with an ambient
temperature of 450C. This device must only be operated in an altitude between -20 and 2000m over NN.

4
Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect
the device during thunderstorms.The Symbol determines the minimum distance from lighted objects.
The minimum distance between light output and the illuminated surface must be more then this value.
The device must only be installed on a non-flammable surface, In order to safeguard sufficient
ventilation, leave 50 cm of free space around the device.
The housing must never touch surrounding surfaces or objects. Make sure that the area below the
installation place is blocked when rigging, dragging or servicing the fixture. For overhead use (mounting
height>100cm), always fix the fixture with an appropriate safety-rope. Fix the safety-rope at the correct
fixation points only. The safety-rope must never be fixed at the transport handles. Only operate the
fixture after having check that the housing is firmly closed and all screw are tightly fastened. The
maximum ambient temperature Ta=450C must never be exceeded. Operate the device only after having
become familiarized with its functions. Do not permit operation by persons not qualified for operating the
device. Most damages are the result of unprofessional operation. Please use the original packaging if
the device is to be transported. Please consider that unauthorized modifications on the device are
forbidden due to safety reasons! Never remove the serial barcode from the device as this would make
the guarantee void. If this device will be operated in any way different to the one described in this
manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other
operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
DESCRIPTION OF THE DEVICE
Features
> 12pcs 10w CREE Quadcolor LEDs with RGBW colors
>Compact lightweight Narrow beam angle
>Positioning within 630°PAN and 200°TILT
>Stepless RGBW color changing
>Different dimmer speeds (step response) adjustable
>Masterdimmer
>8 internal programs can be called up via Control board
>Color-macro-function for an easy selection of possible color-combinations
>Strobe effect with 1-18 flashes per second
>Random strobe effect
>Exact positioning via 16 bit PAN/TILT movement resolution
>Automatic position correction
>DMX-controlled operation or stand-alone operation with Master/Slave function
>Sound-control via built-in microphone
>Control board with graphic LCD display for adjusting the DMX-starting address, PAN/TILT reverse,
program, reset, operating hours
>Switch-mode power supply
>Automatic power supply adaption between 100 and 240 Volts without power selector
>DMX control via every standard DMX controller
INSTALLATION
Rigging
The installation of the projector has to be built and constructed in a way that it can hold 10 times the

5
weight for 1 hour without any harming deformation.
IMPORTANT!OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating
working load limits, installation material being used, and periodic safety inspection of all installation
material and the projector. If you lack these qualifications, do not attempt the installation yourself, but
instead use a professional structural rigger. Improper installation can result in bodily injury and or
damage to property. The projector had to be installed out of the reach of people
DANGER OF FIRE! When installing the device, make sure there is no highly-inflammable
material(decoration articles, etc.)within a distance of min.0.5m.

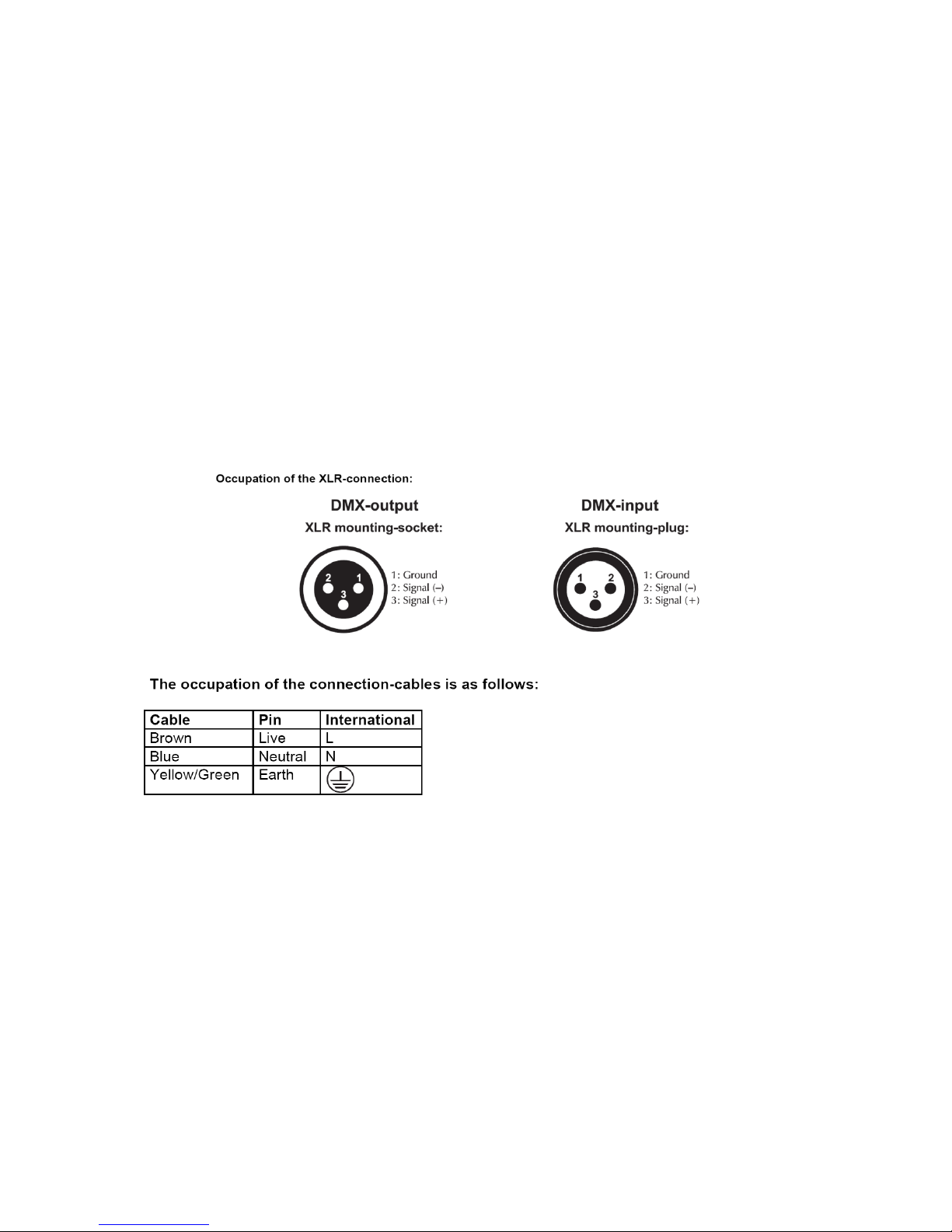

DMX 512 connection/ connection between fixture
The wires must not come into contact with each other, otherwise the fixture will not work at all or
properly. Please note the starting address depends upon which controller is being used. Only use a
DMX cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one
fixture to another
Connection with the mains.
The earth has to be connected. The device must only be connected with an electric installation carried
out in compliance with IEC standards.
OPERATION
After you connected the effect to the mains, The fixture starts running
Stand Alone operation
In the stand alone mode, the fixture can be use without controller
Master/slave-operation
The master/slave-operation enables that several devices can be synchronized and controlled by one
master-device
DMX controlled operation
You can control the projectors individually via your DMX-controller
Addressing
The control board allows you to assign the DMX starting address,

6
Note;it’s necessary to insert the XLR termination plug (with 120ohm) in the last device in the link in order
to ensure proper transmission on the DMX data link.

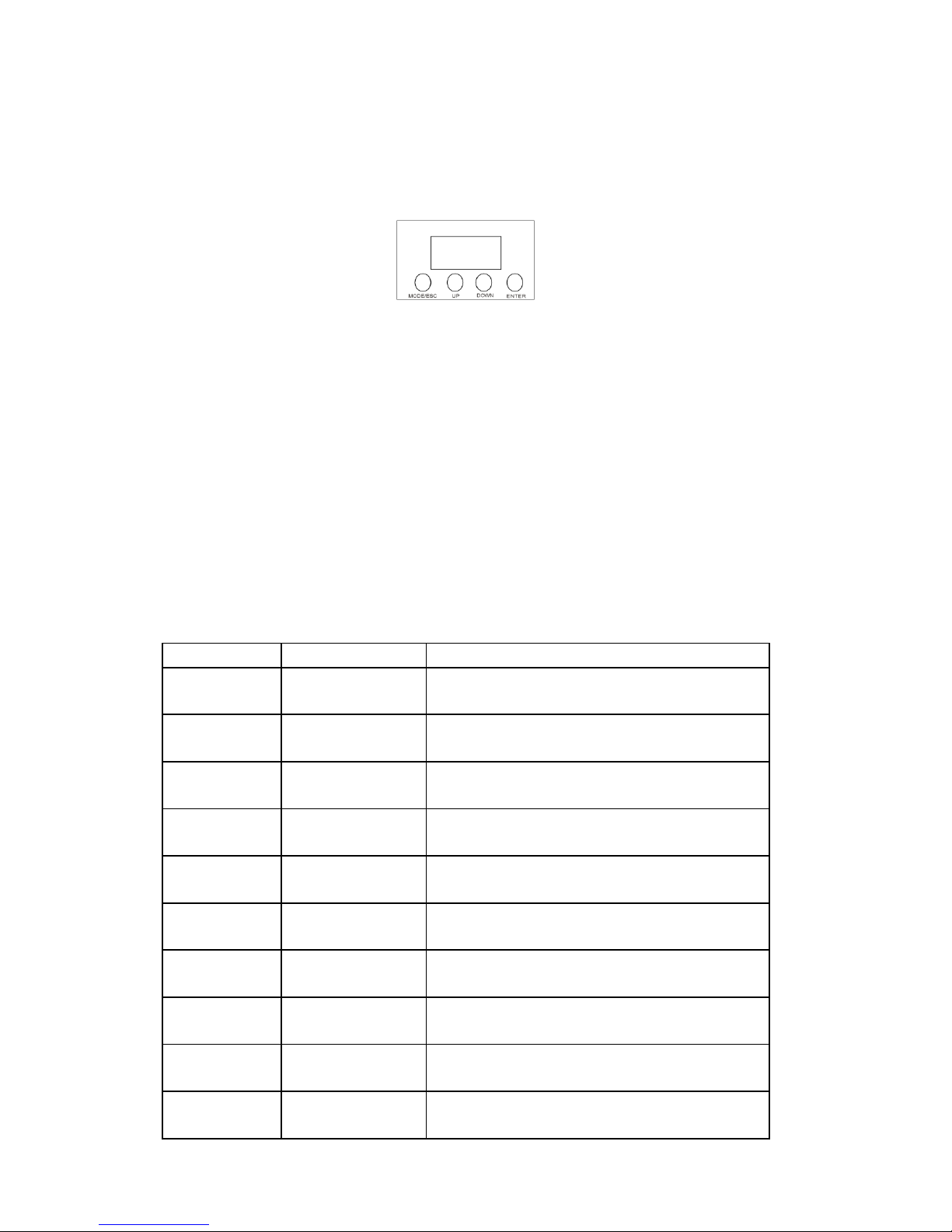

CONTROL BO AR D
The control board offer several features :you can simple set the starting address, run the
pre-programmed program or make a reset
he main menu is accessed by pressing the Mode/Esc-button, Browse through the submenu by pressing
Up or Down .Press the Enter-button in order to select the desired menu. You can change the selection
by pressing Up or Down, Confirm every selection by pressing the Enter-button. You can leave every
mode by pressing the Mode/Esc-button .The functions provided are described in the following setting.
MENU M A P
DMX Address (DMX address 001-512)
Mode (DMX mode 11/15 ch, Auto mode1~8,sound mode)
TEST mode (X,Y,Red,Green,Blue,White)
Language (Chinese,English,)
Setting (ID code0-25,X reverse,Y reverse,Fade delay,dmx singal,endcode,temperature
Protection,Temperature,fans seepd,screen protection,screen reverse, factory reset, rest motor,
System info (running time, total running time, software version, run mode, address, temperature
DMX- pr o toc ol
Channel
Value
Function
1
0-255
Dimmer
0-100% dimmer
2
0-255
Red
0-100% Red
3
0-255
Green
0-100% Green
4
0-255
Blue
0-100% Blue
5
0-255
White
0-100% White
6
0-255
Built-in Dimmer
Built-in dimmer 0-100%
7
0-255
Pan Movement
Pan movement
8
0-255
Tilt Movement
Tilt movement
9
0-255
Pan Fine
Pan fine
10
0-255
Tilt Fine
Tilt fine

7
11
0-255
Pan/Tilt speed
Pan/ Tilt speed
12
0-255
Strobe
Strobe from fast to slowly
13
0
1-25
26-50
51-90
91-130
.131-170
171-210
211-250
251-255
Built in Program
No function
Switch on control relay
Switch off control relay
Select build-in color
Color change in pulse
Color change in random
Color change in fade
Built in mode 1
Sound control
14
0
1-20
21-40
41-60
61-80
81-100
101-120
121-140
141-160
141-170
171-200
201-205
206-210
211-215
216-220
221-225
226-230
231-235
236-240
241-245
246-250
251-255
Color change
No function
R255 G↑B0 W0
R↓G255 B0 W0
R0 G255 B↑W0
R0 G↓B255 W0
R↑G0 B255 W0
R255 G0 B↓W0
R255 G↑B↑W0
R↓G↓B255 W0
R255 G255 B255 W255
R0 G0 B0 W0
R242 G204 B5 W227
R242 G215 B5 W227
R255 G255 B50 W255
R255 G255 B90 W255
R255 G255 B118 W255
R255 G255 B132 W255
R255 G255 B151 W255
R255 G255 B171 W255
R255 G255 B185 W255
R255 G255 B197 W255
R255 G255 B234 W255
15
0-9
10-255
Built-in Program
No function
ID 1~25
TECHNICIAL SPECIFICATIONS
Model
Mars 1210 moving beam
Voltage
110V- 250V / 50-60Hz
Power consumption:
150W

8
LED
12pcs 10w CREE RGBW high power leds
Gross Weight
6.3Kgs
Dimensions
370(H) x 340(W) x 230(L) mm
