ETC Irideon WLZ User manual

Irideon WLZ
User Manual
Version 1.0.1
Part Number: 7192M1200-1.0.1 Rev G
Released: 2021-10

To view a list of ETCtrademarks and patents, go to
etcconnect.com/ip. All other trademarks, both marked and not
marked, are the property of their respective owners.
ETC intends this document, whether printed or electronic, to be
provided in its entirety.

Table of Contents
Irideon WLZ User Manual i
Introduction 1
Safety 2
Installation 4
Install Track-Mounted Fixture 4
Install Canopy Fixture (DMX Variant) 5
Install Canopy Fixture (0–10 V and DALI
Variants) 11
Install Portable Fixture with C-clamp 13
Install Portable Fixture on Unistrut Track 15
Connect Cables to Portable Fixture 15
Configuration 16
Set the DMX Address at the Fixture 16
Adjust the Local Intensity 18
Initial Power Up 19
Status LED 19
RDM Values 20
Focus and Setup 20
Adjust the Tilt 20

Adjust the Field 20
Use the Barn Door Accessory 21
Use the Integrated MediaHolder 21
Cleaning 23
ii Irideon WLZ User Manual

Irideon WLZ User Manual 1
Introduction
The Irideon WLZ is a compact but powerful LED wash light. It incorporates
many of the great features of its companion fixture, the Irideon FPZ,
including local and DMX control, adjustable zoom, and sleek design.

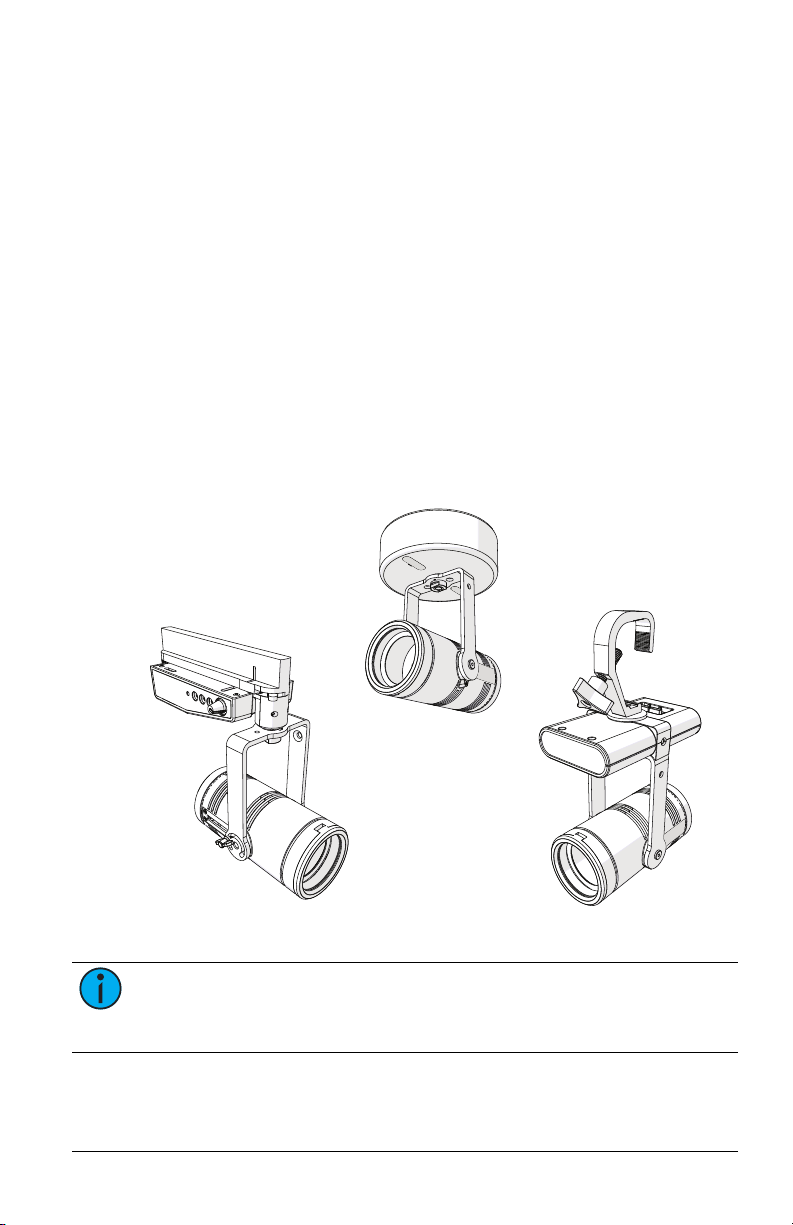

The Irideon WLZ has three available mounting options:
•
Track-mount: For use with the DataTrack track system.
•
Portable: Includes a miniature C-clamp and yoke-mounted driver,
and has a permanently installed power cord with 3-prong Edison
connector. Region-specific connectors are available. Contact ETC
for available options. Use L5-15 plugs on branch circuits with
L5-15 receptacles only.
•
Canopy: Available in three different control variants:
-
0–10 V
-
DALI
-
DMX
Canopy
PortableTrack-mount
Note: The miniature C-clamp for the portable fixture is available
only in non-EU markets. Within the EU, use an M12 bolt to secure
a clamp (provided separately) to the fixture.

2 Irideon WLZ User Manual
Yoke
Wide/narrow
field adjustment
Integrated
media holder
(Illustration shows fixture body only)
Safety
WARNING: Note the following safety warnings before use:
•
Use the fixture in dry locations only, where humidity
does not exceed 90 percent (non-condensing).
•
Do not mount the fixture on or near a flammable
surface.
•
Check that the accessory holder is locked before
mounting the fixture.
•
Do not operate the fixture without a lens installed.
•
Do not use this fixture if a lens is deeply scratched or
cracked. You must replace a lens when it is damaged.
AVERTISSEMENT : Prendre connaissance des avertissements
de sécurité suivants avant toute utilisation :
•
Ne pas installer le projecteur sur ou à côté d’une surface
inflammable.
•
Vérifiez que le porte-accessoires est verrouillé avant de
monter le projecteur.
•
N’utilisez pas le projecteur sans que la lentille soit
installée.
•
N’utilisez pas ce projecteur si la lentille présente des
rayures ou des fissures profondes. Il faut remplacer la
lentille si elle est abîmée.

Irideon WLZ User Manual 3
IMPORTANT SAFEGUARDS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS
•
Keep lamp away from materials that may burn.
•
External temperature after 5 minutes of full-brightness
operation: 27°C (81°F).
•
External temperature when steady state is achieved: 50°C (122°F).
SAVE THESE INSTRUCTIONS
Canopy Fixture
WARNING: RISK OF ELECTRIC SHOCK! Power must be off
when you perform this procedure.
The fixture must be installed by a qualified electrician in
accordance with all national and local electrical and
construction codes and regulations.
AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE!
L'alimentation doit étre éteinte avant d'exécuter cette
procédure.
Track-Mount Fixture
WARNING: To reduce the risk of fire and electric shock, use
the track-mount fixture only with the DataTrack (EUTRAC)
track system.
AVERTISSEMENT : Pour éviter le risque d'incendie ou de
choc électrique avec le modèle adaptateur pour rail, utiliser
uniquement avec une alimentation par rail DataTrack
(EUTRAC).
WARNING: Use the track-mount fixture with ceiling-
mounted track only.

4 Irideon WLZ User Manual
Installation
Circuit
selection lock
Locking
mechanism
Install Track-
Mounted Fixture
1. Insert the DataTrack
adapter into the track. The
adapter only fits into the
track one way with the
tabs nesting into the
track’s groove.
2. Rotate the locking
mechanism to lock the
adapter into place.
WARNING: When using the circuit selection lock, ensure that
the selected circuit is a constant power circuit. Dialing into a
dimmable circuit may cause fixture damage that will void the
ETC warranty.
3. Use the circuit selection lock to select the circuit. The desired circuit
number should point toward the center of the adapter.

Irideon WLZ User Manual 5
Install Canopy Fixture (DMX Variant)
Note: The canopy fixture can be installed directly on 4in and
4-11/16in back boxes, or on back boxes with round cover plates.
The canopy fixture cannot be installed on 1-gang back boxes or
trim rings.

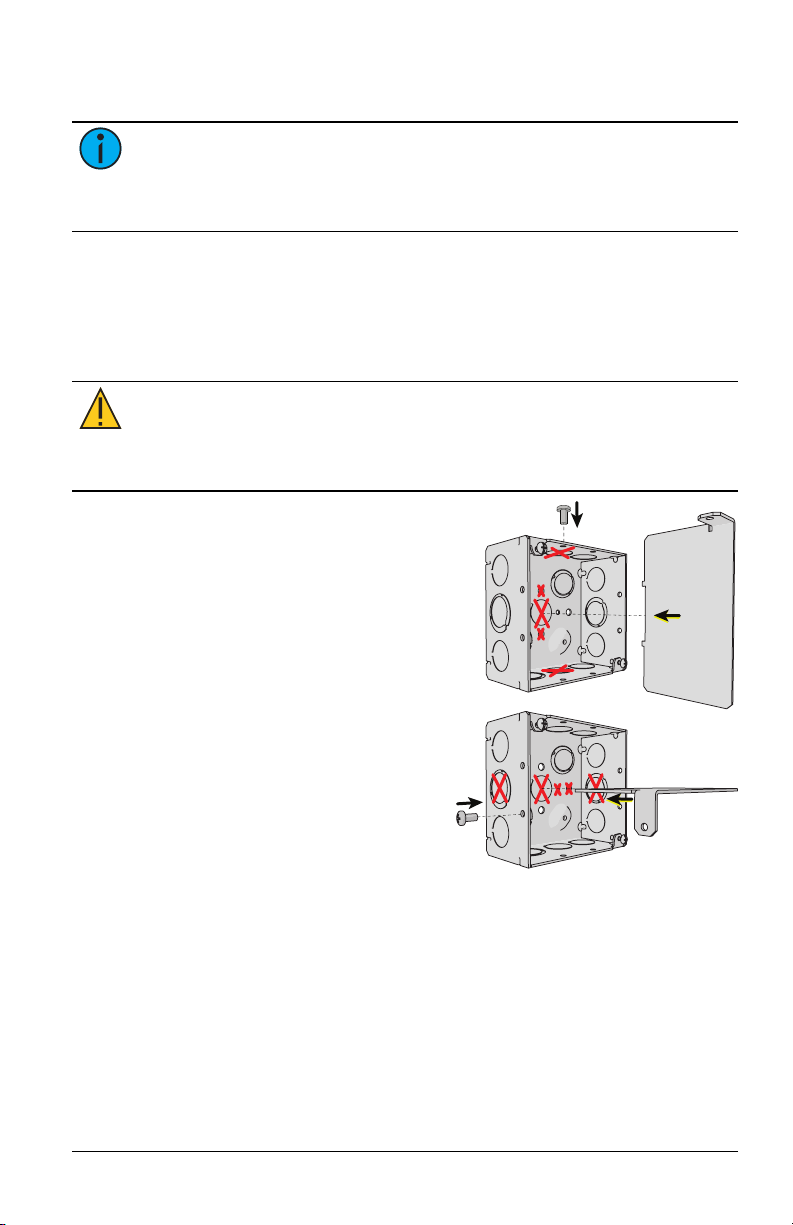

Install the Voltage Barrier (DMX Variant)
The DMX variant of the canopy fixture includes a voltage barrier to
separate the data network from the line voltage inside the back box.
Voltage barriers are provided for both 4in and 4-11/16in back boxes.
CAUTION: DMX control is a Class 2 circuit. DMX wiring cannot
be run through the same conduit as line voltage power-supply
conductors. Separate the line voltage from the data side in
the back box. Install the voltage barrier provided by ETC.
Install the voltage barrier in the back
box with the provided bolt (see
images at right, showing a 4in back
box). The voltage barrier blocks two
or more through holes in the back of
the junction box, depending on how
it is oriented, plus the center
conduit knockout in the back of the
junction box and the center
knockouts on two sides of the
junction box. The blocked holes and
knockouts are marked with "X" in
the illustration to the right.

6 Irideon WLZ User Manual
Connect Canopy Wiring (DMX Variant)
Cable preparation instructions for DMX termination are included in the
termination kits, and are also available for download at etcconnect.com.
1. Remove the adhesive tape or fasteners securing the mounting plate
to the fixture to free the mounting plate from the canopy
enclosure.
WARNING: RISK OF ELECTRIC SHOCK! Install the cover plate
as directed below for installations where the interior of the
canopy enclosure could be exposed after installation with only
the mounting plate. For example, install the cover plate when
installing to a surface-mount back box.
AVERTISSEMENT : Installez la plaque de protection comme
indiqué ci-dessous pour les installations où l'intérieur de la
rosace de plafond pourrait être exposé après l'installation
avec uniquement la plaque de montage. Par exemple, installez
la plaque de protection lors de l'installation sur un boîtier
arrière à montage en surface.

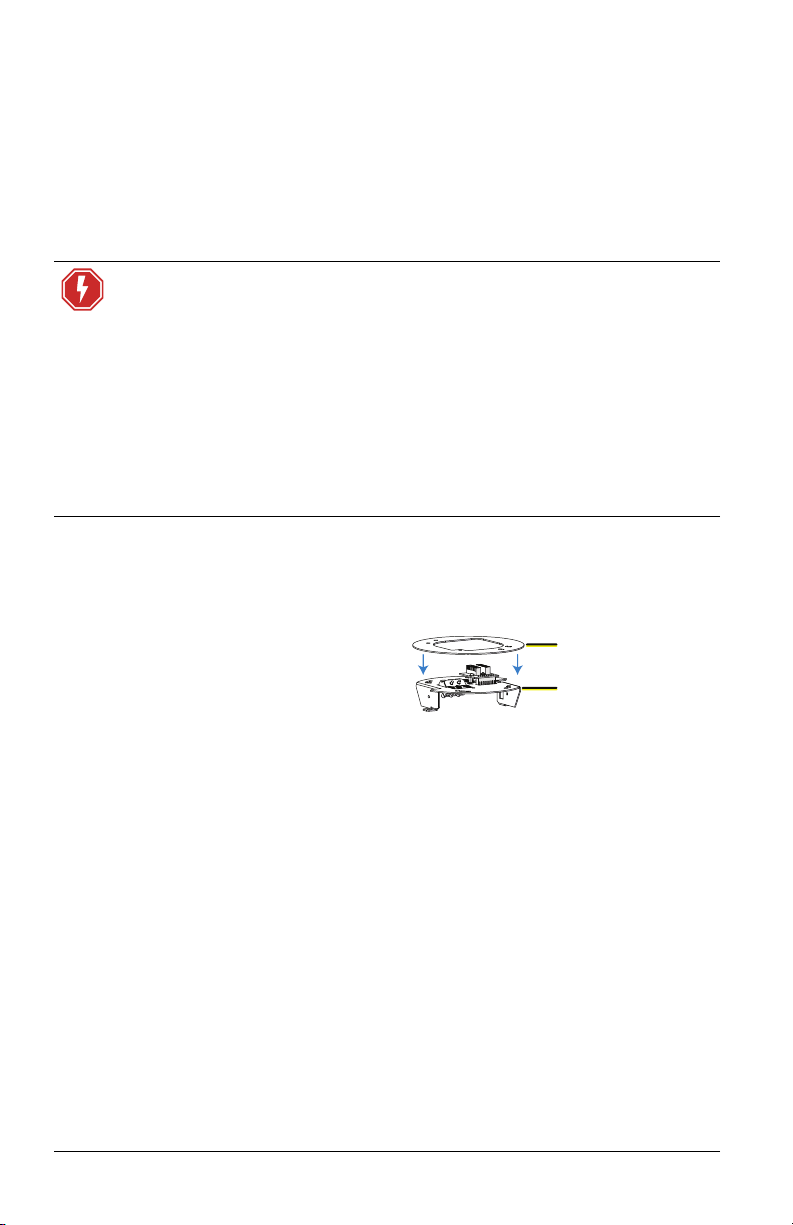

2. Are you flush-mounting the fixture or surface-mounting the
fixture?
•
Flush-mounting: Continue to step 3.
•
Cover plate (if needed
for surface-mounting)
Mounting plate
Surface-mounting:
Position the cover plate
on top of the mounting
plate before wiring the
fixture. The cover plate is
required when the interior of the canopy enclosure could be
exposed after installation with only the mounting plate (the
mounting surface is smaller than the canopy enclosure).
3. Terminate DMX/RDM input from the control source to the back
box.

Irideon WLZ User Manual 7

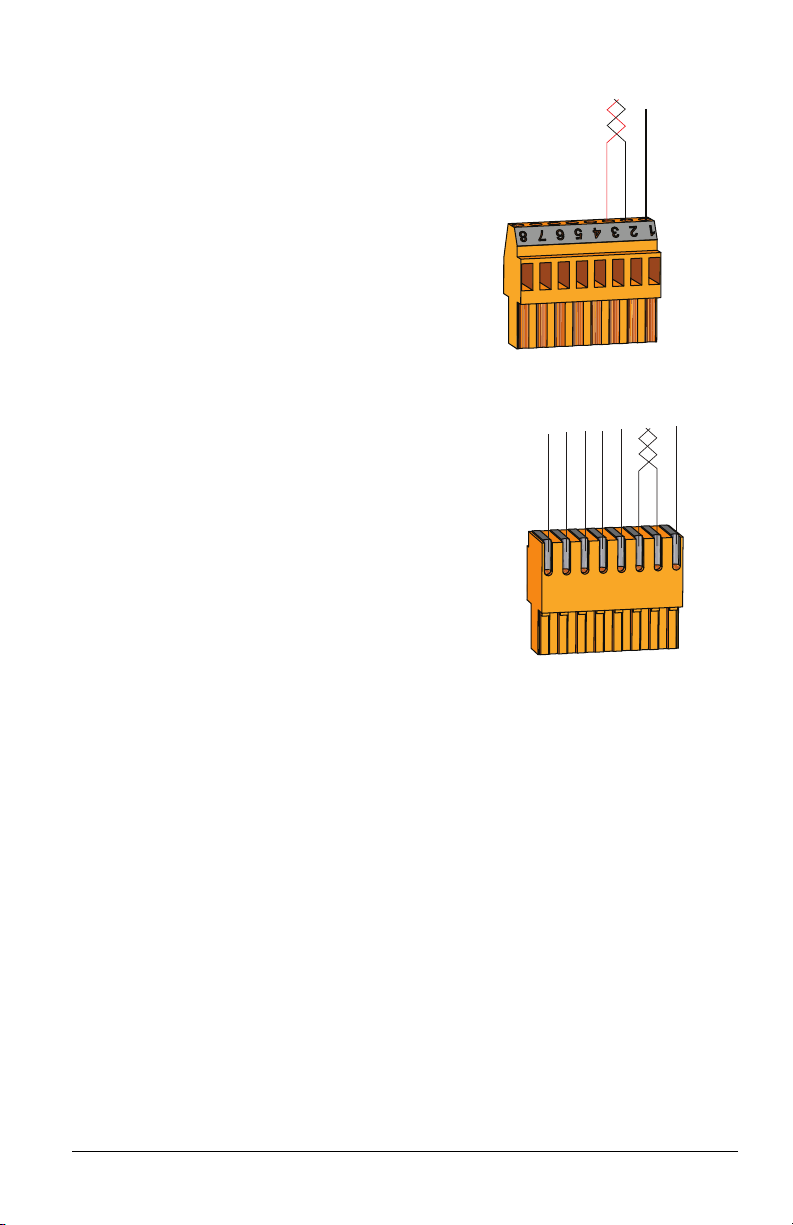

From a DMX/RDM source
Data – (Black)
Data + (Red)
Belden 9729 (or equivalent) wire
termination to screw connector
4 to 8 = n/c
COM
If using Belden 9729:
a. See the DMX Cable
Preparation for Screw
Termination Setup Guide for
instructions to prepare and
terminate Belden 9729 for
DMX input cable to the screw
terminal connector.
b. Install the screw terminal
connector with wires
terminated to the DMX/RDM
Input receptacle on the
termination board.
Data – (ORG)
Data + (W/ORG)
Cat5 (or equivalent) wire
termination to IDC connector
COM
BRN
GRN
W/GRN
BLU
W/BLU
If using Category 5:
a. See the Cat5 Cable Preparation
for IDC Termination Setup
Guide for instructions to
prepare and terminate
Category5 for DMX/RDM input
cable to the insulation
displacement connector.
b. Install the IDC connector with
wires terminated to the
DMX/RDM Input receptacle on
the termination board.
4. Optionally, terminate DMX/RDM thru to the next device in the DMX
data run. Up to 32 DMX/RDM devices can be daisy-chained
together per data run.
a. See the specific termination setup guide for the type of cable
used (either Belden 9729 or Category 5) in the installation.
Termination kits are ordered separately.
b. Install the connector with wires terminated to the DMX/RDM
Thru receptacle on the termination board.

8 Irideon WLZ User Manual

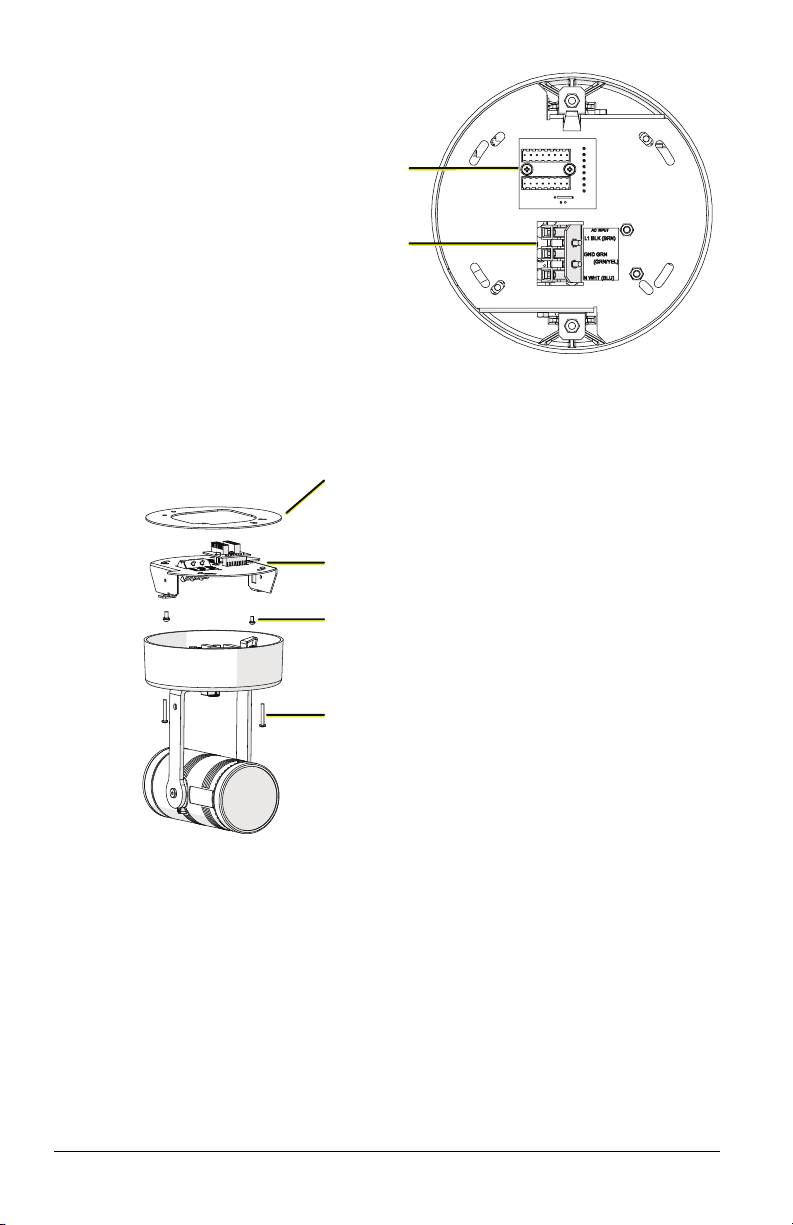

5.
DMX
termination
board
Power
block
Connect the
building ground
wire to the power
block on the
fixture.
6. Following the
label on the
mounting plate,
attach the power
wires to the power
block.
Install the
Mounting Plate and Complete the Wiring
(DMX Variant)
1.
Cover plate
(if needed
for surface-
mounting)
Mounting
plate
Mounting
plate bolts
Canopy
bolts
Secure the mounting plate (or
the combination of mounting
plate and cover plate for
surface-mounting) to the
installed back box, positioning
the plate so that the power side
and data side are separated by
the voltage barrier in the back
box. See Install the Voltage
Barrier (DMX Variant) on
page5 .

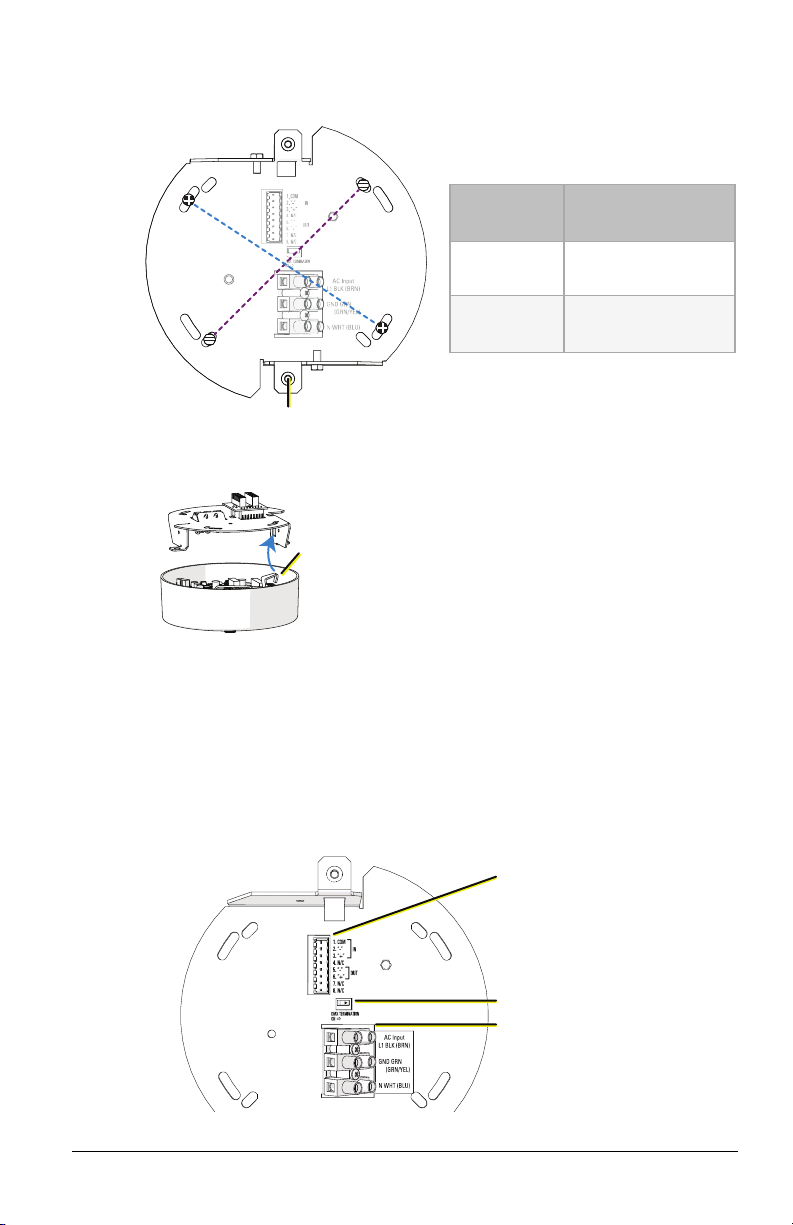

Irideon WLZ User Manual 9
1
1
2
2
Mounting plate
(DMX variant)
Canopy
bolt hole
For this
structure...
...secure mounting
plate using:
4-11/16in
backbox
Large oval slots
(see1atleft)
4in backbox Small oval slots
(see2atleft)
2.
Hook
Use the hook in the canopy enclosure to
hang the fixture from the mounting plate
while you complete the fixture wiring.
3. If desired, manually set the DMX address
on the fixture using the three addressing
dials in the canopy. See Set the DMX
Address at the Fixture on page16 .
4. Connect the pre-wired DMX connector on the fixture to the mated
connector on the mounting plate (shown below).
5. Terminate DMX/RDM data signal for the last DMX/RDM device in
the data run by setting the termination switch to ON (to the right,
as shown below). All other devices in the data run should retain
the default setting for the termination switch (OFF).
6. Following the label on the mounting plate, attach the power wires
to the power block.
ON
Mounting plate
DMX connector
Termination switch
Power block

10 Irideon WLZ User Manual
7. Use the canopy bolts to secure the
fixture to the mounting plate.
CAUTION: Make sure
that the wiring is clear of
the mounting plate
before you secure the
fixture.
Canopy
bolts
8.
Oval-shaped covers
Insert the oval-shaped covers into the
canopy enclosure to cover the canopy bolt
openings.
9. Restore power at the disconnect device.

Irideon WLZ User Manual 11
Install Canopy Fixture (0–10 V and DALI
Variants)
Note: The 0–10 V driver conforms to IEC 60929 Annex E. Of the
0–10 V range, use 0–1 V to set the minimum level, and use 1–10 V
for continuous dimming.
Note: The canopy fixture can be installed directly on 4in and
4-11/16in back boxes, or on back boxes with round cover plates.
The canopy fixture cannot be installed on 1-gang back boxes or
trim rings.
WARNING: RISK OF ELECTRIC SHOCK! Install the cover plate
as directed below for installations where the interior of the
canopy enclosure could be exposed after installation with only
the mounting plate. For example, install the cover plate when
installing to a surface-mount back box.
AVERTISSEMENT : Installez la plaque de protection comme
indiqué ci-dessous pour les installations où l'intérieur de la
rosace de plafond pourrait être exposé après l'installation
avec uniquement la plaque de montage. Par exemple, installez
la plaque de protection lors de l'installation sur un boîtier
arrière à montage en surface.
1.
Cover plate
(if needed
for surface-
mounting)
Mounting
plate
Mounting
plate bolts
Canopy
bolts
Remove the adhesive tape or
fasteners securing the
mounting plate to the fixture
to free the mounting plate
from the canopy enclosure.

12 Irideon WLZ User Manual
2. Are you flush-mounting the fixture or surface-mounting the
fixture?
•
Flush-mounting: Using the mounting plate bolts, secure the
mounting plate to the installed back box.
•
Surface-mounting: Position the cover plate on top of the
mounting plate before wiring the fixture. The cover plate is
required when the interior of the canopy enclosure could be
exposed after installation with only the mounting plate (the
mounting surface is smaller than the canopy enclosure).
1
1
2
2
Mounting plate
(0–10 V and DALI variants)
Canopy
bolt hole
3
3
For this
structure...
...secure mounting
plate using:
4-11/16in
backbox
Large oval slots
(see1atleft)
4in backbox Small oval slots
(see2atleft)
Mud ring and
round box
Circular slots
(see3atleft)
3.
Hook
Use the hook in the canopy enclosure to
hang the fixture from the mounting plate
while you complete the fixture wiring.
4. Connect the building ground wire to the
ground wire on the fixture, following
local electrical codes.
5. Connect the supply power wires to the fixture wiring using the
included WAGO®connectors.
•
For 120 V fixtures: Connect the black wire to line and the white
wire to neutral.
•
For 230 V fixtures: Connect the brown wire to line and the blue
wire to neutral.

Irideon WLZ User Manual 13
6. Connect the data wires to the fixture wiring using the included
WAGO connectors.
•
For 0–10 V fixtures: Connect the gray wire to data- and the
purple wire to data+.
•
For DALI fixtures: Connect the purple wires to data- and
data+.
7.
Canopy
bolts
Use the canopy bolts to secure the
fixture to the mounting plate.
8. Insert the oval-shaped covers into the
canopy enclosure to cover the canopy
bolt openings.
Oval-shaped covers
9. Restore power at the disconnect device.
Install Portable Fixture with C-clamp
The C-clamp attaches the fixture to the mounting pipe and allows you to
adjust the position of the fixture once it is mounted. The C-clamp will fit
a 3/4in to 2in pipe. Two different length pipe bolts are provided to
accommodate different pipe sizes.
Note: The miniature C-clamp for the portable fixture is available
only in non-EU markets. Within the EU, use an M12 bolt to secure
a clamp (provided separately) to the fixture.

14 Irideon WLZ User Manual

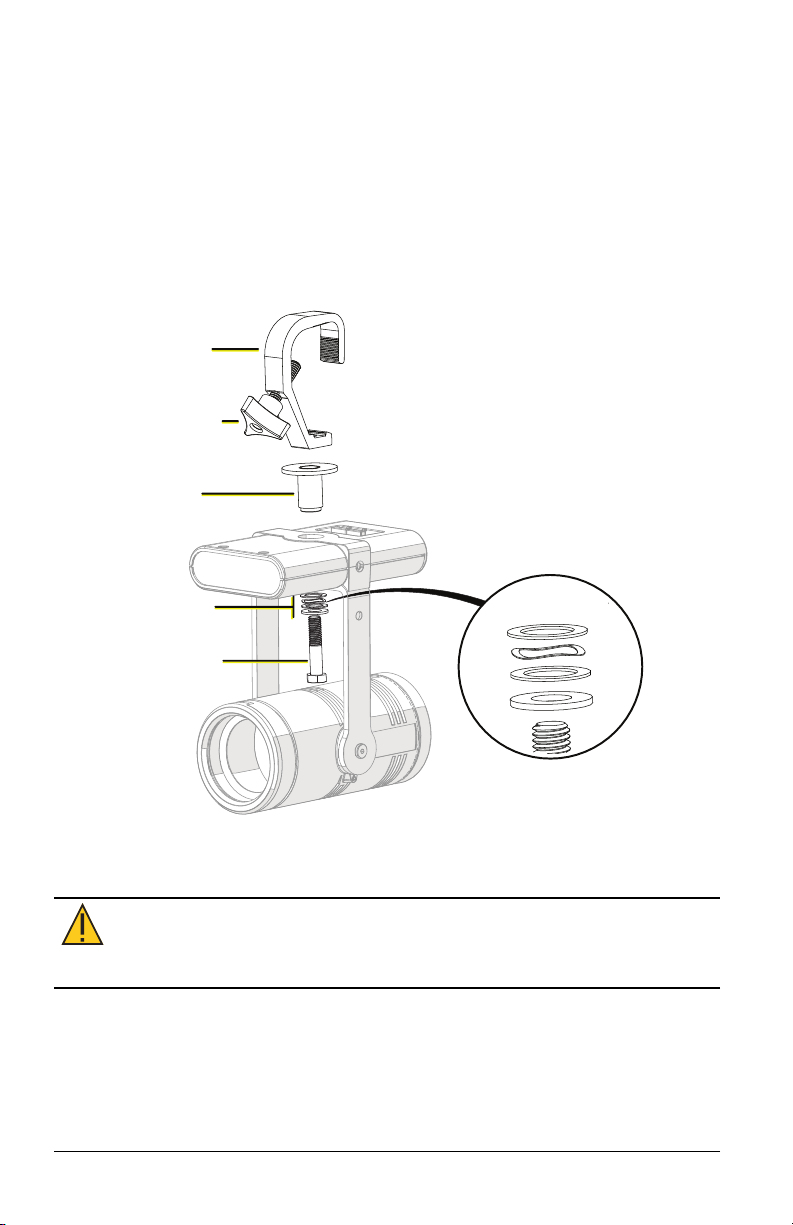

1. Insert the spacer into the driver box through the hole in the top of
the yoke.
2. Tightly fasten the C-clamp to the yoke with the provided yoke bolt
and washers.
3. Place the C-clamp on the mounting pipe, and then tighten the pipe
bolt to secure it. Use the standard pipe bolt to secure the fixture to
larger mounting pipes. If necessary, exchange the standard pipe
bolt for the longer pipe bolt (included) to secure the fixture to
smaller mounting pipes.
Detail view
of washers
C-clamp
Spacer
Washers
Yoke bolt
Yoke bolt
4. Loosen the C-clamp yoke bolt and rotate the yoke to the desired
position.
CAUTION: Tighten the C-clamp pipe bolt to about 18 in/lb
(approximately finger-tight plus up to one-quarter turn). Do
not use excessive force.
5. Tighten the bolt to lock the fixture position.

Irideon WLZ User Manual 15

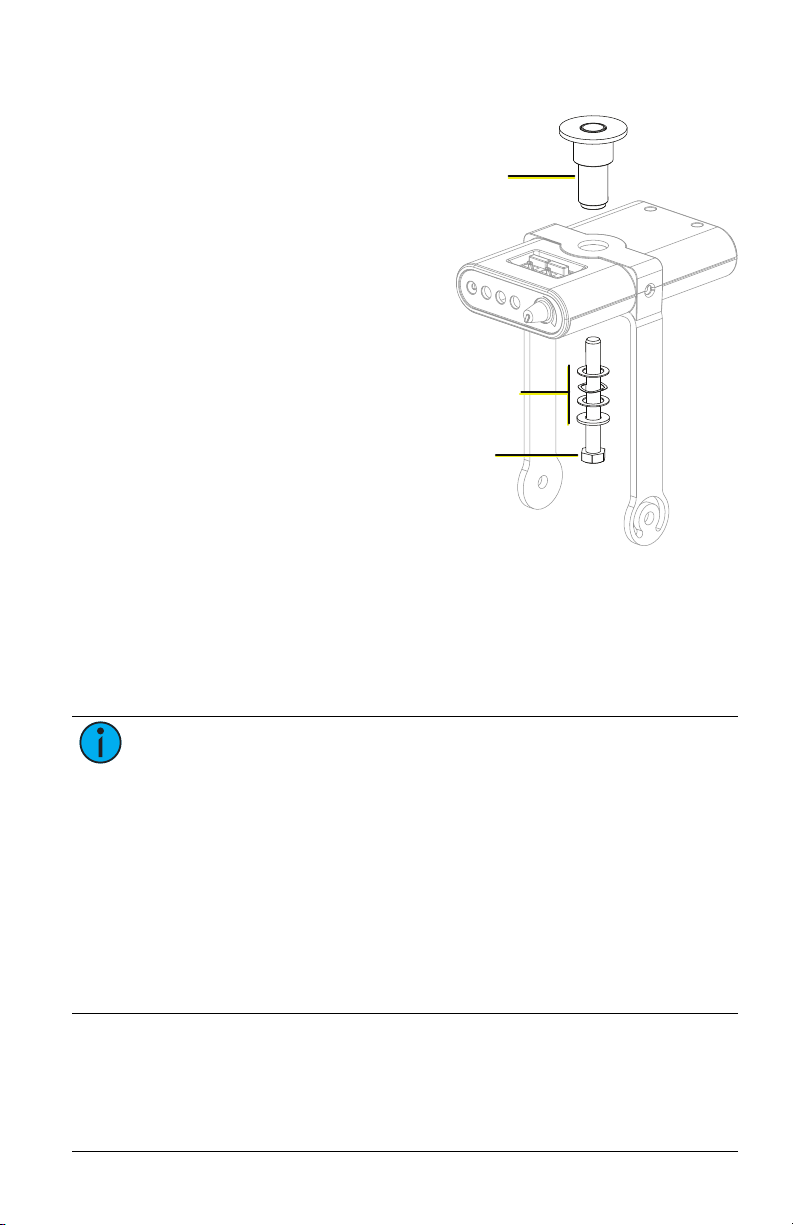

Install Portable Fixture on Unistrut Track
Spacer
Washers
Yoke
bolt
You can install the portable fixture
on Unistrut track using the Irideon
FPZ Unistrut Kit (7191K1000).
1. Insert the spacer into the
driver box through the hole
in the top of the yoke.
2. Use the yoke bolt and
washers to fasten the fixture
to the Unistrut track.
Within the EU, use an M12
bolt and appropriate washers
in place of the provided kit
hardware.
Connect Cables to
Portable Fixture
1. Connect RJ45 data cables to the top of the driver box, one for data
in and one for data thru (in either position), as needed.
•
To order RJ45-to-socket XLR adapter, use part number W6538.
•
To order RJ45-to-plug XLR adapter, use part number W6539.
2. Connect the fixture to the power source.
Note:
•
The Irideon WLZ is not self-terminating. You must terminate
the last fixture in line with a 120 Ohm resistor. Please
contact your ETC customer service representative to
purchase part number N4086.
•
No more than 32 DMX devices can be daisy-chained
together on a single run. For runs of fixtures totaling more
than 32 DMX devices, use a DMX splitter to split the DMX
runs.
•
When using DMX over Cat5, use Cat5e or better. Cable
distance must not exceed 300 m (1000 ft).
•
The Irideon WLZ cannot be controlled via network protocols
and should not be connected to a system network.

16 Irideon WLZ User Manual
Portable Fixture DMX Pinout
Pin Wire Color Description
1 White/Orange DMX1 +
2 Orange DMX1 -
3 White/Green DMX2 +
4 Blue Not Connected
5 White/Blue Not Connected
6 Green DMX2 -
7 White/Brown Iso Common
8 Brown Iso Common 2
Configuration
Set the DMX Address at the Fixture
You can set the DMX address using RDM, but you can also set the DMX
address on the fixture itself, if necessary. The fixture uses the last address
that you set, regardless of whether you set it via RDM or locally on the
fixture.
There are three addressing dials on the track adapter (track-mounted
fixture), in the canopy (canopy fixture), or on the driver box (portable
fixture). To set the DMX address, use a small flatblade screwdriver to
move the arrow to the desired address number.
DMX addresses must be set between 1 and 512. Each fixture must be
considered a separate DMX device for the purpose of DMX line-loading
calculations. The Irideon WLZ only has an intensity channel.
Note: When using RDM with track-mounted fixtures, ETC
recommends connecting no more than 20 fixtures on a single run.
