Sunhans SH-2500 User manual

If only have wireless router, signal coverage range is very
small, the second  oor will become very weak signal
When the wireless router connect to SUNHANS wireless
signal ampli er, the signal coverage range is very large,
on the second  oor of the signal becomes very strong.
www.sunhans.com
made in china
User Manual
P/N 2500WB24014

Operating Temperature
Operating Humidity
Material
Booster Weight
Package Weight
Booster Size
Package Size
-20°C to + 70°C
Up to 75% relative humidity
Cast Aluminum
145 g
380g
8.4 x 4.7 x 1.7cm
21 x 13.5 x 4.5cm
Connector Type
Input Power
Transmit Gain
Output Power
Receiver Gain
Noise Figure
Frequency Response
Power Adapter
Operating Mode
Bi-directional, half-duplex, time division duplex senses RF, carrier
from transmitter and automatically switch receiving to transmitting
mode
SMA Receptacle (50 ohm)
0 ~ 20 dBm
14-17dB
2500mW (34dBm)
≤ 12 dB
3.5 dB typical
±1dB over operating range
12V/2A DC, 100~240V for AC Adapter
Model Name
Operating Range
SH-2500
2400~2500 MHz
Sunhans’s family of Wi-Fi Signal Booster is designed for use in mobile and/or mesh
wireless networking applications. most consistent signal amplication available for Wi-Fi
networks. Designed for bi-directional signal amplication, In contrast, traditional analog
amplier technologies can go into saturation or reduce transmit power as input signal
uctuates, negatively impacting signal quality and network performance. While allowing
for the use of virtually any 2,4GHz antenna that implements an SMA-Male connector.
while the small footprint and low prole design makes it an ideal solution for mounting on
vehicles or in other space constrained applications.
The Sunhans’s 2.4GHz Inline Signal Booster efciently increases signal reach of any
antenna by up to 200%-400% while maintaining high data throughput rates. This signal
boosting functionality adds up to 16dB of transmit gain and 12dB of receive gain, resulting
in a farther reaching signal and better connectivity with client radios.results may vary
depending on environmental factors, interference, cable length and type, etc.
Features & Description

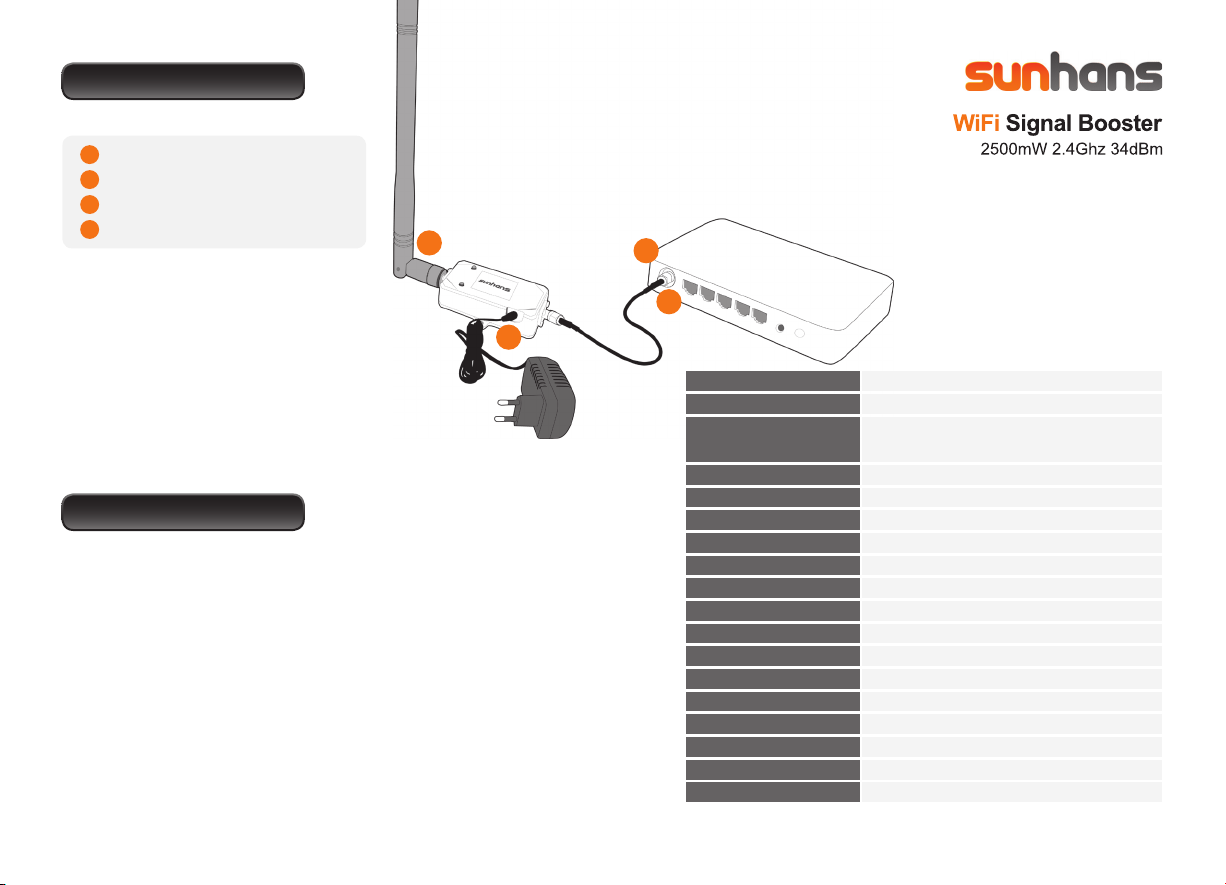

Installation Sketch Map
1
2
3
4
Remove antenna from AP Router
Connect Booster to AP Router with RG316 cable
Connect the antenna to the other end of booster
Plug in the power adapter
www.sunhans.com
Package Contents:
.1 X signal booster
.1 X power adapter
.1 X 20cm RG316 cable
.1 X 6dBi antenna
.1 x English user manual
1
2
4
3
