1D-Link DAP-1320 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Wireless Range Extender (DAP-1320)
Wi-Fi Conguration Note
Quick Install Guide

2D-Link DAP-1320 User Manual
Section 1 - Product Overview
Network Requirements • IEEE 802.11n or 802.11g wireless clients
• IEEE 802.11n or 802.11g wireless router or access point
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
Browser Requirements:
• Internet Explorer 6 or higher
• Safari 4 or higher
• Firefox
• Chrome
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
System Requirements

3D-Link DAP-1320 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless device lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link device and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.

4D-Link DAP-1320 User Manual
Section 1 - Product Overview
Introduction

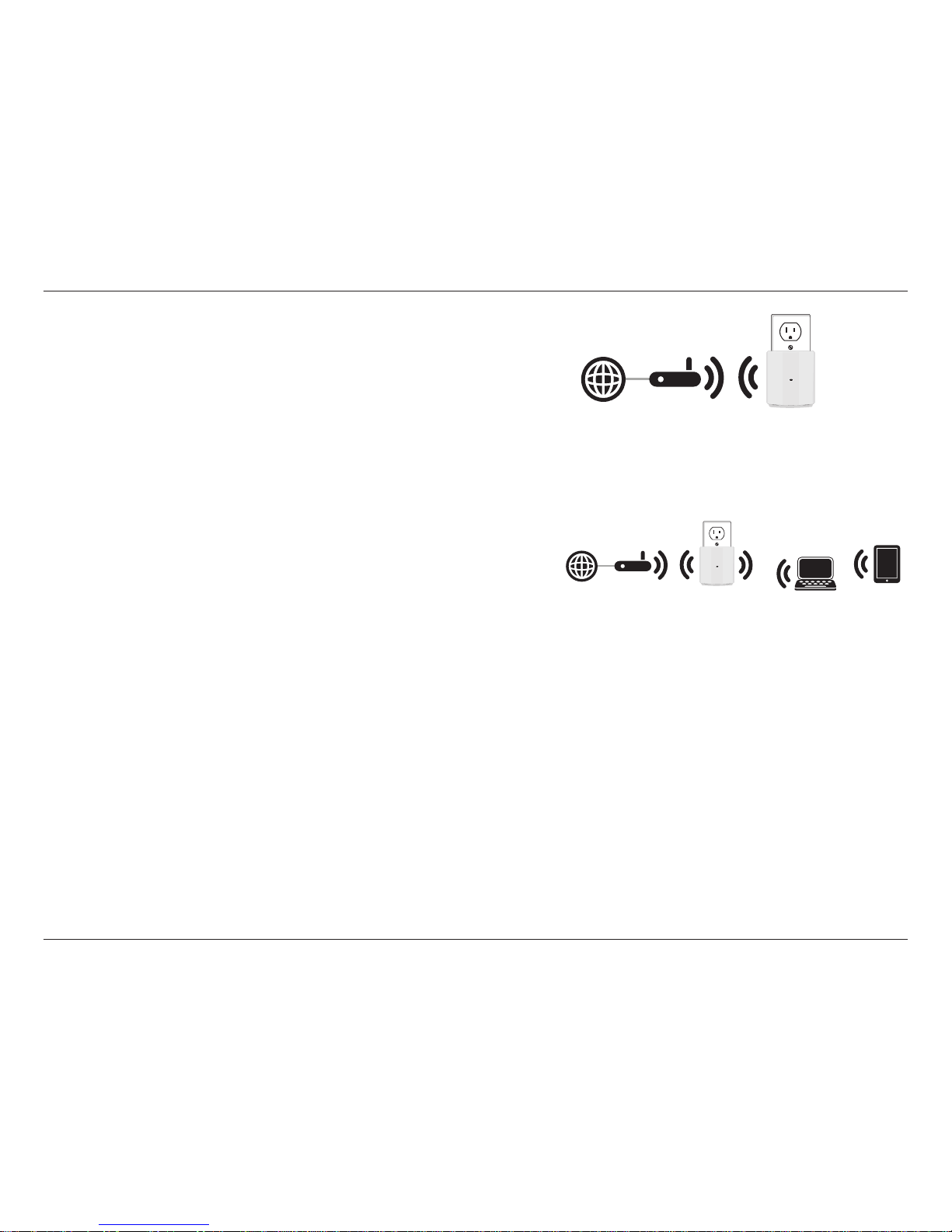

The Wireless Range Extender (DAP-1320) enables you to extend your existing wireless network coverage by placing the
Wireless Range Extender in between your router and the wireless client devices. This is great for extending wireless coverage
to basements, home oces or bedrooms that might be distant from your wireless router. The DAP-1320 increases the range
of your wireless network by extending the wireless coverage of an existing wireless network.

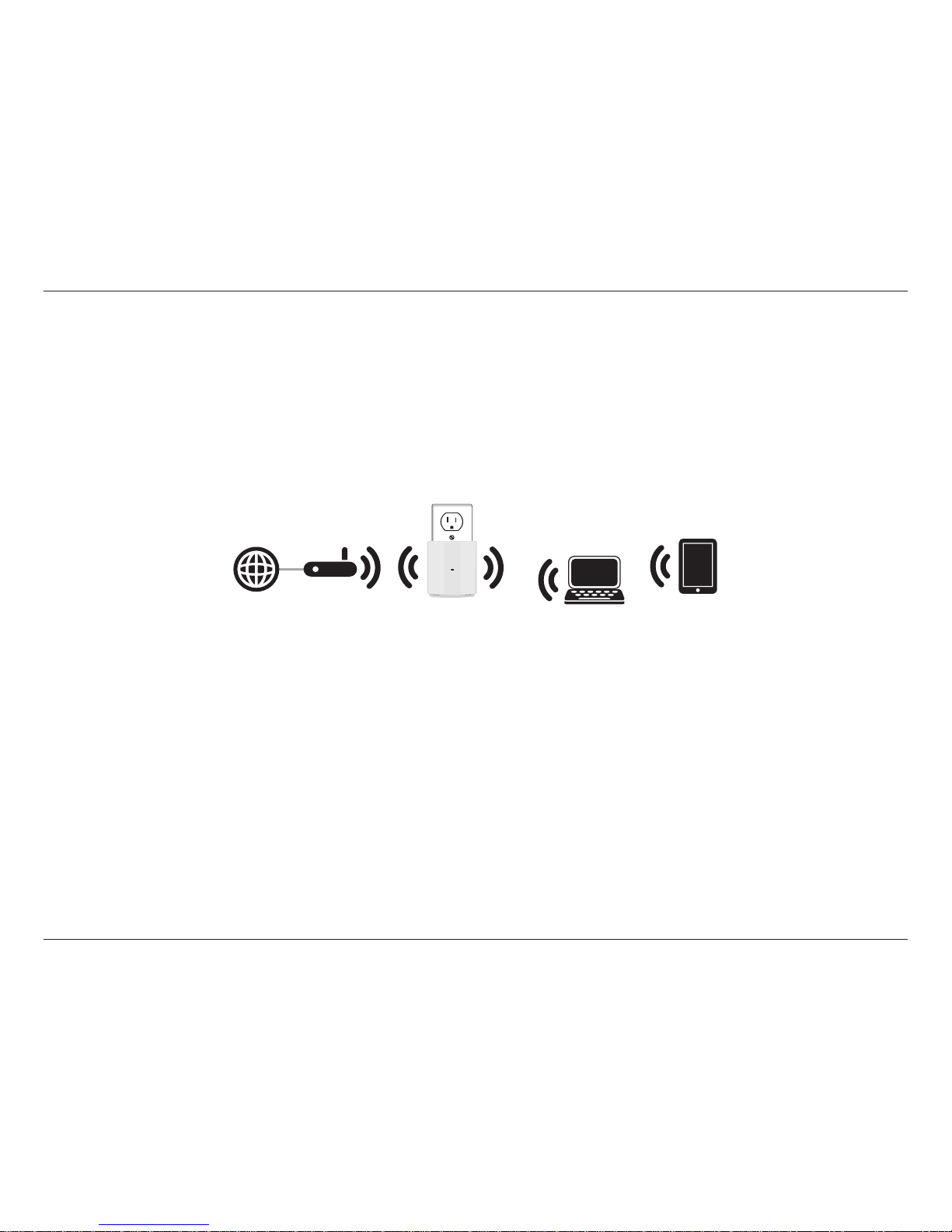

Note: Place the DAP-1320 within equal distance of your existing network/router and wireless clients.

5D-Link DAP-1320 User Manual
Section 1 - Product Overview
•FasterWirelessNetworking -The DAP-1320 provides up to 300Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio.
•ExtendInternetaccessforwirelessdevices- Allows you to extend your internet access throughout your
home with devices such as laptops, Smartphones, tablets and more.
•IEEE802.11nand802.11gCompliant - The DAP-1320 is still fully compatible with the IEEE 802.11g standards,
so it can connect with existing 802.11g USB and Cardbus adapters.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.
Features

6D-Link DAP-1320 User Manual
Section 1 - Product Overview
Hardware Overview
LED

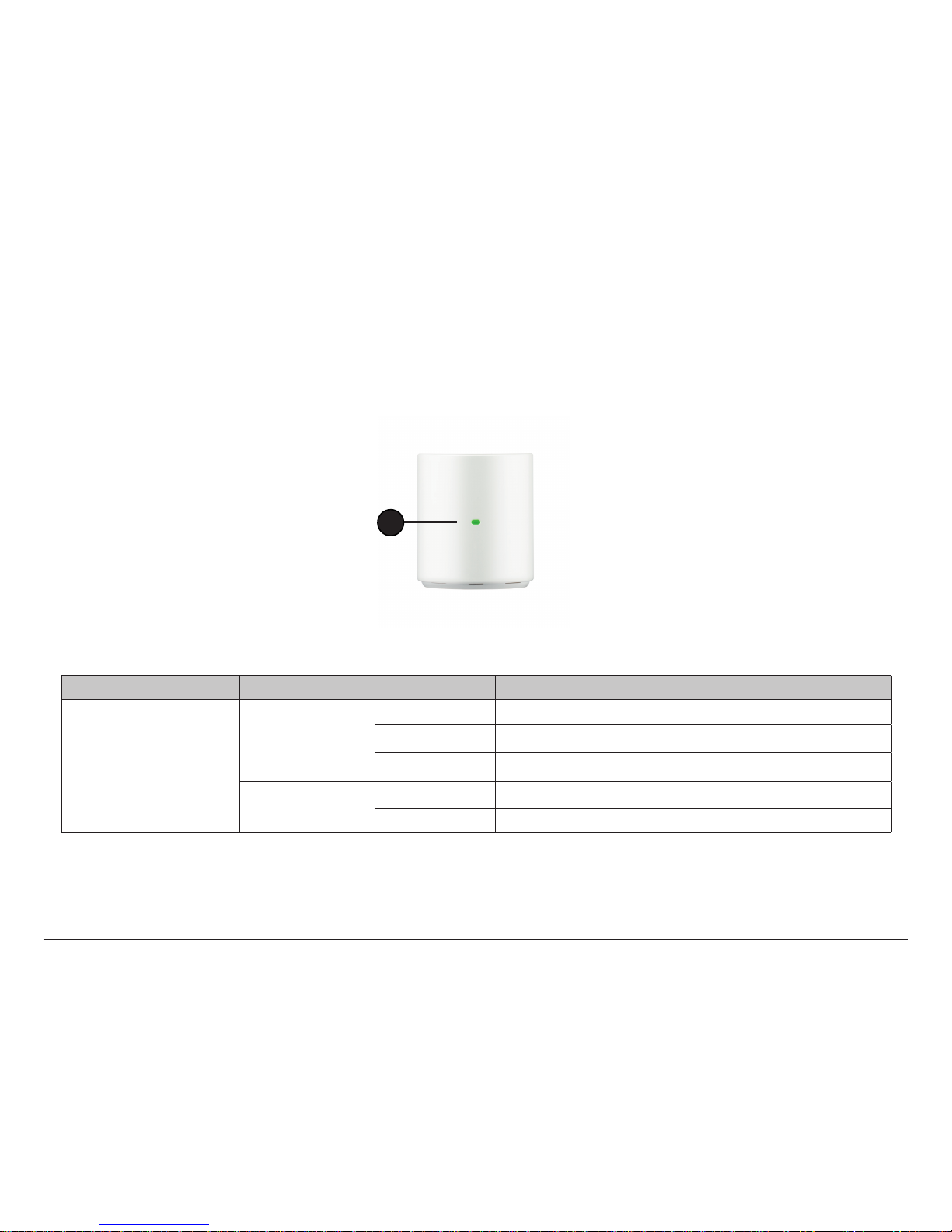

LED Indicator Color Status Description
1. Power/Status
Green
Solid Green The device is connected to a wireless router or AP
Blinking Green The device is processing a connection
Light o The device is o
Amber Blinking Amber During boot up or a factory reset
Light o The device is powered o
1

7D-Link DAP-1320 User Manual
Section 2 - Installation
Connect your DAP-1320 to your Router
Step 2 - Press the WPS button on your AP/Router.
The easiest and most secure way to connect your DAP-1320 to your the router or access point is WPS (Wi-Fi Protected Setup).
Please refer to your user manual for information on your router or access point make sure you understand how to enable WPS.
Once you know, follow the steps below:

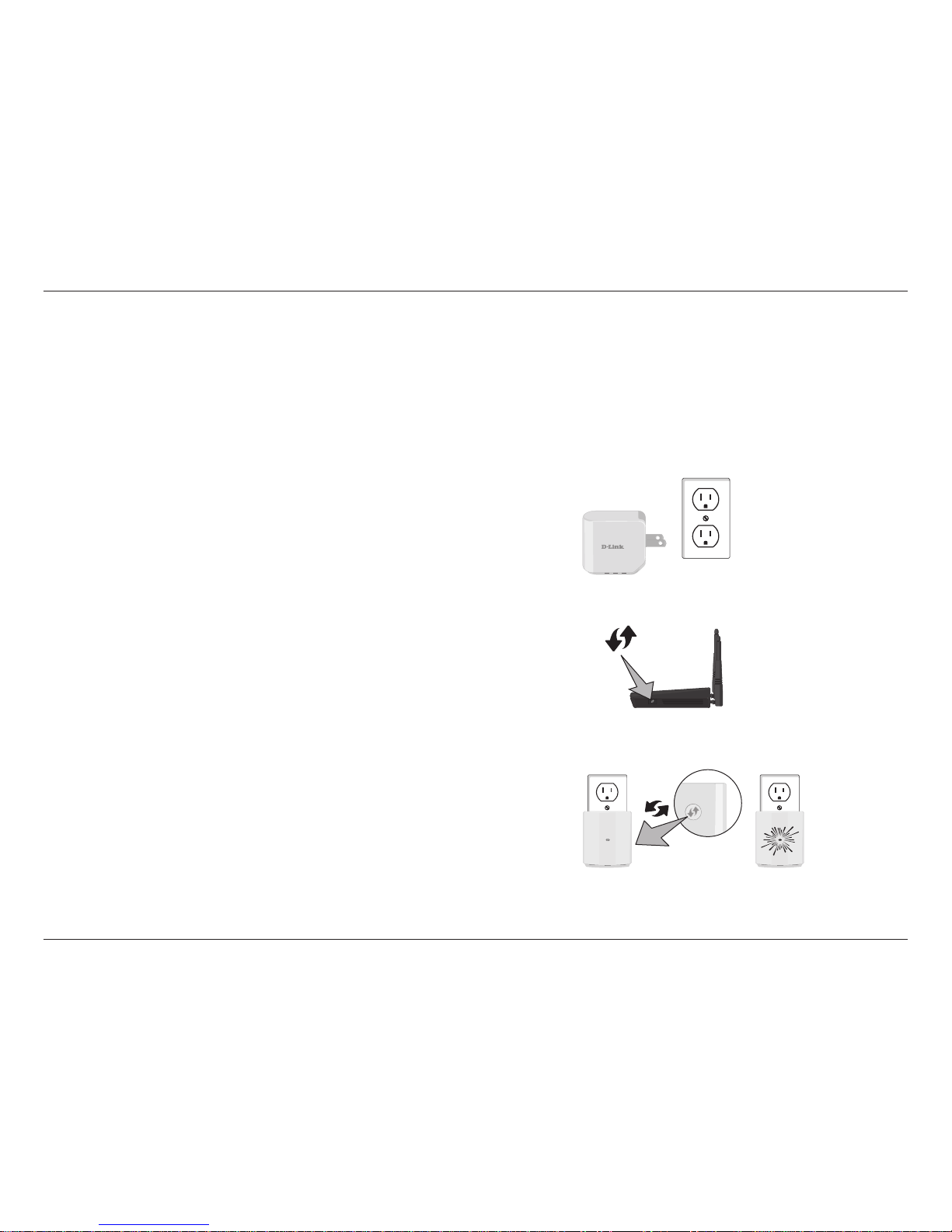

Step 1 - Plug the DAP-1320 into a wall outlet and verify if the power
LED has turned from red to a blinking amber.
Step 3 - Press and hold the WPS button until the light starts blinking
green and then release. Please allow up to two minutes for
the WPS process to nish. Once the connection is successful
the LED will be solid green.
DAP-1320
WPS Button
Note: Usually the WPS LED will blink once it is pressed. Check your
router’s manual for more information.
WPS Button
Installation

8D-Link DAP-1320 User Manual
Section 2 - Installation
Step 5 - To connect your wireless clients to the DAP-1320, use the
Wi-Fi Network SSID and the Wi-Fi Password located on your
conguration note.You may also useWPS to connect your clients
to the DAP-1320 (refer to page 32).
Step 4 - Your AP/Router and DAP-1320 will be connected when the LED
light turns solid green.
Note: If connection fails, try moving your DAP-1320 closer to your wireless
router/access point and repeat steps 2 and 3.
Note: For your wireless client to connect to the DAP-1320, you must use the same Wi-Fi Network Name (SSID) and Wi-Fi password
as your DAP-1320 which is also located on the conguration note. If you would like to change your Wi-Fi Network Name (SSID) and
Wi-Fi password refer to the conguration section page on 18.

9D-Link DAP-1320 User Manual
Section 3 - Conguration

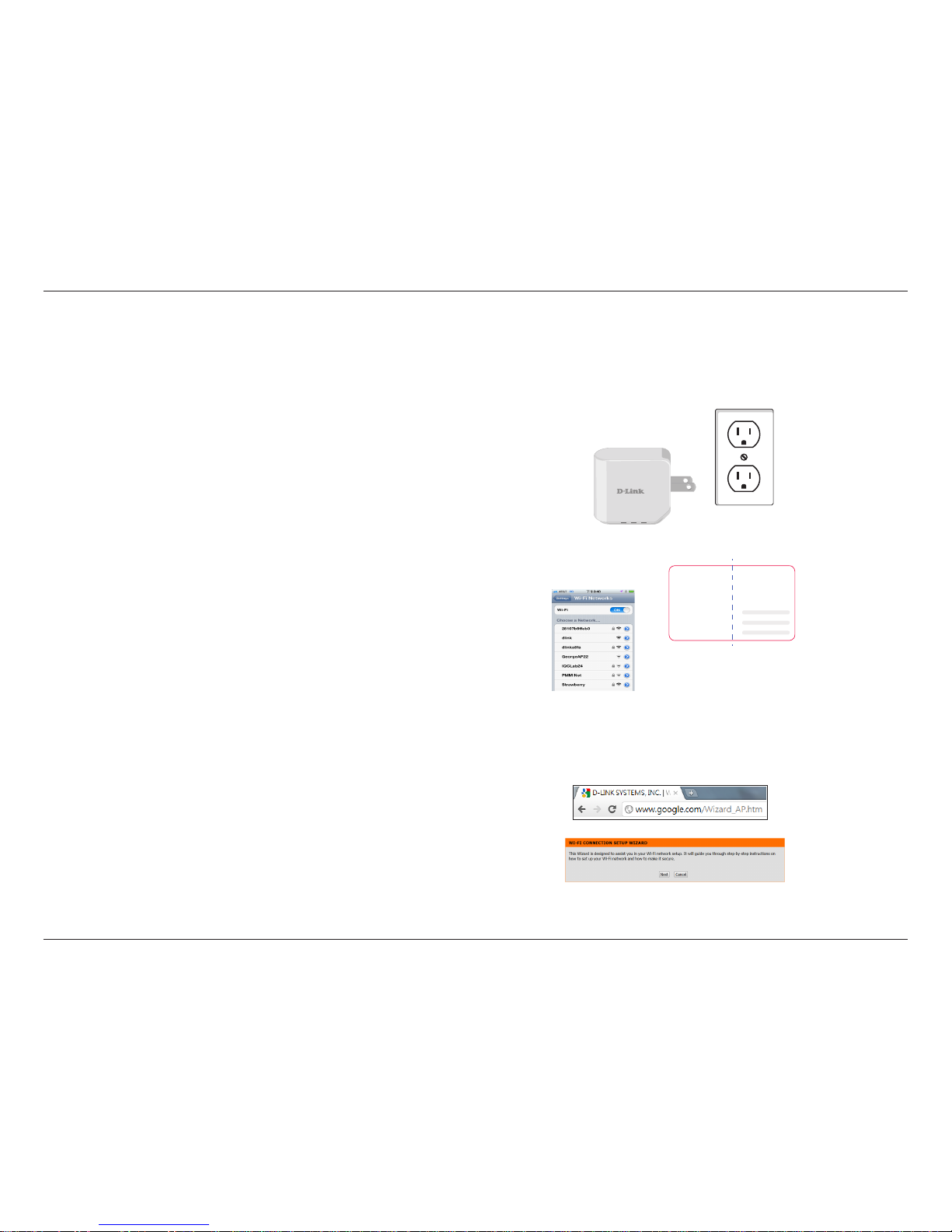

1. Plug the DAP-1320 into a wall outlet and verify if the power LED
has turned from red to a blinking amber.
2. From your wireless computer go to the Wireless Utility to display
the available wireless networks and select the Wi-Fi Network Name
(SSID) that is located on your conguration note (ex: dlink-a8fa).
Then, enter the Wi-Fi password which is also located on your
conguration note. (ex: akbdj19368).

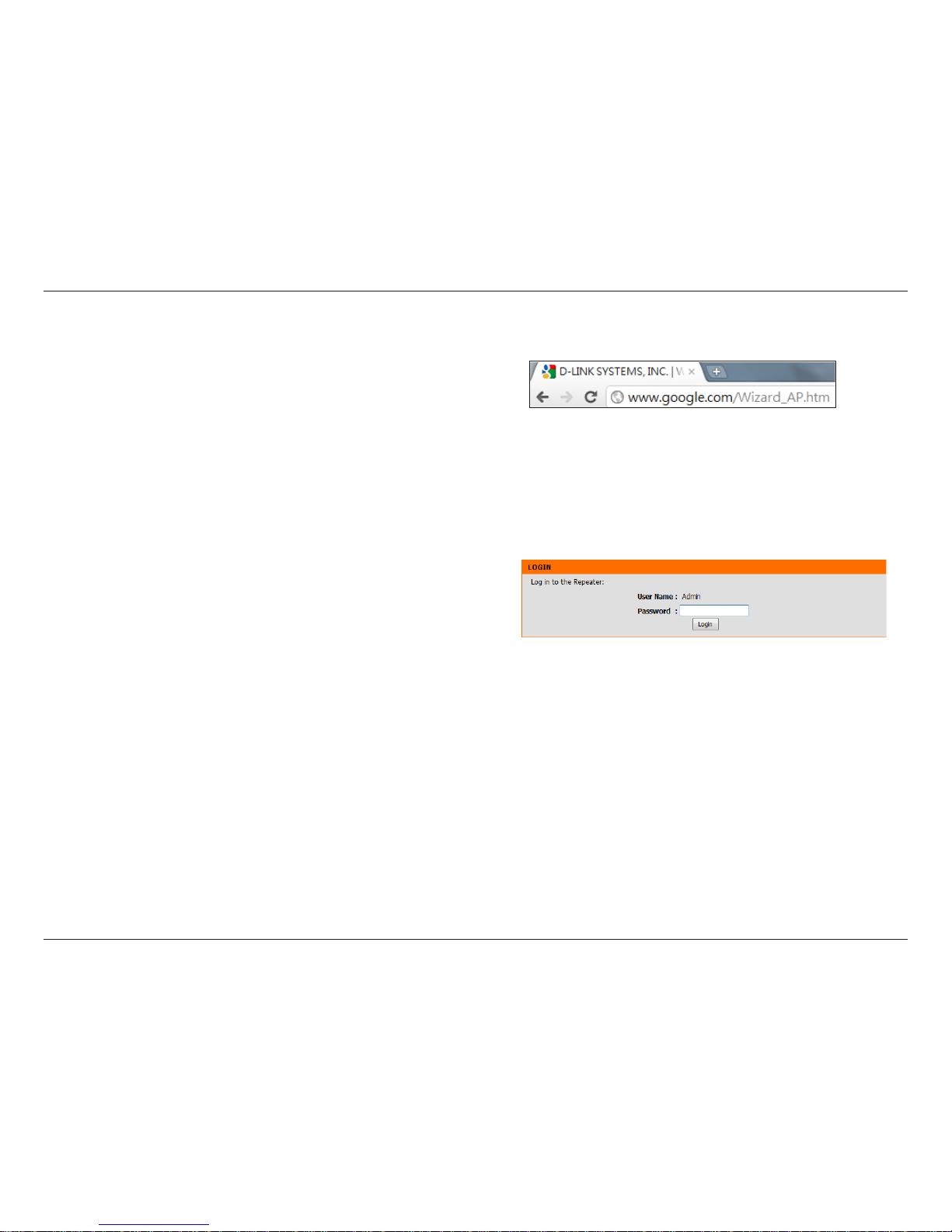

3. Open a web browser and type http://dlinkap.local.First time
users will automatically be directed to the setup wizard. Please
follow the on-screen instructions to complete the setup.
90mm
54mm
Web browser link:
http:/ /dlinkrouter or
http:/ / 192.168.0.1
Default conguration
Username: “Admin”
Password: ““ (leave the eld blank)
Wi- Fi Name (SSID) :
dlinka8fa
Wi-Fi Password:
akbdj19368
Web browser link:
http://dlinkrouter or
http:/ / 192.168.0.1
Yourconguration
Username: Admin
Password:
Wi- Fi Name (SSID) :
Wi-Fi Password:
D-Link DIR-505 Mobile Companion Wi-Fi Conguration Note
DAP-1320
Conguration
Setup Wizard

10D-Link DAP-1320 User Manual
Section 3 - Conguration

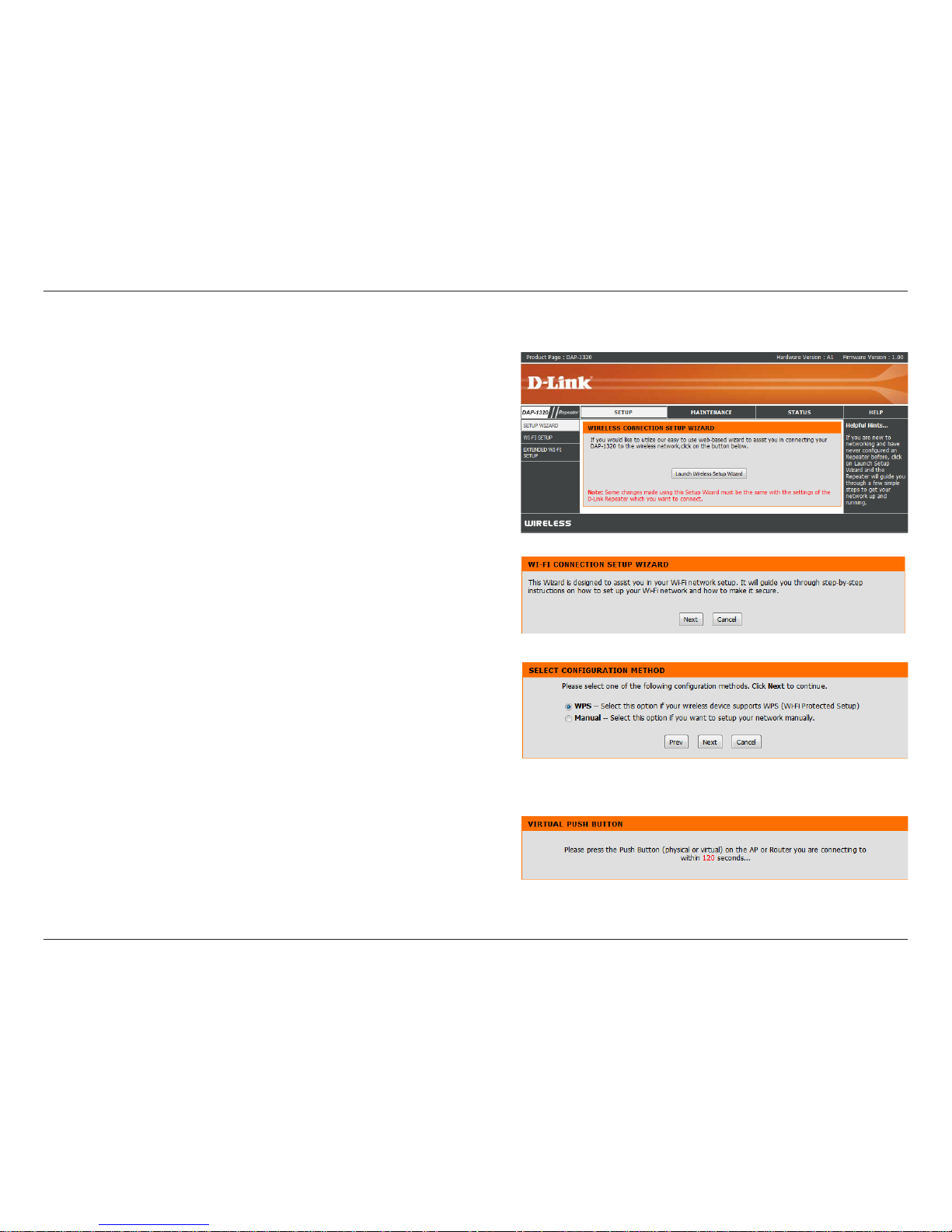

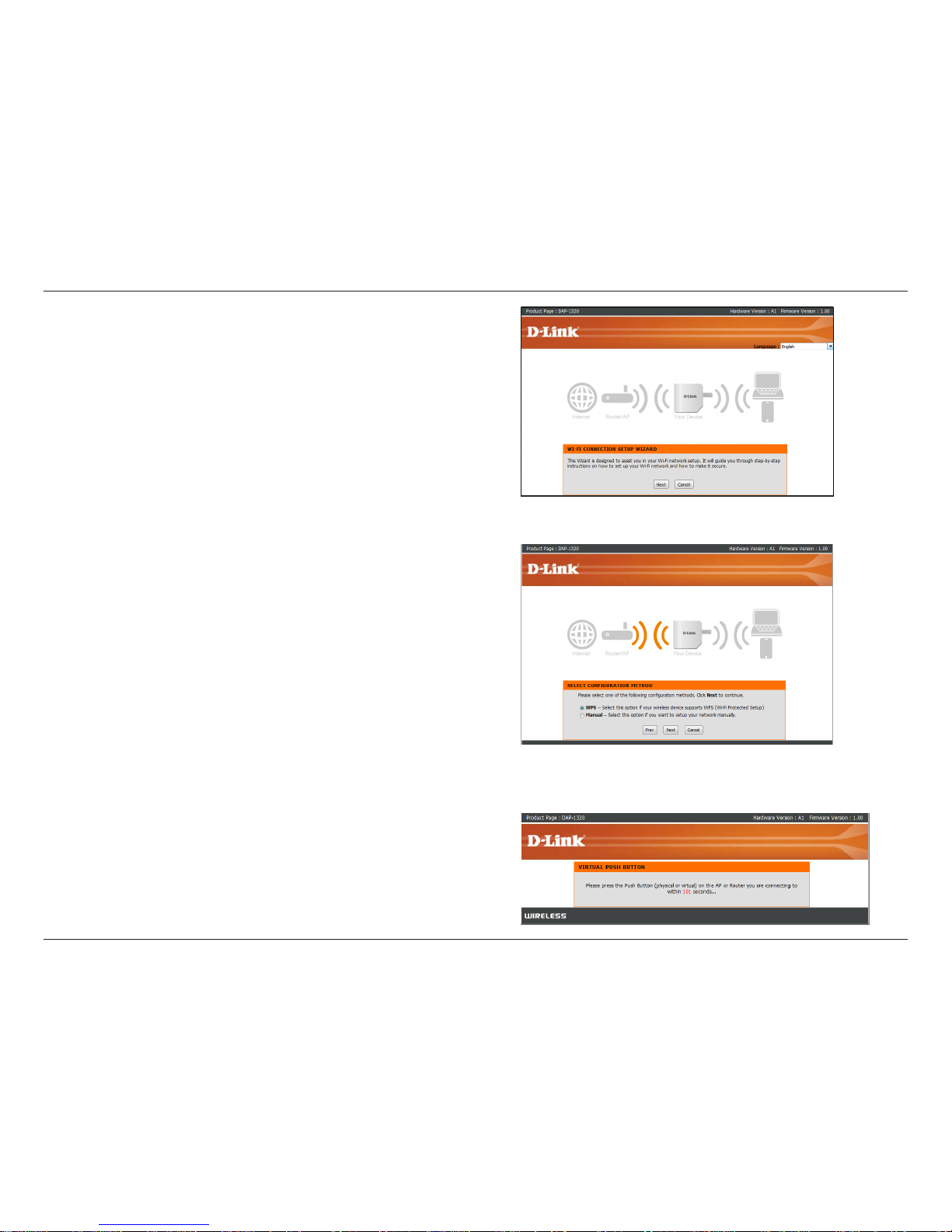

Select WPS as the conguration method only if your wireless
device supports Wi-Fi Protected Setup (WPS). For manual setup,
skip to page 11.
Click Next to continue.
To start the Setup Wizard click Next.
Press and hold the WPS button on your wireless router or access
point until the light starts blinking green and then release. Please
allow up to two minutes for the WPS process to nish.

11D-Link DAP-1320 User Manual
Section 3 - Conguration

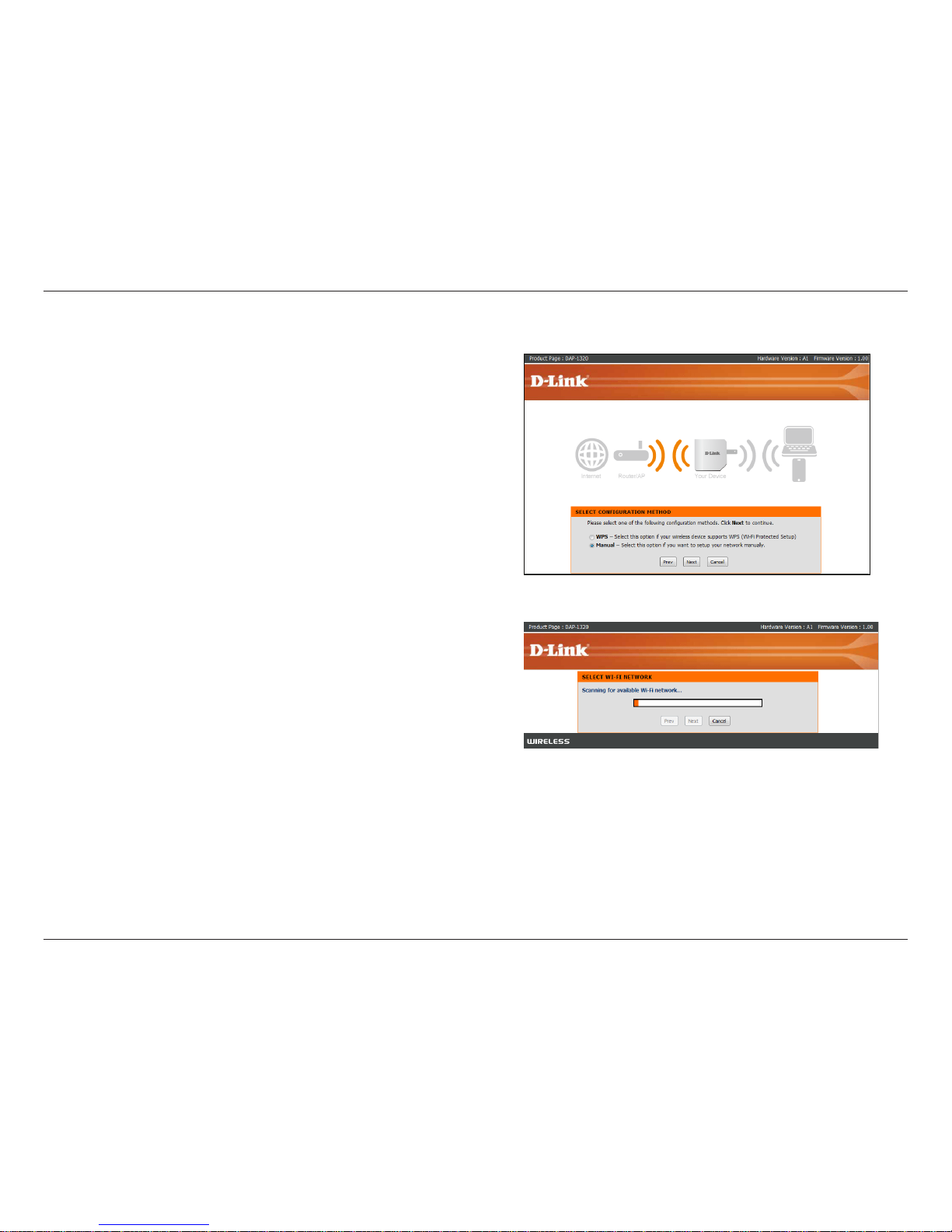

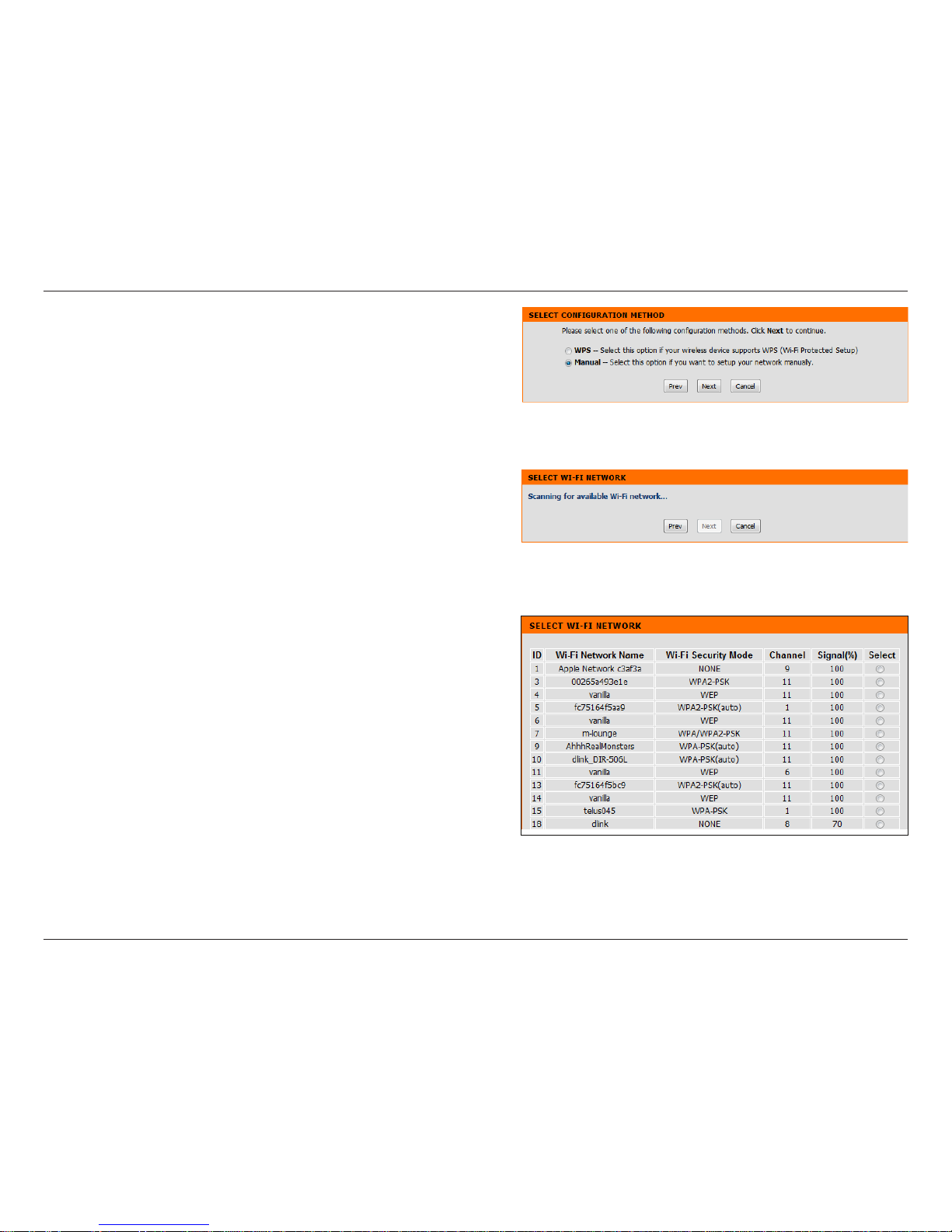

Select Manual as the configuration method to set up your
network manually.
Click Next to continue.
Please wait while your device scans for available Wi-Fi networks.

12D-Link DAP-1320 User Manual
Section 3 - Conguration

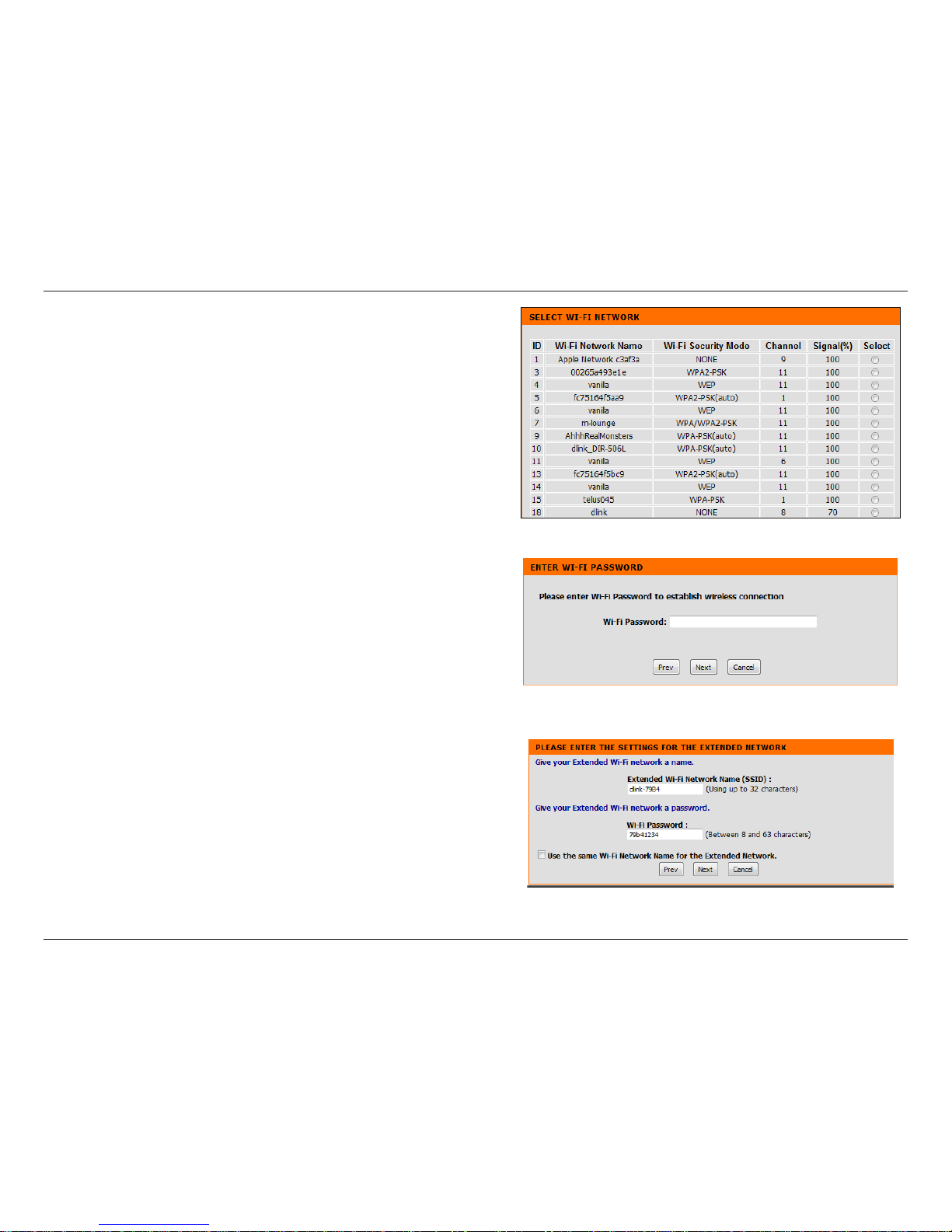

A list of wireless networks in your area will be listed. Select your
wireless network (associated with your wireless router or access
point) and click Connect to continue.
You can choose to change the Wi-Fi Network Name (SSID)
and the Wi-Fi Password for the DAP-1320 or you can enter the
information found on your conguration note. Click Next to
continue and nish the setup process.
Note: Click the check box to use the same Wi-Fi Network Name
(SSID) and the Password for DAP-1320 as your existing network.
Enter yourWi-Fi Password for the wireless network you are using
to connect and click Next.

13D-Link DAP-1320 User Manual
Section 3 - Conguration

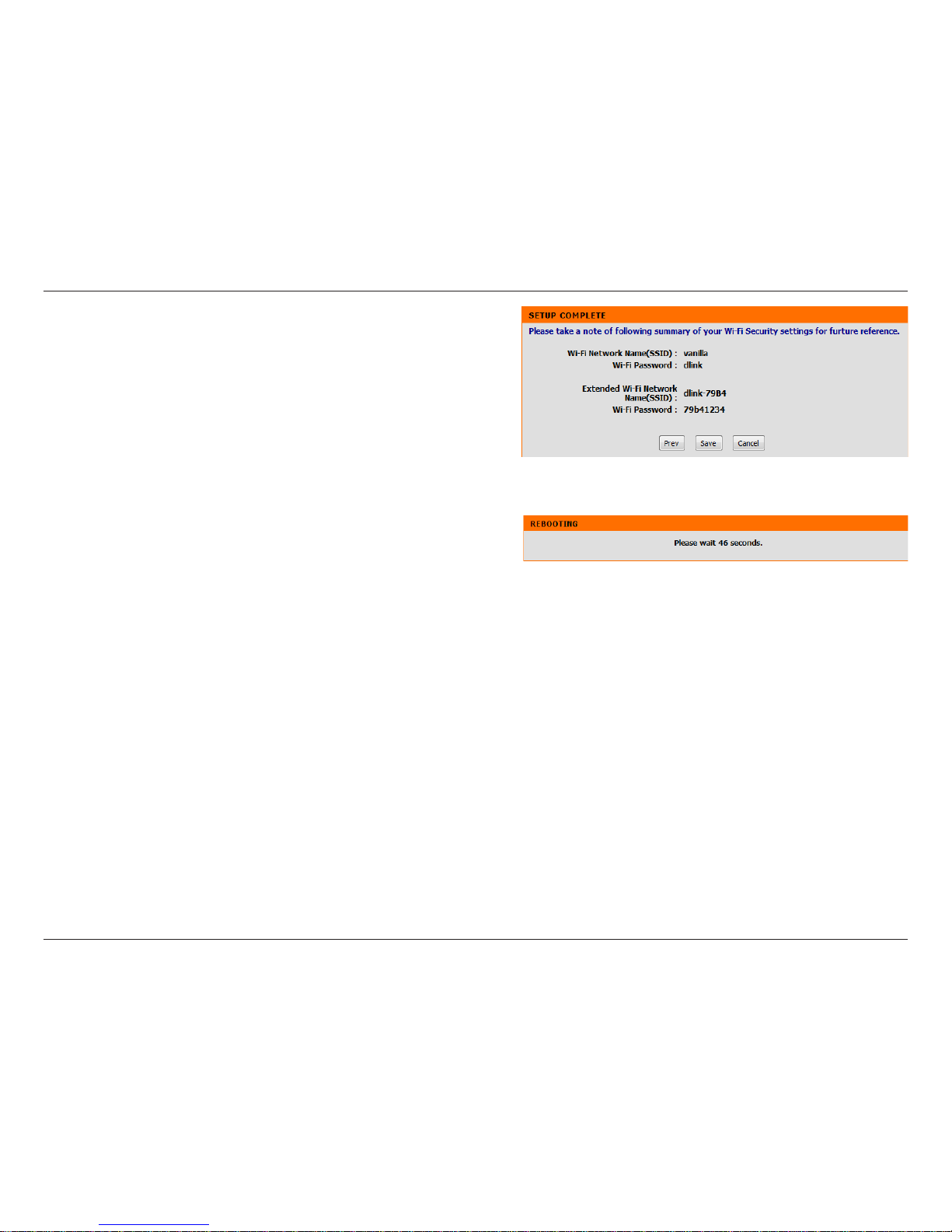

The setup is now complete. Please click Save to nish.
Please wait while the system reboots.

14D-Link DAP-1320 User Manual
Section 3 - Conguration
Web-based Conguration Utility
To access the conguration utility, open a web-browser such as
Internet Explorer and enter http://dlinkap.local.
Enter the Password you created when you rst logged on during
the setup wizard and click Login.
Note: If you did not create a password before, the default should be
blank.

15D-Link DAP-1320 User Manual
Section 3 - Conguration
Wireless Setup Wizard
Click Launch Wireless Setup Wizard to begin the Setup Wizard.
Click Next to start the Setup Wizard.
Select WPS as the conguration method only if your wireless
device supports Wi-Fi Protected Setup (WPS).
Click Next to continue.
Press and hold the WPS button on your wireless router or access
point until the light starts blinking green and then release. Please
allow up to two minutes for the WPS process to nish.

16D-Link DAP-1320 User Manual
Section 3 - Conguration
Select Manual as the conguration method to set up your
network manually.
Click Next to continue.
A list of wireless networks in your area will be listed. Select your
wireless network (associated with your wireless router or access
point) and click Connect to continue.

17D-Link DAP-1320 User Manual
Section 3 - Conguration

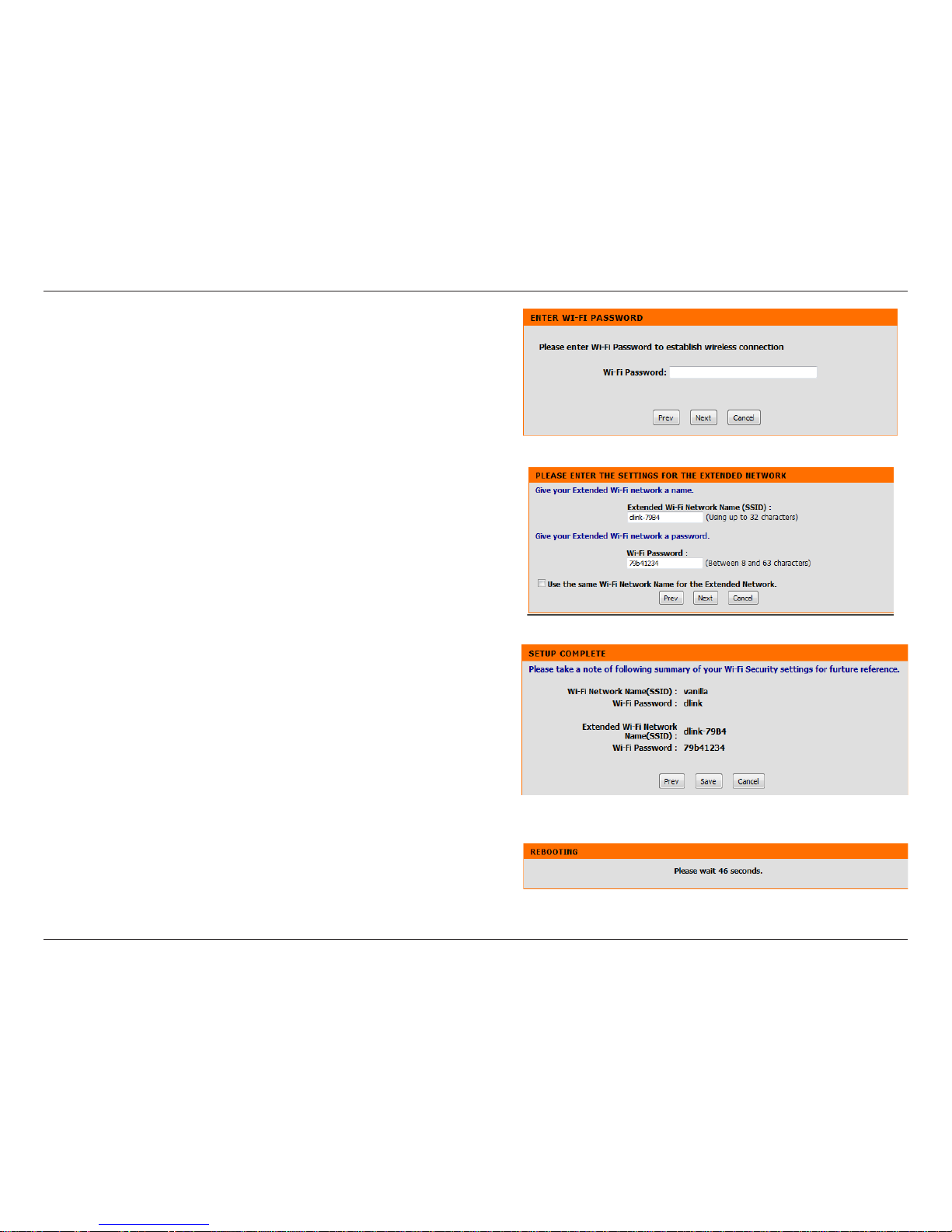

Enter the Wi-Fi Password for the router you are using to connect
and click Next.
You can choose to change the Wi-Fi Network Name (SSID) and
the password for the DAP-1320 or you can enter the information
found in your conguration card. Click Next to continue to nish
the setup process.
Note: Click the check box to use the same Wi-Fi Network Name
(SSID) and the Password for DAP-1320 as your existing network.
The setup is now complete. Please click Save to nish.
Please wait while the system reboots.
