SUNNEX PF MRI Series Manual

Sunnex PF Series MRI Service & Installation Manual 2
TABLE OF CONTENTS
1. SHIPPING CARTON & CONTENTS.......................................................... 3
2. INTRODUCTION........................................................................................ 4
3. PF SERIES MRI SPECIFICATIONS.......................................................... 5
3.1 TECHNICAL DATA ....................................................................................................................................5
3.2 EMC COMPATIBILITY...............................................................................................................................6
3.3 TRANSPORTATION AND STORAGE.......................................................................................................6
4. ASSEMBLY INSTRUCTIONS.................................................................... 7
4.1 PF SERIES MRI MOBILE - PF28016-M.....................................................................................................7
5. OPERATING INSTRUCTIONS ................................................................ 13
6. SERVICE AND MAINTENANCE ............................................................. 14
7. MARKINGS.............................................................................................. 20
8. WARRANTY............................................................................................. 21
9. TROUBLESHOOTING............................................................................. 17
10. APPENDIX…………………………………………………………………….19

Sunnex PF Series MRI Service & Installation Manual
3
1. SHIPPING CARTON & CONTENTS
PF28016-M (mobile)
•One lamp arm assembly with 30 feet cord and connector
•One caster base with 5 wheels
•One base weight with 5/16-18 x 2 ½ socket head cap screw
•One vertical pole with set screw
•One electrical box with lead and cord plug
•Two Allen keys; 3/32 and 6mm (the keys are magnetic)
•Two cord hooks (off-white) to hold output cord to the pole
•A combination of installation guide/instruction manual
The electrical box is packaged and shipped with the light.
*Carefully check the contents of the shipment. Report shortages and/or
errors, to Sunnex or your dealer's customer service department, within five
(5) working days.
The recovery of costs related to shipping damage, concealed or otherwise,
can be a long and frustrating experience. In order to avoid the uncomfortable
aspects, all freight claims by either the dealer or consignee should be filed
with the transportation company within five (5) working days. The carton and
its inserts should be kept for inspection by the transportation company.
CAUTION: Please be aware, if this routine is not followed, and the carton
and its contents are disposed of or destroyed before inspection by the
transportation company, our assistance is of no value to you.

Sunnex PF Series MRI Service & Installation Manual 4
2. INTRODUCTION
The objective of this manual is to assist you in assembling your PF series
MRI light, to introduce some of its most important features, and to provide
suggestions for its care.
2.1 INTENDED USE
The Sunnex PF series MRI light is intended for use in MRI environments
where illumination is required for various tasks around the bore. CAUTION!
This light is intended for out of bore procedures only. Any deviation or
inappropriate use may result in serious injury.
2.2 SAFETY INSTRUCTIONS
The Sunnex PF series MRI light must be operated with the safety of the user
and patient in mind. Please read this manual and any other instructions
before installing the equipment. Please make sure that all appropriate service
staff is informed and educated on the equipment to ensure continued safety
and needed maintenance. Be sure you understand the intended use of this
equipment and recommended operation before attempting to install and use
the equipment.
IMPORTANT!
•This light is MRI conditional and can be used as a medical task
light around the bore. NOTE! It is extremely important that all
guidelines are strictly followed to ensure safety for users and
patients.
•Use the light only for its intended purpose. It is a portable medical
task light intended for use outside of the bore.
•WARNING! The power supply contains ferrous materials. DO NOT
bring the power supply close to the magnet (100 Gauss line).
Always take the furthest route away from the magnet when
moving the power supply in the MRI room.
•The power supply must be fastened to a fixed structure.
•ALWAYS bring the light outside the MRI room when performing
any service on the light. This includes any cleaning and/or bulb
replacements. Also, assemble the light outside of the MRI room.

Sunnex PF Series MRI Service & Installation Manual
5
•The safety guidelines of your MRI facility must never be
compromised. If in doubt, consult with your facilities manager on
proper procedures.
3. PF Series MRI Specifications
3.1 TECHNICAL DATA
Power supply: 120V - 60Hz and 230V - 50Hz
Nominal Effect: 120Vac, 60Hz, 50W - 1.5A
230Vac, 50Hz, 50W - 1.0A
Light Source: Halogen bulb - Dichroic 13.8V/50W
Bulb Life: 2,000 hours
Light Intensity: 25,300 Lux/2,350 footcandles at 1 meter
Central Illuminance 19300 Lux
Total Irradiance 131 Watts/m2
Color Temp: 3,420K
Color Rendering Index: 97
Total Weight: Mobile 40 lbs / 18 kg
This product is Class I and the mode of operation is suited for continuous
use. Radiated and conducted emissions testing has been completed on the
PF Series lights and for compliance with IEC 60601-1-2 (2001-09) 2nd
edition (EN55011:1991, Group I Class B)
This product does not produce any physiological effects that could harm a
patient. The mains plug on the product is a disconnect device, a mains switch
is not provided.
This product is not suitable for use in the presence of a FLAMMABLE
ANAESTHETIC MIXTURE WITH AIR or WITH OXYGEN OR NITROUS
OXIDE.
Information about circuit diagrams, component part lists, descriptions, is
available upon request. Requests can be made to engineering department.

Sunnex PF Series MRI Service & Installation Manual 6
Technical Questions
Any technical questions can be directed to Sunnex Inc. phone [phone]
0009 or can be written to Sunnex Inc. Engineering Department, 3 Huron
Drive, Natick, MA 01760, USA.
3.2 EMC COMPATIBILITY
Sunnex Inc.
Electromagnetic Compatibility User Information for the PF MRI Light
(PF 28016-M)
WARNING: Medical Electrical Equipment needs special precautions
regarding EMC and needs to be installed and put into service according to
the Electromagnetic Compatibility [EMC] information provided in the
accompanying documents provided in the Appendix.
WARNING: Portable and Mobile RF Communications Equipment can affect
Medical Electrical Equipment.
WARNING: The equipment or system should not be used adjacent to or
stacked with other equipment and that if adjacent or stacked use is
necessary, the equipment or system should be observed to verify normal
operation in the configuration in which it will be used.
NOTE: The EMC tables and other guidelines that are included in the
Instruction Manual provide information to the customer or user that is
essential in determining the suitability of the Equipment or System for the
Electromagnetic Environment of use, and in managing the Electromagnetic
Environment of use to permit the Equipment or System to perform its
intended use without disturbing other Equipment and Systems or non-
medical electrical equipment.
To avoid electromagnetic interference, guidelines in this instructions manual
and guidelines of MRI MUST be strictly followed.
3.3 TRANSPORTATION AND STORAGE

Sunnex PF Series MRI Service & Installation Manual
7
This light is packaged in card board and should be transported protected
from moisture. The light should be stored in a dry environment and room
temperature.
Transportation and storage temperature: -5°F / -20°C to 140°F / 60°C
Humidity < 95%
4. ASSEMBLY INSTRUCTIONS
There are several factors involved with proper installation. Considering them
will help you produce a safe work environment for yourself and your patients.
Please follow the directions for assembly carefully as any negligence or
poorly performed assembly may void the Warranty. Any modification to the
structure of the light may also void the listings of this product.
4.1 PF SERIES MRI MOBILE - PF28016-M
CAUTION! THE ELECTRICAL BOX CONTAINS FERROUS
MATERIALS AND MUST BE HANDLED WITH CAUTION.
THE ELECTRICAL BOX SHOULD BE SECURED TO A
STRUCTURAL MEMBER AT A SAFE DISTANCE (100
GAUSS LINE) AWAY FROM THE MRI MACHINERY. DO
NOT MOUNT BOX DIRECTLY TO SHEET ROCK OR
PLYWOOD SUBSTRATES. IDEALLY, THE ELECTRICAL
BOX IS SECURED BY NON-FERROUS FASTENERS OR
VELCRO, DIRECTLY TO THE FLOOR OUTSIDE THE
MAXIMUM RECOMMENDED GAUSS LINE.
It is recommended the electrical box is mounted away from high traffic area
and congestion to avoid the possibility of damage or removal from mounting
surface.
Assembly and installation of the light
IMPORTANT! Assemble the light outside of the MRI room.

Sunnex PF Series MRI Service & Installation Manual 8
1. Snap in five wheels onto caster base. It may be necessary to expand the
brass clip with a screwdriver to fit the wheel in caster base (See figure 1).
Take 5/16 -18 bolt (provided) and position bolt up through the weight and
bottom of caster base. Attach caster base and weight to pole by threading
screw into the bottom of the pole. Ensure that the weight, caster and
vertical pole are attached properly.
Figure 1. Installing counter weight to the caster base
2. Place lamp arm assembly into top of pole and secure in position with the
set screw provided in the side of the pole.
ELECTRICAL CONNECTIONS
Option 1 – Installing the transformer box outside MRI room using RF
filter
The transformer box is equipped with 30ft of cord on the secondary side and
10ft of cord on the primary side. If installing the transformer box outside the
MRI room, connectors may be required on the secondary side to
Counter
Wei
g
ht
Caster
Base
Wheels
Brass
Cli
p

Sunnex PF Series MRI Service & Installation Manual
9
accommodate the use of an RF filter. RF filter connectors will be different
based on which RF filter is used. If your facility construction requires
alterations beyond these guidelines, please contact Sunnex Technical
Support.
WHICH RF FILTER TO USE
PF MRI LIGHT specifications:
Power Supply: 120V - 60Hz and 230V - 50Hz
Nominal Effect: 120VAC, 60Hz, 1x50W - 1.5A
230VAC, 50Hz, 1x50W - 1.0A
Voltage output: 14V DC
Current: 3.6 Amp. DC in secondary
Sunnex does not advise any specific filter but the specifications of the PF
MRI product must be carefully considered when selecting a filter. Following
are recommendations of filters that can be used: Spectrum Control part# 56-
705-003 (this is a 9-pin D sub connector RF filter) or equivalent should be
used. Some manufacturers that make RF filters are: Amphenol Canada,
Spectrum Control, ERNI, Conec. The voltage drop over the filter must be
minimal to ensure proper performance of the light fixture. The guidelines and
requirements of your MRI facility must be considered as well. Consult with
your MRI facility manager or the RF panel support technician if uncertain.
1. Mount transformer box securely to a structural member in the area close
to the RF panel in the adjacent equipment room using 1/4 X 2” bolts
(Four holes are provided on the base plate of transformer box). The
transformer box should not be stacked with other power supply units.
2. It is recommended not to mount the transformer box on wall.
3. Velcro is provided on the base plate of the transformer box and a rope
and snap-on hook is provided on the transformer box to assist in proper
installation. (Velcro can be used to secure the transformer box to a flat
surface and snap-on hook is provided to emphasize that the transformer
box needs to be location-constrained and it can be used to secure the
transformer box).
4. Select appropriate mating D sub connectors for RF filter. Cut the cord on
secondary side of the light, install (solder) two wires of this cord (black =
hot, white = neutral) to the selected D sub connector and install this
connector to the RF filter. (CUTTING THE CORD IN SUCH A WAY

Sunnex PF Series MRI Service & Installation Manual 10
DOES NOT VOID THE WARRANTY OF THE PRODUCT AND DOES
NOT VOID THE CERTIFICATION LISTING). Install (solder) wires of
other end of lamp cord to the selected D sub connector for inside of the
MRI room and install this connector to the RF filter from inside the MRI
room. (Sunnex Inc. does not provide RF filters or the mating D sub
connectors to RF filter). Sunnex Inc. can provide the output cord
(Sunnex part# 50710030) or 18AWG/2 wire, temperature rating 105
degree C should be used. A typical installation is shown in following
diagram. A 3-pin, 9-pin, 25-pin D Sub connector can be used.
5. Plug male connector (from lamp cord) into the female connector on the
electrical box. CAUTION: Male connector has a mechanical latch. Be
sure lamp connector is fully engaged into electrical box female connector
and the latch is fully engaged. (To disconnect, press tab on the female
connector [and hold] and pull the male connector.)
Figure 2. Lamp connection with electrical box
Lamp head
connecto
r
Electrical
box
RF FILTER D-SUB
CONNECTOR
D-SUB
CONNECTOR
SUNNEX
POWER
SUPPLY
BOX
SUNNEX
PF MRI
LIGHT
RF PANEL OF
MRI ROOM

Sunnex PF Series MRI Service & Installation Manual
11
CAUTION
1. IN CASE YOU NEED TO DETACH MALE CONNECTOR FROM
FEMALE CONNECTOR OF POWER SUPPLY, YOU MUST FIRST
“PUSH” ON THE TAB OF FEMALE CONNECTOR AND THEN PULL
THE MALE CONNECTOR OUT.
2. PULLING THE MALE CONNECTOR FIRST, WITHOUT “PUSHING”
THE TAB ON FEMALE CONNECTOR MAY MAKE THE
CONNECTION TIGHT.
3. IF THE CONNECTION FEELS TIGHT, [1] PRESS ON THE MALE
CONNECTOR FIRST, [2] “PUSH” ON THE TAB OF FEMALE
CONNECTOR AND HOLD [3] PULL THE MALE CONNECTOR OUT.
6. Confirm connection through the RF panel into the light fixture in the MRI
room.
7. Plug electrical box lead into a hospital grade electrical socket.
8. Lamp is ready for use.
Figure 3. Schematic for option 1 (Installing the transformer box outside
MRI room using RF filter)
PF MRI
Power
Supply RF Filter Celestial Star MRI
Ceiling Light
From RF
filter to MRI
Light
Output from
Transformer Box
to RF Filter
Hospital Grade
Cord with Plug
RF Panel
PF MRI MOBILE LIGHT
MRI ROOM

Sunnex PF Series MRI Service & Installation Manual 12
Option 2 – Installing the transformer box inside the MRI room.
The light is equipped with 30ft of cord on the secondary side and 10ft of cord
on the primary side. The total length of cord on the secondary side should not
be altered from the original 30ft.
1. Mount electrical box securely to a structural member on the floor outside
of the safe perimeter (100 Gauss line/10mT) of MRI machinery with a
bolt 1/2" diameter x 2" L. (Four holes are provided on the base plate of
transformer box).
2. It is recommended not to mount the electrical box on wall.
3. Velcro is provided on the base plate of the electrical box and a rope and
snap-on hook is provided on the electrical box to assist in proper
installation.
4. Plug lamp lead connector into the receptacle on the side of the electrical
box. CAUTION: Lamp lead connector has a mechanical latch. Be sure
lamp connector is fully engaged into electrical box receptacle and the
latch is fully engaged. (To disconnect, press lever on the receptacle and
pull the lamp head connector.)

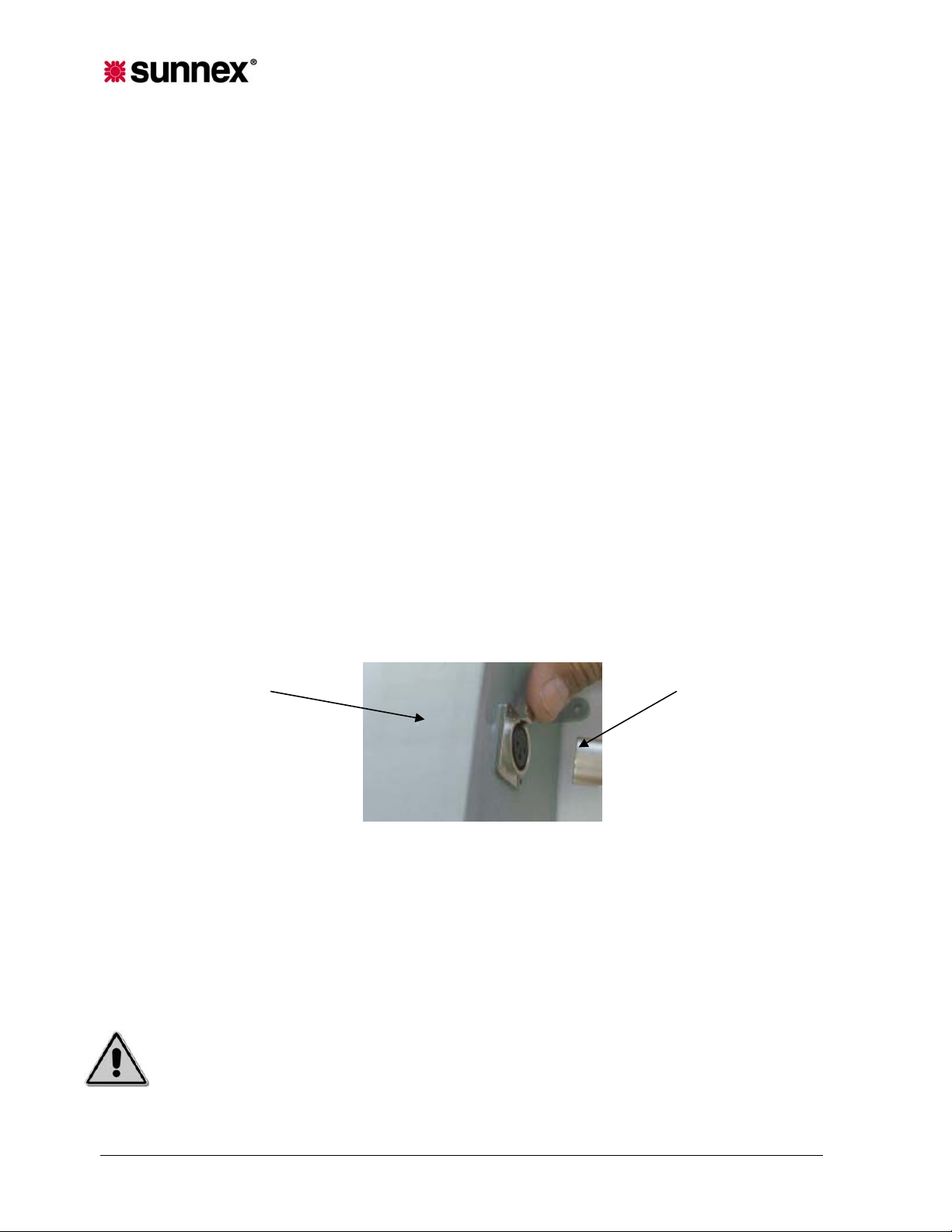

Figure 4. Lamp lead connection with electrical box
5. Plug electrical box lead into a hospital grade electrical socket.
6. Lamp is ready for use.
CAUTION! THE ELECTRICAL BOX CONTAINS FERROUS MATERIALS
AND MUST BE HANDLED WITH CAUTION. THE TRANSFORMER BOX
Lamp head
connecto
r
Electrical
box

Sunnex PF Series MRI Service & Installation Manual
13
SHOULD BE SECURED TO A STRUCTURAL MEMBER AT A SAFE
DISTANCE (100 GAUSS LINE) AWAY FROM THE MRI MACHINERY.
DO NOT MOUNT BOX DIRECTLY TO SHEET ROCK OR PLYWOOD
SUBSTRATES. IDEALLY, THE TRANSFORMER BOX IS SECURED BY
NON-FERROUS FASTENERS, DIRECTLY TO THE FLOOR/CEILING
OUTSIDE THE MAXIMUM RECOMMENDED GAUSS LINE.
5. OPERATING INSTRUCTIONS
While this light is MRI compatible and can be used as a medical task light
around the bore, it is extremely important that all guidelines are strictly
followed to ensure safety for users and patients.
•This light is only intended for use outside of the bore
•This product is not suitable for use in the presence of a FLAMMABLE
ANAESTHETIC MIXTURE WITH AIR or WITH OXYGEN OR NITROUS
OXIDE.
•The installation guidelines must be strictly followed. The electrical box
contains ferrous materials and must NEVER be placed close to the
magnet. If the electrical box is moved closer to the magnet at 100
gauss line, electromagnetic interference may be seen, to avoid this
NEVER move the electrical box close to the magnet.
•NEVER operate the light while the electrical box is unsecured.
•The lamp may slightly vibrate during its operation, but it is absolutely
normal to the operation of the light.
•It is recommended that the light be operated 3 feet away from the bore
of the magnet, if the light is operated at the bore, it may reduce the bulb
life.
1. Position the light fixture conveniently to illuminate the target area
2. Position the lamp arm by adjusting the handles on the joints. The lamp
arm assembly has three knobs to adjust the position of the light. Once
a desired position is selected, tighten the three knobs properly to make
the light stable. The lamp head can be moved 315 degrees using the
handle on the lamp head.
3. Verify that the power cord is connected to the electrical box and the
electrical box is powered from the receptacle.

Sunnex PF Series MRI Service & Installation Manual 14
4. Turn on light
•The ON/OFF switch should be used to turn the light on and off. It is
located at the back side of the lamp head.
•When light is not in use, turn it off, also unplug the hospital grade plug
from the hospital grade socket when light is not in use. A mains switch
is not provided on the electrical box.
•The PF series light, being a mobile light can be moved on its wheels by
holding the vertical light pole. Before moving the light, ensure that all
lamp arm joints are tightened properly.
CAUTION ! The electrical box is specifically made to run the PF series MRI
light (PF 28016-M) in an MRI environment. A power supply different than this
should NEVER be used to operate the light.
CAUTION! The caster base is weighted for stability, but the arm should not
be locked in a fully extended horizontal position as this may compromise the
stability of the fixture.
6. SERVICE AND MAINTENANCE
While your PF SERIES MRI light has been designed to provide you many
hours of professional performance, it will benefit from your periodic care and
concern. Your MRI facility guidelines must be strictly followed at all times.
Please consult with your facility manager.
Detachable parts
Lamp head: lens cover, lens, O-ring, lens cover screws, bulb
Light assembly: light pole, light arm, caster base, caster wheels, counter
weight
Electrical box: light cord connector and electrical box receptacle
CAUTION! In the event, parts need to be replaced, only Sunnex parts
should be used as replacements, use of other parts or materials can
degrade safety. Also, there are no user-serviceable parts in the PF
series MRI light. The product should be returned to Sunnex in case
service is required.

Sunnex PF Series MRI Service & Installation Manual
15
6.1 CLEANING AND DISINFECTION
CAUTION! ALWAYS BRING THE LIGHT OUT OF THE MRI
ROOM PRIOR TO CLEANING OR DISINFECTING. TAKE
THE FURTHEST ROUTE AWAY FROM THE MAGNET
WHEN REMOVING THE LIGHT AND ITS POWER SUPPLY
FROM THE MRI ROOM!
CAUTION! ALWAYS SHUT OFF THE LIGHT AND LET
COOL BEFORE PERFORMING ANY CLEANING.
The lamp fixture can be cleaned as needed with a damp cloth and a mild
detergent. For disinfection use a soft cloth with a disinfectant solution such as
isopropyl alcohol. NOTE! Do not introduce any fluids to the inside of the lamp
head as this could cause a fire hazard. The glass lens can be cleaned with
any commercial glass cleaner.
CAUTION! DO NOT USE EXCESSIVE AMOUNTS OF ANY
FLUID WHEN CLEANING. DO NOT INTRODUCE ANY
FLUIDS TO THE INSIDE OF THE LAMP HEAD HOUSING.
Frequency of cleaning and maintenance: A suggested frequency for
cleaning and maintenance is two months.
6.2 BULB REPLACEMENT INSTRUCTIONS PF LIGHT (PF28016-M)

Sunnex PF Series MRI Service & Installation Manual 16

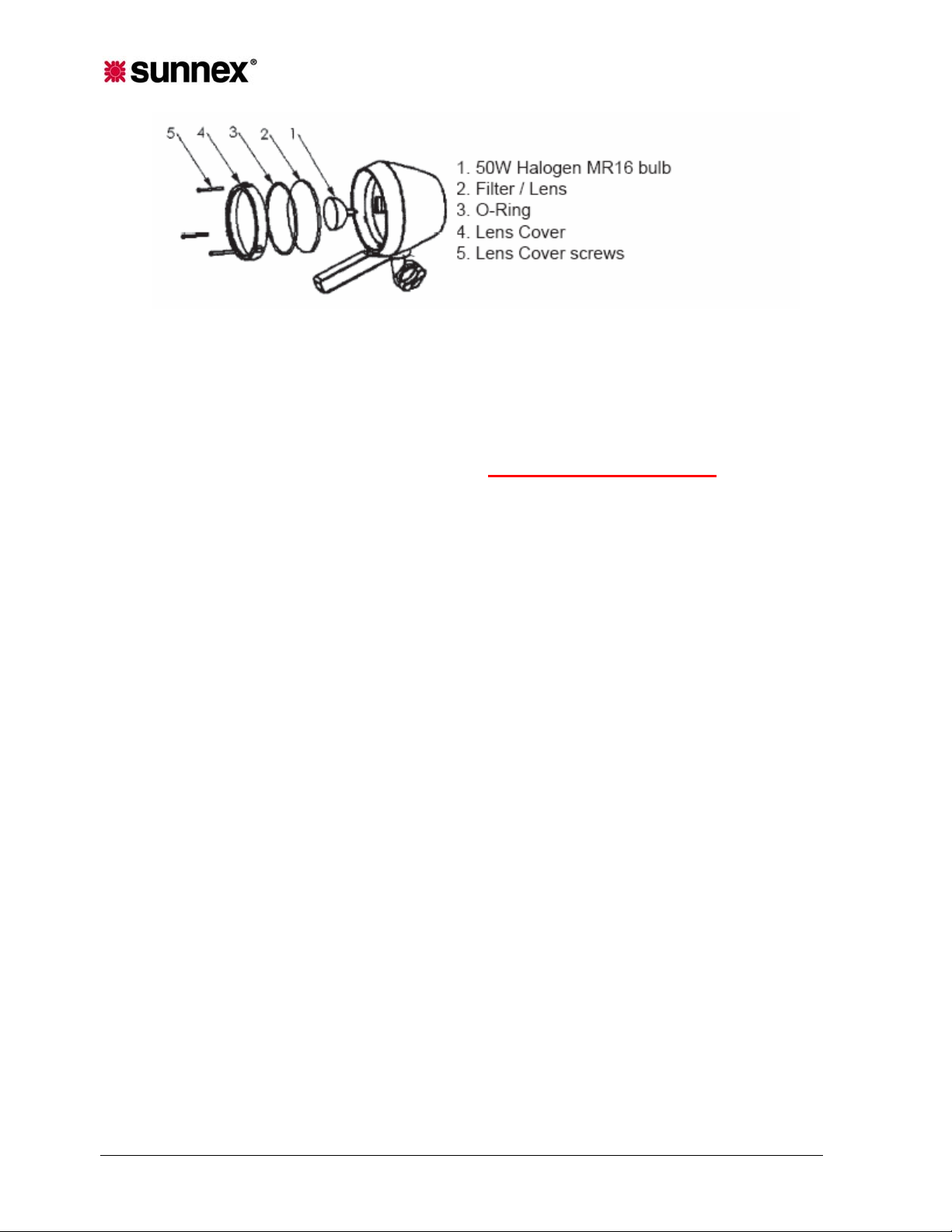

Figure 3. Bulb Replacement
It is recommended that bulb replacement be done outside the MRI room. MRI
facility guidelines must be strictly followed during the use of tools to replace
bulb.
1. Unplug lamp from power source and wait at least one hour for lamp to
cool.
2. Remove the three small screws (5) and remove the lens (2), o-ring (3) and
lens cover (4).
3. Grip bulb (1) and firmly pull straight out from the bulb socket on the lamp
back
4. Align the pins of the new bulb with the pin holes in the bulb socket and
firmly push the new bulb straight into socket. Note! Do not touch the
halogen bulb with bare fingers as dirt and oil from hands could
cause a fire hazard.
5. Reposition lampshade and components on lamp back. Position the bulb
retainer that holds the bulb such that it holds the bulb properly. Align the
three screw holes in the lamp back and shade. Reinstall the three screws
and securely tighten them.
Bulb specifications: Osram EPZ NAED 54743, 50W, 13.8V, GX5.3
CAUTION! Use specified bulb only as the replacement, the power
supply is developed to operate the specified bulb. Any deviation from
using this bulb may cause the light to not operate properly.
CAUTION! Be sure the lampshade components are properly seated
when screws are tightened!
6.3 FUSE REPLACEMENT INSTRUCTIONS PF LIGHT (PF28016-M)

Sunnex PF Series MRI Service & Installation Manual
17
1. Locate fuse holders (2) on the side of the electrical box. Push the fuse
holder while turning it counter clockwise and remove the fuse holder from the
fuse block by pulling it out.
2. Replace fuse with proper replacement fuse.
Fuse Replacement Specifications:
USA : 250V, 2A, Interpower Products – 813MDA-2
Europe: 250V, 1.25A, Interpower Products – 813MDA-1.25
3. Follow procedure in reverse to return lamp to operating condition.

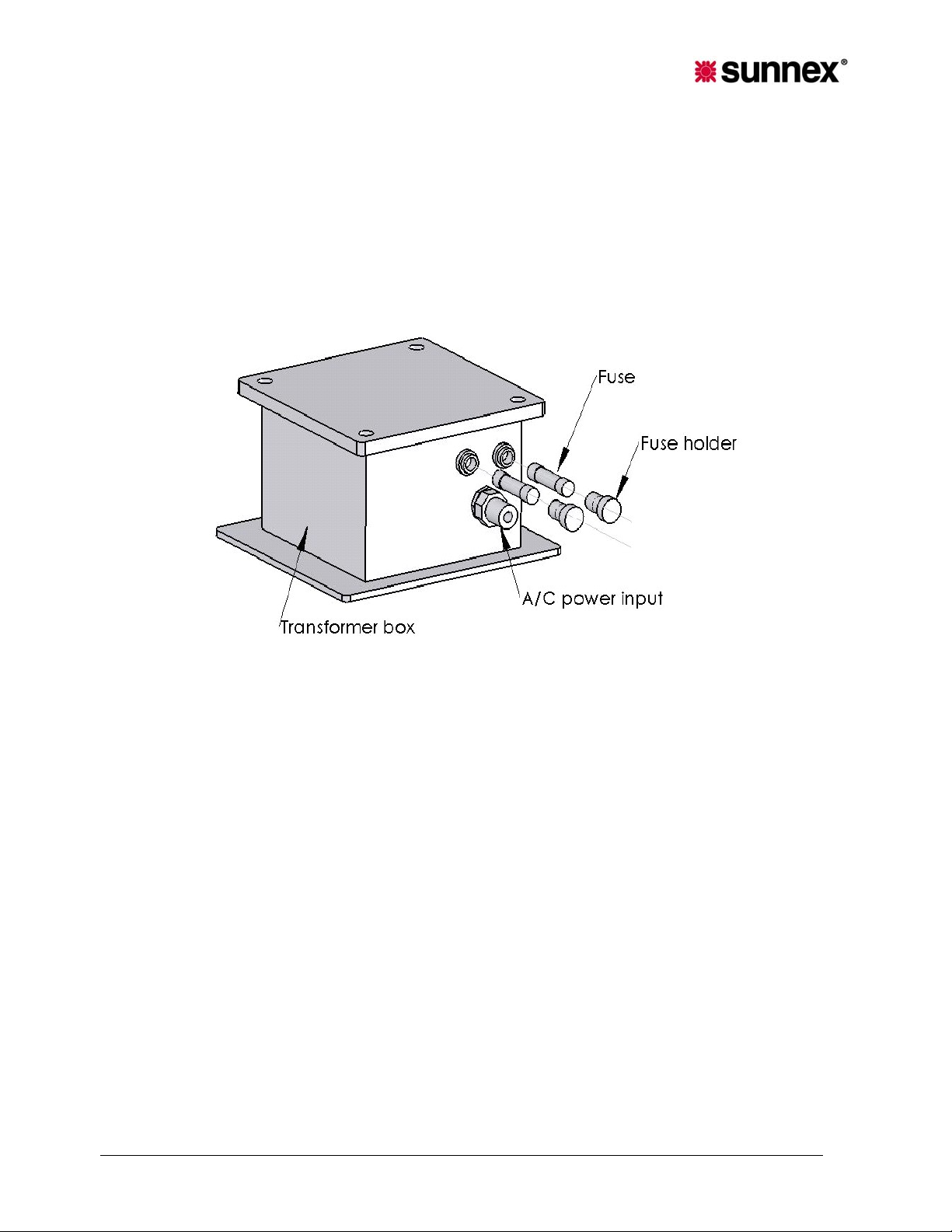

Figure 4. Fuse Replacement
6.4 PREVENTIVE INSPECTION AND MAINTENANCE
Lens in lamp head to be inspected once a month for cleanliness.
6.5 DISPOSAL OF PARTS
Bulbs/fuses: Bulbs and fuses go in normal waste. All glass parts go in
normal waste.
Plastic parts: Plastic parts are to be put in recycling bins.
Transformer box: Electrical and electronic components are to be put in
electrical and electronic waste.
Metal parts: Metal parts go in metal waste.

Sunnex PF Series MRI Service & Installation Manual 18
Risks associated with disposal of parts: To minimize risks associated with
disposing parts, care should be taken to avoid cuts when dismantling bulbs,
glass lens and other glass parts.
While disposing parts and/or product, information on local, state, federal, or
country requirements need to be met.
7. MARKINGS
7.1 SYMBOLS
On/Off
Switch
Symbols
Caution Symbol Protective
earth terminal
symbol
This product must be sorted as
Waste from Electrical and
Electronic Equipment (WEEE)
ON OFF Consult User
Guide Protective Earth
Terminal
WEEE
Fuse
Symbol Alternating Current Symbol Direct Current Symbol Hot Surface Symbol
Fuse A/C DC Hot Surface
7.2 WARNIING STATEMENTS AND LABELS
On lamp head
CAUTION! ATTENTION!
HOT SURFACE SURFACE CHAUDE
CAUTION! LAMP TO BE OPERATED OUTSIDE
THE BORE OF MRI MAGNET
ATTENTION! LA LAMPE DOIT FONCTIONNER
UNIQUEMENT EN DEHORS DU CHAMPS
MAGNÉTIQUE DE D’IRM

Sunnex PF Series MRI Service & Installation Manual
19
On electrical box
CAUTION!
THIS POWER SUPPLY IS MAGNETIC
THIS POWER SUPPLY MUST BE KEPT BEYOND 100
GAUSS LINE OF MRI MAGNET
CE TRANSFORMATEUR EST FERRO-MAGNÉTIQUE.
CE TRANSFORMATEUR, DOIT SE TROUVER EN DEHORS
DE LIGNES DES 100 GAUSS EST DU CHAMPS
MAGNÉTIQUE DE D’IRM
For 120V
Sunnex CE INPUT 120V
MODEL PF 28016-M Hz 60
S/N OUTPUT 14V
AMPS 1.5
WATTS 50W
•FUSES LOCATED ON TRANSFORMER BOX T-2A-250V 2 AMP, ¼” X 1 ¼”
•POWER CORD IS SPECIFIED FOR USE WITH HOSPITAL GRADE RECEPTACLE
•REMOVE POWER CORD FROM WALL RECEPTACLE BEFORE SERVICING
•FUSIBLES PLACEES SOUS COUVERTURES T-2A-250V 2 AMP, ¼” X 1 ¼”
•LE CABLE D’ALIMENTATION EST SPECIFIQUE A UNE UTILISATION EN MILIEU HOSPITALIER
•DEBRANCHER LE CABLE D’ALIMENTATION AVANT TOUT DEMONTAGE DE LA LAMPE
SUN-6
For 230V
Sunnex CE INPUT 230V
MODEL PF 28016-M Hz 50
S/N OUTPUT 14V
AMPS 1.0
WATTS 50W
•FUSES LOCATED ON TRANSFORMER BOX T-1.25A-250V 1.25 AMP, ¼” X 1 ¼”
•POWER CORD IS SPECIFIED FOR USE WITH HOSPITAL GRADE RECEPTACLE
•REMOVE POWER CORD FROM WALL RECEPTACLE BEFORE SERVICING
•FUSIBLES PLACEES SOUS COUVERTURES T-1.25A-250V 1.25 AMP, ¼” X 1 ¼”
•LE CABLE D’ALIMENTATION EST SPECIFIQUE A UNE UTILISATION EN MILIEU HOSPITALIER
•DEBRANCHER LE CABLE D’ALIMENTATION AVANT TOUT DEMONTAGE DE LA LAMPE
. SUN-7

Sunnex PF Series MRI Service & Installation Manual 20
8. WARRANTY
Sunnex warrants that its Products shall be free from defects in material and
workmanship and this warranty shall remain in force and effect for a period of
three (3) years from and after the date of its Delivery (the "Warranty Period")
provided that this warranty shall be subject the following conditions:
(a) the Sunnex Installation Instructions shall have been strictly complied with
in all respects by the party performing the installation of the Product; and
(b) the Product shall have been used only for the purposes for which it is
intended and shall not have been abused, damaged or modified during
installation or from usage.
(c) ordinary wear and tear shall not be covered by the terms of this warranty.
(d) written notice to Sunnex of the defective Product shall be given within the
Warranty Period.
If a Product is found to be defective and the provisions of this Section have
been complied with, Sunnex will repair or replace the Product, at its expense.
Other than as herein expressly set forth there are no warranties made or
given herein with respect to a product and the warranties given in statement
are in lieu of all other warranties, which are hereby disclaimed. In particular,
there are no express or implied warranties, and no warranty of
merchantability or fitness for a particular purpose. Sunnex will not be liable
for any special, indirect, incidental or consequential damage, loss, cost or
expense whatsoever arising from the installation or use of a product or from
any other cause.
When making a claim against your Sunnex warranty, please provide the
model number of your product, the date of purchase and a receipt or other
proof of purchase to your Sunnex customer service representative.
Sunnex Customer Service:
Sunnex Inc, USA [phone]
Sunnex Equipment AB Sweden + 46 565 177 00
