Sunstech KIDS9QC 8GB User manual

KIDS9QC 8GB
User Manual

Device description
1. Front Camera : You can take photos and videos etc.
2. Touch panel .
3. Press for more then 2 seconds to turn ON/OFF.Press
once to turn on screen from sleep mode .
4. HOME
5. Micro USB / OTG, charging
6. Earphone jack: 3.5mm standard earphone jack.
7. DC In 5V
8. Micro SD card slot.
9. MIC
10. Rear camera : You can take photos and videos etc
11. Speaker
【
TIPS
】：
1. When the batter
y
is low, it will power off automaticall
y
.
2. When you restart, device will scan and repair the disk . The
screen will display the progress bar for a short time
3. Definition of “Press”:
Short Press: Press the button less than 2 seconds.
Long Press: Press the button more than 3 seconds.

SUNSTECH KIDS APPLICATION MANUAL
SUNSTECH KIDS APPLICATION IS PROTECTED BY A SAFETY PIN FOR PARENTAL
CONTROL. IN THIS WAY, CHILDREN CAN NOT CHANGE SETTINGS OR OPTIONS
PERFORMED PREVIOUSLY BY PARENTS. THE CODE IN ALL CASES WILL ALWAYS BE
“4321”.

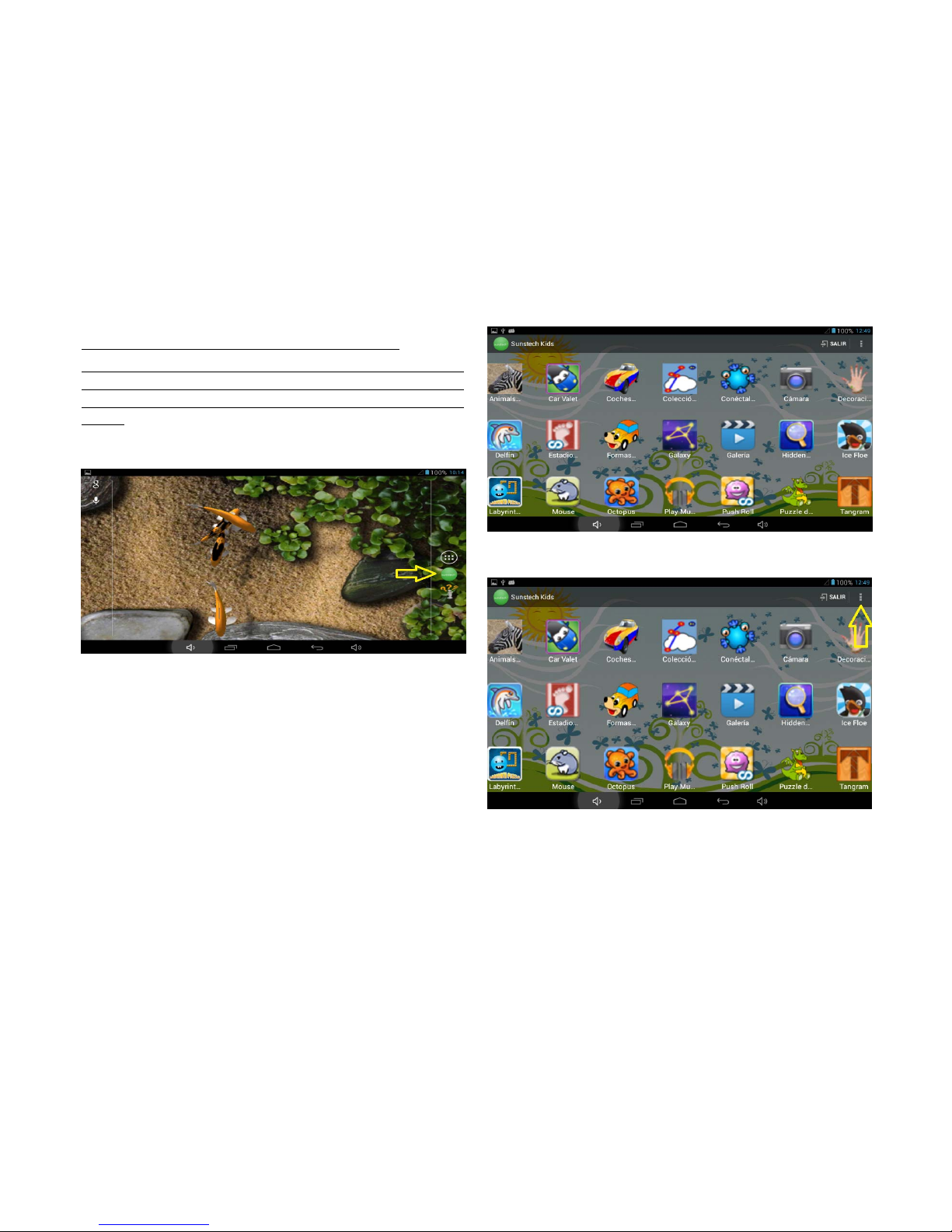

TO START THE SUNSTECH KIDS APPLICATION, CLICK THE GREEN ICON TO FIND YOUR
DESK OF SUNSTECH TABLET:
ONCE INSIDE THE APPLICATION APPEARS THE SUNSTECH KIDS DESK, YOU CAN
ENTER THE DIFFERENT GAMES AND APPLICATIONS CLICKING ANY OF THEM:
YOU CAN CONFIGURE MUTIPLE “OPTIONS” OF SUNSTECH KIDS CLICKING THE ICON
OF THE 3 DOTS(WHERE INDICATE THE ARROW)
BY CLICKING THE “OPTIONS”(3 DOTS), A MENU WITH SEVERAL POSSIBILITIES TO SET
SUNSTECH KIDS IS DISPLAYED:
THE OPTION “SELECT APPLICATIONS”(REMEMBER THAT THE SAFETY PIN ALWAYS IS

“4321”), APPEAR 2 TABS:
THE FIRST ONE: “SELECT APPLICATION”, APPEAR ALL THE APPLICATIONS INSTALLED
ON THE TABLET. THE SECOND TAB: “APPLICATIONS SELECTED”, APPEAR ALL THE
APPLICATIONS SELECTED TO USE INTHE SUNSTECH KIDS APPLICATION.
APPLICATIONS SELECTED IN THE TAB “SELECT APPLICATION” ARE ADDED
AUTOMATICALLY ON THE SUNSTECH DESK.

THE NEXT BUTTON ON THE MENU “OPTIONS”IS: “CONFIGURATION”
IN THE “CONFIGURATION”WE FIND SEVERAL OPTIONS OF THE APPLICATION:
BELOW WE WILL EXPLAIN EACH OPTION:
1. START LOCK BUTTON: LOCK THE START BUTTON AND OTHERS(INSIDE THE CIRCLE). IN THIS
WAY, THE CHILDREN CAN NOT LEAVE FROM THE SUNSTECH KIDS.
2. AUTO RESET APPLICATIONS: THIS OPTION RESET THE GAME, IFTHE CHILDREN LEAVE FROM
IT.
3. PLAY STORE LOCK: LOCK ACCESS TO THE PLAY STORE OF APPLICATIONS IN THE
SUNSTECH KIDS.

4. AIRPLANE MODO: ACTIVATE THE AIRPLANE MODO, DISCONNECT THE WIFI AND ANY OTHER
CONNECTION“IF THE DEVICE IS PREPARED WELL”.
5. ALLOW THE CONNECTION TO INTERNET: CONNECT OR DESCONNECT THE WIFI.
6. KEEP THE HOME SCREEN: IF ACTIVATE THE OPTION, THE SCREEN WILL NEVER SWITCHED
OFF.
7. START IN THE RESET OF THE DEVICE: IF TURN OFF THE TABLET RUNNING THE SUNSTECH
KIDS,WHENRETURNTOSTART,THETABLETWILLENTERAUTOMATICALLYTHESUNSTECH
APPLICATION.
8. ICON SIZE INTHE HOME SCREEN: YOU CAN CHOOSE THE ICON SIZE OF THE APPLACATIONS.
9. TEXT SIZE IN THE MAIN SCREEN: YOU CAN CHOOSE THE TEXT SIZE.
10. SHOW STATUS BAR: CONNECT OR DISCONNECT THE STATUS BAR (CLOCK, BATTERY, ETC.)
11. VOLUME CONTROL LOCK: CONNECT OR DISCONNECT THE VOLUM CONTROL BUTTONS.
12. CHANGE VOLUME: AJUST THE VOLUME IF ALL THE BUTTONS ARE LOCKED.

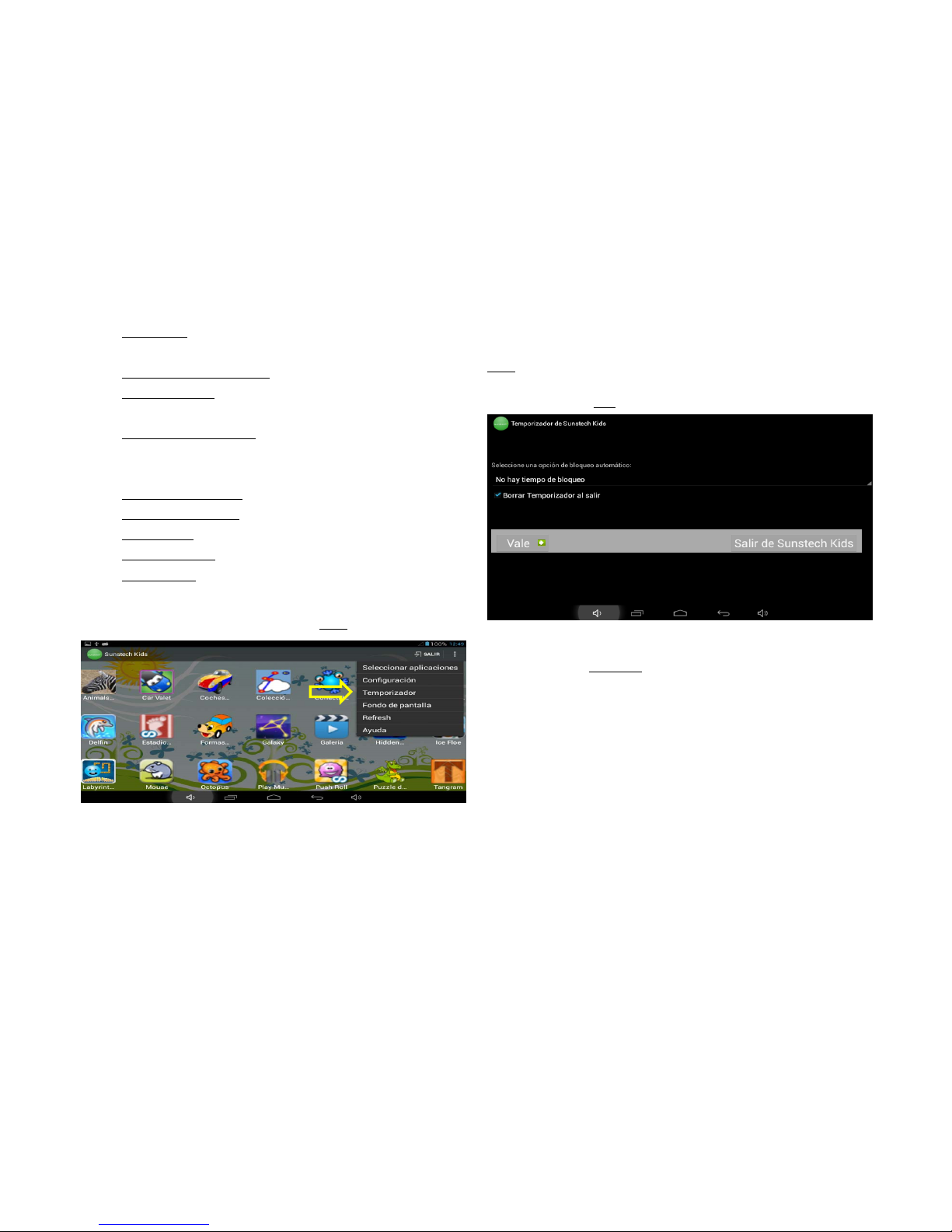

THE NEXT POSSIBILITY ON THE MENÚ“OPTIONS”IS: “
TIMER
”
IN “TIMER” YOU CAN SELECT THE USE TIME IN MINUTES TO LOCK SUNSTECH KIDS.
THIS OPTION IS VERY HELPFUL WHEN YOU WANT TO INDICATE A MAXIMUM TIME SO
THAT THE CHILD USE THE TABLET. WHEN REACH THE TIME SELECTED, THE
APPLICATION IS LOCKED AUTOMATICALLY AND NEED TO INTRODUCE THE PIN
PARENTAL “4321”.
NOTE: IF ONCE THE LOCK TIME INDICATED IS OUT, TURN OFF THE TABLET LOCKED,
WHEN RETURN TO START, WILL START DIRECTLY THE SCREEN LOCK. IF YOU DON’T
INTRODUCE THE PIN “
4321
”, THIS WILL KEEP LOCKED.

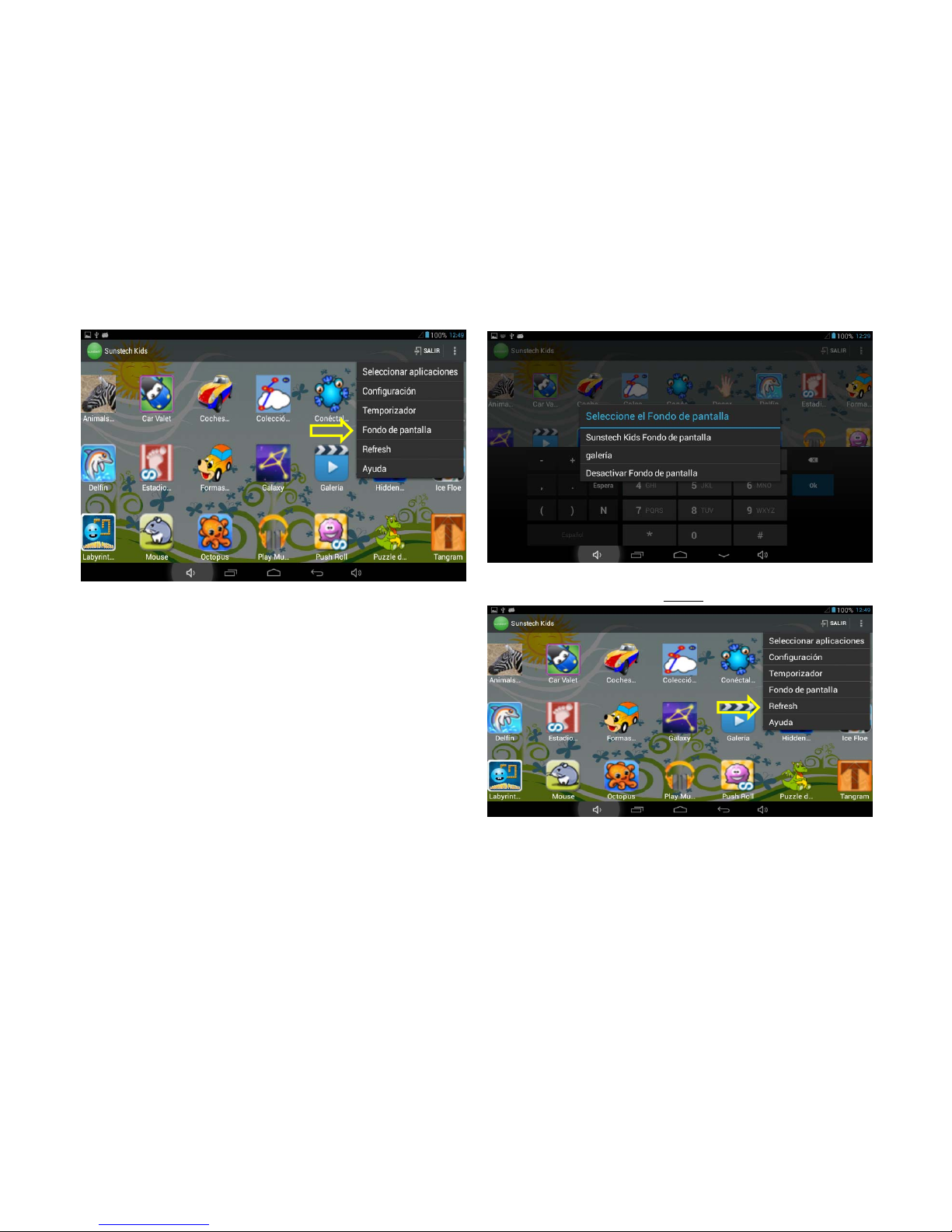

THE NEXT OPTION IS: “
WALLPAPER
”:

YOU CAN SELECT THE WALLPAPER OF: WALLPAPER PREARRANGED OF SUNSTECH
KIDS, SELECT FROM YOUR PHOTO GALLERY OR DISCONNECT THE WALLPAPER OF
SUNSTECH KIDS.
THE NEXT MENU OF THE “OPTIONS” IS “
REFRESH
”:
THIS OPTION IS USED TO CLOSE ANY APPLICATION OPEN, UPDATE THE
APPLICATIONS SELECTED WITHIN THE SUNSTECH KIDS, FOR EXAMPLE, IF YOU HAVE
UNINSTALLED ANY APPLICATION OUT OF THE SUNSTECH KIDS.

THE LAST TAB OF MENU “OPTIONS” IS “HELP”. THERE YOU WILL FIND SOME TIPS AND
QUICK GUIDE ON THE APPLICATION SUNSTECH KIDS.
TO EXIT THE APPLICATION, YOU CAN CHOOSE THE OPTION “EXIT” LOCATED IN THE
TOP RIGHT PART:
TO EXIT REMEMBER TO INTRODUCE THE PIN “4321” AND NEXT THE HOME BOTTON.
SOON YOU WILL RECEIVE UPDATES AND IMPROVEMENTS. AND NEXT RECEIVE A
NOTICE IN THE NOTIFICATION BAR. YOU CAN ONLY MAKE ANY UPDATES OUT OF THE
SUNSTECH KIDS APPLICATION IN THE NORMAL STATUS OF THE TABLET.
FOR ANY DOUBT, CONSULT OR SUGGESTION FOR IMPROVEMENT, YOU CAN SEND
EMAIL TO:
[e-mail]

Setting up for the first time

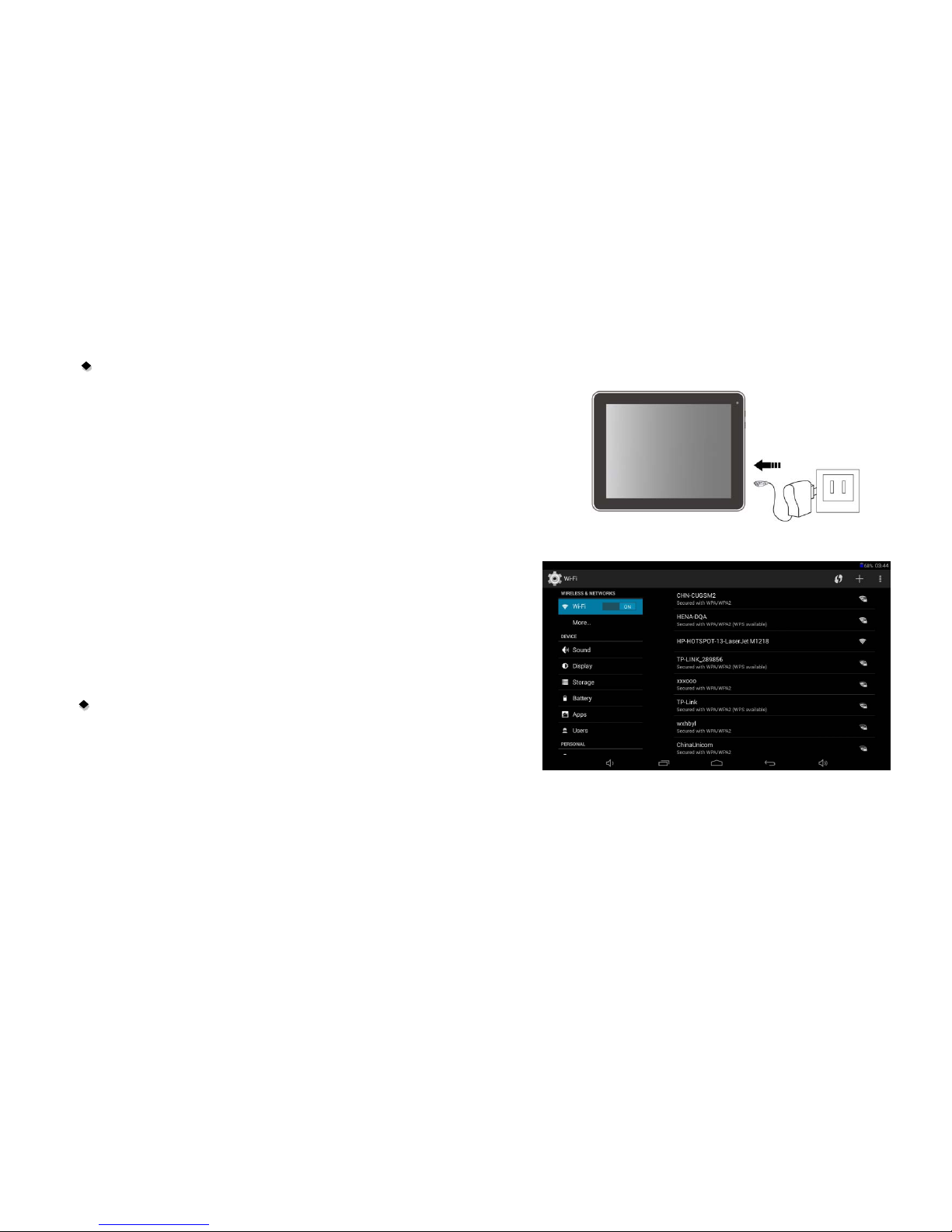

Charging your device
：
For first-time use, you need to charge the device for six hours.
After that you can recharge the device as needed.
Connect the DC-in jack to your device and plug the AC adapter into any AC outlet.
Also, you can charge the unit through of the micro USB.
【
TIPS
】
:
1. This device adopts built-in polymer battery. Only the specified charger should be
used.
2. It is normal for the device’s surface to become warm during charging or long
periods of use
3. If you do not use this set for a long time, please charge/release it once
one month to avoid deep discharge.
System Settings
Wireless & Network:
Wi-Fi-: Press Wi-Fi to turn ON/OFF
Wi-Fi settings:
Press Wi-Fi settings, then the device will automatically search the available
Wi-Fi signals.
Select the network you want to connect with.

Display :
Rotate screen setting :
In the upper right of the screen, press and slide down .
Shows in the screen some direct settings.
Select enable /disable Auto Rotate screen.
Storage
Check device memory and microSD card memory.

Apps
Manage and listing of downloaded or running applications.
 Language & input :
1. Language: Users can choose OSD Languages.
2. KEYBOARD & INPUT METHODS: select language method.
【 Remark 】： In this state ,users can switch the input method .
Date & time : when the internet is connected , turn on “Automatic date &
time” the device can obtain the actual date and time from the internet.

Camera
Click “Camera” in the main interface.
If the cursor is at position, the device is at Camera mode.
Click to take picture.
Click to enter the setting interface
Click to more options.
Click to select back or front camera.
Click to enter the mode select interface
If the cursor is in this position , the device is at DV mode.
Click to take picture.

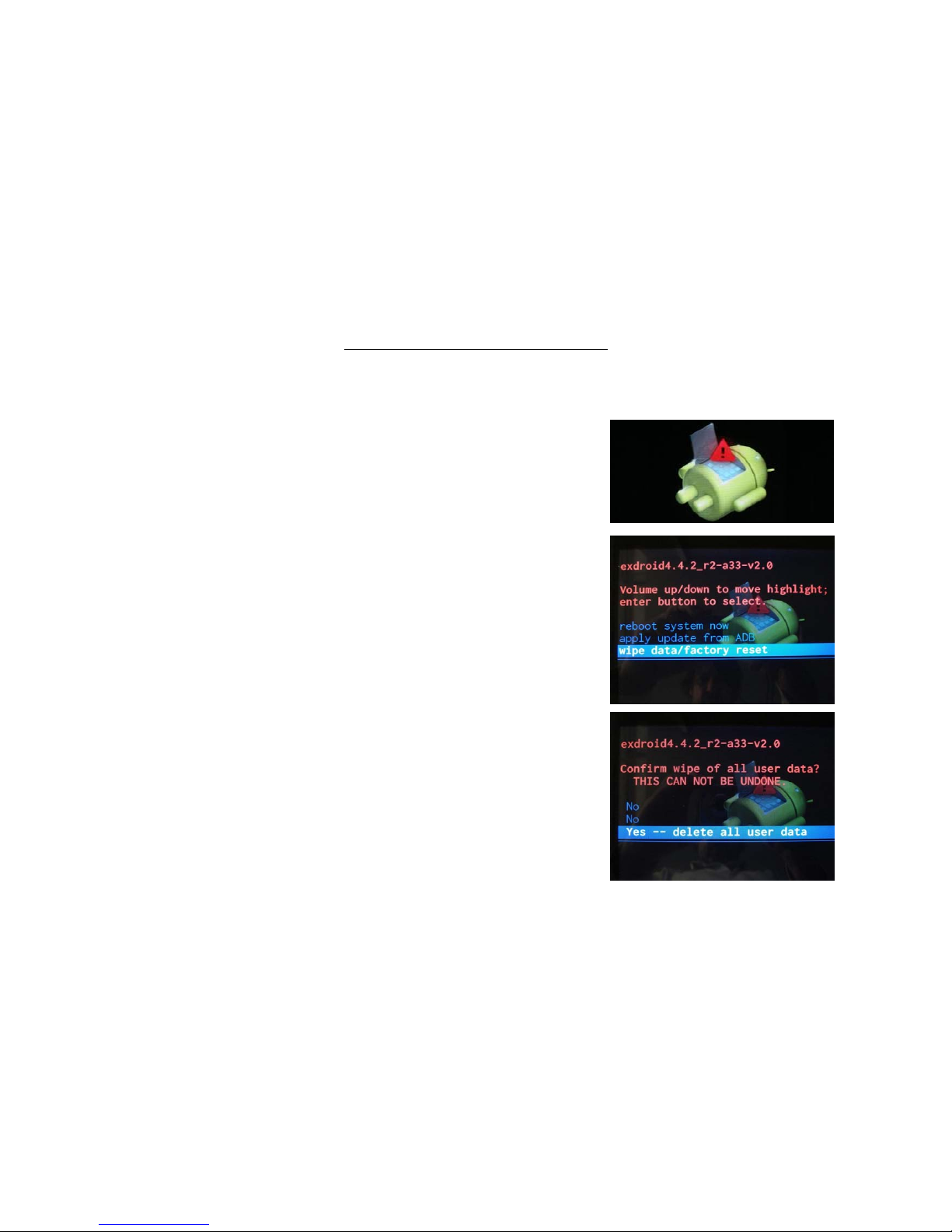

Recovery mode for KIDS9QC 8GB
1. In power off mode , keep holding the HOME and POWER key simultaneously till the
following icon appear.
2. Press HOME key to select wipe data/factory and press the POWER key to select.
3. Press the HOME key to select YES-DELETE ALL USER DATA and POWER key
to confirm delete all user data.

4-Thescreenwillshowsomedata.Pleasewait.
5- Then it show“Reboot system now” , press the POWER key and the unit
will start doing the recovery.
.
Please,be patient.
It will be loading data.
Trouble shooting
• Can not power on:
--Connect the power cable to charge to the device, after a while you can try again.
--If it still can not power on, please contact with our distributor or service centre.
•Strangenoises:
--Check if the music file is damaged.
--If the music files are damaged, it may cause serious noise and the sound can be affected.
• Can not download or copy:
--Check if the connection between the device and the Pc is correct.
--Check the spare space of the memory.
--Check the USB cable.

• USB error
：
--Make sure that the USB device is securely connected to the USB jack.
--Check if the USB device or cable is damaged.
--If the USB device is connected via a USB hub, connect the USB device directly to the device.
• Cannot connect the device to the wireless LAN router
：
--Check if the wireless LAN router is on.
--Depending on the surrounding environment, such as the wall material, radio wave receiving condition, or obstacles between the device
and the wireless LAN router, the communication distance is lower. Move the device and the wireless LAN router closer to each other.
--Devices that use a 2.4GHz frequency band, such as a microwave, Bluetooth, or digital cordless device, may interrupt the communication.
Move the device away from such devices, or turn off such devices.
Resetting the device:
You may have to perform a reset if your device, not respond correctly.
If your device does not respond through touch panel or this blocked.
You can do the recovery mode the device.

How to download the software using the unit KIDS9QC
IMPORTANT : When you download the software, all data will be deleted such as photos, videos and Apps that you have installed .
Do not interrupt this process please make sure the battery is fully charged.
Please, follow these steps.
1- Open browser and search and open this link: http://www.sunstech.es/download/
2- Select the model of the tablet that you have and download the software.(This software is installed on the INTERNAL SD).
3- When the download is finished ,select the App " Sunstech Update "inyourunit.
4- Select "Local Update" and after select "Download".
5-
In the download paragraph , select the software and wait until the process is finished .

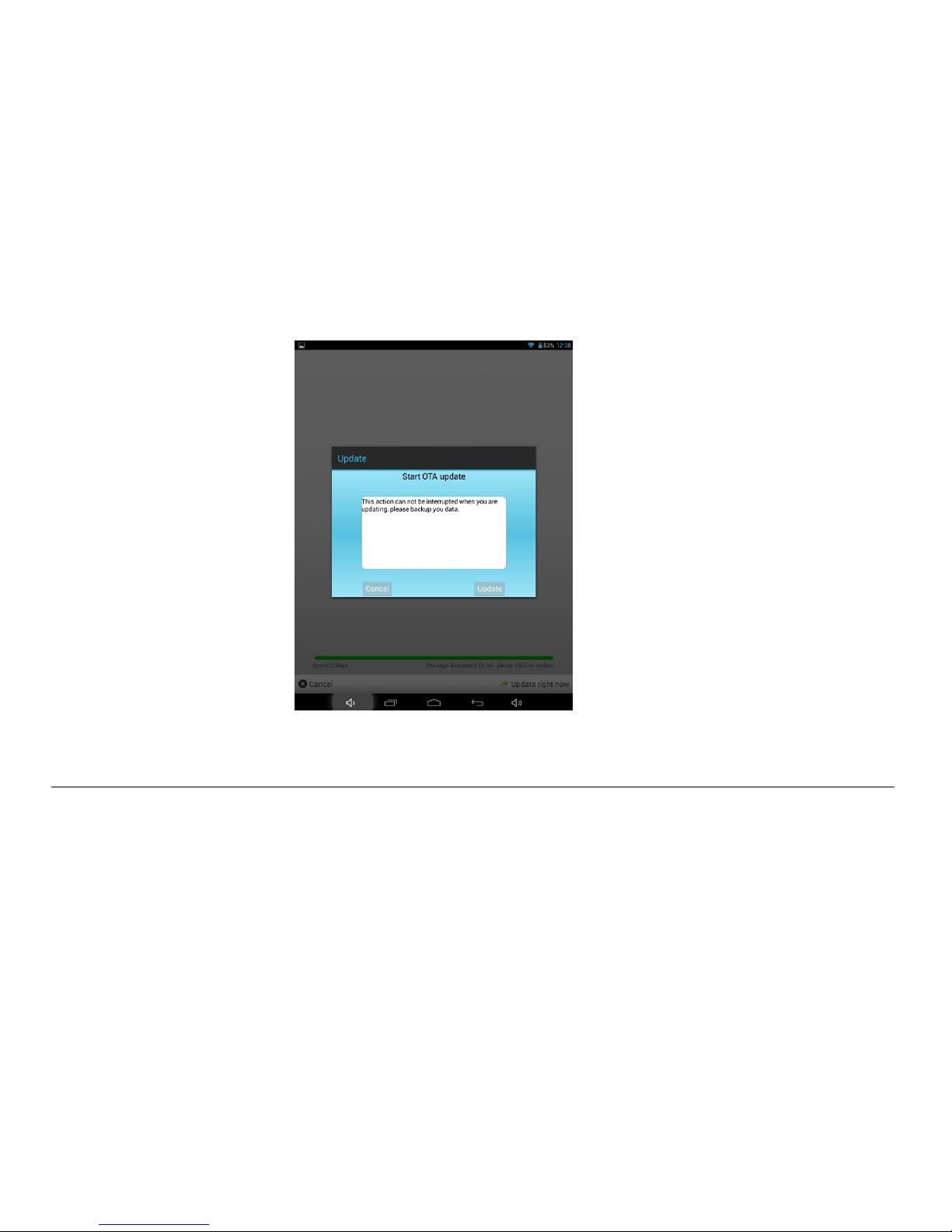

6- After appears the follow image
7- Select “Update” to install the update.
The unit will start with the installation process. “
PLEASE WAIT , THIS PROCESS MAY LAST FOR A FEW MINUTES ”
You ma
y
rece
i
ve a messa
g
eautomat
i
cu
pg
ra
d
eora
l
so can to
k
now
if
ex
i
st an automat
i
cu
pd
ate

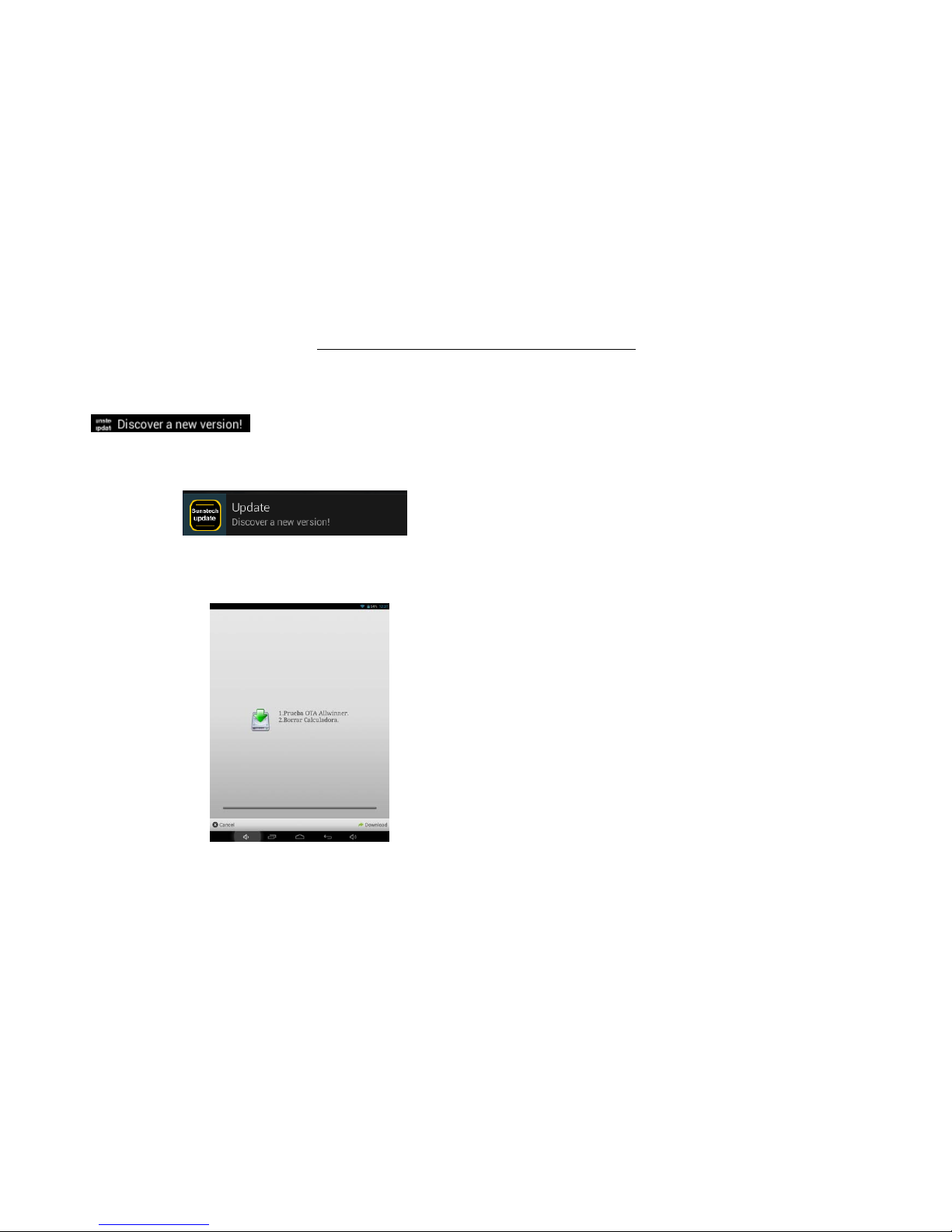

How to use the automatic update "OTA".
1 - If receive an automatic update, follow these steps.
2- In top left press and slide down and will see a drop down with the upgrade.
3- After select the Update warning appears this new image.

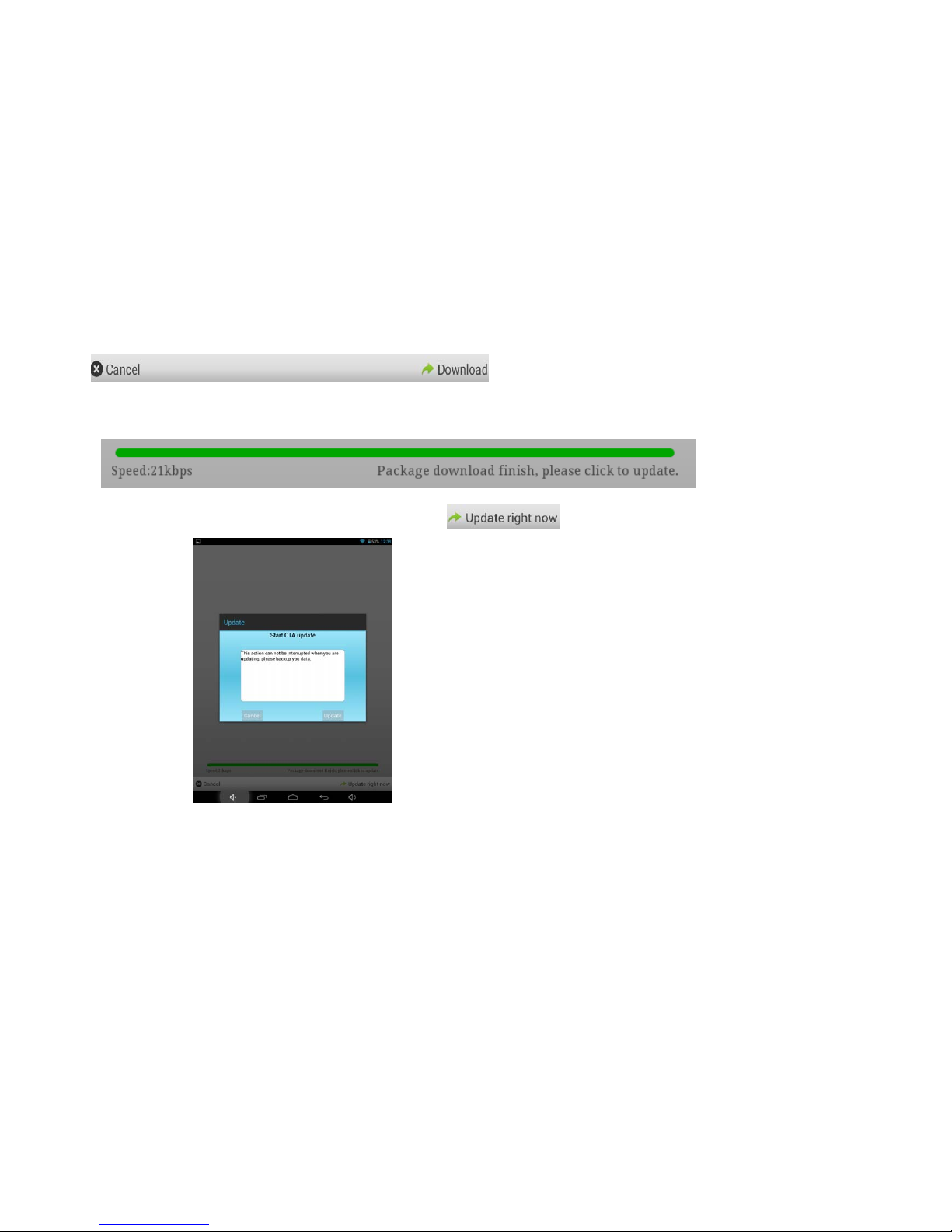

4- To update select Download or exit if you want not update.
5- To update select Download .
When it reaches the end of the bar indicator means that the software this downloaded in the unit.
6- Select Update right now and appears the follow image.
7- Select “Update” to install the update.
The unit will start with the installation process. “
PLEASE WAIT , THIS PROCESS MAY LAST FOR A FEW MINUTES ”

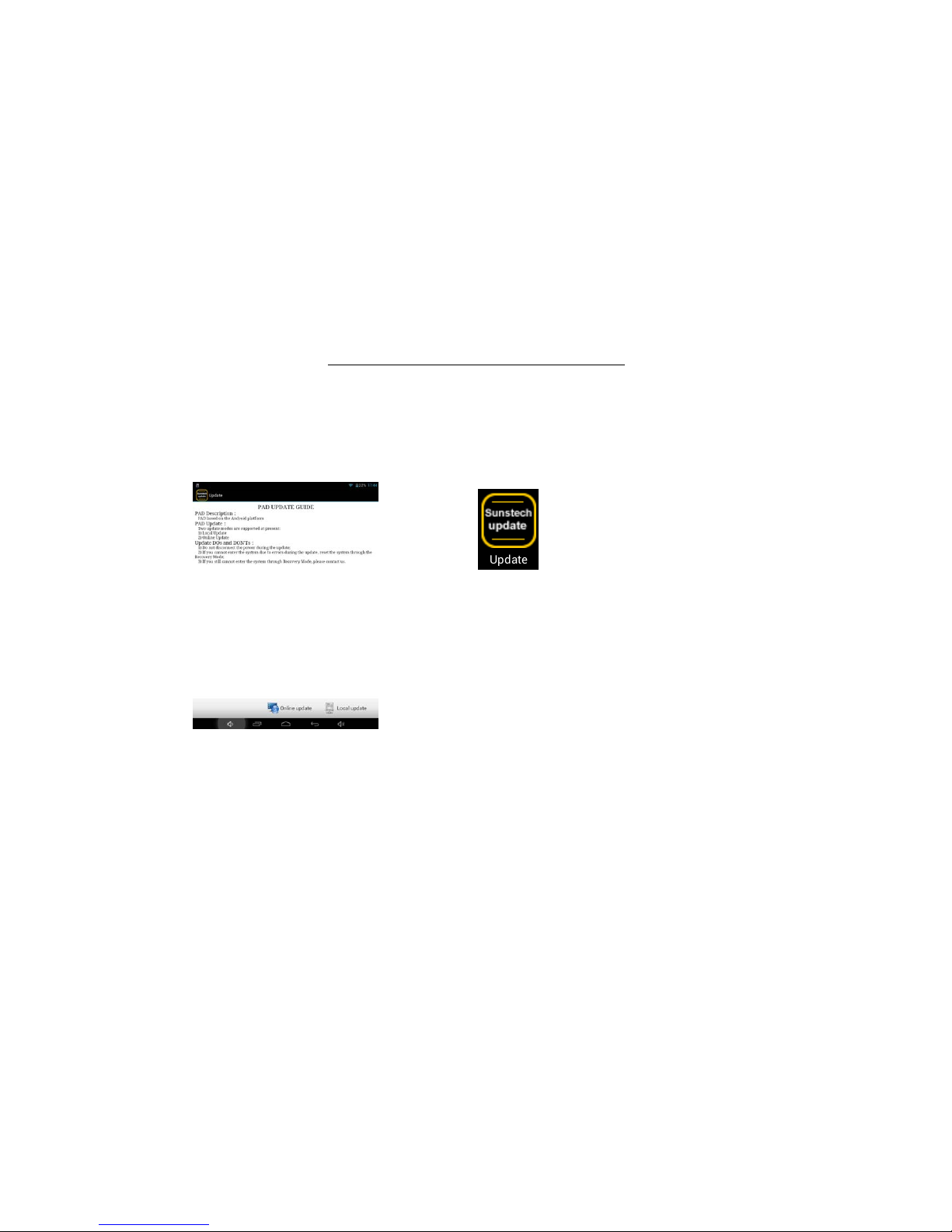

How to use the manual update "OTA".
1- Select the icon“ Sunstech update ” installed on the tablet and appear the follow image.
2- Select
Online U
p
date
to see if there is any upgrade.
3 -In case of exist an update follow the steps in the section “
Howtousetheautomaticupdate"OTA" from step
3
.
