Super Handy GUO056 User manual

Operator's Manual
REV 11/26/20
Electric Shredder & Mulcher
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.

IMPORTANT SAFEGUARDS
For your own safety, always follow these basic precautions when using
this appliance.
1. Read the user Manual carefully for operating instructions. Read all instruc-
tions in this manual before use.
2. DO NOT use this product for anything other than its intended purpose.
3. DO NOT use attachments other than those available from the manufacturer.
4. DO NOT alter this product in any manner; doing so is dangerous and will void
all warranties.
5. DO NOT allow children or adults weighing under 100 lbs. to operate this unit.
6. DO NOT operate under the influence of drugs or alcohol.
7. DO NOT continue to use this product in the event of mechanical or electrical
failure.

TECHNICAL DETAILS

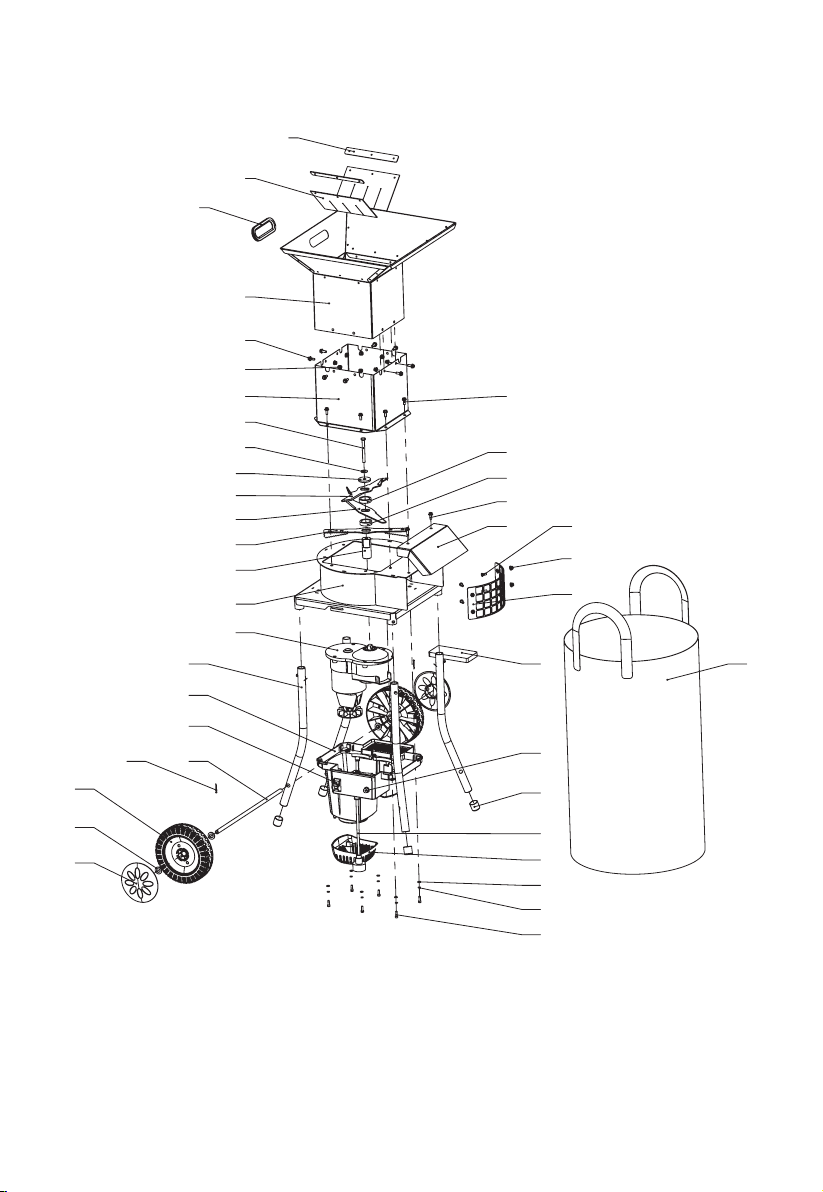

PARTS LIST AND DIAGRAM
E1
Item No.
Electrical Rating
Wheel
Blade
Blade Speed
GUO056
120VAC / 60Hz / 15A
8"
11" (280mm)
4100RPM
Upper Feeding Port
Lower Feeding Port
Body
Motor Assembly
8" Wheel
Axle
Support Stand
Discharge Guard

WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey
all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
IMPORTANT SAFETY INSTRUCTIONS
When using electric gardening appliances, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and personal injury, including the
following:
READ ALL INSTRUCTIONS
Power Cord Safety
To reduce the risk of electric shock, use only with an extension cord intended for
outdoor use, such as an extension cord of cord type SW-A, SOW-A, STW-A, STOW-A,
SJW-A, SJOW-A, SJTW-A. or SJTOW-A.
1. Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or
outlet(s) to be used for the gardening appliance. Receptacles are available having built-in
GFCI protection and may be used for this measure of safety.
2. Do not Abuse Cord - Do not carry appliance by cord or yank it to disconnect from receptacle.
Keep cord from heat, oil, and sharp edges.
3. To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider
than the other) and will require the use of a polarized extension cord. The appliance plug will
fit into a polarized extension cord only one way. If the plug does not fit fully into the extension
cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord.
A polarized extension cord will require the use of a polarized wall outlet. This plug will fit into
the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse
the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall
outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug
in any way. This design is referred to as double-insulated, indicated by.
4. WARNING: The cord of this product contains lead, a chemical known to the State of
California to cause cancer, and birth defects or other reproductive harm. Wash hands after
handling. (California Health & Safety Code § 25249.5, et seq.)
5. Extension Cord - Make sure your extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to carry the current your product will draw.
An undersized extension cord will cause a drop in line voltage resulting in loss of power and
overheating.
Extension Cord Size
The following table shows the correct cord size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge
number, the heavier the cord.
E2

Connecting Cords
To reduce the risk of the cords pulling apart during operation, do one of the following:
1. Make a knot as shown below then connect the cords:
2. Or, use a plug-receptacle retaining strap or connector designed to hold extension cords to
appliance cords.
Personal Safety
1. Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving parts.
Use of rubber gloves and substantial footwear is recommended when working outdoors.
Wear protective hair covering to contain long hair.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves. Use face or dust mask if
operation is dusty.
3. Avoid Unintentional Starting - Do not carry plugged-in appliance with finger on switch. Be
sure switch is off when plugging in.
4. Do not Overreach - Keep proper footing and balance at all times.
5. Stay Alert - Watch what you are doing. Use common sense. Do not operate appliance when
you are tired.
6. People with pacemakers should consult their physician(s) before use. Electromagnetic fields
in close proximity to heart pacemaker could cause pacemaker interference or pacemaker
failure. In addition, people with pacemakers should:
Avoid operating alone.
Don’t use with power switch locked on.
Properly maintain and inspect to avoid electrical shock.
Any power cord must be properly grounded. Ground Fault Circuit Interrupter (GFCI) should
also be implemented – it prevents sustained electrical shock.
Gardening Appliance Use and Care
1. Avoid Dangerous Environment - Do not use appliances in damp or wet locations.
2. Do not use in rain.
3. Keep Children Away - All visitors should be kept at a distance from work area.
4. When servicing use only identical replacement parts.
5. Before Starting the Shredder, make sure that the hopper inlet is empty.
6. Keep your face and body away from the Hopper opening.
7. Stay clear of the discharge area. Keep body and hands away from the discharge chute.
E3
0 – 6
6 – 10
10 – 12
12 – 16
EXTENSION CORD LENGTH
25'
18
18
16
14
50'
16
16
16
12
100'
16
14
14
150'
14
12
12
TABLE A – MINIMUM WIRE GAUGE FOR
XTENSION CORDS (120 VOLT)
Not recommended
Ampere Rating
(at full load)
Extension
Cord
Appliance
Cord
1
2

8. Do not put your hands into the hopper opening while the unit is running. Use the paddle to
push objects into the hopper.
9. Before feeding material into the shredder, remove any metal, rocks, bottles, cans or other
foreign objects that may damage blades.
10. Use Right Appliance - Do not use appliance for any job except that for which it is intended.
11. Do not Force Appliance - It will do the job better and with less likelihood of injury at the rate
for which it was designed.
12. Store Idle Appliances Indoors - When not in use, appliances should be stored indoors in
dry, and high or locked-up place - out of reach of children.
13. Maintain Appliance With Care - Keep cutting edge sharp and clean for best performance
and to reduce the risk of injury. Follow instructions for lubricating and changing accesso-
ries. Inspect appliance cord periodically, and if damaged, have it repaired by an authorized
service facility. Inspect extension cords periodically and replace if damaged. Keep handles
dry, clean, and free from oil and grease.
14. Check Damaged Parts - Before further use of the appliance, a guard or other part that is
damaged should be carefully checked to determine that it will operate properly and perform
its intended function. Check for alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other condition that may affect its operation. A guard
or other part that is damaged should be properly repaired or replaced by a qualified
technician unless indicated elsewhere in this manual.
15. Disconnect Appliance - Disconnect the appliance from the power supply when not in use,
before servicing, when changing accessories such as blades, and the like.
16. Keep guards in place and in working
order.
17. Keep blades sharp.
18. Keep clear of intake and discharge
chute. Use included push paddle.
Unplug unit and allow it to stop
before unclogging.
19. In order to reduce dust entering the
motor, clean the filter cotton frequently.
It is better to clean it after each use.
The steps are: Take out the filter
cotton from the air inlet, after
cleaning the filter cotton,
install it back.
E4
Filter Cotton

PACKAGE INCLUDES
E5
1 pc 1 pc 1 pc 4 pcs
1 pc 1 pc
2 pcs 1 pc
(24*2.5mm)
4 pcs (2.5*25mm) 2 pcs (M6*16mm)
18 pcs
M6
8 pcs
Upper Feeding Port
#4
Wheel #27
Flat Washer
#28
Pin
#26
Flange Bolt
#5
Flange Nut
#6
Wheel #37 Axle
#25
Discharge Guard
#16
Lower Feeding Port
#7
Body
#20
Support Stand
#22

INSTALLATION STEPS
E6
1pc 2pcs 2pcs 4pcs 2pcs

E7
8 pcs
8pcs 8pcs
2pcs 1pc

OPERATION
This leaf shredder is only used for shredding leaves, grass
clippings, etc. It is not suitable for shredding branches or
long fiber plants which above 0.5". Do not overwork!
Stop the leaf mulcher every 20 minutes, restart until
it is fully cool down. Duty Cycle: S2.
1. Before operating the Shredder, put on ANSI-approved
safety goggles and other safety gear. Safety goggles
and other safety gear are sold separately.
2. If an extension cord is used, ensure that it is an
outdoor type extension cord and that it is the
correct design to accept this appliance’s plug.
3. Check that the Power Switch is OFF.
4. Check that the feed inlet is empty.
5. Plug the Power Cord into a 120VAC/60Hz outlet.
6. Turn on the Power Switch.
7. Do not shred soft, damp leaves it may clog the
Shredder. Let damp garden waste dry for a
few days before shredding.
8. Use the push paddle to feed leaves and other
small material into the Hopper.
9. Feed material into the Shredder at the rate that
the machine pulls the material. Do not force
material into the machine.
10. Wait for all material to pass through the Shredder before turning the unit off.
11. To prevent accidents, turn the power off, and disconnect the power supply after use. Clean,
then store the appliance indoors out of children’s reach.
OVERLOAD PROTECTION
This Shredder is equipped with an overload protection system. If the unit clogs while running,
the overload protection system will shut the power off. Wait at least one minute before
restarting. Press the Reset Button then turn the Power Switch on.
MAINTENANCE AND SERVICING
Procedures not specifically explained in this manual must be performed only by a qualified
technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION OR ELECTRIC
SHOCK:
Turn the Power Switch of the appliance to its “OFF” position and unplug the appliance from its
electrical outlet before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem
corrected before further use.
1. BEFORE EACH USE, inspect the general condition of the tool. Check for:
• Loose hardware
• Misalignment or binding of moving parts
• Cracked or broken parts
• Damaged cord/electrical wiring
• Any other condition that may affect its safe operation
2. AFTE USE, clean external surfaces of the appliance with clean, moist cloth.
E8
Reset Button
Power Switch
Power Cord

3. Replace or sharpen the Blades as needed.
4. If the motor turns but the appliance does not function, the belt may be broken. Have the belt
replaced by a qualified technician.
TROUBLE SHOOTING
1. Normal and regular maintenance will extend the service life of the equipment.
2. The following troubleshooting guide lists the most common problems, causes and solutions.
E9
PROBLEM
Engine won't start.
Engine stops suddenly.
Cutting ability reduced.
Abnormal vibration of
equipment.
Note: Stop the motor
immediately and
disconnect the
power.
POSSIBLE CAUSE
1. The cutting blade is stuck.
2. The motor is overheated.
3. The extension cord is too long.
4. The device is not connected to power.
5. The overload protector starts.
6. The motor or electrical components is
malfunction.
1. Turn off the power switch unexpectedly.
2. Disconnect the power plug.
3. The motor is overheated.
4. The overload protector starts due to
the blockage.
5. The motor or electrical components is
malfunction.
1. The blade edge is worn.
2. The blade is not installed correctly.
3. The discharge port is blocked.
4. The extension cord is too long.
5. There are other electrical loads
connected to the power supply.
1. The blade is loose or unstable.
2. The equipment fastener is loose.
SOLUTIONS
1. Remove the blockage.
2. Operate the equipment in the area
with air circulation.
3. Select extension wire reasonably.
(high power loss due to resistance).
4. Connect the power supply.
5. Reset the overload protector.
6. Repair or replacement by
professional technicians.
1. Restart the power switch.
2. Reconnect the power plug.
3. Run after cooling the motor.
4. Reset the overload protector after
removing the blockage.
5. Repair or replacement by
professional technicians.
1. Replaced by professional technicians.
2. Installed by professional technicians.
3. Remove the blockage.
4. Select extension wire reasonably.
(high power loss due to resistance).
5. The device should connect to the
power supply separately. (Other
electrical loads will reduce power)
1. Check blades and replace as
necessary.
2. Tighten bolts and nuts.

PARTS BREAKDOWN
E10
1
2
3
4
5
6
7 5
8
9
10
11
12
13
12
14
15
5
16
6
17
18
19
20
21
22
23
24
2526
27
28
29
30
31
32
33
34
35
36
37

Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Description
Pressing Plate
Rubber Curtain
Handle
Upper Feeding Port
Hexagon Flange Bolts M6*16
Flange Lock Nut M6
Lower Feeding Port
Hexagon Head Bolt M8*80
Large washer 8
Pressing Plate
Upper Blade
Bushing
Bottom Blade
Blade
Transmission Shaft
Discharge Guard
Countersunk Head Screw M6*16
Screen Plate
Filter Cotton
Q’ty
2
2
1
1
18
10
1
1
1
1
1
2
1
1
1
1
4
1
1
Part No.
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Description
Body
Motor
Support Stand
Motor Cover
Switch
Axle
Pin
8" Wheel
Flat Washer 12
Wheel Cover
Overload Protector
Foot Pad
Power Cord
Motor Upper Cover
Flat Washer 5
Elastic Ring
Cylindrical Head Screw M5*16
Woven Bag
Q’ty
1
1
4
1
1
1
2
2
4
2
1
4
1
1
6
6
6
1
E11

Great Circle USA
Support Line: 1-866-493-0524
[email protected]
www.greatcircleus.com
Size: 145x210mm REV 11/26/20 3.02.02.1111157克铜版纸
