LCD1U17-36
17.3”Full HD LED Backlignt Dual Rail
Console with Modular KVM Switch
User Manual
Rev 1.0

I
Packing List
The complete LCD1U17-36 17.3” Full HD LED backlight dual rail console with modular
KVM switch package consists of:
One 1U 19” rack mount console
Two rails with front and rear bracket
Two blockers.
One 1.8 m KVM cable. (HDDB-15 / VGA + PS/2 x 2)
One USB cable
One DC power adapter
One power cord
One user manual CD
One quick installation guide
Two keys
Six flat screws. (for rail mount to console body)
Two screws. (for combine blockers and console)
Check to make sure that the unit was not damaged in shipping. If you encounter a
problem, contact your dealer.
Please read this manual thoroughly, and follow the installation and operation
procedures carefully to prevent any damage to the product, and/ or any of the
devices that connect to it.
www.RackmountMart.com

II
Safety Instructions
1. Please read these safety instructions carefully.
2. Please keep this User’s Manual for later reference.
3. Please disconnect this equipment from AC outlet before cleaning. Don’t use
liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for
cleaning.
4. Forpluggable equipment, the socked-outlet shall be installed near the
equipment and shall be easily accessible.
5. Please keep this equipment from humidity.
6. Lay this equipment ona reliable surface when install. A droporfallcould cause
injury.
7. Do not leave this equipment in an environment unconditioned, storage
temperature above 60 0C, it may damage the equipment.
8. The opening on the enclosure is for air convection hence the equipment from
overheating. DO NOT COVER THE OPENING.
9. Make sure the voltage of thepower source connectthe equipment to the power
outlet.
10.Please keep the power cord such a waythat people can not step on it. Do not
place anything over power cord. The power cord must rate for the voltage and
current marked on the product’s electrical ratings label. The voltage and current
rating of the cord should be greater than the voltage and the current rating
marked on theproduct.
11. All cautions and warning on the equipment should be noted.
12.If the equipment is not in use for long time, disconnect the equipment from mains
to avoid being damaged by transient over-voltage.
13.Never pour any liquid into ventilation openings; this could cause fire or electrical
shock.
14.Never open the equipment. For safetyreason, qualified service personnel
should only open the equipment.
15.If one of the following situations arises, get the equipment checked by service
personnel.
The Power Cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment has notworked well or you can not get it work according to
www.RackmountMart.com

III
User’s Manual.
The equipment has dropped and damaged.
If the equipment has obvious signs or breakage.
www.RackmountMart.com

IV
Index of Contents
Packing List.............................................................................................................................................I
Safety Instructions...............................................................................................................................II
Index of Contents..............................................................................................................................IV
1. General Information.................................................................................................................. 5
1.1 Feature .................................................................................................5
1.2 Benefits.................................................................................................5
1.3 Advantage.............................................................................................6
1.4 Product Specification............................................................................7
1.4.1 LCD1U17-36 Specification ........................................................7
1.4.2 LCD1U17-36 I/O Diagram.........................................................8
2. Panel Controls and OSD Function..................................................................................... 9
2.1 Input Source .........................................................................................9
2.2 Auto Tune...........................................................................................10
2.3 Brightness...........................................................................................10
2.4 Contrast..............................................................................................10
2.5 Color...................................................................................................11
2.6 Position...............................................................................................12
2.7 Language............................................................................................12
2.8 Recall..................................................................................................13
2.9 Volume................................................................................................14
2.10 Exit....................................................................................................14
3. Installation.................................................................................................................................... 15
3.1 Install Console into Cabinet................................................................15
3.1.1 Notes ........................................................................................15

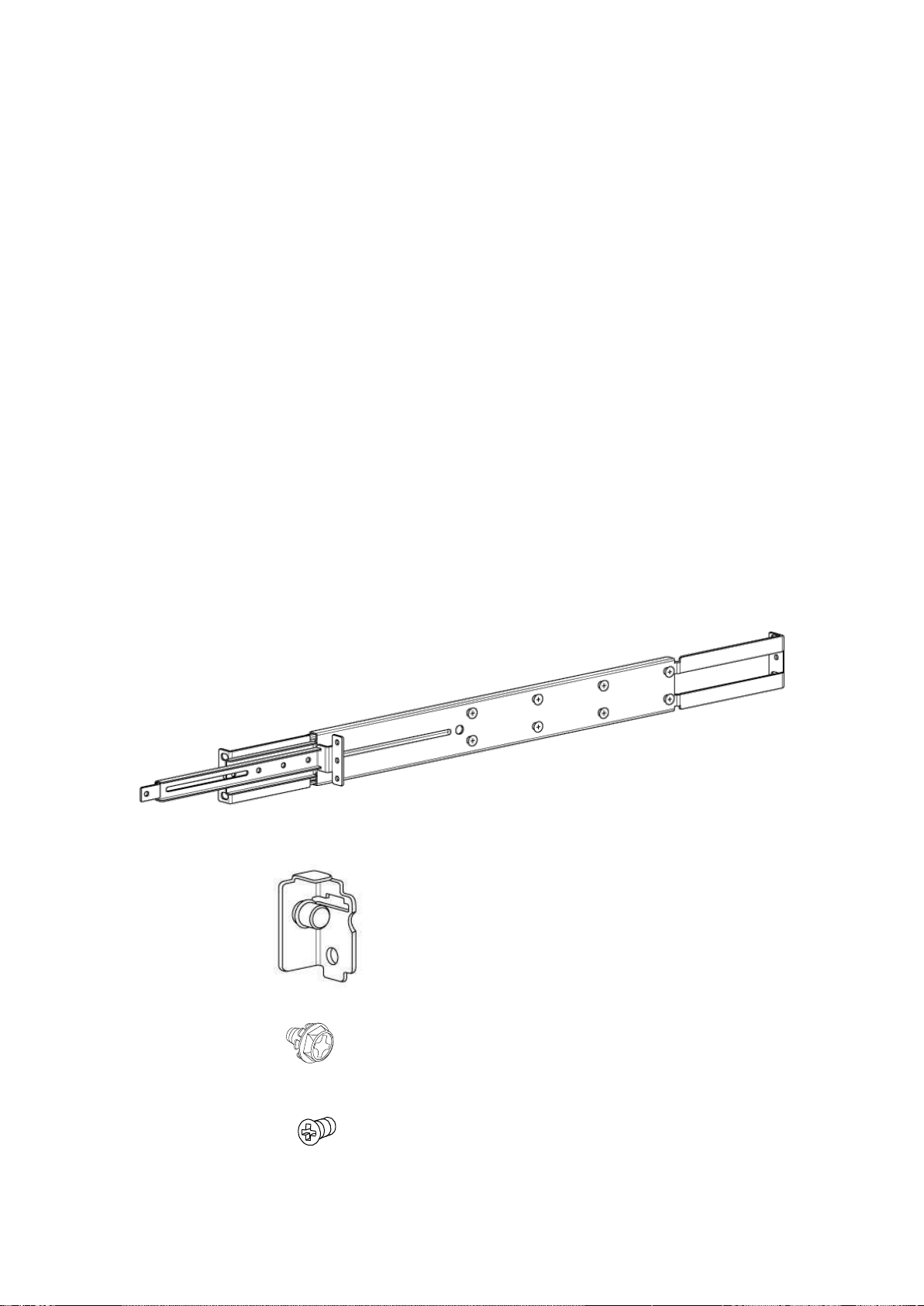

3.1.2 Hardware Kits Contents............................................................15

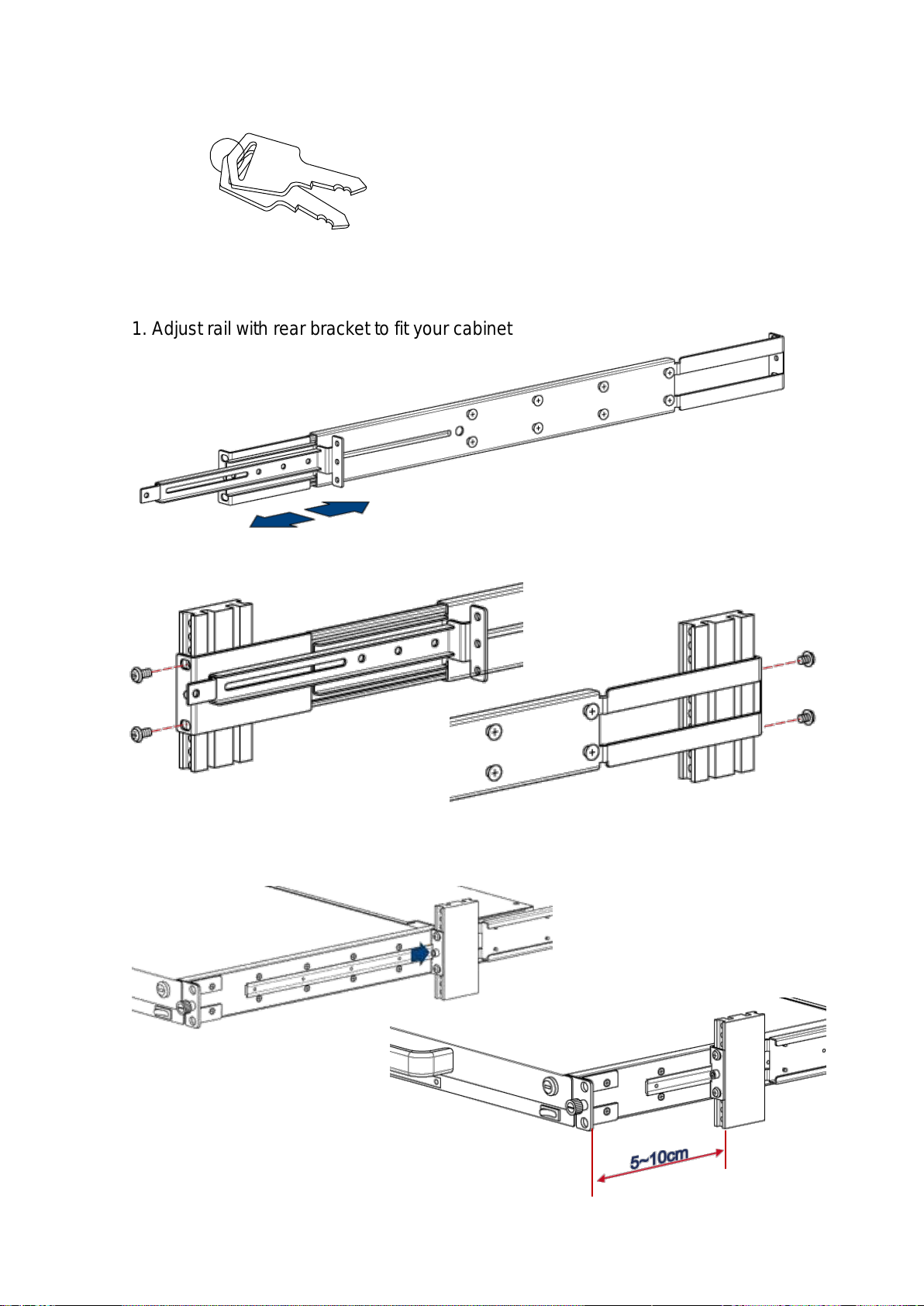

3.1.3 Install Console Step..................................................................16
3.2 Install Modular KVM Switch Step........................................................17
3.2.1 Hardware Kits Contents............................................................17
3.2.2 Install Modular KVM Switch Step..............................................18
3.3 Installing the Video Card and Video Driver........................................19
3.3.1 Configuring the Display Settings .............................................19
3.3.2 Connecting the Console..........................................................20
3.4 Fingerprint Scanner ............................................................................21
3.5 Turning on the Console.......................................................................21
3.6 Testing the Console............................................................................21
4. KVM Switch................................................................................................................................. 22
www.RackmountMart.com

5
1. General Information
LCD1U17-36Full-HD Patented Dual Rail console offer industrial level input
solution to optimize your space utilization by controlling your systems in just 1U.
With the unique modular design, you can easily integrate more than 24 models
of KVM switches with different functions and expand the connections up to 8
levels of the KVM switches.
1.1 Feature
Support 1920 x 1080 Full HD resolution
Provide front USB port to easy data access (optional)
Support Sun native resolution
Support 18 various keyboard languages (increasing)
Bright Active TFT display
OSD function for LCD display and KVM switch
Durable keyboard (touchpad, cherry keyboard)
Sun keys (optional)
Front USB HUB port (optional)
Finger Print Scanner (optional)
With our fully modular IP & CAT5 modules, our customers can create 21
models of KVM Switch from7 basic models.
1.2 Benefits
1. Feature rich solution: With our unique design and all the options, you can
easily suffice the demand for your customer.
2. Time to serve your customer: With the modular KVM, you can easily turn
single port console into 8 / 16 / 32 ports console to serve your customer well.
3. Keep low inventory: From the 1 models of consoles and 23 models of KVM
switches, you can create total 24 models in this Series. It is the best
solution for inventory control.
4. Easy to maintain: Once the defective comes from the KVM switch, you can
just swap the KVM switch module without asking your customer to send the
whole console back to you.
5. Save freight cost: Since you have to keep only 1 models of consoles and
generate new models by yourself, you can ship all the goods by sea instead of
www.RackmountMart.com

6
by air. In case, you run out of the KVM switch stock, it is much cheaper to ship
the KVM switch modules by air.
1.3 Advantage
Patented Dual Rail design:
The user can leave the LCD flip over , push back the keyboard drawer, and
close the cabinet door)
Hidden handle:
After pushing the keyboard drawer back, the handle of the keyboard drawer can
also be hidden and offer a flat surface for the cabinet.
Patented extension bracket:
With the patented extension bracket, the console body can extend 13cm. Even
there is big server handle or patch panel above the console, our LCD1U17-36 console
can have over 90 degrees viewing angle. ( compared with 4~5 cm from our
competitors and less than 90 degrees in the
same condition)
Modular KVM switches:
The user can use LCD1U17-36 console as single port console or through some
simple action and few screws to be 8 / 16 even 32 ports KVM consoles.
Various keyboard language support:
To fit the demand of each individual countries.
www.RackmountMart.com

7
1.4 Product Specification
1.4.1 LCD1U17-36
Model name
LCD1U17-36
Number of ports
1
Dimension
539.6 x 448.3 x44 mm / 21.2 x 17.6 x 1.7 inches
Net Weight
13 Kg / 28.7 lbs
Display Size
17.3 inches
Panel Type
Active Matrix TFT LED
Resolution Capabilities
Maximum Resolution up to 1920 x 1080 (Full HD)
Pixel Pitch
Supports 0.264 mm x 0.264 mm
Viewing Angle (CR>10)
Right-Left View 140°(Typ)
Up-Down View 120°(Typ)
Contrast Ratio
650 :1
Brightness
White 300cd/ m²
Back Light
Dual Lamps for Back Light
Supported Colors
16.7M Colors (8-bit with FRC)
Response Time
Rising Time 2 ms, Decay Time 6 ms
Operating System
Dos, Unix, Linux, OSX, Windows ( XP, 7, 8, Server 2012 R2)
Multi Platform
Support PS/2 and USB
System Cables
VGA +PS/2 x 2 or VGA + USB x 1 cable
Keyboard Mouse
106 key PS/2 keyboard with touch pad
Sync
45 ~80 KHz
Power Source
100 ~ 240 VAC input
Power Consumption
10.2W for Panel
Temperature
Operate 0 ~ 50°C / 32 ~ 122°F
Storage -20 ~ 60°C / -4 ~ 140°F
Humidity
10% ~ 90% RH
Chassis Construction
Heavy duty steel materials
Keyboard Language
USA, UK, German, French, Spanish, Italian, Portuguese,
Dutch, Swiss, Belgium, Swedish, Norwegian, Danish, Japan,
Taiwan, Russian, Hebrew, Arabic
www.RackmountMart.com

8
Figure 1-2. LCD1U17-36 Dimension
1.4.2 LCD1U17-36 I/O Diagram
Figure 1-3. LCD1U17-36 Front View
A. Front USB port1 (optional)
B. Front USB port2 (optional)
Figure 1-4. LCD1U17-36 Rear View
6. PS/2 mouse
7. PS/2-USB select
8. USB Keyboard Mouse Port
9. DVI port (optional)
10. HDMI port (optional)
1. KVM dock (Only for Combo-free / CAT5
series KVM Switch ues.)
2. USB 2.0 Hub port (optional)
3. DC in
4. VGA port
5. PS/2 keyboard
1
2
3
4
5
6
7
8
9
A
B
C
D
C. Power Display Light
D. ON/OFF
10
www.RackmountMart.com

9
2.Panel Controls and OSD Function
Table 2-1. Panel Controls
Figure 2-1. LCD1U17-36 OSD Control Bar
2.1 Input Source
1. Press the “menu” button.
2. Use the “Down” and “Up” button to scroll.
Input Source
Auto tune
Brightness
Contrast
Color
Position
Language
Recall
Volume
Controls Description
Soft power on/off button. Adjacent LCD is lit when
on.
Auto Auto-synchronize and scale down display to any
valid factory preset timings.
Up Press to scroll the function you want to adjust.
Down Press to scroll the function you want to adjust.
Menu To access the main menu. This button also acts as
the “Enter” button.
Power
Indicator
GERRN ON
RED STANDBY
RED SUSPEND
RED OFF
www.RackmountMart.com

10
Exit
3. Press the“menu”button to enter,and you will see:
VGA
DVI
HDMI
AUTOSERCH
4. Use the “Down” and “Up” button to select the input source of signal.
5. Press the “menu” button to enter
2.2 Auto Tune
Press the “auto tune” button. The panel will adjust the display size
automatically and also tune the panel to its best condition.
2.3 Brightness
1. Press the “menu” button.
2. Use the “Down” and “Up” button to scroll.
Input Source
Auto tune
Brightness
Contrast
Color
Position
Language
Recall
Volume
Exit
3. Press the“menu”button to enter.
4. Use the“Down”and“Up”button to adjust the brightness of the display.
5. Press the “menu” button to enter.
2.4 Contrast
1.Press the “menu” button.
2.Use the “Down” and “Up” button to scroll.
Input Source
www.RackmountMart.com

11
Auto tune
Brightness
Contrast
Color
Position
Language
Recall
Volume
Exit
3.Press the “menu” button to enter
4.Use the “Down” and “Up” button to adjust the contrast of the display.
5.Press the “menu” button to enter
2.5 Color
1.Press the “menu” button.
2.Use the “Down” and “Up” button to scroll.
Input Source
Auto tune.
Brightness
Contrast
Color
Position
Language
Recall
Volume
Exit
3.Press the “menu” button to enter. And you will see:
Icon
Description
9300°K
To set CIE coordinates at 9300°K color
7500°K
To set CIE coordinates at 7500°K color
6500°K
To set CIE coordinates at 6500°K color
User
To set user defined CIE
Auto color
To auto adjust color
Return
To exit and return to the previous page
www.RackmountMart.com
Table 2-2. Icon Description

12
4.Use the “Down” and “Up” button to adjust the color of the display.
5.Press “menu” to enter.
2.6 Position
1.Press the “menu” button.
2.Use the “Down” and “Up” button to scroll.
Input Source
Auto tune
Brightness
Contrast
Color
Position
Language
Recall
Volume
Exit
3.Press the “menu” button to enter. And you will see:
Icon
Description
Image Pos
To adjust the position of the image.
OSD Pos
To adjust the position of the OSD.
Return
To exit and return to the previous page
Table 2-3. Icon Description
4.Use the “Down” and “Up” button to scroll.
5.Press the “menu” button to enter.
2.7 Language
1.Press the “menu” button.
2.Use the “Down” and “Up” button to scroll.
Input Source
Auto tune.
Brightness
www.RackmountMart.com

13
Contrast
Color
Position
Language
Recall
Volume
Exit
3.Press the “menu” button to enter. And you will see:
English
Deutsch
Francais
Italiano
Espanol
4.Use the “Down” and “Up” button to scroll.
5.Press the “menu” button to enter.
2.8 Recall
1.Press the “menu” button.
2.Use the “Down” and “Up” button to scroll.
Input Source
Auto tune.
Brightness
Contrast
Color
Position
Language
Recall
Volume
Exit
3.Press the “menu” button to enter, and you will see:
Yes/ No
4.Select “Yes” button then ‘Menu” button to recall the factory setting.
Select “No “ to return to the previous page.
www.RackmountMart.com

14
2.9Volume
For Audio version use.
2.10 Exit
Press the “exit” button to quit OSD menu.
www.RackmountMart.com

15
3. Installation
3.1 Install Console into Cabinet
3.1.1 Notes
1. Please check all peripherals according the list before installation. To make sure
that the whole unit was not damaged and lost during shipping process. If you
encounter any problem, please contact your dealer.
2. Before installation, make sure all peripherals and computer have been turned
off.
3. The cabinet depth range must be in 570 ~ 870 mm for 17.3”Full-HD console.
Contact your dealer for deeper cabinet application.
4. Reliable grounding of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to
the branch circuit.
3.1.2 Hardware Kits Contents
1. Rail with front and rear bracket x 2
2. Blocker x 2
3. Screw x 2
4. Screw (length = 6 mm) x 6
www.RackmountMart.com

16
5. Key x 2
3.1.3 Install Console Step
1. Adjust rail with rear bracket to fit your cabinet
2. Install front and rear bracket on cabinet.
3. Repeat step 1~2 for the other side.
4. Push console into rails and reserve 5~10cm space for install the blocker.
www.RackmountMart.com

17
5. Install a screw to combine blocker and console. (Both sides)
6. Install three screws (length = 6 mm) in rear of the console (Both sides) to finish
the installation.
3.2 Install Modular KVM Switch Step
3.2.1 Hardware Kits Contents
1. Bracket with thumb screw x 2
blocker
www.RackmountMart.com

18
2. Screw (length = 6 mm) x 4
3.2.2 Install Modular KVM Switch Step
1. Install two screws (length = 6 mm) to combine bracket and KVM switch. (Both
sides)
2. Push KVM switch into the rails from rear of cabinet.
3. Tight thumb screw of bracket up to fix KVM switch in console and finish
installation. (Both sides)
rear view of rail
plastic rail of KVM switch
www.RackmountMart.com
