Syrincs I12W User manual

I12W, I22W
User manual

09.02.2016
Issue 1
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße
1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de

Table of contents
1 General information about this manual 4
2 For your safety 6
3 Features 8
4 Installation 9
5 Technical specifications 11
6 Plug and connection assignment 14
7 Protecting the environment 15
Table of contents
User manual I12W, I22W (Issue 1) 3 / 16

General information about this manual
This user manual contains important instructions for the safe operation of the
unit. Read and follow the safety instructions and all other instructions. Keep
the manual for future reference. Make sure that it is available to all those using
the device. If you sell the unit, please make sure that the buyer also receives
this manual.
Our products are subject to a process of continuous development. Thus, they
are subject to change.
Signal words used
All precautions in this manual are clearly highlighted. The following signal
words are used for precautions:
DANGER This warns of dangers that can result in severe injuries or death if the in-
structions are not followed.
WARNING This warns of dangers that can result in severe injuries or death and/or
cause considerable material damage if the instructions are not followed.
CAUTION This warns of dangers that can result in reversible injuries and/or consid-
erable material damage if the instructions are not followed.
NOTICE This warns of dangers that can result to faults during operation and/or
considerable material damage. Environmental damage may also occur if
the instructions are not followed.
1
General information about this manual
4 / 16 User manual I12W, I22W (Issue 1)

Symbols used
General warning of a dangerous location
Warning of suspended load
Notice
General information about this manual
User manual I12W, I22W (Issue 1) 5 / 16

For your safety
Intended use
This device is designed as a PA system. Use the device only as described in this
user manual. Any other use or use under other operating conditions is consid-
ered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and
intellectual abilities and having corresponding knowledge and experience.
Other persons may use this device only if they are supervised or instructed by a
person who is responsible for their safety.
Safety instructions
DANGER
Danger for children
Ensure that plastic bags, packaging, etc. are properly disposed of and are not
in the reach of babies and young children. Choking hazard!
àEnsure that children do not detach any small parts (e.g. knobs or the like)
from the product. They could swallow the pieces and choke!
àNever let children play unattended with the electrical devices.
CAUTION
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
àDecrease the volume level immediately if you experience ringing in your
ears or hearing impairment. If this is not possible, keep a greater distance or
use sufficient ear protectors.
2
For your safety
6 / 16 User manual I12W, I22W (Issue 1)

NOTICE
Operating conditions
This device has been designed for indoor use only.
àTo prevent damage, never expose the device to any liquid or moisture.
Avoid direct sunlight, heavy dirt, and strong vibrations.
For your safety
User manual I12W, I22W (Issue 1) 7 / 16

Features
Special features of these passive woofers:
– Connection options: locking NL4 connector at the bottom, screw connec-
tions at the rear side
– Particularly suitable for use with DSP amplifiers from Syrincs
– Multiplex housing
– Wall mount included in scope of delivery
3
Features
8 / 16 User manual I12W, I22W (Issue 1)

Installation
Unpack and check carefully there is no transportation damage before using the
unit. Keep the equipment packaging. To fully protect the product against vibra-
tion, dust and moisture during transportation or storage use the original pack-
aging or your own packaging material suitable for transport or storage, respec-
tively.
Create all connections while the device is off. Use the shortest possible
high-quality cables for all connections.
WARNING
Risk of injury caused by falling objects
àMake sure that the installation complies with the standards and rules that
apply in your country. Always secure the device with a secondary safety at-
tachment, such as a safety cable or a safety chain.
NOTICE
Possible property damage by magnetic fields
Loudspeakers produce a static magnetic field.
àTherefore maintain an appropriate distance to devices that can be adverse-
ly affected or damaged by an external magnetic field.
NOTICE
Use of stands
àWhen mounting the device onto a stand, ensure that the stand is in a safe
and stable position and that the weight of the device does not exceed the
maximum permissible load capacity of the stand.
4
Installation
User manual I12W, I22W (Issue 1) 9 / 16

We recommend you to set up the speakers in a way, that their sound signals
can reach the audience unobstructedly. It will often be helpful to mount the
speakers on tripods. Thus, the sound will be evenly spread with maximum
range throughout the audience area.
Always use high grade cables to connect your equipment. Otherwise you won't
reach maximum sound quality.
For optimum results both impedance and power rating of the speaker must
match the requirements of the amplifier / input signal. Consider the technical
specifications of the speakers connected. The overall impedance of the con-
nected loudspeakers shall not be less than the minimum output impedance of
the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is over-
loaded. This may permanently damage the amp or the speaker. Always reduce
the volume as soon as you notice distortion.
Installation
10 / 16 User manual I12W, I22W (Issue 1)

Technical specifications
I12W
Speakers 2 × 6 in. woofer
Power handling 300 W (RMS)
Sensitivity (1 W/1 m) 89 dB
Impedance 4 Ω
Maximum sound pressure
level
116 dB (1 m)
122 dB (peak)
Frequency range 50 Hz … 200 Hz (–3 dB)
Dimensions (W × H × D) 450 mm × 350 mm × 190 mm
Weight 9 kg
450 mm 190 mm
350 mm
5
Technical specifications
User manual I12W, I22W (Issue 1) 11 / 16

I22W
Speakers 2 × 8 in. woofer
Power handling 300 W (RMS)
Sensitivity (1 W/1 m) 89 dB
Impedance 4 Ω
Maximum sound pressure
level
120 dB (1 m)
126 dB (peak)
Frequency range 45 Hz … 200 Hz (–3 dB)
Dimensions (W × H × D) 730 mm × 430 mm × 280 mm
Weight 17,9 kg
730 mm 280 mm
430 mm
Technical specifications
12 / 16 User manual I12W, I22W (Issue 1)

Frequency response I12W
Frequency response I22W
Technical specifications
User manual I12W, I22W (Issue 1) 13 / 16

Plug and connection assignment
Introduction
This chapter will help you select the right cables and plugs to connect your val-
uable equipment in such a way that a perfect sound experience is ensured.
Please follow these tips, because special care is required when dealing with
sound and light: Even if a plug fits into the socket, an incorrect connection may
result in a destroyed power amp, a short circuit or just in poor transmission
quality!

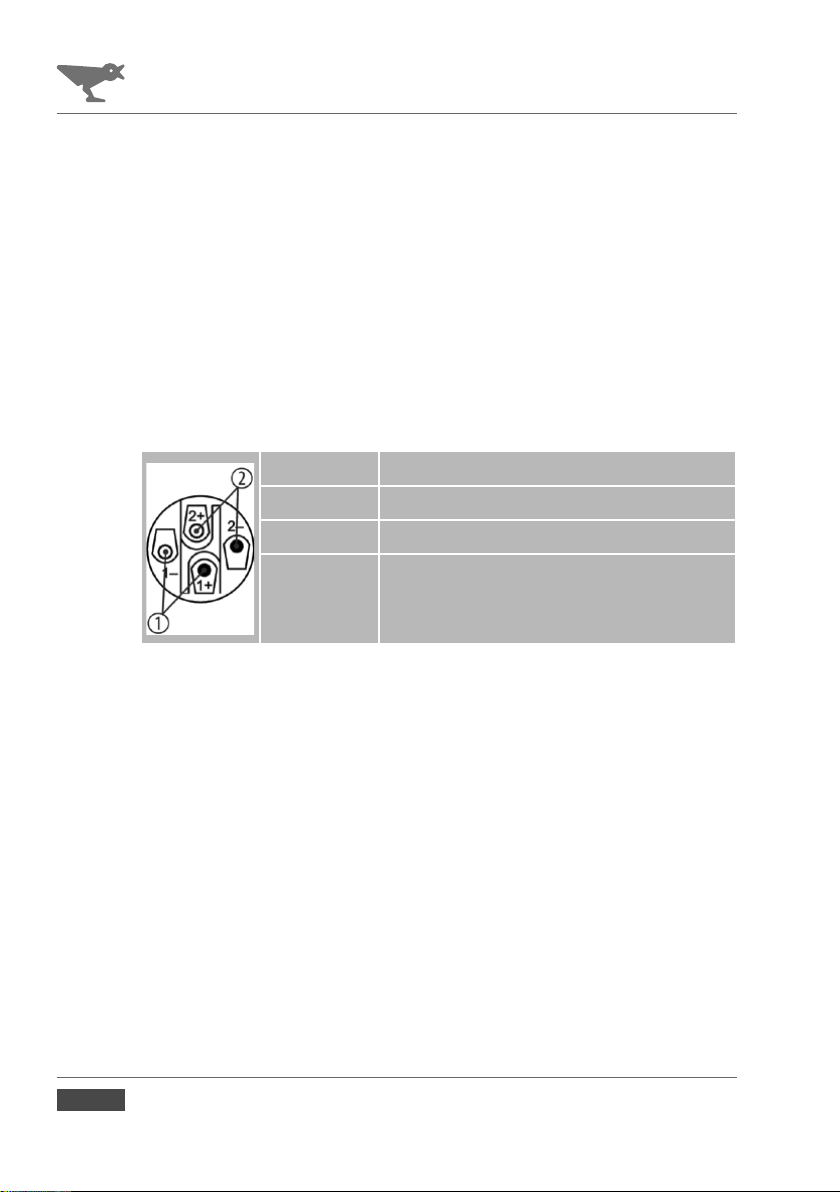

NL4 connection
1, + Signal 1 (in phase)
1, – Signal 1 (out of phase)
2, + Signal 2 (in phase)
2, – Signal 2 (out of phase)
6
Plug and connection assignment
14 / 16 User manual I12W, I22W (Issue 1)

Protecting the environment
Packaging
For the packaging, environmentally friendly materials have been chosen that
can be supplied to normal recycling. Ensure that plastic bags, packaging, etc.
are properly disposed of.
Do not just dispose of these materials with your normal household waste, but
make sure that they are collected for recycling. Please follow the notes and
markings on the packaging.
Disposal of your old device
This product is subject to the European Waste Electrical and Electronic Equip-
ment Directive (WEEE) in its currently valid version. Do not dispose with your
normal household waste.
Dispose of this device through an approved waste disposal firm or through
your local waste facility. When discarding the device, comply with the rules and
regulations that apply in your country. If in doubt, consult your local waste dis-
posal facility.
7
Protecting the environment
User manual I12W, I22W (Issue 1) 15 / 16
