CAREU UCAN 3G - User Guide
Chapter 1
1
Chapter 1 Introduction
1.1 Features
Thank you for purchasing CAREU UCAN 3G GPS
Vehicle Tracker, a plug-and-use device for tracking and
vehicle status diagnostics.
● SMS, GPRSTCP/UDP, USSD, FTP communications
● Plug-and-use design and cost effectiveness
● DTC OBD II error codes
● GSM/GPRSsimultaneously
● Real-time tracking (Time, Distance Interval or Intelligent Mode, and Heading)
● Firmware upgrade over the air (via GPRS from FTP)
● Journey report wireless download
● Battery low alert
● Geofence reports
● Mileage reports
● User-defined reports
● Up to 100,000 data logs
1.2 Scope
This document will guides you to start the CAREU UCAN 3G Vehicle Tracker.
However,as this document contains basic device configuration only, please see the
CAREU UCAN 3G Protocol Document for the advanced information.
1.3 About CAREU UCAN 3G
Designed with the latest GPS technology, the CAREU UCAN 3G delivers positioning
message by GSM wireless transmission to GIS platform, and then helps back-end users
proceed with the analysis and the applications of vehicle transport, management, anti-theft,
security and tracking.
A microcontroller can probe location and command data at regular intervals, derive actions
from location, peripheral and control data, and execute such actions. Peripheral data
indicates the status of various peripherals connected to and/or controlled by the device.
Among the best features of the CAREU UCAN 3G Vehicle Tracker, in particular, they
transmit data in ASCII mode (Intellitrac X Series compatible mode) or binary mode.

CAREU UCAN 3G - User Guide
2
Chapter 1
The firmware in the device applies intelligent filtering to overcome coverage
limitations for both GPS and GSM/GPRS networks. Motion sensor controls the status
of the device, whether in sleep, idle or fully-powered mode, and thereby controls the
amount of current consumed by the device. The device supports over-the-air firmware
upgrade to deliver additional functionality without physically touching the device once
installed.
1.4 Hardware
Architecture
As hardware is concerned, the CAREU UCAN 3G is comprised of a micro-
controller, regulator, GPS receiver, GSM/GPRS modem, G-Force sensor, flash
memory data storage.
● Users can connect PC's Hyper Terminal to the diagnostic setting port for the AVL
configuration.
●G-Sensor is for car accident prevention, car tow-away warning and power
management.
SPI
FLASH
G-Sensor
CAN
Transceiver
GPS
GSM
Modem
CPU USB
Power
1.5 Related Document
[1] CAREU UCAN 3G Protocol Document

CAREU UCAN 3G - User Guide
Chapter 1
3
Chapter 2 Taking a Tour of CAREU UCAN 3G
2.1 Dimensions
Dimensions (L x W x H): 48mm x 66mm x 25mm
25mm 48mm
66mm
2.2 PIN Assignment
1. Pin Definition of OBD II Connect
8
87 76 65 54 43 32 21 1
1
16 6
1
15 5
1
14 41 13 31 12 2
1
11 11 10 0
9
Pin#
Signal Name
Description
1,3,8,9,
11,12,13
NC
No Connect
2
J1850 BUS+
SAE J1850 Data Transmission Cable (+)
4,5
GND
Signal Ground
6
CAN-H
ISO 15765-4; CAN Bus Diagnostic Cable (H Cable)
7
ISO-K
SAE J1850 Data Transmission Cable (-)
10
J1850 BUS
ISO 15765-4; CAN Bus Diagnostic Cable (L Cable)
14
CAN-L
ISO 15765-4; CAN Bus Diagnostic Cable (L Cable)
15
ISO-L
ISO-9141-2 Data Transmission Cable (L)
16
VIN
Battery Supply Input (12V/24V)

CAREU UCAN 3G - User Guide
4
Chapter 2
2. USB Port
3. SIM Card Slot

CAREU UCAN 3G - User Guide
Chapter 2
5
SIM Card
Chapter 3 Getting Started with CAREU UCAN 3G
To install the the CAREU UCAN 3G device, follow the instructions below for basic operations.
3.1 Hardware Installation
1. Installation Mode
2. Mini USB Cable Connect
3. SIM Card Installation

CAREU UCAN 3G - User Guide
6
Chapter 2
3.2 USB Device Driver Installation
The CAREU UCAN 3G communicates with your host computer by the USB
interface.
In some newer editions of Windows XP, the CAREU UCAN 3G device can be installed as a
"virtual COM port" device whereby the CAREU UCAN 3G would automatically access
Windows XP's inbox USB drivers. While in some other earlier editions of Windows XP, you
would need to manually install the USB driver for the CAREU UCAN 3G device.
To install the device driver for the CAREU UCAN 3G, connect the CAREU UCAN 3G device
to your system with an USB cable as mentioned in Mini USB Cable Connection on page 6.
As soon as the connection is made between the CAREU UCAN 3G and your computer, a
balloon appears above the notification area saying an USB device is found.
Click on this balloon to start the [Found New Hardware] wizard.
Select No, not this time. Press the Next button to proceed.

CAREU UCAN 3G - User Guide
Chapter 3
7
1. Automatic Installation
If the wizard prompts to help you install the software for "STMicroelectronics Virtual
COM Port". Select Install the software automatically (Recommended). Press the
Next button to proceed.
The wizard proceeds to install the driver.

CAREU UCAN 3G - User Guide
8
Chapter 3
The installation completes.
In [Device Manager], the CAREU UCAN 3G device is included under Ports (COM &
LPT) as "STMicroelectronicsVirtual COM Port". COM port number is displayed as well.

CAREU UCAN 3G - User Guide
Chapter 3
9
2. Manual Installation
After you select No, not this time, if the wizard only prompts to help you install
software for "USB device", you need to manually install the driver. Select Install from a
list or specific location (Advanced). Press the the Next button to proceed.

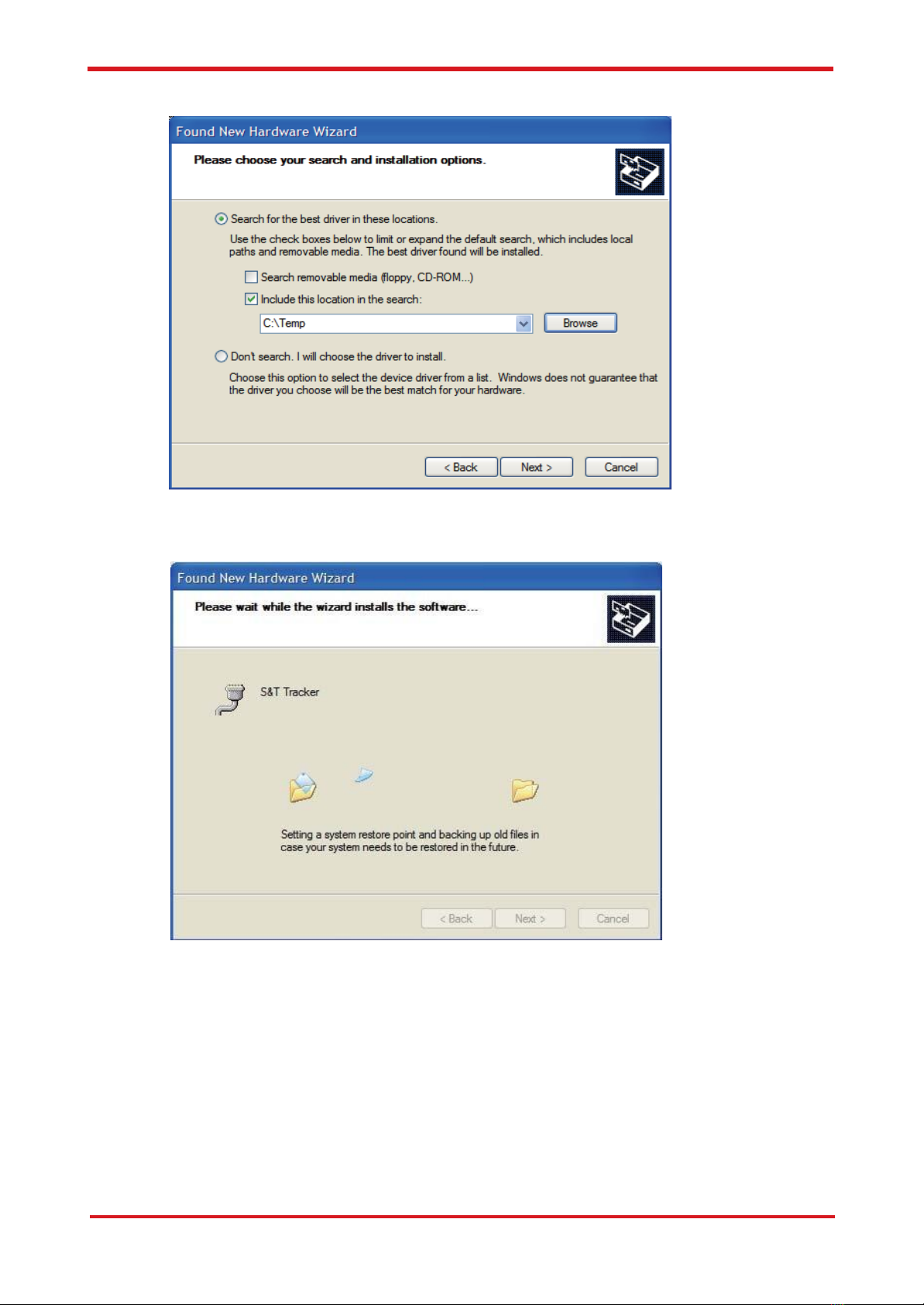

Select Search for the best driver in these locations. Check Include this location
in the search. Press the Browse button to assign where your the CAREU UCAN 3G
device driver locates on your local disk.
Press the OK button.
Youcan downloadthe USBdevicedriver fromhttp://www.systech.com.tw/downloads-04.php
?id=34&page=downloads&lang=en

CAREU UCAN 3G - User Guide
10
Chapter 3
Press the Next button to proceed.
The wizard proceeds to install the driver.

CAREU UCAN 3G - User Guide
Chapter 3
11
The installation completes.
In [Device Manager], the CAREU UCAN 3G device is included under Ports (COM & LPT)
as"S&TTracker". COM port number is displayed as well.

CAREU UCAN 3G - User Guide
12
Chapter 3
3.3 Device
Configuration
1. In Windows XP desktop, click Start | All Programs | Accessories |
Communications| HyperTerminal.
2. If you are promptedto input the informationof your location, complete them
to proceed.
3. On the File menu of HyperTerminal,click New Connection.
4. In the Name box, type a name that describes the connection.In the Icon box, click
an appropriateicon. Press the OK button to proceed.
5. For Com port properties, configure as follows:
Baud Rate --> 115200 bps
Data Bits --> 8
Parity --> None
Stop Bits --> 1
Flow Control --> None

CAREU UCAN 3G - User Guide
Chapter 3
13
6. In the connection that you have just set up, click File | Properties.Select the
[Connect To] tab. From the [Connect using] drop down list, select the correct com port
by checking it up at Windows XP's [Device Manager] as previously mentioned on page
9 and page 12. Go there by clicking Start | Control Panel | System | Hardware | Device
Manager.

CAREU UCAN 3G - User Guide
14
Chapter 3
7. In the File menu, click Properties. Click the [Settings] tab. Press the ASCII Setup
button.
8. In the [ASCII Sending] group box. Select both Send line ends with line feeds and
Echo typed characters locally. Press the OK button.

CAREU UCAN 3G - User Guide
Chapter 3
15
9. Connect your the CAREU UCAN 3G device to power as mentioned in USB on page 6.
The device startup message will be displayed.
10. In [HyperTerminal]window, type in the command "AT$VERSION?"and press the
Enter key. The hardware and firmware version will show. As long as your
[HyperTerminal] window appears as the screenshot below, a connection between the
device and your system has already been built up and working. It is time to send all
configurationcommands.

CAREU UCAN 3G - User Guide
16
Chapter 3
3.4 Communication
Settings
The CAREU UCAN 3G Vehicle Tracker communicates with your control center by
either SMS or GPRS (TCP/UDP). Before the device is installed into a vehicle,
communication parameters should be set.
1. SMS Configuration
Use AT$SMSDST command to set a SMS control center phone number or short code.
For example, if the SMS control center phone number is [phone],the
AT$SMSDST command to be issued into HyperTerminal should be:
AT$SMSDST=[phone]
OK
Then you can try to use cellular phone or SMS gateway to send a SMS message to the
CAREU UCAN 3G device. Send a SMS message --
>"AT$MODID?" Device will response:
$MODID=101000001
OK
This proves a successful mobile phone SMS connection.
2. GPRS Configuration
Set GPRS servers by using the folloiwng commands:
AT$APN=internet,username,password (APN=internet, Username=username,
Password=password) OK
AT$HOSTS=1,0,60.148.19.10,6000
(Server IP address = 60.148.19.10and Port number =6000)
OK
AT$RETRY=5,10(Message retry settings)
OK
AT$IPTYPE=1 (Using TCP/IPmode)
OK
AT$GPRSEN=1(GPRS enable)
OK
AT$HB=60,1 (Heartbeat setting)
OK
Please refer to the CAREU UCAN 3G Protocol Document for more command details.
