Taiden HCL-404 User manual

Professional conference sound reinforcement system
Installation and Operating Manual
V 2.1


I
Remarks:
 All rights reserved for translation, reprint or reproduction
 Contents may change without prior announcement
 All technical specifications are guideline data and not guaranteed features
 TAIDEN Co., Ltd. is not responsible for any damage caused by improper use of this manual
 The equipment must be connected to earth!
 This product conforms to the rules of the European directive 2004/108/EC.
 To protect your hearing, avoid high pressure level on earphones. Adjust to a lower and convenient level.
 If any detailed information is needed, please contact your local agent or TAIDEN service center in your region.
Any feedback, advice and suggestion about the products is appreciated
 TAIDEN is the registered trademark of TAIDEN Co. Industrial, Ltd.
 In order to extend the life time of the whole system, we strongly recommend that the congress system be
scheduled to shut down every day in the evening when not in use.

II
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
6. The MAINS plug serving as a disconnection device,
should be easy to operate.
7. The apparatus should be connected to the MAINS
socket-outlet with protective earth.
8. Clean only with dry cloth.
9. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
10. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
11. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
12. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
13. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from
tip-over.
14. Unplug this apparatus during lightning storms or when
unused for long periods of time.
15. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
16. Do not place the equipment on any uneven or unstable
stand; original product package or appropriate package
should be used to avoid damage caused by strong
impacts during transportation.
17. Power supply cords:
AC 220 V - 240 V 50/60 Hz
18. For service, please contact the nearest TAIDEN
Service Center.
19. All TAIDEN products are guaranteed for definite time
(see the WARRANTY CARD for details) excluding the
following cases:
A. All damage or malfunction caused by human
negligence;
B. Damage or malfunction caused by improper
operating by operator;
C. Parts damage or loss caused by disassembling
the product by non-authorized personnel.
20. Use ONLY specified connection cable to connect the
system equipment.
21. Upon receipt of the product, please fill out the Warranty
Card enclosed and post it to TAIDEN Service Center.
The lightning flash with an arrowhead symbol, with
an equilateral triangle, is intended to alert the user to
the presence of uninsulated ‘dangerous voltage’
within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
CAUTION: To reduce the risk of electric shock,
DO NOT open covers, no user serviceable parts
inside. Refer servicing to qualified service
personnel only.
CAUTION: DO NOT use alcohol, ammonia or
petroleum solvents or abrasive cleaners to
clean the devices.

III
Important Safety Instructions
The exclamation mark within an equilateral triangle is
intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
Attention: Installation should be performed by
qualified service personnel only in accordance
with the National Electrical or applicable local
codes.
Power Disconnect: Units with or without ON – OFF
switch have power supplied to the unit whenever the
power cord is inserted into the power source;
however, the unit is operational only when the ON –
OFF switch is in the ON position. The power cord is
the main power disconnect for all units
WARNING:
The apparatus should be
connected to a mains socket outlet with a
protective earthing connection.
WARNING: To reduce the risk of fire or
electric shock, DO NOT expose units to rain
or moisture.
WARNING: In living circumstance, the
equipment may cause radio interference.

IV
Contents
Installation & User Guide .......................................................................................................................................... VI
Chapter 1: Introduction ............................................................................................................................................... 1
Chapter 2: HCL-804A 8 Units Two-way Directivity Controllable Column Loudspeaker ............................................. 2
2.1 Overview ........................................................................................................................................................... 2
2.2 Features ............................................................................................................................................................ 2
2.3 Specifications .................................................................................................................................................... 2
2.4 Functions and instructions ................................................................................................................................ 3
2.5 Dimensions ....................................................................................................................................................... 4
2.6 Installation ......................................................................................................................................................... 5
2.7 Audio Controller ................................................................................................................................................ 6
2.7.1 Installation .................................................................................................................................................. 6
2.7.2 Running ...................................................................................................................................................... 6
2.7.3 Input Gain ................................................................................................................................................... 8
2.7.4 Input Delay ................................................................................................................................................. 9
2.7.5 System Delay ............................................................................................................................................. 9
2.7.6 System EQ ............................................................................................................................................... 10
2.7.7 Beam Setting ............................................................................................................................................ 11
2.7.8 Import Factory Preset............................................................................................................................... 18
Chapter 3: HCL-404 series 4 Units Two-way Column Loudspeaker ........................................................................ 19
3.1 Overview ......................................................................................................................................................... 19
3.2 Features .......................................................................................................................................................... 19
3.3 Specifications .................................................................................................................................................. 19
3.4 Functions and instructions .............................................................................................................................. 20
3.5 Connection ...................................................................................................................................................... 22
3.6 Dimensions ..................................................................................................................................................... 24
3.7 Installation ....................................................................................................................................................... 26
Chapter 4: HSP series Loudspeaker ........................................................................................................................ 31
4.1 HSP-210B Dual 10-inch Woofer ..................................................................................................................... 31
4.2 HSP-108 8-inch Two-way Loudspeaker ......................................................................................................... 34
4.3 HSP-110 10-inch Two-way Loudspeaker ....................................................................................................... 37
4.4 HSP-112 12-inch Two-way Loudspeaker ....................................................................................................... 41
Chapter 5 HSP series Active Loudspeaker .............................................................................................................. 46
5.1 HSP-210BA Dual 10-inch Powered Woofer ................................................................................................... 46
Chapter 6 HSC Series Ceiling Loudspeaker ............................................................................................................ 50
6.1 HSC-106W 6.5-inch Series Ceiling Loudspeaker ........................................................................................... 50
6.2 HSC-108W 8-inch Series Ceiling Loudspeaker .............................................................................................. 54
6.3 HSC-112 12-inch Series Ceiling Loudspeaker ............................................................................................... 57
6.4 HSC-115 15-inch Ceiling Loudspeaker .......................................................................................................... 61
Chapter 7 HSM-112 12-inch Passive Coaxial Monitor Loudspeaker ....................................................................... 66
7.1 Product Introduction ........................................................................................................................................ 66

V
7.2 Specifications .................................................................................................................................................. 66
7.3 Functions and instructions .............................................................................................................................. 67
7.4 Dimensions ..................................................................................................................................................... 68
Chapter 8 Working Environment and Maintenance .................................................................................................. 69
8.1 System specifications ..................................................................................................................................... 69
8.2 Environment requirement ............................................................................................................................... 69
8.3 Ventilation ....................................................................................................................................................... 69
8.4 Cleaning .......................................................................................................................................................... 69
8.5 Storage ........................................................................................................................................................... 69
8.6 System environmental conditions ................................................................................................................... 69

VI
Installation & User Guide
About this manual
This manual is a comprehensive guide to the
installation and operation of the TAIDEN Professional
Conference Sound Reinforcement System. It includes
the detailed description of the functions and interfaces
of the professional conference sound reinforcement
system components, system connection and
installation, system set-up and operation.
The manual is divided into the following chapters:
Chapter 1：Introduction
An introduction to the professional conference sound
reinforcement system composition, technology,
functions and features.
Chapter 2：HCL-804A 8 Units Two-way Directivity
Controllable Column Loudspeaker
Detailed descriptions of the functions and indications,
installation and connection, the use of audio controller
software of the HCL-804A.
Chapter 3：HCL-404 series 4 Units Two-way Column
Loudspeaker
Detailed descriptions of the functions, installation and
connection of the HCL-404 series 4 Units Two-way
Column Loudspeaker.
Chapter 4：HSP series Loudspeaker
Detailed descriptions of the functions, installation and
connection of the HSP series Two-way Loudspeaker.
Chapter 5：HSP series Powered Loudspeaker
Detailed descriptions of the functions, installation and
connection of the HSP series Two-way Powered
Loudspeaker.
Chapter 6：HSC series Ceiling Loudspeaker
Detailed descriptions of the functions, installation and
connection of the HSC series Ceiling Loudspeaker.
Chapter 7 ：HSM-112 12-inch Coaxial Monitor
Loudspeaker
Detailed descriptions of the functions, installation and
connection of the HSM-112 12-inch Coaxial Monitor
Loudspeaker.
Chapter 8：Environment and maintenance
An introduction to the work environment and the
maintenance of professional conference sound
reinforcement system.

VII
Installation & User Guide
This manual is applicable to:
 Column loudspeaker
HCL-804A
8 Units Two-way Directivity Controllable Column Loudspeaker
(8×4" mid-low units + 24×0.75" tweeters, 400W, dual beam
adjustable, vertical pointing angle and width adjustable, AES/EBU
and analog dual signal input, with hot backup, standard wall
bracket, black)

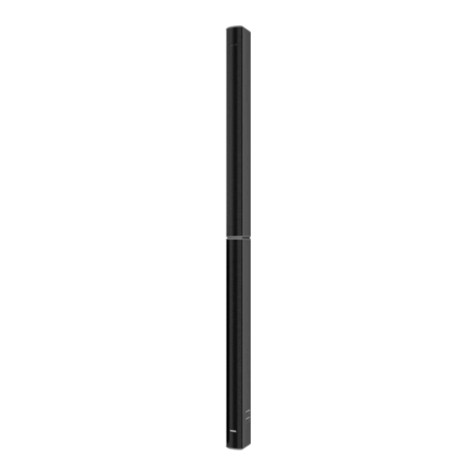

HCL-404
4 Units Two-way Column Loudspeaker (4×4" mid-low units +
12×0.75" tweeters, 8 Ω, 200 W, 15° vertical direction, combined
with HCL-404J, supports fixed wall mounting, black)
HCL-404J
4 Units Two-way Column Loudspeaker (4×4" mid-low units +
12×0.75" tweeters, 8 Ω, 200 W, 40° vertical direction, can be
combined with HCL-404, supports fixed wall mounting, optional
HCL-404BKT swivel (pan)/tilt wall bracket, black)
 HSP series loudspeaker
HSP-210B
Dual 10-inch Woofer (2×10" woofers, 4 Ω, 800 W, can be used
with HCL-404J or HCL-404+HCL-404J column loudspeaker or
HSP-108/110/112 two-way loudspeaker, black)
HSP-108
8-inch Two-way Loudspeaker (1×8" woofer + 1×2" tweeter,
gradient rotatable pointing horn, 8 Ω, 200 W, optional
HSP-108BKTU U-shaped wall bracket, black)
HSP-110
10-inch Two-way Loudspeaker (1×10" woofer + 1×2" tweeter,
gradient rotatable pointing horn, 8 Ω, 300 W, optional
HSP-110BKTU U-shaped wall bracket, black)
HSP-112
12-inch Two-way Loudspeaker (1×12" woofer + 1×3" tweeter,
gradient rotatable pointing horn, 8 Ω, 400 W, optional
HSP-112BKTU U-shaped wall bracket, black)
 HSP series two-way powered loudspeaker
HSP-210BA
Dual 10-inch Powered Woofer (2×10" woofers, 4 Ω, 800 W,
built-in 2000W class D power amplifier, with FIR algorithm, DSP
adjustable, can be connected to HCL-404J or
HCL-404+HCL-404J column loudspeaker or HSP-108/110/112
two-way loudspeaker directly, black)
HSP-108A
8-inch Two-way Powered Loudspeaker (1×8" woofer + 1×2"
tweeter, gradient rotatable pointing horn, 8 Ω, 200 W, built-in
600W power amplifier, with FIR algorithm, DSP adjustable, black)
HSP-110A
10-inch Two-way Powered Loudspeaker (1×10" woofer + 1×2"
tweeter, gradient rotatable pointing horn, 8 Ω, 300 W, built-in
600W power amplifier, with FIR algorithm, DSP adjustable, black)
HSP-112A
12-inch Two-way Powered Loudspeaker (1×12" woofer + 1×3"
tweeter, gradient rotatable pointing horn, 8 Ω, 400 W, built-in
600W power amplifier, with FIR algorithm, DSP adjustable, black)
 HSC series ceiling loudspeaker
HSC-106W
6.5-inch Ceiling Loudspeaker (1×6.5"+1×1.4" coaxial drive units,
8 Ω, 150 W, 110° wide coverage angle, magnetic mask, white)
HSC-108W
8-inch Ceiling Loudspeaker (1×8"+1×2" coaxial drive units, 8 Ω,
200 W, 110° wide coverage angle, white)
HSC-112
12-inch Ceiling Loudspeaker (1×12"+1×3" coaxial drive units, 8 Ω,
350 W, 90°(H)×70°(V) coverage angle, black)
HSC-115
15-inch Ceiling Loudspeaker (1×15"+1×3" coaxial drive units, 8 Ω,
450 W, 90°(H)×70°(V) coverage angle, black)
 Monitor loudspeaker
HSM-112
12-inch Coaxial Monitor Loudspeaker (1×12"+1×3" coaxial drive
units, 8 Ω, 350 W, black)

1
Chapter 1: Introduction
A good conference sound reinforcement system is not
a front end (microphone/sound source), mixer, audio
processor, power amplifier and speakers and other
equipment that can be connected together. This can
easily lead to a lot of investment, but cannot achieve
satisfactory results, the sound of language
amplification is blurred, the microphone is easy to
whistle, and the sound quality is tasteless when the
music is played back.
As a system problem, the sound reinforcement system
must comprehensively consider the above problems in
the system design. On the basis of selecting
electro-acoustic equipment that meets the functional
requirements, it is necessary to pass system design
and system debugging in order to achieve a sound
reinforcement effect that satisfies users.
The common problems of conference sound
reinforcement system are: howling when the
microphone is on, insufficient volume, sound image
shift, and uneven sound field. This kind of inaudibility
can be caused by low volume, shriveled sound, and
confusion in the sound field caused by the time
difference between the reflected sound and the direct
sound, which is actually insufficient speech intelligibility.
Therefore, solving the speech intelligibility of the sound
reinforcement system has become the ultimate goal of
our sound reinforcement system. We have developed a
series of targeted related products according to the
characteristics of conference sound reinforcement
applications.
HCL-404
HCL-404J
HCL-804A
HCL-112M
HSP-108/108A
HSP-110/110A
HSP-112/112A
HSP-210B/210BA
HSC-106W
HSC-108W
HSC-112
HSC-115
Figure 1.1 Products list of conference professional sound reinforcement system

2
Chapter 2: HCL-804A 8 Units Two-way Directivity Controllable
Column Loudspeaker
2.1 Overview
Two-way directivity controllable column loudspeaker
comes with 8×4" midwoofers and 24×0.75" tweeters.
Built-in multi-channel DSP engine and high-performance
class D digital amplifier can control each array element
with high precision in a programmable manner. It can be
decomposed into two independent beams for control and
adjustment, providing simultaneous input of analog audio
and AES/EBU digital audio signals to achieve hot backup.
System setting and monitoring are all carried out via
standard Ethernet, which is efficient and convenient.
When combined with a woofer, the system fulfills the
sound reinforcement requirements of presenting PPT and
video programs.
2.2 Features
Vertical pointing angle and width adjustable
Dual beam adjustable
Independent switch for beam sidelobe suppression
Beam center point adjustable
AES/EBU and analog dual signal input with hot
backup
2.3 Specifications
Frequency Range 100 Hz - 20 kHz（±3 dB）/ 80 Hz - 22 kHz(-10 dB)
Sensitivity 103 dB
Rated Power 400 W (AES)
Max SPL 129 dB SPL，135 dB SPLpeak
Midwoofer Unit 8×4" complex carbon fiber diaphragm midwoofer units
Tweeter 24×0.75" nano carbon fiber diaphragm tweeters
Horizontal Coverage Pattern 100°
Vertical Coverage Pattern -45°~ + 45° (accuracy of 0.1 degree)
Beam Control 2 solely adjustable beams with adjustable center point
Beam Width 12°~90°
Coverage Area 3 m~30 m
AD & DA 24 bit-96 kHz
Control Interface RJ45
Input An AES/EBU input, an analogy input
Enclosure Material Aluminum + surface coating
Dimensions (H × W × D) 1000 × 131 × 158 mm
Weight 15 kg
Accessories Swivel (pan) wall bracket
Power cable

3
2.4 Functions and instructions
1. Working indicator
Normal state: green
Clipping state: red
2. AES IN: digital signal input interface
3. Power input interface
4. Control interface, RJ45
5. ANALOG IN: analog signal input interface
6. Bracket mounting positions
7. The top connecting plate, reserved, can be
docked with another sound column
8. Top sound column connection fixings (when
the top loud
speaker is not connected, the
connection fixings also can be used to hang the
safety rope)

4
2.5 Dimensions
Dimensions for HCL-804A (unit: mm)

5
2.6 Installation
1. Swivel (pan) wall bracket (standard)
Loudspeaker-mount section Assembled bracket Wall-mount section
The bracket is shipped after being assembled by default, so the bracket you receive is one piece. After removing the nut and
screw at the fixed point, as well as the movable stud and buckle, the bracket is decomposed into two parts as shown in the
figure below, the left section is installed on the back of the sound column. The right section is installed on the wall using
standard screws, as shown in the figure below.
 Swivel angle adjustment: remove the cover, use a tool to loosen the nut, rotate it left and right to an appropriate angle,
tighten the nut after adjustment, and reinstall the cap.
Loudspeaker-mount section Wall-mount section
2. Bracket wall mounting for HCL-804A
1) Remove the nut and screw of the fixed point of the bracket, as well as the movable studs and buckles;
2) Remove the screws on the back of the column loudspeaker (details for section 2.4), install the loudspeaker-mount section on
the back of the column loudspeaker, and use the original screws to lock the loudspeaker-mount section and the column
loudspeaker;
3) Install the wall-mount section using the standard screws;
4) Connect the audio cable;
5) Pull up the column loudspeaker, reassemble the loudspeaker-mount section and wall-mount section, and set the required
swivel angle.

6
2.7 Audio Controller
The directivity controllable function of HCL-804A is realized by TAIDEN Audio Controller software, it includes: Input Gain,
Input Delay, System Delay, System EQ, Beam Setting, Import Factory Preset and Load / Save user program.
Note: The HCL-804A is an active sound column. In order to protect the driver units, the input gain is set to -100, and the
gain switch is set to "OFF", and the beam state is "OFF". When use HCL-804A first, please connect the software to open
and adjust the input gain, and turn on the beam.
2.7.1 Installation
The HCL-804A TAIDEN Audio Controller.exe software is available free of charge to users who purchased the product.
Users can download the software by scanning the QR code on the back of the user manual. After the software is
downloaded, it can be disassembled and installed on the computer end. Win10 operating system is recommended.
2.7.2 Running
Double-click "TAIDEN Audio Controller.exe" to run the software, for the first time, please create a new project on the
computer.
Figure: Create or open a project

7
After creating or reading a local project, scans the device, and the software automatically queries and connects to all of
the HCL-804A in the network. HCL-804A does not have static IP address, and its IP address is assigned automatically by
the router. If you can scan to the HCL-804A information, but its status is "Offline", please check whether the local
computer and HCL-804A are in the same network segment. As shown in the figure below, the local IP address of
computer is 192.168.1.232, and the IP address of HCL-804A is 192.168.10.4. Check the local computer subnet mask
setting and set the subnet mask to 255.255.0.0 to connect to the device again.
If the IP address of computer and the IP address of HCL-804A are in the same network segment, the software will
automatically connect to HCL-804A. If not in the same network segment, modify computer subnet mask and then click
"Reconnect" or scan it again to connect HCL-804A.
Note: Since the IP address of HCL-804A is assigned by the router, please open the router before opening HCL-804A; if
the HCL-804A is started before the router, the HCL-804A may not obtain the IP address correctly. In this case, please
restart the HCL-804A.
Figure: connect device
From left to right, the above figure shows the Device, MAC, IP, Network, Comment (the default is 'Default', double-click to
modify the alias. It is recommended to modify alias for the first time after installation to convenient and accurate
positioning of the equipment), Receive, Send and Delete.
 File: save/save as/open project file (Synthesis.dat);
 Scan: search the HCL-804A in the network, and the rescan will override the existing data connection;
 Language: select software language, English or Simplified Chinese, and it will take effect after restart.
 About: check version information;
 Receive: synchronizes the parameter settings from HCL-804A to the current project file;

8
 Send: synchronizes the parameter settings from the current project file to HCL-804A;
 Delete: delete HCL-804A;
 SynSystemData: including Send and Receive operations
Receive: synchronizes the parameter settings from all HCL-804A to the current project file
Send: synchronizes the parameter settings from the current project file to all HCL-804A which included in the
project file;
 Reconnect: reconnect device.
Click "Receive / Send" to enter the HCL-804A setting interface, as described in the following chapter. HCL-804A supports
the saving of 10 parameter setting scenarios. Any modification of the following parameters can be saved to the user
program. The previous setting scenario can be called by Load user Program. If called the "Empty" user program, the
column returns to the factory setting state.
Figure: Parameters setting interface
2.7.3 Input Gain
HCL-804A supports simultaneous input of AES / EBU and analog signals for hot backup of each other. HCL-804A has a
built-in power amplifier. In order to protect the driver units, the input gain is set to -100 and the gain switch is set to "OFF",
the phase is "+".
Figure：Factory setting of input gain

9
2.7.4 Input Delay
HCL-804A supports AES / EBU + analog signal input. When one channel fails, the sound amplification system works
completely without breakpoint. Therefore, before mixing, adjust the delay difference between the analog input and the
digital input, align the two sets of signals before mixing.
Method of adjusting the delay (optional):
1. The overall time delay parameters of the system are obtained from the equipment manufacturer, that is, the time
delay from the audio input to the audio output.
2. Measurement was performed by the software such as Smaart Live, Systune, etc
Note: analog input delay and digital input delay, the actual setting is the two channel delay difference, such as digital
input front-end device delay is 3ms, analog input front-end device delay is 1ms, adjust step for 1 sample (0.02ms)
namely: the digital input lags the analog input by 2ms, please set the analog input delay as 2ms, digital input delay as
0ms.
Figure：Input channel delay setting
2.7.5 System Delay
The system delay needs to be set with the whole sound reinforcement system. The maximum 1000ms delay can be set,
and the default is 0ms, and the delay function is OFF.
Figure：System delay setting

10
2.7.6 System EQ
Supports 8-segment EQ setting.
Note: setting takes effect when the main switch is "ALL ON".
Figure：System EQ setting

11
2.7.7 Beam Setting
The TAIDEN Audio Controller.exe software provides a visual beam setting and simulation interface to visually view the
sound pressure level at different locations in the venue area (the software assumes that the environment is a free sound
field). It can be divided into four settings: Audience, Simulation, SPL simulation and Frequency simulation.
Figure: Beam Setting
2.7.7.1 Audience
 X: the depth of the conference room;
 Balconies: number of seating floors in the conference rooms;
 EarLevel: the average height of the ear after attendees sitting down

12
2.7.7.2 Simulation
Current Device: display the current device information and set the location information for the HCL-804A
 X: the horizontal axis position of HCL-804A, such as: a rectangular conference room, HCL-804A is installed on
the front, X can be set to 0; if a conference room contains the podium, HCL-804A is installed on both sides of
the podium, X value needs to be set according to the actual distance;
 Z: the installation height of HCL-804A, and the bottom end value is the Z value;
 Angle: the pitch angle of HCL-804A, if use standard bracket, set it to 0;
 Invert: settings for the upper column when two columns are combined.
Beam simulation: parameters setting for beam simulation
 Simulation frequency: selected simulation frequency and the visualization interface showed the beam
characteristics of the selected frequency, default is 1000Hz;
 Beam switch: dual beams can be controlled independently, and the factory default is OFF;
