Taiji COOLCABI CC-8 User manual

User Manual
PRODUCT #:
TJCC8
TJCC8-220V
ITEM:
Cold Towel Cabinet from Taiji
SOURCE FOR PURCHASE:
SpaEquip Inc.
www.spaequip.com
www.spaequipasia.com
www.spaequipeurope.com
Corporate Headquarters:
211 Wappo Ave
Calistoga, CA 94515 USA
USA Office: 707-737-1100
Asia Office: [phone]
United Kingdom Office: [phone]
FEATURES:
Keeps pre-moistened towels at constant temperature of 44 - 50 degrees F (7-10 degrees C). 6 liter capacity holds 25-35
small hand cloths (300mm x 340mm or 12" x 12" each), includes a drain tray. White. Inside dimensions are 9" (227
mm) W x 7.2" (182 mm) D x 6"(152 mm) H. 220V comes standard with European Schuko plug type.
SPECIFICATIONS:
Dimensions: Inside dimensions: 9" (227 mm) W x 7.2" (182 mm) D x 6"(152 mm) H
Outside dimensions: 11.8"(300 mm) W x 13.4"(340 mm) D x 10.3"(261 mm) H
Electrical: 110V AC or 220V AC, 85 Watts
Suggested Outlet: Adjacent to unit
Plumbing: None
Notes: None
Warranty: 1 Year Limited
Certifications: ETL, CE
Country of Origin: Japan
Installed By: SpaEquip (if setup is included with order) or Client
Product Code: TJCC8/TJCC8-220V
www.spaequip.com T: 707-737-1100 F: 707-737-1150 Page 1 of 3

AC100V-120V Power
pilot
lamp
Power switch
Peltier
element Fan
N
P
DC
Switching
power source
AC220V-240V Power
pilot
lamp
Switch(front)
Power switch
Peltier
element Fan
N
P
DC
Switching
power source

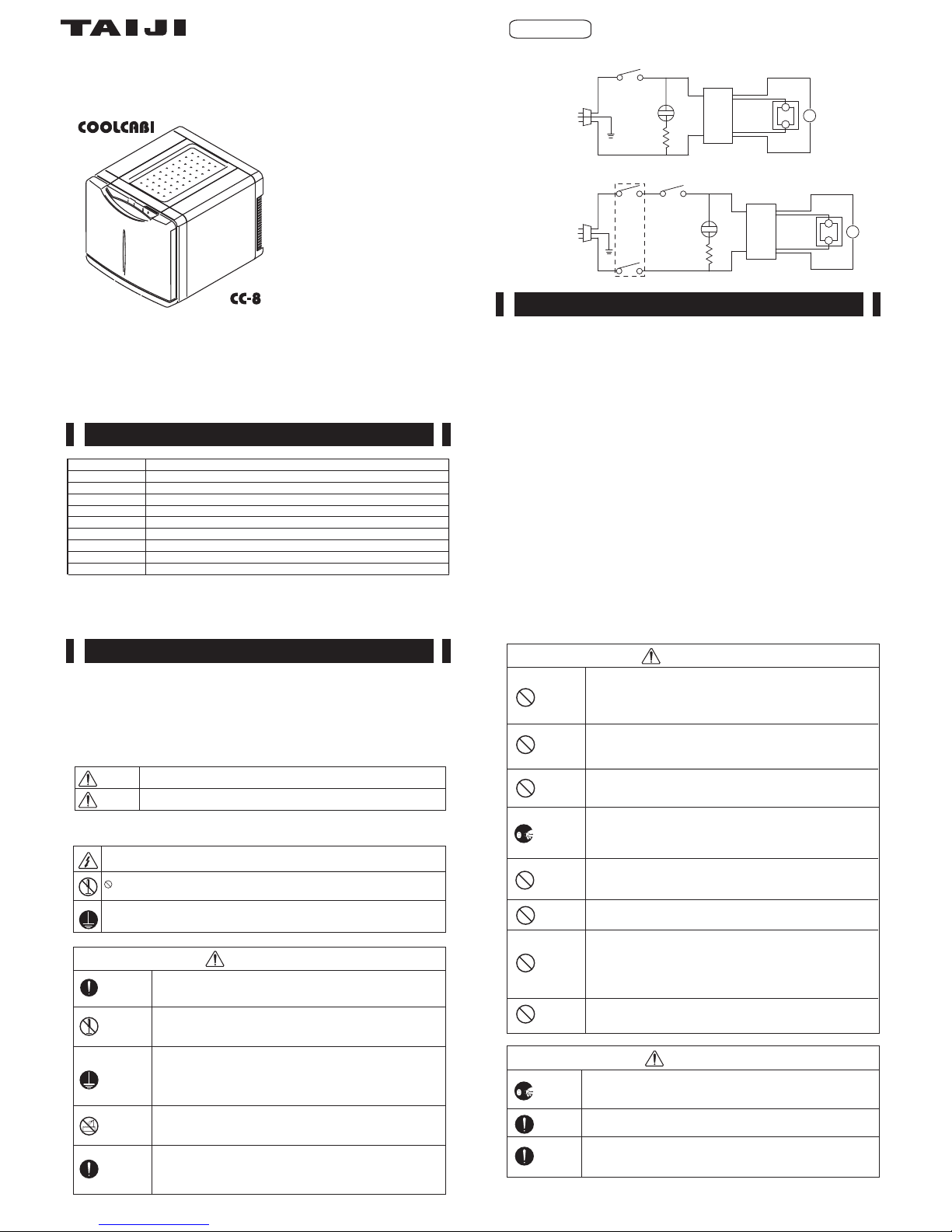

Circuit Diagram
INSTRUCTIONMANUAL
TAIJI “COOLCABI”
Model CC-8
1(0705B) 2
3
■Please peruse these Safety Precautions” carefully so that you can use your “COOLCABI” in
the proper way.
■Please keep these “Safety Precautions” handy for future reference after being read.
■Precautionary measures referred to herein are matters which should be abided by for safe
use and to prevent harm and/or damage being inflicted on yourself or others. Furthermore,
the particulars of the precautionary measures have been classified into “Warning” and “Caution”
to express the degree or extent of conceivable harm and damage which can be assumed to
occur from mishandling. They are both of importance as far as safety is concerned and should
be strictly abided by.
What is assumed to possibly result in death or serious injury.
What is assumed to possibly result only in bodily injury or physical damage.
△mark denotes that “Warning and caution is urged.”
(The one on the left indicates beware of electrical shock.)
mark with a diagonal line means “Forbidden.”
(The one on the left indicates disassembling forbidden.)
●indicates “Instructions” which should be followed by all means.
(The one on the left indicates grounding is a requirement.)
■What precautionary measures shouldbe abided by are expressed by certain marks and
explained as follows:
(2) Absolutely should not be disassembled, repaired, or modified by
anyone other than a repair technician. Could result in ignition or
abnormal performance.
Disassem-
bling
forbidden
Grounding
connection
(3) Ensure grounding is connected.
- If the power outlet does not have an earth terminal, have
one installed by an electrician or the distributor. Imperfect
grounding could lead to electric shock.
- Do not connect to gas line or water pipe.
WARNING
Dousing
with water
forbidden (4) Do not immerse in or douse with water. Such could result in
electric shock or short-circuit.
(1) To be set upon a stable and flat location and not to be moved while
plug is connected to power source. Could result in abnormal
performance.
Attention
required
for setting
Inspect
and clean
(5) Periodically confirm that the plug contacts are kept clean and that
they are firmly inserted in the power outlet.
Dust accumulation or imperfect contact could be the cause of
an electric shock or fire.
4
(10) Do not touch or manipulate electrical parts such as the plug,
Power switch, etc. with wet hands. It could be the cause
of an electric shock.
Wet hands
forbidden
(1) Hold the plug and not the cord when removing the plug from the
electric outlet. Not doing so could result in an electric shock or
ignition.
Hold plug
to remove
→
Forbidden
(6) Handle the power cord with care.
In case the power cord is processed, pulled, bundled, or a heavy
item is placed upon or squeezes it, the cord is apt to be damaged
and could cause an electric shock or fire.
The power cord should not come into contact with a heat source.
Outdoors
forbidden (11) Do not use outdoors. Using “COOLCABI” where there is rainfall
could cause electric leakage and/or electric shock.
Discarding
forbidden
(12) Discarding of “COOLCABI” should be requested of specialized
contractor, public agency, or the distributor from where the
product was purchased. (Adisposal fee is usually charged.)
Discarding it at random could result in third party remodeling,
using it for purposes other than as designed, which could result
in an unexpected accident.
Many loads on
one electrical
outlet
forbidden
(7) Ensure power source is from dedicated outlet of at least 15A.
Using branch sockets could be the cause of abnormal heat,
fire, etc.
Forbidden (8) Do not intentionally bend plug contacts to prevent the plug from
dropping out of the electric outlet. Imperfect contact could be
the cause of fire.
Forbidden (13) Do not have children alone use “COOLCABI” and take care to
place it out of reach of infants. They could suffer from an electric
shock or other injuries.
(9) In the event of abnormal odor or sound, emission of smoke, or in
case water or a foreign substance should enter the cabinet, switch
off the unit immediately and remove the plug from the electric outlet.
Such could possibly lead to an electric shock and outbreak of fire.
Removing
plug
→
(2) Do not drop “COOLCABI” or inflict severe shock to it. It could
result in failure or fire.
Caution
(3) Discard immediately the polyethylene bag the “COOLCABI” was
packed inside. Keep it out of children’s reach to prevent incidents
of suffocation.
Caution
Product Specifications andCircuit Diagram
CC-8
Single-phase 100V-120V 50/60Hz,220V-240V 50/60Hz
85W
Peltier thermoelectronic device
7oC -10oC (when ambient temperature is 25oC)
6 liters
W 300mm x D 340mm x H 261mm
W 227mm x D 182mm x H 152mm
5 kg
Drain tray
* The specifications or appearance are subject to change without notice.
Thank you very much for purchasing
our “COOLCABI.”
To use the product correctly and
safety, please carefully read and fully
understand the contents of this
Instruction Manual prior to use.
Model
Rated voltage
Power consumption
Cooling system
Cabinet temperature range
Cabinet dimensions
Inner cabinet dimensions
Cabinet capacity
Weight
Accessory
For after sales service, call the store where you have purchased your towel cooler, or nearest TAIJI
sales representative or TAIJI Co.,Ltd. in Japan.
TAIJI & CO.,LTD.
8-2, Okawa-cho, Kawasaki-ku, Kawasaki-shi, Kanagawa, 210-0858 Japan
TEL:[phone],FAX:[phone]
E-mail:[e-mail]
URL:http://www.taiji.co.jp/e
After-Purchase Servicing
Safety Precautions
WARNING
CAUTION
WARNING
CAUTION
Product Code: TJCC8/TJCC8-220V
www.spaequip.com T: 707-737-1100 F: 707-737-1150 Page 2 of 3

5
Purpose of Use
This product is a cooling cabinet for exclusive use indoors and is fabricated to keep wet
towels, etc. cool. Should you wish to use it for any other purpose, please contact and
consult with TAIJI & Co.,LTD.
This product keeps towels, etc. cool (approximately 7oC to 10oC) within the cabinet by
the performance of the Peltier thermoelectronic device installed within the cabinet.
(This is the temperature at the center of the cabinet when the ambient temperature is 25oC
and the cabinet is not tightly packed.)
* Peltier thermoelectronic device is a heat exchanging unit using a Peltier element, a sort
of semi-conductor.
Operational Mechanism
Designation of Parts
Power cord
6
7
Sequence of Usage
Pre-use Instructions
1. In case the inner box is moist or there are any foreign substances, wipe clean
with a dry towel, etc.
* Any remaining moisture, etc. could cause failure or malfunction.
2. Put in moist rolled towels, etc. in the inner box. In the event the amount of towels,
etc. put into the cabinet is low, place them flat and as far apart as possible.
* The interior of the cabinet becomes cool from the backside.
* It is recommended that moist towels are placed individually in polyethylene wrapper
from a sanitary viewpoint.
* “COOLCABI” is a cooling cabinet and takes time to cool. Therefore, switching on well
in advance or prior cooling of towels, etc. to be placed in the unit is advised.
3. Close the door tightly and switch on. The Peltier thermoelectronic device is activated
and cooling commences. (Power pilot lamp is lit and exhaust fan rotates.)
* Empty drain tray frequently should water accumulate.
Post-use Instructions
8
Checking Prior to Use and Setting
1. Remove “COOLCABI” from packing carton and make sure that Warranty, Instruction Manual,
and accessories are included.
2. Set “COOLCABI” as follows:
●At a place where it is flat and stable.
●At a place where it is not affected by heat and avoid places where there is direct
sunlight, and near stoves, ranges, etc. (To be set away from such units by at
least 50cm.)
●Away from moist places or where it is susceptible to being splashed with water.
●Leave a space between “COOLCABI” and what may be placed next to it and make
sure there is airy space all around.
●Do not block the intake and exhaust openings.
●Leave a space of at least 10cm above and behind and at least 5cm on both sides.
Should it be set on a shelf, make an opening in the rear so that heat can escape.
(Rise in temperature around the intake opening will cause cooling temperature to
also rise and could cause failure.)
3. Grounding
Ensure correct grounding is secured to protect against electric shock. Consult with your
dealer for details.
4. Affixing drain tray
Hold both sides of drain tray horizontally and push in until firmly
inserted.
When water accumulates in the tray, remove and empty carefully.
Reinsert drain tray after being emptied.
Leave a space of at
least 10cm.
In case plastic parts of “COOLCABI” are touched with oily hands or the unit is placed
where oil is used in large quantities, make it a rule to wipe plastic parts daily with a
soft cloth soaked in neutral detergent solution diluted with hot water and dry off with a
soft cloth. Plastic parts could at times become deformed or crack under the influence
of oils, etc.
(4) Remove the plug from the electric outlet as soon as thunder is
heard. In the event of a nearby lightening strike, abnormal
current/abnormal voltage could infiltrate through the power source
line, etc. and possibly damage the product.
Eliminating
moisture
(5) Switch off and remove the plug from electric outlet when not in use.
If you do not, it could be the cause of an electric shock, electric
leakage fire, etc.
When not
in use
→
Removing
plug
→
(6) Do not use when the power cord or plug is damaged or when the
electric outlet is loose. Using under such conditions could cause
an electric shock, short-circuit, ignition, etc.
Forbidden
(8) Do not place heavy items on “COOLCABI” or place one’s weight on
it with its door open. Such could be the cause of damage or
toppling.
Forbidden
Space all
around (9) Leave some space all around “COOLCABI.” (At least 10cm) Lack of air circulation could cause failures.
(12) Wipe off moisture within the cabinet as well as body after use
and remove any foreign substances. Leaving towels inside will
cause discoloration and bad odor. It will also lead to
malfunctioning when used thereafter.
(13) Empty drain tray frequently. Accumulation of water could lead to
overflowing and cause bad odor.
(11) Do not leave the same towel within the cabinet for more than one
day. It could be the cause of discoloration and bad odor.
(10) Clean filters periodically. (About once a month) Higher
temperatures as a consequence of unclean filters could be
the cause of failures.
Filter
cleaning
(7) Do not place heavy items or water containers on top of
“COOLCABI.” Such could cause damage, injury, short-circuit,
electric shock, corrosion, failure, etc.
Forbidden
Forbidden
CAUTION
Plug
Rear panel
Outlet
Filter
(air intake)
x 3
Door back
Power
switch
Handle
Inner
box
Gasket
Power pilot
lamp
Body
Door
Drain tray
1. Switch off and remove plug from electric outlet.
2. Take out remaining towels, etc. and wipe inner box clean to remove residual
moisture.
3. Empty water accumulated in the drain tray. Wash clean when considerably stained.
4. Stains on the body should be wiped clean with a dry cloth or a tightly wrung
wet cloth.
* Use a neutral detergent when stains are severe. Do not use cleansers containing
abrasives or solvents such as paint thinners.
5. Leave the door of the cabinet open for a while for moisture to dry as a means to
prevent odors.
* Frequent cleaning of filters is a requisite for the cabinet’s best performance.
Check to see if exhaust outlet filter is clogged with dust, etc. If clogged, remove with a
soft toothbrush or eliminate dust with a vacuum cleaner or by other means.
Gasket
Insert gasket fully in the direction
indicated in case it becomes
detached
Power switch
(AC220-240V)
Product Code: TJCC8/TJCC8-220V
www.spaequip.com T: 707-737-1100 F: 707-737-1150 Page 3 of 3
