Talitor CW1113 User manual

Digital Wireless Series Product
User’s Guide
This User’s Guide is applicable to the following products:
#CW1113 - Wireless Black Box
Ver.1.0
130423

-
2
-
Thank you for purchasing our Wireless Black Box. Please read this manual
before installation.
For customer support, please contact your dealer, and keep your Invoice for
further support.
Do not open/modify the device, as it may cause damage to the unit and
void the Warranty. For internal repairs, consult your dealer or an Authorized
Service Center.
Do not use any accessories other than what comes with the unit otherwise, it
would void the warranty.
Protect from humidity. Do not put it in water and be careful to protect it
from rain, sea water, or high humidity environment etc.
Protect from high temperatures
To avoid damage or mis-operation of the device, only use it in the temperature
between 0 ~ +40°C.
Do not bring
the device suddenly from a hot to a cold place, or vice versa.
This may cause damaged to the inside of the unit by creating condensation.
EU Environmental Protection
The symbol of crossed-out garbage shows that this product should not be
treated as household waste, and it falls into the category of electric /electronic
equipment for recycling. This electronic device should not be disposed in a
regular trash. We strongly advice you to contact related authorization before
you dispose this product.

-
3
-
Table of contents
Package contains....................................................................................................................... 4
How to open Wireless Black Box................................................................................................ 5
Interface ..................................................................................................................................... 5
Installation.................................................................................................................................. 6
Technical Specification............................................................................................................... 7

4
Package contains
CW1113
Power Adaptor
3.7 V 4800mAh Li-polymer battery

5

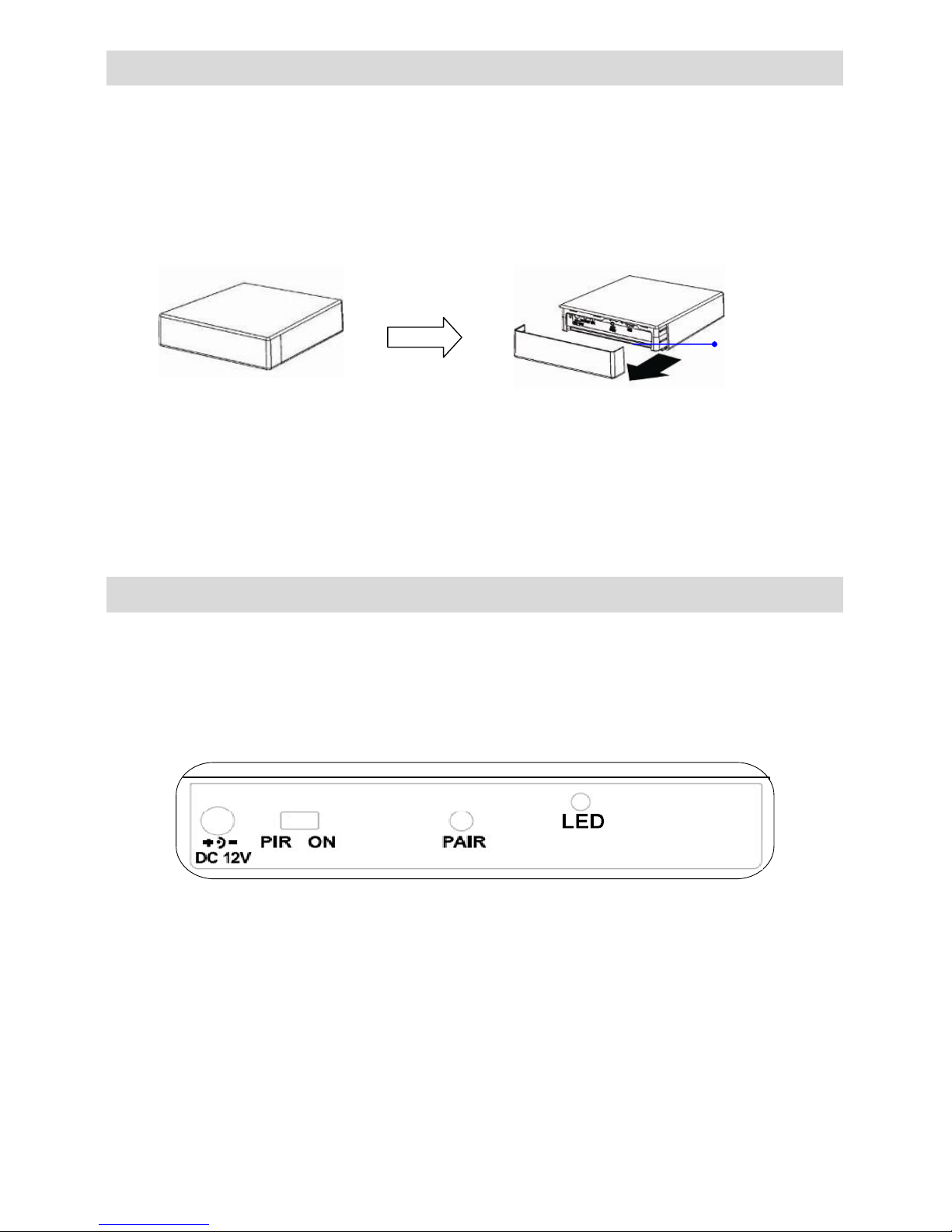

How to open Wireless Black Box
Interface
Interface

6
Installation
1. How to open battery cover
2. Coverage angle of the camera and PIR sensor
**The best IR performance distance will be 10 feet.**
3. How to charge the battery
Connect the provided power adapter to the unit. Please fully charge for 7~8 hours. (Please
charge for 10 hours when you charge the battery for the first time.) With the optional cradle,
the charging time is around 3 hours and the green LED will be on. The battery, after fully
charged, can last for 6.5 hours at least under continuous recording. Under motion activation
or power saving when out of schedule, Wireless Black Box can last for longer.
* NOTE: Under low temperature conditions, the battery will have a shorter life than normal
* NOTE: Please use the bundled power adapter only. Damage which is caused by other
power adapter will be beyond warranty.
* NOTE: For better performance it is recommended to charge the battery once every 3 weeks.
Turn the device upside down.
Open back cover then slide off the
battery cover according to the
direction of arrow
After removing the battery cover,
take out the battery for charging
or changing the battery.

7
Technical Specification
General
Channel Pairing 4 Tx to 1 Rx
Operation Frequency Range 2408.625 ~ 2470.5 MHz
Channels hopping 53CH for NTSC / 18CH for PAL
Modulation GFSK, FHSS (digital)
Transmission Range 150M (or longer with high gain antenna)
Transmitter RF output power 15.5 ~ 18.5 dBm
Wireless Black Box #CW1113
Resolution / Frame Rate 640x480 @ 30fps
Antenna connection Fixed type
Antenna gain 1.5 dBi
RF Data Rate 3Mbits /Second
Reserved PIR motion sensor
input (Alarm input) 1 set (Reserved)
Video Source Input Analog
Power Consumption 12V 270mA (with camera)
12V 120mA (without camera)
Power 12V
PCB Dimensions ca. 48 X 48 MM
Operation temperature 0°C ~ 40°C (32°F~ 104°F)
